Possible 2nd gen to 1st Drum brake parts?

In a bit of frustration and taking hours to remove the drum from my 2012 Taco. I threw something away I realized later I shouldn't have removed and the trash was picked up the next day before I realized it. Seeing if the the part below will also was on the 1st gens or maybe even earlier runners? Maybe the T100?

4764345010 Genuine Toyota LEVER, REAR BRAKE AUTOMATIC ADJUST, RH 47643-45010

I since realized this is one part you do not take off, and Toyota has discontinued the part.

Any helps is certainly appreciated!



They still make that part.
And it comes in most brake hardware kits.

I might eve had my old ones laying around here somewhere.



The adjuster arm is sold with the rod.
https://www.autozone.com/brakes-and...rake-drum-self-adjusting-kit-12561/267571_0_0



I hate drum brakes
Feel your pain



Me too.



It attaches to the parking brake?

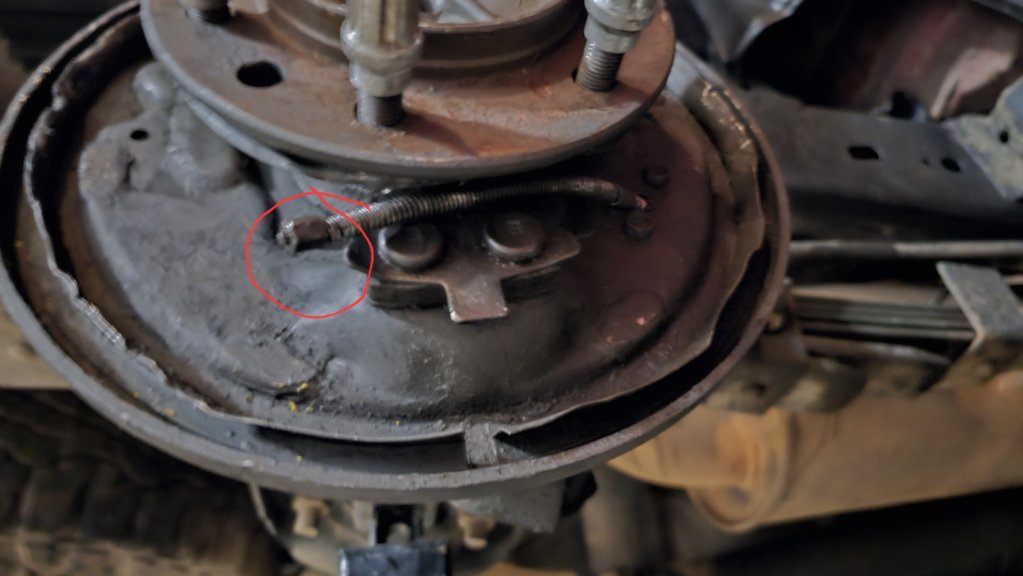

This is what I'm looking for. I had to pry off this piece from the cable.



That piece doesn't attach to the parking brake cable.
You need the parking lever.....

Now I understand.....



The cable attaches to this piece.

That piece in your picture, is what turns and locks the star wheel.
It doesn't attach to the cable at all....

Can you get a picture of the one on the other drum?
That would clear up the part you need.



It connects to the end of this.



Yeah. The piece you posted is not the right one.

Let me see if I can find it.

You need it for the right rear? correct?



Correct. Right Rear

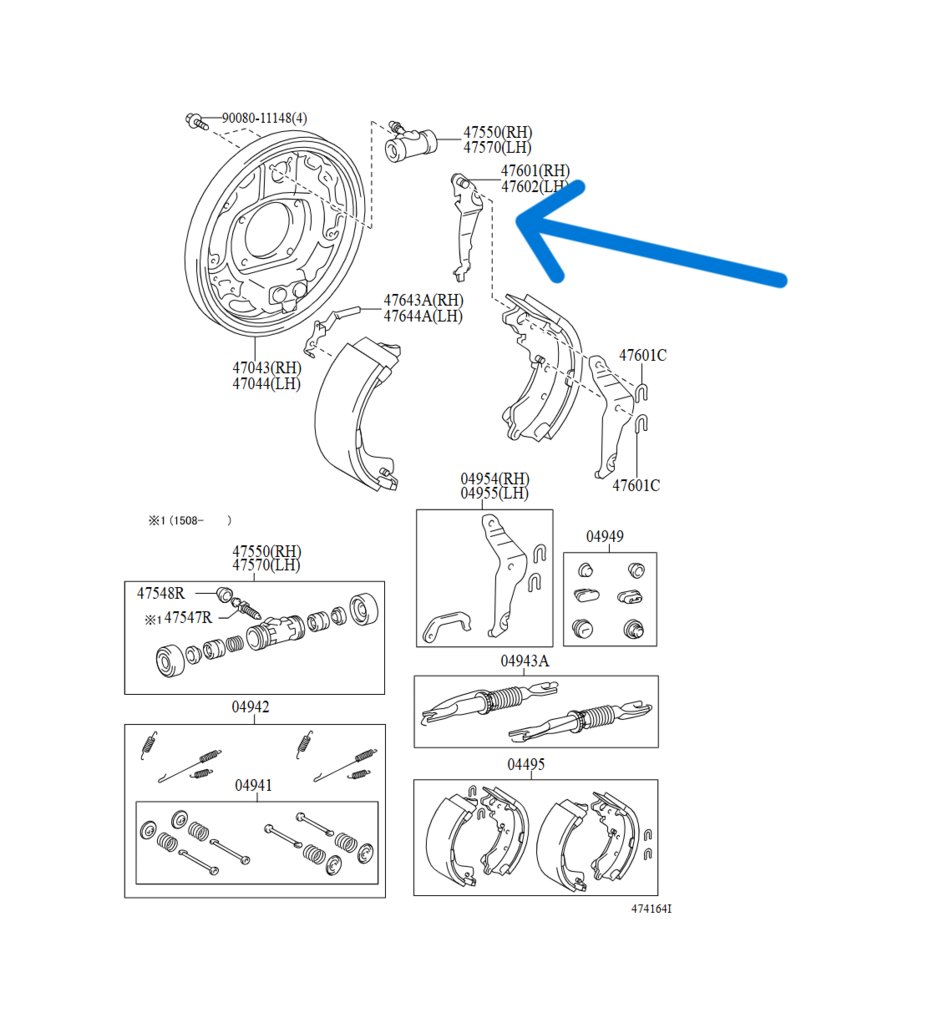

This should be the piece you need.

https://www.toyotapartsdeal.com/oem...rking~brake~shoe~rh~for~rear~47601-08030.html



Thank you kind sir! Just made my day.



Maybe go to a junk yard? There's bound to be that part available, and it's not like it would wear out.



U is Legend.



Thanks to @TnShooter for getting me the correct part number. I thought thats what it was, but the dealership steered me in the wrong direction. I freaked out, because they said it had been discontinued, but turned out to be something else.
