Discussion in 'Lighting' started by JasonLee, Feb 2, 2015.

Page 6 of 15
  1. Dec 24, 2016 at 9:58 AM
    #101
    WildLand

    #101
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra

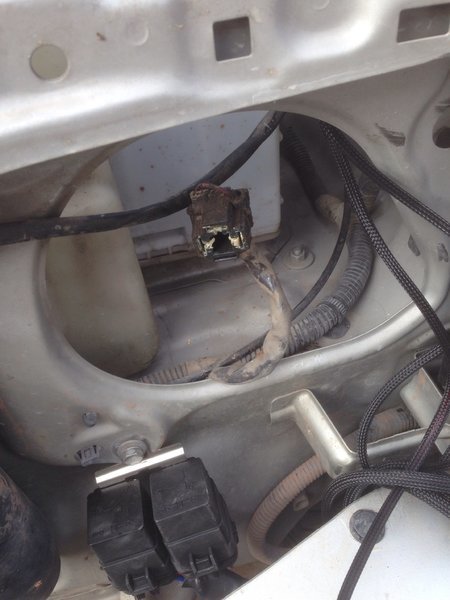

    yeah here is what the back looks like. I am following the tubing and it looks like it connects by the fuse box but un sure

    WildLand, Dec 24, 2016
    #101
    ChadsPride likes this.
  2. Dec 24, 2016 at 10:01 AM
    #102
    Delta00

    #102
    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,142
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    Wait, I don't think I understand. Part of your harness should plug directly into that connector.

    Delta00, Dec 24, 2016
    #102
  3. Dec 24, 2016 at 10:05 AM
    #103
    Delta00

    #103
    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,142
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    This is from a 2nd gen, but it has the OEM plug, and the plug from that harness that goes into it.


    Delta00, Dec 24, 2016
    #103
  4. Dec 24, 2016 at 10:07 AM
    #104
    WildLand

    #104
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra

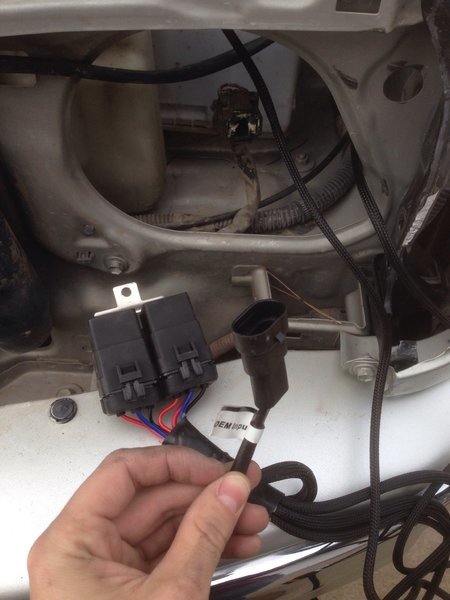

    Hmm wtf. I'm looking where to plug this part in. Is there an adapter I needed to get then?


    Also here on 1:38
    https://www.youtube.com/watch?v=o7Od_1Qij88

    WildLand, Dec 24, 2016
    #104
    ChadsPride likes this.
  5. Dec 24, 2016 at 10:13 AM
    #105
    TashcomerTexas

    #105
    TashcomerTexas My truck is a whiner

    Joined:
    Apr 16, 2014
    Member:
    #127853
    Messages:
    10,104
    Vehicle:
    2003 TRD DC King Ranch Edition

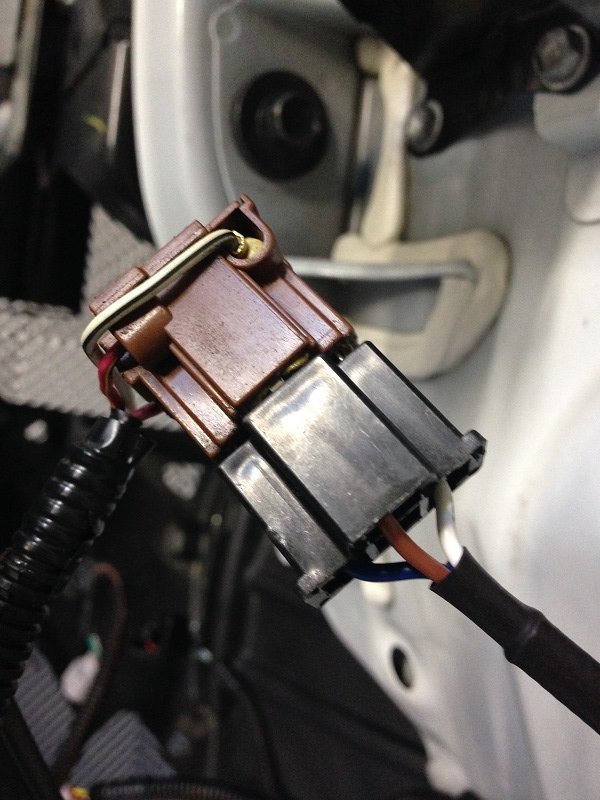

    Yeah the connector should look like this.

    TashcomerTexas, Dec 24, 2016
    #105
    ChadsPride likes this.
  6. Dec 24, 2016 at 10:14 AM
    #106
    Delta00

    #106
    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,142
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    Delta00, Dec 24, 2016
    #106
  7. Dec 24, 2016 at 10:17 AM
    #107
    WildLand

    #107
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra
    WildLand, Dec 24, 2016
    #107
    ChadsPride likes this.
  8. Dec 24, 2016 at 10:19 AM
    #108
    Delta00

    #108
    Delta00 ᕕ( ᐛ )ᕗ

    Joined:
    Sep 16, 2013
    Member:
    #112633
    Messages:
    4,142
    Gender:
    Male
    First Name:
    Troy
    Chandler AZ
    Vehicle:
    2002 Toyota Tacoma 4WD
    Check Build
    Yeah, you posted that pic and I didn't recognize any of the wire harness..

    Delta00, Dec 24, 2016
    #108
    WildLand[QUOTED] likes this.
  9. Dec 24, 2016 at 10:27 AM
    #109
    WildLand

    #109
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra
    :rofl: well shiet...

    WildLand, Dec 24, 2016
    #109
    ChadsPride and Delta00[QUOTED] like this.
  10. Dec 24, 2016 at 3:15 PM
    #110
    LSC15

    #110
    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    7,045
    Gender:
    Male
    First Name:
    Logan
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    Sorry just saw this. Yea wrong harness buddy

    LSC15, Dec 24, 2016
    #110
    WildLand and ChadsPride like this.
  11. Dec 24, 2016 at 5:59 PM
    #111
    WildLand

    #111
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra

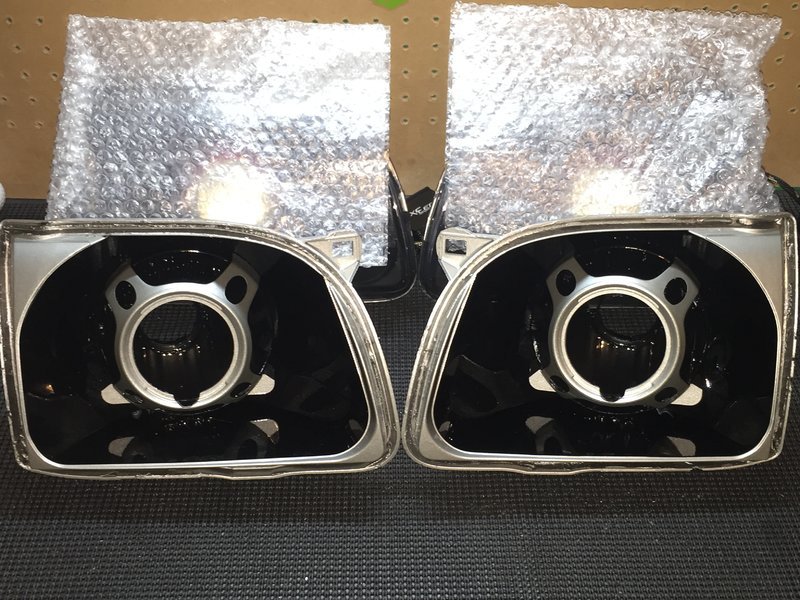

    Well I had fun opening and closing a pair of headlights today

    WildLand, Dec 24, 2016
    #111
  12. Jan 9, 2017 at 2:43 PM
    #112
    WildLand

    #112
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra
    Did you get these finished?

    WildLand, Jan 9, 2017
    #112
  13. Jan 9, 2017 at 2:44 PM
    #113
    LSC15

    #113
    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    7,045
    Gender:
    Male
    First Name:
    Logan
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold

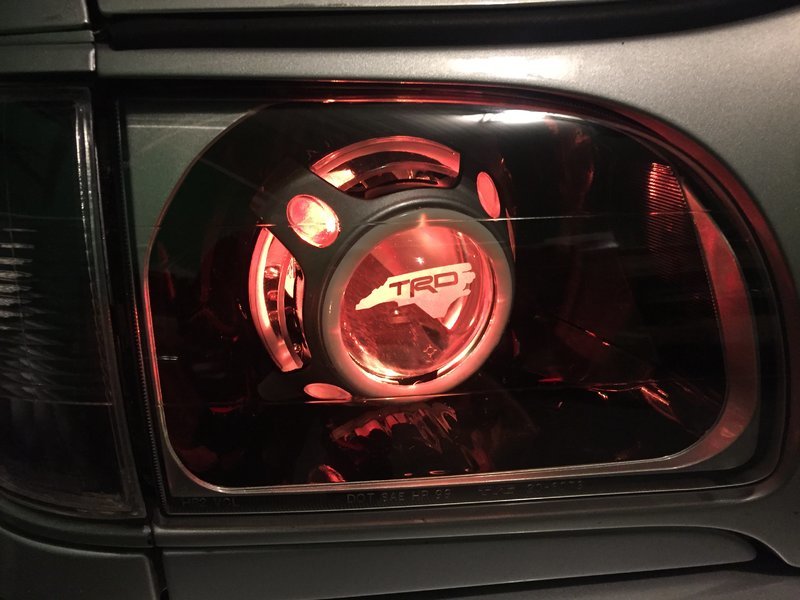

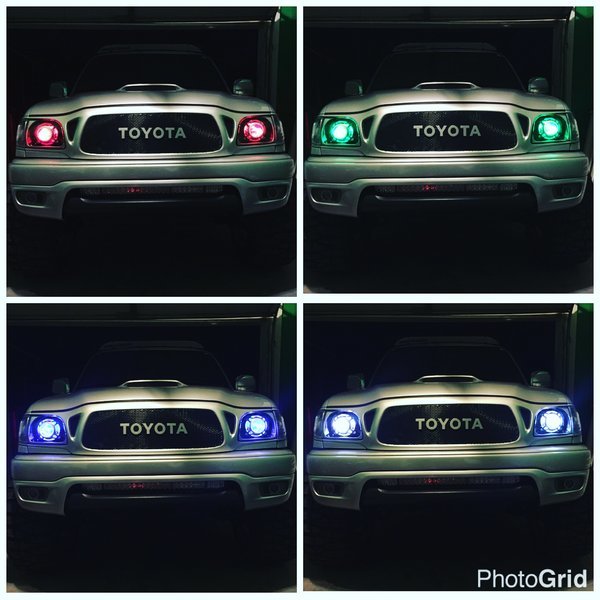

    Yes these are my personal ones on my truck


    LSC15, Jan 9, 2017
    #113
    ChadsPride likes this.
  14. Jan 9, 2017 at 2:45 PM
    #114
    LSC15

    #114
    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    7,045
    Gender:
    Male
    First Name:
    Logan
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold

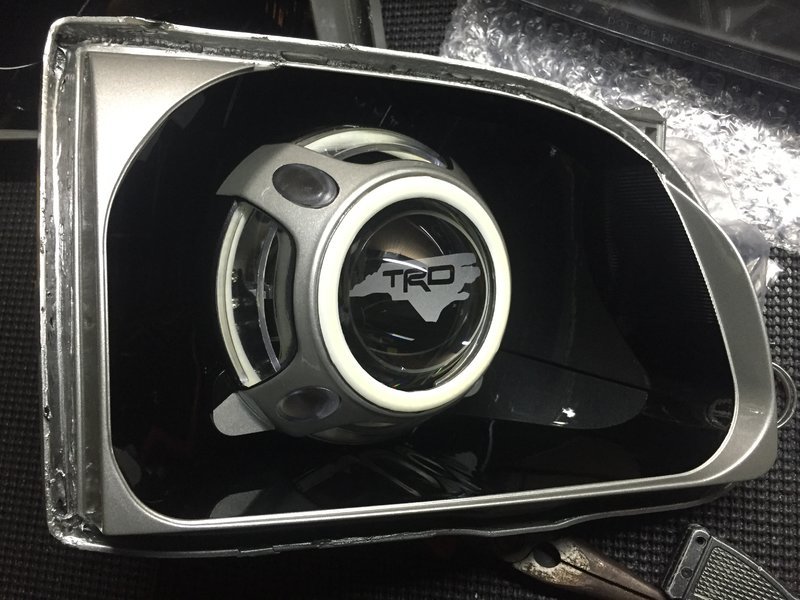

    Also did same thing with opposit paint scheme on housing and used a black Lexus pearl paint


    LSC15, Jan 9, 2017
    #114
    tymeson likes this.
  15. Jan 9, 2017 at 2:48 PM
    #115
    WildLand

    #115
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra
    :facepalm: oh yeah duh. Do you have a picture of them on your truck without any of the halos on?

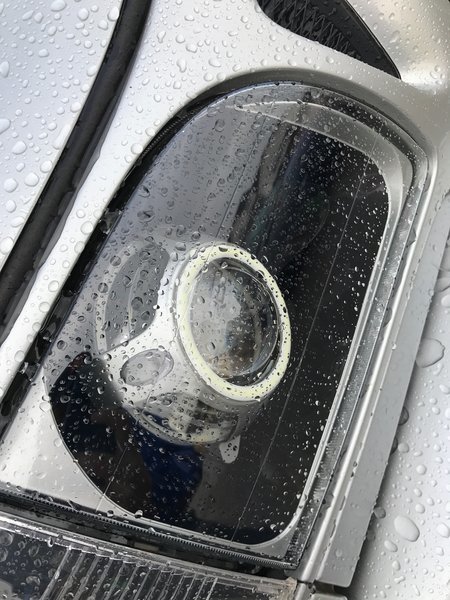

    Damn those others came out great too. Glad you showed me the finish product. Are there pictures of that retrofit on that truck without any lights on (besides the sideways one with water on it)?

    I'm really thinking color matched bowl but it's hard photoshopping so just seeing what it would look like with it all off

    WildLand, Jan 9, 2017
    #115
  16. Jan 9, 2017 at 2:50 PM
    #116
    WildLand

    #116
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra
    Here is my truck with photoshopped black headlights and photoshopped colormatched bumper and grill. I might just end up trying the colormatched and if I dont like it then I will paint it black as I think it looks good like this
    black headlights.jpg

    WildLand, Jan 9, 2017
    #116
    tacomatrd22 likes this.
  17. Jan 9, 2017 at 2:52 PM
    #117
    LSC15

    #117
    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    7,045
    Gender:
    Male
    First Name:
    Logan
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    These are all I have. Will have to get some tomorrow

    image.jpg image.jpg image.jpg

    LSC15, Jan 9, 2017
    #117
    WrappedTacoBro likes this.
  18. Jan 9, 2017 at 2:53 PM
    #118
    LSC15

    #118
    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    7,045
    Gender:
    Male
    First Name:
    Logan
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    You gonna let me build you some?

    LSC15, Jan 9, 2017
    #118
  19. Jan 9, 2017 at 2:57 PM
    #119
    WildLand

    #119
    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,487
    Gender:
    Male
    First Name:
    Fish
    NM
    Vehicle:
    06 Tundra
    That first picture helped a lot.

    I got all the components, just bought the wrong wire harness so I'm at a stand still waiting for that. In the mean time figuring out what course I want to go

    WildLand, Jan 9, 2017
    #119
  20. Jan 9, 2017 at 3:01 PM
    #120
    LSC15

    #120
    LSC15 Southern Retrofits

    Joined:
    Feb 13, 2013
    Member:
    #97458
    Messages:
    7,045
    Gender:
    Male
    First Name:
    Logan
    Vehicle:
    2008 TRD D-Cab
    2008 Double Cab - Current 2002 4runner - Sold 2001 Double Cab - Sold 1995 Xtra Cab - Sold
    Ok buddy good luck

    LSC15, Jan 9, 2017
    #120
Page 6 of 15

Products Discussed in

M18 Cordless Lithium-Ion 6-1/2" Circular Saw - 2630-20 - ( MILWAUKEE ) - BARE TOOL
$85.00
CURT 56584 Replacement Vehicle-Side Custom USCAR 5-Pin Trailer Wiring Harness , Black
$41.78
AUTIDEFY 6 Way Fuse Block Blade Fuse Box with Negative Bus - ATC/ATO for Boat Yacht Vehicle Auto RV Car Trailer Truck SUV
$15.99
Auxbeam 12 Gang Switch Panel Bluetooth RGB AC-1200 with APP&Remote Control Toggle Momentary Pulsed Switch Pod Off Backlight for Truck Offroad UTV ATV Car Marine 12-24V Waterproof 2 Years Warranty
$359.99
HIGH FLYING Car Accessories LED Side Mirrors, Sequential Dynamic Turn Signal Lights Indicator, Pair for Toyota Tacoma 2016-2023, RAV4 XA50 2019-2024, Highlander XU70 2020-2024, Set of 2, Smoked Black
$45.00
ARB CKMA12 On-Board Air Compressor High Performance 12 Volt for Air Locker Differentials and Tire Inflation
$323.00
3M VHB 100x200mm~ (4" X8") Double Sided Foam Adhesive Sheet Tape 5952 Automotive Mounting Industrial Grade Very High Bond 5952 (1 Sheets 100x200mm)
$7.89
HELLA H3 100WTB Twin Blister High Wattage Bulbs, 12V, 2 Pack
$10.36
Black Wire Harness Tubing - High Temperature - 10 Foot Roll - 14mm
$10.95
50pcs Premium Brass 18-22 (RED) Gauge Male-Female Solderless Crimp Bullet Plug Connectors by A Plus Parts House
$10.99
MICTUNING Backlit LED LIGHT BAR Symbol Push Button with Wiring Kit ON-OFF Switch Compatible with Toyota (Blue, Surface Size 1.28 x 0.87"es)
$10.49
EDO Tech® Multi-Use Compact Direct USB Hardwire Car Charger Cable Kit for Garmin GPS Nuvi StreetPilot, Great for Vehicle and Bike (no Traffic Receiver)
$11.50
Botepon 6Pcs Led Rock Lights, Strip Lights, Wheel Well Lights, Led Underglow Kit for Golf Cart, Trucks, Jeep Wrangler, RZR, Offroad, F150, F250, Snowmobile (White)¡
$11.96
CURT 58240 Non-Powered 3-to-2-Wire Splice-in Tail Light Converter, Not Compatible with LED Lights
$11.95
True MODS Black LED License Plate Light for Boat Trailer [Steel Bracket Mount] [DOT FMVSS 108] [SAE L] 12V DC Waterproof Universal Submersible Tag Lamp for Car Work Utility Flat Bed Box Semi Truck RV
$11.99
MILAPEAK 270 PCS Heat Shrink Tubing Kit - 3:1 Ratio Adhesive Lined, Marine Grade Shrink Wrap - Automotive Industrial Heat-Shrink Tubing - Black, Red
$11.98
Performance Tool W2935 Stainless Steel Wire Insertion Tool - Piercing for 1/4" Wiring Hole
$11.21
DEWHEL 8-Pin 81980-50030 066500-4650 Electronic LED Flasher Assy Relay Fix For Lexus Scion or Toyota LED Turn Signal Light Bulbs
$11.99
Nilight - NI-WA 02A LED Light Bar Wiring Harness Kit 12V On Off Switch Power Relay Blade Fuse for Off Road Lights LED Work Light,2 years Warranty,Black, Blue, Red, Green
$11.50
Silica Gel Desiccants 1-1/16 x 2-1/16"es - 20 Packets of 3 Grams Each - 3Gr.Cotton-20pk
$11.49
Niking Auto Rear Lights Rocker Switch Laser Light Toggle Switch On-Off Button 5 Pins Blue LED Light Switch 20A 12V for Cars Trucks ATV UTV RZR RVs Boat
$11.92
SIRIUSLED Super Bright 3020 Chipset Canbus Error Free LED Festoon Bulbs for Car Interior Lights License Plate Dome 1.25” 31MM Festoon 3175 DE3175 6000K White Pack of 2
$11.95
HELLA HLA-H83140141 H4 12V 100/55W Halogen Bulb Off Road Use
$11.39
Best Connection - 10 Amp 12V Led Round Rocker (2701-5J)
$11.64
Blue Sea Systems 1011 Dash Socket, 12V, Black
$11.54
Xscorpion GDB10248P Platinum Ground Distribution Block with 1 1/0 GA Inputs and 1 2 GA 2 4 GA ans 2 8 GA Outputs
$12.50
Brady 97211 Vandal-Proof Tufnut
$12.80
iJDMTOY H4 9003 Heavy Duty Ceramic Wiring Harness Sockets Compatible with High/Low Beam or Fog Lights
$7.59
iJDMTOY (1) Water Tear Drop Shape 12V Push Button Switch with Red/Green LED Indicator Lights Compatible with Fog Lights, DRL, LED Light Bar, etc
$7.59
iJDMTOY H11 H8 880 881 Female Adapter Wiring Harness Sockets Wire Compatible with High/Low Beam or Fog Lights
$7.29
Seal-All 380112 Contact Adhesive and Sealant - 2 fl oz, Steel
$7.58
Sumnacon Dual Ended Crocodile Alligator Clips, 15A Test Lead Wire Cable with Insulators Clips, 2 Pcs 3.3 ft/1m Test Flexible Cable with Protective Jack Copper Clamps for Electrical Testing
$7.99
cciyu 20 Pack Blue T5 3-3014 SMD Wedge LED Light Bulbs 74 17 18 37 70 73 2721 Replacement fit for Instrumental Cluster Gauge Dashboard
$7.69
5 Qty. GMA 3A Fast-Blow Fuse 3 Amp 250v GMA3A, GMA3
$7.48
Philips 43mm festoon X-tremeVision LED 6000K Interior light (Pack of 1)
$7.32
uxcell 20 Pcs 39mm BA9S Festoon Dome Adapter T10 Bulb Socket Connector for Car Light
$7.49
Philips 427716 50 Watt Equivalent Halogen T4 Landscape and Accent Light Bulb
$7.98
10 PACK 13mm/0.50" Translucence Silicone Mounting Bracket for LED Strip Lights
$7.52
SYLVANIA 194 T10 W5W White LED Bulb, (Contains 1 Bulb)
$8.30
USB Reading Lamp with 14 LEDs Dimmable Touch Switch and Flexible Gooseneck for Notebook Laptop, Desktop, PC and MAC Computer + On/Off Setting (14 LED, Black)
$8.49
Wire Loom Cable Insertion Tool for 3/8" to 1/2" - Model CM08
$8.88
ESUPPORT Car Bar 12v 20a Blue LED Horn Light Push Button Rocker Toggle Switch 5pin Momentary on Off
$8.49
To Top
