Power outlet mod

Discussion in '1st Gen. Tacomas' started by smuook, Nov 26, 2009.

  1. Nov 26, 2009 at 9:02 AM
    #1
    smuook

    smuook [OP] Daily Driver "Plus"

    Joined:
    Nov 23, 2009
    Member:
    #26418
    Messages:
    383
    Gender:
    Male
    First Name:
    Frank
    Jacksonville, FL
    Vehicle:
    2004 DC V6 PreRunner
    Billy 5100, Satoshi, Painted wheels, Randy Ellis light bar with 3x PIAA 530, interior lighting, other stuff

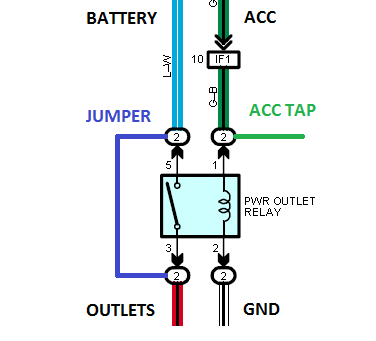

    Simple mod that allows your 12v power outlets to be on when the truck is off. I wanted to be able to charge my phone while the truck is off. Simple schematic... remove the power outlet relay in the engine compartment relay box and install a jumper. Also provides a Accessory power tap for fog lights, etc.

    [​IMG]

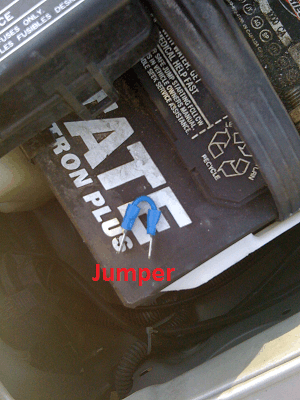

    Here's the jumper:

    [​IMG]

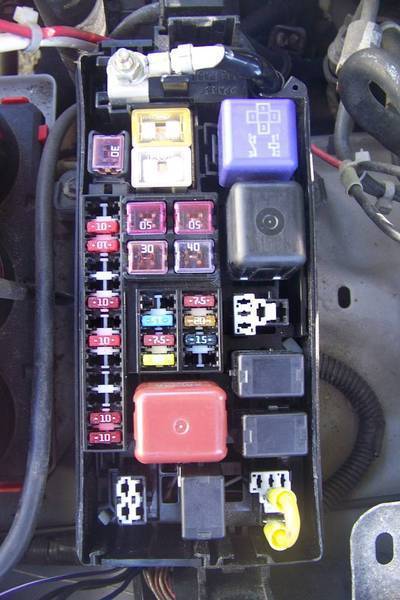

    Relay location:

    [​IMG]

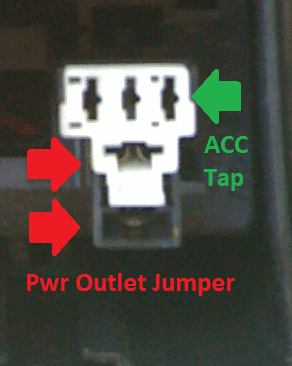

    Remove relay and install jumper:

    [​IMG]

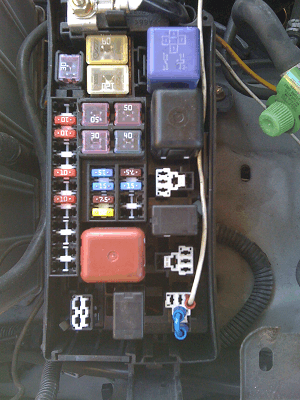

    All finished:

    [​IMG]

    The white wire is my new fog light tap into ACC Pwer that makes sure the fog lights turn on only when the truck is on so I won't accidentally kill my battery. Pretty simple, only about 10 min job. Everything tested and works great.

  2. Nov 26, 2009 at 9:14 AM
    #2
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,352
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    nice write up. like the way you put time into it

  3. Mar 18, 2010 at 10:59 AM
    #3
    MK ULTRA

    MK ULTRA Well-Known Member

    Joined:
    Mar 12, 2010
    Member:
    #33054
    Messages:
    91
    Gender:
    Male
    First Name:
    JIM
    Huntsville Ala
    Vehicle:
    4X4
    Do all Tacoma's have power outlets?

    What years did it start and is this an option?

    Thanks

    Great site.

  4. Mar 18, 2010 at 11:01 AM
    #4
    NeoMoose

    NeoMoose Possibly Batman

    Joined:
    Dec 7, 2009
    Member:
    #27144
    Messages:
    188
    Gender:
    Male
    Houston, TX
    Vehicle:
    2010 PreRunner DC TRD O.R.
    Kenwood eXcelon X993, Kenwood KFC-1693PS (Front), Kenwood KFC-G1620 (Rear), Luverne Black Nerf Bars, OEM Brush Guard, AFE Pro Dry S Drop-In, Some kickass wheel locks, Removed front mud flaps, All windows tinted, Anti-theft tailgate mod
    The 05+ TRD packages have the power outlet.

  5. Mar 18, 2010 at 5:52 PM
    #5
    Beau02

    Beau02 Black Taco

    Joined:
    Oct 28, 2009
    Member:
    #25082
    Messages:
    248
    Gender:
    Male
    First Name:
    Beau
    Indianapolis, IN
    Vehicle:
    2002 4x4 Limited TRD V6 Auto (176k, 1-owner)
    Lots of small stuff; Grillcraft MX, Bilstein 5100's, Deck Plate Mod w/ K&N air filter, Airaid MIT, braided SS brake lines, Redline Tuning QuickLIFT hood struts, Extang Full-Tilt tonneau cover, fog light mod, gray wire mod, power outlets on-demand, Diff breather ext, additional contours to passenger side from oak tree.
    I'm not sure when the additional power outlets started, but my '02 has them, so I would assume that means they're on '01-'04 Tacos. Based on the post above, 05+ trucks have them too. I don't know if they were in the '00 and below?

  6. Mar 18, 2010 at 5:55 PM
    #6
    RoyB

    RoyB Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9708
    Messages:
    1,646
    Gender:
    Male
    Chicago burbs
    Vehicle:
    '09 TRD DC Sport
    you have a 110v outlet?

  7. Mar 18, 2010 at 6:09 PM
    #7
    EnolaGaia

    EnolaGaia Well-Known Member

    Joined:
    Sep 9, 2006
    Member:
    #9
    Messages:
    1,136
    Gender:
    Male
    Midwest USA
    Vehicle:
    '01 & '04 S-Runners
    01 SR: Double Cab conversion, S/C, lowered.
    The separate power outlets (other than the cigarette lighter) were available as early as the 1998 model year.

  8. Mar 18, 2010 at 6:10 PM
    #8
    Beau02

    Beau02 Black Taco

    Joined:
    Oct 28, 2009
    Member:
    #25082
    Messages:
    248
    Gender:
    Male
    First Name:
    Beau
    Indianapolis, IN
    Vehicle:
    2002 4x4 Limited TRD V6 Auto (176k, 1-owner)
    Lots of small stuff; Grillcraft MX, Bilstein 5100's, Deck Plate Mod w/ K&N air filter, Airaid MIT, braided SS brake lines, Redline Tuning QuickLIFT hood struts, Extang Full-Tilt tonneau cover, fog light mod, gray wire mod, power outlets on-demand, Diff breather ext, additional contours to passenger side from oak tree.
    No, first gens don't have 110VAC outlets. See the first post in the thread - the author has an '04 and refers to the 12V power outlets in the truck. That is also what I'm referring to. I see you're probably right in that the post about the 05+ is referring to a 110VAC outlet, but the thread starter wasn't.

  9. Mar 21, 2010 at 6:37 AM
    #9
    krlang

    krlang NewEnglander

    Joined:
    Sep 3, 2007
    Member:
    #2592
    Messages:
    132
    Gender:
    Male
    Commonwealth of Massachusetts
    Vehicle:
    03 2WD 2.4L Tacoma Reg Cab
    Chrome Bumpers F&R, Grille & Corner Lights, Wheel Skins, Red/Clear LED taillights, Remote start, PDL, Cruise, K&N, All Kenwood, DNX-5120 6.1" NAV/TRAFFIC/DTV/DVD/XM/BLUETOOTH/USB/IPOD/SUB/rear cam, Tint, Air Band radio, Class 3 Hitch with 4/7 pin harness, Transmission Cooler, Red Top Battery, "Deck Plate" mod.
    If it wasnt mentioned earlier,

    There are three outlets in my 03
    The one next to the ashtray, which has its own power source.
    The two below on the filler panel, operated by the relay.

    I jumpered out the relay and then added a relabled hazard switch in an empty switch hole next to them to turn the ground on and off.
    I got the Hazard switch in a junkyard, cleaned off the red box and p-touched the area with "12V".

    I wanted to be able to turn them on and off, when not in use.

    It works good, my scanner is plugged into the upper socket normally, but if I want to listen with the truck off, I move it down a hole and press the button.


    [​IMG]

    This picture shows the fusebox, the jumpered relay, and where I put the relay to use it for my foglights, the next relay socket is powered from the factory, so you just need to add the output and control wires. I ran the output to the two 10a fuses in the bottom corner of the box. One for each foglamp. then I tied the control wire through a switch to ground at the headlight ground, so it shuts off the foglights when the headlights are off.

  10. Mar 22, 2010 at 3:57 PM
    #10
    RoyB

    RoyB Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9708
    Messages:
    1,646
    Gender:
    Male
    Chicago burbs
    Vehicle:
    '09 TRD DC Sport
    i only read what i want to :D

  11. Apr 1, 2010 at 7:23 PM
    #11
    althorp

    althorp New Member

    Joined:
    Apr 1, 2010
    Member:
    #34413
    Messages:
    1
    Gender:
    Male
    Western Massachusetts
    Vehicle:
    98 Tacoma 4WD
    Pace Edwards JackRabbit tonneau cover.
    Thanks, SMUOOK, for that excellent mod description. Exactly what I was looking for! Great Site.

  12. Apr 4, 2010 at 9:43 AM
    #12
    sp0di

    sp0di Active Member

    Joined:
    Mar 19, 2010
    Member:
    #33546
    Messages:
    30
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    10 DC OR
    any thoughts if this would work on a Gen 2?

  13. Apr 4, 2010 at 12:58 PM
    #13
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,834
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 220k miles
    '95-'97 camouflaged, ARB bull bar, sliders, rear tube bumper, King coilovers with Icon neoprene condoms and a defenestrated sway bar, OME Rear Suspension: CS046R leafs/N85 shocks/NWOR greasable mounting stuff; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W fog lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor; 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions/dif drop, Duratrac tires, Sockmonkey bedside decals, boat cupholder
    Nice job. I'll be doing that soon then.

  14. Apr 4, 2010 at 6:14 PM
    #14
    Rattler

    Rattler Wandering But Not Lost

    Joined:
    Jul 8, 2009
    Member:
    #19435
    Messages:
    470
    Gender:
    Male
    Bay City MI
    Vehicle:
    '04 DoubleCab "3 Lift on 285/75/16s
    All Pro rear bumper with an Ironman Offroad swing-out spare carrier, Bajarack on top, blacked-out grill, Lightforce 140s Mombasa Rooftop Tent
    I need to do this too.

  15. Apr 4, 2010 at 6:27 PM
    #15
    2004Taco

    2004Taco Well-Known Member

    Joined:
    Sep 28, 2008
    Member:
    #9556
    Messages:
    507
    Gender:
    Male
    Lakewood,Ca
    Vehicle:
    04 PreRunner SR5 Trd
    Magnaflow and Deckplate Mod Billet grille
    (stupid question) Now having this mod done. Will it eventually kill the battery if you have something plugged in over night?

  16. Apr 4, 2010 at 6:46 PM
    #16
    EnolaGaia

    EnolaGaia Well-Known Member

    Joined:
    Sep 9, 2006
    Member:
    #9
    Messages:
    1,136
    Gender:
    Male
    Midwest USA
    Vehicle:
    '01 & '04 S-Runners
    01 SR: Double Cab conversion, S/C, lowered.
    Conceivably - yes. Bypassing the relay like this essentially makes for a 'constant hot' circuit direct to the battery.

  17. Jun 18, 2011 at 6:09 PM
    #17
    rberumen2

    rberumen2 Well-Known Member

    Joined:
    Oct 28, 2009
    Member:
    #25084
    Messages:
    283
    Gender:
    Male
    First Name:
    Ralphie
    California
    Vehicle:
    2006 PreRunner
    Eibach coils, billies all around, Camburg Spindles, Debadged, flow master, 5% tint all around, Alpine sound system, Kenwood DVD player, mesh grille, blue dome light bulbs, Red Paint calipers, debadged tailgate, blackened lower bumper, black headlight mod, tinted taillights, painted engine cover, BFG 285 75 R16, Moto Metal 951, TRD CAI, Helix Throttle body spacer, 8000K HID headlights, 3000K HID foglights, Ultra-gauge, prestige pager alarm, anytime fog light and daytime lights, LED gauge MOD, Escort 9500i radar detector, 09 taillights, tacoma bedmat, Stubby antenna, Pop N Lock, Back-up camera, URD Short Shifter
    where can you buy a jumper?

  18. Jun 18, 2011 at 6:37 PM
    #18
    Norton

    Norton Senior TW Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    1,986
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    04 V6 5-Spd SR5 TRD 4x4
    TRD Supercharger; URD 7th Injector; Injen CAI w/Airaid SynthaMax Filter; Magnaflow Cat-back; Wheelers 5-Leafs; OME 881s; Bilstein 5100s; Goodridge SS Brake Lines; Goodyear Wrangler Duratracs on 4Runner Ltd 5-Spokes; MetalMiller TRD Skid; B.A.M.F BPV Bracket; Grey Wire, Fog Light, Power Outlet, Door Chime & DRL Mods; FUBAR Moto Bits LED Headlights; Interior, Under-hood, & Reverse LEDs; Kenwood KDC-X895 HU & KFC-C6893PS Spkrs, Sound Ordnance B-8PT Sub & Dynamat; Husky Floor Liners; UltraGauge EM; External Thermometer; Redline Tuning QuickLIFT Elite; Rhino Bed Liner; Toyota Bed Extender; SnugTop Super Sport; SolarGard Tint; CravenSpeed Stubby Antenna; Alarm w/Keyless Entry; Amsoil Lubricants; Adam's Detailing Supplies
    Why not just make one, with a piece of wire and a couple of crimp connectors. :confused: (Took less than 5 minutes when I did mine.)

    Great write-up, BTW, OP! Thanks for taking the time to put it together.

  19. Jun 18, 2011 at 9:06 PM
    #19
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Thor

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,352
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    This is how I did mine......took out relay and put in jumper wire.

  20. May 13, 2012 at 6:14 PM
    #20
    Rdy2offrd88

    Rdy2offrd88 Well-Known Member

    Joined:
    Feb 12, 2012
    Member:
    #72697
    Messages:
    127
    Gender:
    Male
    First Name:
    Nick
    St. Louis, MO
    Vehicle:
    02 DC TRD
    Deckplate, CB w/ 4ft Firestick, Bedrug
    Iv'e been looking at doing this but I can't seem to find a jumper. Ive looked at my local O'Reilys and online. Any help on where to locate on of these. thanks
