Power source for rear dashcam?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Bikerscum, Mar 11, 2023.

  1. Mar 11, 2023 at 12:15 PM
    #1
    Bikerscum

    Bikerscum [OP] Well-Known Member

    Joined:
    Dec 11, 2022
    Member:
    #412783
    Messages:
    112
    Gender:
    Male
    Vehicle:
    2023 TRD Prem. OR 4 dr. short bed, Adv. Tech, LED headlights, Mag grey
    '23 TRDOR 4 dr.

    I'm putting a rear facing Garmin dashcam in my Tac. For power I'll need a constant 12v source as well as a switched 12v. Any convenient places to tap in back there? Go under the carpet to the center console?

    Tried to find a wiring diagram online but no luck.

    Thanks!

  2. Mar 11, 2023 at 12:34 PM
    #2
    dowNNshift

    dowNNshift Well-Known Member

    Joined:
    Jan 2, 2016
    Member:
    #173783
    Messages:
    53
    I had a similar dilemma last month when I was wiring up my rear facing Garmin Mini 2 as well.

    What I ended up doing was adding it to a 5A circuit of my Auxbeam controller. I then ran a new wire set through the cab firewall, then through the doorwell channel, then made a USB termination in the rear utility area. Turned out classy and works well. I can turn the rear camera on when needed with a simple press of a button.

    Auxbeam Switch:


    Wiring Lead Bundle that I created:


    Auxbeam Relay block:

    End Result with a decent view:

    Last edited: Mar 11, 2023
    AlwaysDirty likes this.
  3. Mar 11, 2023 at 12:44 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

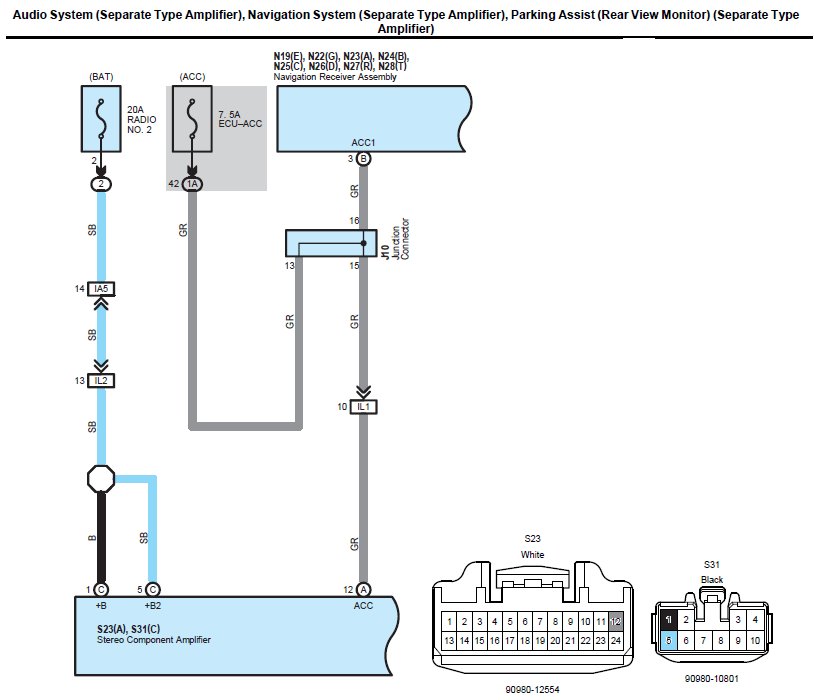

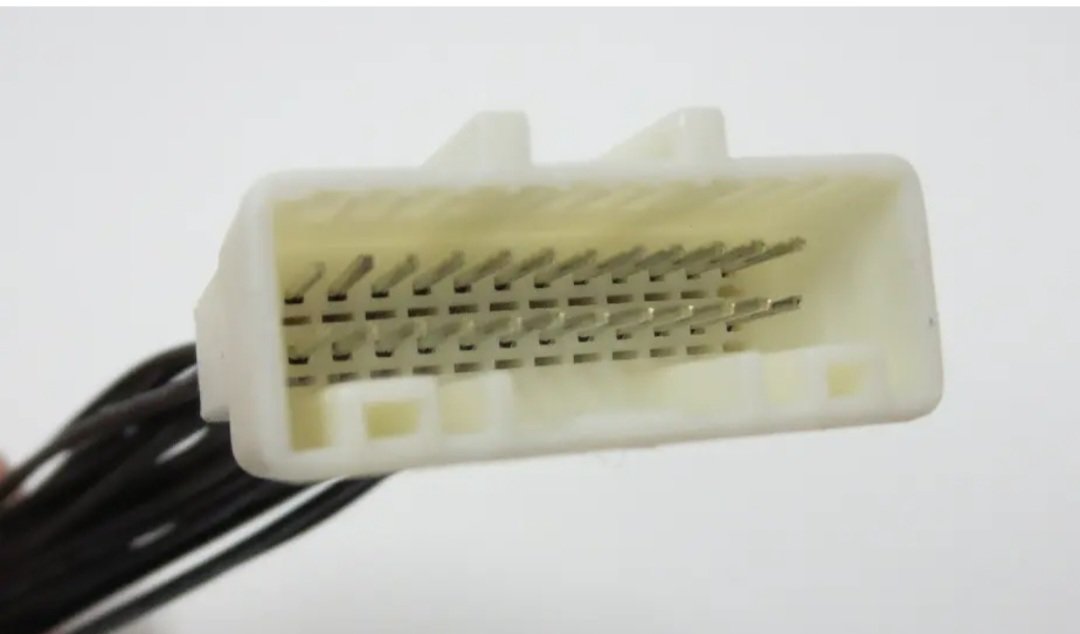

    You'll find both at the amplifier connector.

    Last edited: Mar 11, 2023
  4. Mar 11, 2023 at 1:09 PM
    #4
    Bikerscum

    Bikerscum [OP] Well-Known Member

    Joined:
    Dec 11, 2022
    Member:
    #412783
    Messages:
    112
    Gender:
    Male
    Vehicle:
    2023 TRD Prem. OR 4 dr. short bed, Adv. Tech, LED headlights, Mag grey
    PERFECT!

    Thanks to all!

  5. Mar 12, 2023 at 10:20 AM
    #5
    TacOCD

    TacOCD Active Member

    Joined:
    Apr 13, 2022
    Member:
    #394993
    Messages:
    36
    Gender:
    Male
    First Name:
    CP
    Pennsyltuckey
    Vehicle:
    2022 BlueCrush Tacoma 4x4 TRD OFF Road DCSB Auto
    Black TRD Pro Wheels 21’ 6 Spoke; GY Duratrac 265/75/16; Head Rail; Rocky Mounts; Useless Interior Red Trim; TRD Shift Knob; Red Meso Start Button and Trims; Tint
  6. Mar 12, 2023 at 10:28 AM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    That would be a very long wire to the rear window.

  7. Mar 12, 2023 at 10:38 AM
    #7
    TacOCD

    TacOCD Active Member

    Joined:
    Apr 13, 2022
    Member:
    #394993
    Messages:
    36
    Gender:
    Male
    First Name:
    CP
    Pennsyltuckey
    Vehicle:
    2022 BlueCrush Tacoma 4x4 TRD OFF Road DCSB Auto
    Black TRD Pro Wheels 21’ 6 Spoke; GY Duratrac 265/75/16; Head Rail; Rocky Mounts; Useless Interior Red Trim; TRD Shift Knob; Red Meso Start Button and Trims; Tint

    Lol… yes very long! Likely an easy fix on a 2 door- Keep us posted on how it goes… enjoy and take care

  8. Mar 12, 2023 at 11:21 AM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

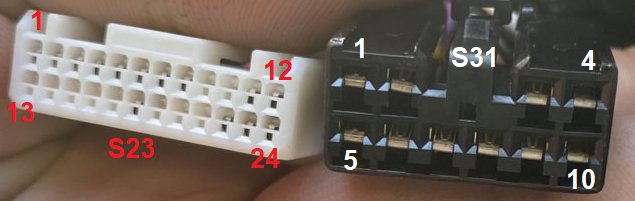

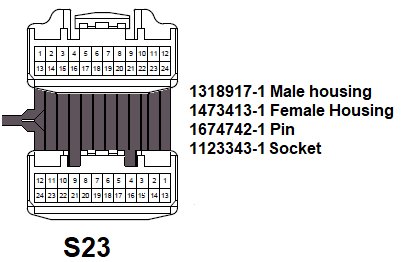

    S31 Assembled harness to intercept the fused battery source.
    Connector is same as R44 on overhead console.

    Last edited: Mar 12, 2023
  9. Mar 12, 2023 at 11:37 AM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

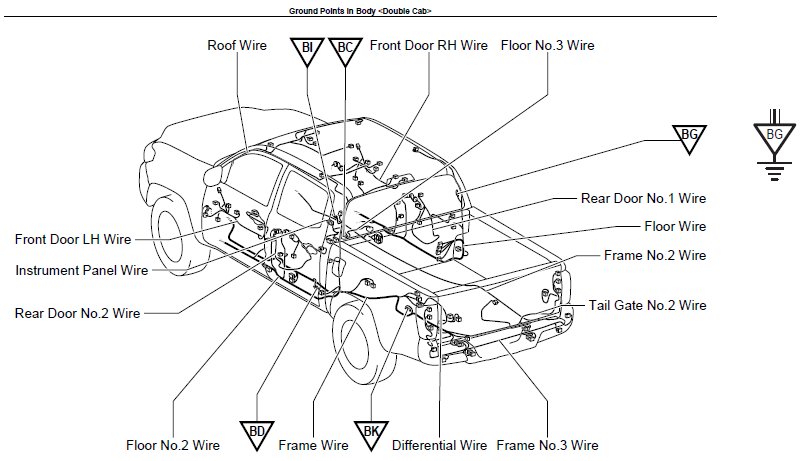

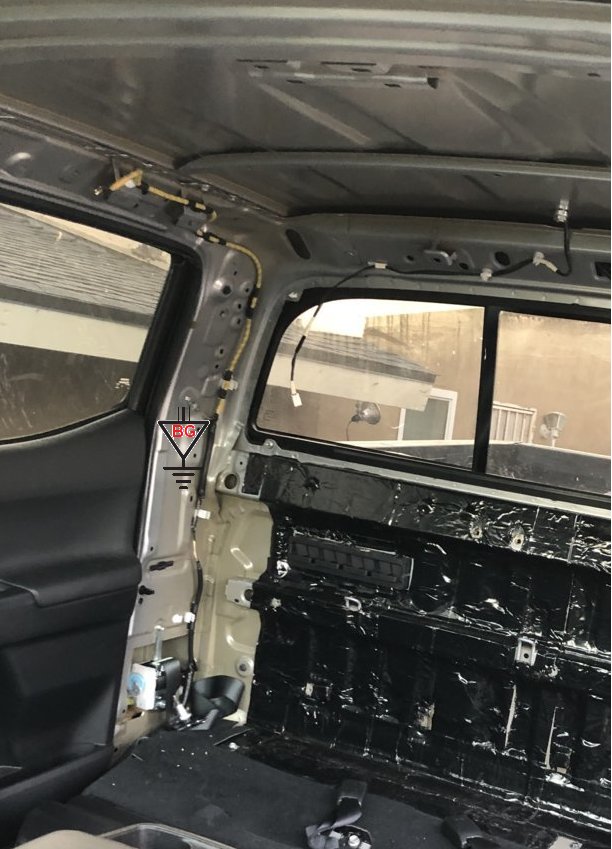

    Ground

    shakerhood likes this.
  10. Mar 25, 2023 at 2:54 PM
    #10
    Bikerscum

    Bikerscum [OP] Well-Known Member

    Joined:
    Dec 11, 2022
    Member:
    #412783
    Messages:
    112
    Gender:
    Male
    Vehicle:
    2023 TRD Prem. OR 4 dr. short bed, Adv. Tech, LED headlights, Mag grey

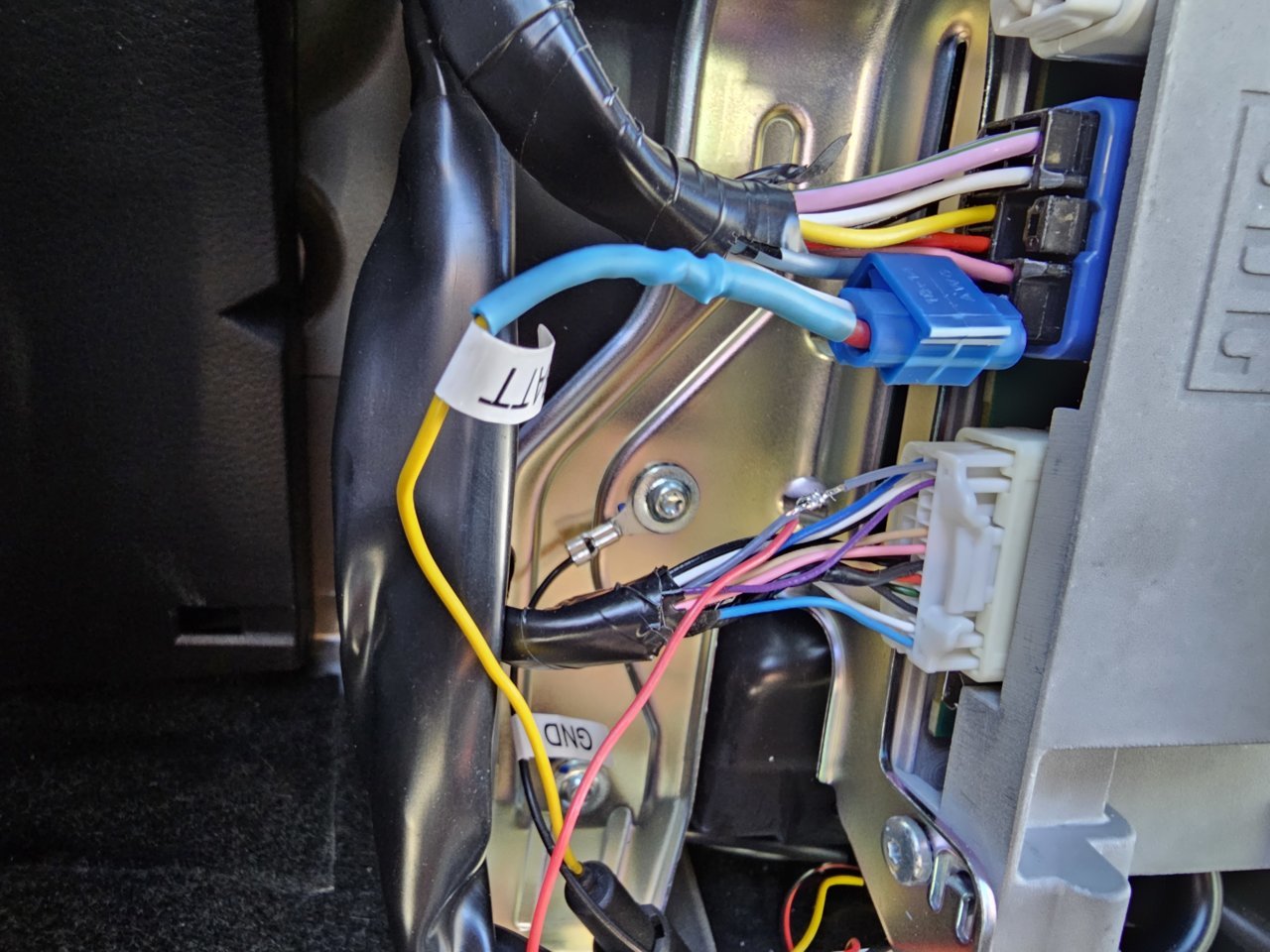

    I probed around pretty good & did not find constant 12v on the 24 pin connector. I did find it on the white wire on the top connector. I found 12v switched on the 24 pin, grey wire (see photo below, and yes I'll be covering that solder joint lol)

    Thanks to all for the help, camera is working perfectly!


  11. Mar 25, 2023 at 3:12 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you revisit post #3, it shows IGN (Switched) on the 24 pin (S23) connector and constant on S31, as you have it now.:smack::rofl:

  12. Mar 25, 2023 at 3:36 PM
    #12
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    8,809
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Oh man, you guys are doing it the hard way if the camera is in the back window. For switched power, go off the ceiling mirror wire, for power, go up the A pillar from any hot lead on the fuse box with a add a fuse tap and then go along the headliner along the right side - you can stuff the wire under the headliner edge without having to take it down anywhere. Then in the back corner go down behind the back seat or up over it.

    AlwaysDirty likes this.
  13. Mar 25, 2023 at 3:38 PM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :rofl::rofl::rofl:

  14. Mar 25, 2023 at 3:49 PM
    #14
    Bikerscum

    Bikerscum [OP] Well-Known Member

    Joined:
    Dec 11, 2022
    Member:
    #412783
    Messages:
    112
    Gender:
    Male
    Vehicle:
    2023 TRD Prem. OR 4 dr. short bed, Adv. Tech, LED headlights, Mag grey
    My reading of your diagram also showed 12v constant on pin 1&5 on the 24 pin connector.

    Shows what I know about wiring lol.

    Thanks again!

  15. Mar 25, 2023 at 3:52 PM
    #15
    Bikerscum

    Bikerscum [OP] Well-Known Member

    Joined:
    Dec 11, 2022
    Member:
    #412783
    Messages:
    112
    Gender:
    Male
    Vehicle:
    2023 TRD Prem. OR 4 dr. short bed, Adv. Tech, LED headlights, Mag grey
    Think I'll stick with the amp method, thanks tho :thumbsup:

  16. Mar 25, 2023 at 3:53 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :hattip::thumbsup:

  17. Mar 25, 2023 at 5:00 PM
    #17
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    8,809
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    No, seriously! ;) Or did I miss something?

    the routing I used on mine along the side of the headliner works very well and snuggly hides the cable from the mirror all the way to the back of the cab.
