Power Steering Cylinder Leaking

Discussion in 'Boating & Fishing' started by Jason'sLawnCare, Jun 17, 2010.

  1. Jun 17, 2010 at 9:31 AM
    #1
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    Hi guys,

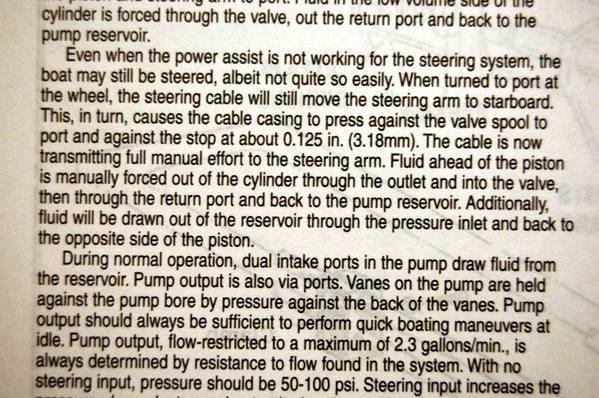

    I have a 17ft bowrider with a Volvo penta 4.3. It has the power assisted steering and the cylinder is leaking steering fluid. I have yet to decide how I want to go about fixing it but I was curious if you knew if I could run it with out the power assisted steering. I want to use it this weekend. I could just take the belt off and not drive the pump. I don't think I could hurt anything but I want to run it by you guys. I can't imagine the steering being that hard anyways. I mean there was once a time that boats didn't have all the fancy stuff to break. Anyways here's the steering system I have.

    [​IMG]

    Thanks

  2. Jun 17, 2010 at 9:47 AM
    #2
    MAXTacoma

    MAXTacoma Well-Known Member

    Joined:
    Feb 15, 2007
    Member:
    #917
    Messages:
    4,341
    Gender:
    Male
    Vehicle:
    Lexus GS 350
    If I had to guess, you could probably run without the pump. It might be a little hard to steer while moving but as long at you are careful you should be ok. Depending on how much it is leaking couldn't you just fill the power steering pump reservoir and keep an eye on to make sure it doesn't go emplty. GL

  3. Jun 17, 2010 at 10:01 AM
    #3
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    Thanks for your help. It's a decent leak. Also I saw it smoke up a little because I think it dripped on the risers so I don't want to take a chance with that either.

  4. Jun 17, 2010 at 10:19 AM
    #4
    MAXTacoma

    MAXTacoma Well-Known Member

    Joined:
    Feb 15, 2007
    Member:
    #917
    Messages:
    4,341
    Gender:
    Male
    Vehicle:
    Lexus GS 350
    ^ Take the belt off and putt around in the no wake zone to see if you can still steer before you get too far away from the ramp.

  5. Jun 17, 2010 at 10:21 AM
    #5
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    Good idea.

  6. Jun 17, 2010 at 2:27 PM
    #6
    98tacoma27

    98tacoma27 :POOPCORN: Thor

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,249
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    There, that was killing my neck


  7. Jun 17, 2010 at 2:28 PM
    #7
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    haha. Thanks. That's just how my phone took it then I uploaded it directly to twlive otherwise I would have rotated it.

  8. Jun 17, 2010 at 2:33 PM
    #8
    98tacoma27

    98tacoma27 :POOPCORN: Thor

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,249
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Here's the thing; if the cylinder seal is blown as you said, it will still leak when the rod moves back and forth. I would also suggest disconnecting the cylinder in the retracted position.

  9. Jun 17, 2010 at 2:37 PM
    #9
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    You still think it will leak without any pressure? That was a concern of mine. That's a good idea to disconnect it though. I'm going to have to do it anyway when I fix it.

  10. Jun 17, 2010 at 2:41 PM
    #10
    98tacoma27

    98tacoma27 :POOPCORN: Thor

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,249
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    You will create flow by moving the cylinder. Yes, it will still leak, just not as bad. Test this buy turning you wheel with the motor off.

  11. Jun 17, 2010 at 2:51 PM
    #11
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    I just did that and it didn't seem to leak anymore.

  12. Jun 17, 2010 at 2:55 PM
    #12
    98tacoma27

    98tacoma27 :POOPCORN: Thor

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,249
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    That's good, but when you get out there and test the steering on the water keep an eye on it.

  13. Jun 18, 2010 at 10:06 AM
    #13
    MAXTacoma

    MAXTacoma Well-Known Member

    Joined:
    Feb 15, 2007
    Member:
    #917
    Messages:
    4,341
    Gender:
    Male
    Vehicle:
    Lexus GS 350
    As a fellow boater you'll have to let me know if you can actually run the boat w/o power steering. So if this ever happens to me I'll know. THANKS

  14. Jun 18, 2010 at 10:41 AM
    #14
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    I don't have a doubt it can't be run my concern is further damage. I think I'll just order the part online and fix it before I potentially push my luck. I can make it a beach weekend if my parents want to go.

    [​IMG]

  15. Jun 18, 2010 at 1:00 PM
    #15
    MAXTacoma

    MAXTacoma Well-Known Member

    Joined:
    Feb 15, 2007
    Member:
    #917
    Messages:
    4,341
    Gender:
    Male
    Vehicle:
    Lexus GS 350
    ^ Better to be safe than sorry, its not worth causing more problems.
