    Quick Links: Advice please! What would you do differently first time purchasing a lift kit/suspension upgrade? Rago fabrication tailgate antenna mount radio wire routing Need a 'name' for a piece of hardware please. Thinking about this sport hood only $140 Jump starter/pack worth having? 4.0 liter 1GR-FE V6 4X4 TRD 6-Speed Manual Transmission 30K Service Checklist

Power Steering Leak. Help a broke firefighter find a part or solution!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CaliCountryTaco, May 30, 2017.

Page 2 of 2
  1. Jul 17, 2017 at 8:05 AM
    #21
    Bebop

    #21
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    Well my internet is shit and it's not uploading the diagrams. I'll upload them when I get home. I'll type the instructions now
    1.dissconnect negative cable end
    2. Remove skid plate
    3. Remove belt
    4. Drain power steering fluid. ( take reservoir off and drain into bucket)
    5.dissconnect oil reservoir to pump hose
    6. Disconnect pressure feed tube assembly(remove the union bolt then disconnect the pressure feed tube)
    6.b. Remove the gasket from the pressure feed tube.
    7. Remove vane pump.
    A. Dissconnect the oil pressure switch connector
    B. Remove the bolt and wiring harness clamp bracket
    C. Remove the 2 bolts behind the pulley to remove pump assembly. I'll post the pics when I get some decent wifi.

    Bebop, Jul 17, 2017
    #21
    CurtB and PapaBear like this.
  2. Jul 17, 2017 at 3:58 PM
    #22
    Bebop

    #22
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.

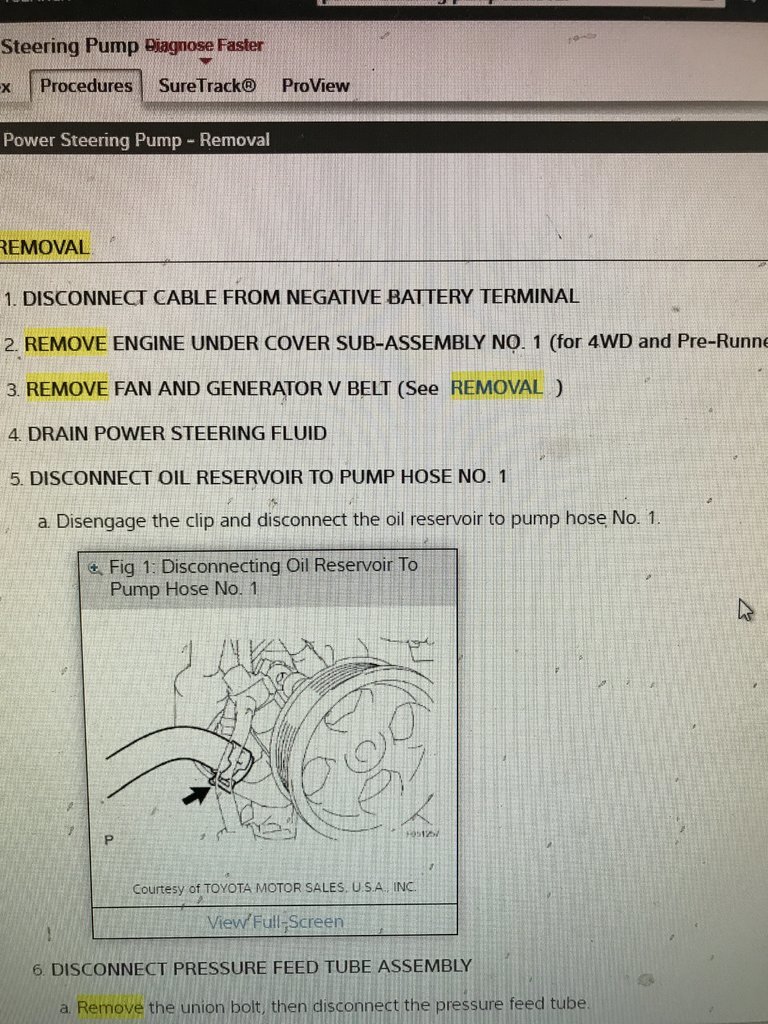

    1st pic


    Bebop, Jul 17, 2017
    #22
    tomwil and PapaBear like this.
  3. Jul 17, 2017 at 3:59 PM
    #23
    Bebop

    #23
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.

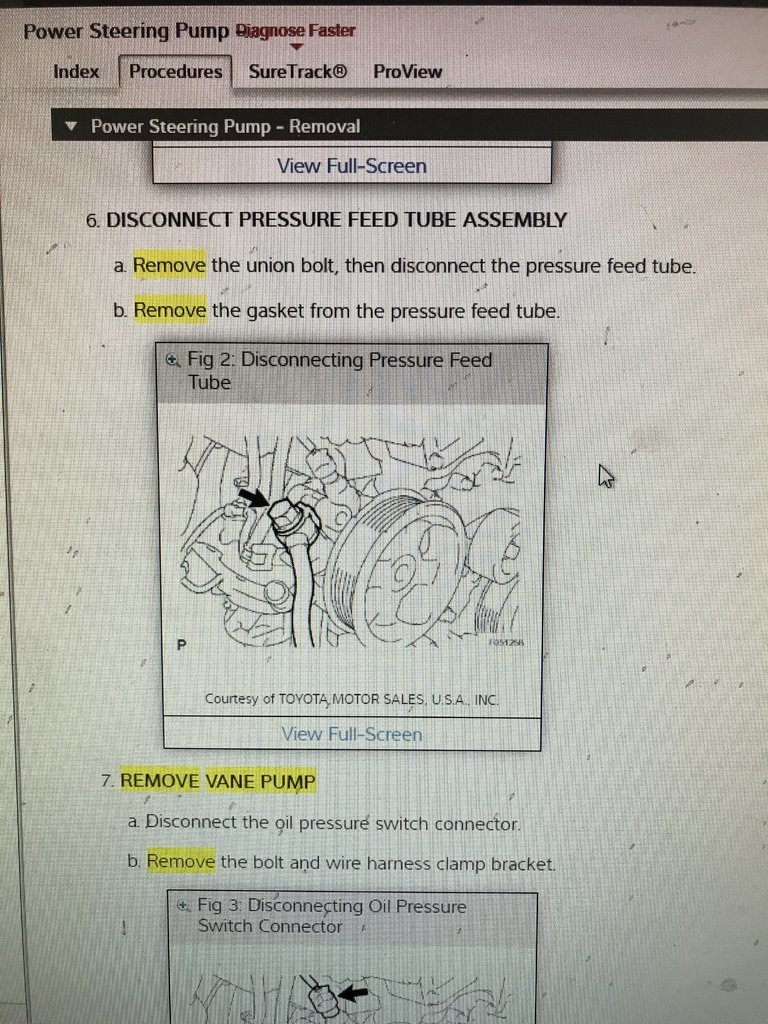

    2nd


    Bebop, Jul 17, 2017
    #23
    PapaBear likes this.
  4. Jul 17, 2017 at 4:00 PM
    #24
    Bebop

    #24
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.

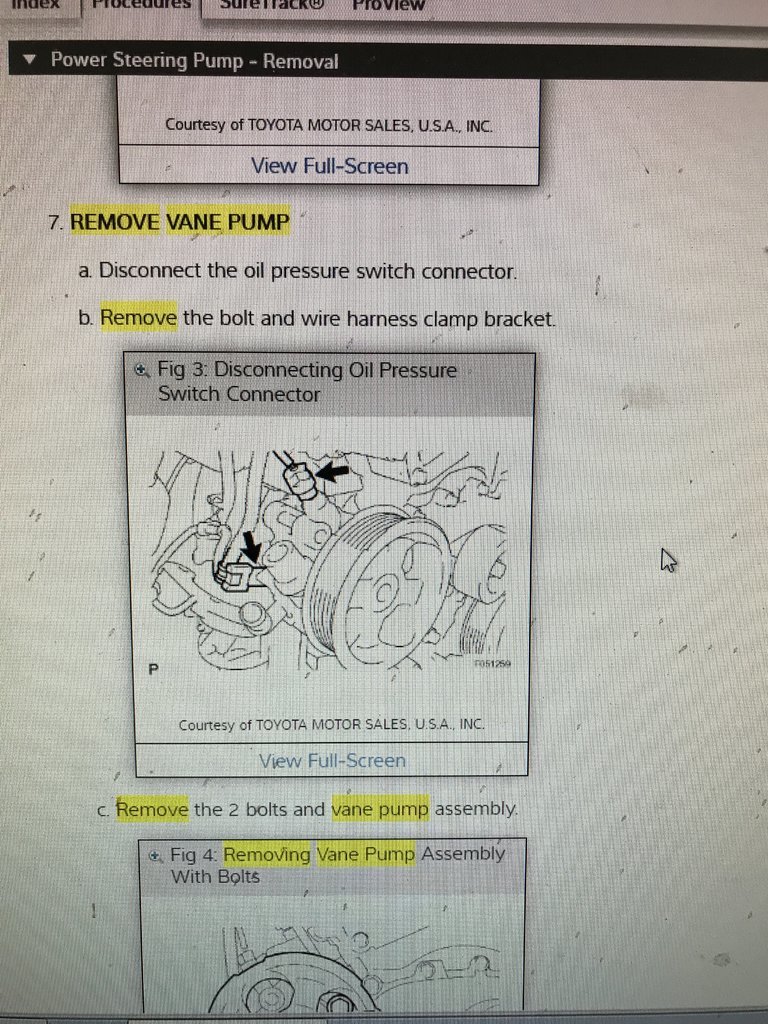

    3rd


    Bebop, Jul 17, 2017
    #24
    PapaBear likes this.
  5. Jul 17, 2017 at 4:01 PM
    #25
    Bebop

    #25
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.

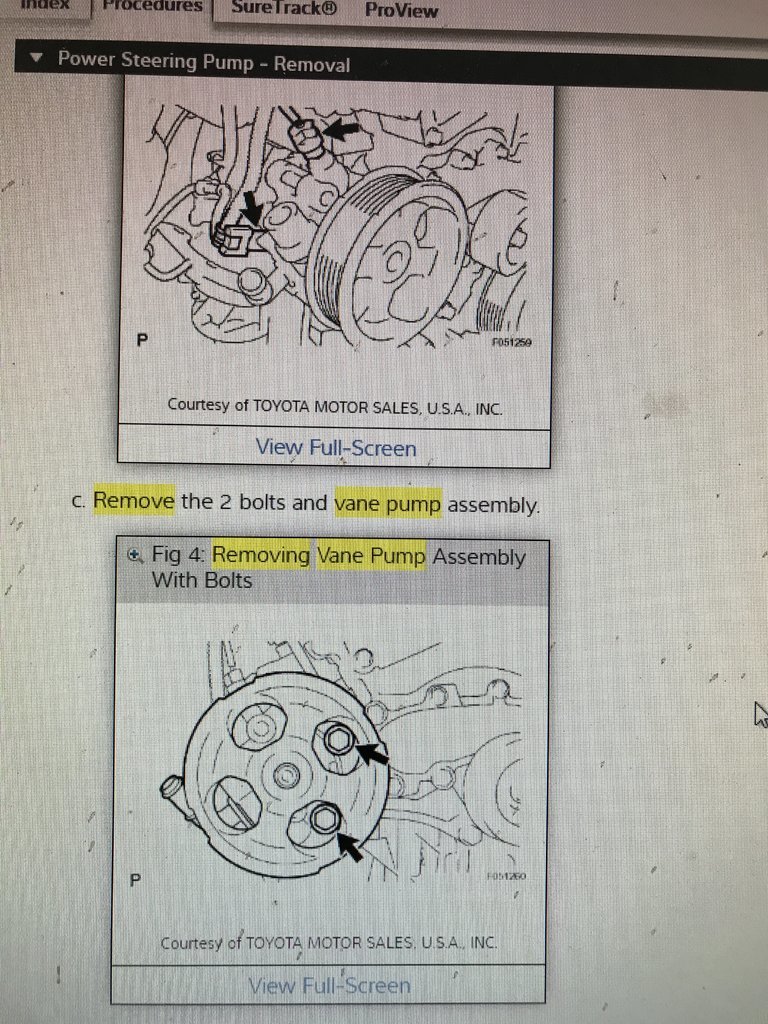

    4th


    Bebop, Jul 17, 2017
    #25
    PapaBear likes this.
  6. Jul 17, 2017 at 4:06 PM
    #26
    Bebop

    #26
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    Hope this helps

    Bebop, Jul 17, 2017
    #26
    PapaBear likes this.
  7. Jul 17, 2017 at 4:08 PM
    #27
    PapaBear

    #27
    PapaBear Never test how deep the water is with both feet.

    Joined:
    Feb 10, 2014
    Member:
    #122782
    Messages:
    3,563
    Gender:
    Male
    First Name:
    Austin
    SIN CITY
    Vehicle:
    07 DCSB PR 4.0... Aaaand she’s GONE
    Soft Suspension Hard Rubber ®
    Thank you, it will help. I wish I was at home right now sitting in front of it to take a look but I'm in Terminal 4 at JFK with a delayed flight.... :anonymous:

    PapaBear, Jul 17, 2017
    #27
    Bebop[QUOTED] likes this.
  8. Jul 17, 2017 at 4:18 PM
    #28
    Dirtridercrf250

    #28
    Dirtridercrf250 Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218232
    Messages:
    1,738
    Go to a hose or hydraulic hose shop they can make you something

    Dirtridercrf250, Jul 17, 2017
    #28
  9. Jul 17, 2017 at 4:24 PM
    #29
    PapaBear

    #29
    PapaBear Never test how deep the water is with both feet.

    Joined:
    Feb 10, 2014
    Member:
    #122782
    Messages:
    3,563
    Gender:
    Male
    First Name:
    Austin
    SIN CITY
    Vehicle:
    07 DCSB PR 4.0... Aaaand she’s GONE
    Soft Suspension Hard Rubber ®
    Are you talking to me or OP? I've already got a new pump that's supposed to be delivered tomorrow and and brand new $385 full PS line set from factory that was installed by my friend (now not friend) lol

    PapaBear, Jul 17, 2017
    #29
  10. Sep 26, 2017 at 8:37 AM
    #30
    Mademan925

    #30
    Mademan925 Senor Taco

    Joined:
    Nov 7, 2012
    Member:
    #90668
    Messages:
    7,639
    Gender:
    Male
    First Name:
    Nick
    Discovery Bay, CA
    Vehicle:
    2014 4x4 TRD OFFROAD DCSB
    enough to go over stuff
    where are you getting these instructions from. My pump took a dump. replacing tonight and Ive never replaced the pump or removed the belt

    Mademan925, Sep 26, 2017
    #30
  11. Sep 26, 2017 at 9:08 AM
    #31
    Bebop

    #31
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    I have an account with Mitchellondemand

    Bebop, Sep 26, 2017
    #31
  12. Sep 26, 2017 at 9:18 AM
    #32
    Mademan925

    #32
    Mademan925 Senor Taco

    Joined:
    Nov 7, 2012
    Member:
    #90668
    Messages:
    7,639
    Gender:
    Male
    First Name:
    Nick
    Discovery Bay, CA
    Vehicle:
    2014 4x4 TRD OFFROAD DCSB
    enough to go over stuff
    I don't know what that is but i'm jealous. Can you post the visual of the fan belt removal it references in step 3

    Mademan925, Sep 26, 2017
    #32
  13. Sep 26, 2017 at 9:21 AM
    #33
    Bebop

    #33
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    I will when I get get on my laptop. Shit takes forever to load on my slow ass phone

    Bebop, Sep 26, 2017
    #33
  14. Sep 26, 2017 at 9:22 AM
    #34
    Mademan925

    #34
    Mademan925 Senor Taco

    Joined:
    Nov 7, 2012
    Member:
    #90668
    Messages:
    7,639
    Gender:
    Male
    First Name:
    Nick
    Discovery Bay, CA
    Vehicle:
    2014 4x4 TRD OFFROAD DCSB
    enough to go over stuff
    thanks

    Mademan925, Sep 26, 2017
    #34
