PreRunner driveline vibration between 35-45mph

Discussion in '1st Gen. Tacomas (1995-2004)' started by gclyne, Nov 23, 2022.

  1. Nov 23, 2022 at 7:33 AM
    #1
    gclyne

    gclyne [OP] Well-Known Member

    Joined:
    Aug 30, 2019
    Member:
    #303714
    Messages:
    104
    Gender:
    Male
    First Name:
    Grant
    Indiana
    Vehicle:
    2004 TRD Off-Road- 3.4L
    Hi all,

    Looking for some advice. My 2004 PreRunner double cab has vibration between 35-45mph. The truck is not lifted, and has 225,000 on it. U-joints are greased, and wheels/tires were recently replaced and balanced.

    The vibration is faint, but annoying. It seems to be more relevant while I am accelerating, and less as I let off the gas. I dealt with this in my 3rd gen after I lifted it, and eventually replaced the transfer case DS bearing with the ECGS bearing. However, my first gen truck is a 2x4.

    I think it's either a wheel bearing or driveshaft. It does feel more like a driveline/driveshaft imbalance than a wheel bearing.

    I'm looking for advice from you all and if you have experienced this before. I could not find a similar instance using the search feature.

    Thanks- Grant

  2. Nov 23, 2022 at 7:47 AM
    #2
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,735
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    Any clunking going into or out of gears (reverse, park)?

    I'm going to say carrier bearing.

    If you've recently changed it or have had the DS off the truck, might have to adjust it's alignment.

    If not and it's original, replace it. It's most likely shot to hell, my 02 was at 160k - and it had been that way for some time.

    Be sure to mark it when removing.

    https://www.tacomaworld.com/threads/how-to-replacing-carrier-bearing.260283/

    MalinoisDad likes this.
  3. Nov 23, 2022 at 8:06 AM
    #3
    gclyne

    gclyne [OP] Well-Known Member

    Joined:
    Aug 30, 2019
    Member:
    #303714
    Messages:
    104
    Gender:
    Male
    First Name:
    Grant
    Indiana
    Vehicle:
    2004 TRD Off-Road- 3.4L
    No clunking going into or out of gears. Did you have vibrations before you replaced your carrier bearing and if so, did it fix the issue?

    Thanks- Grant

  4. Nov 23, 2022 at 8:45 AM
    #4
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,735
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    No vibrations but I recall some reporting it. I would still check it for excessive play and at the least, put it on the list to replace it.

  5. Nov 23, 2022 at 8:49 AM
    #5
    gclyne

    gclyne [OP] Well-Known Member

    Joined:
    Aug 30, 2019
    Member:
    #303714
    Messages:
    104
    Gender:
    Male
    First Name:
    Grant
    Indiana
    Vehicle:
    2004 TRD Off-Road- 3.4L
    I just went under the truck and checked it. There's not much play- I would say 1/8-1/4 inch of total play. I went ahead and ordered an OEM replacement and will go ahead and replace.

    Is there anything else that could cause the vibration?

    Thanks for the help on this- Grant

  6. Nov 23, 2022 at 9:21 AM
    #6
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,735
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    This is the one that most of us use, much cheaper than toyota OEM. Don't take that the wrong way though, I'm all for OEM and there are very few if any exceptions I make. This is one of them.
    https://smile.amazon.com/gp/product/B00GAPFD2E/

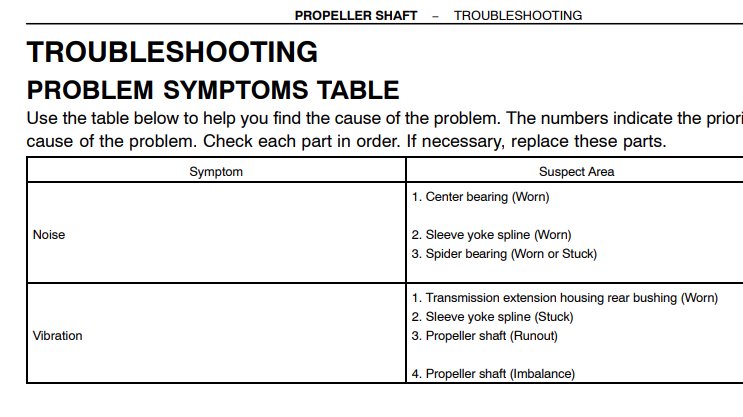

    Other possible causes to consider -


  7. Nov 25, 2022 at 7:05 AM
    #7
    gclyne

    gclyne [OP] Well-Known Member

    Joined:
    Aug 30, 2019
    Member:
    #303714
    Messages:
    104
    Gender:
    Male
    First Name:
    Grant
    Indiana
    Vehicle:
    2004 TRD Off-Road- 3.4L
    I replaced the bearing yesterday. The vibration seems to be gone. I couldn't tell how bad the old bearing was until I took it apart. Glad I did this. Thanks for the advice.

    Super easy job. Took me about 90min.

    Thanks- Grant

    Area51Runner and Kevins60 like this.
