I don't need the front one.



Alright we'll no problem then. On side note I just went out and put the modified topper rack on my truck cause the numbers weren't making sense. At the highest point on the roof the top of the crossbars are 2.25" off the roof, about 1.5" between the bottom of the bar and the top of the shell. My roof top tent has channels that are between .75 and 1" deep so my floor of my RTT sits about 3-3.25 " above the shell. And that aligns with the rack on the topper.



Also, yes the height is the same as the steel rack. It will be slightly less because the crossbars are smaller but everything essentially the same.

As for the powder coat, they have a textured finish but I haven't inquired more about it but I would imagine it is a wrinkle texture as that seems to be pretty typical.



Sub'd...want to see wind deflector and possible light bar installs with this. Bad ass OP



The rain here has discouraged me from getting the complete install of these racks done on my truck. That and waiting for a few more parts to show up. However, my sisters in law and nieces/nephews came to visit and our small apartment has been a jungle. To keep the kids occupied, I had them help me put the rack for the topper together and then let them walk across it to test out the deflection of the bars. I was very impressed and finally installed a bunch of bars to really test the weight. In the picture there are 10 bars installed. I tested it with less and had similar results with minimal deflection when the weight is evenly distributed. The girls are all pretty thin but my wife's 2 sisters are both about 6'. If you allocate a very generous 100 pounds to each girl and 20 pounds to each kid, there is easily 400 pounds on the rack. If I were to get specific weights of all the kids and the girls it would probably come closer to 550 and with ten bars there was no visible deflection.



Is that the rack for the cap?



Yes it is. Never mind



Damn , just seeing this thread now , looks great !



Thanks! I am pretty excited about these. Wish it would quit raining so I could go out and get mine installed.



I'm interested in powder coating, is there any chance the coating will make the T slots tight? I use profile a lot and know some hardware is tight was wondering if this might make it difficult.

Mike



short answer is maybe. depends on what coating thickness the powder coater uses or was told to use. 80/20 is available coated from the manufacturer, so it obviously can be done, but a 3rd party would just have to be aware that a heavy application of powder coat will cause problems.

now if we could get these racks anodized, that'd be ideal



Depending on which tnuts are used and how thick the powder coat is I can see it being a possible issue. The the slide in tnuts are the tightest fitting but the ones I have still have enough play that I am not super worried. The drop in tnuts are even looser fitting and the roll in ones are similar. With either of those I don't see it being a problem. Hardware can vary between manufacturers as do powder coatings so it is hard to be certain from case to case. With a really tight fitting slide In tnut and a really thick powder coating you would probably have a difficult time.



Hopefully they will start offering more profiles in anodized black. Right now they are limited.



Added som pictures of the Black Oxide finished hardware in the OP. 3 more sets of rails for the cab available from the first sheet.



A little update on the rack for the topper. I finally got sick of waiting on the rain and went out and mounted the prototype on my truck. I will be saving up to get this one powder coated so I am just leaving it bare aluminum for now.

The rack has three "feet" on each side to mount. I don't have all the thule nuts that I need yet to use them all but the the front and rear feet on both sides are locked in. With those feet mounted it is held on by 8 bolts, when it is finalized it will have 12. It is very solid. I removed 2 bars from the previous picture I had posted and decided to go with 8.

I can grab it and shake as hard as I can and the entire truck moves. Really I am quite pleased with how it is working out. On a side note I was walking into the restaurant for dinner tonight and saw a Tacoma with a tonneau and thule rails. I hadn't thought of it yet but these racks would also work well on a hard tonneau for those that are running that setup.

I will get some pictures up of the rack installed tomorrow providing the weather is decent.



Can't wait to see it.

Forgot to go measure my rails today.



What type of topper do you have? And does it have the honeycomb section that is thicker?



Leer 100XQ
Yes, it is factory reinforced for the Thule rail system. (500lb. load rating IIR)

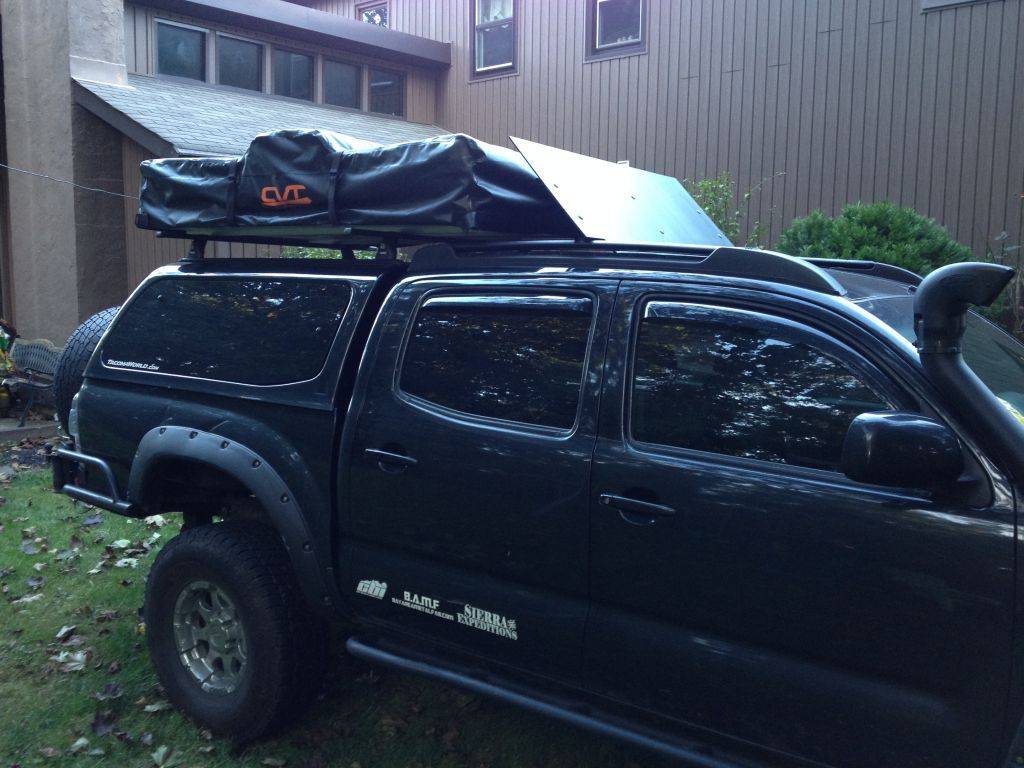

Here is the current RTT setup:



Obviously you can see why your rack system intrigues me.



Yeah yours is probably going to be pretty close to what mine is. Mine are about 38" apart in the rear and 39" in the front and sit right on the reinforced section. The standard height would put your tent about 3.25" above the roof like I had previously stated but there is room to get it lower after looking at it installed today. Maybe I will throw my tent up and get you some pics with it installed tomorrow.

Is the angled thing in front of the tent a permanent defelctor? If so how has it worked? I am concerned about carrying my tent on the roof as last year it was always on the bed rack and the shell is new to me.



The fairing is not permanent at all!
I have a write up on the project in my build thread - it's 100% removable with 4 3/8" stainless steel carriage bolts and wing nuts. (no tools required to install)
I drove from Moab UT to Las Vegas NV to Philly PA with that sucker on the top of my truck. I felt every little wind gust!
After I built it I drove 5 1/2hrs one way to a meet in central Va and it makes a BIG difference! You know it's up there but it does not feel like your catching the wind and being held back.
I wouldn't go anywhere with the tent on without the fairing now.
