Prinsu Style Roof Rack - CAD models?

Discussion in '3rd Gen. Tacomas (2016+)' started by ORNG TACO, Feb 13, 2019.

  1. Aug 6, 2019 at 5:52 PM
    #81
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    174
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD off road Double cab
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s

    that's impressive. I was going to say that If it was metal that it would need to be something thinner. all of my design is based on being .25 aluminum. If it wasn't for the fact that I'm using 2 separate supports behind the wind deflector I would be able to do the same. well do the same after I used some cardboard and time to figure out that design. awesome job btw.

    MESO likes this.
  2. Aug 10, 2019 at 7:15 PM
    #82
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    174
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD off road Double cab
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s
    well after the conversation that was prompted by @Billy_trd and @auskip07. I made a change to the curve on the rack and lowered the counterpoint of the arc an inch. im hoping that this is enough to make it more pleasing to the eye and functional. I do appreciate the comments and questions as to why it was done this way. I am by no means a professional but if I do end up sharing the design with everyone I would prefer to have something figured out that is liked by a majority.

    auskip07, Billy_trd and KlutchTaco like this.
  3. Aug 10, 2019 at 7:52 PM
    #83
    KlutchTaco

    KlutchTaco Member

    Joined:
    Jun 26, 2019
    Member:
    #297522
    Messages:
    24
    Gender:
    Male
    Central IL
    Vehicle:
    2018 Trd Sport 4x4
    Definitely would be intrested in that file. Would be a big help

    bonnfabrication likes this.
  4. Aug 21, 2019 at 7:25 PM
    #84
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    174
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD off road Double cab
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s
    im in the middle of moving to WA but I should be back in SD for a few weeks to hopefully get the rack cut out and set up to see how it will look in reality. ill add some pictures when its all said and done.

  5. Dec 2, 2019 at 10:35 AM
    #85
    DanWas

    DanWas Well-Known Member

    Joined:
    Aug 4, 2019
    Member:
    #301151
    Messages:
    187
    Gender:
    Male
    Vehicle:
    2019 Black Tacoma TRD Off Road
    So... Sorry I'm late. just jumping on this thread. Was anyone able to come up with the cads / measurements? I'm going to give this a try...

  6. Dec 2, 2019 at 5:18 PM
    #86
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    174
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD off road Double cab
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s
    just realized I never added my pictures. ill do that in a min. I shouldn't have changed the arc on the wind deflector. had to recut it after I got all the parts.

  7. Dec 2, 2019 at 5:29 PM
    #87
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    174
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD off road Double cab
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s

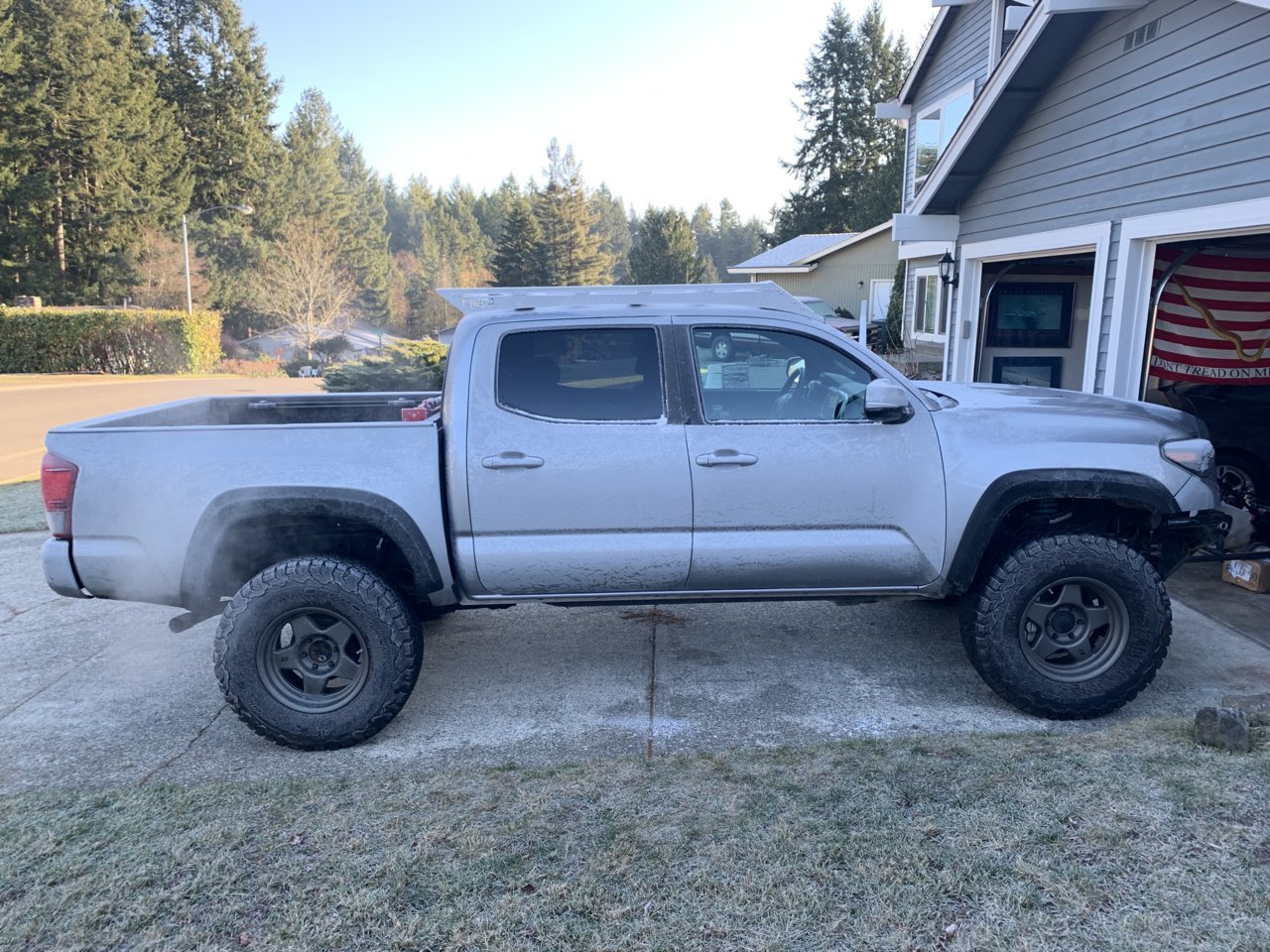

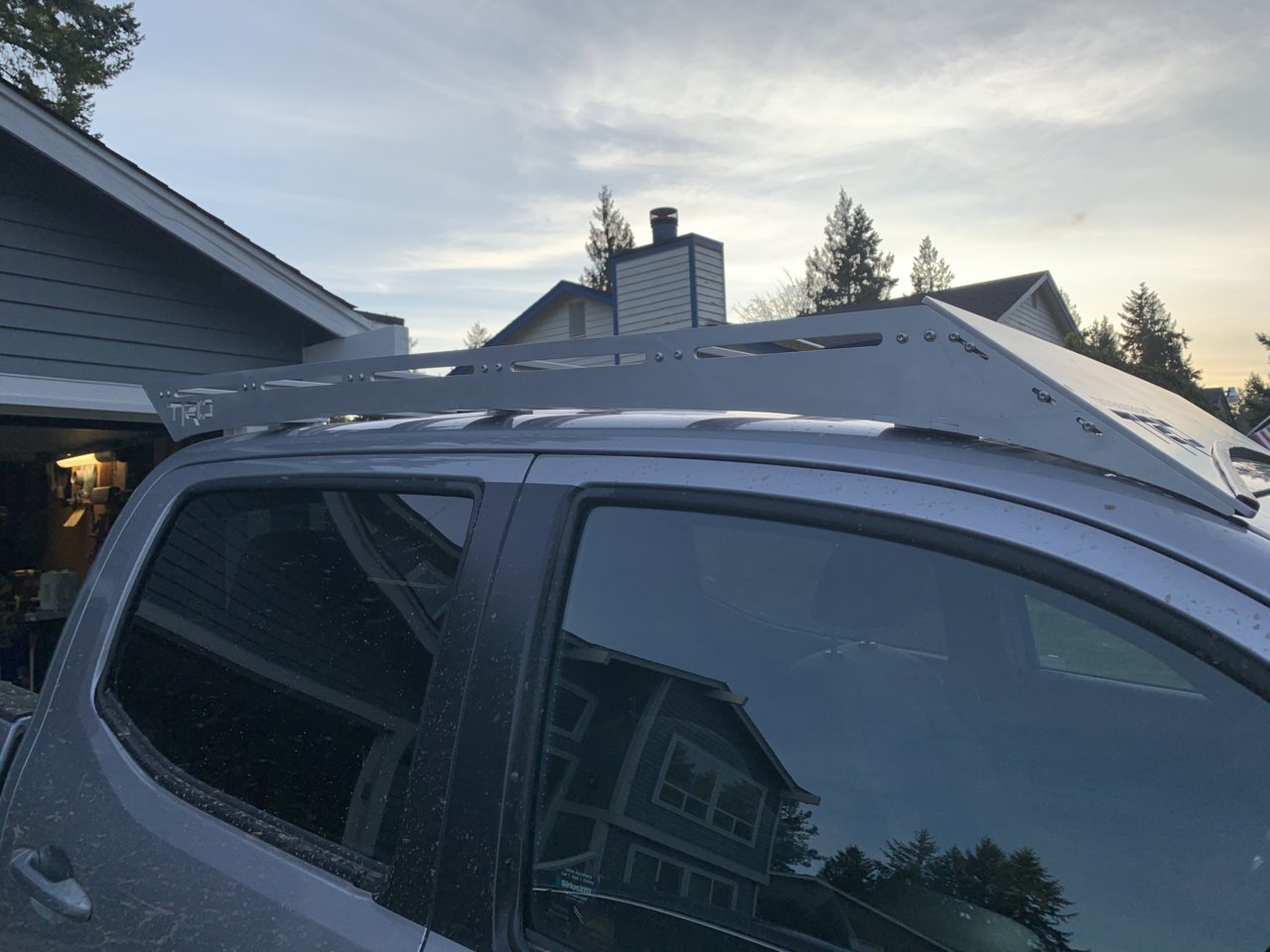

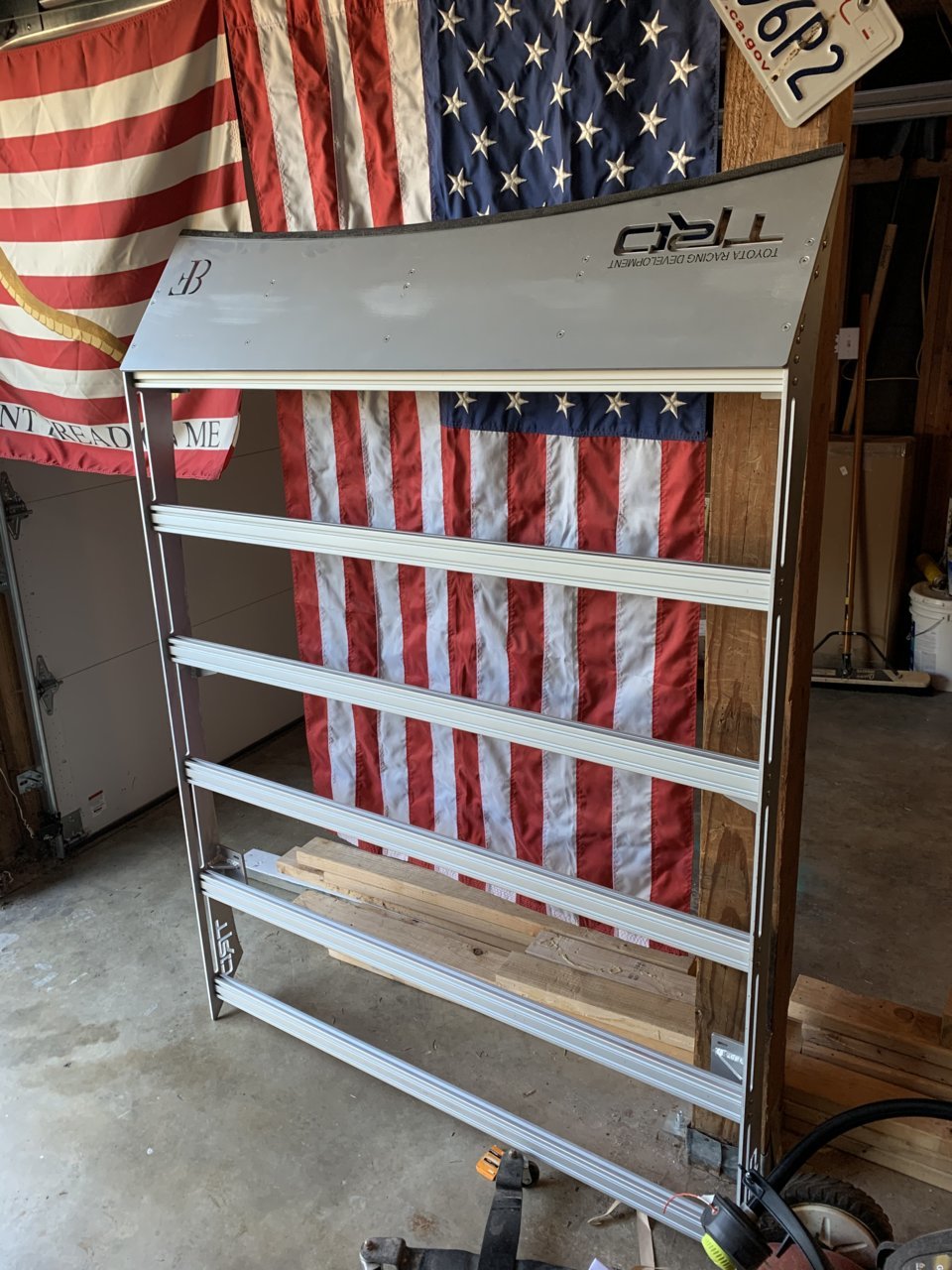

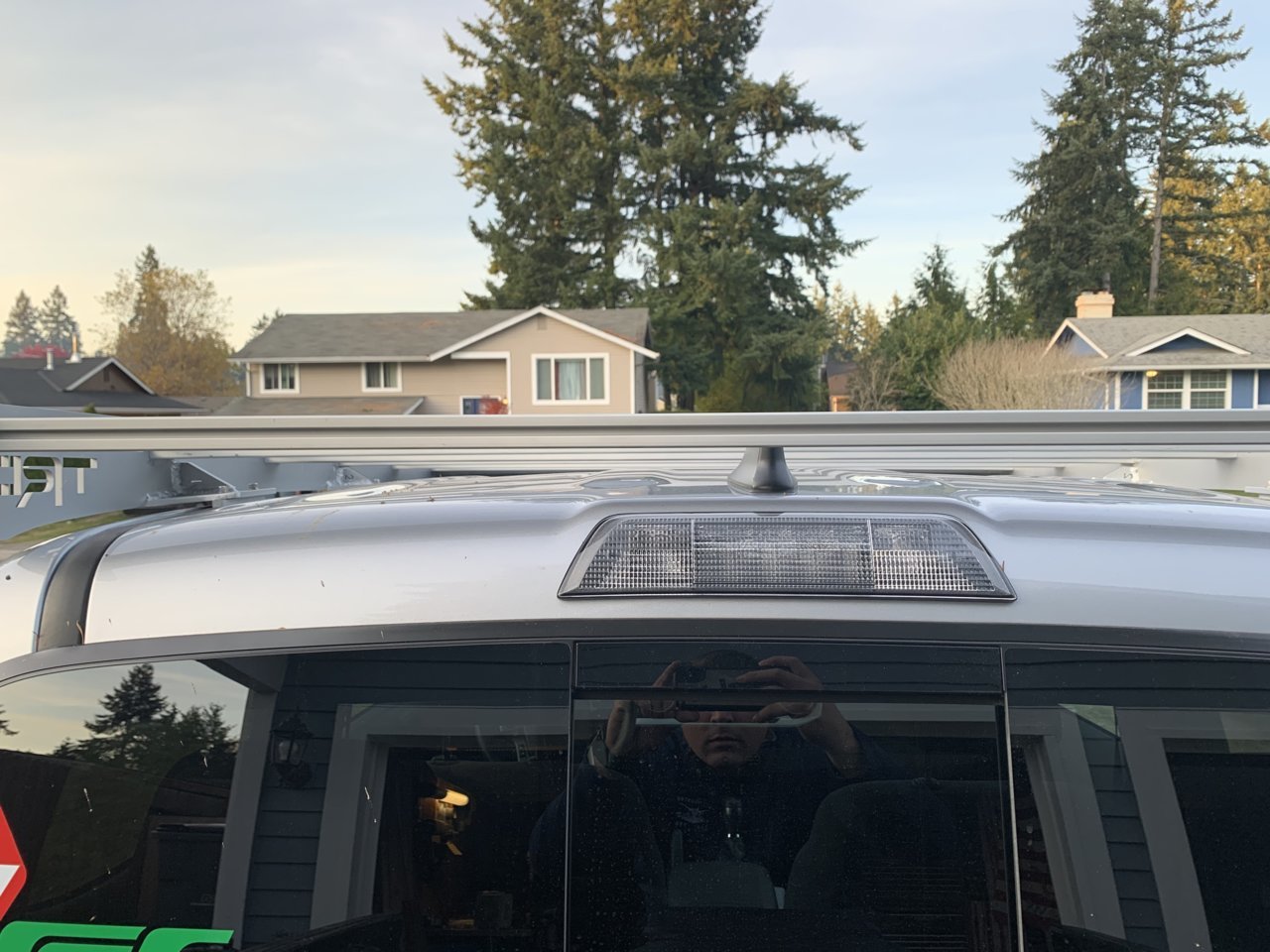

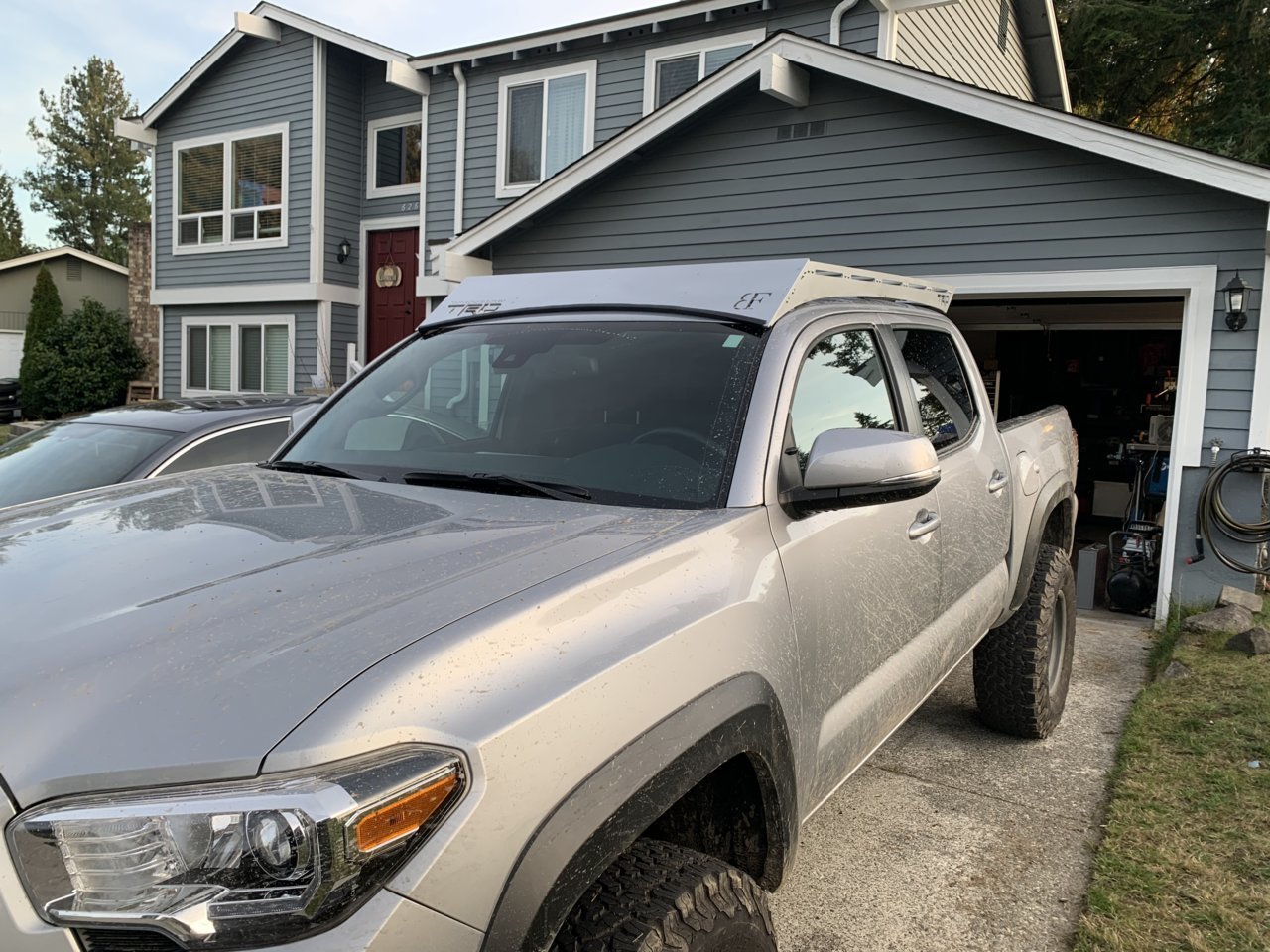

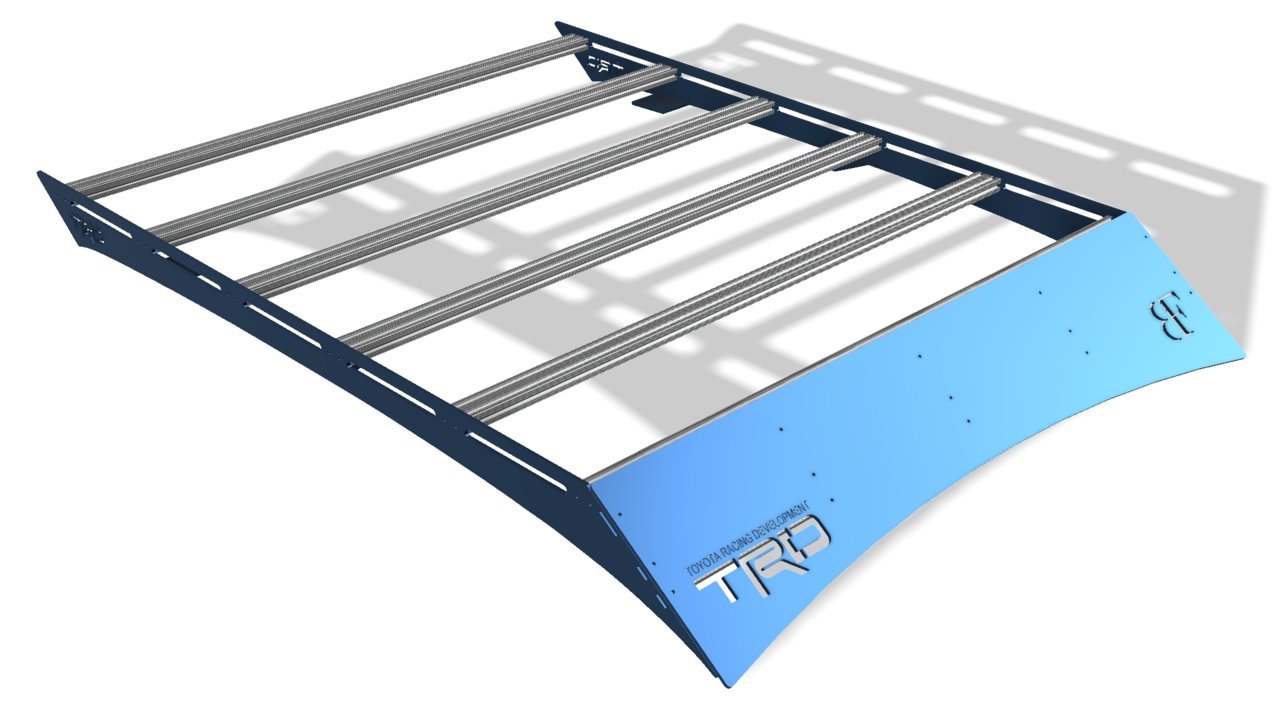

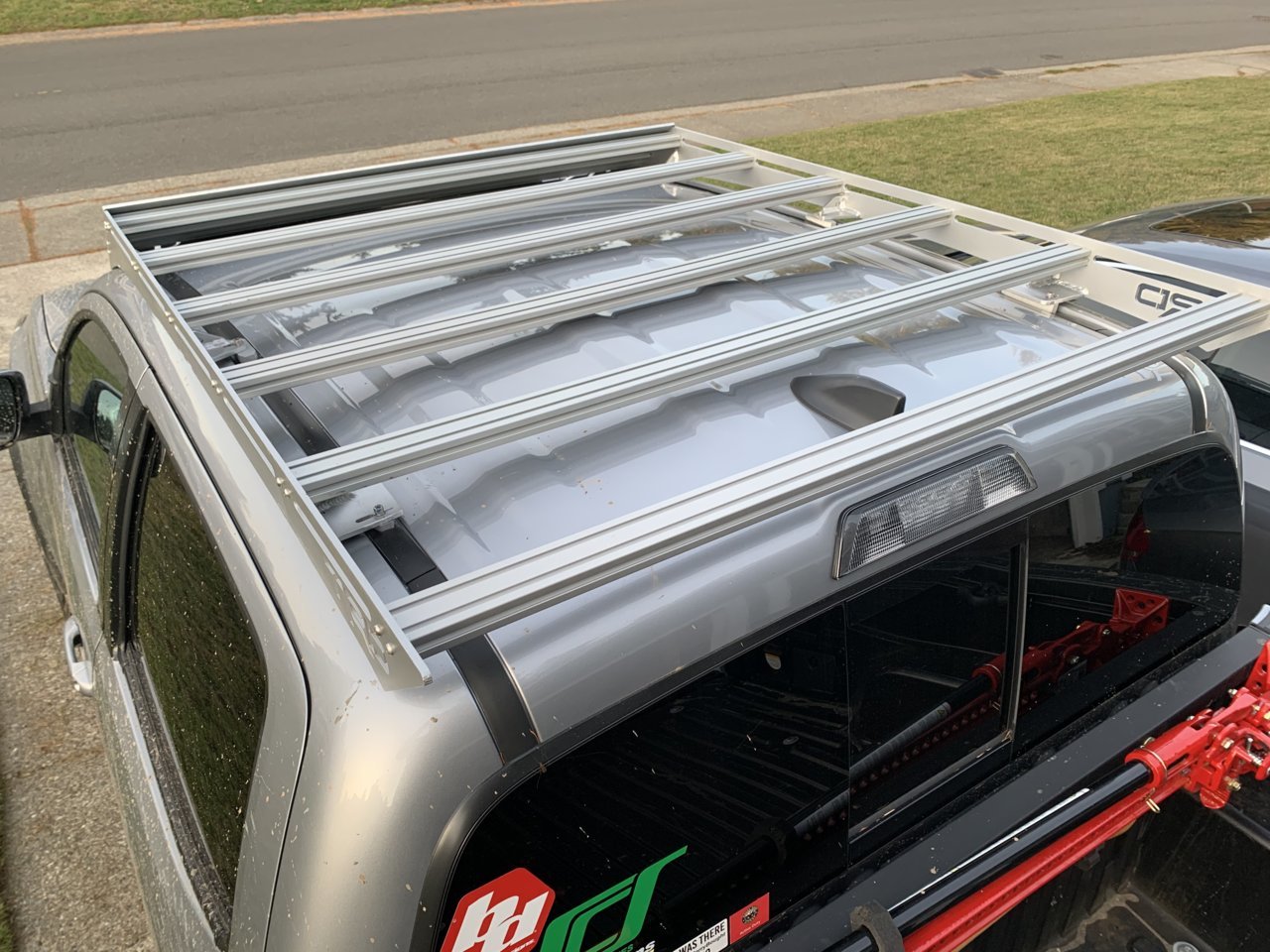

    Ok here are a few pictures of how my rack came out. Big thanks to @MESO and @upTOPoverland for all the discussions we had in various forums on how to make this work. Before anyone asks it’s all 1/4” plate aluminum. Yes the bull horns for the curve of the wind deflector look strange and I agree. I’ll redesign it later to be more aero dynamic and fit better like what Meso did for his. No I will not be sharing the CAD files just yet. I still need to fix a few problems I found after getting it made.


    BRFAb and MESO like this.
  8. Dec 2, 2019 at 5:35 PM
    #88
    ejwan

    ejwan Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198245
    Messages:
    71
    Looks legit:thumbsup:

    I’ll be designing my own to fit in front of a vagabond drifter style camper. More of a flaring with a tool box to store tire airing up/down.

    bonnfabrication likes this.
  9. Dec 3, 2019 at 6:03 AM
    #89
    xerogs1

    xerogs1 Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297609
    Messages:
    140
    Gender:
    Male
    First Name:
    Chris
    New Mexico
    Vehicle:
    2019 TRD OR DCSB AT Silver Sky Metallic
    Bartact Seat Covers, Cali Raised LED molle bed system, radio knobs and Subaru Tweeters, OCD interior parts, OEM Exhaust tip, dash cam, hood protector, various theft deterrent items. Still a WIP
    Your roof rack looks great. Have you tried incorporating a really good 3D model of a 3rd Gen into Solidworks? This might help get you part of the way digitally with the front plate fit and then you can verify dimensions on your truck prior to making a new plate? I work in Engineering Design and we tend to utilize as much digital information as possible with real world dimension verification prior to cutting chips. I was thinking of designing a few items for my truck in the future and I would definitely start with high fidelity models if they are available. I wouldn't rely solely on the models though and just use them for reference to get my design roughed out.

    Many years ago at SIGGRAPH they used a Microsoft Kinect to 3D scan objects and that might also be an inexpensive viable option to get point cloud data from your truck as well.

    Here is a link: https://all3dp.com/2/kinect-3d-scanner-easy-beginner-tutorial/

    Last edited: Dec 3, 2019
  10. Dec 4, 2019 at 5:05 PM
    #90
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    174
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD off road Double cab
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s
    I have thought about it. the day job gets in the way of me having the time to tinker with it right now. I missed out on a good opportunity though when a guy at lowes asked about the rack. turns out he wants to build a rack for his sprinter van and has access to a lidar gun at his work. I didn't get his info which sucks because that would have really made a good file. I do think ill use that Kinect idea to get a good start on a few things though.

    xerogs1 likes this.
  11. Dec 4, 2019 at 7:36 PM
    #91
    BRFAb

    BRFAb Well-Known Member

    Joined:
    Sep 24, 2018
    Member:
    #267226
    Messages:
    61
    Gender:
    Male
    BC
    Vehicle:
    '19 Alien Grey TRD OR
    That looks fantastic so far. A few tweaks here and there and you're more than just onto something.
    I'd definitely be interested in cad files if you ever decide to do that.

    bonnfabrication likes this.
