Project: DBL BLK ◇ by ToyRyd

Discussion in 'Solid Axle Suspension' started by ToyRyd04, Jan 2, 2015.

Page 7 of 28
  1. Sep 10, 2015 at 3:34 PM
    #121
    ToyRyd04

    #121
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox

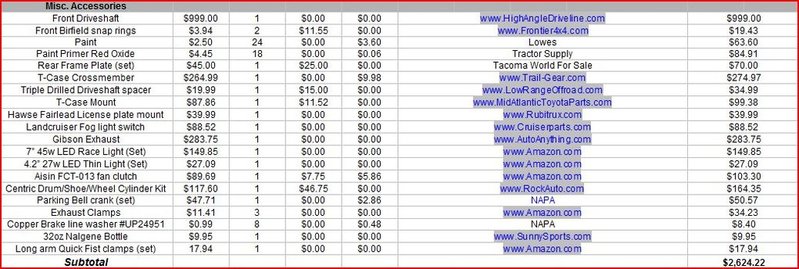

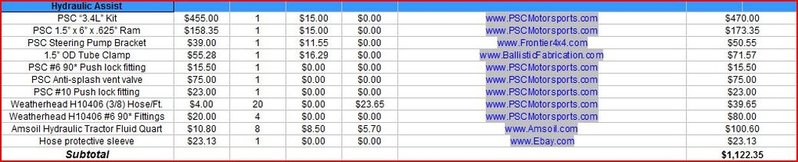

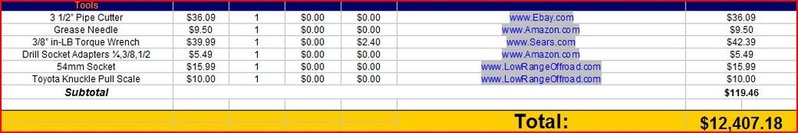

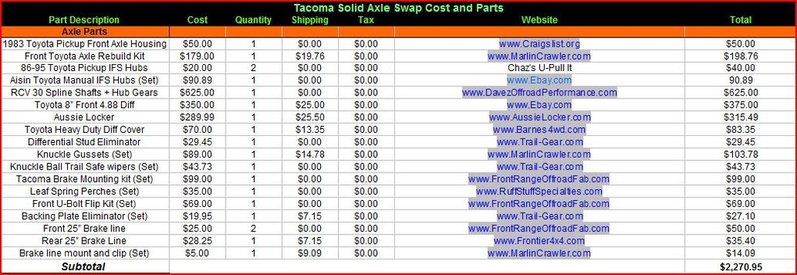

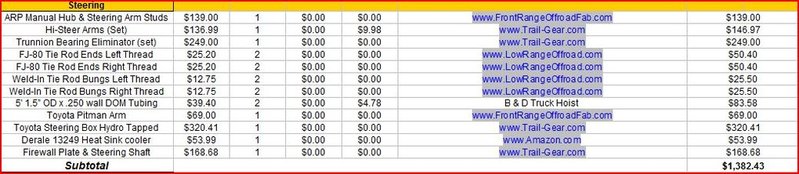

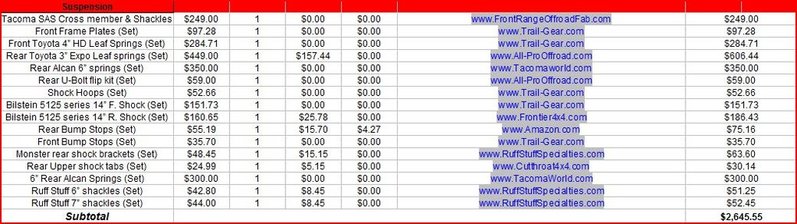

    Parts List & Pricing​


    Capture1.jpg Capture2.jpg Capture3.jpg Capture4.jpg Capture5.jpg Capture6.jpg Capture7.jpg Capture8.jpg

    Last edited: Sep 10, 2015
    ToyRyd04, Sep 10, 2015
    #121
    Yetimetchkangmi and HomerTaco like this.
  2. Sep 10, 2015 at 6:01 PM
    #122
    TIPICOTACO

    #122
    TIPICOTACO Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,231
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"
    Some lift, some armor, some scratches..
    Spared no expense!! Cannot wait to see this beast in action!!!
    :burnrubber::mudding:


    Y no rock crawler emoji? @tcBob

    TIPICOTACO, Sep 10, 2015
    #122
  3. Sep 10, 2015 at 6:17 PM
    #123
    HomerTaco

    #123
    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,875
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Skills to make it all happen: Priceless.

    Bravo Greg! :yay:

    HomerTaco, Sep 10, 2015
    #123
  4. Sep 10, 2015 at 6:31 PM
    #124
    ToyRyd04

    #124
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox
    Definitely not the cheapest or the most extravagant....but better than middle of the road I feel.

    Now only if the damn driveshaft would get here, so I can test out some flex pics !

    ToyRyd04, Sep 10, 2015
    #124
  5. Sep 11, 2015 at 10:45 AM
    #125
    loosnut

    #125
    loosnut Well-Known Member

    Joined:
    Apr 19, 2011
    Member:
    #55182
    Messages:
    5,905
    Gender:
    Male
    First Name:
    jerry
    feasterville pa
    Vehicle:
    06 dbl cab long bed
    ome 2.5lift leer cap
    :drool::drool::drool: FLEX PICS:yay::yay::yay:

    loosnut, Sep 11, 2015
    #125
  6. Sep 18, 2015 at 3:25 AM
    #126
    ToyRyd04

    #126
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox

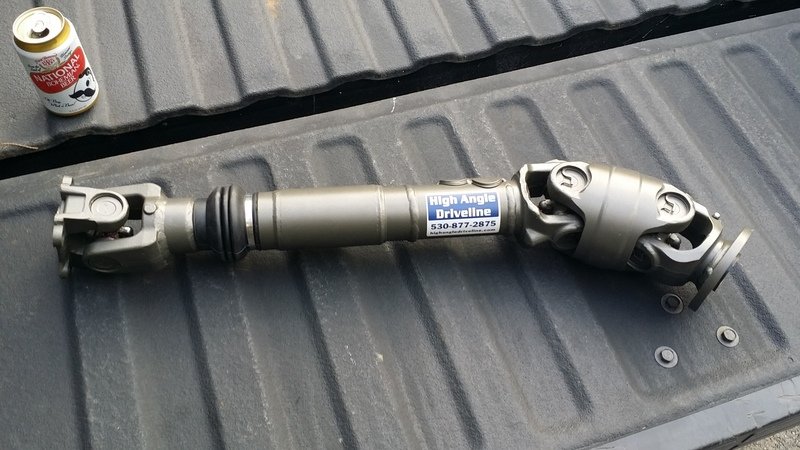

    After some delay, new driveshaft is here.

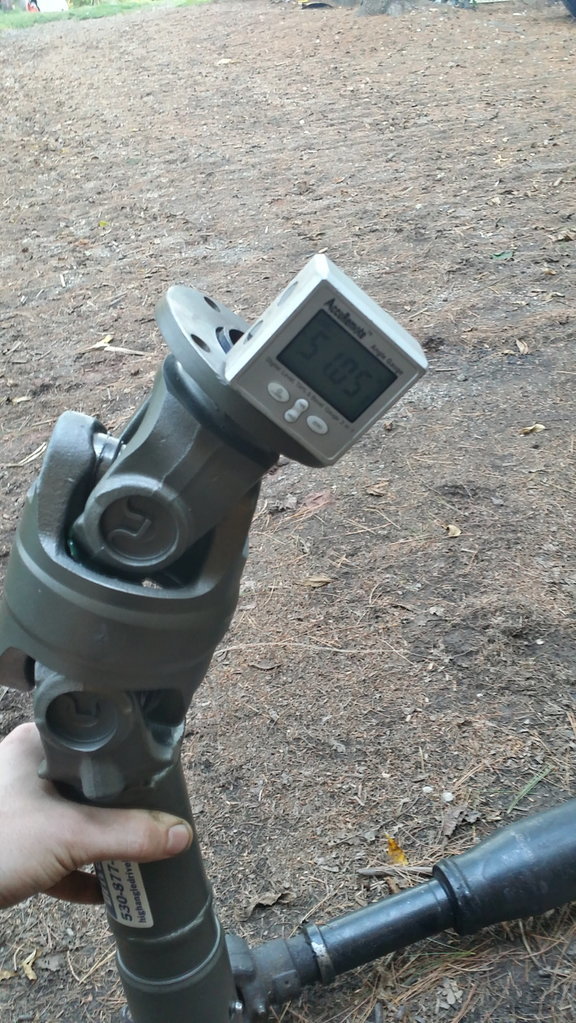

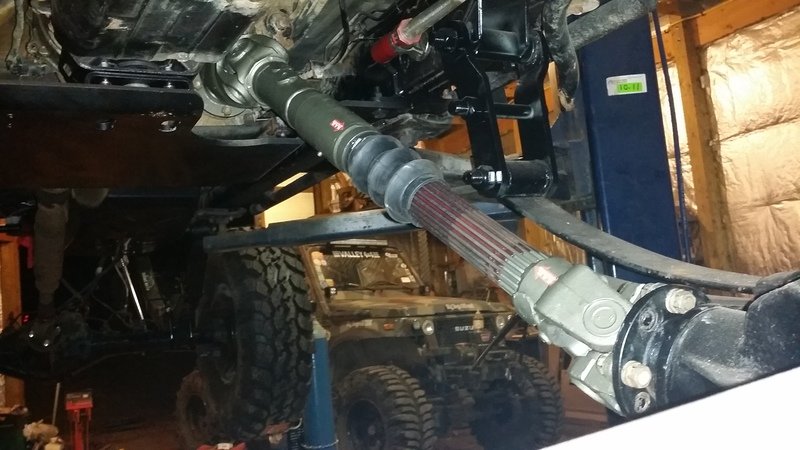

    Jesse owner of High Angle Driveline built me a custom CV shaft with a max angle of 49°.
    Parts and machining are top notch.

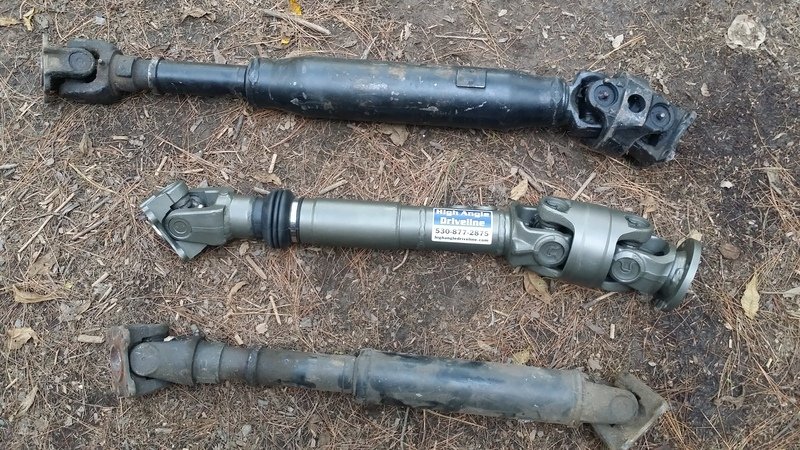

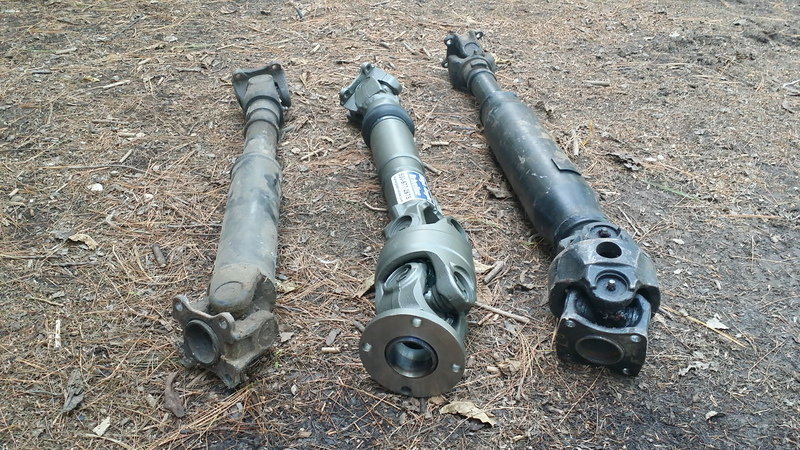

    Top - Spare rear driveshaft
    Middle - New Front SAS driveshaft
    Bottom - Old Front IFS driveshaft

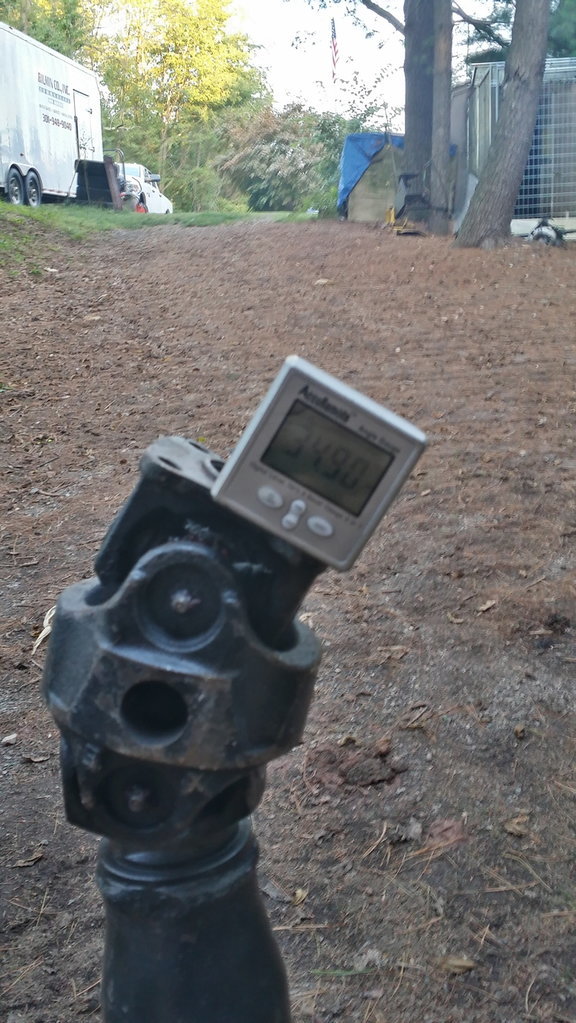

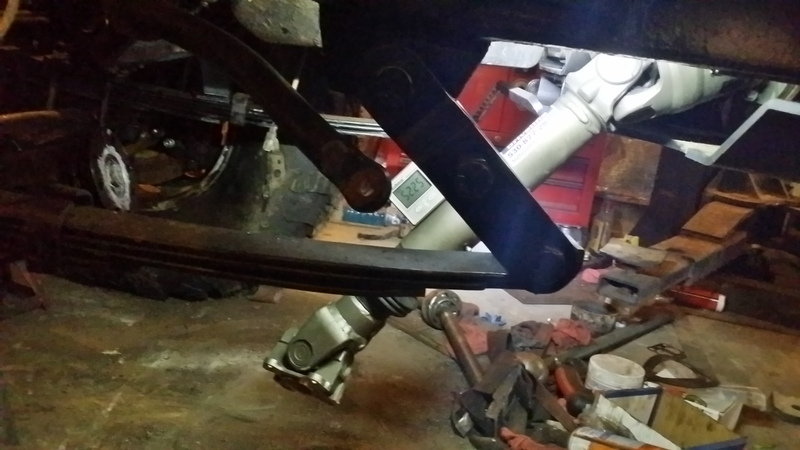

    Angle Comparison - rear shaft


    New front





    12" slip (9" out 3" in)



    Just waiting on PSC to send back my limited steering ram, then she's all set.

    ToyRyd04, Sep 18, 2015
    #126
  7. Sep 18, 2015 at 6:19 AM
    #127
    cynicalrider

    #127
    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    17,069
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    :drool:

    cynicalrider, Sep 18, 2015
    #127
  8. Sep 18, 2015 at 6:47 AM
    #128
    loosnut

    #128
    loosnut Well-Known Member

    Joined:
    Apr 19, 2011
    Member:
    #55182
    Messages:
    5,905
    Gender:
    Male
    First Name:
    jerry
    feasterville pa
    Vehicle:
    06 dbl cab long bed
    ome 2.5lift leer cap

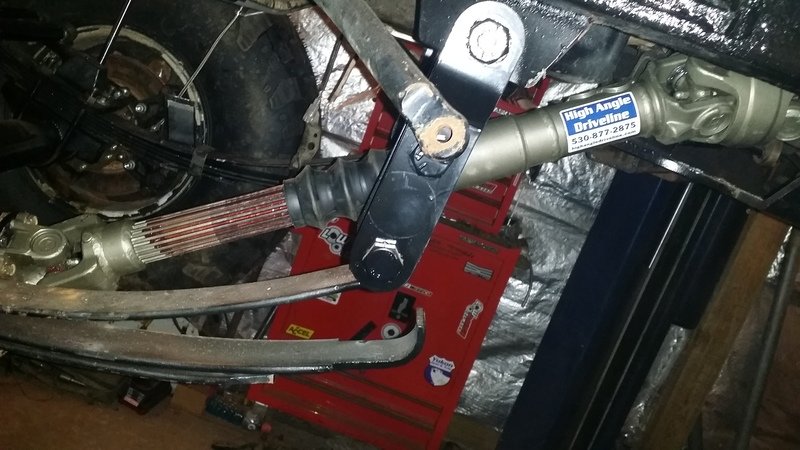

    Greg i have a question,do u have some type of sleeve for the splines on that front shaft?I see those splines taking a hit from a rock and shaft not slidding good any more.Just a thought.

    loosnut, Sep 18, 2015
    #128
  9. Sep 18, 2015 at 6:58 AM
    #129
    ToyRyd04

    #129
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox
    Jerry,

    Higher up on the driveshaft is a sleeve to help protect but nothing that could work for the amount of travel (Pretty much a compromise). The shaft is awful short in terms of length to slip ratio. I see what you mean how it would be nice to have something to protect the splines. Hoping the rotation of the front axle will help with that, the pinion is rotated up a good bit from a normal axle. Time and trails will tell the real story.

    Definitely something to keep in mind and lookout for.

    Last edited: Sep 18, 2015
    ToyRyd04, Sep 18, 2015
    #129
  10. Sep 18, 2015 at 6:36 PM
    #130
    Reh5108

    #130
    Reh5108 Well-Known Member

    Joined:
    Feb 18, 2013
    Member:
    #97832
    Messages:
    5,764
    Gender:
    Male
    First Name:
    Ryan
    Idaho
    Vehicle:
    2004 SR5 4X4 2.7L Extra Cab
    OME lift, 4x sliders, Demello rear bumper, custom front bumper, Engo 9000lb winch
    X2

    Reh5108, Sep 18, 2015
    #130
  11. Sep 20, 2015 at 5:46 AM
    #131
    tlevan03

    #131
    tlevan03 Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120012
    Messages:
    58
    Gender:
    Male
    First Name:
    tad

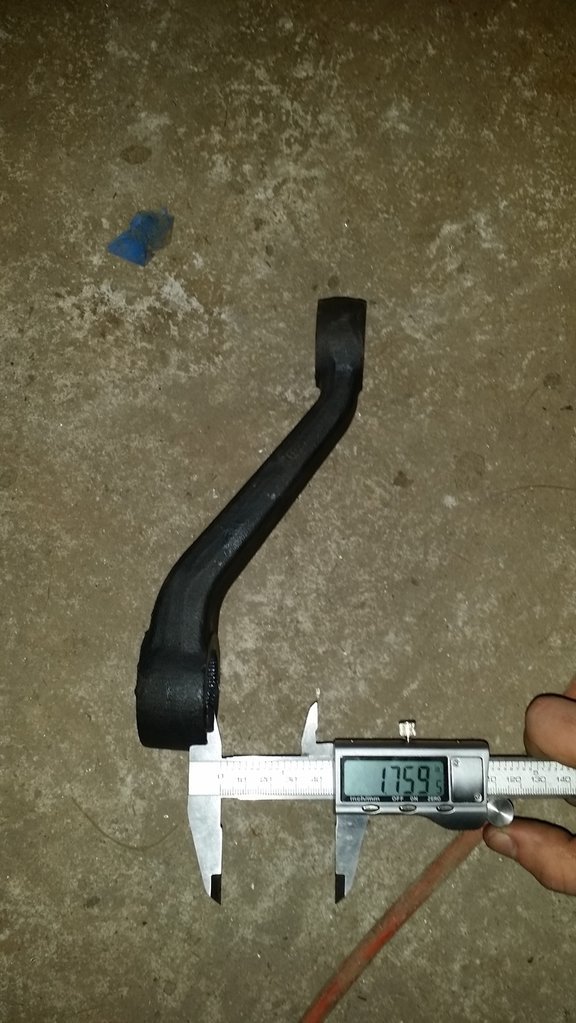

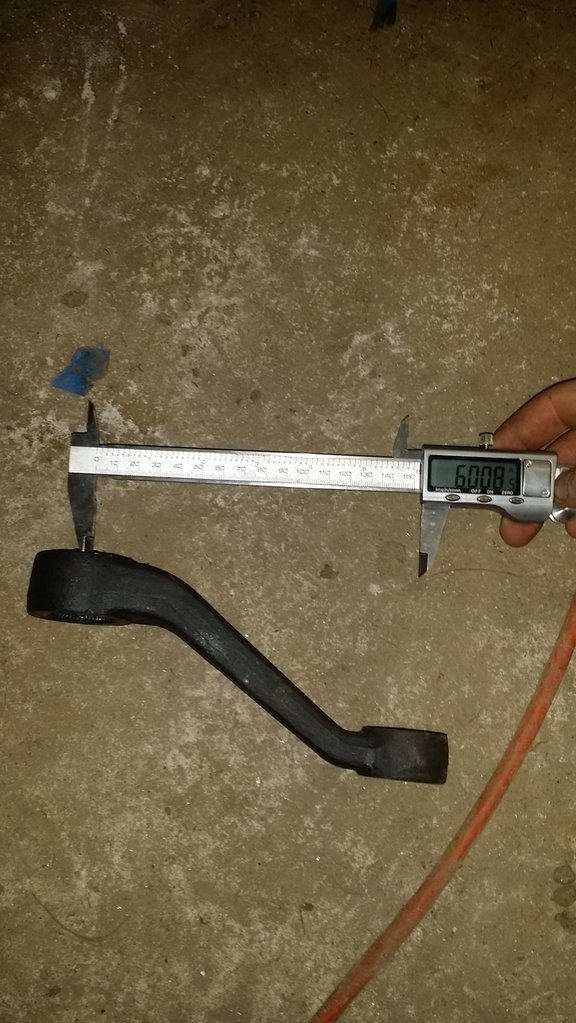

    I was wondering if you could do me a favor since its sunday and everyone is closed. Could you please measure your pitman arm eye-to-eye? I have an fj60 drop pitman arm that i put on last night and the drag link and tie rod will hit. I can't move my steering box any more forward. Thanks.

    tlevan03, Sep 20, 2015
    #131
  12. Sep 20, 2015 at 7:15 AM
    #132
    ToyRyd04

    #132
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox

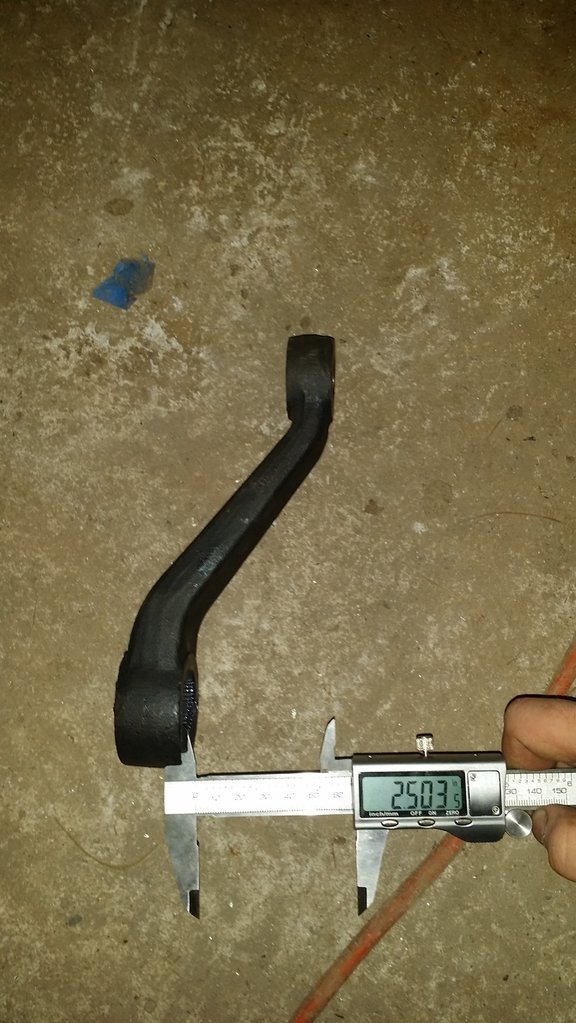

    ToyRyd04, Sep 20, 2015
    #132
    HomerTaco likes this.
  13. Sep 20, 2015 at 7:21 AM
    #133
    HomerTaco

    #133
    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,875
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    nice.

    HomerTaco, Sep 20, 2015
    #133
  14. Sep 20, 2015 at 7:27 AM
    #134
    ToyRyd04

    #134
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox

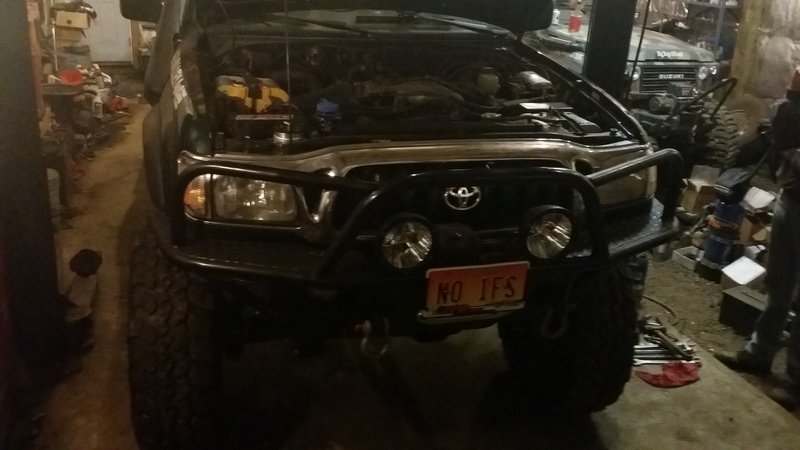

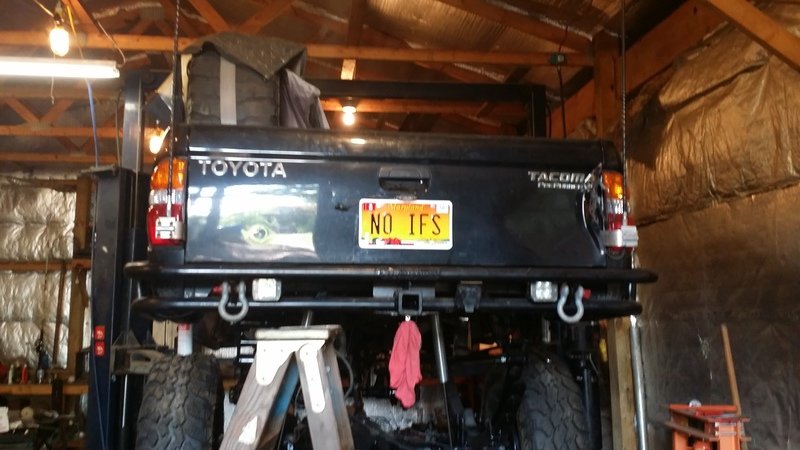

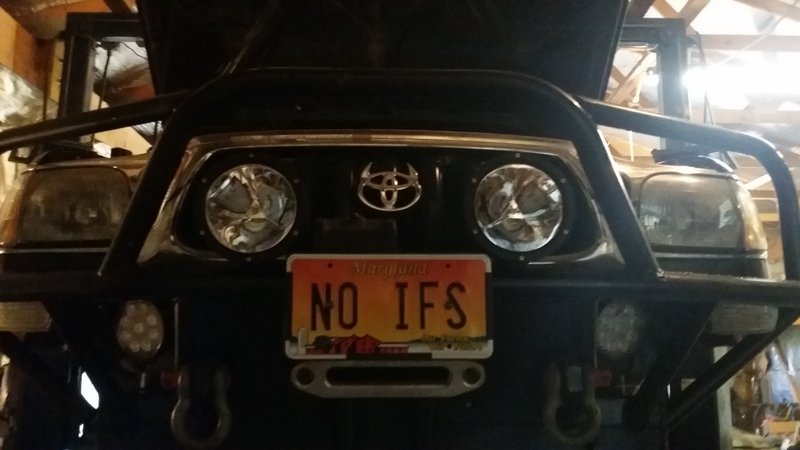

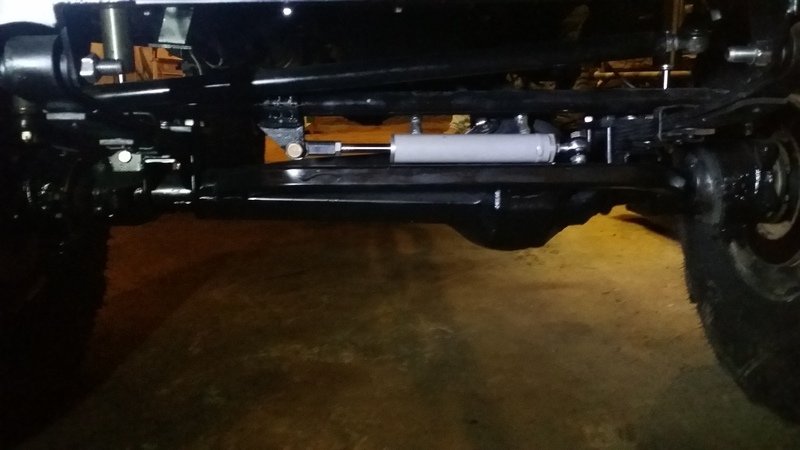

    And in case you can't tell it's SAS'd....

    No IFS about it


    @HomerTaco NO IFS FTMFW

    ToyRyd04, Sep 20, 2015
    #134
    FrustrationFabTaco and HomerTaco like this.
  15. Sep 20, 2015 at 7:36 AM
    #135
    HomerTaco

    #135
    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,875
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    :woot:

    :cool:

    HomerTaco, Sep 20, 2015
    #135
  16. Oct 1, 2015 at 4:32 AM
    #136
    ToyRyd04

    #136
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox
    More to come this evening, but she fired right up and drove great last night..



    ToyRyd04, Oct 1, 2015
    #136
    Poofyfoot likes this.
  17. Oct 1, 2015 at 6:41 AM
    #137
    cynicalrider

    #137
    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    17,069
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    Flex pics! Flex pics! Flex pics!

    cynicalrider, Oct 1, 2015
    #137
  18. Oct 1, 2015 at 9:06 AM
    #138
    HomerTaco

    #138
    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,875
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    x2

    HomerTaco, Oct 1, 2015
    #138
  19. Oct 1, 2015 at 1:49 PM
    #139
    Wheelspinner

    #139
    Wheelspinner Coco Customs

    Joined:
    Jul 6, 2013
    Member:
    #107741
    Messages:
    4,370
    Gender:
    Male
    First Name:
    Steve
    Northern NJ
    Vehicle:
    '13 4x4x4cyl
    If you wanna see flex you have to come to rausch this weekend. #hurricanewheeling

    Absolutly awesome build and attention to detail btw

    Wheelspinner, Oct 1, 2015
    #139
  20. Oct 2, 2015 at 7:41 AM
    #140
    ToyRyd04

    #140
    ToyRyd04 [OP] Taco Transformer

    Joined:
    Aug 5, 2011
    Member:
    #61217
    Messages:
    1,861
    Gender:
    Male
    First Name:
    Greg
    Perryville, MD
    Vehicle:
    '04 PreRunner
    SAS'd PreRunner Diamond Axles Crawlbox

    Thanks, looks better in person. I'll see you tomorrow.

    ToyRyd04, Oct 2, 2015
    #140
