Propeller Shaft, How to Torque

Discussion in 'Technical Chat' started by SC4333, Feb 19, 2009.

  1. Feb 19, 2009 at 1:38 PM
    #1
    SC4333

    SC4333 [OP] Well-Known Member

    Joined:
    Dec 9, 2008
    Member:
    #11412
    Messages:
    2,190
    Gender:
    Male
    First Name:
    Grant
    San Antonio, TX
    Vehicle:
    2016 TRD Off-Road 4x4 DCSB - Super White
    SOLD!
    Today while performing the 15K service, I realized there was going to be an issue when it came time to re-torque the Propeller Shaft (drive shaft) to factory specifications. The issue at hand was being able to properly torque the propeller shaft at the rear differential without using an extension and 3/8 universal joint.

    I thought over the problem for a few minutes and came up with an idea. I decided to use a Motion Pro torque wrench adapter (14&12mm) that I had from a previous project. The wrench simply connects to your 3/8 drive torque wrench and creates a 3 inch extension of the torque wrench. This is VERY useful in tight situations, where getting a socket in place is just not possible. Now I do realize that it would more then likely be possible to access the fasteners from the front of the flange, but this would require an extension and probably a universal joint adapter which would effect your torque readings. Fasteners should always be tightened from the 'nut' end rather than the bolt head when applicable.

    Bellow are a few pictures I snapped to depict the process. There is some simple math involved with calculating the torque specifications that are dependent on the length of your torque wrench and the desired final torque output. Anyone who graduated High School could easily pull this off.



    If anyone is interested the torque wrench adapter can be purchased direct from Motion Pro for $14.50, and comes with plenty of clearly stated instructions.

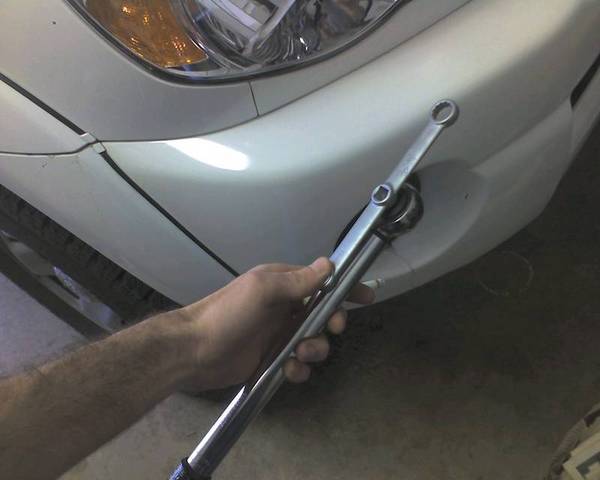

    Adapter and Torque Wrench (adapter must be used in a parallel position to the torque wrench)
    [​IMG]

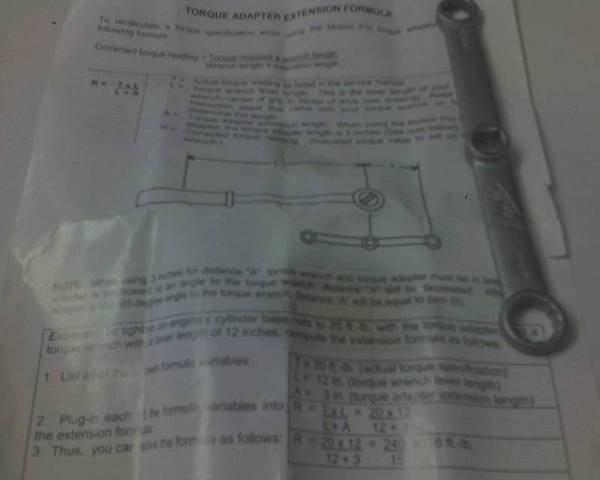

    Adapter and Instructions
    [​IMG]

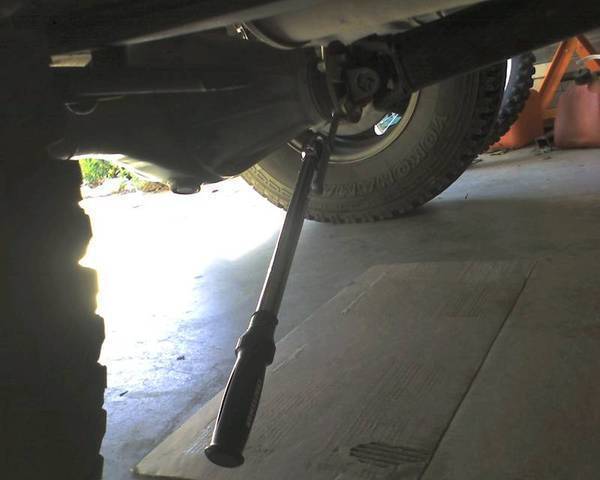

    Setup In-Use
    Torque Universal Joint Flange Yoke to 65 ft.lbs.
    [​IMG]

  2. Mar 8, 2013 at 9:38 PM
    #2
    dgtacoma

    dgtacoma Member

    Joined:
    Feb 28, 2013
    Member:
    #98700
    Messages:
    14
    Gender:
    Male
    First Name:
    dg
    norcal- bay area
    Vehicle:
    08 longbed pre
    debadged billet grill
    you must ride dirt bikes. motion pro is a tool company for motorcycles. rode with the owner on a few rides. great company.

  3. Mar 9, 2013 at 7:04 AM
    #3
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    10,215
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Good write up. You might want to mention that if you ARE going to use a torque extension, that there is a formula that must be followed to adjust for the additional length that this adapter adds.

  4. Mar 9, 2013 at 7:07 AM
    #4
    scocar

    scocar Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,401
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Holy thread resurrection.

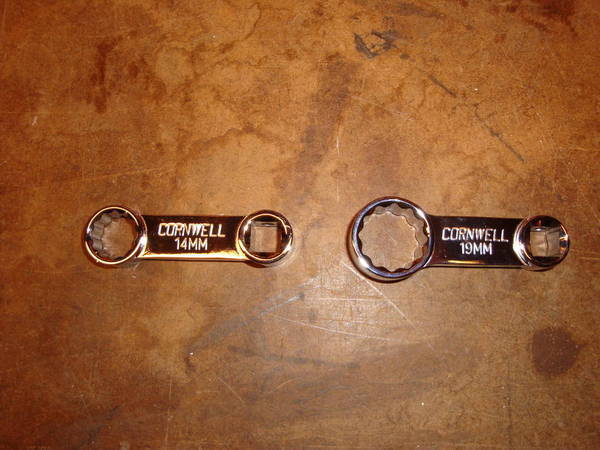

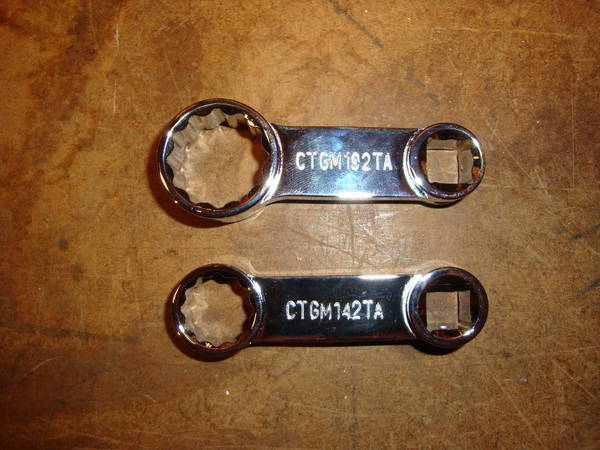

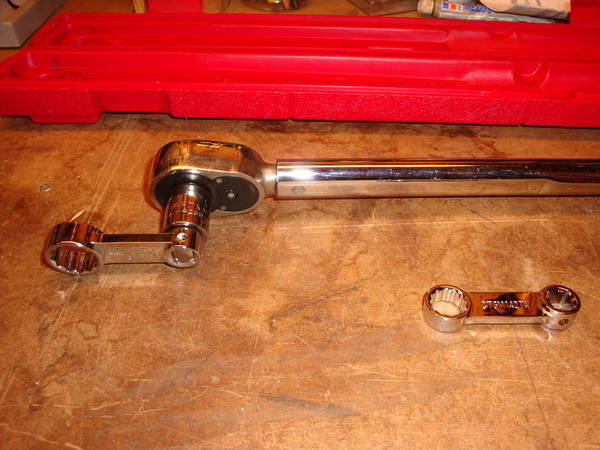

    I got a couple of Cornwell extenders for my suspension swapout (main eye bolt right next to the gas tank, and also the three top nuts at the top of the coils) and because of the propeller shaft torquing requirement.

    I found this online calculator for determining how to adjust the torque to account for the additional length (moments) of the extension.

    http://www.freeinfostuff.com/TorqueExtension/TorqueExtension.htm


    [​IMG]

    [​IMG]

    [​IMG]
