Discussion in '3rd Gen. Tacomas (2016-2023)' started by Lochevan, Apr 9, 2016.

Page 2 of 3
  1. Jun 15, 2017 at 1:04 PM
    #21
    SearArtist

    #21
    SearArtist GX poor

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    18,968
    Gender:
    Male
    First Name:
    Matt
    NC
    Vehicle:
    GX470 & GX460
    Things
    Here are my RX350's with custom tuned STi lenses.

    The photos below are from the guy who tuned them for me (user on HID Planet). They look the same after installation. Using 55W Morimoto ballasts an OSRAM XENARC CBH's (kinda pissed I paid $200 at TRS back in March-ish and now they are $175 :mad: )

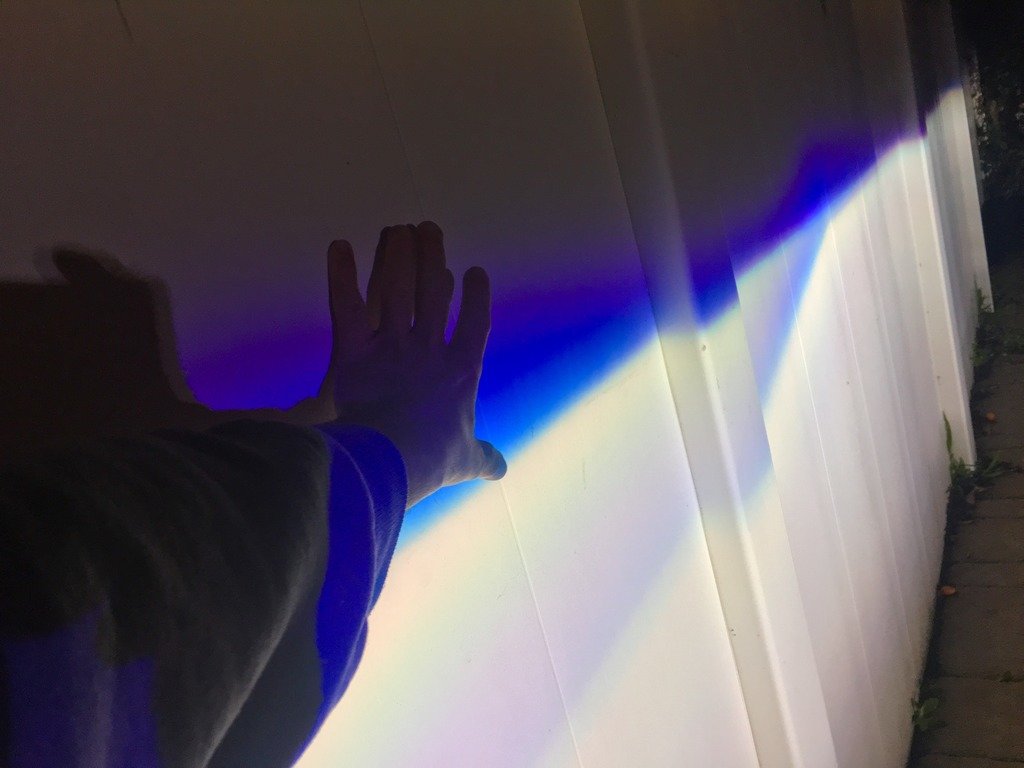

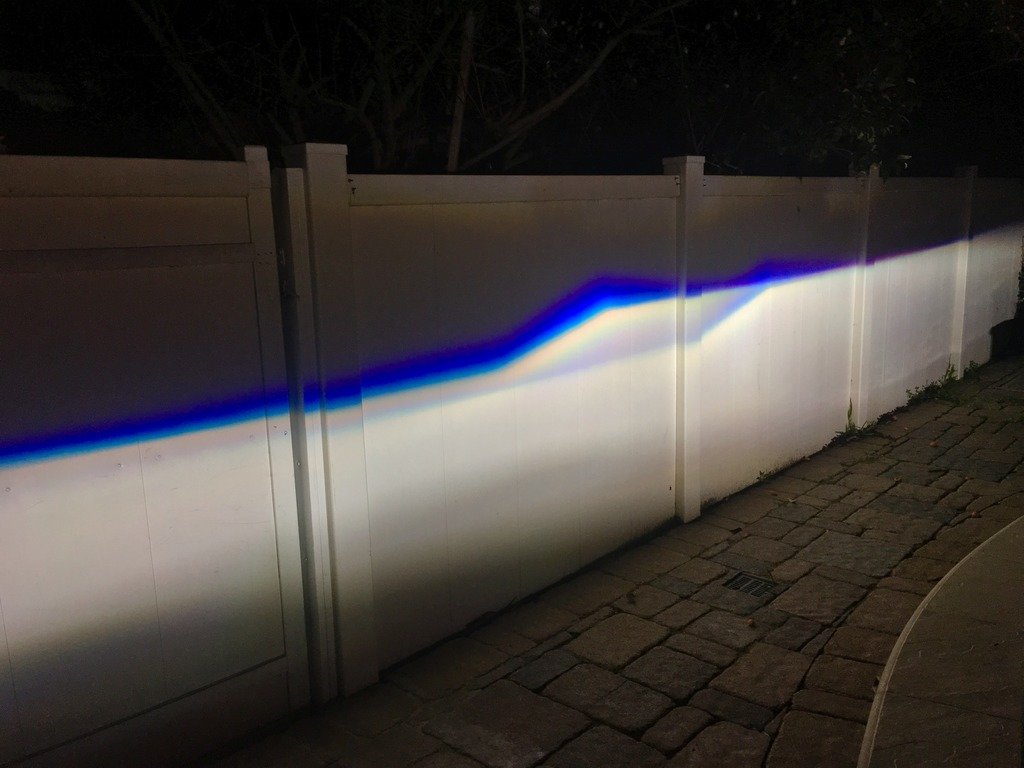

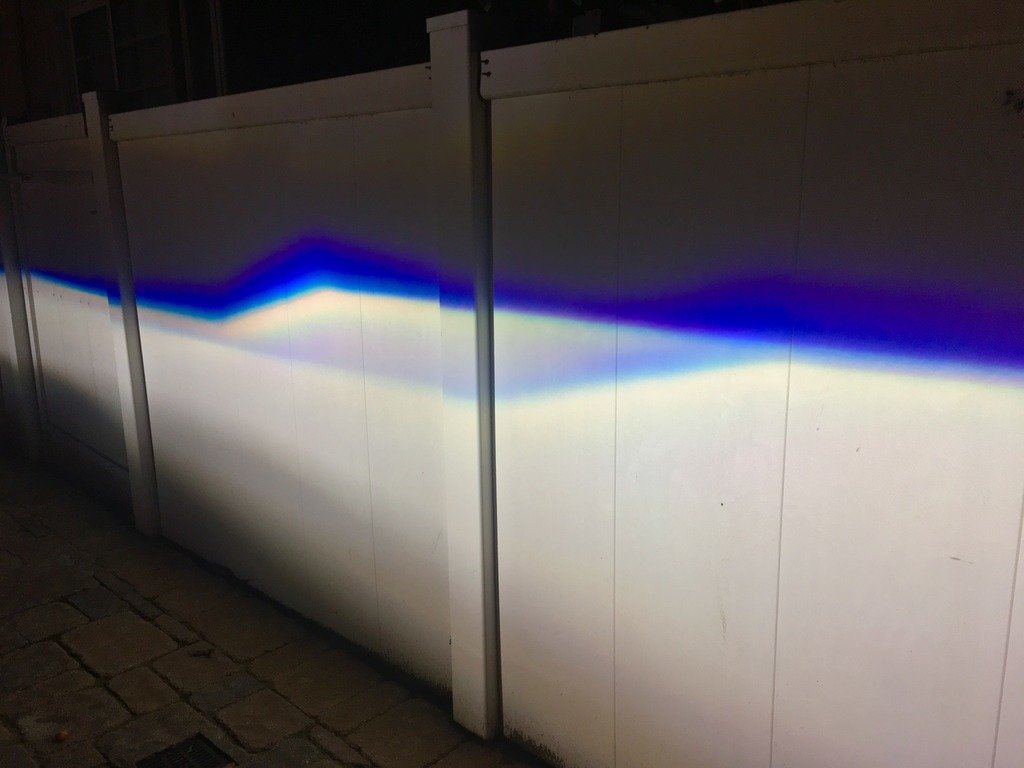

    6404AC3B-9B61-47AA-956D-66E8C9190AF6_zps_212886c8e80d3c2d4eca352983c2b72aab7f4fe5.jpg

    109AB3ED-185F-491E-B4BA-5ECBA1CD8C45_zps_90375f0076ae1f28473f7a59b85d5d524526a32c.jpg

    6E642871-1AFD-485E-B791-0980AB01E498_zps_a2a50137f97a34fcd3b9967a4dd03b39274ac94d.jpg

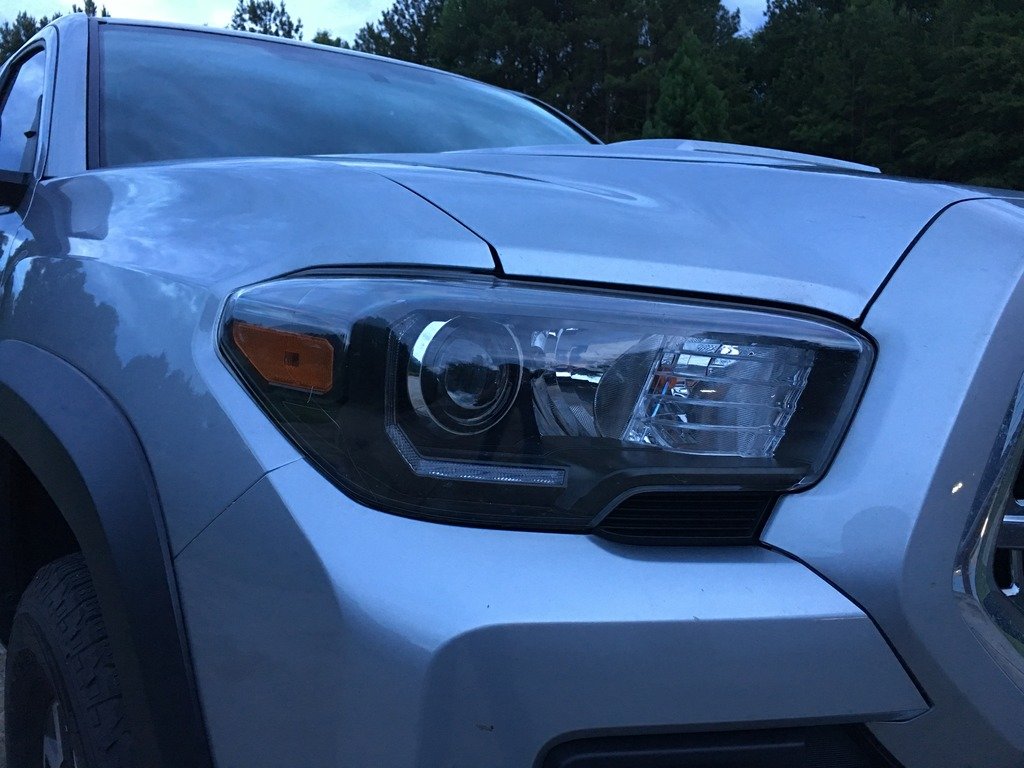

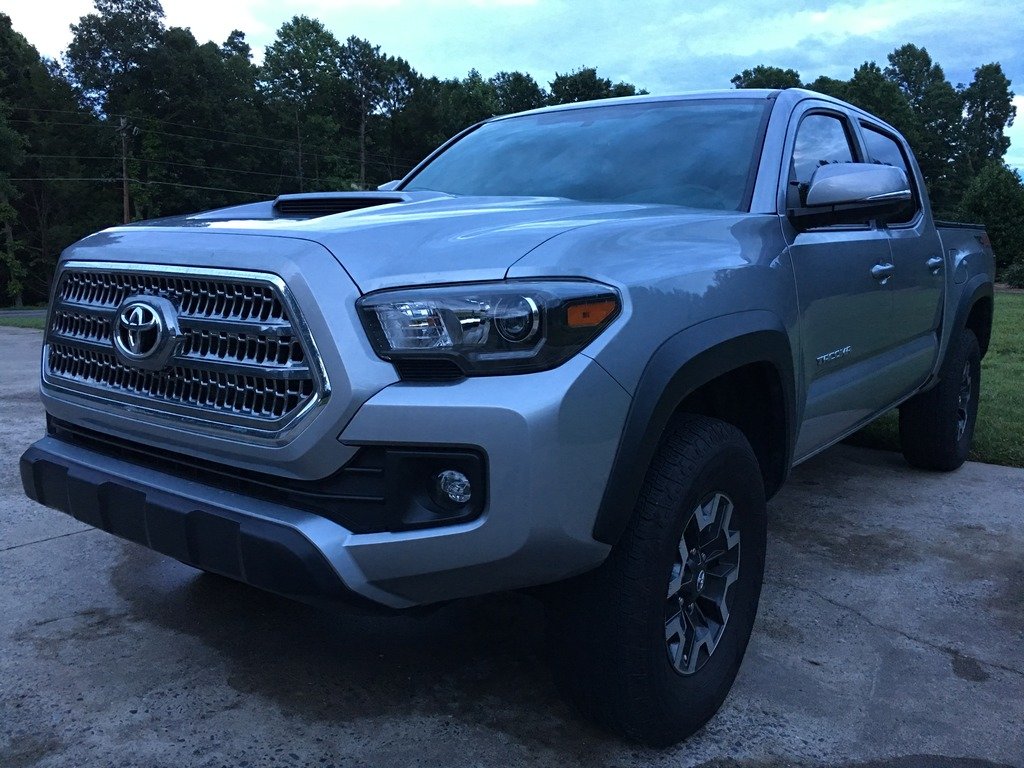

    Installed (sorry for the late night shitty photos):
    48F5FC8B-2827-4DB0-8824-3AB655E812AD_zps_13ee9daf8e940b457c0b764df89e0510a4dab694.jpg

    711877C7-60EB-42D7-A57A-4F577D5AEF3B_zps_a8c9a08d6622100faa59f4fe72dd5505bc26f774.jpg

    SearArtist, Jun 15, 2017
    #21
  2. Jun 16, 2017 at 12:40 PM
    #22
    DarkestCon

    #22
    DarkestCon Well-Known Member

    Joined:
    Jan 1, 2017
    Member:
    #206228
    Messages:
    181
    Gender:
    Male
    First Name:
    DC
    SF Bay Area
    Vehicle:
    2017 White Tacoma TRD Off Road
    Bone Stock
    Wow, that cutoff has a beautiful indigo color. What exactly did the guy have to tune?

    DarkestCon, Jun 16, 2017
    #22
  3. Jun 16, 2017 at 12:52 PM
    #23
    MESO

    #23
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    great output pics!! That is a quality setup right there.

    MESO, Jun 16, 2017
    #23
  4. Jun 16, 2017 at 2:17 PM
    #24
    daohaus

    #24
    daohaus Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    917
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    how exactly do you do this mod? is it a swap of the projector housing?

    NM found a post from @mesojdm

    Last edited: Jun 16, 2017
    daohaus, Jun 16, 2017
    #24
    MESO likes this.
  5. Jun 16, 2017 at 2:43 PM
    #25
    1bad2k

    #25
    1bad2k Well-Known Member

    Joined:
    Aug 9, 2009
    Member:
    #20889
    Messages:
    3,522
    Gender:
    Male
    Lone Star State
    Vehicle:
    2017 Tacoma TRD PRO
    Lol that's not as bad as me. I paid $175 for my CBI's (-25% off on sale) and now they're like $115.

    1bad2k, Jun 16, 2017
    #25
  6. Jun 16, 2017 at 2:46 PM
    #26
    MESO

    #26
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Yup! I'll create a new build thread when I start my next ultimate headlights( hint: triple projector setup) :O

    MESO, Jun 16, 2017
    #26
    daohaus[QUOTED] likes this.
  7. Jun 16, 2017 at 2:54 PM
    #27
    daohaus

    #27
    daohaus Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    917
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    I was looking at your build post and that's mighty nice. I like the PnP hi beam relay because I was wondering where you wired the solenoid wires to

    daohaus, Jun 16, 2017
    #27
  8. Jun 16, 2017 at 3:11 PM
    #28
    MilkTeacoma

    #28
    MilkTeacoma Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148023
    Messages:
    369
    I saw this thread and it reminded me of this photo.

    [​IMG]

    MilkTeacoma, Jun 16, 2017
    #28
    9TRDTCO and Taconator_ like this.
  9. Jun 16, 2017 at 3:22 PM
    #29
    Taconator_

    #29
    Taconator_ IG: ohv_tacotruck

    Joined:
    Jun 16, 2017
    Member:
    #221655
    Messages:
    1,974
    Gender:
    Male
    First Name:
    Eric
    SoCal
    Vehicle:
    18' DCSB TRD OR 4x4
    Holy tacos, that's insane. My next life goal is this headlight mod lol.

    Taconator_, Jun 16, 2017
    #29
  10. Jun 17, 2017 at 1:43 PM
    #30
    TyGuy1

    #30
    TyGuy1 Member

    Joined:
    Apr 26, 2017
    Member:
    #217365
    Messages:
    20
    Gender:
    Male
    First Name:
    Ty
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    mine are in the oven....

    TyGuy1, Jun 17, 2017
    #30
  11. Jun 17, 2017 at 3:02 PM
    #31
    MilkTeacoma

    #31
    MilkTeacoma Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148023
    Messages:
    369
    These are made by Spyder Auto.

    MilkTeacoma, Jun 17, 2017
    #31
    Taconator_[QUOTED] likes this.
  12. Jun 17, 2017 at 3:06 PM
    #32
    Kennedyusmc

    #32
    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,589
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    Look great but total crap output.
    I just get a set of thes eand send em to @mesojdm for quad or led retrofit

    Kennedyusmc, Jun 17, 2017
    #32
    MESO likes this.
  13. Jun 17, 2017 at 3:46 PM
    #33
    MESO

    #33
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Yaaaas. They look good, but the OEM projectors probably have better output/cutoff. I was told they will be released end of the year
    Roast em' !

    MESO, Jun 17, 2017
    #33
  14. Jun 17, 2017 at 5:08 PM
    #34
    Mr-Paul

    #34
    Mr-Paul Well-Known Member

    Joined:
    Oct 13, 2016
    Member:
    #199646
    Messages:
    474
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    2017 Qucksand Tacoma SR5 4x4 V6 Access-Cab
    How do you reassemble/reseal the headlight assembly?

    Mr-Paul, Jun 17, 2017
    #34
  15. Jun 17, 2017 at 7:43 PM
    #35
    SearArtist

    #35
    SearArtist GX poor

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    18,968
    Gender:
    Male
    First Name:
    Matt
    NC
    Vehicle:
    GX470 & GX460
    Things
    Used Morimoto RetroRubber. Put it in the channels then baked at 240*F for 8mins w/o the lens. Used a flat head to sort of smooth it out and flatten it. Put the lens back on loosely, back in the oven for another 20mins. Once out press it together, put the screws back in, and used about 8-10 spring clamps to apply even pressure. About 20mins later they were cooled off and ready to reinstall!

    Use this video as a reference:
    https://www.youtube.com/watch?v=7Hbv4BovDVA

    SearArtist, Jun 17, 2017
    #35
    EPH likes this.
  16. Jun 17, 2017 at 7:45 PM
    #36
    SearArtist

    #36
    SearArtist GX poor

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    18,968
    Gender:
    Male
    First Name:
    Matt
    NC
    Vehicle:
    GX470 & GX460
    Things
    Hope you are prepared to spend hours getting that permaseal removed! It took me around 4hrs per headlight of scraping that shit out!

    SearArtist, Jun 17, 2017
    #36
  17. Jun 17, 2017 at 9:15 PM
    #37
    TyGuy1

    #37
    TyGuy1 Member

    Joined:
    Apr 26, 2017
    Member:
    #217365
    Messages:
    20
    Gender:
    Male
    First Name:
    Ty
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    I was ready... but it is more painful than I thought. and the edges of the buckets for the highbeam are so sharp. I have a few band aids on

    TyGuy1, Jun 17, 2017
    #37
  18. Jun 17, 2017 at 9:41 PM
    #38
    MESO

    #38
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    ^ if there isn't blood,,. You ain't doin it right.

    MESO, Jun 17, 2017
    #38
  19. Jun 17, 2017 at 9:53 PM
    #39
    rlx02

    #39
    rlx02 ¯\_(ツ)_/¯

    Joined:
    Sep 3, 2016
    Member:
    #196329
    Messages:
    6,070
    Western WA
    Vehicle:
    2017 Inferno DCSB TRD OR 4x4
    Too old to do this anymore lol. Did it on my old mercedes c55 headlights. Looked badass but took like 6 hours per light to do, not including paint time. Never will be DIYing my headlights again...glad there are pro retrofitters now I can pay!

    rlx02, Jun 17, 2017
    #39
  20. Jun 17, 2017 at 10:20 PM
    #40
    MESO

    #40
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,294
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Good, I'm happy to take your monies :D

    MESO, Jun 17, 2017
    #40
    rlx02[QUOTED] likes this.
