Question around brake lines

Discussion in '2nd Gen. Tacomas (2005-2015)' started by VanMak, Feb 20, 2024.

  1. Feb 20, 2024 at 11:44 AM
    #1
    VanMak

    VanMak [OP] Member

    Joined:
    Mar 12, 2021
    Member:
    #359114
    Messages:
    12
    Gender:
    Male
    I was replacing my suspension this weekend with ARB's OME, not necessarily for the lift but because the factory suspension was done. I see that some of my brake lines are in pretty rough shape but I'm having a hard time determining what the correct pieces to purchase are. I have a 4WD, 4.0L, I think it's "Base" because I have no idea what the other models are, it does say "TRD Sport" on the rear fenders if that helps.

    When looking for parts, I typically use toyotapartsdirect.ca, but for my 2008 there are 13 different "Brake tube & clamp" assemblies, so how do I know which one to consult? I'm assuming it has something to do with the text under each assembly but I need help understanding what it means:

    (0805- )GRN245 W(*FTP & EUC:pNC51405A & 51406A) from 200805.

    So, on to the part numbers I'm trying to determine:
    1. Steel, z-shaped ~8" long. (Left: 4731804110, Right: 4731704050)
    2. Steel bracket bolted to steering knuckle. (47352)
    3. Rubber brake hose, ~10" long. (47313J, 47313A or Dorman H38986)
    4. Bracket on bump stop - 47354
    5. Steel, ~10" long. (Left: 4731635250, Right: 47314?)
    6. Bracket with 90º fitting (47311A)
    7. Steel line, long, leads to booster.

    So my questions for the audience are:
    1. How do I know which diagram to use?
    2. Of my parts list above, I want replace #1 and #5 on both sides, I will make these myself. Is there anything to know when buying the parts for this, specifically around line size, fitting size and thread?
    3. Of my parts list above, I want to replace #3 on both sides, the Toyota part is $70 and the Dorman part is $18. The Dorman part states specifically "w/o raised suspension", so will my 2" of lift from factory be a problem? If so, is there a recommended longer Dorman part?

  2. Feb 20, 2024 at 1:36 PM
    #2
    gotoman1969

    gotoman1969 Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254966
    Messages:
    6,363
    Gender:
    Male
    First Name:
    Steve
    San Antonio, TX United States
    Vehicle:
    2015 Silver Tacoma PreRunner
    3" ToyTec coilovers, JBA UCA's, Bilstein 5100's
    On the site you used does it allow you to put in your vin #?

  3. Feb 20, 2024 at 1:47 PM
    #3
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,692
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner
  4. Feb 20, 2024 at 4:14 PM
    #4
    VanMak

    VanMak [OP] Member

    Joined:
    Mar 12, 2021
    Member:
    #359114
    Messages:
    12
    Gender:
    Male
    It does, but still presents all of the diagrams mentioned.

  5. Feb 20, 2024 at 4:24 PM
    #5
    VanMak

    VanMak [OP] Member

    Joined:
    Mar 12, 2021
    Member:
    #359114
    Messages:
    12
    Gender:
    Male

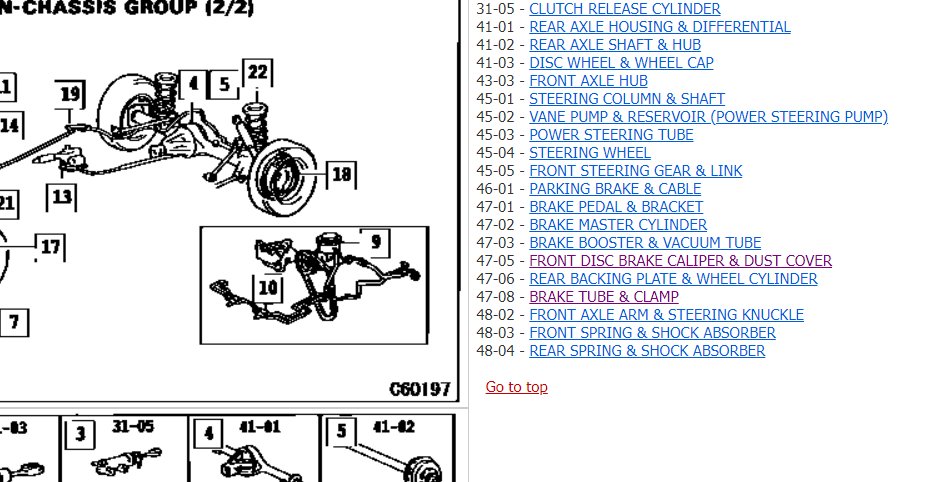

    Thanks for this, this is super helpful. It has now narrowed it down to two schematics, I'm trying to sort out the difference between the two, looks like one ends at the brake booster while the other ends at the ABS pump/actuator, which is what is representative of my truck.
