Quick relay question

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Zollars, Jun 21, 2015.

Post Reply

Jun 21, 2015 at 11:05 PM

#1

#1
Zollars [OP] Well-Known Member

Joined:

Nov 19, 2014

Member:

#142669

Messages:

944

Gender:

Male

First Name:

Ryan

Eagle River, AK

Vehicle:

2009 TRD Sport 4x4

Suspension: 5100 Billstein Front Shocks Rear AAL 3" lift Engine Bay/Engine: Under-Hood LED lighting Hood QuickLift Elite Hood Struts - Redline Tuning Exterior Additions/Mods: Front Steel Skid plate Front Bumper Light Bar - NFab Bed Cap System: Steal Bedside and Tailgate Caps - KBVoodoo Fabrications 2x US Flag Vinyl Decals Under Mirrors - Far North By Design Exterior Lighting/Electrical: Retrofit Headlights - Ambiguous Fog Light Relay Mod (Fogs On With High Beams) - Thanks To Ostrichsak Depo Taillights 50" 4D Curved Trac Performance LED Light Bar - SLX Motorsports 4x Spot Fog Lights on NFab bar Full Exterior LED Bulb Swap - CSJumper LEDs Interior Additions/mods: CVRV Mirror Riser - BirdDawg Industries Pioneer 8100NEX Head unit Interior 6 Switch Panel - IggyCorp Interior Lighting/Electrical: Backlit 4x4 Switch Mod - RCBS204 Otrattw Switches On IggyCorp Panel For Accessories Dome Light on With Open Door Mod

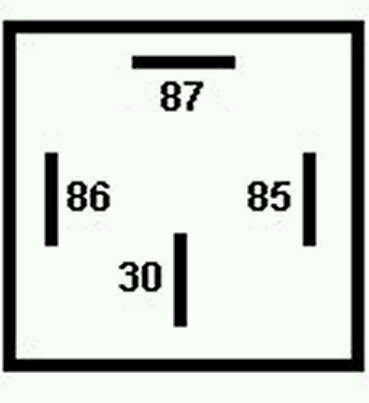

This is the relay I am working with..

On my other relays, I have the #30 pin connected to the fused wire to the battery, and the #87 pin to the accessory it's powering.

On the light bar wiring harness I got, the #30 pin goes to the light bar, and the #87 pin goes to the fused wire to the battery.

Can the #30 and #87 pin be flipped like that? Or does the fused battery wire always need to be on the #30 pin?
