Quirky overhead LED mod - cheap!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by RainDodger, Mar 10, 2010.

  1. Mar 10, 2010 at 5:39 PM
    #1
    RainDodger

    RainDodger [OP] YGWYPF

    Joined:
    Nov 23, 2009
    Member:
    #26412
    Messages:
    363
    Gender:
    Male
    Great Northwest
    Vehicle:
    '09 Black, TRD Sport
    None yet! It's new!
    I'll warn you now - sorry, no pics, but it's a SIMPLE mod. It took me less than 20 minutes and cost me $2.95. I didn't have a camera with me.

    I installed a small red LED inside the sunglasses/remote tray in the overhead console. I keep 3 remotes on velcro in there - garage door, house security system and gate opener. Now when I open the little door, the red LED shines on the remotes (or maybe glasses in your case). The best part is, now I won't forget to close it and continually whack my head on it when I get in the truck. I access those remotes in the dark every day.

    If you want to do it, here's how:

    1. get yourself a small (needs to be nearly flush mount) 12V LED.

    2. pull out the overhead console - one screw and 2 metal clips - there are instructions all over this site for taking it out. Disconnect the 2 (one large, one small) wiring harness plugs.

    3. Set the console on your bench. Looking into the large wire harness plug as if you were plugging into it, the upper right wire is 12V switched by the ignition. The one next to it is a ground wire.

    All the wires are black, so if you want to verify what they are, the male plug that plugs into this female plug is back in your truck. You SHOULD verify with a meter, that the green wire is 12V switched, and the black w/white tracer is a ground wire. Look at their orientation and tap into the right wires on the overhead console harness.

    4. Drill the correct size hole for your LED so that the light faces towards the front of the truck, at the sunglasses holder when open. Tap into the aforementioned wires for power to the LED.

    5. Reinstall the overhead console and you're done.

    Note 1: Yes, the LED will be on whenever the truck is running (or the key is on). You won't see it when the sunglasses holder is closed.

    Note 2: LEDs come in different brightnesses, so note its brightness value so you can change it if yours ends up too bright or too dim.

    Note 3: Sorry for no pics. You shouldn't be doing this if you don't have a meter to verify your wire taps, or you don't know the basics about how to do something like this! I just wanted you guys to know that this can be done and it's easy to figure out how.

    Enjoy (if you ever do it)

    Roger

  2. Mar 10, 2010 at 7:04 PM
    #2
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
  3. Mar 10, 2010 at 7:05 PM
    #3
    HondaGM

    HondaGM Roll Tide

    Joined:
    Oct 28, 2009
    Member:
    #25056
    Messages:
    5,769
    Gender:
    Male
    First Name:
    James
    South-Pole
    Vehicle:
    09 DC 4x4 Blown Honda VTEC V8
    trd exhaust,step bars,vent visors,bed lights,tailgate mod
  4. Mar 11, 2010 at 7:37 AM
    #4
    RainDodger

    RainDodger [OP] YGWYPF

    Joined:
    Nov 23, 2009
    Member:
    #26412
    Messages:
    363
    Gender:
    Male
    Great Northwest
    Vehicle:
    '09 Black, TRD Sport
    None yet! It's new!
    As I said in the original post guys, sorry for no pictures. It wasn't possible at the time and place I did the mod. I said that up front. If you can't manage to do the mod or use your imagination enough to interpret it, that's a problem you need to deal with!

    Personally, 2 posts telling me it's a worthless post is pretty worthless and a waste of time! So there!

    :)

  5. Mar 11, 2010 at 7:39 AM
    #5
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    I really just want to see what it looks like done so I can decide whether or not I want to spend the time and energy up there.

    Edit: Also with the LEDs I have been using if it is aimed poorly I will temporarily blind myself at night when I open the door.

  6. Mar 11, 2010 at 7:46 AM
    #6
    ShiftGear

    ShiftGear Well-Known Member

    Joined:
    Feb 7, 2010
    Member:
    #30905
    Messages:
    67
    Gender:
    Male
    BC
    Vehicle:
    TRD Sport
    :eek::eek:
















    I'm a visual learner...

    :worthless:

  7. Mar 11, 2010 at 7:47 AM
    #7
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,036
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
  8. Mar 11, 2010 at 8:31 AM
    #8
    RainDodger

    RainDodger [OP] YGWYPF

    Joined:
    Nov 23, 2009
    Member:
    #26412
    Messages:
    363
    Gender:
    Male
    Great Northwest
    Vehicle:
    '09 Black, TRD Sport
    None yet! It's new!
    "Nah, you guys aren't worth a reply...", he said, as he replied to say he wasn't going to reply, to the guys with absolutely no imagination, who want everything handed to them on a freakin' platter, so a moron can do a mod without thinking... :) See, it's a reflection of the intelligence of some people. Heh.

    All said with a smile. :)

  9. Mar 11, 2010 at 8:34 AM
    #9
    MY50cal

    MY50cal I think I'm getting the Fear.

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    2,841
    Gender:
    Male
    First Name:
    Mojo
    Parkesburg, PA
    Vehicle:
    05 SWB TRD 4x4
    Yes.
    :worthless:







    ka click... wow, that was easy...

  10. Apr 10, 2010 at 3:46 PM
    #10
    sp0di

    sp0di Active Member

    Joined:
    Mar 19, 2010
    Member:
    #33546
    Messages:
    30
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    10 DC OR
    Not to drag up an old thread.

    I just put in 2 3w amber LEDs in the overhead compartment to shine down at the center console area. I'm hoping the effect is correct. I'll post pics of that when I get some at night time :)

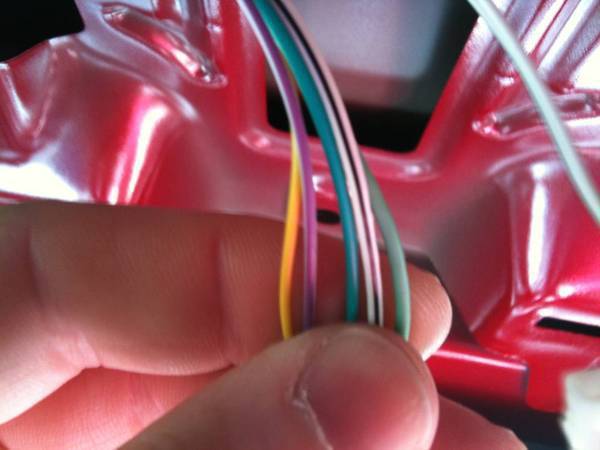

    Here is a pic of the wiring. From the initial post:

    [​IMG]
