RA60F Transfer Case Breather location for reassembly

Discussion in 'Technical Chat' started by MGRS, Feb 6, 2016.

  1. Feb 6, 2016 at 2:35 PM
    #1
    MGRS

    MGRS [OP] Well-Known Member

    Joined:
    Nov 15, 2008
    Member:
    #10790
    Messages:
    277
    Gender:
    Male
    Vehicle:
    '20 Tundra OR

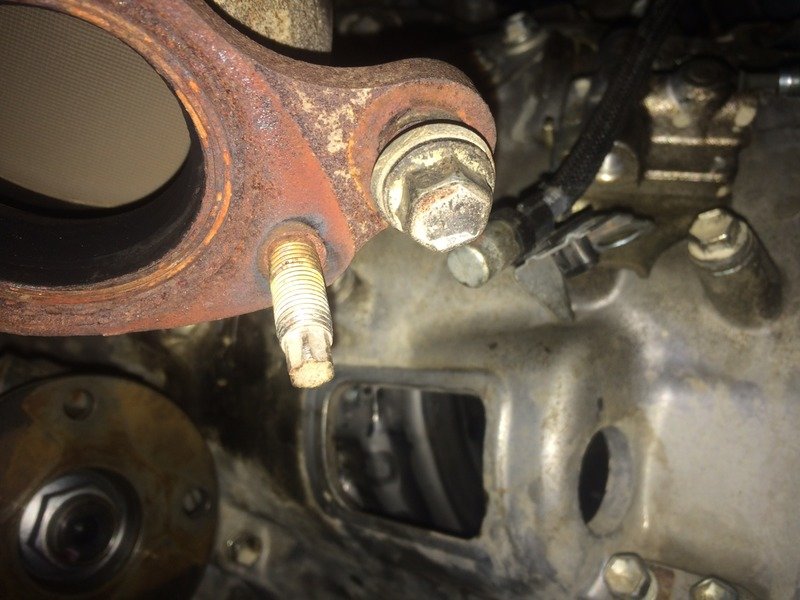

    I am reassembling the truck after replacing a chattering throwout bearing and can't remember, or find in the FSM, where the transfer case breather bracket is supposed to be secured. It is the part pictured below hanging down between the clutch accumulator and exhaust manifold (manifold stay removed).


    Looks from the location on the harness like it should go on one of the top 17mm bell housing bolts, but that does not seem right.

    Thank you in advance for any assistance.

  2. Feb 7, 2016 at 6:53 PM
    #2
    sparkystaco

    sparkystaco Well-Known Member

    Joined:
    Jan 26, 2010
    Member:
    #30122
    Messages:
    5,727
    Gender:
    Male
    First Name:
    Sparky
    SE Wi
    Vehicle:
    06 4x4 dc trd ofrd
    3" lift? A.R.E cap 285/70/17 moto metal 955 17x9
    Doesn't that go up on the firewall?, by the master cyl

  3. Feb 13, 2016 at 8:17 AM
    #3
    MGRS

    MGRS [OP] Well-Known Member

    Joined:
    Nov 15, 2008
    Member:
    #10790
    Messages:
    277
    Gender:
    Male
    Vehicle:
    '20 Tundra OR
    Seems like it would, but it is not long enough to go much farther than the top of the bell housing. I ended up just pulling the bracket off and attaching it to the wiring harness with zip ties.

    It is still much higher than the actual trans breather, which is fixed to the top of the trans housing next to the shift column.

    Thanks for the reply though.
