ramonortiz55 4runner build: La Venenosa - For Sale!

Discussion in '4Runner Builds' started by ramonortiz55, Apr 9, 2015.

  1. Jan 13, 2016 at 2:32 PM
    #341
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    I had my TWSS give me a Uniden PRO 520XL cb radio for my 4runner build.

    Thanks bud @adanfon






    The thing with these cb radios is that they fit PERFECTLY in the ashtray location on the 3rd gen 4runners.

    Give you a clean, stockish look:



    To be able to achieve this, I remove the radio/ac bezel on the 4runner:



    I pulled the ashtray out and remove these two screws:








    Test fitting the CB radio:



    Trimmed the end brackets off with a dremmel tool and test fitted again:









    Used two strips of velcro between the plastic prongs and the top of the radio.
    This holds the CB radio in place:



    Connected my PL59 connector:



    Dont forget to order pizza. If you dont, this MOD will NOT WORK:



    Looks like Arizona is winning:



    So now I proceed to run the coaxial wiring for the cb radio. I purchased this mount from a member on T4R.org. The mount installs in the back hatch:







    Picked up the firering coaxial cable, the 18 feet version:



    I ran the coaxial cable from the front of the 4runner towards the back:




    Under the carpet on the driver's side:



    Under the door floor plastic panel front and rear:



    I then removed the plastic paneling in the rear driver's side area by the seat:



    Removed the driver's side back cargo paneling:





    Ran it thru this yellow vent thing:



    Here it is!



    I then hid it from view by running it behind the bumper:





    Made sure to install the cable like this:




    Acerwin, adanfon and BYJOSHCOOK like this.
  2. Jan 13, 2016 at 2:34 PM
    #342
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
  3. Jan 13, 2016 at 2:53 PM
    #343
    jkirkpatrick

    jkirkpatrick Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73869
    Messages:
    677
    Gender:
    Male
    First Name:
    Jason
    Edmonton
    Vehicle:
    2018 4Runner TRD Offroad edition (2000 Tacoma sold in 2018)
    Lift, tires, wheels, bumper, winch, sliders, skids, regeared
    ramonortiz55[OP] likes this.
  4. Jan 13, 2016 at 5:35 PM
    #344
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    27,754
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Builds
    I'm gonna get the one that bends so I can put it under my RTT, not gonna help OP on the runner haha

  5. Jan 13, 2016 at 5:40 PM
    #345
    Acerwin

    Acerwin The unNORM NORM

    Joined:
    Nov 20, 2014
    Member:
    #142732
    Messages:
    32,623
    Gender:
    Male
    First Name:
    Andrew
    South Carolina
    Vehicle:
    Toyota Tundra
    @ramonortiz55 going to start on your switch sticker soon buddy

  6. Jan 13, 2016 at 5:43 PM
    #346
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    out

    Acerwin likes this.
  7. Jan 13, 2016 at 5:43 PM
    #347
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    thanks

    Acerwin[QUOTED] likes this.
  8. Jan 13, 2016 at 7:31 PM
    #348
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    27,754
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Builds
    Fine! Unsubed

    :hattip::luvya:

  9. Jan 13, 2016 at 7:32 PM
    #349
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    waiiiittt!!

  10. Jan 13, 2016 at 7:38 PM
    #350
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    27,754
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Builds
    :spy: :poking:

  11. Jan 13, 2016 at 8:44 PM
    #351
    RedRunner87

    RedRunner87 Mall Crawler LVL Expert

    Joined:
    Jul 12, 2015
    Member:
    #159321
    Messages:
    4,261
    Gender:
    Male
    First Name:
    Vince
    The Springs, CO
    Vehicle:
    16 4Runner SR5
    255/80 Falken Wildpeak AT3W
    Thank you sir. I am going to run it in reverse order since it maybe a bit till I get my CB in. Gives me a project for when I get back from Vegas. Question did you have to loosen the bumper at all, or did it fit between the gaps? Trying to remember if I have enough gap to fit it through.

    Last edited: Jan 13, 2016
  12. Jan 18, 2016 at 4:32 PM
    #352
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    I went ahead and finally did the wiring for the winch this weekend.

    Well most of it.

    The reason it took me forever to get the wiring done was because I couldnt find a good spot to install my winch solenoid box.

    I wanted the controls to be accessible and I also wanted the box in a good spot where it wouldnt take too much space or require me relocating stuffss..

    I give credit to @BigFishAllDay build thread on T4R.org for this idea.

    Changed a few things, but the concept is all the same.

    So here is this big clunky thing:




    If I open it, I get a smaller clunky thing:



    The idea is to take the solenoid out of the box and mount it directly without a box.

    I studied the wiring, made sure I knew where everything was going and what every wire was.





    I decided to mount the controller jack inside the 4runner. These wires for the controller jack will be cut and extended with the connection inside the cab:





    before I cut the wires, I went ahead and removed the main lead wires and wrapped the solenoid in thick electrical tape to make it "waterproof"



    I cut off the winch controller jack and crimped on connectors at the solenoid and controller jack:





    Not only did i crimp them, but i also soldered the wiring on there for a dependable connection:



    Then I picked up some color matching wire and made the harness to extend the controller jack into the cabin of the 4runner:



    Once all this was complete, I looked for a suitable location for the taped solenoid.

    I saw a nice spot next to the battery:



    Its a little dark, but you get the idea. I Like the fact I can use the factory hole to run wires thru.



    Installed solenoid:



    Obviously the wiring that the winch came was not long enough for this location. I had to make my own wiring:



    I ran the wiring from the solenoid thru the hole in the inner fender and towards the winch:





    I then ran my controller jack wiring towards the 4runner cabin:





    Made all the connections for the controller jack wiring, taped them up nice and well to prevent any moisture from reaching the connections.



    I decided to get rid of these dummy switches and buy a tan switch blank to install my jack here:



    after installing winch jack:


    Last edited: Feb 1, 2016
    PcBuilder14 likes this.
  13. Jan 18, 2016 at 8:12 PM
    #353
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    @BigFishAllDay did you ever have any long term problems with this mod?

  14. Jan 18, 2016 at 9:15 PM
    #354
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,275
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/URD 2.2" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Doug Thorley Headers 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Have you decided where are you going to put the controller plug in the cab? Here is where I put mine.



  15. Jan 19, 2016 at 4:35 AM
    #355
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    once i get a new switch blank ill place it here


  16. Jan 19, 2016 at 4:35 AM
    #356
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    @Digiratus did you take your solonoid out of the box also?

  17. Jan 19, 2016 at 7:49 AM
    #357
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,275
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/URD 2.2" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Doug Thorley Headers 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    I did not. It is still in that outer plastic box. I thought that box would offer a bit more resistance to the elements that way. I did seal it up a bit better tho with a little strategically placed silicon.

    I haven't experienced it myself, but I've read that the contractor, that piece that handles all of the winch power, is or has been vulnerable to corrosion. So I didn't want to expose it further.

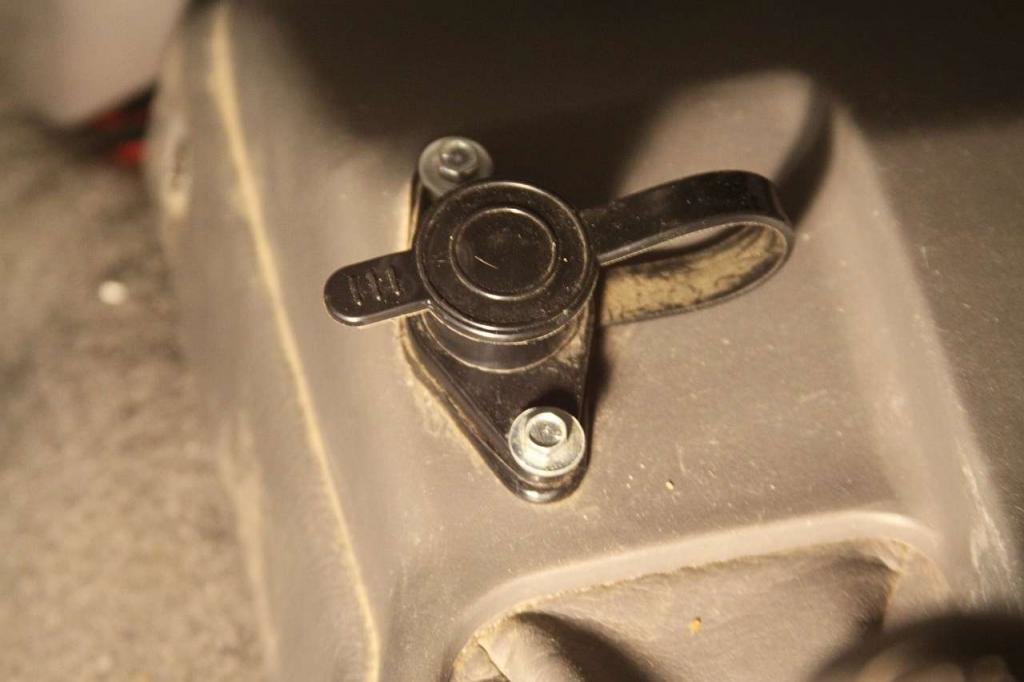

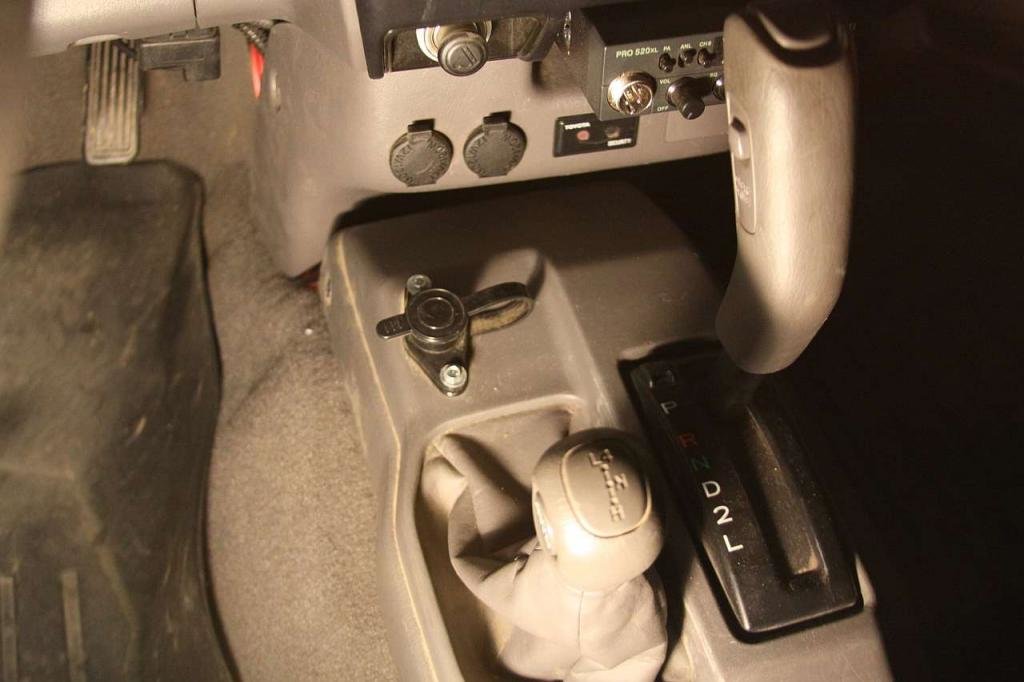

    My controller box is tucked into my bumper, in the passenger side wing next to the winch. Since I have a plate bumper it is hidden from sight.

  18. Jan 19, 2016 at 7:59 AM
    #358
    ramonortiz55

    ramonortiz55 [OP] Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,759
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    I am going to see if i can retro fit a smaller box to cover up my taped up solenoid.

  19. Jan 19, 2016 at 8:00 AM
    #359
    mr optimist

    mr optimist Mr Lazy

    Joined:
    Dec 2, 2013
    Member:
    #117787
    Messages:
    3,221
    Gender:
    Male
    First Name:
    Sam
    Alamosa, CO
    Vehicle:
    1998 4runner SR5 5 speed
    Supercharged, 5 speed, AOR Sliders, Tundra Front Springs, OME 906 Rear springs, Bilstein Tundra 5100s, Factory Diff lock, Wrangler Authority 275/75/16
    Nice job getting everything wired up! Do you have a kill switch for the winch?

    This happened to some guys in CO. Just an fyi

  20. Jan 19, 2016 at 8:02 AM
    #360
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    27,754
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Builds
    Hence its called Shittybuilt

    Glad everybody was ok
