Random Harness. Switched power for lights Confirmed

Discussion in 'Lighting' started by cvisinho, Feb 3, 2016.

  1. Feb 3, 2016 at 9:00 AM
    #1
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    889
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack

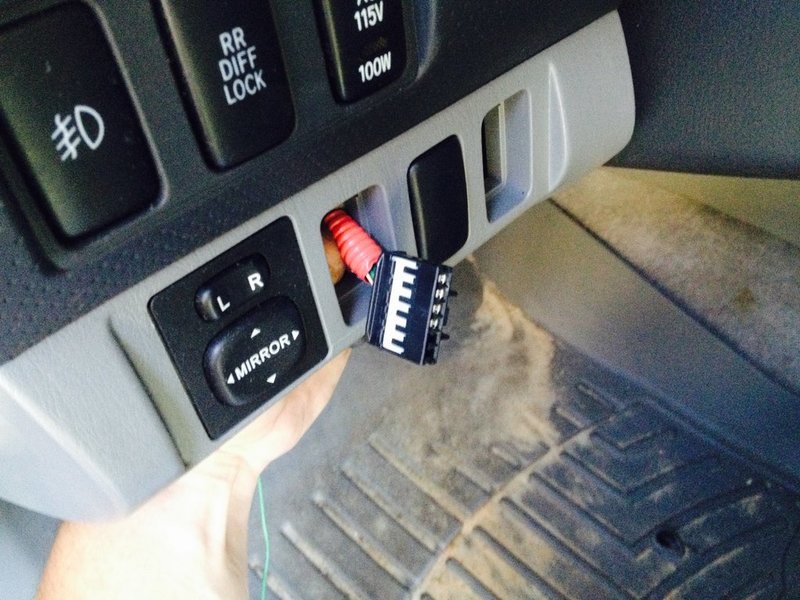

    Jacked this photo from an old thread. Thanks for the image OP.

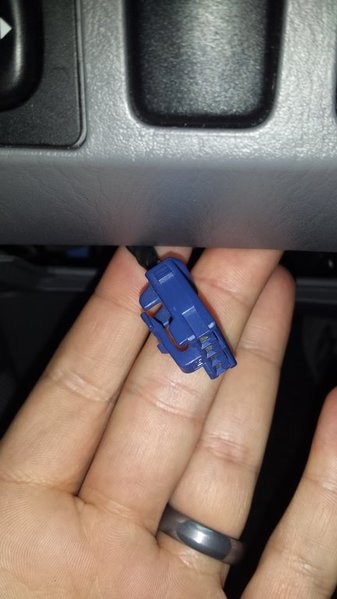

    I found this little stray harness the other day while changing my fog switch LED.
    Im assuming it is for a function I do not have and just part of the factory harness.

    Does anyone know if the lighting circuit wires get power here? There are definitely green and green/white wires in there.
    Im thinking of using it for my 4x4 switch if it gets power.

    Would be nice to use instead of splicing elsewhere.



    [​IMG]

  2. Feb 3, 2016 at 1:13 PM
    #2
    buckmark32

    buckmark32 Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153183
    Messages:
    67
    Gender:
    Male
    First Name:
    Christian
    Jacksonville
    Vehicle:
    14 Taco 4X4
    Stock
    On my truck, my CLUTCH START CANCEL is in that area.... dunno if that's what that could be for.

  3. Feb 3, 2016 at 1:33 PM
    #3
    Phoosa

    Phoosa I never saw nothing.

    Joined:
    Mar 8, 2015
    Member:
    #150436
    Messages:
    6,002
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    Truck
    2014 TRD OR
    Traction Control switch is there
    Has illumination wires. Green ones.

  4. Feb 3, 2016 at 2:37 PM
    #4
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    889
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
    nice. ill have to get a tester out there to confirm power.

  5. Feb 4, 2016 at 12:14 PM
    #5
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    889
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
    So the harness I found was a different color. The location would definitely be next to the power mirror control based on where it tied into the main harness.
    And it is confirmed to have power when the lights switch on/off for anyone else who is curious.
