RAY'S 16' OFFROAD OVERLAND BUILD

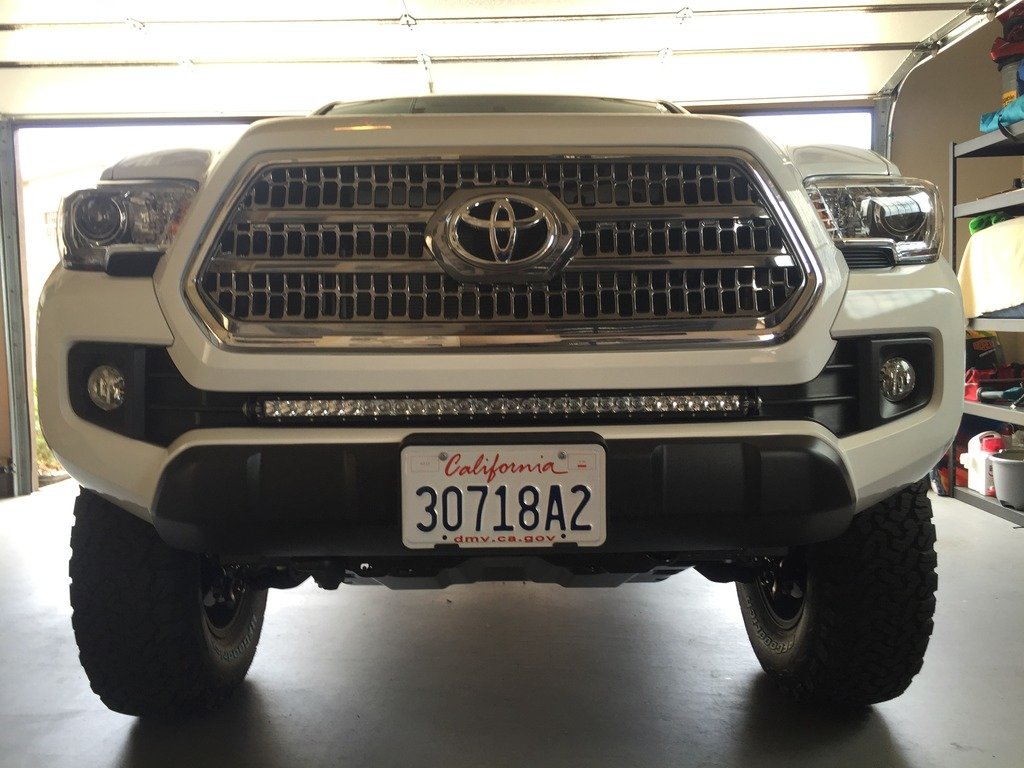

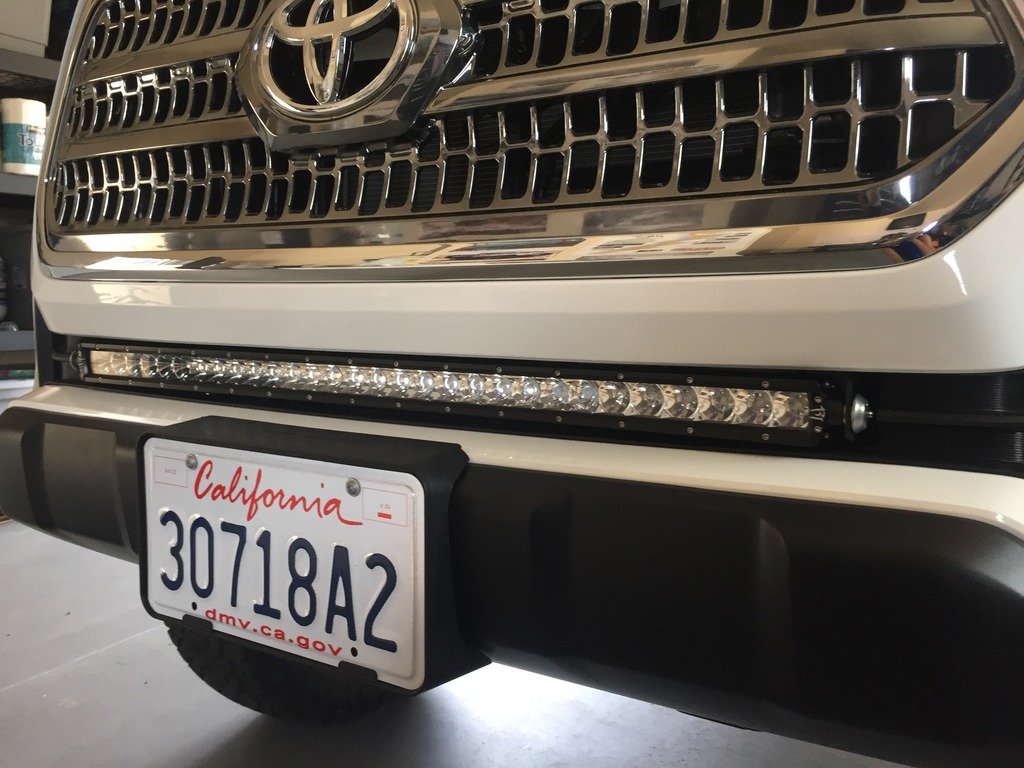

That's a 30" rigid SR with rigid mounts. I've had rigid lights on all my trucks and have always been impressed with their performance.

As for the roof racks, I just ordered a cvt roof top tent and I also have some rotopax tanks to mount up.



Awesome. Thank you. For the light bar, did you have to drill holes to make it fit, or did you just use existing empty holes behind the bumper?



The mounts bolt onto the steel bummer, no drilling necessary. You will have to cut out the plastic grill. Very easy to do, I bought a small hand saw at home depot.

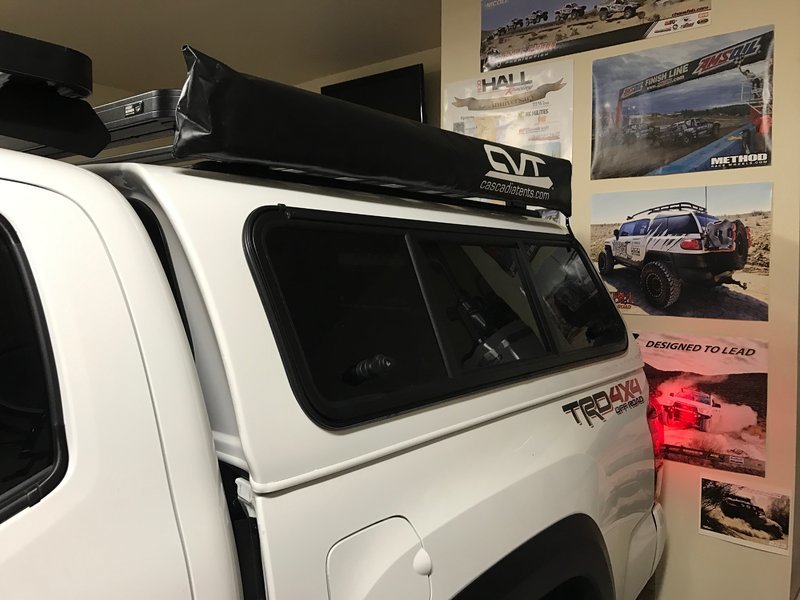

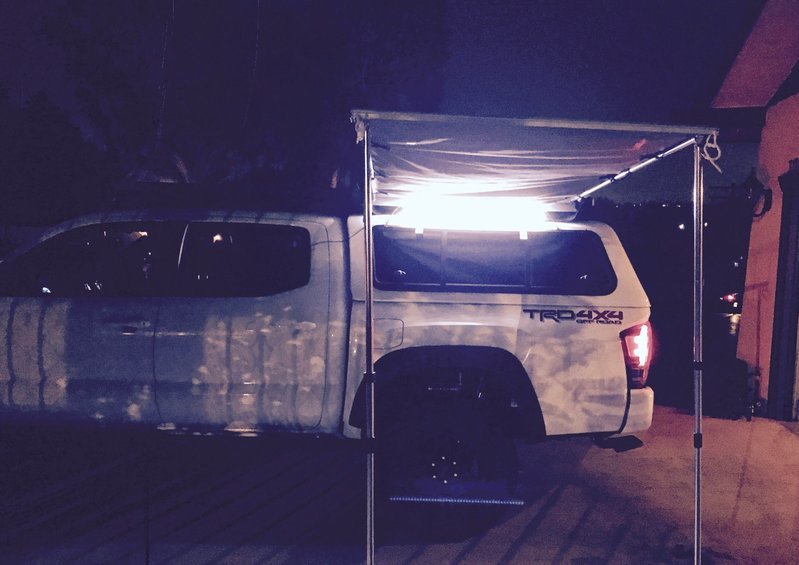

CVT Summit Series Awning installed. Tent should be here on Monday.

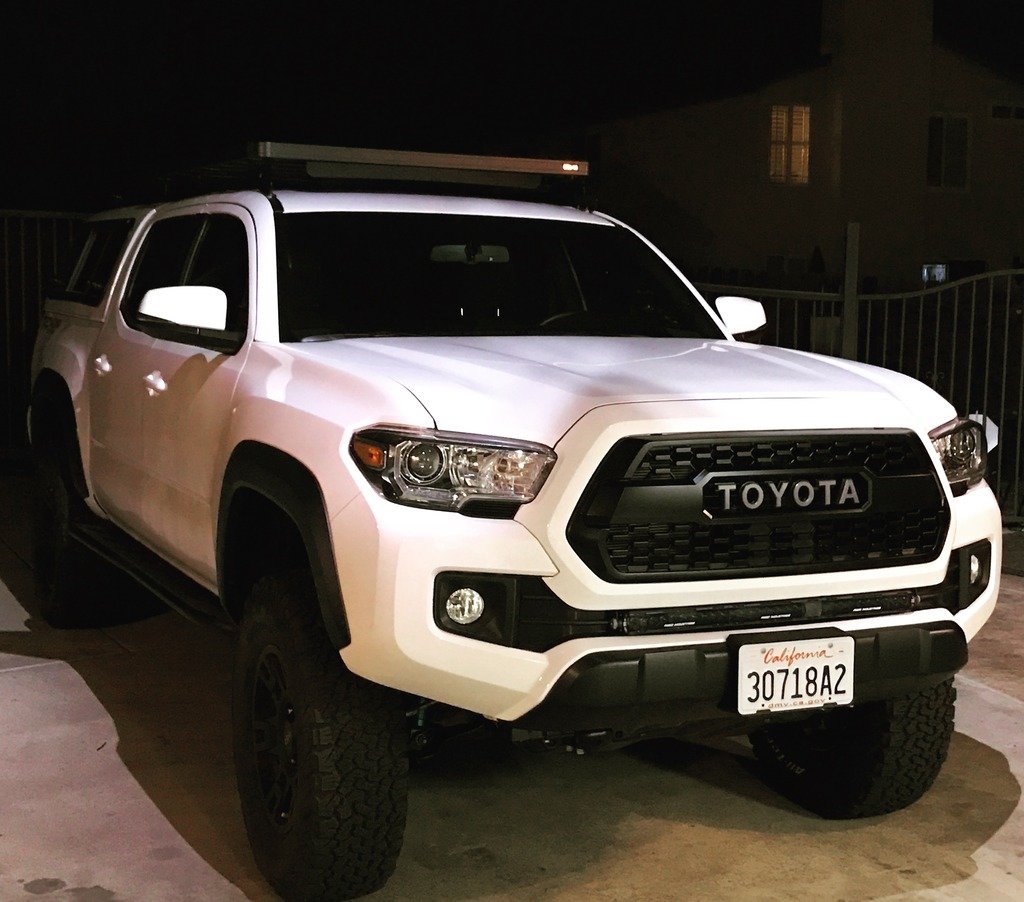

TRD Pro Grill



Do you have a cap on the rigid SR bar or is it a midnight series?



I have smoke covers on the rigid bar



Im planning on running the same tires and have the same year/engine. What was your average MPG before and after?



Did you leave your king coilovers at the factory height or did you have to crank them up a bit to clear those 34s?



I didn't have to adjust my kings for tire clearance. But I did adjust them to compensate for the driver side lean



My 34's are narrow so rubbing hasn't been an issue



That's awesome man. I'm running icons at factory settings with 275 KO2s but am thinking of jumping up to the 34x10.5x17 tires you have.

Thanks for the info!



LED bar looks sharp! How sturdy is the mounting solution to the truck? I was worried it might be loose over time if affixed to the plastic bumper but seems to be mounted to steel

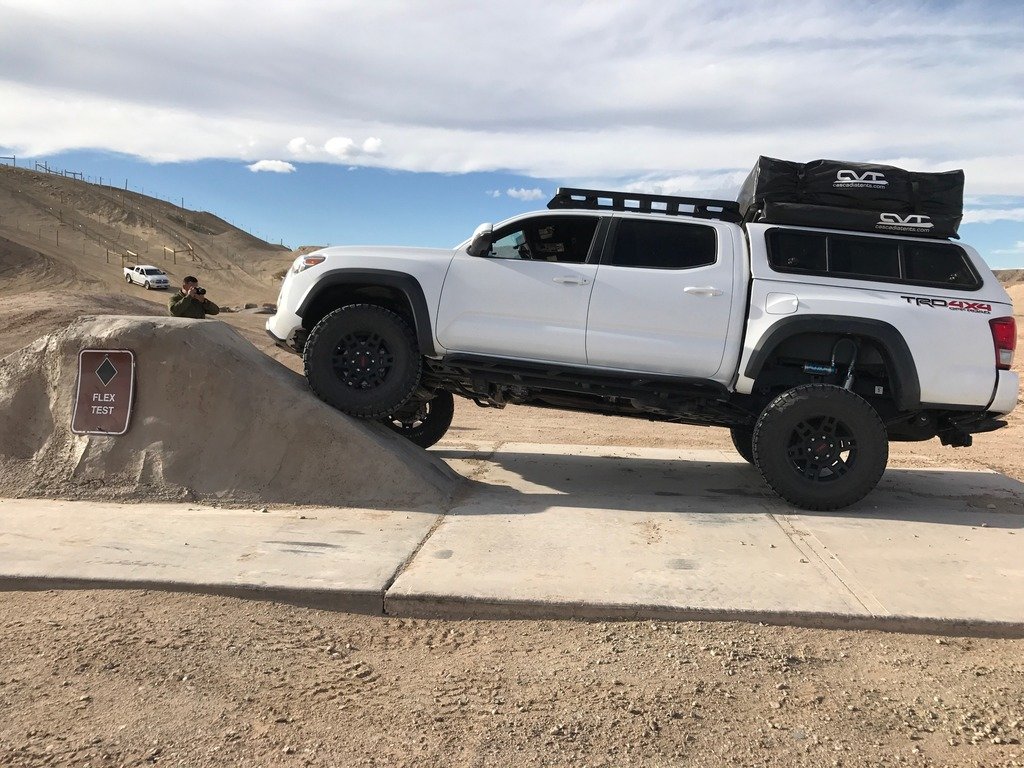

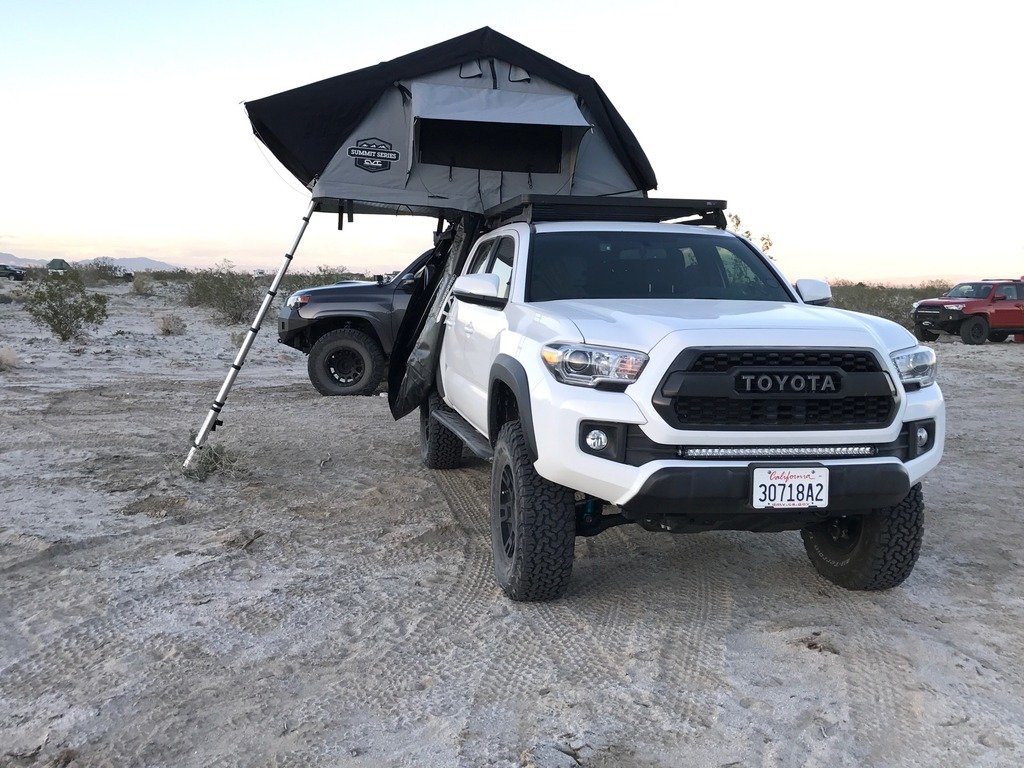

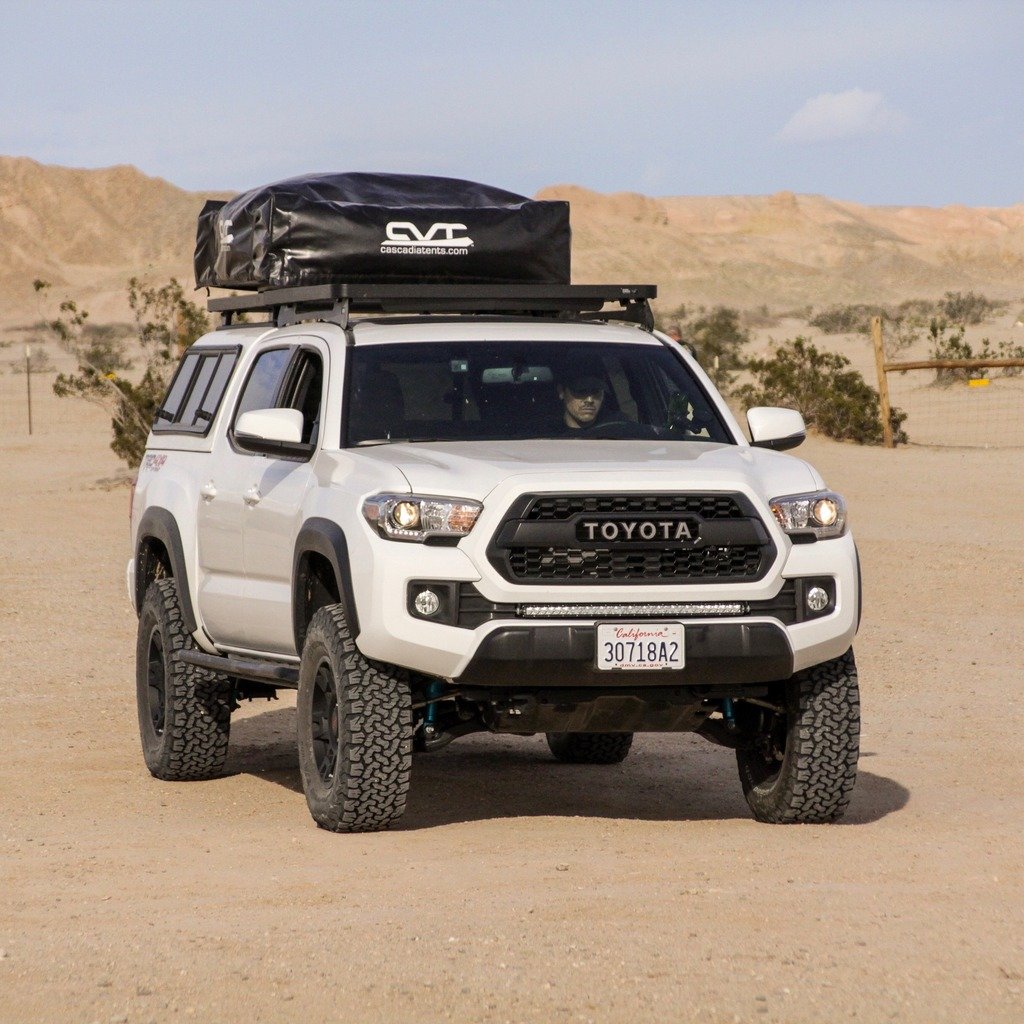

Some pics from the desert last weekend



great looking build! The Pro grille is a great touch, way better than the chrome.



Any rubbing between the tires and the Total Chaos spindle gusset? Do you think it'll rub with wider tires.
Thanks man
Sharp looking truck !



I don't have any rubbing. With a wider tire it will defiantly be close. You might have to run spacers or get some aftermarket wheels with an appropriate back spacing.



Great looking truck dude! Those tires are pretty spendy. How are you liking them?



Thanks !
