RCI mid-height bed rack + awning mount + 270 awning

Discussion in '3rd Gen. Tacomas (2016-2023)' started by JakeDoubleU, Aug 26, 2021.

  1. Aug 26, 2021 at 4:44 PM
    #1
    JakeDoubleU

    JakeDoubleU [OP] New Member

    Joined:
    Aug 26, 2021
    Member:
    #375375
    Messages:
    1
    Gender:
    Male
    First Name:
    Jacob
    Vehicle:
    2014 silver Tacoma TRD Off-Road
    Front Runner roof rack Toytec 2.5 lift Falken WildPeak AT3 SwitchPros Cali Raised Ditch lights KC HiLites Cyclone rock lights OEM Audio WeBoost OTR
    Has anyone tried the above combination ? I’ve already got the mid-height rack and am wondering if I use the RCI awning mounts with a 270 awning, will it be tall enough to clear the rear door and also just be tall enough to stand under in general ?

  2. Aug 26, 2021 at 5:00 PM
    #2
    Dank Donkeh Luvver

    Dank Donkeh Luvver Well-Known Member

    Joined:
    Sep 5, 2020
    Member:
    #339867
    Messages:
    443
    Gender:
    Male
    First Name:
    Eric
    Maryland
    Vehicle:
    2020 TRD OR White 6MT
    OVTune/Coyoza, Eibach Pro Lift, Mobtown Sliders/Skid, Softopper, Martin Offroad Rack
    I am not sure, but for reference, the Peregrine 270 awning is 88" (7'4") when stowed, which means you'll have a lot of overhang.

    JakeDoubleU[OP] likes this.
  3. Aug 26, 2021 at 5:34 PM
    #3
    shaggy135

    shaggy135 Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279785
    Messages:
    1,578
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2019 Barcelona Red TRD 4x4 OR DCSB MT

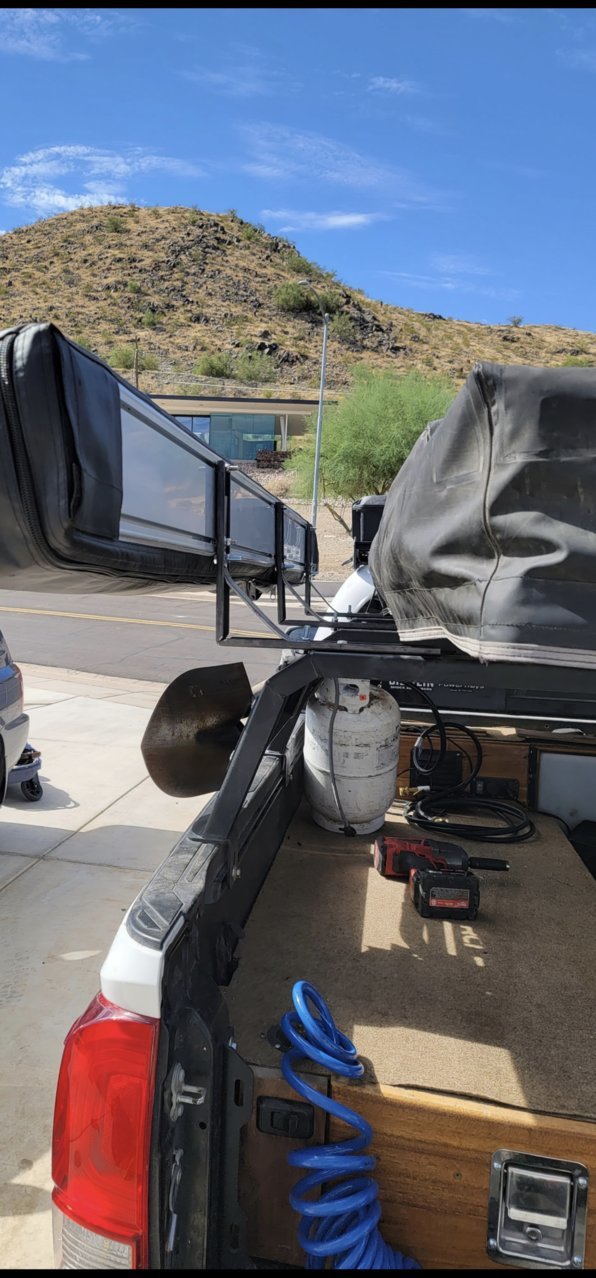

    I've got the KB Voodoo mid height rack on tonneau brackets. Had to make my own awning brackets though. These are repurposed countertop brackets, ha. Originally went with 12" brackets (which I need to sell now) but my awning is too thick and my rear door kept rubbing on it. So I swapped them out for 14" ones. All good now but I haven't taken any good pics yet. Overland Vehicle Systems 270 awning.

    [​IMG]

    [​IMG]

    [​IMG]

    Here's the 12" ones:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  4. Apr 3, 2022 at 7:50 PM
    #4
    EdsNotHere

    EdsNotHere Well-Known Member

    Joined:
    Jan 6, 2022
    Member:
    #386537
    Messages:
    88
    Gender:
    Male
    Vehicle:
    2011 Pre-Runner Double Cab

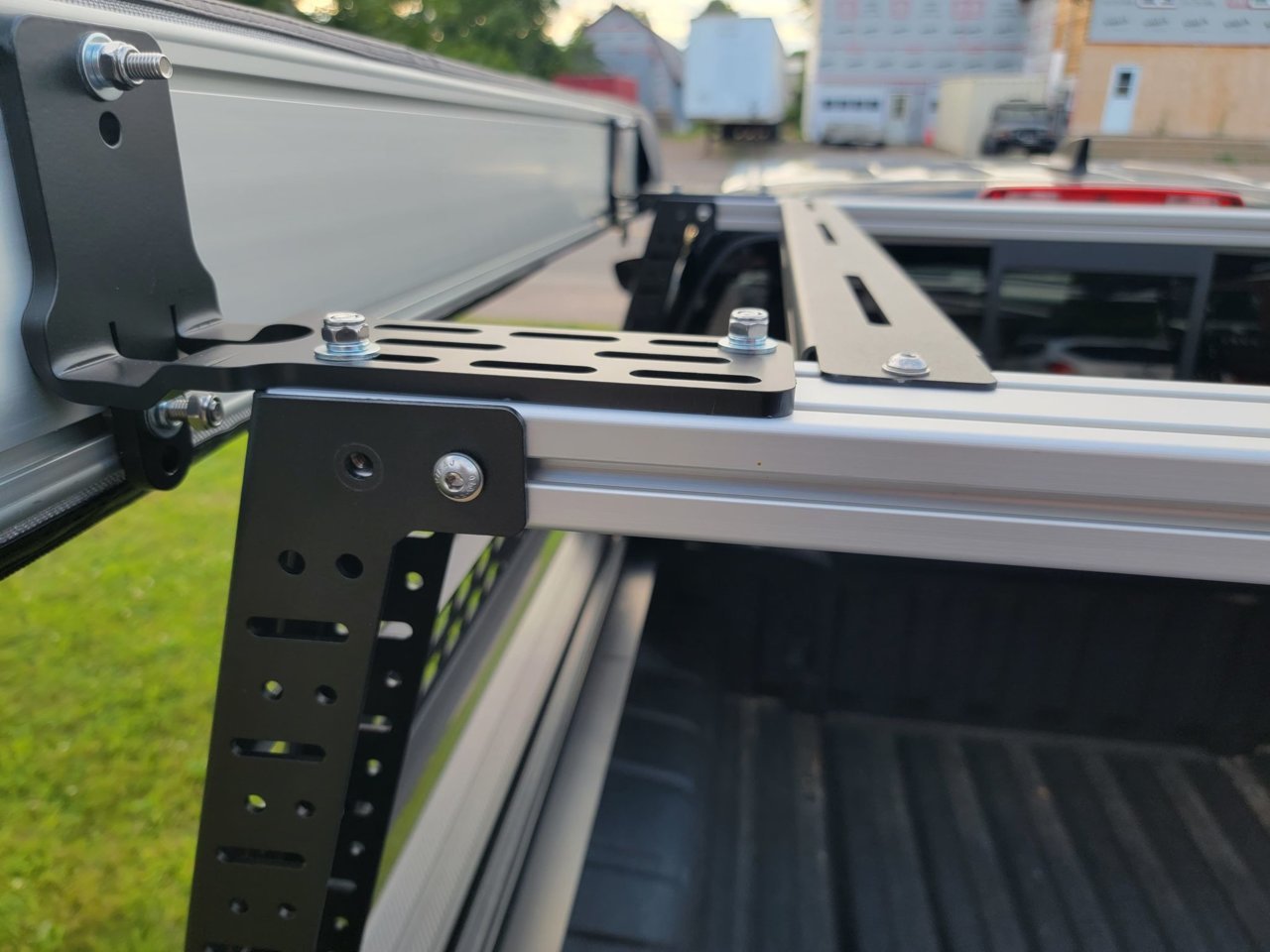

    is that the max modular awning mount and then you just modified with some additional steel and welded?

  5. Apr 4, 2022 at 7:59 AM
    #5
    shaggy135

    shaggy135 Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279785
    Messages:
    1,578
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2019 Barcelona Red TRD 4x4 OR DCSB MT

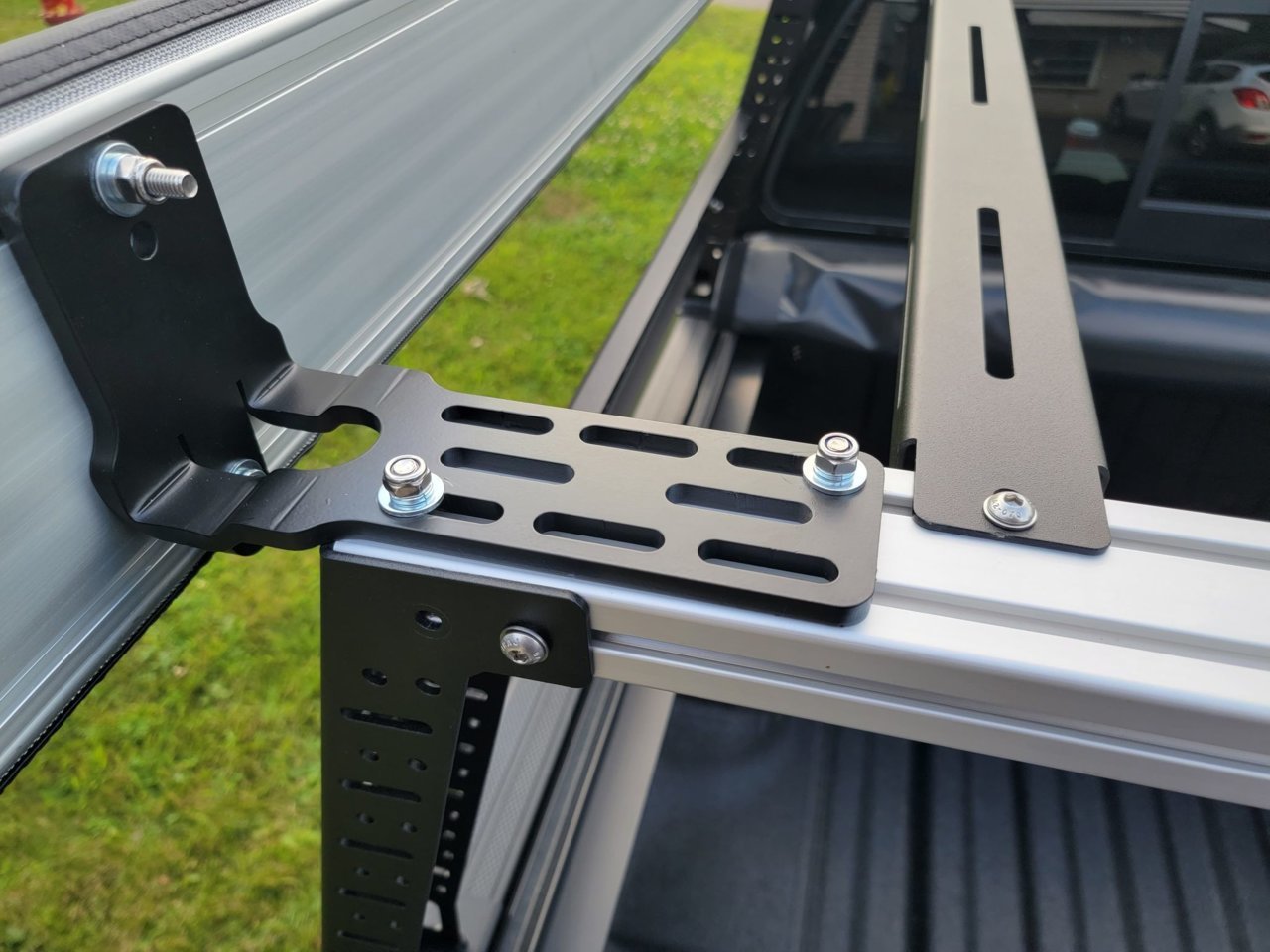

    You are correct. Awning mount on the outside and then some countertop support brackets on the inside. Nothing is welded though, it's all bolted together.

    These countertop brackets: https://www.amazon.com/gp/product/B00S5HP49C?ie=UTF8&th=1

    Here's the video where I learned about the setup. Basically used this guy's awning mount as a template. Around the 5:30 mark.


    AJ4mPR and Milkman6V7 like this.
  6. Apr 4, 2022 at 8:17 AM
    #6
    Jpmurph

    Jpmurph Well-Known Member

    Joined:
    Mar 15, 2018
    Member:
    #247425
    Messages:
    183
    Gender:
    Male
    First Name:
    John
    Vehicle:
    17 DCLB TRDOR
    The RCI awning brackets folded under the weight of the OVS 270 so I built my own. I was surprised there was not more off the shelf options.

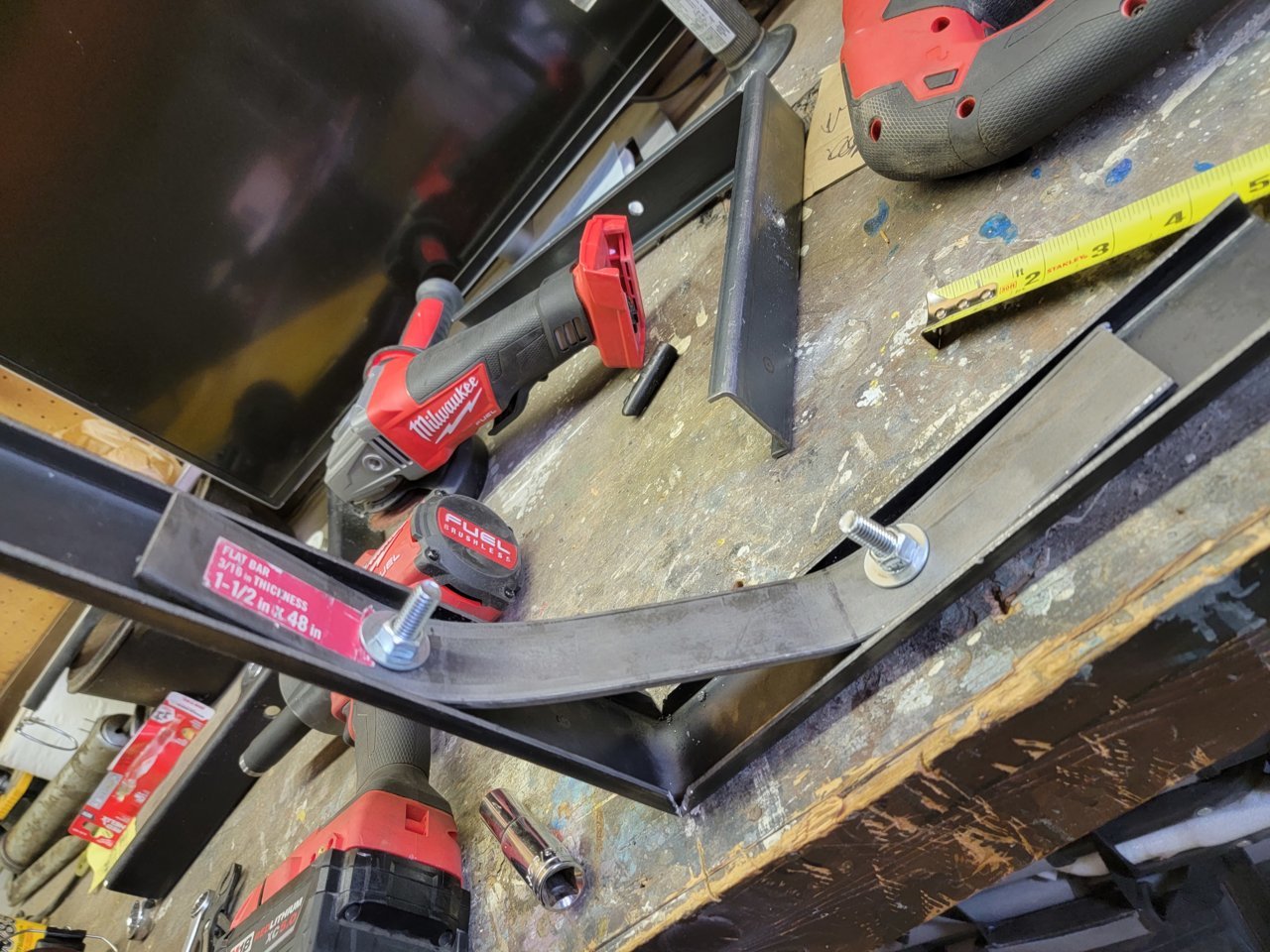

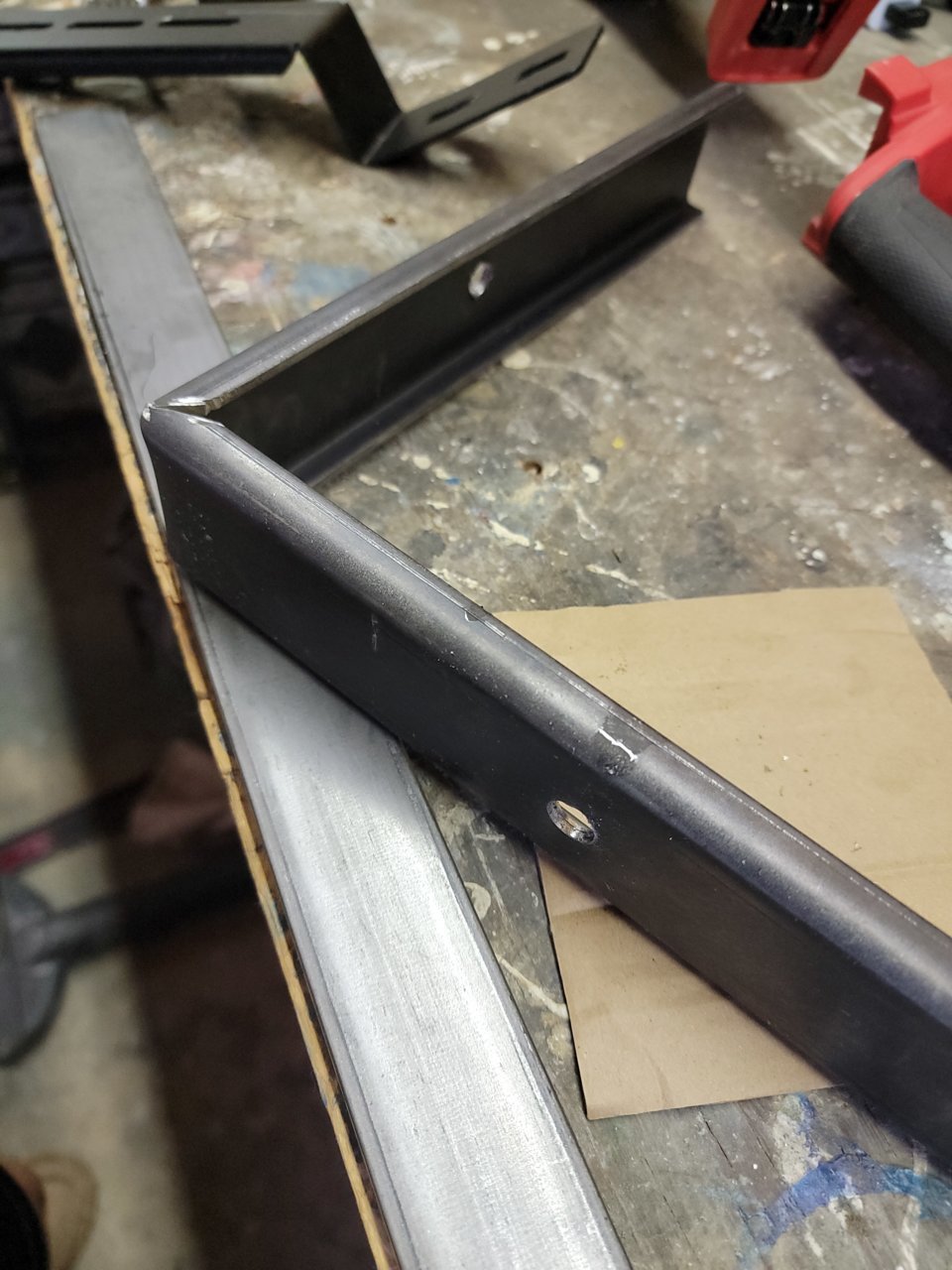

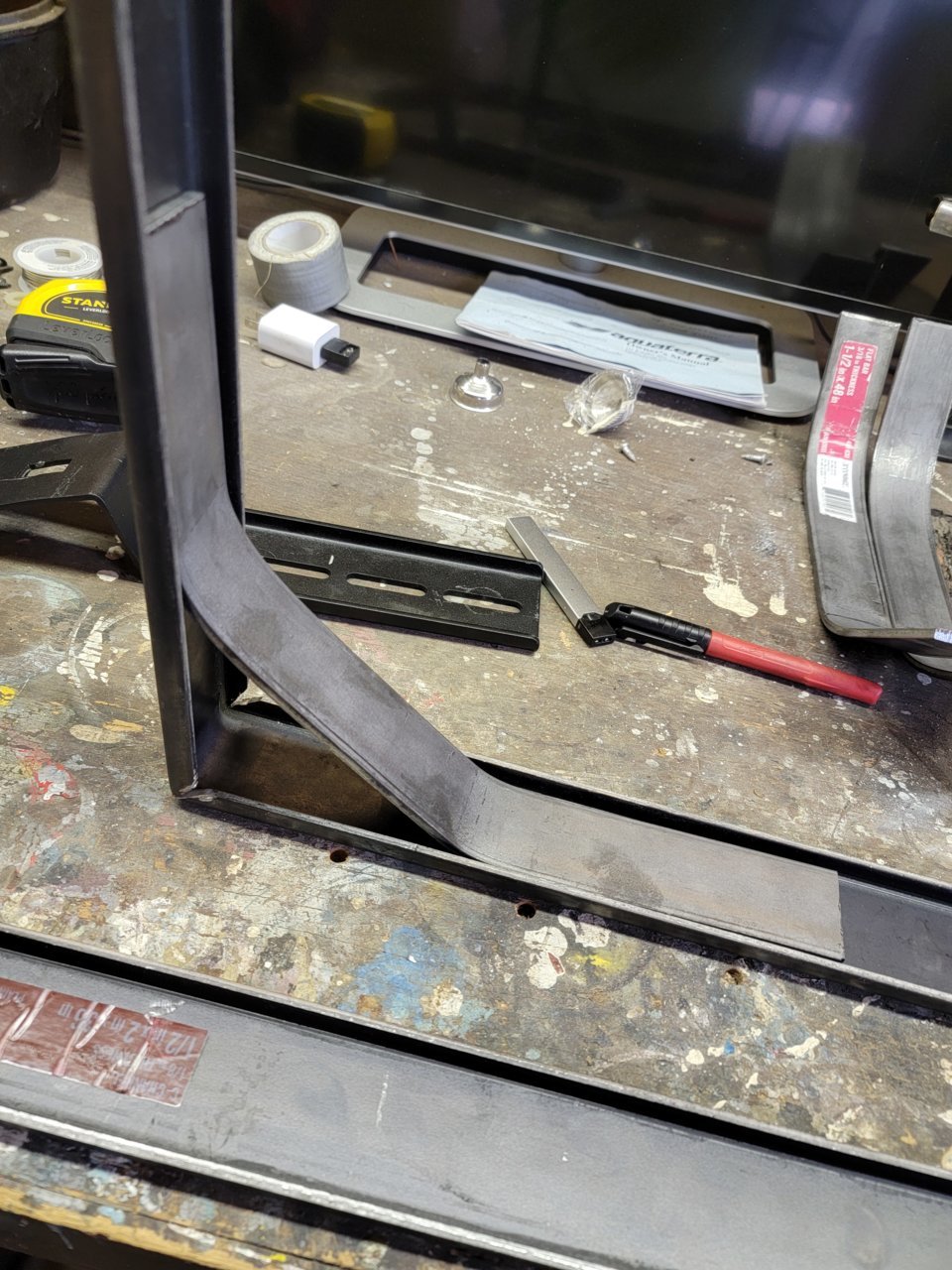

    20211009_093229.jpg 20211009_100535.jpg 20211009_105926.jpg Screenshot_20220404-080818_Gallery.jpg

    codyjphoto likes this.
  7. May 5, 2022 at 6:13 PM
    #7
    Milkman6V7

    Milkman6V7 Member

    Joined:
    Apr 14, 2022
    Member:
    #395031
    Messages:
    6
    Gender:
    Male
    First Name:
    Jason
    Vehicle:
    22 TRD Offroad 6V7
    6 inch RC lift 35s RC intake Stubby front bumper 10k winch Some lights Hooke roof rack Pending.... 5.29s Supercharger Full satin clear wrap


    Thanks Shaggy! Welding up some for my rig tomorrow.

  8. May 5, 2022 at 6:21 PM
    #8
    EdsNotHere

    EdsNotHere Well-Known Member

    Joined:
    Jan 6, 2022
    Member:
    #386537
    Messages:
    88
    Gender:
    Male
    Vehicle:
    2011 Pre-Runner Double Cab

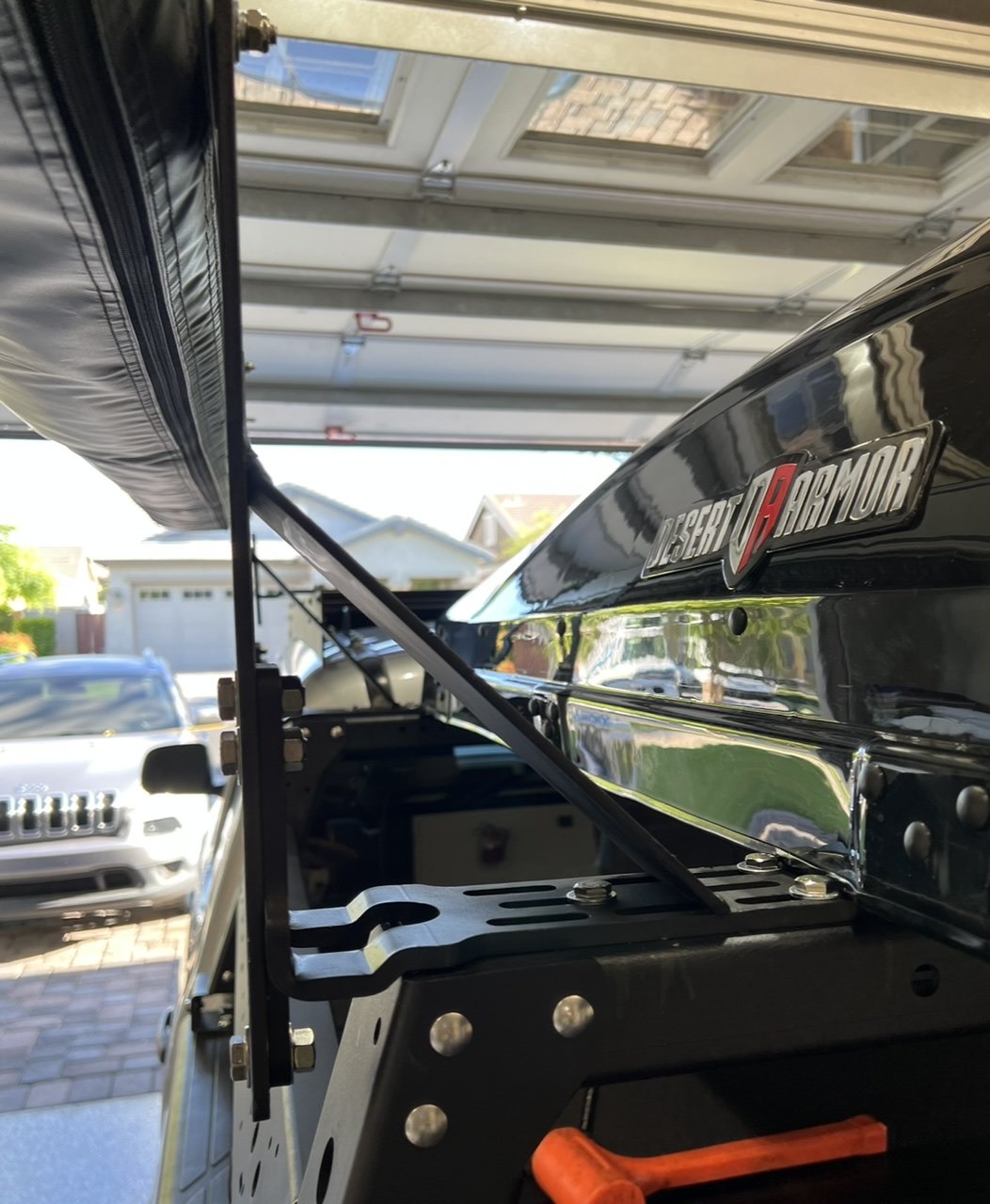

    D65C1264-3D82-4AA1-B0E4-97015C88C9D0.jpgMy solution.

  9. Jul 30, 2022 at 5:44 PM
    #9
    Malirris

    Malirris New Member

    Joined:
    Jul 25, 2022
    Member:
    #402078
    Messages:
    4
    Gender:
    Male
    Love the solutions here, hoping to figure out something easy and cheap for myself. Would adding a 3" spacer be an option under the OVS supplied bracket? Or would this cause load issues? Trying to keep cost to low, but I really need to raise this at least 3-4 inches in order to clear the rear door.


  10. May 30, 2023 at 8:43 PM
    #10
    Vega89xi

    Vega89xi Active Member

    Joined:
    Feb 18, 2017
    Member:
    #210967
    Messages:
    36
    Gender:
    Male
    First Name:
    Joe
    Nashville Area
    Vehicle:
    2021 Lunar Rock TRD Pro
    A little here... A little there...
    Bringing this back from the dead. Trying to solve the same issue with KBV mid height rack and an OVS 270LT. Have KBV extended mounts but you can't bolt the 270 to it because of the design of the mounts. Ordered some 15" counter brackets to mod the mounts with and clear the door. Any other cool things out there? Seems pretty difficult to find out of the box solutions to this.

  11. Jun 25, 2023 at 11:03 PM
    #11
    51Beets

    51Beets Well-Known Member

    Joined:
    Oct 18, 2022
    Member:
    #408340
    Messages:
    359
    Gender:
    Male
    Vehicle:
    2020 TRD Offroad
    Too much to list
    Did this work for you? I'm running a high Cali Raised rack (17.5in) but need to raise it probably 2-3 inches for it to clear as well.

  12. Oct 24, 2023 at 3:23 PM
    #12
    pinnacle.auto

    pinnacle.auto New Member

    Joined:
    Oct 24, 2023
    Member:
    #436123
    Messages:
    1
    Gender:
    Male

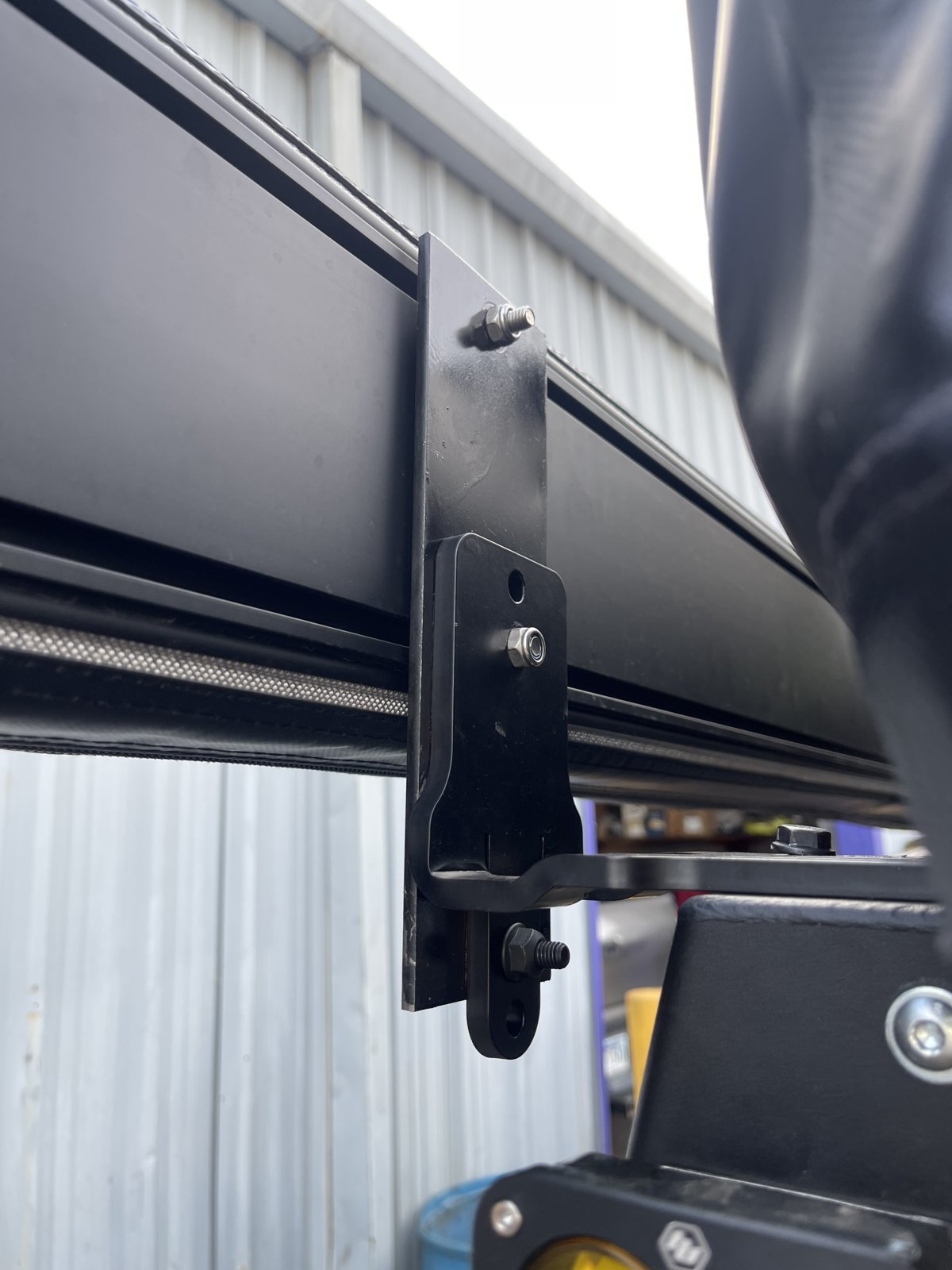

    Here’s what I did after looking at this thread. 30ish dollar piece of metal from Home Depot, a cut off wheel and a drill and some paint. Holds pretty firm. It’s worth mentioning the factory brackets did not mount easy to cali raised bed rack. Had to do a lot of drilling and some wonky mounting but it works. Must be a proprietary design.
