real time help needed. rear drums

Discussion in '2nd Gen. Tacomas (2005-2015)' started by meafordmike, Mar 22, 2012.

  1. Mar 22, 2012 at 12:21 PM
    #1
    meafordmike

    meafordmike [OP] Well-Known Member

    Joined:
    Oct 1, 2008
    Member:
    #9618
    Messages:
    288
    Gender:
    Male
    First Name:
    Mike
    New Brunswick Canada
    Vehicle:
    08 Tacoma 4X4/ 4Dr 6 speed, Sport/ Towing
    Devil Horns, Wet Okoles, WeatherTechs, Radflo Coilovers, OME Dakar's, FJC Gun metal rims, 265/75/16 BFG All Terrain TA/KO, Rear Diff breather Mod,
    I did search, but came up empty, I know the answer is out there somewhere.

    I just pulled my rear wheels off and was replacing some lugs that broke while changing tires. Pass side no problem, driver side drum was very hard to get off, I checked to ensure that the hand brake was off! Finally got the drumoff, which pulled the shoes little green springs off. I replaced lugs then reinstalled green springs. But the drum doesn’t want to slide on. Am I missing something or can I adjust the hand brake inside the drum (how?).

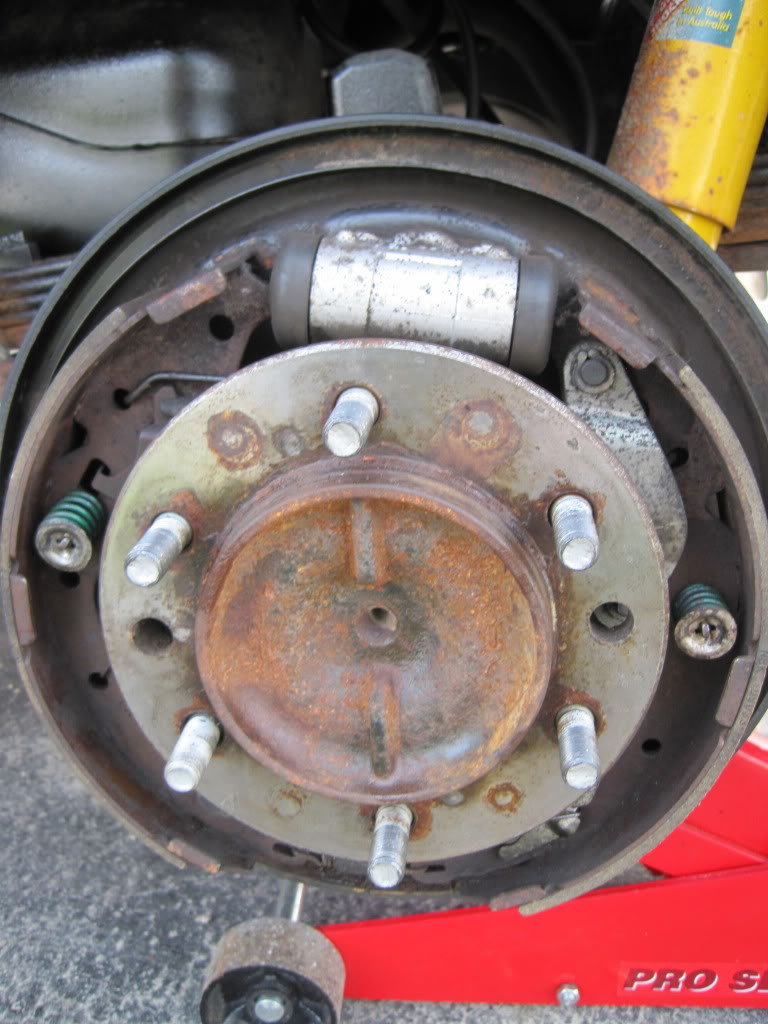

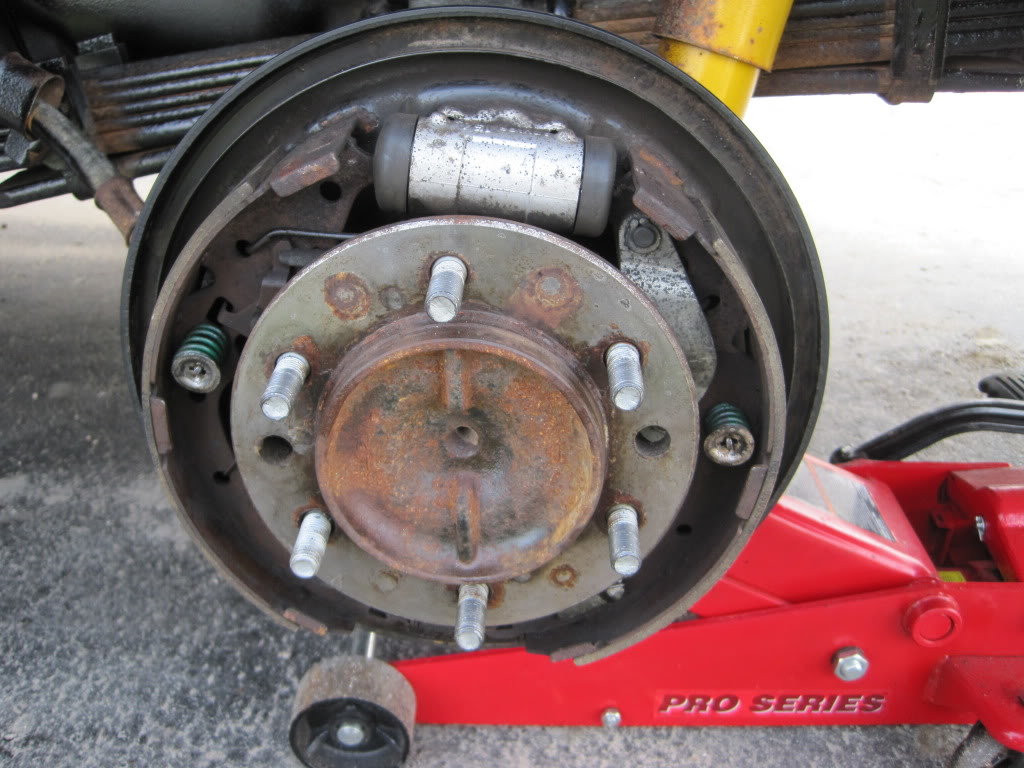

    I know everyone loves pictures, so here are some.
    [​IMG]

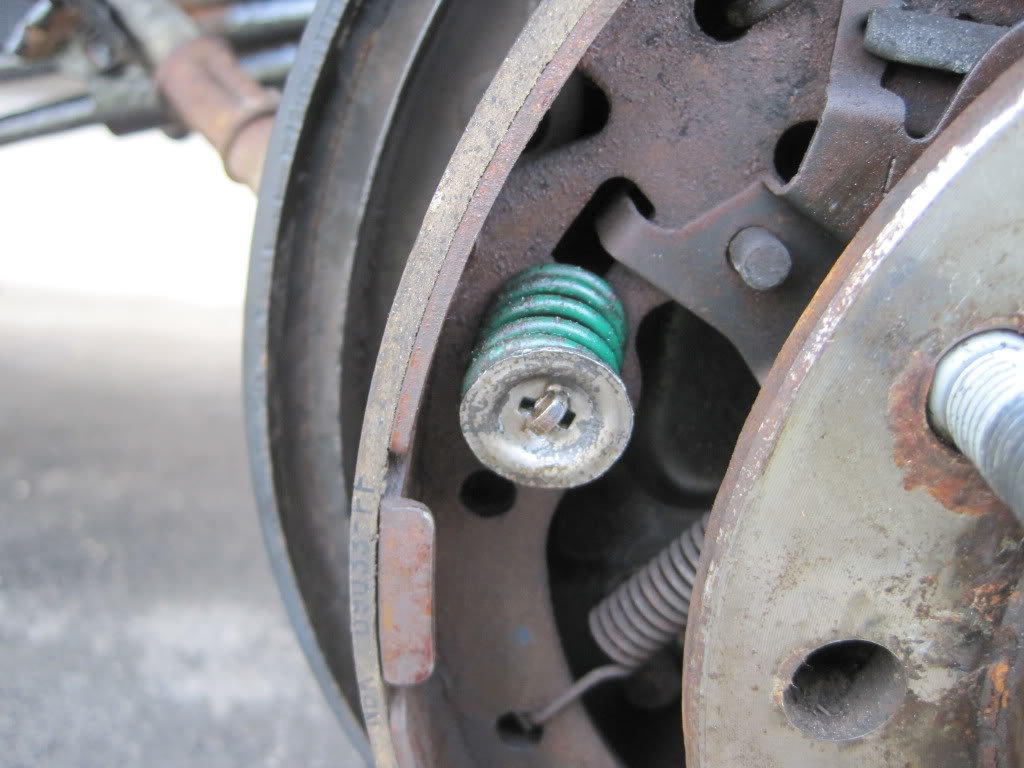

    little green spring that fell off when pulling the drums.
    [​IMG]

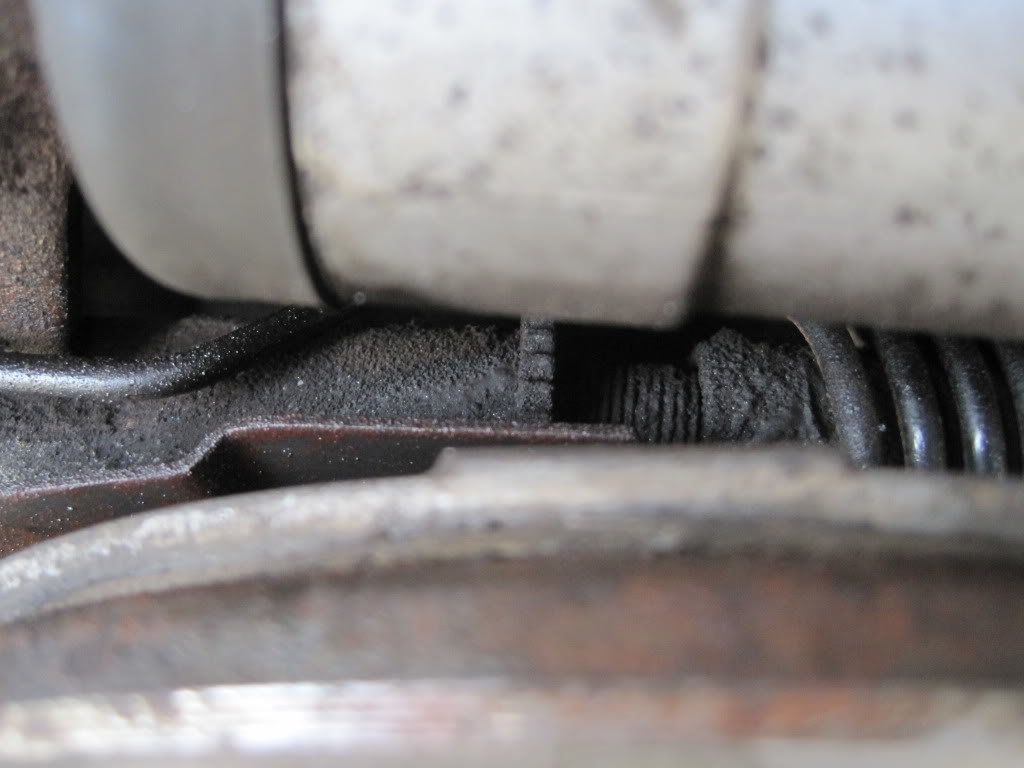

    is this the parking brake ajustment dial
    [​IMG]
    [​IMG]
    Thanks in advance

  2. Mar 22, 2012 at 12:26 PM
    #2
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,898
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours
    Look at the drum and see if there is a lip on the edge

  3. Mar 22, 2012 at 12:26 PM
    #3
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    you need to adjust the shoes before taking off the drums so you can get them back on.

    the geared wheel you pictured is the adjuster.

    remove the rubber plug in the back

    hold the stop away from the wheel with one hand

    rotate the wheel with the other hand and bring in the shoes in

    then install drum

    tighten the wheel

    ill look for the exact directions but this should get you started.

    in the future never take the drums off without loosening. you risk damaging the brakes. if your drums pull right off then they most likely were not adjusted properly last time someone messed with them.

  4. Mar 22, 2012 at 12:29 PM
    #4
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,898
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours
  5. Mar 22, 2012 at 12:34 PM
    #5
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    x2 only when "tightening" the shoes back up, make sure you tighten them just enough to where they are dragging with slight resistance when the wheel is turned by hand (have the tire installed for this). Make sure you give the brake pedal a few pumps after each adjustment to re-center the shoes.

  6. Mar 22, 2012 at 12:39 PM
    #6
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
  7. Mar 22, 2012 at 12:40 PM
    #7
    meafordmike

    meafordmike [OP] Well-Known Member

    Joined:
    Oct 1, 2008
    Member:
    #9618
    Messages:
    288
    Gender:
    Male
    First Name:
    Mike
    New Brunswick Canada
    Vehicle:
    08 Tacoma 4X4/ 4Dr 6 speed, Sport/ Towing
    Devil Horns, Wet Okoles, WeatherTechs, Radflo Coilovers, OME Dakar's, FJC Gun metal rims, 265/75/16 BFG All Terrain TA/KO, Rear Diff breather Mod,
    OK got it thanks.
    two question?
    1) i was able to adjusted from the front because the drums were already off, but it looks like there is a little lock that keeps it from spinning. How would you both push the lock out and spin from the backside?
    2) do I now need to retighten the other side, as it just slid off.
    Thanks again for the quick replys.

  8. Mar 22, 2012 at 12:42 PM
    #8
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    1) I used small screw drivers. One hand holding the bar away from the wheel and the other moving the wheel. it's a PITA

    2) yes until it has slight drag from the brakes hitting the drum

  9. Mar 22, 2012 at 12:43 PM
    #9
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    I usually use a flat blade screw driver to hold the retainer back, then another screw driver to turn the star wheel.

    I would adjust both sides in the way I described in my other post, it is a regular maintenance thing that lots of people neglect which can cause warping/premature wear of the front brakes.

    edit: he beat me to it :laugh:

  10. Mar 22, 2012 at 12:43 PM
    #10
    meafordmike

    meafordmike [OP] Well-Known Member

    Joined:
    Oct 1, 2008
    Member:
    #9618
    Messages:
    288
    Gender:
    Male
    First Name:
    Mike
    New Brunswick Canada
    Vehicle:
    08 Tacoma 4X4/ 4Dr 6 speed, Sport/ Towing
    Devil Horns, Wet Okoles, WeatherTechs, Radflo Coilovers, OME Dakar's, FJC Gun metal rims, 265/75/16 BFG All Terrain TA/KO, Rear Diff breather Mod,
    Nevermind, I got both answers from you guys.
    your the best!!!
    reps to you guys, but I don't know how:(

  11. Mar 22, 2012 at 12:44 PM
    #11
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    IDK about that


    but your welcome all the same :D

  12. Mar 22, 2012 at 2:21 PM
    #12
    fixer5000

    fixer5000 the logical one

    Joined:
    Aug 7, 2011
    Member:
    #61293
    Messages:
    651
    Gender:
    Male
    First Name:
    Steve
    massachusetts
    Vehicle:
    11 trd sport longbed
    weathertech visors,remote start,lojack, ARE z type topper, wet okole seat covers, pop n lock tailgate lock
    what you shoulda done was take the adjuster off. clean it and lube it put it back on collapsed. install drum then adjust shoes with wheel on there. drums are old school. im old school. also lube where the shoes touch the backing plate. next time release the adjuster first. the drum will come right off then

  13. Jun 8, 2012 at 8:50 PM
    #13
    hawlisjawt

    hawlisjawt Well-Known Member

    Joined:
    Feb 17, 2012
    Member:
    #72992
    Messages:
    46
    Gender:
    Male
    Nice i was looking for this too.

  14. Jun 8, 2012 at 9:06 PM
    #14
    Cypherian

    Cypherian Well-Known Member

    Joined:
    Jun 3, 2011
    Member:
    #57670
    Messages:
    2,481
    Gender:
    Male
    Mid Atlantic Region
    Vehicle:
    2011 Dbl Cab TRD Sport
    One way to get rear drum brakes reset after you got them close the way the previous guys said "USE TO BE" put the vehicle in reverse back up to about 10 mph and apply the brakes with light to medium pressure do that two or three times and they should seat them if that trick still works on a newer then 70's lol vehicle I don't know. Any toyota techs around that can answer if it does or not ? Ok apparently my memory is some what faulty but here is the info I found " if starwheel is located just under the wheel cylinder, the auto adjustment is done by the parking brake. If the star wheel is located at the base of the brakes and acts as the hinge point for the shoes, then the adjustment is done by backing up. Japanese cars all adjust by the parking brake as do many new American models." so... there you go.

    Cypher

  15. Jun 9, 2012 at 10:11 AM
    #15
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    6,598
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    This X2.

    Both the parking brake (emergency) brake and braking when backing actuates the star adjuster. The lever that was suggested above that you hold back is actually the adjuster that tightens the star wheel when backing up and using the parking brake. Other than when you replace or remove the drums you should never have to adjust the rear brakes. I would not recommend lubricating the star wheel adjuster with anything other than a dry lubricant. Grease only tends to hold brake dust which will harden and bind the adjuster.

  16. Aug 3, 2012 at 6:30 PM
    #16
    clownbird

    clownbird Active Member

    Joined:
    Jul 15, 2008
    Member:
    #7949
    Messages:
    32
    North Georgia
    Vehicle:
    05 PreRunner SR5
    i used the push out threaded holes to break the drum loose. not sure of the thread number/size. looks like some rust had set up in between the lug studs which needed to be broken loose.

    i tried to remember kind of where the adjuster was before i ran it all the way in to make getting the main spring off easier. then when i get everything put back, maybe try to put it back with compensation for the new shoes, then let the auto adjuster dial it in...
