Really need some help wiring up ARB single compressor

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Marvet85, Jul 21, 2021.

Page 2 of 2
  1. Jul 21, 2021 at 1:47 PM
    #21
    tirediron

    #21
    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,891
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    The pin switch is a ground interrupt switch. You DO NOT want 12V+ connected to it.

    tirediron, Jul 21, 2021
    #21
  2. Jul 21, 2021 at 2:24 PM
    #22
    caribe makaira

    #22
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Hood open sensor positive...no.
    Pin switch functions by disconnecting the ground of the illumination side of the switch when hood is closed. When hood is opened the spring pulls the metal surface where the terminal is connected to the metal surface the hood pin is secured to. This closes the circuit to activate the switch illumination.

    caribe makaira, Jul 21, 2021
    #22
  3. Jul 21, 2021 at 2:33 PM
    #23
    caribe makaira

    #23
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

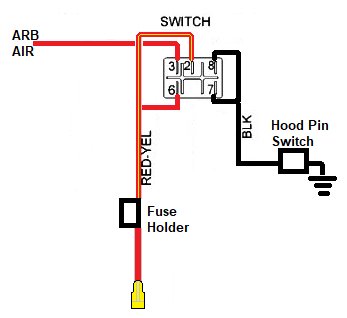

    caribe makaira, Jul 21, 2021
    #23
