Rear ABS Connector Wires Broken - Help needed.

Discussion in 'Technical Chat' started by OdinBow, Nov 19, 2016.

  1. Nov 19, 2016 at 2:53 PM
    #1
    OdinBow

    #1
    OdinBow [OP] Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    Hey guys and gals. Could use a little help:

    2011 TX Pro

    Somehow I ripped the 4 wires out of the female end of the rear ABS connector. There are 4 different color wires on my 2011; black, yellow, white, and tan. Because the wires pulled out of the connector I'm not sure which wire goes to which connector on the female end.

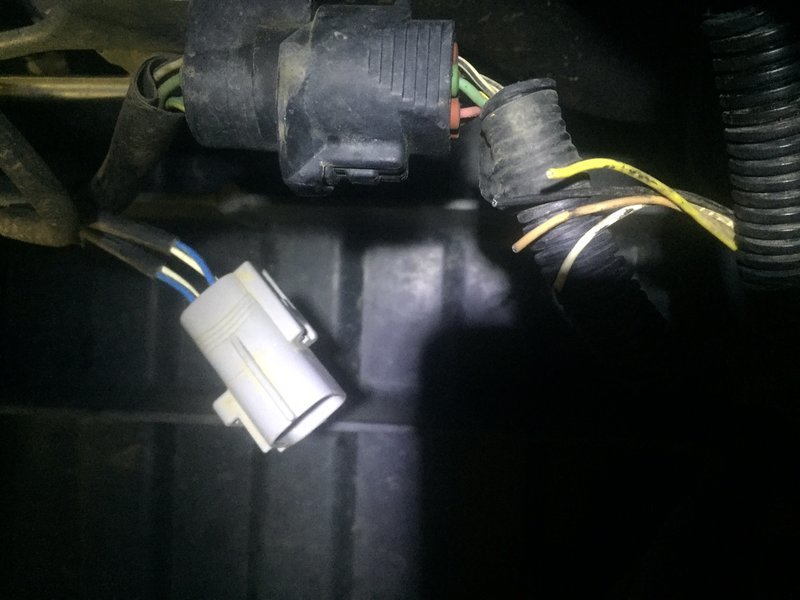

    Here's a pic.

    [​IMG]

    It would help me a ton if someone knew (or had a pic) how these wires connect. The gray ABS connector is located on the bracket above the black connector also shown in the pic. Both are located above and behind the rear axle.

    Each set of blue and white wires on the make connector are from the ABS sensors in each rear wheel.

    Any and all help is greatly appreciated.

    Jason

    OdinBow, Nov 19, 2016
    #1
    Redmann likes this.
  2. Nov 26, 2016 at 4:53 PM
    #2
    OdinBow

    #2
    OdinBow [OP] Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    Thought I would post the solution:


    The damaged connector caused the following issues:

    ABS Light = constant on
    Brake Light = constant on
    Traction Control Light = constant on
    Check Engine Light (CEL) = constant on
    Speedometer = not working
    Odometer & trip-meters = not working
    Cruise Control = not working

    CEL Codes Thrown = P0500 - Speed Sensor

    Fix:

    Replaced 4 pin connectors.
    Determined which wire had voltage
    Connected as shown above
    Removed Neg Batt Terminal (to clear CEL)
    Jumped Pin 4 and Pin 13 in OBDII port.
    Tuned ignition on
    Reset ABS by hitting brake peddle 8 times in 5 sec.
    Turned off ignition
    Removed jumper
    Started truck
    All lights on dash went off.

    Haven't driven much since the fix, but can confirm all lights are off and spedo / odometer works.

    OdinBow, Nov 26, 2016
    #2
    the.sight.picture, Redmann, Clearwater Bill and 1 other person like this.
  3. Jan 28, 2018 at 10:58 PM
    #3
    Rames

    #3
    Rames Well-Known Member

    Joined:
    Mar 3, 2012
    Member:
    #74078
    Messages:
    498
    Gender:
    Male
    First Name:
    James
    Oakland, CA
    OME 3" lift, BAMF sliders, Demello front bumper
    @OdinBow I know old thread... but where did you find the diagram? I pulled the blue and white wires which is showen in your photo and am trying to figure out which goes where.

    Rames, Jan 28, 2018
    #3
  4. Feb 17, 2018 at 9:45 PM
    #4
    OdinBow

    #4
    OdinBow [OP] Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    Sorry for the late reply. White wire go in positions 1&3. Blue go to 2&4. Good luck. I’ve had no issues since my fix. Crap. Just jinxed myself I’m sure.

    OdinBow, Feb 17, 2018
    #4
    Rames[QUOTED] likes this.
  5. Feb 18, 2018 at 11:31 AM
    #5
    Rames

    #5
    Rames Well-Known Member

    Joined:
    Mar 3, 2012
    Member:
    #74078
    Messages:
    498
    Gender:
    Male
    First Name:
    James
    Oakland, CA
    OME 3" lift, BAMF sliders, Demello front bumper
    thanks for the reply lol. I ended up replacing the entire wire harness

    Rames, Feb 18, 2018
    #5
  6. Feb 18, 2018 at 11:33 AM
    #6
    Rames

    #6
    Rames Well-Known Member

    Joined:
    Mar 3, 2012
    Member:
    #74078
    Messages:
    498
    Gender:
    Male
    First Name:
    James
    Oakland, CA
    OME 3" lift, BAMF sliders, Demello front bumper
    Rames, Feb 18, 2018
    #6
    Bastek, OdinBow[OP] and Wishbone Runner like this.
  7. May 13, 2018 at 4:39 PM
    #7
    EatSleepTacos

    #7
    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,828
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner

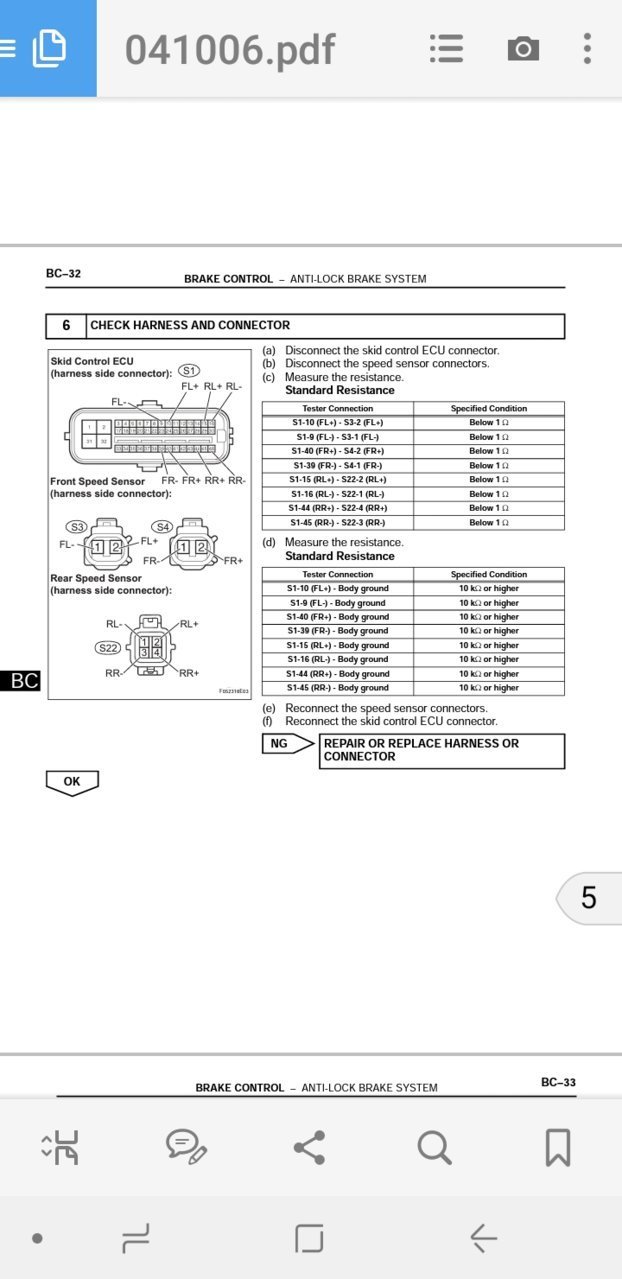

    @OdinBow Did you get a new connector? Where did you find it?

    EatSleepTacos, May 13, 2018
    #7
  8. May 14, 2018 at 8:28 AM
    #8
    Redmann

    #8
    Redmann DILLIGAF

    Joined:
    Dec 30, 2016
    Member:
    #206119
    Messages:
    6,978
    Gender:
    Male
    First Name:
    Reds
    Philly
    Vehicle:
    2009 AC TRDOR
    Does it matter which white wire goes in 1 or 3? Same question for the blue ones.

    Redmann, May 14, 2018
    #8
  9. May 14, 2018 at 11:56 AM
    #9
    OdinBow

    #9
    OdinBow [OP] Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    I don’t think so until you have a sensor go out. If they are wired backwards you may need to troubleshoot both sides to figure out which one needs replacement. I haven’t had any issues and figured it’s a 50/50 chance of getting it right. So, I’m sure I’ll be rewiring it eventually. :anonymous:

    Last edited: May 14, 2018
    OdinBow, May 14, 2018
    #9
  10. May 14, 2018 at 12:03 PM
    #10
    OdinBow

    #10
    OdinBow [OP] Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    OdinBow, May 14, 2018
    #10
    Redmann and EatSleepTacos[QUOTED] like this.
  11. May 14, 2018 at 12:08 PM
    #11
    EatSleepTacos

    #11
    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,828
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner
    EatSleepTacos, May 14, 2018
    #11
    Redmann likes this.
  12. May 14, 2018 at 10:59 PM
    #12
    Redmann

    #12
    Redmann DILLIGAF

    Joined:
    Dec 30, 2016
    Member:
    #206119
    Messages:
    6,978
    Gender:
    Male
    First Name:
    Reds
    Philly
    Vehicle:
    2009 AC TRDOR
    Redmann, May 14, 2018
    #12
    steele-taco likes this.
  13. May 15, 2018 at 2:48 AM
    #13
    Bastek

    #13
    Bastek Average Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,305
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    KDMaxP10, plastidip
    Bastek, May 15, 2018
    #13
    Rames[QUOTED] likes this.
  14. May 15, 2018 at 5:35 AM
    #14
    Redmann

    #14
    Redmann DILLIGAF

    Joined:
    Dec 30, 2016
    Member:
    #206119
    Messages:
    6,978
    Gender:
    Male
    First Name:
    Reds
    Philly
    Vehicle:
    2009 AC TRDOR
    Gotcha. Well thanks to you for actually clicking the link and looking for the info hahaha. I did not do that. Oops

    Redmann, May 15, 2018
    #14
    Rames and Bastek[QUOTED] like this.
  15. Oct 3, 2024 at 1:14 PM
    #15
    TDHofstetter

    #15
    TDHofstetter Member

    Joined:
    Jan 23, 2013
    Member:
    #95935
    Messages:
    15
    Gender:
    Male
    First Name:
    Tim
    Bradford, VT
    Color-matched Leer cap
    TDHofstetter, Oct 3, 2024
    #15
