Rear axle offset?

Discussion in 'Suspension' started by Voodoo Rufus, Dec 4, 2010.

  1. Dec 4, 2010 at 11:15 AM
    #1
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires

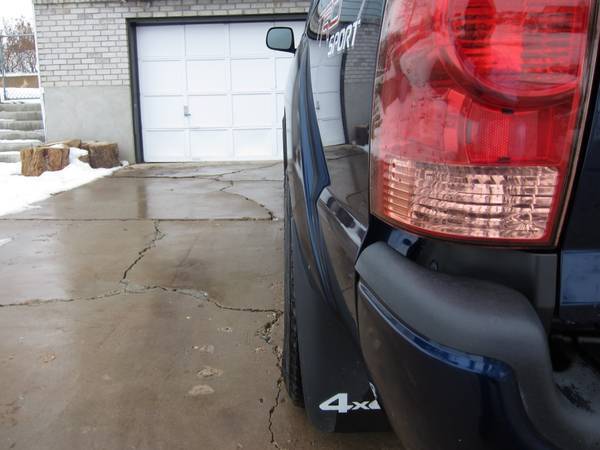

    I discovered something odd when I was taking pictures of my truck this morning. It appears as though the rear axle is offset in my photos. The driveway is slightly angled and there is the lean to the truck to factor in, but even on flat ground it appears to be a bit much.

    Can someone explain this to me? The left side looks sucked in and the right side is more out.


    [​IMG]
    [​IMG]

  2. Dec 4, 2010 at 11:17 AM
    #2
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    13,745
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2007 4.0L 4x4 TRD Sport Access Cab A
    Advantage Torza top (tri-fold), Husky floor mats, RuffTuff seat covers, C2C hood struts, Homelink mirror, USA Spec PA15-Toy (120gig Classic & 8gig nano), Garmin Nuvi 660, Protecta Bed mat, Pop-n-lock, TSB Springs, Scangauge II, Heated drivers seat, Fumoto drain valve, Aries pushbar, PIAA 540 fog lights, Hood scoop grahics, Flowmaster 50 series dual catback exhaust, RainX Latitude windshield wipers, Husky rear floor liner (ontop of folded down seats). Console Vault.
    Are you still under warrantee? If yes, take it in....

    It not, check your u-bolts & centering pins. Make sure the centering pins aren't broken and the leaf springs are sitting centered on each spring perch. Also, check your eyebolts & shackles too.

  3. Dec 4, 2010 at 11:27 AM
    #3
    CopDoctor

    CopDoctor Well-Known Member

    Joined:
    Feb 1, 2010
    Member:
    #30474
    Messages:
    1,874
    Gender:
    Male
    First Name:
    Matt
    Colorado Springs, CO
    Vehicle:
    08 335i
    BMS Intake, JB4 chip, Plastidip everywhere
    that looks pretty bad, i'd check it asap like janster said

  4. Dec 4, 2010 at 11:29 AM
    #4
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    hard to tell from the pics but check rear leafs / u bolts ect.....

  5. Dec 4, 2010 at 12:03 PM
    #5
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires
    Everything underneath appears straight. Leafs are sitting where they should on the shackles and u-bolts.

    How do I check the centering pins?

    What pictures would be more useful in diagnosing this?

  6. Dec 4, 2010 at 12:54 PM
    #6
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    well have you messed with the rear end since you started to notice the alingment???
    as for the centering pin the wheel would appear to not be centered in wheel well.....
    do you have axle shims installed???

  7. Dec 4, 2010 at 12:58 PM
    #7
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires
    The suspension is completely stock with no shims installed.

  8. Dec 4, 2010 at 1:04 PM
    #8
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
  9. Dec 4, 2010 at 1:04 PM
    #9
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires
    I just measured the difference in height. The right rear is 1/2" higher than the left rear, and the right front is 1/4" higher than the left front.

  10. Dec 4, 2010 at 1:05 PM
    #10
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    thats the taco lean....thats normal......
    AS long as your u bolts are torqued adn the wheels are centered in the rear wheel wells...i wouldnt worry about it.....

  11. Dec 4, 2010 at 1:13 PM
    #11
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires
    Well, I added enough weight (Subaru summer tires) to the right side to even it out. The offset is still there. It's just like the whole axle was shifted.

    The only other thing I can think of is if the wheels aren't mounted straight.

  12. Dec 4, 2010 at 1:38 PM
    #12
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,164
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Is the bed even with the cab on both sides?

  13. Dec 4, 2010 at 2:05 PM
    #13
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires
    You're onto something 98'. It is not even. It is offset by the amount that would appear to make the wheel offsets seem equal if corrected.

    How do I fix it?

  14. Dec 4, 2010 at 3:00 PM
    #14
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,164
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Loosen your bed bolts

    Move bed

    Tighten bed bolts.

  15. Dec 4, 2010 at 3:06 PM
    #15
    Voodoo Rufus

    Voodoo Rufus [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19255
    Messages:
    319
    Gender:
    Male
    First Name:
    Jason
    Bakersfield, CA
    Vehicle:
    07 Sport Indigo Ink DCSB 4WD
    Weathertech floorliners, Cravenspeed antenna, Redline elite hood struts, RollnLock, Satoshi, CBI sliders, Icon/Dakar suspension, rear sway bar, Konig CountersteerX 17 with Kumho Road Venture SAT 265/70-17 tires
    I'm doing the additional bed D-rings at the same time and started playing with that before you posted. I can move it a little. I just hope it's enough. Thanks!

    *edit* I can move it a lot after nudging it. There is plenty of adjustment room for it. I took out four of the bed bolts. I'll be sure to put them back in before getting crazy with the adjustments.
