Rear Bilstein 5100 question

Discussion in 'Suspension' started by All Beef Taco, Jul 13, 2010.

  1. All Beef Taco

    All Beef Taco [OP] Well-Known Member

    Joined:
    Aug 16, 2009
    Member:
    #21258
    Messages:
    125
    Gender:
    Male
    First Name:
    Joe
    Thornton, CO
    Vehicle:
    2010 TRD Off-Road DC 4x4
    Rattle canned wheels, Weathertech Floormats, Undercover Tonneau, DIY Hi-Lift jack bed mount, Demello Sliders, ARB Bumper w/ ARB Fogs + anytime fogs mod, IPF 968's, Warn M8000 w/ Amsteel Blue & Billet 4x4 Hawse Fairlead, Rear Leaf TSB, Toytec Adjustable Coilovers and AALs, Rear Bilstein 5100's, BFG MT KM2's, Safari Snorkel, Rear Diff Breather Mod
    I just got my rear 5100's after a long wait for my backorder to come through. There is a set of hardware included with each shock and I'm not sure about how to properly arrange it. Specifically, there are a 2 rubber bushings and 2 steel washers along with 2 rubber washers and a nut-- do I have to use all of them and in what order? The nut is obvious but I wasn't sure if all the other hardware is needed or what. I didn't see this part covered in any of the installation threads. Any tips would be greatly appreciated!

  2. brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    23,999
    Gender:
    Male
    F.U> GUYZ
    broken mods
    you put washer and a rubber bottom and a rubber then a washer on top
    hope thats helps

  3. All Beef Taco

    All Beef Taco [OP] Well-Known Member

    Joined:
    Aug 16, 2009
    Member:
    #21258
    Messages:
    125
    Gender:
    Male
    First Name:
    Joe
    Thornton, CO
    Vehicle:
    2010 TRD Off-Road DC 4x4
    Rattle canned wheels, Weathertech Floormats, Undercover Tonneau, DIY Hi-Lift jack bed mount, Demello Sliders, ARB Bumper w/ ARB Fogs + anytime fogs mod, IPF 968's, Warn M8000 w/ Amsteel Blue & Billet 4x4 Hawse Fairlead, Rear Leaf TSB, Toytec Adjustable Coilovers and AALs, Rear Bilstein 5100's, BFG MT KM2's, Safari Snorkel, Rear Diff Breather Mod
    looking more closely it's actually 3 metal washers-- 2 stainless and one plain steel which I thought was a rubber washer.... not sure where that plain steel one should go.

  4. YotaDan

    YotaDan Dan Vendor

    Joined:
    Apr 1, 2009
    Member:
    #15461
    Messages:
    1,807
    Gender:
    Male
    First Name:
    Dan
    Oregon
    From the bottom of the stem. Large Washer, Bushings, Small washer with lip up, That goes through frame mount. Then on other side Bushing, Large washer, Nut.

  5. chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,501
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, lots of buttons, and yellow flashing lights on the dash.
    They are 2" in diameter, and have a 3.8" stroke. Not sure on the overall length.

  6. Rusty White Taco

    Rusty White Taco Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    The big question (for me) is, where did you get the 5100's? I've been searching and calling almost daily and nobody seems to have them for 1st gen or 2nd gen Tacos...

  7. 98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,253
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
  8. All Beef Taco

    All Beef Taco [OP] Well-Known Member

    Joined:
    Aug 16, 2009
    Member:
    #21258
    Messages:
    125
    Gender:
    Male
    First Name:
    Joe
    Thornton, CO
    Vehicle:
    2010 TRD Off-Road DC 4x4
    Rattle canned wheels, Weathertech Floormats, Undercover Tonneau, DIY Hi-Lift jack bed mount, Demello Sliders, ARB Bumper w/ ARB Fogs + anytime fogs mod, IPF 968's, Warn M8000 w/ Amsteel Blue & Billet 4x4 Hawse Fairlead, Rear Leaf TSB, Toytec Adjustable Coilovers and AALs, Rear Bilstein 5100's, BFG MT KM2's, Safari Snorkel, Rear Diff Breather Mod
    I got mine from shockwarehouse.com, but it was about a 2 month wait for the backorder.

    Dan, thanks for the help! One more question... the two thick washers-- one is black, the other is stainless. Does it matter which goes where?

  9. 98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,253
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    That's how long mine took from them too

  10. All Beef Taco

    All Beef Taco [OP] Well-Known Member

    Joined:
    Aug 16, 2009
    Member:
    #21258
    Messages:
    125
    Gender:
    Male
    First Name:
    Joe
    Thornton, CO
    Vehicle:
    2010 TRD Off-Road DC 4x4
    Rattle canned wheels, Weathertech Floormats, Undercover Tonneau, DIY Hi-Lift jack bed mount, Demello Sliders, ARB Bumper w/ ARB Fogs + anytime fogs mod, IPF 968's, Warn M8000 w/ Amsteel Blue & Billet 4x4 Hawse Fairlead, Rear Leaf TSB, Toytec Adjustable Coilovers and AALs, Rear Bilstein 5100's, BFG MT KM2's, Safari Snorkel, Rear Diff Breather Mod
    Found a customer service number on the installation kit bag so I gave them a call and a nice fellow over in their tech department was able to describe them and tell me the proper order. So to any others out there, for future reference/if anyone else ever wonders:

    From bottom up:

    1) Stainless thick washer (has a small inset indentation along the radius of the hole) goes on first, against the shock boot.
    2) Bushing
    3) Thin stainless washer (has a small lip along the radius of the hole) goes on the underside of the frame
    4) Bushing
    5) Black steel washer
    6) Nut

  11. All Beef Taco

    All Beef Taco [OP] Well-Known Member

    Joined:
    Aug 16, 2009
    Member:
    #21258
    Messages:
    125
    Gender:
    Male
    First Name:
    Joe
    Thornton, CO
    Vehicle:
    2010 TRD Off-Road DC 4x4
    Rattle canned wheels, Weathertech Floormats, Undercover Tonneau, DIY Hi-Lift jack bed mount, Demello Sliders, ARB Bumper w/ ARB Fogs + anytime fogs mod, IPF 968's, Warn M8000 w/ Amsteel Blue & Billet 4x4 Hawse Fairlead, Rear Leaf TSB, Toytec Adjustable Coilovers and AALs, Rear Bilstein 5100's, BFG MT KM2's, Safari Snorkel, Rear Diff Breather Mod

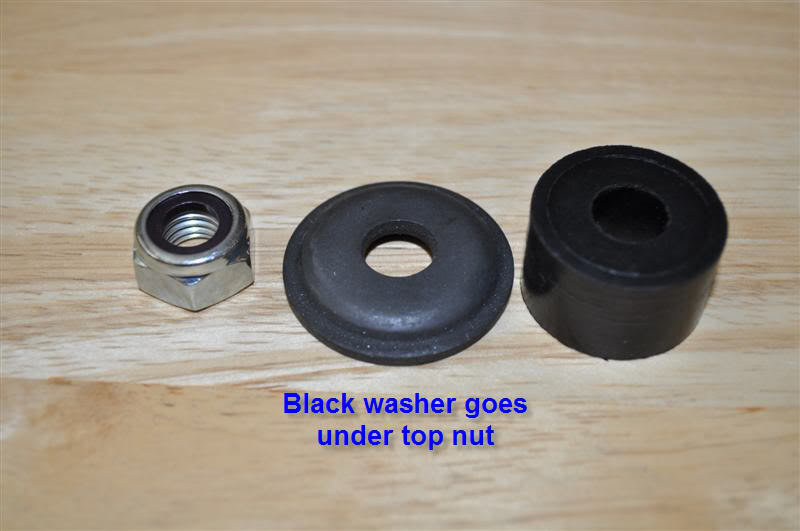

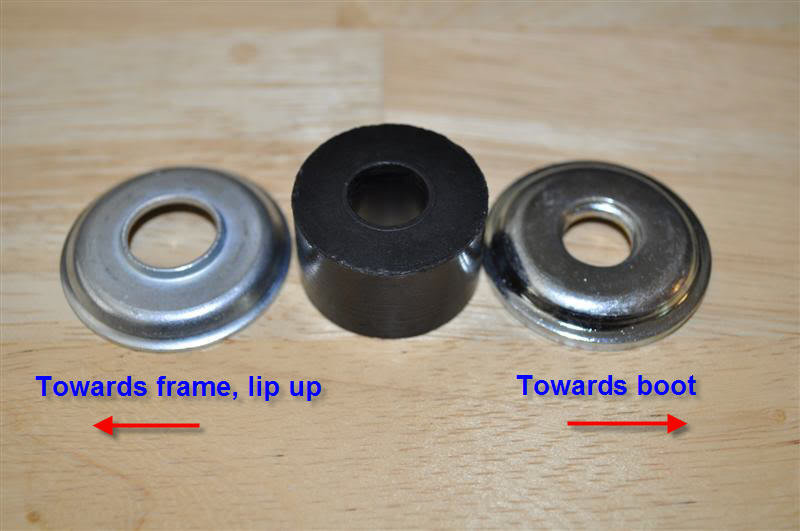

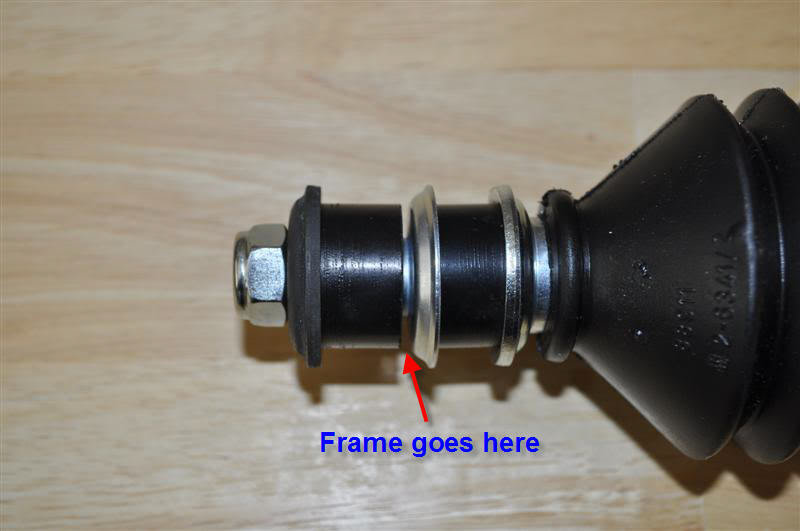

    Here are some pics... as you can see, there are three unique washers. A thick stainless one with a groove along the radius of the hole, a thin stainless one with a lip, and a black washer.
