Rear brake self adjuster kit

Discussion in '1st Gen. Tacomas (1995-2004)' started by El_Best_Hamon79, Jun 17, 2023.

  1. Jun 17, 2023 at 12:07 PM
    #1
    El_Best_Hamon79

    El_Best_Hamon79 [OP] Well-Known Member

    Joined:
    Jul 13, 2021
    Member:
    #371228
    Messages:
    51
    Gender:
    Male
    First Name:
    Abraham
    Vehicle:
    04’ Tacoma Prerunner
    Rear bed lights
    So I recently found out my 6 lug Tacoma doesn’t have the rear brake self adjusters. So I’m trying to find a kit or someone who has the spare part. Or any suggestions. I’ve gone to part stores and they don’t have them. I bought a set on eBay hoping it’s the part but if it’s not, u may have to do junkyard parts. Any leads to find the parts help.

    This site contains affiliate links for which the site may be compensated.
    #1
    Bivouac likes this.
  2. Jun 17, 2023 at 2:04 PM
    #2
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,580
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    How can you not have the self adjusters .

    So your rear brakes no longer work unable to be adjusted.

    You must have very long pedal travel as all the fluid expands the wheel cylinders.

    take some pictures please !

    I have never had problems finding them. I have a bunch of new ones.

    Did the counter people say they did not carry them or they were not in stock??

    Would be the next day or a few days to get them in ?

    Looking I found a few different kits quite easy.

    Last edited: Jun 17, 2023
    This site contains affiliate links for which the site may be compensated.
    #2
    Area51Runner likes this.
  3. Jun 17, 2023 at 3:40 PM
    #3
    El_Best_Hamon79

    El_Best_Hamon79 [OP] Well-Known Member

    Joined:
    Jul 13, 2021
    Member:
    #371228
    Messages:
    51
    Gender:
    Male
    First Name:
    Abraham
    Vehicle:
    04’ Tacoma Prerunner
    Rear bed lights
    i did have low pedal and went through two sets of rotors due to over heating. I just have been doing rear adjustments to get by. I’ll get some pictures soon when I do the job. And if you got some new ones, how could I get in contact with you?

  4. Jun 17, 2023 at 4:14 PM
    #4
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,548
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    You can buy the adjusters at any parts store.
    You’ll be fine there. But the spring kit, stick to OEM springs.
    Remember to lube the adjusters.

  5. Jun 17, 2023 at 4:35 PM
    #5
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    3,520
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    All the internals except for the spring kit I ordered and had it 'ship-to-store' from Napa online.
    That way I could match to the old one, and get instant refund if not right.

    Napa sells most any toyota part, including a lot of their oem.

    Sometimes part people get 5lug stuff and 6lug mixed up.
    Its very difficult to find a part that someone doesn't make...

    The spring kit.....every other Advance store keeps those in stock.
    Same kit must be used in a lot of different asian vehicles.


    And on mine I wouldnt run anything but akebonos pads up front, and oem shoes on rear.....they seem to last forever...

    Last edited: Jun 17, 2023
  6. Jun 17, 2023 at 4:41 PM
    #6
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,758
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    If you're missing any hardware, then get it replaced before driving. Use your vin here and drill down to the appropriate part you feel needs to be replaced. https://partsouq.com/en/catalog/genuine/locate?c=Toyota Once you have the part#, go hit up your favorite OE part site.

    As for actual pads/rotors/shoes/drums -

    FRONT:
    Akebono Pads: https://www.amazon.com/gp/product/B000C1LL96
    Brembo Rotors: https://www.amazon.com/Brembo-09-8193-81-Coated-Front-Brake/dp/B00L7TQMJ6 (if you order these, you'll need a quantity of 2. Even though 2 rotors are pictured, it's 1 per box).

    REAR:
    OEM Toyota Shoes
    OEM Toyota Drums

    You're talking brakes. Safety item. No shortcuts or back of the truck deals.

    This site contains affiliate links for which the site may be compensated.
    #6
    Kevins60 and Bivouac like this.
  7. Jun 17, 2023 at 4:44 PM
    #7
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    10,785
    Gender:
    Male
    Toyota drums do not self adjust, they will click if wildly out of adjustment but even a 2023 tacoma requires adjustments with tire rotations.

  8. Jun 17, 2023 at 4:47 PM
    #8
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,758
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    That's why you're supposed to be setting/using your parking brake.

  9. Jun 17, 2023 at 4:50 PM
    #9
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    10,785
    Gender:
    Male
    I've worked on Toyotas since 2005, they all require adjustments, even manual drivers that use the parking brake. The auto adjuster will click if its way out. But never to a point anywhere close to proper.

    Tacoma Mike likes this.
  10. Jun 17, 2023 at 4:55 PM
    #10
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    3,520
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    As these get older and get messed with, that tang on the brake lever gets jacked.

    It can be so far off that it misses that star all together.

    Or whats more common is it jambs against that star ....locking everything up solid.
    Preventing further adjustment. Until you pop a screwdriver in there and pop it loose again.

    Not sure if its the tang gets bent, or too much play develops in that lever.

    After messing with it for 6mo.....I just went for all new from Napa.

    From what I can tell, for all those selling toyota parts.....business is good....

    Last edited: Jun 17, 2023
  11. Jun 18, 2023 at 3:58 AM
    #11
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,580
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    I have never any had problems.

    Then I start with all new parts .

    The trick is getting the shoes adjusted up correct the first time after the brake drums are removed for any reason .
    I have several Toyota 4x4 never a problem with the shoes staying adjusted.

    Not saying a word about the Bell cranks seizing in the brackets if they sit for months in the climate here.

  12. Jun 18, 2023 at 7:20 AM
    #12
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    10,785
    Gender:
    Male
    My standards of adjusted obviously higher as I am paid to inspect and adjust the shoes. But only if they were recently adjusted by a competent tech do they require only a few clicks. Most that I see (manuals included) require 10-12 clicks to get even a hair of drag. Sometimes way more. Parking brake lever on manuals all the way out. Auto adjusters never seize, the pivot on the cable seizes.

    My point mostly is people need to adjust their shoes from time to time, not rely on on an auto adjuster. ESPECIALLY on a 1st gen that has tiny brakes to start with.

    Parkvisitor and Bivouac[QUOTED] like this.
  13. Jun 18, 2023 at 7:24 AM
    #13
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,580
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Yes indeed That is completely different case , any problems would come right back at you .

    In this age.

  14. Jul 2, 2023 at 2:30 PM
    #14
    El_Best_Hamon79

    El_Best_Hamon79 [OP] Well-Known Member

    Joined:
    Jul 13, 2021
    Member:
    #371228
    Messages:
    51
    Gender:
    Male
    First Name:
    Abraham
    Vehicle:
    04’ Tacoma Prerunner
    Rear bed lights

    The cable for the E-Brake was wrapped around around the little teeth the above it. Would that have affected the pedal feel and as well the fact that it kept getting loose?

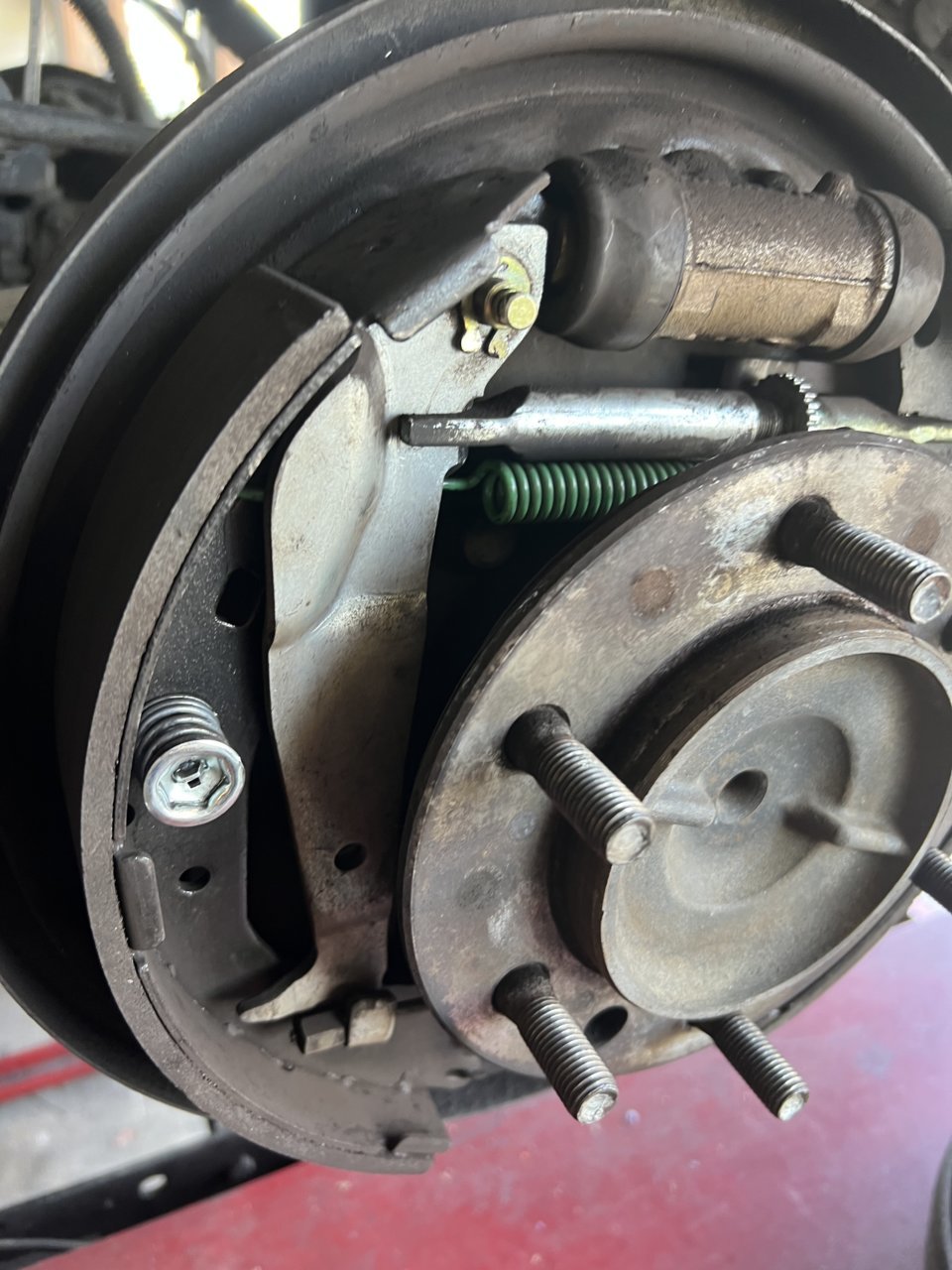

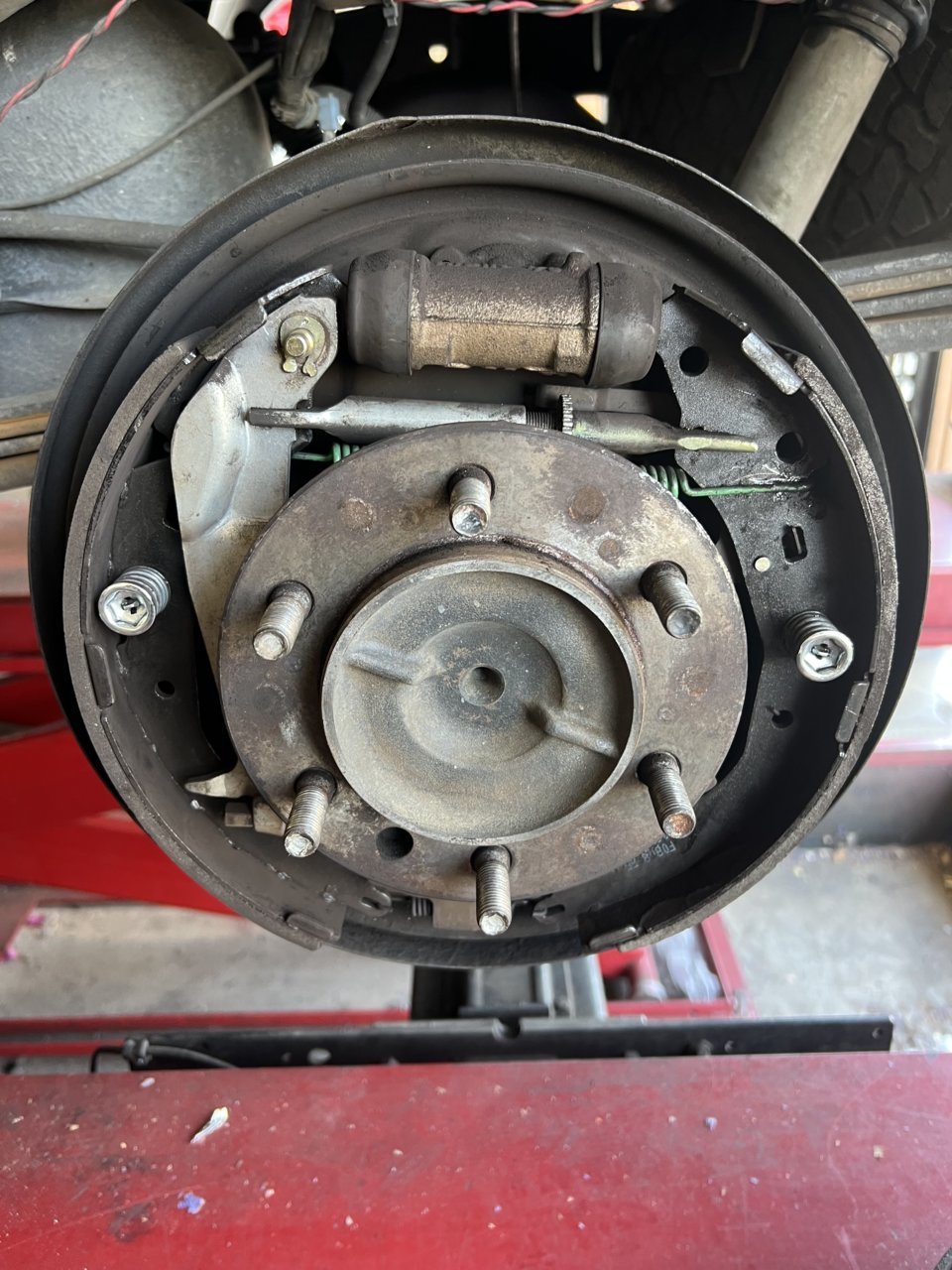

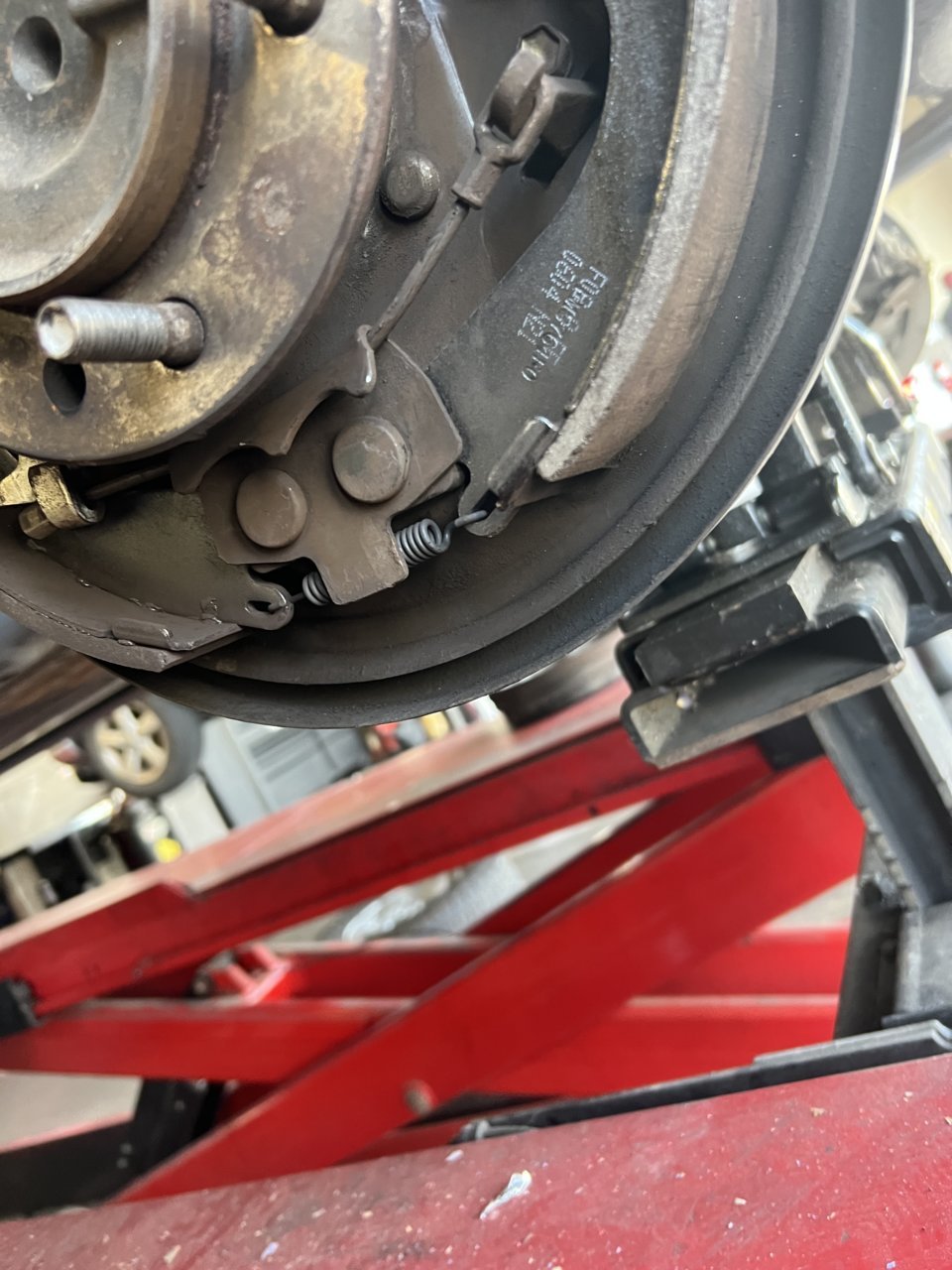

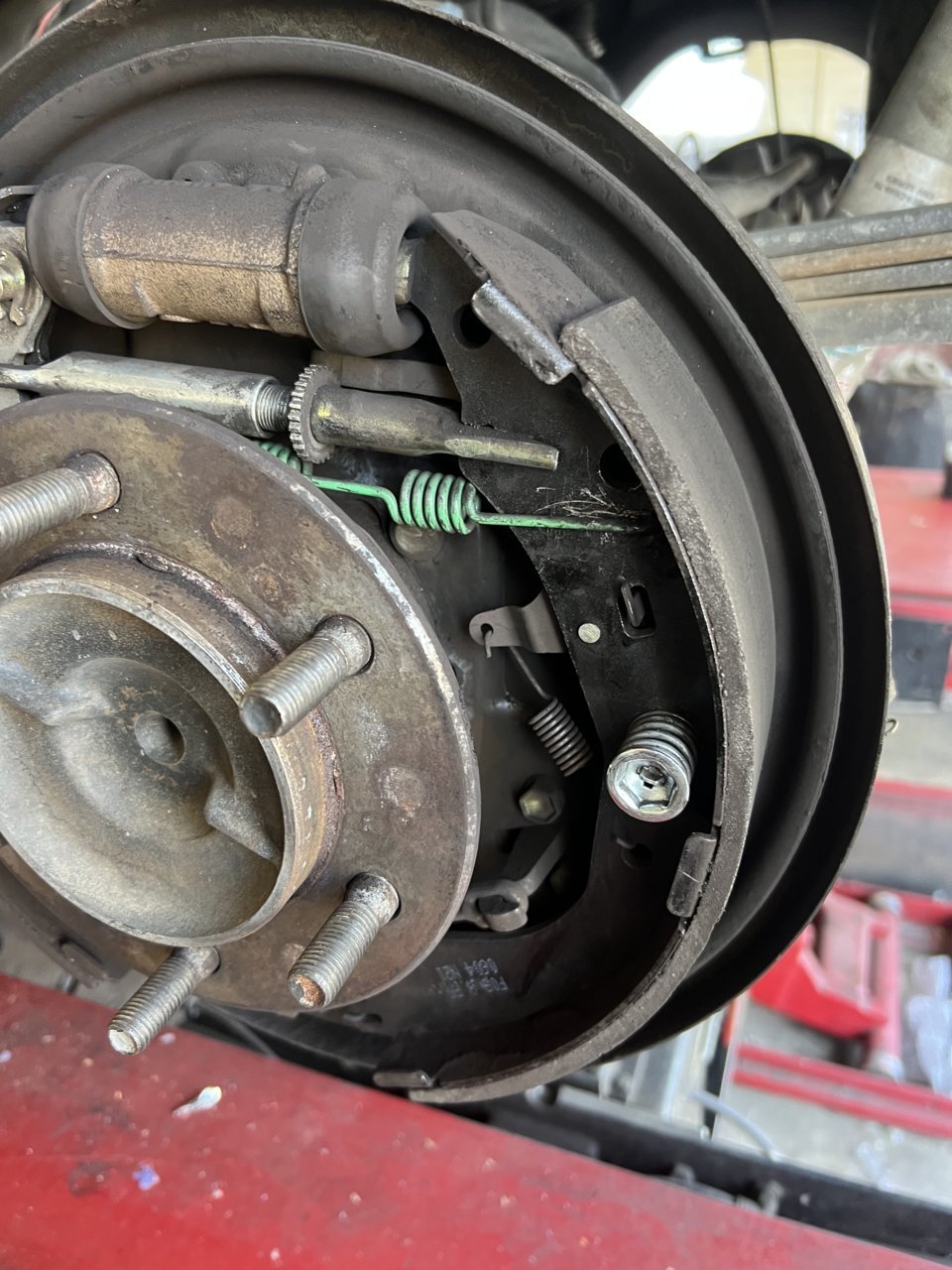

    Here’s more photos about the left side too. IMG_0533.jpg
    IMG_0534.jpg IMG_0535.jpg

  15. Jul 2, 2023 at 3:33 PM
    #15
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,091
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    That all looks normal.

  16. Jul 2, 2023 at 4:42 PM
    #16
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,580
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    On the top picture the cable is stuck under the bottom pin that the shoes ride against.

    Did you fix that problem?

    That would cause your problem!!

  17. Jul 2, 2023 at 4:50 PM
    #17
    El_Best_Hamon79

    El_Best_Hamon79 [OP] Well-Known Member

    Joined:
    Jul 13, 2021
    Member:
    #371228
    Messages:
    51
    Gender:
    Male
    First Name:
    Abraham
    Vehicle:
    04’ Tacoma Prerunner
    Rear bed lights
    Yeah we fixed that. It's under the little cover it shows in the 1st photo

    Bivouac[QUOTED] likes this.
  18. Jul 2, 2023 at 4:54 PM
    #18
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,091
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I must be missing something. All looks right in the pics. Do you mind circlimg what you see?

  19. Jul 2, 2023 at 4:58 PM
    #19
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,580
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    OP states he fixed that problem.

    If I had any idea how to circle something I would .

    I have no idea how i even turn the computer on.

  20. Jul 2, 2023 at 4:59 PM
    #20
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,091
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Everything in the photos is correct
