Rear High Clearance Bumper Build

Discussion in '2nd Gen. Tacomas' started by tweeek, Nov 11, 2013.

  1. Nov 19, 2013 at 7:11 PM
    #21
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,372
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
    FYI, be sure to leave a decent gap under the tail light, if not, when the frame flexes, or if you drop off a rock onto it, it could flex up and brake the lights....

  2. Nov 19, 2013 at 7:13 PM
    #22
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    Yup... I left about 1/2 - 5/8 on my front and it never rubs.. I will do the same in the rear.

    Thanks!

  3. Nov 19, 2013 at 7:15 PM
    #23
    flyboy.co2

    flyboy.co2 Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,355
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    :thumbsup: Lookin good!

  4. Nov 23, 2013 at 7:39 PM
    #24
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR

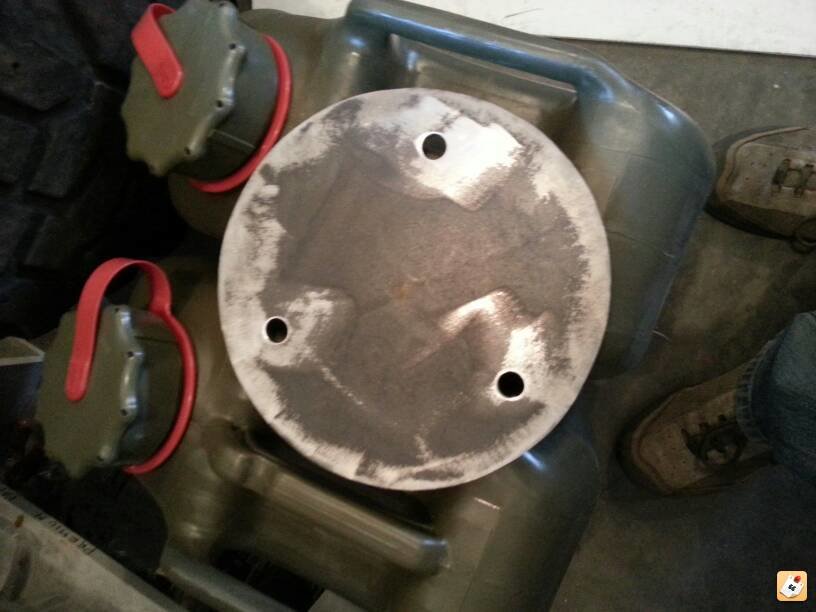

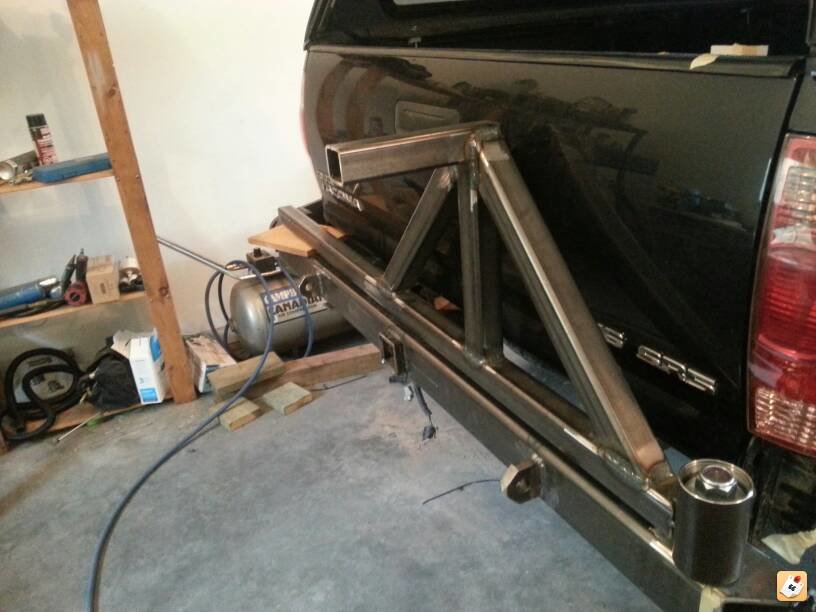

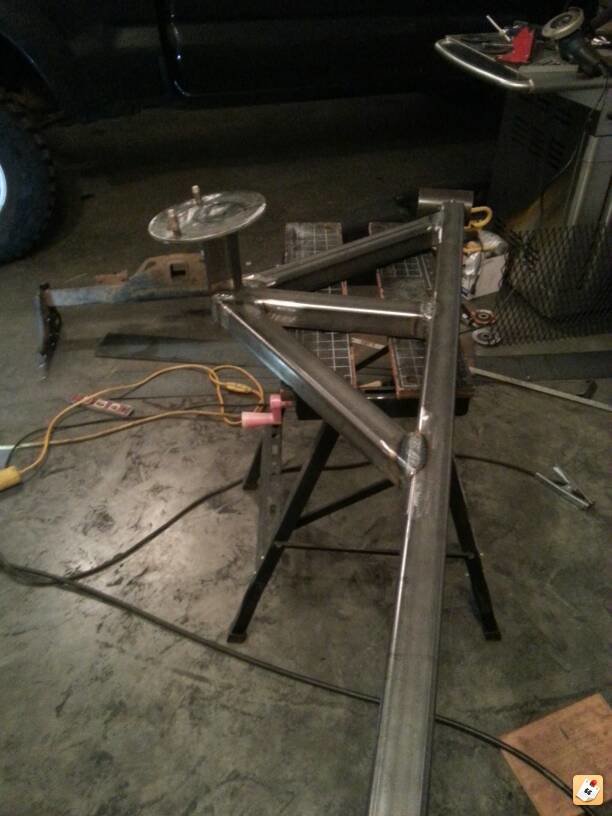

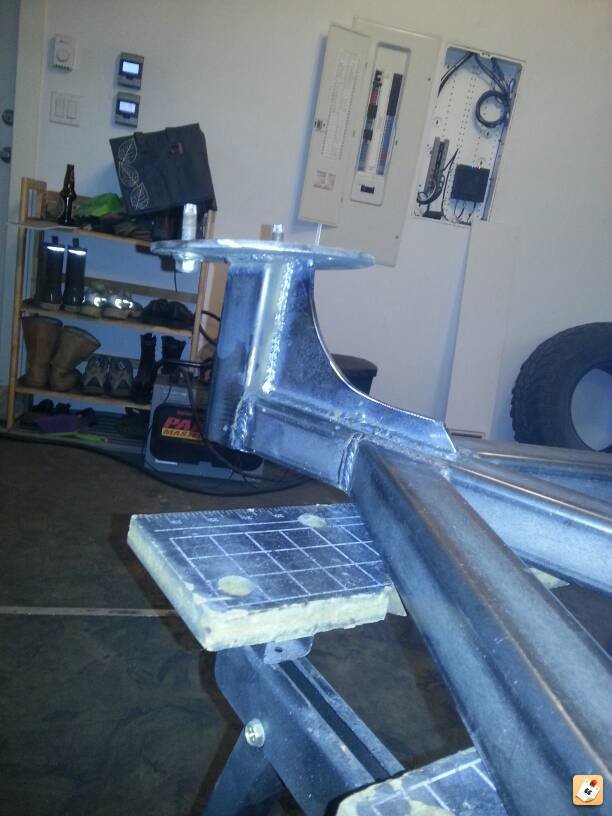

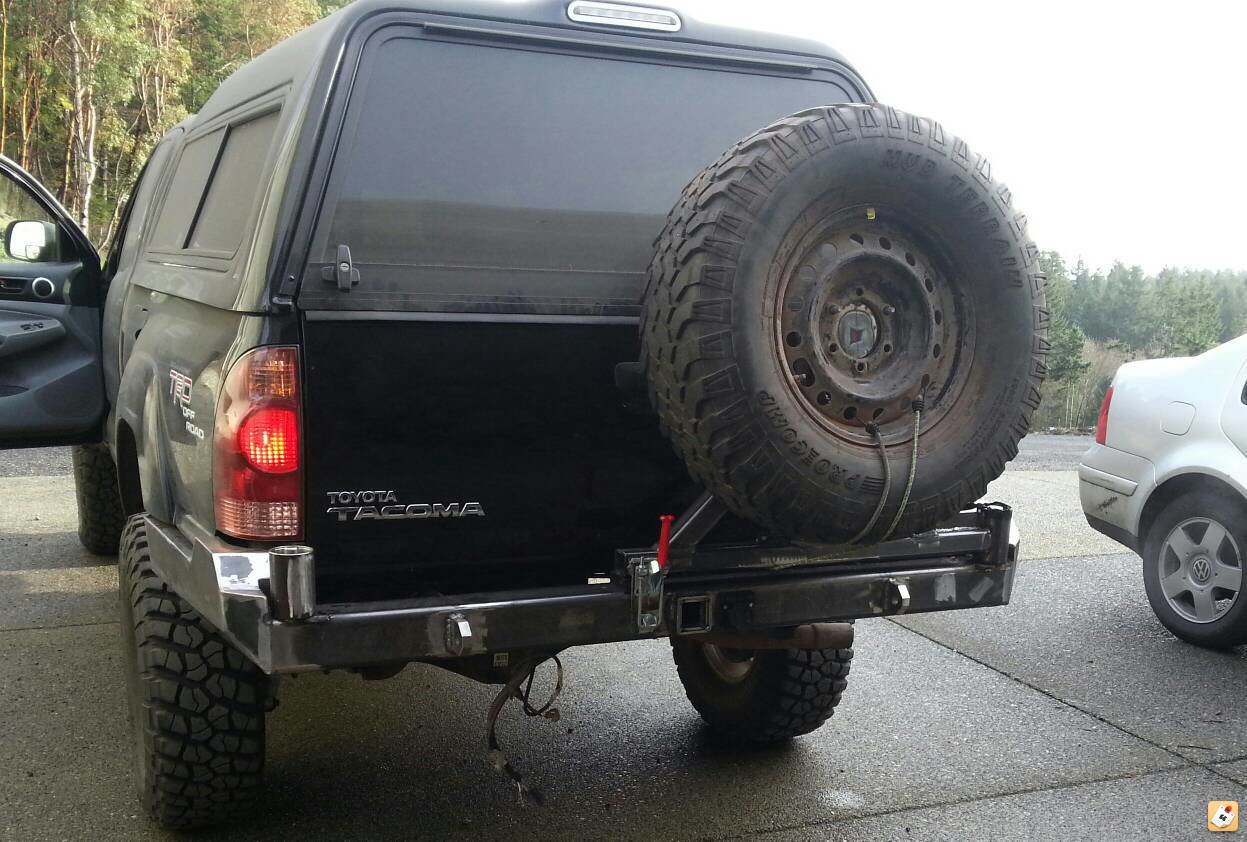

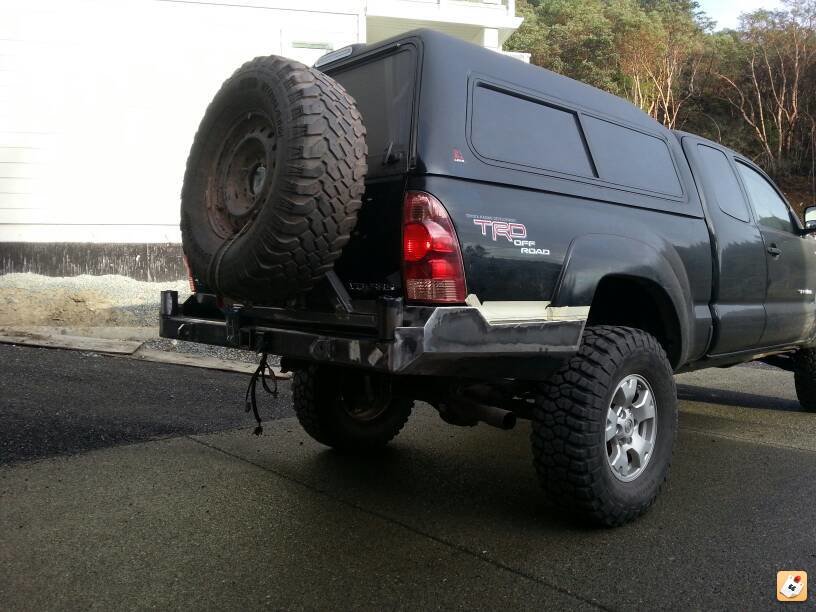

    Got a few more things done today. Fabbed the tire carrier portion of the tiregate. Also got the spindle welded in.

    [​IMG]
    [​IMG][​IMG][​IMG][​IMG]

    Going to get some gussets on tomorrow and finish the frame mounts.

    Last edited: Nov 23, 2013
  5. Nov 23, 2013 at 7:42 PM
    #25
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Looks great so far. I'm excited to see the final product.

  6. Nov 24, 2013 at 7:51 PM
    #26
    AZ hunter

    AZ hunter Well-Known Member

    Joined:
    Oct 4, 2013
    Member:
    #113857
    Messages:
    85
    Gender:
    Male
    First Name:
    Kade
    Tucson
    Vehicle:
    '14 DCSB TRD OR
    Engine Mods: URD Cold Air Intake Interior Mods: Weathertech Floor Liners Exterior Mods: Plastidiped Emblems
    This is all kinds of bad ass. Sub'd!

  7. Nov 24, 2013 at 10:12 PM
    #27
    4x4Taco09

    4x4Taco09 Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    558
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    XD Badland wheels, Tint, 2 8" kicker CVTs, Superhides seatcovers, Swapped interior LEDs to white, LED exterior lights, Retrofit
    This is going to look sick! nice work

  8. Nov 24, 2013 at 10:25 PM
    #28
    Dusty taco

    Dusty taco Well-Known Member

    Joined:
    Feb 25, 2013
    Member:
    #98427
    Messages:
    104
    Gender:
    Male
    First Name:
    Elijah
    NorCal
    Vehicle:
    05 DC SB 4X4 SR5
    Afe Stage 2 Air Intake, Banks Monster Exhaust, Satoshi Style Grill, Led floods behind Grill, Firestone ride-rite airbags (rear), blue sea fuse block. Custom bed bar with shovel mount and utility led lights
    Sub'd can't wait to see how it turns out

  9. Nov 27, 2013 at 10:00 AM
    #29
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    2,641
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    • 04 SR5 V6 • King/Camburg/Icon/Metal Tech • 16" MT Classic Lock • Hankook RT03 295/75/16 • Shrockworks Sliders • RCI Skids • Hella 4000
    Great progress! A few questions:

    • What did you use for the recovery points, it looks quite thick and I assume you did not cut the holes through it?
    • How did you cut the circle for the tire mount
    • What spindle it that?

  10. Nov 27, 2013 at 12:21 PM
    #30
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    The recovery points are just 2.5" by 3/4" flat bar. I trimmed the corners with a zip disc and drilled the center hole to 1" to accomodate a 3/4" shackle. I have a super duper wimpy and cheap drill press. It plowed through the 3/4 without issue as long as I kept it well lubed, went slow, and went up in 1/16 drill bit increments when I got above 5/8.

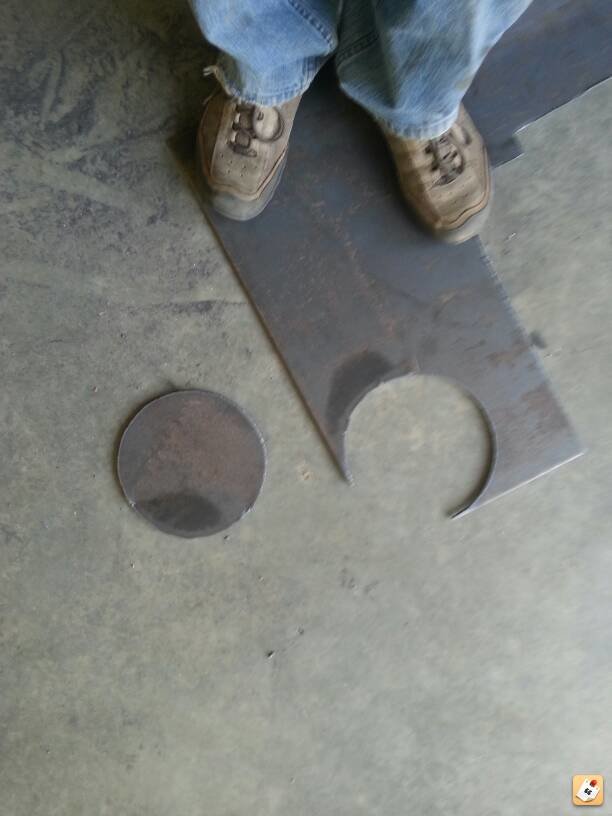

    As for the tire holder, I have a plasma cutter that I was fortunate enough to borrow from a coworker. You can buy a precut circle or go with a triangular design with corners ground/cut off if you didnt have access to a plasma though.

    The spindle is from Summit Machine. It is very nicely machined and VERY beefy.

    Im moving pretty slow as I usually have very little time during the week to get much done. I will hopefully knock off some more this weekend!

  11. Nov 27, 2013 at 1:36 PM
    #31
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    2,641
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    • 04 SR5 V6 • King/Camburg/Icon/Metal Tech • 16" MT Classic Lock • Hankook RT03 295/75/16 • Shrockworks Sliders • RCI Skids • Hella 4000
    Thanks for the info, keep up the good work!

  12. Dec 20, 2013 at 1:46 PM
    #32
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR

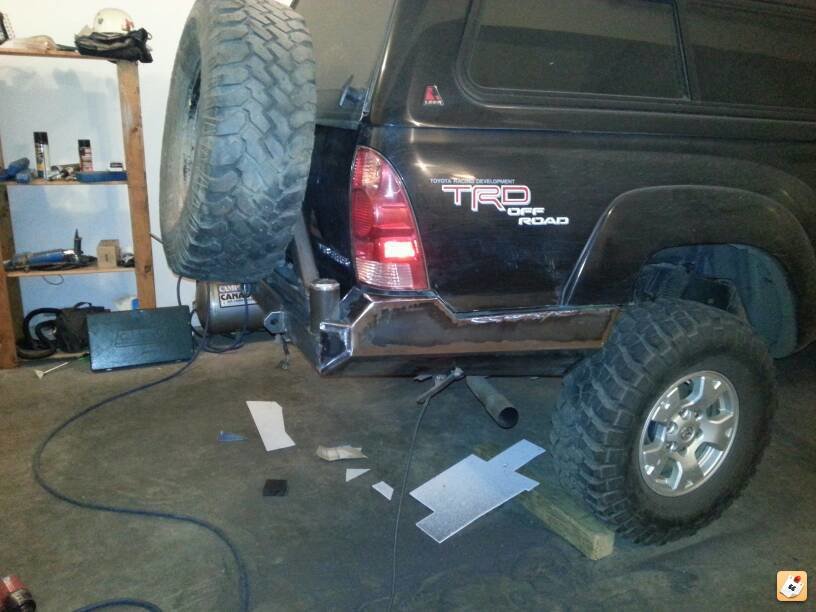

    I have been really bad about updating this thread, but I have been working on this in my spare time. Got quite a bit done.
    [​IMG]

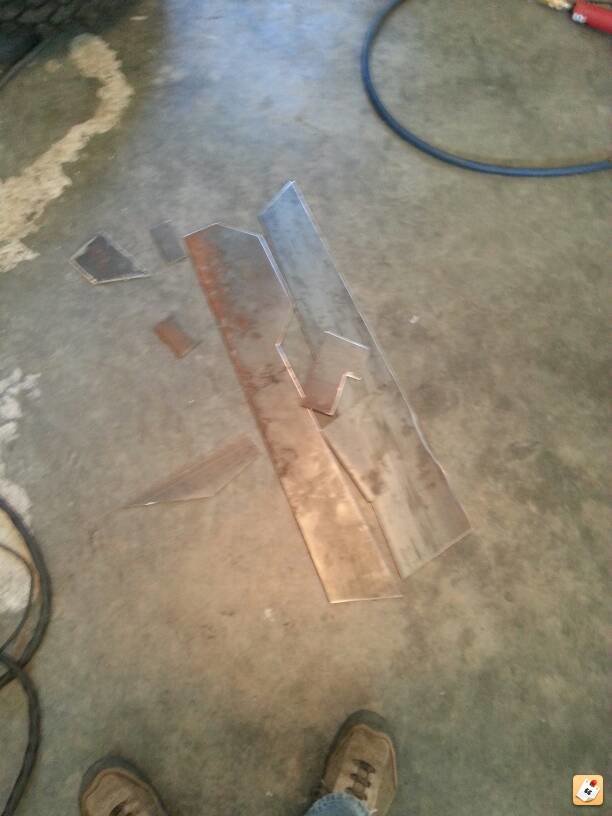

    Got all the pieces cut for the 1/4 panels
    [​IMG]

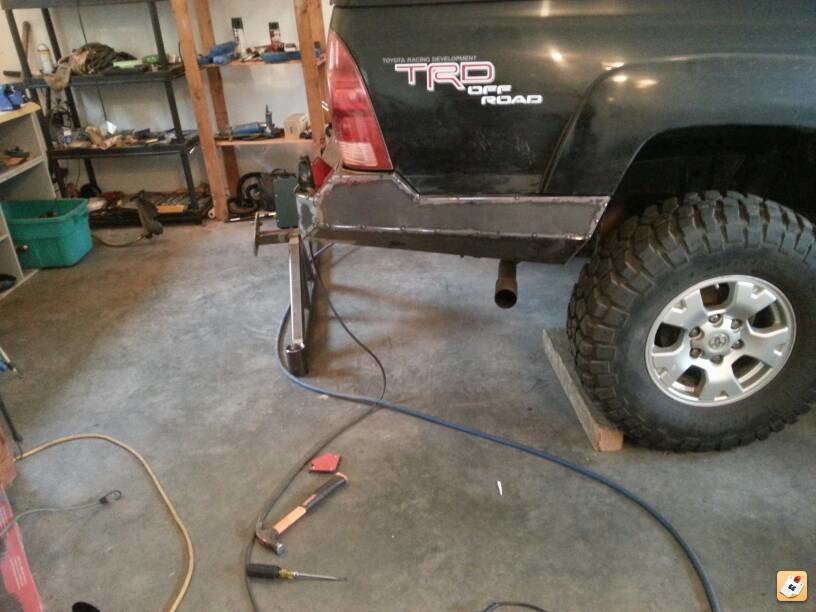

    All tacked up
    [​IMG]
    Starting to grind things down
    [​IMG]

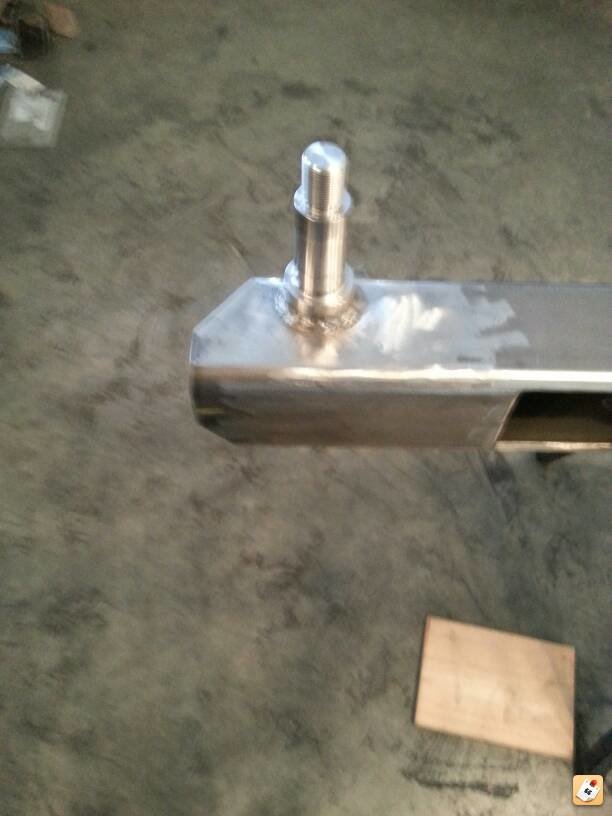

    I did decide to go dual swingout. The second spindle is welded in.
    [​IMG]
    [​IMG]
    [​IMG]

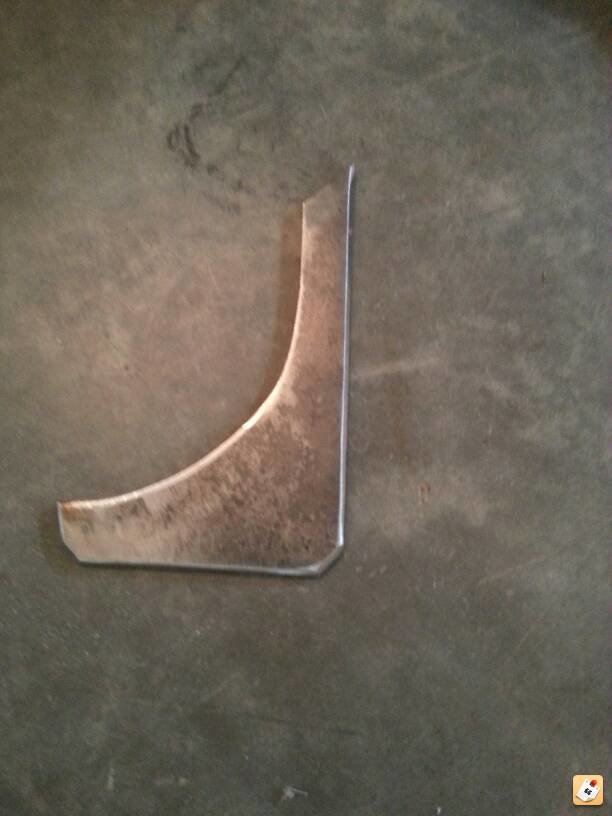

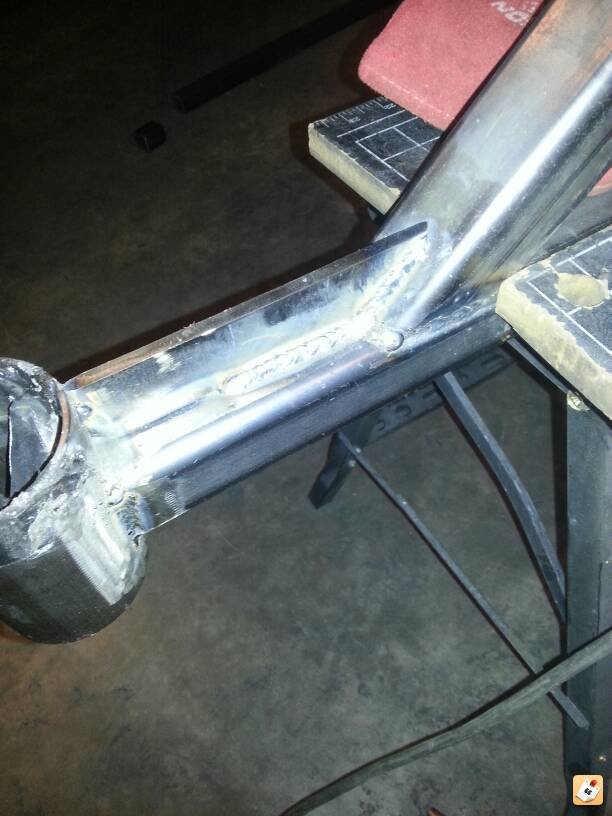

    Gussets for the swingarm
    [​IMG]
    [​IMG]

  13. Dec 20, 2013 at 3:04 PM
    #33
    flyboy.co2

    flyboy.co2 Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,355
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    Hot damn dood! That looks awesome!

  14. Dec 20, 2013 at 9:45 PM
    #34
    NEWBIETACO

    NEWBIETACO Im not like the other Crumbs, Im my own Crumb

    Joined:
    Jun 25, 2012
    Member:
    #81357
    Messages:
    1,286
    Gender:
    Male
    First Name:
    JAKE
    ROWLETT TEXAS
    Vehicle:
    12 TACO
    Wow can you say STOUT

  15. Dec 20, 2013 at 10:07 PM
    #35
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    You have skills.

  16. Dec 21, 2013 at 8:59 AM
    #36
    TxFireman

    TxFireman Factory Pilot

    Joined:
    Sep 7, 2013
    Member:
    #112051
    Messages:
    560
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2013 DC-SB TRD-OR, tow package, entune/nav
    Looks like it's coming along nicely. Great work!

  17. Dec 21, 2013 at 9:06 AM
    #37
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,532
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.
    Last edited: Dec 21, 2013
  18. Dec 21, 2013 at 10:34 AM
    #38
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    Ive seen yours, it is awesome! I ended up going duals but think I would have been okay either way. My only condition with going duals is that I can open the glass on the canopy with only the tire gate open. I dont think that is going to be a problem in my design.

    I actually bought both my spindles from Jason at Cruisin Offroad, he was fantastic to deal with. I am just over the pond on Vancouver Island :)

  19. Dec 21, 2013 at 10:37 AM
    #39
    AR15xAR10

    AR15xAR10 Aka: "RainbowPuke"

    Joined:
    Apr 13, 2013
    Member:
    #102024
    Messages:
    20,623
    Gender:
    Male
    Vehicle:
    08 SR5 4x4 V6 IndigoInkPearl ACLBFTMFW
    "More than you can afford pal, TACOMA" WeatherTech Floor liners (front and rear), AVS vent visors, OEM Bed Mat, TRD (oiled) air filter, OEM Front Skidplate, OEM bed extender brackets, black plasti dipped grill emblem, ultragauge plus model, remote start, reese hitch, Grom Ipod interface, quickfists on custom bedrail mount to hold axe/shovel, EBC stage 5 super street brake kit, rokblokz mud flaps, superbrightleds map and dome LED lights (warm white), rear diff breather relocation mod, redline tuning Elite stainless hood struts, AFE Mach Force XP 2.5" stainless catback, Ionic Soft Trifold Tonneau, pop&lock, OEM LED tail lights, 35watt reverse light mod, full synthetic fluids, and STEEKERS Adding 4pin receiver harness, an unmolested OEM bumper with tow package hitch, painting afe tip flat black
    Damn das hot

  20. Dec 21, 2013 at 10:47 AM
    #40
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    44,285
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    does the tire shake at All?
