Rear Icon shocks - question

Discussion in 'Suspension' started by Canadianboy, Oct 3, 2009.

  1. Oct 3, 2009 at 8:30 PM
    #1
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!
    I'm about to finally install my rear Icon resi shocks on my truck. Of course they came with no instructions, but I doubt the install will be that hard. One thing I was wondering, are the shocks side specific? Or can I put them on any side of the truck? From what I can tell, they are not labeled or anything.:confused:

  2. Oct 4, 2009 at 7:38 AM
    #2
    High-Order

    High-Order Active Member

    Joined:
    Sep 9, 2009
    Member:
    #22490
    Messages:
    35
    Gender:
    Male
    Va. Beach, VA.
    Vehicle:
    Silver Double Cab Off-road 4x4
    All-Pro Bumper, Icon Stage 4 kit, 16x8 Konig Countersteer's, 285/75/16 BFG A/T's
    They're not side specific. Don't hesitate to call their customer service line, i had to three times.

  3. Oct 4, 2009 at 8:51 AM
    #3
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!
    Ok thanx man, gonna put them in today...

  4. Oct 4, 2009 at 8:53 AM
    #4
    1337Taco

    1337Taco Slamry

    Joined:
    May 9, 2008
    Member:
    #6504
    Messages:
    7,385
    Gender:
    Male
    First Name:
    Kevin
    NorCal
    Vehicle:
    07 Tacoma Off-Road
    Camburg Spindles, Bilstein Rear plus AAL. 285 Hankook MT.
    You will do fine. Post up pics when you are done!

  5. Oct 4, 2009 at 11:26 AM
    #5
    High-Order

    High-Order Active Member

    Joined:
    Sep 9, 2009
    Member:
    #22490
    Messages:
    35
    Gender:
    Male
    Va. Beach, VA.
    Vehicle:
    Silver Double Cab Off-road 4x4
    All-Pro Bumper, Icon Stage 4 kit, 16x8 Konig Countersteer's, 285/75/16 BFG A/T's

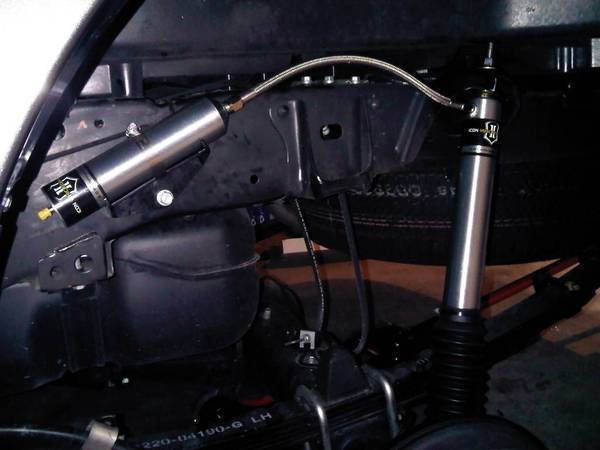

    Here, this pic will give you an idea of what it's supposed to look like.

    [​IMG]

  6. Oct 4, 2009 at 11:45 AM
    #6
    nolanspawn

    nolanspawn Work In Progress

    Joined:
    Aug 11, 2007
    Member:
    #2396
    Messages:
    253
    Gender:
    Male
    Layton, Utah
    Vehicle:
    2011 Tundra Crewmax
    Corsa Exhuast, AFE Intake
    Dude you are a savior. I have been searching for a while for that exact view of the rear installed.

  7. Oct 4, 2009 at 11:56 AM
    #7
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!
    Did you have to drill any holes on the passenger side to bolt up the reseviour holder braket?

  8. Oct 4, 2009 at 12:48 PM
    #8
    High-Order

    High-Order Active Member

    Joined:
    Sep 9, 2009
    Member:
    #22490
    Messages:
    35
    Gender:
    Male
    Va. Beach, VA.
    Vehicle:
    Silver Double Cab Off-road 4x4
    All-Pro Bumper, Icon Stage 4 kit, 16x8 Konig Countersteer's, 285/75/16 BFG A/T's
    Yeah, you have to drill a hole on both sides. It's pretty easy. Just make sure you mount the bracket that holds the resevoir the right way. I saw one pic and someone installed them upside down, basically relying 100% on the hose clamp?

  9. Oct 4, 2009 at 5:33 PM
    #9
    tacoskim

    tacoskim Tuned By Gadget

    Joined:
    Mar 13, 2008
    Member:
    #5252
    Messages:
    2,395
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    09 TRD 4x4 Pyrite Mica
    Stock
    i will be installing these next week. how big of a hole did you have to drill? size?

  10. Oct 4, 2009 at 5:44 PM
    #10
    Kenny650

    Kenny650 Well-Known Member

    Joined:
    Apr 13, 2009
    Member:
    #15944
    Messages:
    822
    Gender:
    Male
    Is there much a of a difference between the Icon and the 5100's?

  11. Oct 4, 2009 at 5:56 PM
    #11
    High-Order

    High-Order Active Member

    Joined:
    Sep 9, 2009
    Member:
    #22490
    Messages:
    35
    Gender:
    Male
    Va. Beach, VA.
    Vehicle:
    Silver Double Cab Off-road 4x4
    All-Pro Bumper, Icon Stage 4 kit, 16x8 Konig Countersteer's, 285/75/16 BFG A/T's
    I don't remember off the top of my head, it says in the instructions though. If you don't have them you can download them from icon's website.

  12. Oct 4, 2009 at 6:25 PM
    #12
    chad68

    chad68 Master Jedi Member I am...

    Joined:
    Oct 28, 2007
    Member:
    #3263
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Chad
    In a (Toyota) van down by the river! Sonoma Cownty
    Vehicle:
    2009 4x4 reg cab. Modded with more to come
    Polished 16x8 Pro Comp 1069's 4" BS Nitto Mud Grapplers 305/70/16 Magnaflow & glasspack muffler Stainless tip K&N 63 series Aircharger Vent visors Autometer volt and dig. temp. gauge custom mounted Factory chrome rear bumper (not black factory, one) TRD pedal covers TRD skid plate Hurst T handle shift knob Rear Tint Clear bra on the sides Chrome extinguisher Icon non resi coilovers, ICON RR shocks, black seat covers. And some other crap
    Most pics of those shocks I have seen the people mounted the brackets upside down. Glad to see you did yours the right way.

    Do those ICONS come with any decals or are they bare? Half pics I've seen have no markings and others do have logos.

  13. Oct 4, 2009 at 6:57 PM
    #13
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!
    The drill bit you need is 11/32". They come with stickers, but they are pretty small and nothing really fancy or anything. I'm just installing them now, but came in for a break. I'm having a hard time getting the lower shock mount into the perch. The shock is quite a bit further then the axle and the axle is down as far as she will go. I'm going to try to use a little jack to compress the shock up and hopefully I can get it in.

  14. Oct 4, 2009 at 8:57 PM
    #14
    chad68

    chad68 Master Jedi Member I am...

    Joined:
    Oct 28, 2007
    Member:
    #3263
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Chad
    In a (Toyota) van down by the river! Sonoma Cownty
    Vehicle:
    2009 4x4 reg cab. Modded with more to come
    Polished 16x8 Pro Comp 1069's 4" BS Nitto Mud Grapplers 305/70/16 Magnaflow & glasspack muffler Stainless tip K&N 63 series Aircharger Vent visors Autometer volt and dig. temp. gauge custom mounted Factory chrome rear bumper (not black factory, one) TRD pedal covers TRD skid plate Hurst T handle shift knob Rear Tint Clear bra on the sides Chrome extinguisher Icon non resi coilovers, ICON RR shocks, black seat covers. And some other crap

    Did you jack up the truck and leave the tires and wheels on? If you leave the tires and wheels on, maybe that extra weight will make the rear droop further so you can get the shock in?

  15. Oct 4, 2009 at 9:06 PM
    #15
    AlexForbesR6

    AlexForbesR6 My R6 Eats Me

    Joined:
    Aug 20, 2009
    Member:
    #21488
    Messages:
    615
    Gender:
    Male
    First Name:
    Alex
    Houston, TX
    Vehicle:
    07 4x4 6-Spd
    very nice..post up pics when done!! and tell us how much of a difference the ride quality is...

  16. Oct 4, 2009 at 10:37 PM
    #16
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!
    Finally got it all done. I had to put some pieces of wood under my jack stands so the truck sat higher. Once I did that I could lower the axle that extra little bit I needed and attach the lower shock bolt. Leaving the tires on could have also worked, didn't think of that! One thing I would caution to anybody installing the rear Icon resi's - when attaching the bracket that holds the resi to the frame, do not over tighten the screw. I did and the self tapping screw would not hold the bracket on tight. I had to drill a second hole to get it to work. It was getting dark, but here is a quick pic of the drivers side installed.

    [​IMG]

  17. Oct 4, 2009 at 10:45 PM
    #17
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!

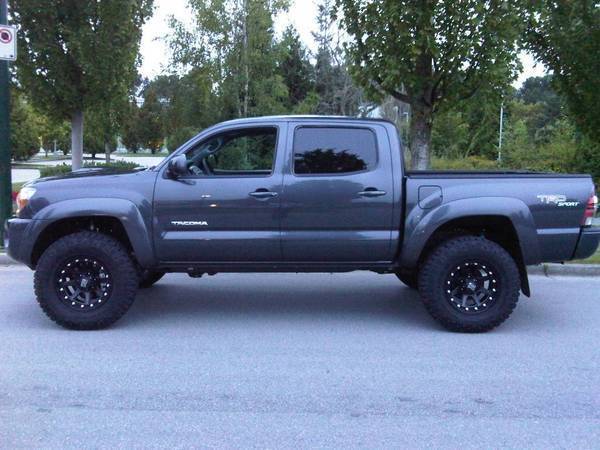

    And my baby! (with the stock rear shocks)

    [​IMG]

  18. Oct 4, 2009 at 10:48 PM
    #18
    azTRD

    azTRD Well-Known Member

    Joined:
    Sep 8, 2009
    Member:
    #22486
    Messages:
    224
    Gender:
    Male
    Any chance you can post some larger pictures... I think my eyes are starting to bleed a bit trying to see your rig. From what I can tell, it looks great.

  19. Oct 4, 2009 at 10:53 PM
    #19
    Canadianboy

    Canadianboy [OP] Taco love in East Van

    Joined:
    Jun 11, 2009
    Member:
    #18308
    Messages:
    893
    Gender:
    Male
    First Name:
    James
    Vancouver, BC
    Vehicle:
    09 TRD Sport S/B 4x4 Auto in Mag Grey
    Icon Stage 3, Goodyear Duratracs and KMC Addicts!
    Man I'm having some issues with photobucket lol

    Edit: Figured it out, pics resized.

  20. Oct 4, 2009 at 11:09 PM
    #20
    azTRD

    azTRD Well-Known Member

    Joined:
    Sep 8, 2009
    Member:
    #22486
    Messages:
    224
    Gender:
    Male
    They are still small and my eyes still bleeding. You should use the TW photo gallery... seems to work well and I have never had a problem with it... just a thought.

    I know you've been working hard on your truck and I was hoping to see the finished product... from what I can tell it looks like you've done an awesome job. The Mag Grey is by far my favorite color on our trucks... I may have to start thinking about another purchase.
