Rear Setup/Dimensions?

Discussion in 'Long Travel Suspension' started by ironman_jon, Jul 26, 2011.

  1. Jul 26, 2011 at 7:22 PM
    #1
    ironman_jon

    ironman_jon [OP] Well-Known Member

    Joined:
    Sep 21, 2009
    Member:
    #23116
    Messages:
    1,084
    Gender:
    Male
    First Name:
    Jonathan
    Vehicle:
    Prerunner Sport
    URD TCAI Wicked Flow 18" 2 10in alpine type r 1500 watt amp MB 72 matte black Custom Bumper Debadged Glassworks fenders McNeil bedsides Helix TB Spacer Intake Manifold Spacer Custom Roof Rack 5x 55w HID SK2 projectors 55w DDM 5k Bulbs Camburg Long Travel Fox Coilovers
    Looking at starting my long travel and I have a friend that will fab up some rear shock hoops/cage for me I just need to know the dimensions needed for the set up . How would I go about finding those or is there someone on here that can give them to me. This place is full of knowledge so Im sure there is someone on here that can help me with this.

    Thanks

  2. Jul 26, 2011 at 9:29 PM
    #2
    G scott04

    G scott04 ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    4,996
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Well I know the way you measure the length of shocks you need and
    where they go, you buy your new leaf pack, mount it up how you want, ie spring under axle, then take all your leafs out except for the main one mounted to shackles, then you can flex your axle, and see its range of movement!

    let me find a post on ttora...
    the guy reall seemed to know what he was talking about...

    Edit: cant find it sorry.. but there are alot of guys on here who can answer this for sure.


    also there is a company that makes some really cool custom set ups...

    http://www.infamousmetalworks.com/

    [​IMG]

  3. Aug 10, 2011 at 3:42 PM
    #3
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,350
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    Thats pretty much it. You have to cycle your suspension. You want to build the cage around how your suspension cycles or you will lose travel.

    What you do is fully compress your shocks (bleed all the air out), mount them on your axle and fully compress the suspension (with only main leaf as described). Take a piece of cardboard or wood or something and put a marker in the top eyelet of the shock. Swing it back and forth to make an arc on the cardboard. Now fully extend your shocks and fully extend your leafs and do the same thing. The two arc's you made should intersect at one point. That is where you want your shocks to be mounted

  4. Aug 10, 2011 at 4:35 PM
    #4
    97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    13,014
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    when i go to brandons when hes doing my bed cage to see where i need to mout my shocks would you come with and help me?

  5. Aug 10, 2011 at 4:51 PM
    #5
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,831
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*

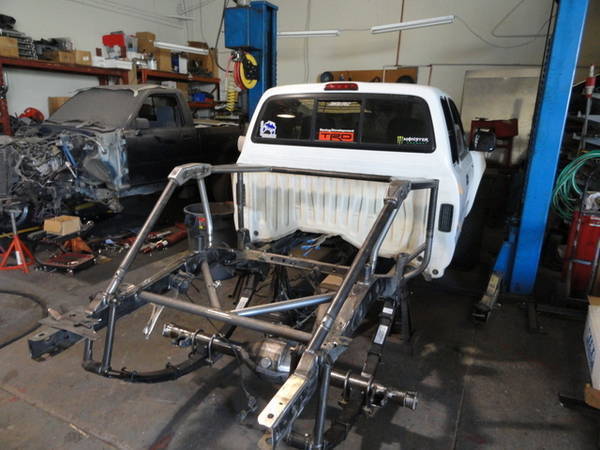

    hot damn, that white tacoma is super nice

  6. Aug 10, 2011 at 6:50 PM
    #6
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    4,570
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
  7. Aug 10, 2011 at 7:03 PM
    #7
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,350
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    Hell yeah I'll come with. When is that gonna be?

  8. Aug 10, 2011 at 10:17 PM
    #8
    ironman_jon

    ironman_jon [OP] Well-Known Member

    Joined:
    Sep 21, 2009
    Member:
    #23116
    Messages:
    1,084
    Gender:
    Male
    First Name:
    Jonathan
    Vehicle:
    Prerunner Sport
    URD TCAI Wicked Flow 18" 2 10in alpine type r 1500 watt amp MB 72 matte black Custom Bumper Debadged Glassworks fenders McNeil bedsides Helix TB Spacer Intake Manifold Spacer Custom Roof Rack 5x 55w HID SK2 projectors 55w DDM 5k Bulbs Camburg Long Travel Fox Coilovers
    lots of help... that why i love this site. thanks guys for researching and finding out the info for me

  9. Aug 11, 2011 at 7:16 AM
    #9
    97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    13,014
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc

    idk... im going to get 33s before i go LT, soo... not for a couple months. and i just got a boat :anonymous:

  10. Jan 9, 2012 at 11:06 PM
    #10
    Nicks4x4LT

    Nicks4x4LT Official Villain

    Joined:
    Mar 13, 2010
    Member:
    #33139
    Messages:
    1,441
    Gender:
    Male
    First Name:
    Nick
    714 Orange county
    Vehicle:
    2010 4x4 V6
    Custom front bumper, Icon 2.5 ext. travel coilovers, Defined rear long travel King smooties w/ resi. Avid Offroad sliders, Fiberwerx front fenders, Glassworks Shorty TT style rear glass, URD MAF calibrator, DT shorty headers, URD TCAI, Magnaflow catback

    Can anyone elaborate on this a little more? It wouldn't seem like the arcs would ever intersect.

  11. Jan 9, 2012 at 11:24 PM
    #11
    G scott04

    G scott04 ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    4,996
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
  12. Jan 9, 2012 at 11:42 PM
    #12
    Nicks4x4LT

    Nicks4x4LT Official Villain

    Joined:
    Mar 13, 2010
    Member:
    #33139
    Messages:
    1,441
    Gender:
    Male
    First Name:
    Nick
    714 Orange county
    Vehicle:
    2010 4x4 V6
    Custom front bumper, Icon 2.5 ext. travel coilovers, Defined rear long travel King smooties w/ resi. Avid Offroad sliders, Fiberwerx front fenders, Glassworks Shorty TT style rear glass, URD MAF calibrator, DT shorty headers, URD TCAI, Magnaflow catback
  13. Jan 10, 2012 at 12:01 AM
    #13
    G scott04

    G scott04 ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    4,996
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Good glad it helped :D

  14. Jan 10, 2012 at 9:25 AM
    #14
    Nicks4x4LT

    Nicks4x4LT Official Villain

    Joined:
    Mar 13, 2010
    Member:
    #33139
    Messages:
    1,441
    Gender:
    Male
    First Name:
    Nick
    714 Orange county
    Vehicle:
    2010 4x4 V6
    Custom front bumper, Icon 2.5 ext. travel coilovers, Defined rear long travel King smooties w/ resi. Avid Offroad sliders, Fiberwerx front fenders, Glassworks Shorty TT style rear glass, URD MAF calibrator, DT shorty headers, URD TCAI, Magnaflow catback
    would you happen to have any pictures of your lower shock mounts, i know one side of the shock has to be fixed in one spot when your making your arcs so can i use the stock lower mounting points or do i need new ones?

  15. Jan 10, 2012 at 9:42 AM
    #15
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,350
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    You either need to buy or make new lower shock mounts. I just made these over the weekend

    [​IMG]

  16. Jan 10, 2012 at 10:01 AM
    #16
    Nicks4x4LT

    Nicks4x4LT Official Villain

    Joined:
    Mar 13, 2010
    Member:
    #33139
    Messages:
    1,441
    Gender:
    Male
    First Name:
    Nick
    714 Orange county
    Vehicle:
    2010 4x4 V6
    Custom front bumper, Icon 2.5 ext. travel coilovers, Defined rear long travel King smooties w/ resi. Avid Offroad sliders, Fiberwerx front fenders, Glassworks Shorty TT style rear glass, URD MAF calibrator, DT shorty headers, URD TCAI, Magnaflow catback
    How do you determine where to mount the lower mounts then?

  17. Jan 10, 2012 at 10:19 AM
    #17
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,350
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    People move them all over the place. Some mount just above the axle with small tabs and some mount off the back of the axle (like mine). The main thing is cylcing the suspension to make sure the upper mount is correct.

    Its hard to explain but if you mount your lowers say 1 inch higher, then it will end up making the "arc" one inch higher up top too. You just need to make sure the uppers you make will cycle correctly with the lowers

    Who is building your bedcage?

  18. Jan 10, 2012 at 10:23 AM
    #18
    Nicks4x4LT

    Nicks4x4LT Official Villain

    Joined:
    Mar 13, 2010
    Member:
    #33139
    Messages:
    1,441
    Gender:
    Male
    First Name:
    Nick
    714 Orange county
    Vehicle:
    2010 4x4 V6
    Custom front bumper, Icon 2.5 ext. travel coilovers, Defined rear long travel King smooties w/ resi. Avid Offroad sliders, Fiberwerx front fenders, Glassworks Shorty TT style rear glass, URD MAF calibrator, DT shorty headers, URD TCAI, Magnaflow catback
    Its engages bedsaver kit

  19. Jan 10, 2012 at 10:24 AM
    #19
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,350
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    Ahhh so the uppers are pretty much already made then. Ummm for that I am not sure. I know a few members on here have the kit but best bet would be to contact Engage

  20. Jan 10, 2012 at 1:46 PM
    #20
    B.Radd.KO

    B.Radd.KO Well-Known Member

    Joined:
    Jan 9, 2012
    Member:
    #70336
    Messages:
    46
    Gender:
    Male
    First Name:
    Blanalin
    Prince George, B.C.
    Vehicle:
    2011 Tacoma DC TRD Std.
    HID Fog/Hi/Low 3000W RMS Stereo TRD Quickshifter TRD Supercharger TRD Exhaust JBA Headers
    Wow the knowledge of the people on this site is amazing.
    What are the factors of 134,567,248?

    I have a few more specific questions about Rear LT Setups.
    Your explaination of how to position the top mounts makes sense to me.
    I'm thinking that a guy could use the stock axle mounts to swing the new shock, you could use a long bar to slide through the axle mount and shock to make sure it's in the right position so the newer, larger body doesnt hit the frame.
    What are the advantages, then, of placing your axle mounts in different positions? Is it mostly just personal preference/convenience?
    I've heard that the higher angle your shocks are placed at the more heat they will produce. Im assuming that this is because a shock mounted at a 15 degree angle would have to move more in order to produce, say 6'' of travel, than a shock mounted dead vertical.

    BTW Nick, any particular reason for choosing Engages box? I've been checking out Giant motorsports', (Oooh... that sounds dirty...) but im not sure if i will go with their LT kit now... so its up in the air i guess.
