Rear Shock relocation thread

Discussion in 'Suspension' started by Box Rocket, Feb 5, 2013.

  1. Feb 5, 2013 at 11:23 AM
    #1
    Box Rocket

    Box Rocket [OP] just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,944
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    I've been searching through a lot of threads of individual builds etc and in doing so I thought it would be a good idea to get all of the different rear shock set ups in one location to save people time in the future of looking through tons of different threads like I have.

    I'll be doing a rear shock relocation mod soon and would like to see pics of different setups and how you did yours. If you can share details of the parts you used, shock length, what rear springs/shackles you are using, any issues you encountered etc. It will be helpful for anyone looking at this thread.

    TIA. I'll share my own set up as soon as its completed.

  2. Feb 5, 2013 at 11:30 AM
    #2
    Davtopgun

    Davtopgun All go, No show

    Joined:
    Feb 17, 2011
    Member:
    #51350
    Messages:
    3,268
    Gender:
    Male
    First Name:
    David
    Central Alabama
    Vehicle:
    95 Tacoma Sr5 4x4
    Heavy duty 4.56 gears front and rear, ARB air lockers front and rear, WARN hubs, VIAIR ultra duty OBA, Addicted offroad winch bumper, Recon 10,500lb waterproof winch with synthetic line, ProComp Steelies wrapped in 35" general grabber red labels, dakar leaf pack with 2" toytec lift shackles, 10" Billies in the rear, OME 882's with OME Nitrochargers and LR UCA's in the front, WARN recovery kit, extra shackles, 60" Extreme Hi Lift, Hi Lift handle all, home made spare tire carrier, Stubbs welding HD SKO sliders, OTTRW Switches, 20" double row LED Lightbar, ARB Safari Snorkle, AFE Pro Dry S drop in air filter, Optima Yellow Top battery. Work in progress!
    :popcorn:

    It's on my mod list.

  3. Feb 5, 2013 at 11:36 AM
    #3
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,950
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    Great thread idea Adam.

    Subb'd for future reference ;)

  4. Feb 5, 2013 at 11:44 AM
    #4
    Supermoto

    Supermoto Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72373
    Messages:
    2,911
    Gender:
    Male
    First Name:
    Landon
    Encinitas/San Diego
    great idea!

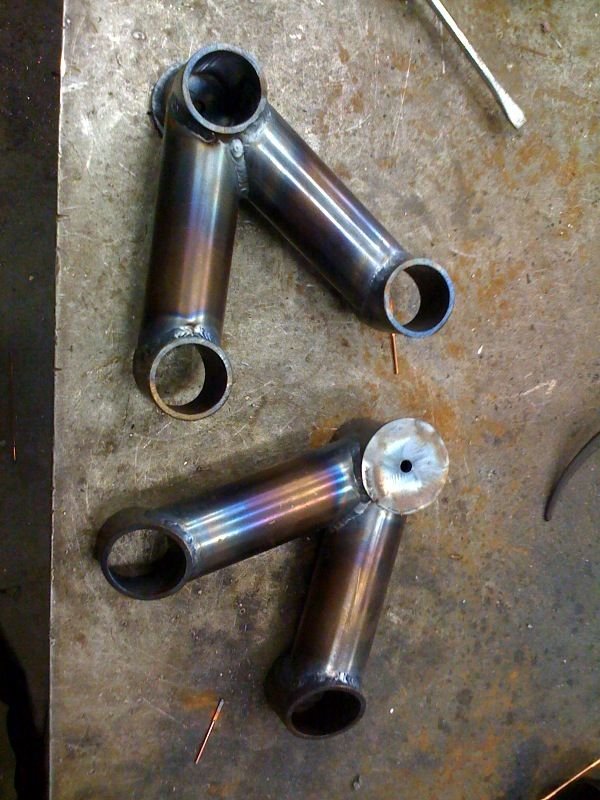

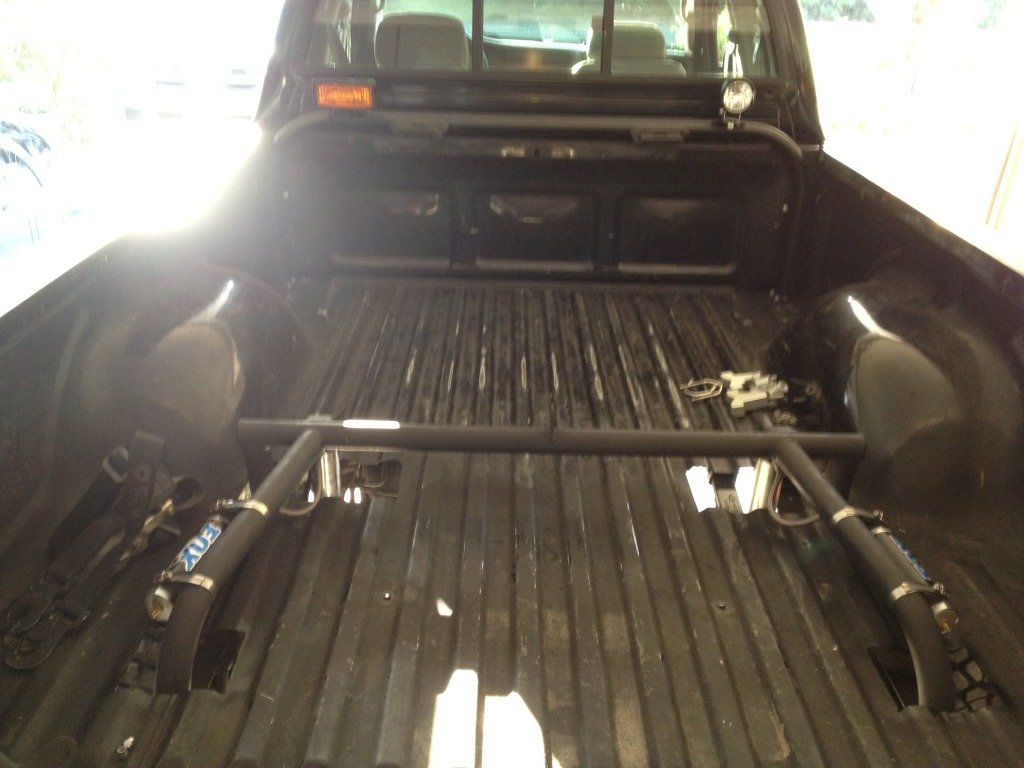

    I built this for my brother's second gen, 2.5" shocks and an Expo Pack

    [​IMG]
    [​IMG]
    [​IMG]

    built this for a member's first gen, 2.0" shocks

    [​IMG]
    [​IMG]
    [​IMG]

  5. Feb 5, 2013 at 11:46 AM
    #5
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    44,655
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    looks good. ^

  6. Feb 5, 2013 at 6:05 PM
    #6
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    969
    Gender:
    Male
    San Diego
    Vehicle:
    0 double cab taco

    are you talking under bed setups or though the bed?

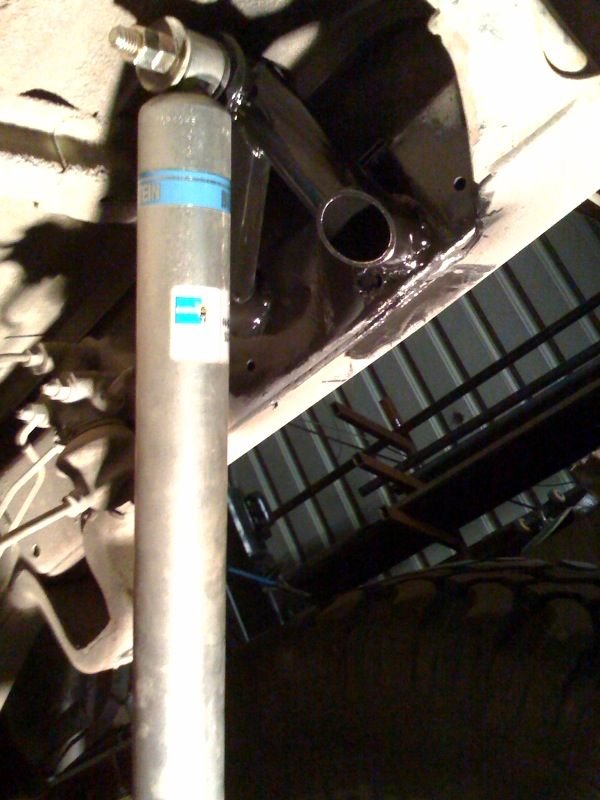

    not a taco but what i did on my old 4runner to get some more lenght. almost touching the bottom of the bed.
    [​IMG]

    [​IMG]

  7. Feb 5, 2013 at 6:13 PM
    #7
    Box Rocket

    Box Rocket [OP] just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,944
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    I'm talking about either, but personally I'm keeping them under the bed.

    that's a great setup on the 4Runner. Gives me some ideas.

  8. Feb 7, 2013 at 7:27 PM
    #8
    extrmsob293

    extrmsob293 Well-Known Member

    Joined:
    Sep 2, 2012
    Member:
    #86098
    Messages:
    389
    Gender:
    Male
    oh i want to know more

  9. Feb 7, 2013 at 8:24 PM
    #9
    Supermoto

    Supermoto Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72373
    Messages:
    2,911
    Gender:
    Male
    First Name:
    Landon
    Encinitas/San Diego
    Shoot off some questions

  10. Feb 7, 2013 at 9:44 PM
    #10
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,249
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    What's the longest shock you can run without cutting bed...14"?

  11. Feb 7, 2013 at 9:53 PM
    #11
    Supermoto

    Supermoto Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72373
    Messages:
    2,911
    Gender:
    Male
    First Name:
    Landon
    Encinitas/San Diego
    What rims? What springs? Wheel spacers?

  12. Feb 7, 2013 at 9:59 PM
    #12
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,249
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    17x9's...deaver j66...no spacer....265, possibly 285 tires.

  13. Feb 7, 2013 at 10:36 PM
    #13
    Supermoto

    Supermoto Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72373
    Messages:
    2,911
    Gender:
    Male
    First Name:
    Landon
    Encinitas/San Diego
    That pack can't really use much more than a 10" shock. You could maybe get 12" out of it but it will be separating

  14. Feb 7, 2013 at 10:42 PM
    #14
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,130
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    After talking about it a lot with Landon after he did his brothers truck, i decided i needed to do the same...i went a bit higher up and did 12's
    mocking up and measuring
    [​IMG]

    [​IMG]

    lower mount
    [​IMG]
    Flex achieved
    [​IMG]

    Specs:
    Fox 12" 36" by 24" 2.5 with Remote Resi
    Allpro Expedition Springs
    Daystar Pyramid Bumpstops

    Pros: Wheel travel, 2.5's stay way cooler, rear end feels more solid
    Con: Had to run 1.25" spacers, to some this isnt a problem but it makes my wide 35's stick out

  15. Feb 7, 2013 at 10:52 PM
    #15
    FixedTRD

    FixedTRD Well-Known Member

    Joined:
    Aug 2, 2009
    Member:
    #20511
    Messages:
    2,112
    Gender:
    Male
    First Name:
    Will
    Alhambra, CA
    All pro LT, All pro front bumper,All pro rear fox, 1.5 full leaf and u bolt flip kit. KR sliders, bestop, high lift with custom mount, katskin leather, Hankook MT and atx artillery. DMZ SUA w/FOX triple bypass

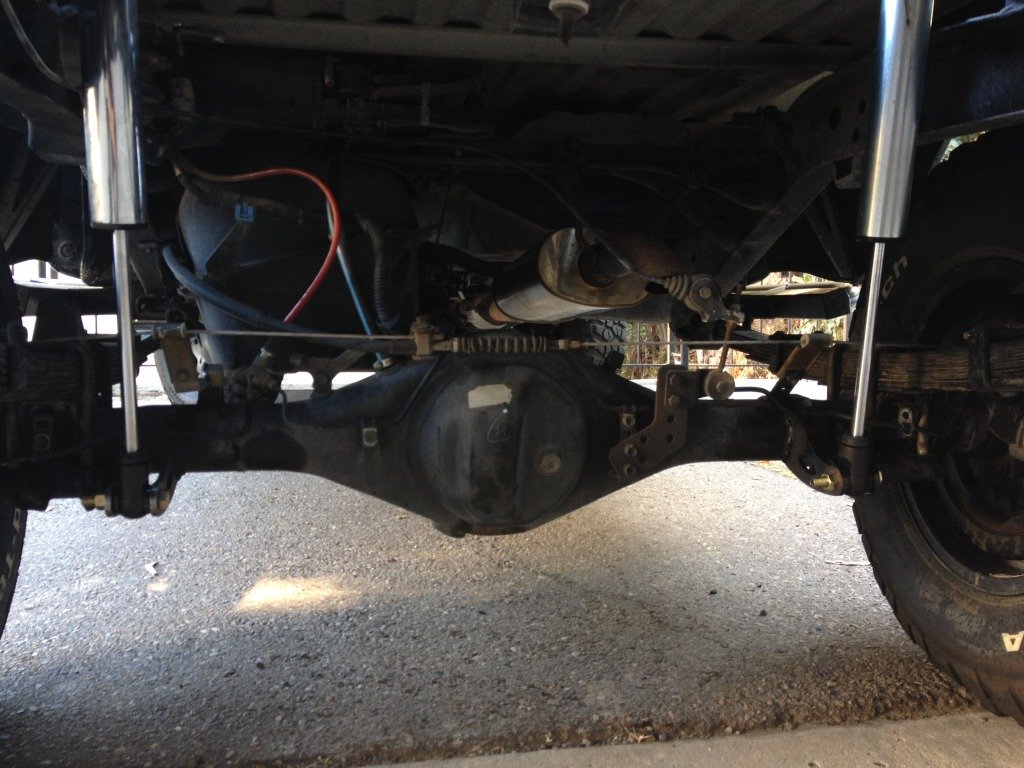

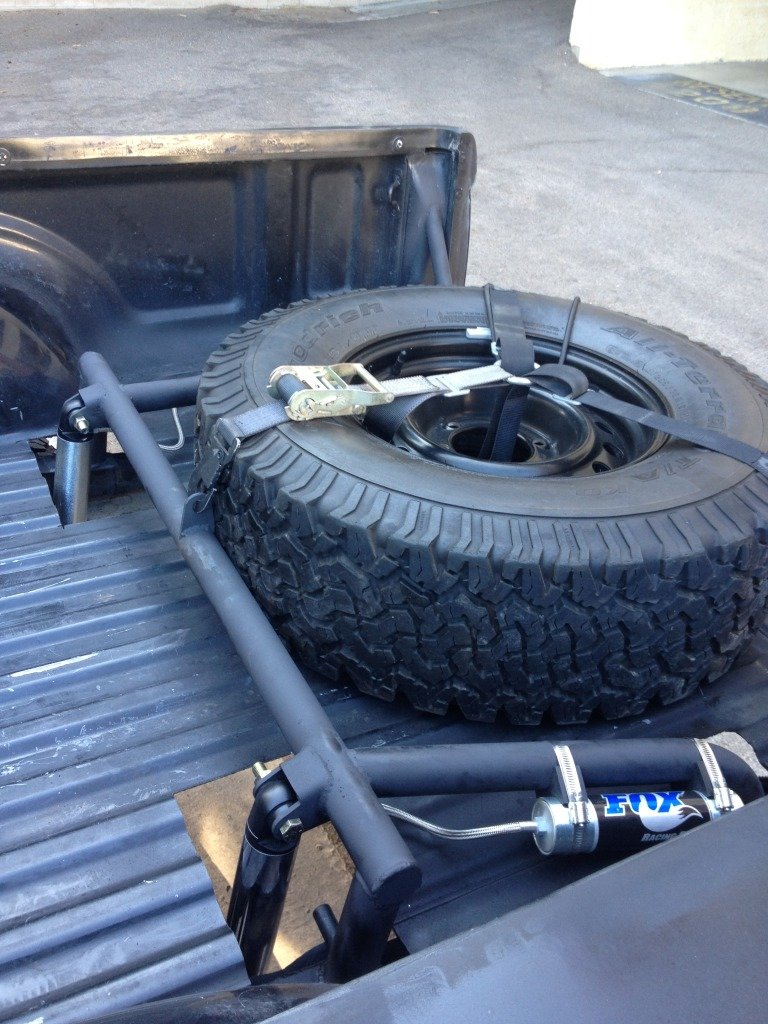

    Here's my rear by DMZ, without cutting into the bed.
    [​IMG]
    [​IMG]

  16. Feb 7, 2013 at 11:02 PM
    #16
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,249
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    Will, what shock length are you running?

  17. Feb 7, 2013 at 11:05 PM
    #17
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,249
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    yeah, i figured i'd have to get a longer pack...maybe sua even.

  18. Feb 7, 2013 at 11:11 PM
    #18
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,925
    Gender:
    Male
    First Name:
    coby
    KODIAK, AK! originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    So freaking sweet. Def would do this if I ever go LT

  19. Feb 7, 2013 at 11:16 PM
    #19
    nagorb

    nagorb Well-Known Member

    Joined:
    Feb 28, 2011
    Member:
    #52025
    Messages:
    3,953
    Gender:
    Male
    california
    Vehicle:
    2001 dbl cab 4x4
    I just put a set of expos on my 01 double cab and need to get longer shocks, figured i might as well flip the u bolts and relocate top and bottom mounting. Mounting II i need 23.5 and 13, closest i can find is 24.5ish and 14.6ish losing an inch of compression really isn't a big deal but i would prefer to do it right. I keep reading that people are putting 12" bilstein 7100 short bodies. To me the numbers just don't seem too worth unless they are/\ anyone have any experience/pics?

    Any reason to not mount them on the outside of the leafs, wheel well?

  20. Feb 7, 2013 at 11:28 PM
    #20
    FixedTRD

    FixedTRD Well-Known Member

    Joined:
    Aug 2, 2009
    Member:
    #20511
    Messages:
    2,112
    Gender:
    Male
    First Name:
    Will
    Alhambra, CA
    All pro LT, All pro front bumper,All pro rear fox, 1.5 full leaf and u bolt flip kit. KR sliders, bestop, high lift with custom mount, katskin leather, Hankook MT and atx artillery. DMZ SUA w/FOX triple bypass
    I'm running 2.5x12 triple bypass, it's a really tight fit hahah frame had to be notched.
