Rear suspension Fab Idea

Discussion in 'Suspension' started by G scott04, Jan 20, 2011.

  1. Jan 20, 2011 at 11:39 AM
    #1
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Well the other day I was looking through craigslist
    and I found a good deal on some all pro 5" lift springs.
    So I liked the springs BUT I definitely don't want 5 inches of lift!
    my truck sits pretty level and I want to keep it that way, or pretty close.
    So I had the Idea that maybe I could set it up so the Springs went under
    the axle like the long travel set up. But not really sure what it would take to create this. maybe at the simplest use a u-bolt flip kit but not flip it?
    (if that makes sense), and then just weld on some some shock mounts to the axle,with some longer shocks, bump cans and shackles? just an
    idea and I wanted to see what you thought hopefully you have some
    tips, advice, input, concerns, complaints, etc :D
    just let me know what you think!

    BTW: its a 2004 prerunner.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Jan 20, 2011 at 12:26 PM
    #2
    Trifenix

    Trifenix Well-Known Member

    Joined:
    Jan 11, 2011
    Member:
    #49090
    Messages:
    1,227
    Gender:
    Male
    so cal
    Vehicle:
    99 Tacoma LT Prerunner
    what are you looking to accomplish?

  3. Jan 20, 2011 at 12:33 PM
    #3
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Installing a longer/taller leaf pack without the lift but getting extra travel

  4. Jan 20, 2011 at 12:50 PM
    #4
    achirdo

    achirdo First Class White Trash

    Joined:
    Apr 7, 2010
    Member:
    #34819
    Messages:
    10,165
    Gender:
    Male
    First Name:
    Adam
    North DFW
    Vehicle:
    06 dodge ram 3500 5.9 cummins
    bump?

  5. Jan 20, 2011 at 12:55 PM
    #5
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,325
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Even with the axle mounted under the springs your shocks are still going to limit your travel unless you punch holes in the bed.

    And this^ you would have to move the spring perches to the bottom of the axle as well. You can't just move the axle under the spring with a U bolt flip kit.

  6. Jan 20, 2011 at 1:03 PM
    #6
    Trifenix

    Trifenix Well-Known Member

    Joined:
    Jan 11, 2011
    Member:
    #49090
    Messages:
    1,227
    Gender:
    Male
    so cal
    Vehicle:
    99 Tacoma LT Prerunner
    In general, you cannot gain extra travel if you keep the stock mounting points/equipment unless you go with a super soft spring rate. But if you go with a softer spring rate, you will lose weight carrying capability and accelerate wear if you decide to carry stuff in the back of your truck bed. For example, a long travel leaf pack (f55,f67, 50T) all require longer mounting points than stock to allow for additional flex when combined with an extended shackle but load bearing weight goes down.

    One possible way to gain more travel would be to play around with the shackle, but of course this would not be bolt on application. And your stock shocks would be too short and you have to reweld your spring perches on the axle. In short, if you want usable travel, it will cost a good amount of money and pretty soon your rear suspension will be full custom lol.

  7. Jan 20, 2011 at 1:05 PM
    #7
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Maybe shock hoops? was thinking I could get away from
    putting shocks through the bed because there wasn't enough travel to require that...

    and for the spring perches how tough would that be? straightforward welding new ones on? or more complicated?....

  8. Jan 20, 2011 at 1:16 PM
    #8
    Trifenix

    Trifenix Well-Known Member

    Joined:
    Jan 11, 2011
    Member:
    #49090
    Messages:
    1,227
    Gender:
    Male
    so cal
    Vehicle:
    99 Tacoma LT Prerunner
    You might be able to get away with just re welding the spring perches on the axle and also the shock mounts on the frame. It might give you decent travel.

  9. Jan 20, 2011 at 1:25 PM
    #9
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,325
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
  10. Jan 20, 2011 at 1:34 PM
    #10
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
  11. Jan 20, 2011 at 1:40 PM
    #11
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner

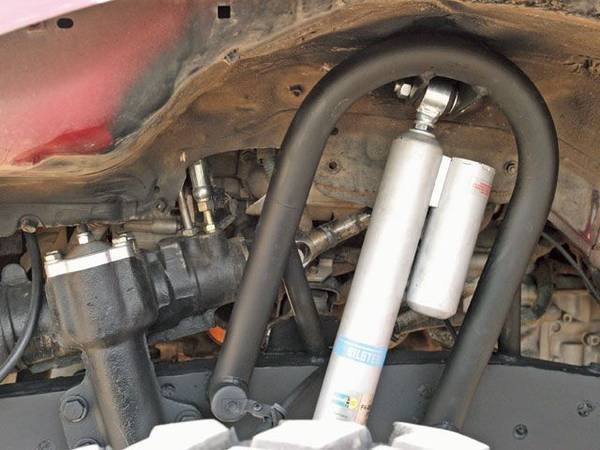

    This is what I mean with the shock hoop.

    [​IMG]
    [​IMG]

    Edit: now that I look at them are these on the front?
    I just googled some pics of toyota shock hoops..

  12. Jan 20, 2011 at 1:40 PM
    #12
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,325
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Yeah no problem man

  13. Jan 20, 2011 at 1:48 PM
    #13
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    what do you think about the shock length?
    goal would be to get as long of a shock as possible
    in there without cutting the bed i guess...

  14. Jan 20, 2011 at 1:50 PM
    #14
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,325
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Theses are on front axles

  15. Jan 20, 2011 at 1:52 PM
    #15
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    I thought so! I just edited my post.. damn..

  16. Jan 20, 2011 at 1:57 PM
    #16
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,325
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Not necessarily the longest possible that might cause more problems. Really when building custom suspensions you need the materials so you can measure for your shock length.

    Say you have this your leaf springs measure out from the top of the bump to the frame at 6" you need to make sure your shock is mounted so that it has an up travel of 6 1/2 or more. There is so many factors that come into play when doing a custom suspension I'm doing mine and it's making me :goingcrazy: trying to plan everything out.

  17. Jan 20, 2011 at 2:07 PM
    #17
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Makes sense! I will have to actually set up The SUA with the perch and so forth before i can even Take a Guess at my shock length... Im just concerned
    about the height and what I need to make the SUA work under there to determine if its a possible Project.

    But so Far the list for the SUA would be:

    the perches in the link you gave

    the springs, I figured the 5" lift springs would keep ride height even if they were under the axle?

    U-bolt flip kit?

    Probably new shackles.

    does that sound about right?

  18. Jan 20, 2011 at 2:07 PM
    #18
    Trifenix

    Trifenix Well-Known Member

    Joined:
    Jan 11, 2011
    Member:
    #49090
    Messages:
    1,227
    Gender:
    Male
    so cal
    Vehicle:
    99 Tacoma LT Prerunner
    you cannot mount the shock outside the frame rails on an 04 tacoma, the tires will rub the shock and full bump.

  19. Jan 20, 2011 at 2:08 PM
    #19
    G scott04

    G scott04 [OP] ...

    Joined:
    Jan 17, 2011
    Member:
    #49443
    Messages:
    5,003
    Gender:
    Male
    First Name:
    Garrett
    Mesa
    Vehicle:
    04 PreRunner
    Yeah I saw that :(
