recieved the ddm HID's about 20 min ago, but have a question

Discard this cable. I just installed the lights in my truck...it is an extra cable that is not used in the Tacoma headlights.



ok. so what do I use to connect pic 1 and pic 2? Do I use the bare end one to connect to the truck plug



Hmm...mine didnt come like that



The plug in pic 2 goes to the ballest...



all plug in play one cable is extra....throw away

this^^^^^^



alltighty one man, but which slots do the bare ends go into?



Is this a new way they ship them now? Mine didnt come with that cable...

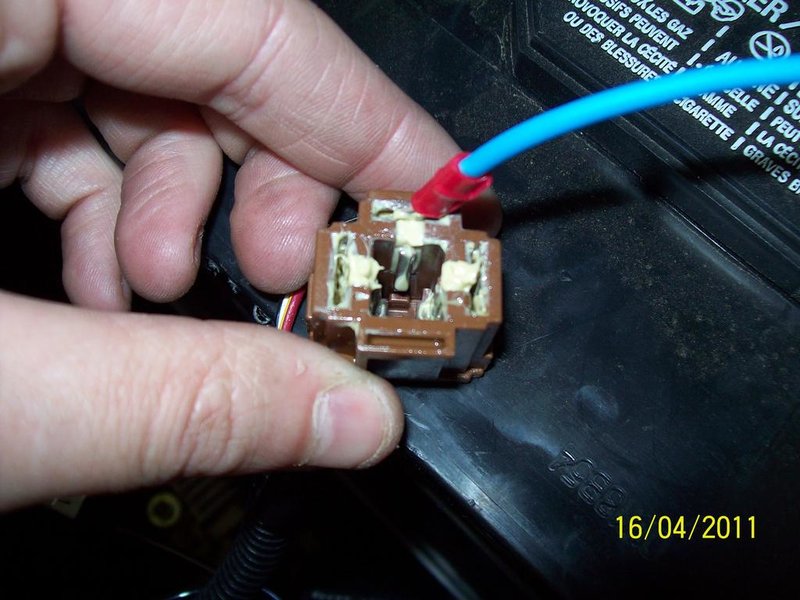

in pic # 1 you only use one side to send power to the relay the other one just gets taped up....

the wire in the #2 is not used



i got mine over 18 months ago and i got that extra cable as well and was like wtf.....
but its easy all plug n play



You should have gotten a cable that plugs into pic 1 and then plugs into both ballasts with plugs that look like the one in pic 2. But if pic 2 is all one cable, i didnt get that one.



Mine are like a year old...i may have gotten that one. Not sure but i know i didnt use one like it to hook them up.



Mine are 2 months old and didn't come like that either.

My fogs did though.



hmmm. well I put the HID bulbs in the headlight housing, now im gonna plug up the ballasts to the headlights, brb



well I finally got the headlights to work somehow (through trial and error) since the kit came with those to "bare" ends 1 black end, and 1 blue end I hooked up the blue end to the picture that you see, and grounded the black end and voila! they work I guess thats how your supposed to wire them, lol.

I do have a question though, with the shroud that is right beside the HID lightbulb, when I turned on the lights, it didnt shine from the bottom of the headlight as in it wouldnt hit the bottom of the truck. is that normal?



im gonna go bolt everything back up



my kit is nothing like pic #1 ^^^^^^
but if it works for you.....
second not sure what you mean about the sheid shining....
the shield over the bulb should be on the bottom not on top



once the bulb was installed, it is on the bottom, but the part of the headlight doesnt have light coming out of it because Im guessing that the shield reflects the light onto another place on the headlight? sorry if this is confusing...



the shield is so the bulb doesnt shine off the bottom of the reflector and blind people. that extra plug is because you didnt order the high low bulb. in our trucks it is one bulb. that wire is to connect to the high-beam bulb used in other vehicles with one bulb for high and one bulb for low.



The metal shield should be ON THE TOP of the HID bulb, it directs light downward, as not to blind. Do your lights come on when the high or low beam is selected inside the truck?
