reciever hitch and wiring ????

Discussion in '3rd Gen. Tacomas (2016-2023)' started by saddlesore, Sep 8, 2016.

  1. Sep 8, 2016 at 6:09 PM
    #1
    saddlesore

    saddlesore [OP] Well-Known Member

    Joined:
    Jan 14, 2016
    Member:
    #174991
    Messages:
    53
    Gender:
    Male
    Pa.
    Vehicle:
    16 sr 4cyl 5spd accab 4x4
    I have a 2016 SR 4cyl , 5 speed ,4wd and need a hitch and wiring to pull a 200lbs. sailboat. There is an empty plug in the left frame rail, is it for tail lights? What hitch and wiring does anyone prefer? Ive search so many threads and come up with nothing.

    moe2o4 likes this.
  2. Sep 8, 2016 at 6:22 PM
    #2
    sawed off

    sawed off Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144246
    Messages:
    255
    Gender:
    Male
    First Name:
    Randy
    Idaho
    Vehicle:
    Prerunner 2wd 2.7 SR5
    If its like my 2015 I bought the 4 plug wiring kit from Toyota. There was NO kit available with trailer brakes from factory. The Toyota kit is perfect fit and it does take some work.

  3. Sep 8, 2016 at 6:24 PM
    #3
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,827
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Vehicle:
    2024 GMC Sierra
    He doesn't need trailer brakes if he's only towing a 200lb sailboat

  4. Sep 8, 2016 at 8:04 PM
    #4
    moe2o4

    moe2o4 Well-Known Member

    Joined:
    Feb 9, 2015
    Member:
    #148236
    Messages:
    7,855
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh PA
    Vehicle:
    2016 SR Silver 2.7L 5 Speed
    OME 3" Lift, 32" Tires, Lots of Mods!
    I have your solution, I ordered three things and made the wiring on mine look like oem!

    1. The hitch and 4 pin wiring harness to plug into the tail lights
    https://www.amazon.com/gp/aw/d/B01K...oma+Curt+Trailer+Hitch+Receiver+Class+III+-+2"

    2. 4/7 pin wiring plug
    https://www.amazon.com/gp/aw/d/B001...0975-11998&dpPl=1&dpID=41XYExaXXGL&ref=plSrch

    So first you want to install the curt hitch to the bumper then from behind the bumper you pop out the blank holder for the oem hitch plug and pop the new one you bought right into the same place as the blank was in. Then you cut the 4 pin plug off of the wiring harness that came with your hitch and connect those 4 colored wires to your 4/7 pin connector and you will leave the last 3 out cause they are for a brake controller which you don't need!
    Now as of 2016 curt is requiring you to get a different source of 12v power for the trialer harness other than the tail lights like previous years. You are required to run a wire from the rear light to the battery or a 12v source. I ran mine right onto the fuse box and put a add a Fuse right into the trialer light Fuse!

    Hope this info helps you out and if you got any other questions feel free to ask away! Also I'm in pittsburgh so if you are decently close id be willing to give you and hand on hooking up all this stuff!
    @saddlesore

    Pictures of mine!

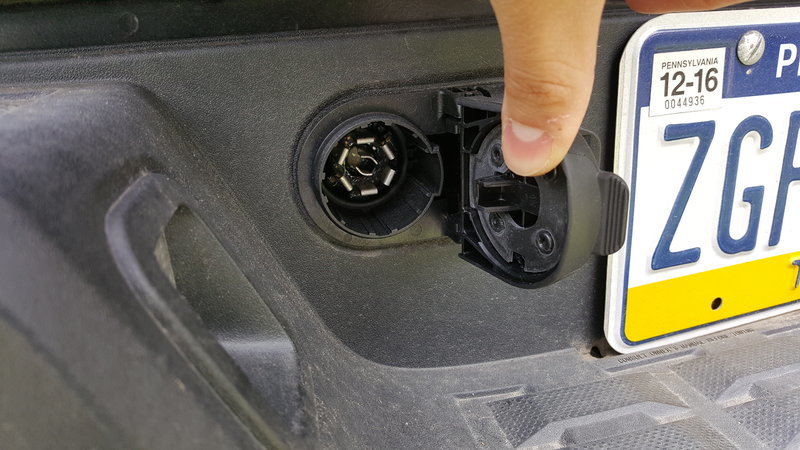

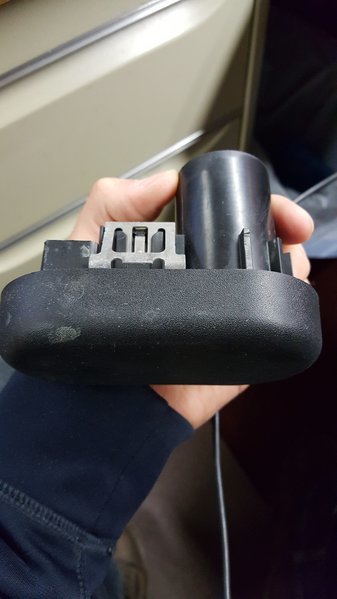

    A picture of the blank once it's removed:

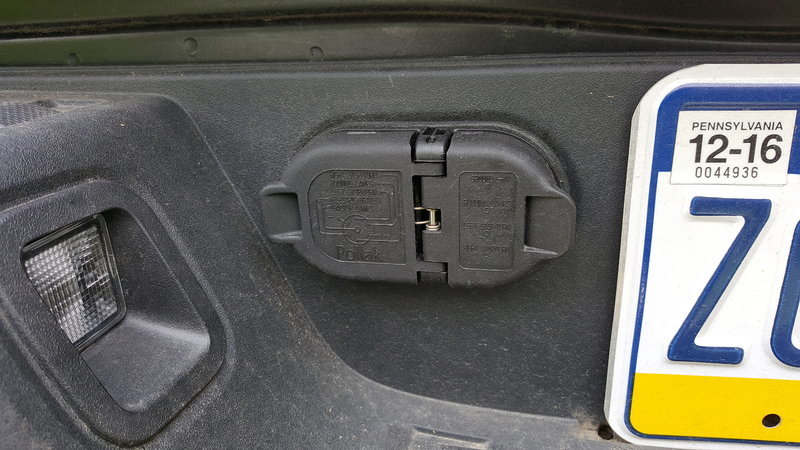

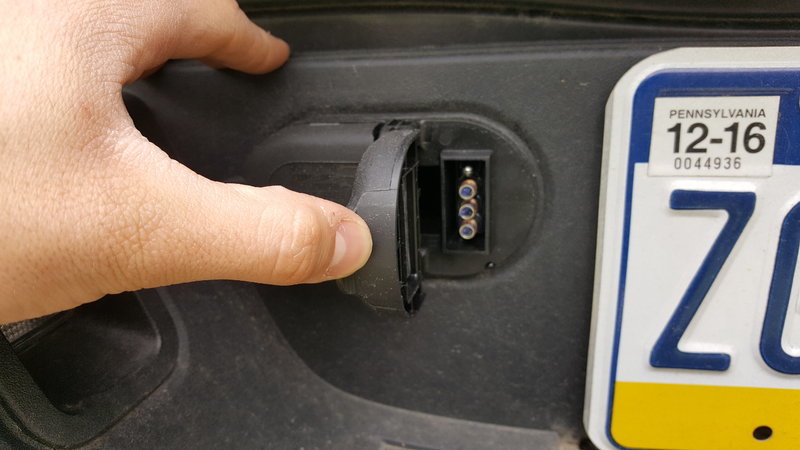

    New plug installed:
    20160515_120220.jpg 20160515_120215.jpg 20160515_120211.jpg

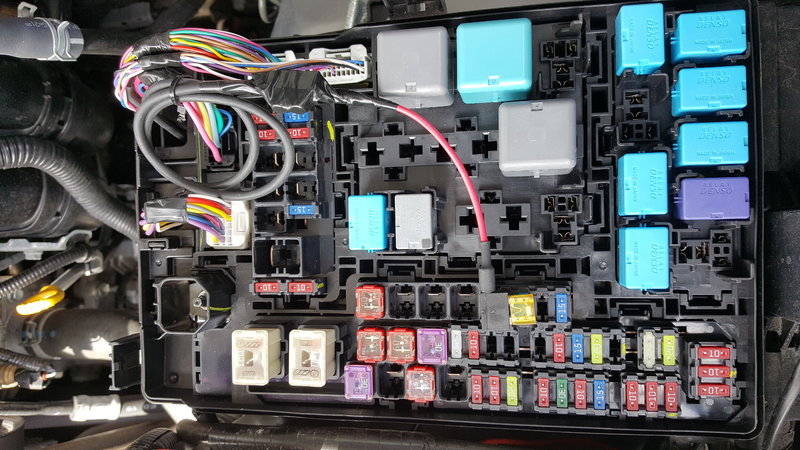

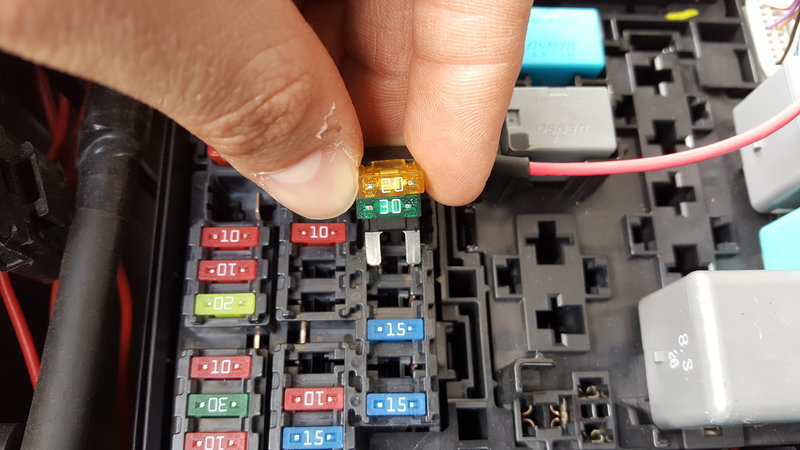

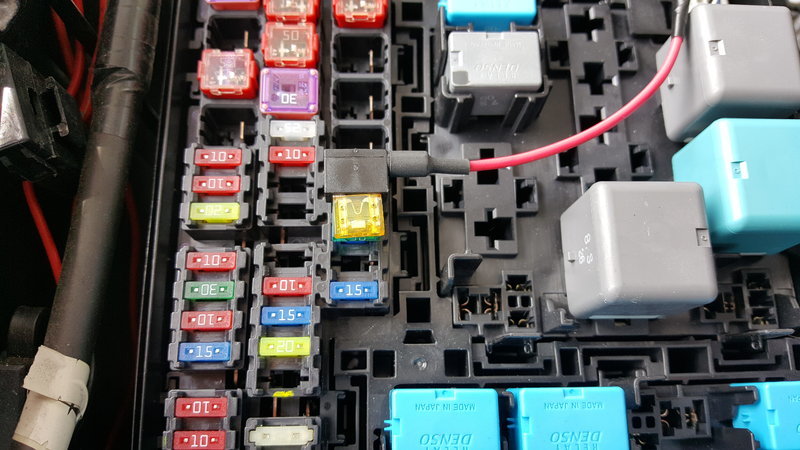

    Wire in Fuse box to power harness:


  5. Sep 8, 2016 at 8:05 PM
    #5
    Oiefisherman

    Oiefisherman Well-Known Member

    Joined:
    Aug 4, 2016
    Member:
    #193756
    Messages:
    213
    Gender:
    Male
    Vehicle:
    2014 Ram 3500
    probably 2000 not 200

    moe2o4 likes this.
  6. Sep 9, 2016 at 4:33 PM
    #6
    saddlesore

    saddlesore [OP] Well-Known Member

    Joined:
    Jan 14, 2016
    Member:
    #174991
    Messages:
    53
    Gender:
    Male
    Pa.
    Vehicle:
    16 sr 4cyl 5spd accab 4x4
    Thanks, Nice clean install Moe. It is 200lbs two hundred. Max.plus trailer weight of 300 or less. The 4 cyl would cry with 2000 lbs

  7. Sep 9, 2016 at 7:31 PM
    #7
    Go Fish

    Go Fish Well-Known Member

    Joined:
    Jun 27, 2016
    Member:
    #190700
    Messages:
    163
    Gender:
    Male
    Vehicle:
    2022 SR5 4x4 DCLB
    7r41lbr34k3r likes this.
  8. Sep 9, 2016 at 9:24 PM
    #8
    dfriedl

    dfriedl Well-Known Member

    Joined:
    Jun 24, 2015
    Member:
    #158080
    Messages:
    83
    Gender:
    Male
    First Name:
    Dave
    Columbus, OH
    Vehicle:
    Silver 2015 Tacoma 4x4 SR AC 2.7 5-speed
    Hitch, cap
    Nah, my 2.7 handled 2000 no problem. The Curt wiring harness is really easy to install, too.

  9. Sep 16, 2016 at 9:29 PM
    #9
    saddlesore

    saddlesore [OP] Well-Known Member

    Joined:
    Jan 14, 2016
    Member:
    #174991
    Messages:
    53
    Gender:
    Male
    Pa.
    Vehicle:
    16 sr 4cyl 5spd accab 4x4
    Thanks for the replies. I got the Curt hitch and wiring. I installed both, and everything works.It took me about 3.5 hours , routed wires in plastic loom, dropped a bolt covered with antiseize down my shirt. Ready to go sailing tho.

    dfriedl likes this.
