Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by kmorgan3, Dec 3, 2020.

Page 5 of 20
  1. Dec 11, 2020 at 8:58 PM
    #81
    ArchitectJVM

    #81
    ArchitectJVM Well-Known Member

    Joined:
    Dec 27, 2018
    Member:
    #277179
    Messages:
    1,384
    Gender:
    Male
    Add me to the next list as well please thanks

    ArchitectJVM, Dec 11, 2020
    #81
    kmorgan3[OP] likes this.
  2. Dec 12, 2020 at 8:29 AM
    #82
    Pyrotech

    #82
    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    3,018
    Gender:
    Male
    do you have a part number for the pins?

    Pyrotech, Dec 12, 2020
    #82
  3. Dec 12, 2020 at 9:14 AM
    #83
    kmorgan3

    #83
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    IL-AG5-C1-5000 - you will need to pull-up on the lip of the connector to “unlock” the pins, and then slide a pin/needle/bodkin through one of the holes to depress the tabs and pull hard.


    Alright all harnesses in batch 1 are en route to new homes expected 12/16. You should have tracking in your PMs. Next batch goes out Tuesday!

    kmorgan3, Dec 12, 2020
    #83
    Pyrotech[QUOTED] likes this.
  4. Dec 12, 2020 at 12:44 PM
    #84
    79CHKCHK

    #84
    79CHKCHK Padawan of Rock Lobster

    Joined:
    May 20, 2019
    Member:
    #293877
    Messages:
    682
    Gender:
    Male
    SoCal no mo
    Vehicle:
    2018 Super White TRD Pro AT
    What removal tool did you use for the switch plugs? I had a hell of a time with the various removal tools I have and actually damaged one of the plugs.

    79CHKCHK, Dec 12, 2020
    #84
  5. Dec 12, 2020 at 12:45 PM
    #85
    79CHKCHK

    #85
    79CHKCHK Padawan of Rock Lobster

    Joined:
    May 20, 2019
    Member:
    #293877
    Messages:
    682
    Gender:
    Male
    SoCal no mo
    Vehicle:
    2018 Super White TRD Pro AT
    Ah, just read your post again. :facepalm:

    79CHKCHK, Dec 12, 2020
    #85
  6. Dec 12, 2020 at 12:52 PM
    #86
    kmorgan3

    #86
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    For the contacts? You have to unlock the pins from the housing by lifting up the tab on top of the plug first. Then you stick a needle down the top hole (looking into the connector from the front) and the pin should come out. I tie flies and have a few bodkins sitting around that worked great for that size hole.

    https://loonoutdoors.com/collections/tying-tools/products/ergo-bodkin

    kmorgan3, Dec 12, 2020
    #86
    mac_2_nite and 79CHKCHK[QUOTED] like this.
  7. Dec 12, 2020 at 1:02 PM
    #87
    79CHKCHK

    #87
    79CHKCHK Padawan of Rock Lobster

    Joined:
    May 20, 2019
    Member:
    #293877
    Messages:
    682
    Gender:
    Male
    SoCal no mo
    Vehicle:
    2018 Super White TRD Pro AT
    Appreciate it, I got 4 of 5 apart using metri pack and weather pack removal tools, but it was difficult at best. I'm waiting on a new set of female pins and connectors so I can clean up the mess I made when I install your PnP connector.

    79CHKCHK, Dec 12, 2020
    #87
  8. Dec 12, 2020 at 1:15 PM
    #88
    kmorgan3

    #88
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    Be real careful with the contacts I linked they’re really tiny. Best to check for continuity on the bench as I messed up 4 of em and had to re-order new contacts. When you do the double crimp on your jumpers there’s a risk of severing one of the tiny 22 awg wires :mad:. Took a few tries before it worked. A little bit of heat shrink to act as a strain relief at the base of each jumper helped a lot. Can’t beat the cleanliness, though!

    kmorgan3, Dec 12, 2020
    #88
    Pyrotech likes this.
  9. Dec 12, 2020 at 1:55 PM
    #89
    Pyrotech

    #89
    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    3,018
    Gender:
    Male
    and Mouser is down to 9 of them in stock. they are have a some time in January listed as when they expect the next shipment

    Pyrotech, Dec 12, 2020
    #89
  10. Dec 12, 2020 at 2:37 PM
    #90
    907rx7

    #90
    907rx7 Well-Known Member

    Joined:
    Jul 1, 2019
    Member:
    #298028
    Messages:
    1,695
    First Name:
    James
    Vehicle:
    '20 Tacoma DCSB SR 4x4
    @kmorgan3 Can you add me to the wait list?

    907rx7, Dec 12, 2020
    #90
    kmorgan3[OP] likes this.
  11. Dec 12, 2020 at 9:22 PM
    #91
    XrayDelta1

    #91
    XrayDelta1 Active Member

    Joined:
    Oct 31, 2020
    Member:
    #345460
    Messages:
    37
    Gender:
    Male
    First Name:
    Ted
    Mesa Arizona
    Vehicle:
    2017 Inferno TRD Sport 2WD DCSB
    True enough...but right now I have more time than money :)

    Ted

    XrayDelta1, Dec 12, 2020
    #91
  12. Dec 12, 2020 at 9:41 PM
    #92
    kmorgan3

    #92
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500

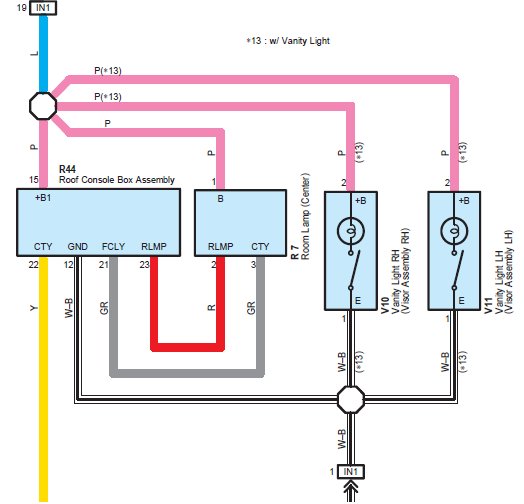

    I’m not sure what ign 12V source would be inside of the overhead console. Maybe pin 16 on R44... @caribe makaira do you know how that pin behaves? He’s looking to tap an ignition 12V source in the overhead console to power a dash camera.

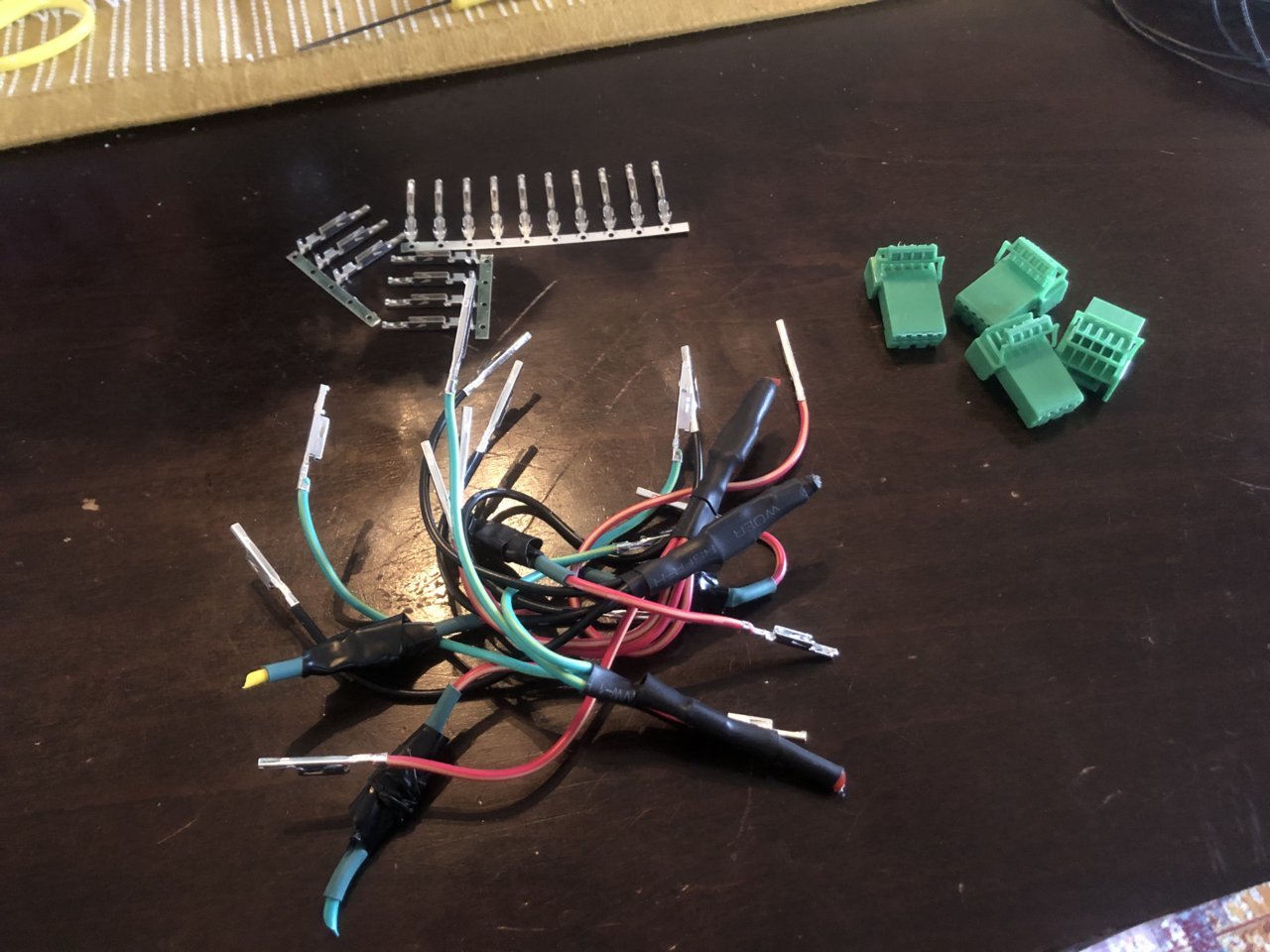

    I’m making overhead console breakout harnesses now and will be doing function testing this week.

    kmorgan3, Dec 12, 2020
    #92
  13. Dec 13, 2020 at 7:39 AM
    #93
    kmorgan3

    #93
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    kmorgan3, Dec 13, 2020
    #93
  14. Dec 13, 2020 at 7:51 AM
    #94
    caribe makaira

    #94
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,811
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

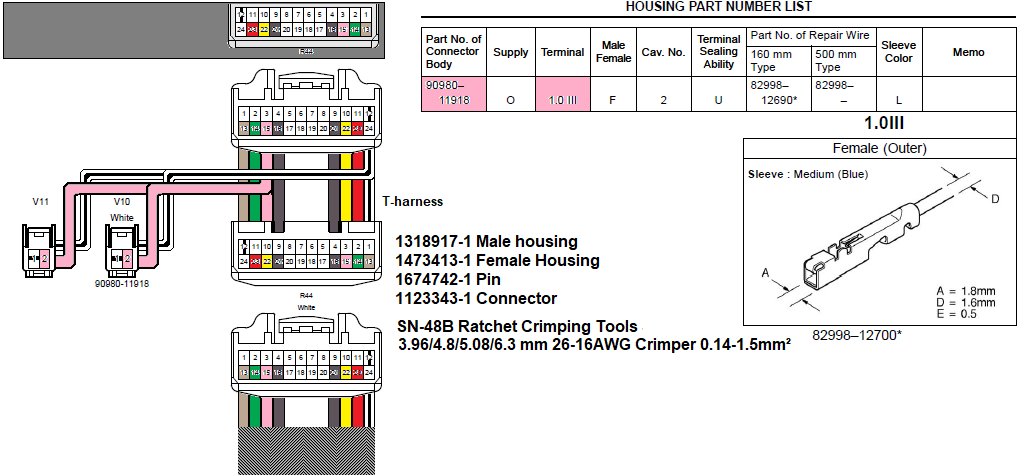

    Last edited: May 7, 2021
    caribe makaira, Dec 13, 2020
    #94
    kmorgan3[QUOTED][OP] likes this.
  15. Dec 13, 2020 at 8:09 AM
    #95
    caribe makaira

    #95
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,811
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Just making your harness versatile...:D:burp:

    caribe makaira, Dec 13, 2020
    #95
    ironicallyjesus likes this.
  16. Dec 14, 2020 at 6:25 AM
    #96
    kmorgan3

    #96
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    kmorgan3, Dec 14, 2020
    #96
    MGMSangTaco and ArchitectJVM like this.
  17. Dec 14, 2020 at 6:28 AM
    #97
    TheCochese

    #97
    TheCochese The Bronze T4R OG

    Joined:
    Apr 23, 2018
    Member:
    #251472
    Messages:
    3,325
    Gender:
    Male
    Attempting to flee the south
    Vehicle:
    Cavalry Blue soccer machine
    Fine corinthian leather
    What connector does the traction control have? I'm wondering if I could also use one there for adding overhead buttons.

    TheCochese, Dec 14, 2020
    #97
  18. Dec 14, 2020 at 6:32 AM
    #98
    kmorgan3

    #98
    kmorgan3 [OP] Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500

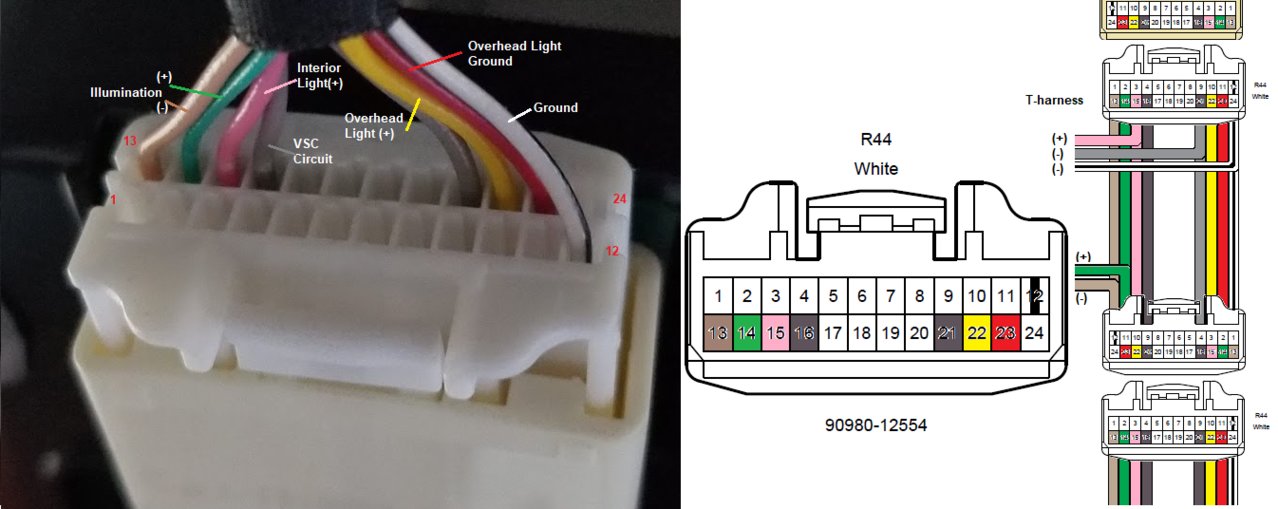

    There’s a 24-pin connector up there that’s best to use. I’m actually putting a harness together this morning for it. Connectors showed up last weekend. I’ll make another thread for it later today.

    kmorgan3, Dec 14, 2020
    #98
    mac_2_nite, elaudtr and TheCochese[QUOTED] like this.
  19. Dec 14, 2020 at 9:20 AM
    #99
    CrazyAirborne

    #99
    CrazyAirborne Who jumps out of perfectly good airplanes?

    Joined:
    Jun 21, 2019
    Member:
    #296987
    Messages:
    262
    Gender:
    Male
    First Name:
    Steve
    Central Wisconsin
    Vehicle:
    2017 TRD Sport
    Can I be added to the list for one of these please. Ill pull the trigger right now

    CrazyAirborne, Dec 14, 2020
    #99
    kmorgan3[OP] likes this.
  20. Dec 14, 2020 at 9:43 PM
    #100
    304_Taco

    #100
    304_Taco Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226250
    Messages:
    962
    Gender:
    Male
    First Name:
    Curtis
    Morgantown, WV
    Vehicle:
    16 TRD Sport DCSB MT
    Add me to your list, this is too clean not to jump in on it

    304_Taco, Dec 14, 2020
    #100
    kmorgan3[OP] likes this.
