Relay/fuse panel for 3rd gen tacomas with crawl control.

Blank with crawl control (v2) "sits higher for later year trucks".



I will make up one tomorrow for you



what do you recommend for a 2020 w/ crawl control. Looking for one with the cutouts for bussman and circuit breaker

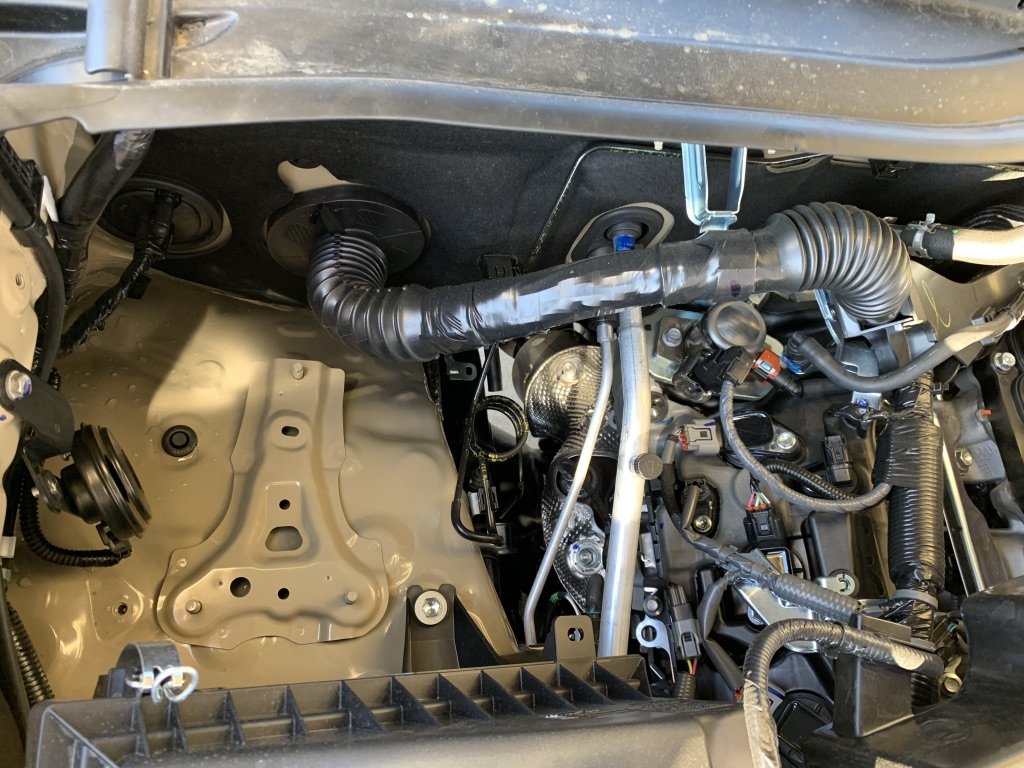

to be honest, i am getting lost and confused with all the new trucks lol. got a pic of the engine bay in that area?



You can make anything fit with a grinder.



yes sir. I posted some pics in this thread. Just a page or two back



ok, back in stock
https://www.paranoidfabrications.co...coma-fuse-relay-holder?variant=31177831710785



looking at those, the v2 high ones should fit that perfect.



So how do I go about getting a v2 with cutouts for a circuit breaker and bussman



i would need to know part numbers of those items and where you want them. The issue is i dont know how well it will fit as i dont have that truck. Ie the amount of space below it.



@paranoid56 I got one of your V2 brackets for the 2020 OR w/ Crawl Control late last year.

It looks like it will fit ok with a little tweaking, as others have pointed out:

1) It looks like the vertical piece of the bracket with the two holes, needs some manipulating of the attachment angle (120 degrees, not 90) in order for the plate to sit level.
2) The back corner by the brake booster is a bit tight, might have to take the hack saw and cut out a little nib there.

All in all, very easy to overcome those issues, thanks for making a great product!

I will post pics when I have something to show.

Any update on the passenger side bracket? I have a metric fuck ton of space on that side:



Thanks!
Matt



ok so i am in the starting stages of seting up a fuse panel due to all the switches my truck is accumulating. i realy like this simple design and its much more cost effective then others out there.

Here is my details:

-I currently have a blue sea 6 fuse system.
-I will be getting a circuit breaker as well (not sure which one. I want Blue Sea but they are tad on high side so im considering a bussman one)
-Not sure what else I need. I know ill need 6 gauge wire lead and negative wire lead. Copper connectors. but i feel like i need more. So if anyone has a parts list to provide thatd be killer

But my question (finally I know), will the bussman and fuse box cutout work with blue sea system? It looks like it will; but im not sure if I should just get the blank panel. I can drill my own holes. But I like the clean look of the cut out.



I made two passenger side ones so far, but have yet to get any pics back. let me get a pic of the one i made

I dont think they will work, each cut out is different, I would go with the blank. the material is aluminum so its easy to drill



Which one would I need to fit a ARB pump on a 2018? V1 or v2?



ok so I ordered the busman circuit breaker. So that should fit in the slot. But for the fuse block; you’re saying the blue sea may not fit? I’m just asking because the photo On the site looks like a blue sea fuse block shape but I can’t tell. I primarily really like the cut kit design on the side of the block where it mounts lol but I can just do blank too if I need to. Won’t be hard to drill.



i always try to go with the V1 if it fits the truck, the fact that each truck seems different, its hard to tell. I am assuming thats the single pump right?

sorry, i ment that it wont fit the cutout. but on the blank it will fit fine.



oh gotcha. Ok i will get that blank ordered.

Second question; do you (or anyone) have a write up of how to install all of this. I have done all my other wiring but I havent found a simple write up on what I need done. Most have so much more stuff to them that it is irrelevant to me. I simply just want all 4 of my switches to not have 4 fuse relays and wires crowding my engine bay im just not sure what else I still need to get.



Yes the single pump.



I picked up an older style tray from a member on here, and it fit very well. I will be posting a write-up eventually.
Older Paranoid tray, fits a 2017 Sport MT.
I wrapped my hose coming out of the clutch/master cylinder in some conduit (red) that I had for added protection and used a zip tie to keep it below the tray.
I was able to fit a 6 circuit Blue Sea fuse block, a negative terminal buss, and 4 relay holder from @TinyTech626 forever ago! on the mount.
Thanks!



Im gonna need first dibs on when this write up posts lol I already see a few things that I dont have that it looks like I may need (like that relay box) and I like some of the cosmetics you did for organizing. Looks great
