Relay/fuse panel for 3rd gen tacomas with crawl control.

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by paranoid56, Dec 19, 2017.

Page 13 of 15
  1. Jun 21, 2020 at 5:18 PM
    #241
    stu8319

    #241
    stu8319 Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266652
    Messages:
    359
    Gender:
    Male
    First Name:
    Stuart
    Oklahoma City
    Vehicle:
    2018 Tacoma TRD Off-Road in Quicksand
    Hey it's too late for the V1 I ordered, I should have checked fitment before drilling holes ha! Do you know when you'll have time to make more crawl control V2 trays? It shows that you're out. No rush I have a newborn so projects are SO slow going.

    stu8319, Jun 21, 2020
    #241
  2. Jun 22, 2020 at 4:57 PM
    #242
    reymataco

    #242
    reymataco Well-Known Member

    Joined:
    Nov 18, 2019
    Member:
    #311060
    Messages:
    719
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    2020 DCLB Off Road Premium in Slowsand
    V2 w/ Crawl Control plate is what I am using for my 2020 OR.

    reymataco, Jun 22, 2020
    #242
    PitCh0w[QUOTED] likes this.
  3. Jun 22, 2020 at 6:37 PM
    #243
    paranoid56

    #243
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    sorry, just saw this. I do have one in stock on my site.

    paranoid56, Jun 22, 2020
    #243
    stu8319[QUOTED] likes this.
  4. Jun 22, 2020 at 8:53 PM
    #244
    stu8319

    #244
    stu8319 Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266652
    Messages:
    359
    Gender:
    Male
    First Name:
    Stuart
    Oklahoma City
    Vehicle:
    2018 Tacoma TRD Off-Road in Quicksand
    got it! Thanks!

    stu8319, Jun 22, 2020
    #244
  5. Jun 23, 2020 at 10:54 AM
    #245
    starwarsrosey

    #245
    starwarsrosey Well-Known Member

    Joined:
    Jan 27, 2012
    Member:
    #71568
    Messages:
    134
    Gender:
    Male
    Buffalo, NY
    Vehicle:
    17 Tacoma DCSB Limited
    Meso V4.0 Turn Signals Badges Blacked Out Blacked out foglight bezels

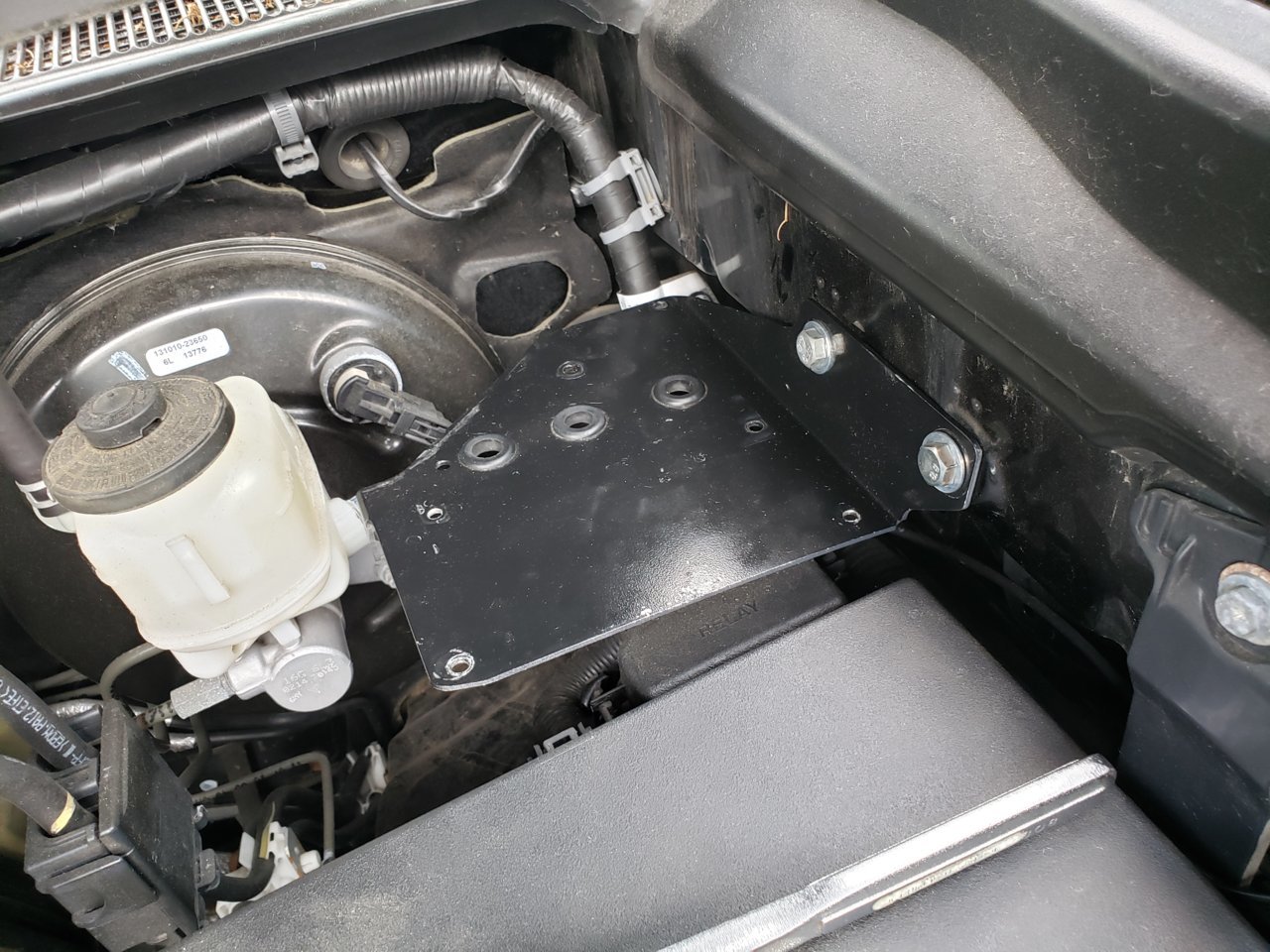

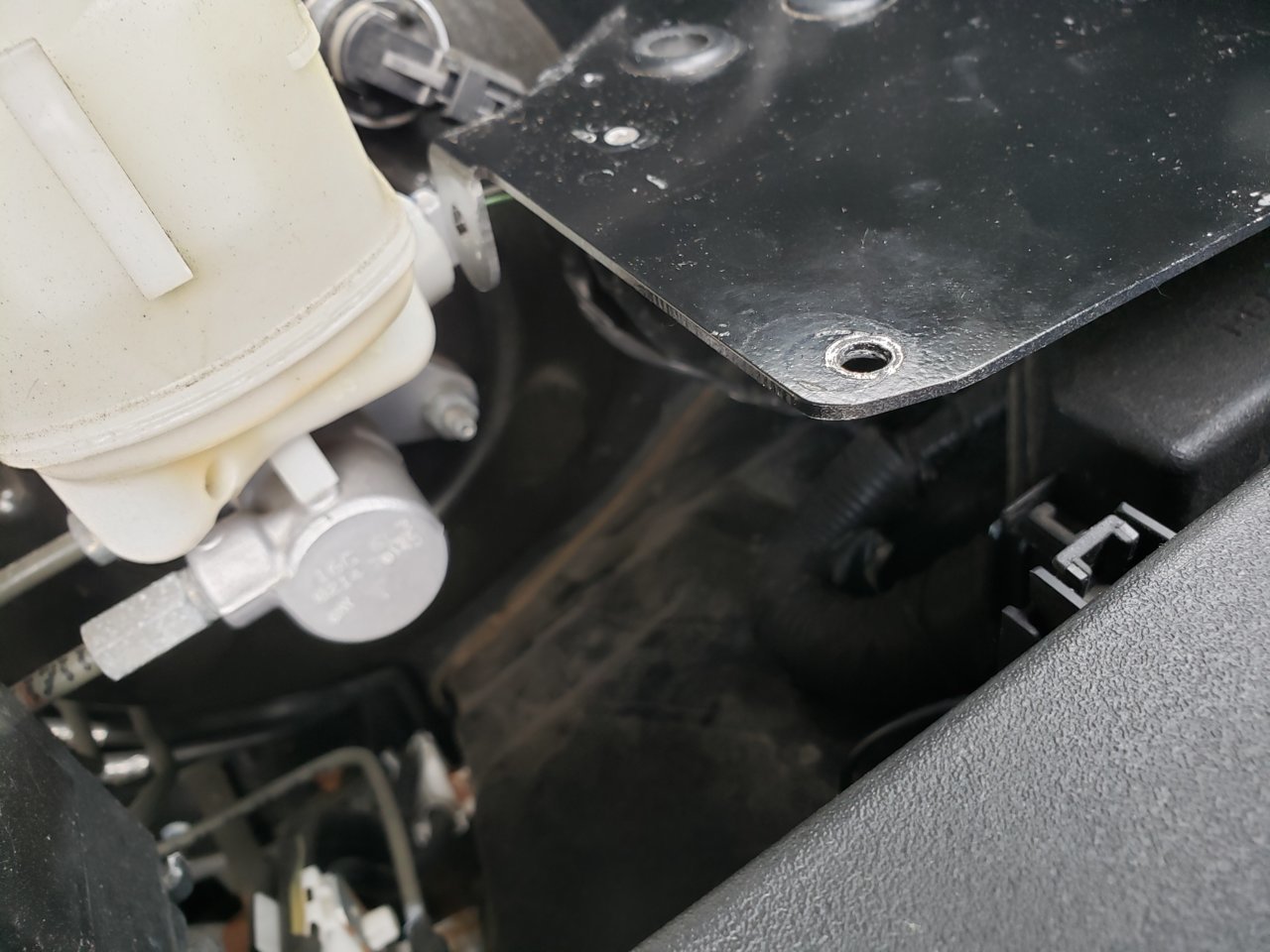

    Can you buy seperate bracket for the front hole. Bought plate here on TW. It came out of 2017. I have 2017 limited. Fender bolts fit great but no support by brake resevoir. Is there a bracket. Looked that way in some of these pics on thread. 20200622_155926.jpg 20200622_155921.jpg

    starwarsrosey, Jun 23, 2020
    #245
  6. Jun 23, 2020 at 11:01 AM
    #246
    paranoid56

    #246
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    That bracket is made for the alltrack setup, you would need my other bracket. That will work, just wont have that bolt.

    paranoid56, Jun 23, 2020
    #246
  7. Jun 23, 2020 at 12:41 PM
    #247
    starwarsrosey

    #247
    starwarsrosey Well-Known Member

    Joined:
    Jan 27, 2012
    Member:
    #71568
    Messages:
    134
    Gender:
    Male
    Buffalo, NY
    Vehicle:
    17 Tacoma DCSB Limited
    Meso V4.0 Turn Signals Badges Blacked Out Blacked out foglight bezels
    How much would the correct bracket be?

    starwarsrosey, Jun 23, 2020
    #247
  8. Jun 23, 2020 at 2:46 PM
    #248
    paranoid56

    #248
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    they are 30 plus shipping. but the one you have will work fine. you just dont need that bolt.

    paranoid56, Jun 23, 2020
    #248
    VirusCage likes this.
  9. Jun 23, 2020 at 2:56 PM
    #249
    VirusCage

    #249
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,465
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    Same deal, no bolt on mine and it is fine

    VirusCage, Jun 23, 2020
    #249
    starwarsrosey[QUOTED] likes this.
  10. Jun 30, 2020 at 10:00 PM
    #250
    reymataco

    #250
    reymataco Well-Known Member

    Joined:
    Nov 18, 2019
    Member:
    #311060
    Messages:
    719
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    2020 DCLB Off Road Premium in Slowsand

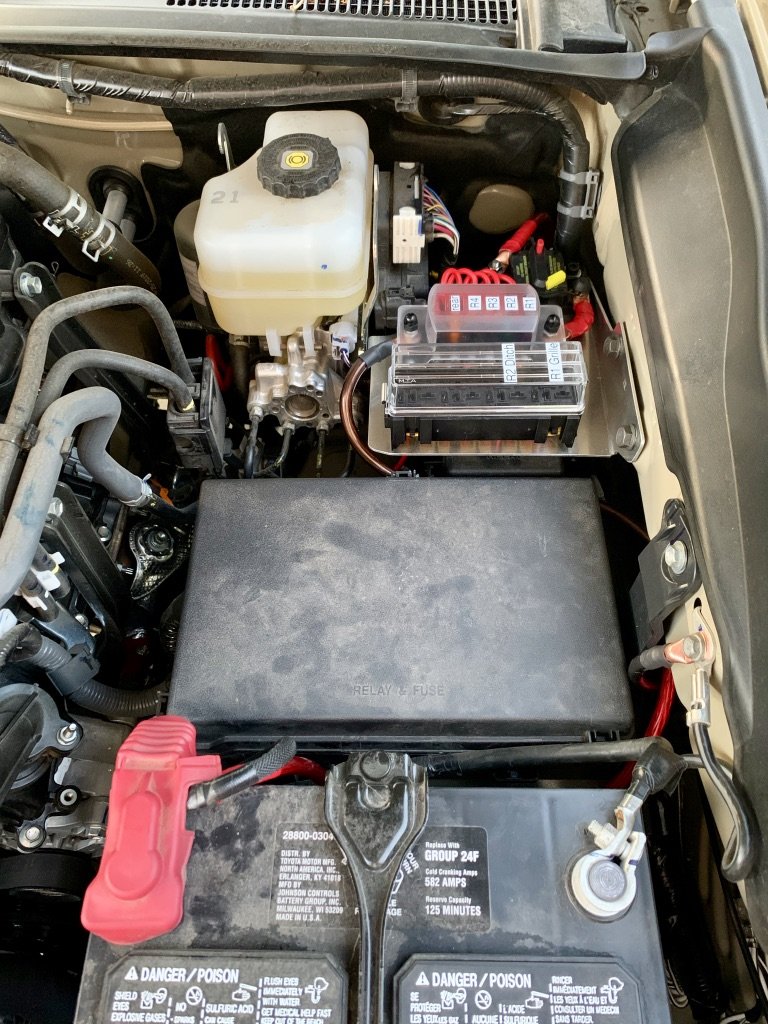

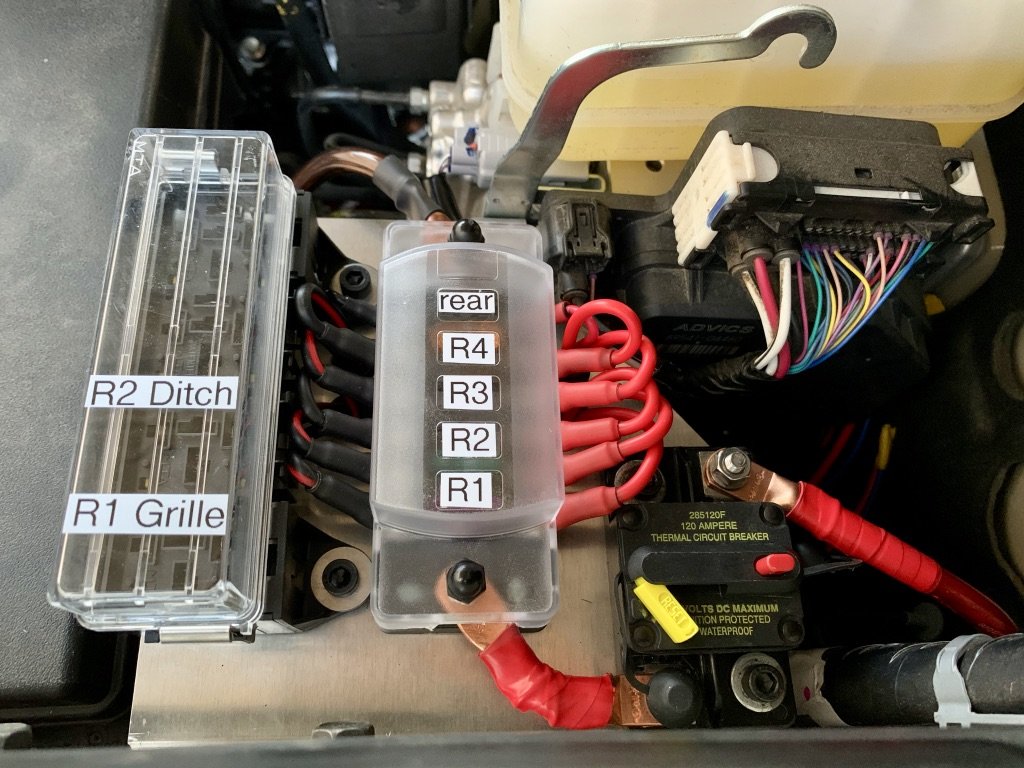

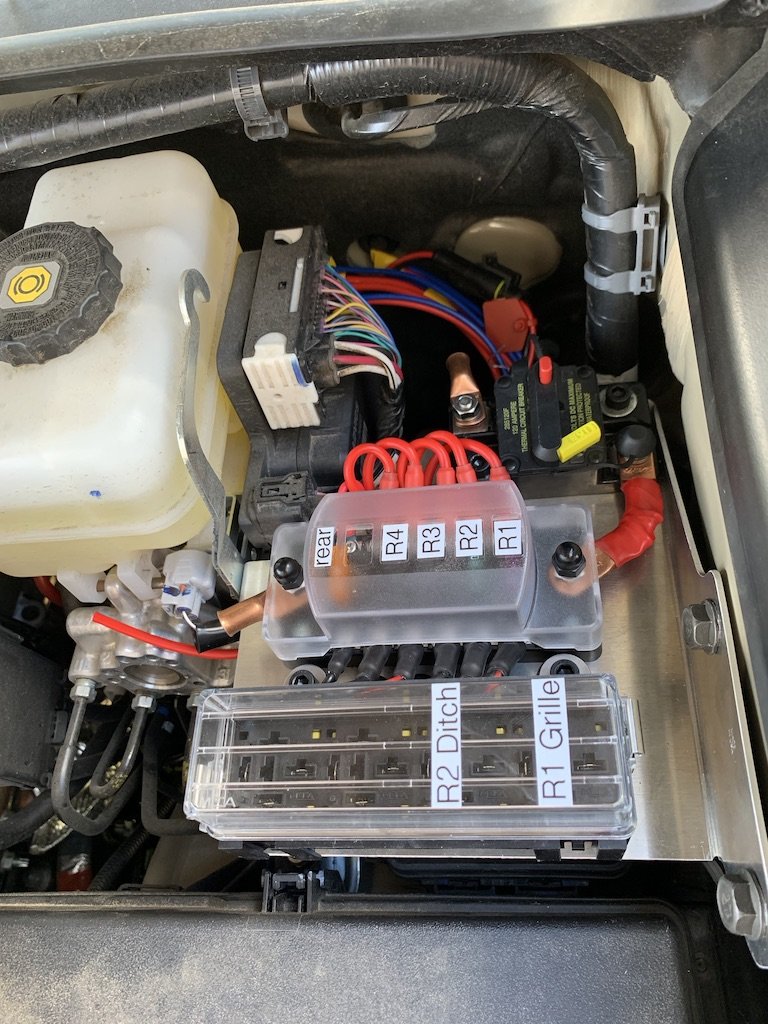

    Got my aux fuse panel installed tonight after work. Thanks @paranoid56 looks great, nice and clean...



    Attached Files:

    reymataco, Jun 30, 2020
    #250
    paranoid56[OP] likes this.
  11. Jul 1, 2020 at 3:22 PM
    #251
    fishing4boulders

    #251
    fishing4boulders Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329577
    Messages:
    137
    Gender:
    Male
    AL
    Vehicle:
    2020 OR Tacoma 4x4
    what are the dimensions on the bracket (I'm guessing v2 is the latest). I know it's not a perfect square but I'm trying to draw out my plan and would like a general idea of how things would fit. thanks!

    fishing4boulders, Jul 1, 2020
    #251
  12. Jul 1, 2020 at 4:15 PM
    #252
    reymataco

    #252
    reymataco Well-Known Member

    Joined:
    Nov 18, 2019
    Member:
    #311060
    Messages:
    719
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    2020 DCLB Off Road Premium in Slowsand

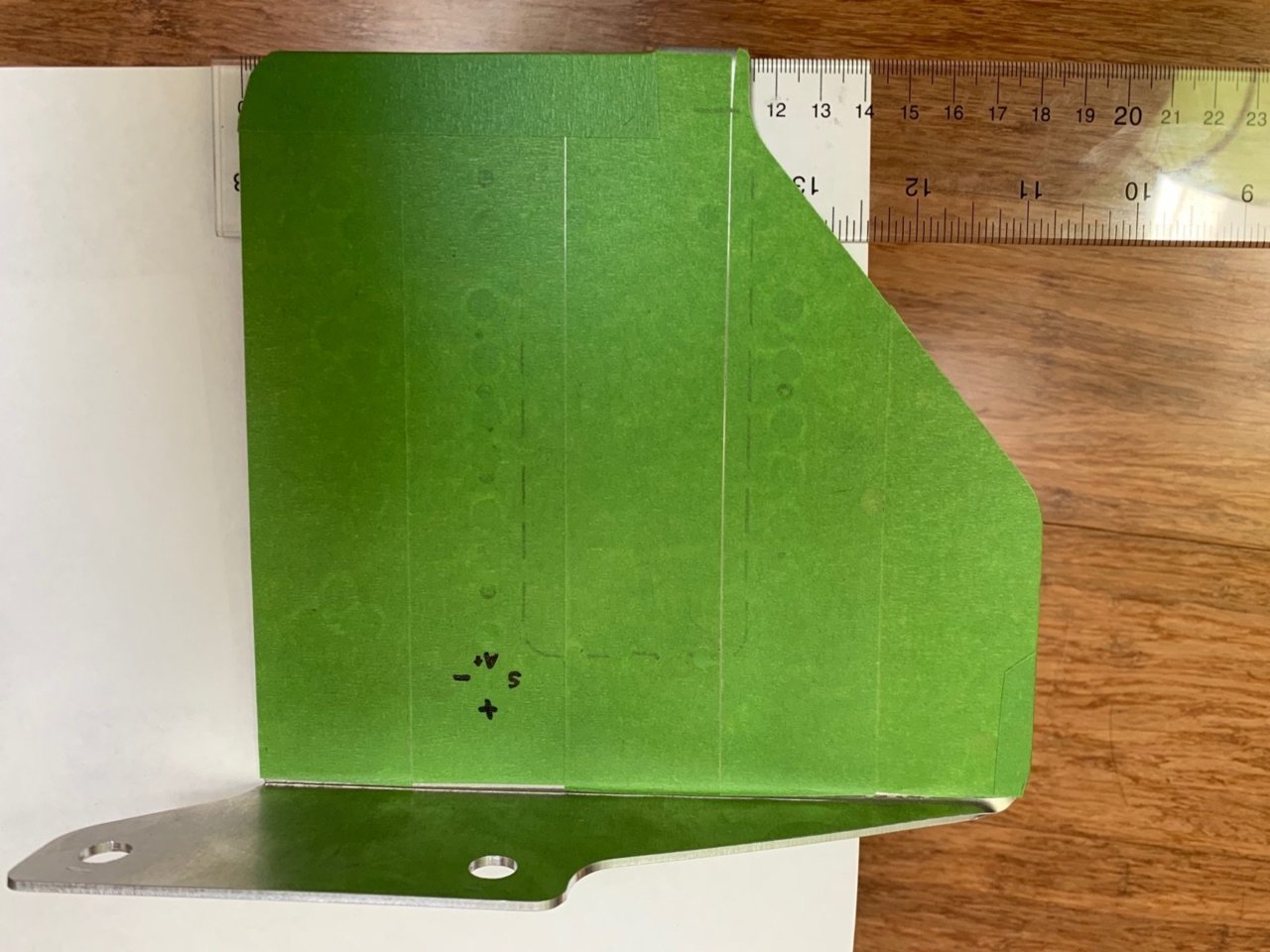

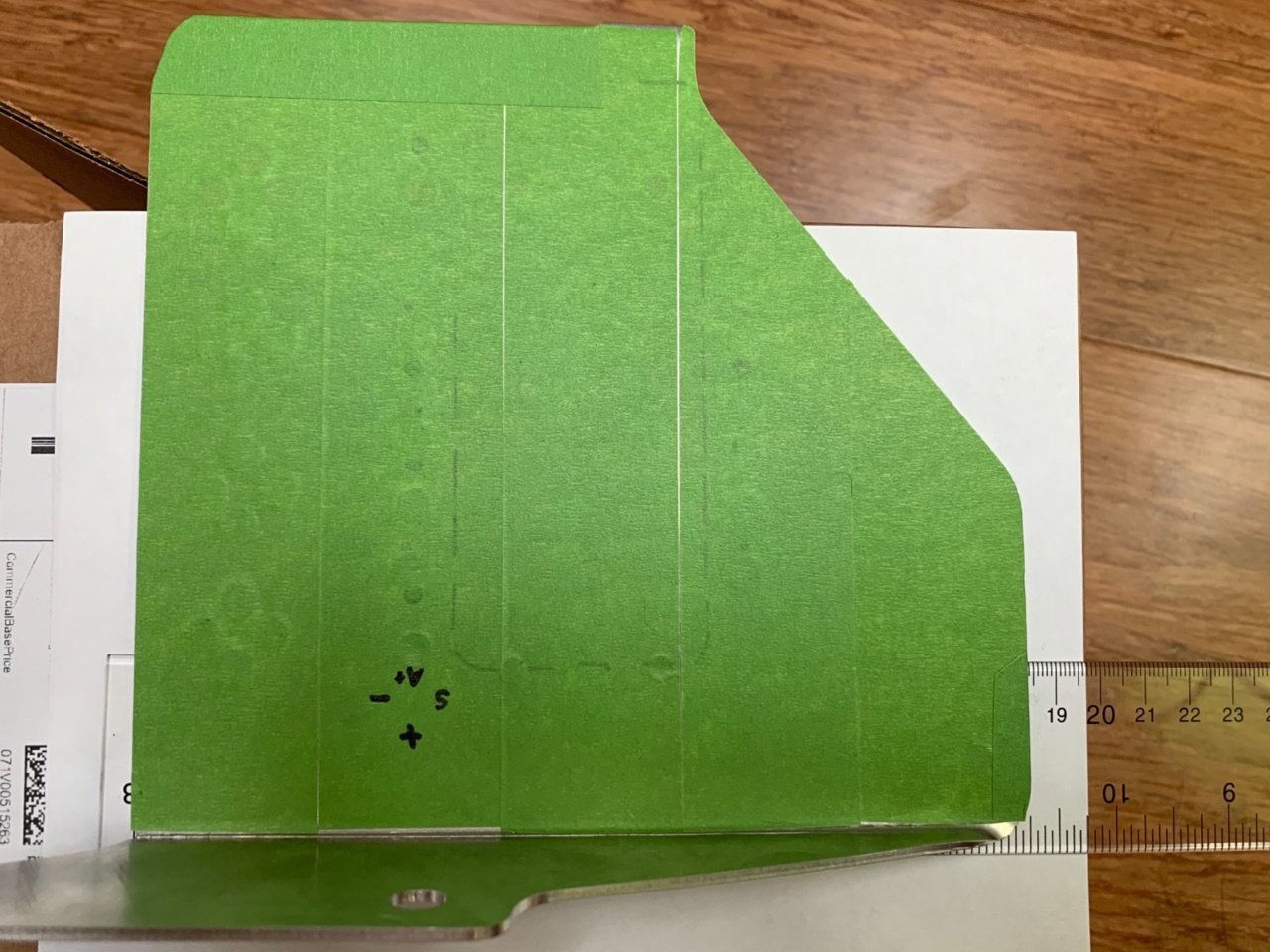

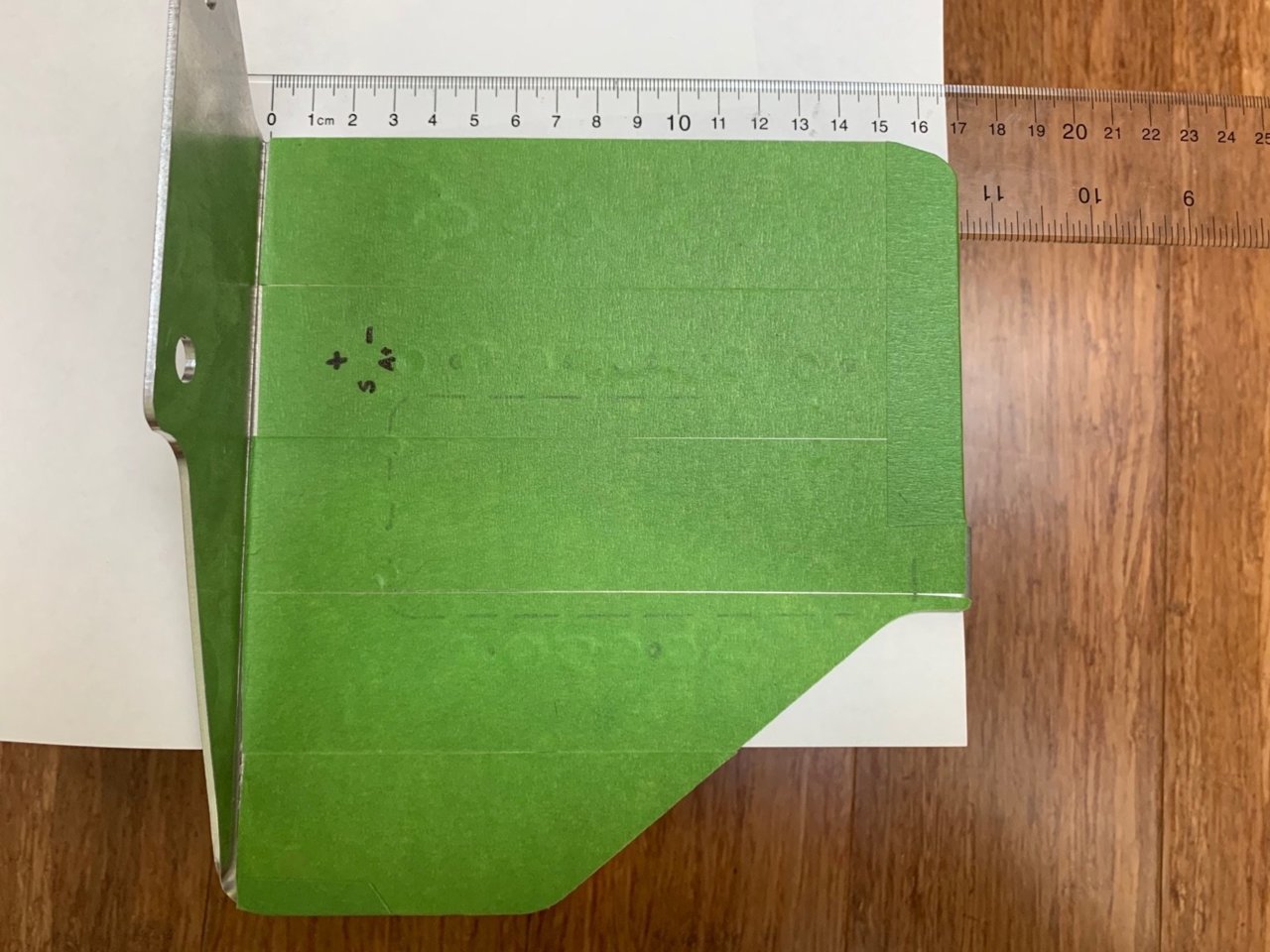

    This is my old butchered plate, hope these will give you a rough estimate in cm...

    Matt


    reymataco, Jul 1, 2020
    #252
    fishing4boulders likes this.
  13. Jul 2, 2020 at 12:24 AM
    #253
    FireGuy88

    #253
    FireGuy88 Well-Known Member

    Joined:
    Oct 15, 2015
    Member:
    #166735
    Messages:
    282
    Gender:
    Male
    Southern California
    Vehicle:
    2016 Red TRD Off-Road
    FireGuy88, Jul 2, 2020
    #253
  14. Jul 2, 2020 at 10:09 AM
    #254
    paranoid56

    #254
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    I just picked up more material today, but heading out of town till sunday, so will get more made. I will add them to stock now so you can order.

    paranoid56, Jul 2, 2020
    #254
  15. Aug 2, 2020 at 6:19 AM
    #255
    Nomad26

    #255
    Nomad26 Well-Known Member

    Joined:
    Sep 3, 2019
    Member:
    #304117
    Messages:
    832
    Gender:
    Female
    Escondido, CA
    Vehicle:
    '16 MGM OR Access Cab, ‘16 MGM RAV4 Hybrid
    I took a gamble and got the one that sits lower. Well, with how I want to mount my breaker, I'll have to relocate the relay box which I was hoping not to do. Should have gotten the one that sits higher. Anyway, as previously mentioned, the relay box is just clipped in? Do I just pull up on it to remove it? It felt snug and I couldn't find anything on the forums on removing it. I'm sure it's super easy but I'm always afraid of breaking something.

    Nomad26, Aug 2, 2020
    #255
  16. Aug 2, 2020 at 6:22 AM
    #256
    Skydvrr

    #256
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,654
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    You talking about the black fuse cover? There's little push tabs that hold it on

    Skydvrr, Aug 2, 2020
    #256
  17. Aug 2, 2020 at 6:30 AM
    #257
    Nomad26

    #257
    Nomad26 Well-Known Member

    Joined:
    Sep 3, 2019
    Member:
    #304117
    Messages:
    832
    Gender:
    Female
    Escondido, CA
    Vehicle:
    '16 MGM OR Access Cab, ‘16 MGM RAV4 Hybrid

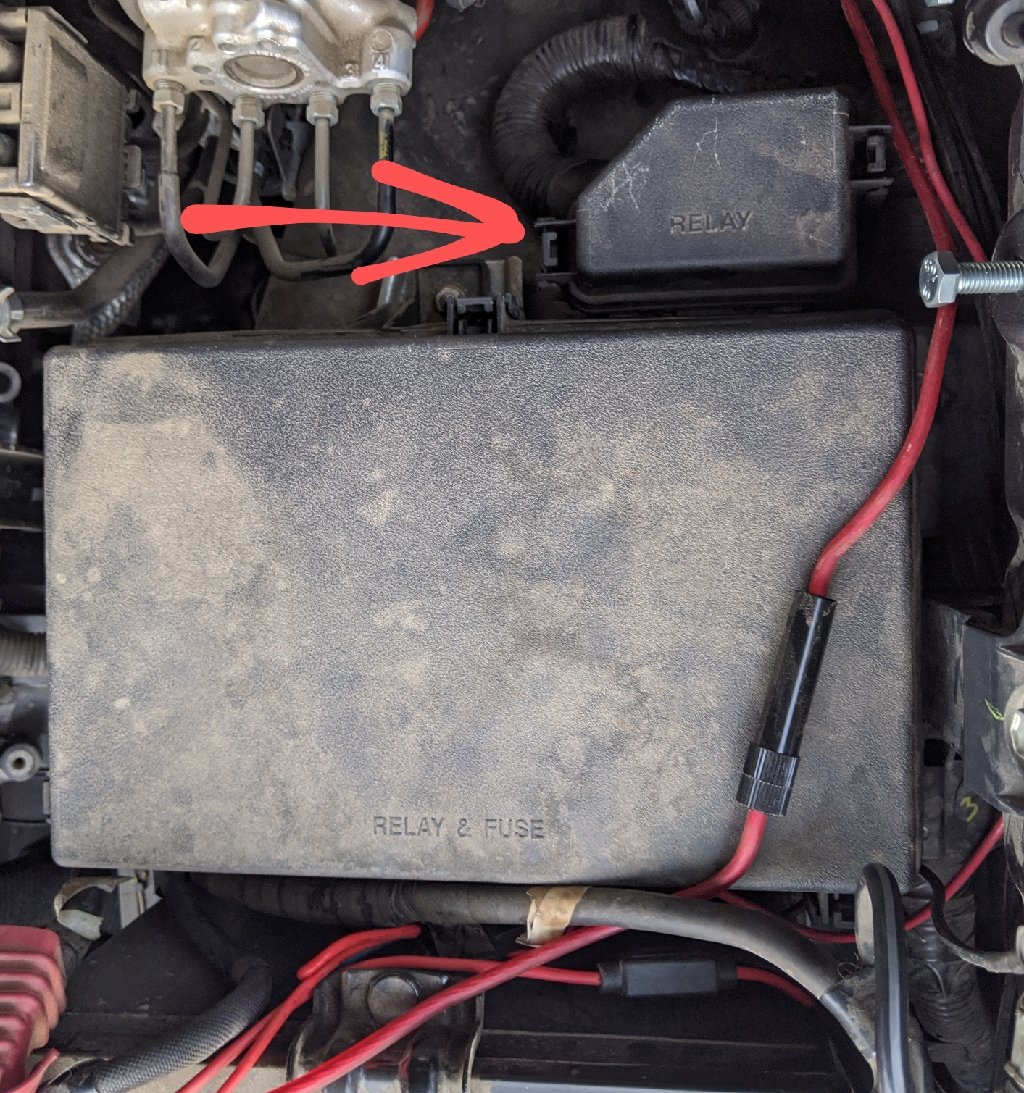

    The panel sits flush on this and so I can't mount the breaker in the corner of the panel because the relay box is in the way.


    Nomad26, Aug 2, 2020
    #257
  18. Aug 2, 2020 at 6:32 AM
    #258
    Skydvrr

    #258
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,654
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    I see. Yeah I believe those tabs u see on the right and left get pushed towards the center of the panel and u can take it off

    Skydvrr, Aug 2, 2020
    #258
  19. Aug 2, 2020 at 6:34 AM
    #259
    Nomad26

    #259
    Nomad26 Well-Known Member

    Joined:
    Sep 3, 2019
    Member:
    #304117
    Messages:
    832
    Gender:
    Female
    Escondido, CA
    Vehicle:
    '16 MGM OR Access Cab, ‘16 MGM RAV4 Hybrid
    Yeah that just takes off the cover. It's attached on the bottom to the fuse box. I know it's probably super simple but I tend to overcomplicate things.

    Nomad26, Aug 2, 2020
    #259
  20. Aug 2, 2020 at 6:35 AM
    #260
    Skydvrr

    #260
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,654
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR


    My bad dude. I thought u meant just the cover. Derp. When u do figure it out, post on here for someone in the future!

    Skydvrr, Aug 2, 2020
    #260
    Nomad26[QUOTED] likes this.
