Relay/fuse panel for 3rd gen tacomas with crawl control.

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by paranoid56, Dec 19, 2017.

Page 14 of 15
  1. Aug 2, 2020 at 6:37 AM
    #261
    Nomad26

    #261
    Nomad26 Well-Known Member

    Joined:
    Sep 3, 2019
    Member:
    #304117
    Messages:
    836
    Gender:
    Female
    Escondido, CA
    Vehicle:
    '16 MGM OR Access Cab, ‘16 MGM RAV4 Hybrid
    @MESO relocated his as mentioned in the first page so maybe he can chime in?

    Nomad26, Aug 2, 2020
    #261
  2. Aug 2, 2020 at 9:09 AM
    #262
    paranoid56

    #262
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,447
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    if its still in new condition send it back and i can ship out a v2 one.

    paranoid56, Aug 2, 2020
    #262
    Nomad26[QUOTED] likes this.
  3. Aug 2, 2020 at 12:39 PM
    #263
    Nomad26

    #263
    Nomad26 Well-Known Member

    Joined:
    Sep 3, 2019
    Member:
    #304117
    Messages:
    836
    Gender:
    Female
    Escondido, CA
    Vehicle:
    '16 MGM OR Access Cab, ‘16 MGM RAV4 Hybrid
    It’s not but I appreciate the offer! I already mounted my breaker and fuse block on it. :facepalm:

    Nomad26, Aug 2, 2020
    #263
  4. Aug 5, 2020 at 9:54 AM
    #264
    fishing4boulders

    #264
    fishing4boulders Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329577
    Messages:
    137
    Gender:
    Male
    AL
    Vehicle:
    2020 OR Tacoma 4x4
    Are there any restrictions on where the Bussman could be placed on your panel (2020 Tacoma OR)? Trying to get a feel for spacing and potently layouts and it seems like I may have to get creative with the bus bar(s) location with the fog fuse box being there as well.

    fishing4boulders, Aug 5, 2020
    #264
  5. Aug 24, 2020 at 7:34 AM
    #265
    fishing4boulders

    #265
    fishing4boulders Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329577
    Messages:
    137
    Gender:
    Male
    AL
    Vehicle:
    2020 OR Tacoma 4x4
    Thanks for all your help! I think this turned out better than I thought it would!

    fishing4boulders, Aug 24, 2020
    #265
    paranoid56[OP], msgs350 and Phoosa like this.
  6. Aug 24, 2020 at 8:09 AM
    #266
    msgs350

    #266
    msgs350 Well-Known Member

    Joined:
    Oct 30, 2017
    Member:
    #234590
    Messages:
    2,376
    Gender:
    Male
    PNW
    Vehicle:
    2020 Tacoma OR Cement DCSB 4x4 AT
    Some Mods
    can you share details on that Eaton box? What’s inside and circuit amps maximum?

    msgs350, Aug 24, 2020
    #266
    paranoid56[OP] likes this.
  7. Aug 24, 2020 at 8:39 AM
    #267
    fishing4boulders

    #267
    fishing4boulders Well-Known Member

    Joined:
    May 27, 2020
    Member:
    #329577
    Messages:
    137
    Gender:
    Male
    AL
    Vehicle:
    2020 OR Tacoma 4x4

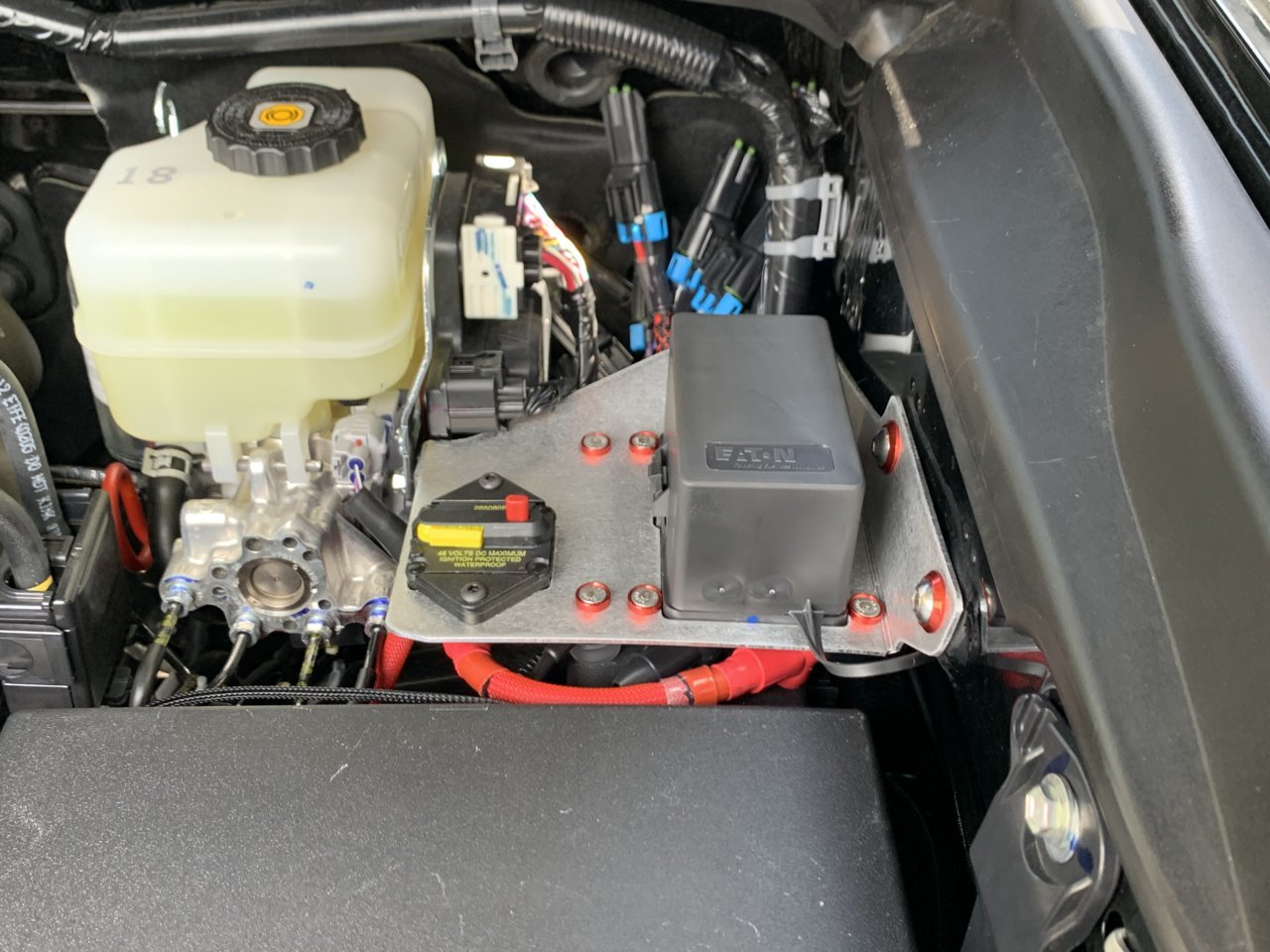

    Sure! First I followed this thread for building the relay box (lot of good info/some of the product info dated)

    the box itself is the Bussmann RTMR 15305-2 model. It has 5 relay/fuse and 5 fuse only connections for adding accessories to your truck (such as Various lights and I’m running the switch for a compressor through it). Output terminals are rated at 30 amp max each and the box itself is rated at 80 amps (input max). Clean way to have everything in one spot but fair warning it is cramped. If I had the chance to do it all over again I would do a few things very differently (such as the grounding connections for accessories).

    fishing4boulders, Aug 24, 2020
    #267
  8. Oct 1, 2020 at 9:30 AM
    #268
    kmorgan3

    #268
    kmorgan3 Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    Has anyone installed hood struts with one of these panels? I can’t really tell where the hood strut mounts on the drivers side. It almost looks like these panels might get in the way. Hope I’m wrong!

    kmorgan3, Oct 1, 2020
    #268
  9. Oct 1, 2020 at 6:51 PM
    #269
    Nomad26

    #269
    Nomad26 Well-Known Member

    Joined:
    Sep 3, 2019
    Member:
    #304117
    Messages:
    836
    Gender:
    Female
    Escondido, CA
    Vehicle:
    '16 MGM OR Access Cab, ‘16 MGM RAV4 Hybrid
    I have the striker struts and they are not in the way. Not sure about other brands though!

    Nomad26, Oct 1, 2020
    #269
    kmorgan3[QUOTED] likes this.
  10. Oct 21, 2020 at 10:16 AM
    #270
    skeptopotamus

    #270
    skeptopotamus Well-Known Member

    Joined:
    Oct 19, 2020
    Member:
    #344293
    Messages:
    94
    Gender:
    Male
    First Name:
    Gabriel
    Kalamazoo
    Vehicle:
    2021 Cement TRD Sport
    Just ordered a tray for my 2021 Cement Sport. Thanks!

    skeptopotamus, Oct 21, 2020
    #270
  11. Oct 28, 2020 at 12:17 AM
    #271
    Coolfinedonewicked

    #271
    Coolfinedonewicked Well-Known Member

    Joined:
    May 3, 2018
    Member:
    #252455
    Messages:
    201
    Gender:
    Male
    Kaua’i, Hawai’i
    Vehicle:
    2019 Cement Tacoma TRD OR DCSB
    @paranoid56 Looking to order V2 blank, with crawl control when it gets back in stock ! Just found this ! Pumped!

    Coolfinedonewicked, Oct 28, 2020
    #271
  12. Oct 28, 2020 at 7:52 AM
    #272
    paranoid56

    #272
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,447
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    keep an eye out, i will be making more today or tomorrow.

    paranoid56, Oct 28, 2020
    #272
    Coolfinedonewicked[QUOTED] likes this.
  13. Oct 28, 2020 at 4:52 PM
    #273
    Majora

    #273
    Majora Well-Known Member

    Joined:
    Aug 26, 2019
    Member:
    #303327
    Messages:
    402
    Gender:
    Male
    First Name:
    Andrew
    MD/WV
    Vehicle:
    2017 Quicksand TRD OR
    Chrome Delete Ultimate Phone Mount TacoVinyl Raptor 2.0 Grille Meso Puddle Lights Victory 4x4 Center Console Molle Rack
    Hey guys! I bought one of these used and it didn't come with the hardware. What is the size of the bolts needed to mount this??

    Majora, Oct 28, 2020
    #273
  14. Oct 28, 2020 at 5:30 PM
    #274
    paranoid56

    #274
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,447
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    m8 1.25 pitch 15mm long bolts :D

    paranoid56, Oct 28, 2020
    #274
    Majora[QUOTED] likes this.
  15. Oct 28, 2020 at 7:34 PM
    #275
    paranoid56

    #275
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,447
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    ok, added more into stock :D

    paranoid56, Oct 28, 2020
    #275
  16. Oct 28, 2020 at 8:39 PM
    #276
    Coolfinedonewicked

    #276
    Coolfinedonewicked Well-Known Member

    Joined:
    May 3, 2018
    Member:
    #252455
    Messages:
    201
    Gender:
    Male
    Kaua’i, Hawai’i
    Vehicle:
    2019 Cement Tacoma TRD OR DCSB
    Been checking all day on my own, come home from work and checked here, appreciate the follow up! Order just placed!

    Coolfinedonewicked, Oct 28, 2020
    #276
  17. Nov 22, 2020 at 12:41 PM
    #277
    Ensemble88

    #277
    Ensemble88 Well-Known Member

    Joined:
    Jun 17, 2018
    Member:
    #256661
    Messages:
    1,238
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2017 Black OR DCLB
    King suspension, SSO bumper w/winch, Pelfreybuilt sliders, morimoto fogs
    Dang, only blanks left :(

    Ensemble88, Nov 22, 2020
    #277
  18. Nov 22, 2020 at 3:35 PM
    #278
    crazyfingers

    #278
    crazyfingers Soft Sweet But True

    Joined:
    Oct 12, 2018
    Member:
    #269172
    Messages:
    2,463
    Gender:
    Male
    First Name:
    Chuck
    Annapolis, MD.
    Vehicle:
    TRD Off-Road DCLB Quicksand
    TRD Pro 17' Rims With Goodyear Wrangler DuraTracs Toytec 3" Boss Aluma Series With OEM HD Leafs. With A GoFast Camper
    Following

    crazyfingers, Nov 22, 2020
    #278
  19. Nov 22, 2020 at 6:52 PM
    #279
    paranoid56

    #279
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,447
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    which one do you want? i can cut more tomorrow.

    paranoid56, Nov 22, 2020
    #279
  20. Nov 22, 2020 at 7:08 PM
    #280
    kecknj

    #280
    kecknj Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269900
    Messages:
    225
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '19 TRD Off-Road
    kecknj, Nov 22, 2020
    #280
