Relay harness

Discussion in 'Lighting' started by BenJammn5, Aug 24, 2012.

  1. Aug 24, 2012 at 4:21 PM
    #1
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,429
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Hey guys just want to make sure i'm doing this right as I'm having a little trouble...

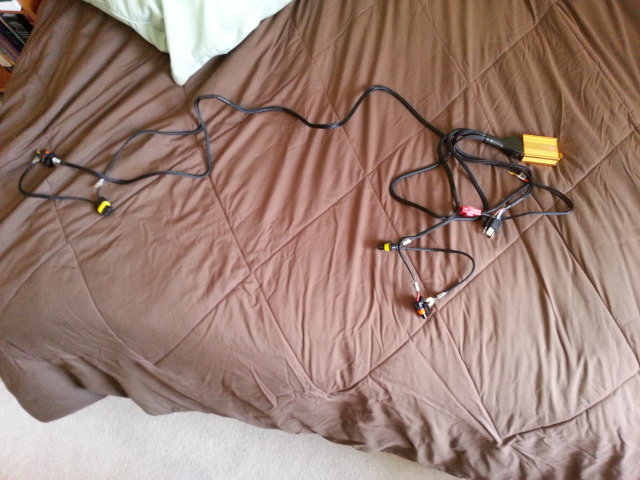

    I upgraded my 35w (random brand) hid kit to TRS 5five D2S kit for my FX-R's. I ordered the H4/9003 harness you see below
    [​IMG]

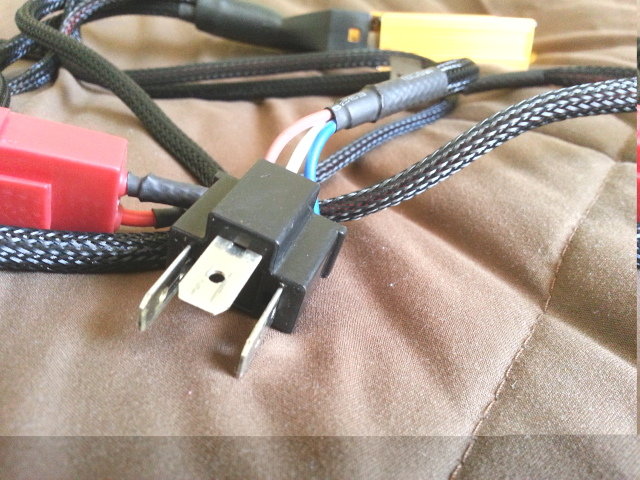

    For whatever reason this harness is not firing up the ballasts. The kit is only supposed to come with 1 relay harness right? But what doesn't make sense to me is that there is ONE harness output that connects to the halogen bulb/OEM input. Shouldn't there be two as the truck comes with a left and right input from the factory? [​IMG]

    By the way, I did try my old relay harness on the new ballast and bulbs and everything fires up so I must be doing something wrong the morimoto relay.

  2. Aug 24, 2012 at 5:36 PM
    #2
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    I believe that you only use the one input from either the left or right side headlights and there are two outputs...one for each balast

  3. Aug 24, 2012 at 5:39 PM
    #3
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,200
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    I think you have to use the left, but the only reason I thought this was because it's closer to the battery and sends the circuit to the right. That's the way mine's set up and it works that way.

  4. Aug 24, 2012 at 5:40 PM
    #4
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,866
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    your relay is correct. there is only one connection into the factory h4 harness because that acts as the on/off

    have you checked your grounds?

  5. Aug 24, 2012 at 5:42 PM
    #5
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    487
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    because you're connected directly to the battery, power should go directly from battery to ballast. the H4 connector to one side of the truck is the input to the relay switching the ballast's on and off

  6. Aug 24, 2012 at 6:42 PM
    #6
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,429
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    That makes sense guys thanks... no time to mess with it till sunday but this relay pretty much only goes one way. Must have been my grounds, I'll try again later
