Relentless Fab '05-11 Tacoma plate bumpers buy

Discussion in 'Relentless Fabrication' started by RelentlessFab, Jun 4, 2010.

  1. Jun 4, 2010 at 12:37 AM
    #1
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,399
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    I am now accepting orders for my 2005-2011 Tacoma CNC cut plate off-road winch bumpers at a special introductory price.
    This is a limited time special, so act quickly if you want one!


    Bumper highlights:
    * 3/16" thick CNC cut and MIG welded steel structure with additional frame reinforcement plates standard for heavy recovery and winching applications, winch mounting plate (for 8000-9500lb non-integrated solenoid winches with the standard 4.5x10 mounting pattern only), 3/4" thick steel recovery points, hi-lift notches, and grade-8 hardware is standard!
    * Optional recessed fog light cutouts for 4" Piaa or similar fog/driving lights
    * Optional top tubing. Center light bar hoop, or full front end guards available
    * Optional logos/graphics/whatever can be cut into the steel via the CNC waterjet shop. (at a surprisingly low extra cost!!) This is your chance to make your bumper unique!!! I can also do any custom mods to the basic design (within reason of course) for only minor additional fees.

    Pricing:
    *Base plate bumper with standard 3/4" thick recovery points, hi-lift notches points, in bare steel: $750 + shipping
    Upgrade to light 1/4" thick 5052 weight aluminum for +$125. ($875 + shipping for Aluminum version)


    Add-on's
    *Recessed fog light mounts for 4" aftermarket lights: add $50
    *Center grille section tube hoop, 1.75" dia tube: add $75
    *Summit guard, hoop with brace bars add $110
    Summit guard with 3-hole filler trianglesadd $130
    *Predator guard full top 3 hoop tubing (center section and headlight protection, 1.75" tube): add $150
    *Other custom requests: $TBD Ex. Custom CNC cut 'Tacoma' or 'TRD' in lower skid, or other logos/images for only about $20 additional!
    *Modified to fit on trucks with body lift! Please note amount of body lift when ordering, 1"-3" mods available +$25 (Relentless Exclusive.) PICS

    Shipping: *new lower prices* :)
    Shipping is through Fastenal, basic pricing may vary slightly depending on your location and the final weight of your bumper. Fastenal ships from one of their stores to another, not to a home address. To look up your local store, enter your zip code HERE. These bumpers are pretty big (around 105lbs base bumper) and require being strapped down to a pallet and freight shipping. I don't charge anything for the pallet, or my time of packaging them, all which deducts from my overall profit from the bumpers, so I assure you i'm not making a penny on shipping fees and you're getting the good side of the deal!

    Shipping price breakdown by location:
    Pacific time zone: $75
    Mtn time zone: $100
    Central time zone: $125
    Eastern time zone: $150
    Hawaii: $150

    *** If interested in ordering rock sliders or a rear bumper in addition to a front bumper, I can ship them together for only an additional +$20/item to the prices listed above. For the guys on the east coast, this can save you as much as $260 versus buying and shipping each item separately!!!

    Notes:
    see attached PDF file for my product liability disclaimer statement.

    Installation will require minor vehicle modification: removal of factory tow hooks, removal and minor trimming or bending of some thin sheet metal grille/light supports from behind the factory bumper, trimming of excess plastic inner fender liner from bottom of front fender wells. These modifications are illustrated in photos lower on the page.

    Orders list:
    Color coding: Green once deposit is received, Blue during build, and red once final payment has been made and bumper has shipped.
    1. Virgilus11 (Base + custom cut center + fogs)
    2. cohrmundt (base bumper w/custom 'TRD' cut in skid, and modded for 3" body lift)
    3. OH-MAN (base + fogs + hoop)
    4. railman04 (base + fogs)
    5. chickenmunga (base bumper)
    6. Cmytacoma (cohrmundt's first 'TRD' bumper w/ no body lift mod)
    7. jbraeckel (base bumper)
    8. wmflyfisher (base + fogs + custom tube)
    9. Lrgrnr (base + fogs + hoop w/side bars)(and hybrid sliders)
    10. oatiger (base + fogs + hoop)
    11. ttylerr (base + fogs + primer) Arranging shipping to Canada
    12. Oswego (Base + fogs)(and sliders)
    13. Carolina_Boy (base + fogs + light mount holes on top plate)
    14. Iluvtea (base + fogs + 'TACOMA' in top face + cutout winch structure+ hoop w/side bars)
    15. MY50cal (Base + fogs + 2 sets light tabs) (and hybrid sliders)

    Other orders:
    1. All.on.black (base+fogs+hoop+custom mods)
    2. Stockplus (Base + fogs + ulti-mount)
    3. Tacotron (Base bumper modded for 3" body lift)
    4. Jordan F. (base + fogs) will pick up (and rear bumper when avail.)
    5. theFerg (base + fogs+ hoop w/side bars + set light tabs)
    6. Kessler89 (base + hoop)
    7. EDC (base + fogs+ hoop) (and rear bumper with swing out tire carrier when avail.)
    8. GSK9 B1T3 (base + fogs + hoop w/ side bars and 3 light mounting holes on top plate, and set of 2x3 hybrid sliders w/ kickouts.) (and rear HC bumper when avail.)
    9. cancelled/refunded
    10. OZ-T ALUMINUM base bumper + fogs. No winch cutout.
    11. mck419 (base + fogs + hoop)(and high clearance rear :D)
    12. especk (ALUMINUM base bumper)(and steel rear)
    13. Dblake79 (base+fogs+hoop w/side bars+ 2 light tabs)
    14. Nightstr (base(1'R')+fogs+hoop+rattle can black)(meet)
    15. SuthernTaco07 (base+fogs)
    16. Fatsac (Aluminum base+fogs and steel rear bumper)(on hold)
    17. Dstephan (Aluminum base+ fogs+ hoop)
    18. TSTaco (Aluminum base+fogs+hoop w/side bars + base rear)
    19. HDsnow (Base+ fogs + ulti-mount) (need asap due to replacement after accident)
    20. Littledvl (base+fogs. ship w/rear bumper order)
    21. takaya49 (Base+fogs+powdercoat+2 d-shackles)(pick up)
    22. BEEFY CHEESY TACO (Aluminum base+ fogs+ hoop w/side bars) (and rear, and sliders)
    23. Blacktaco21 (Base+ fogs+ hoop w/side bars) (and sliders)
    24. CRF69 (Base+ fogs+ hoop w/side bars)
    25. ink junky (ALUMINUM base+ fogs+ hoop w/side bars) (and DCSB hybrid sliders)
    26. 06rubi (base+fogs) (and HC rear w/hidden hitch, and hybrid weld on sliders w/ 2 pc kickouts)
    (list is no longer updated for current orders)


    Customer Review of bumper:
    http://www.tacomaworld.com/forum/pr...05-front-plate-style-winch-bumper-review.html

    When ordering, please keep in mind I have a pretty busy schedule and I'm a 1 man show, so please be patient with me. I will build as quickly as possible(though time til receiving your order is still a matter of months, not weeks with my order load), but im not going to sacrifice quailty or attention to detail in order to ship products any quicker. Fast as possible turn around, high quality products, and customer satisfaction is my goal!!!


    I will be constantly updating this thread with information to better answer any questions that arise, feel free to ask a question if there is something you don't see an answer to.

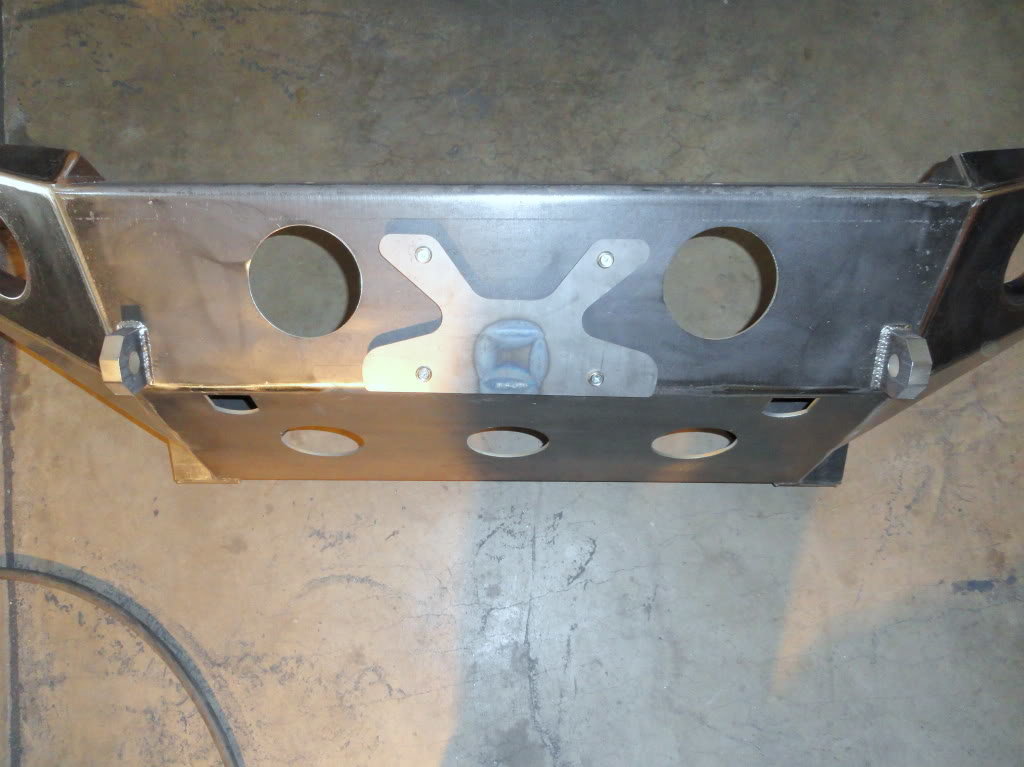

    Bumper sample images:

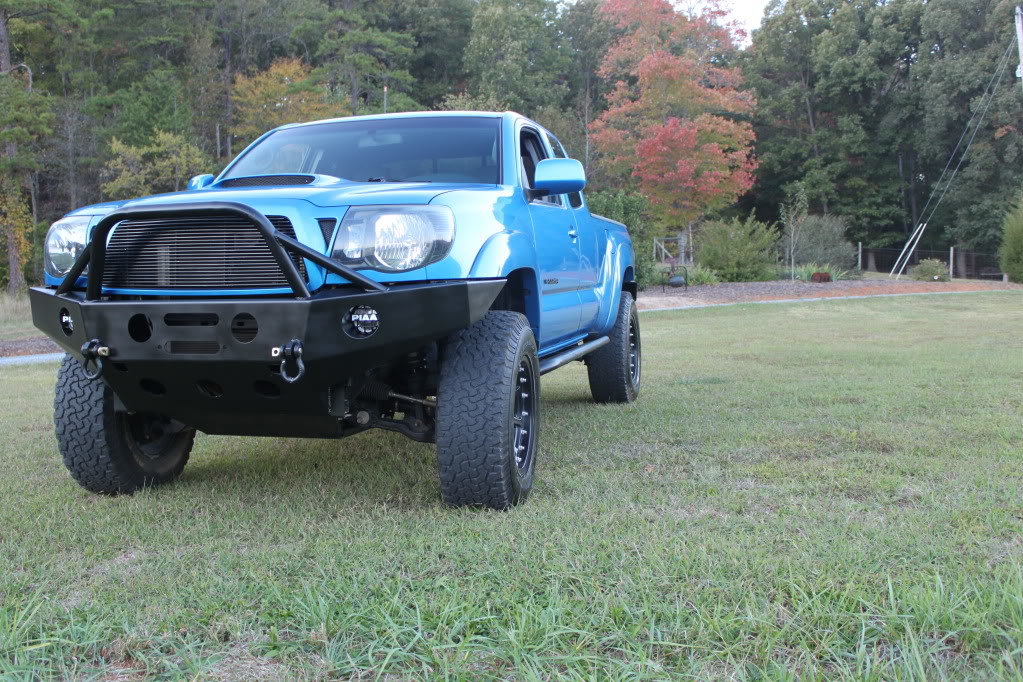

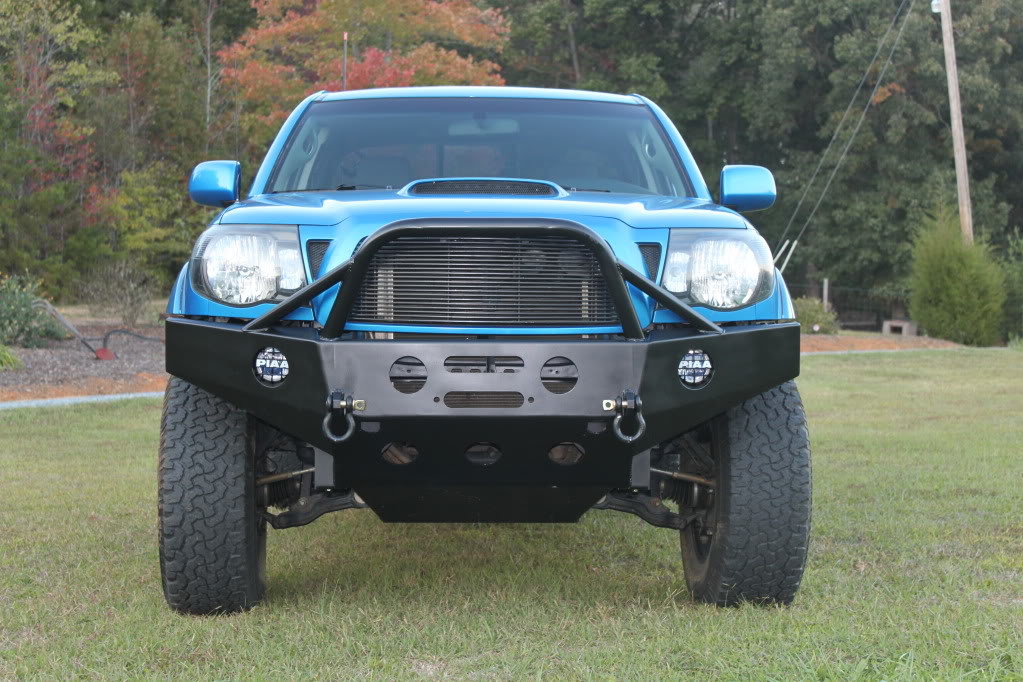

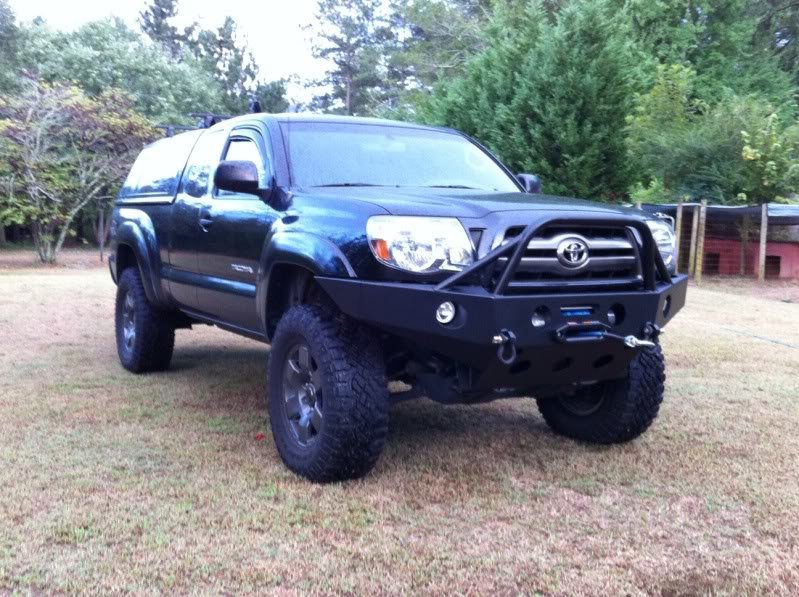

    Base steel bumper with fog light recesses and Summit guard tube with filler plates
    [​IMG]

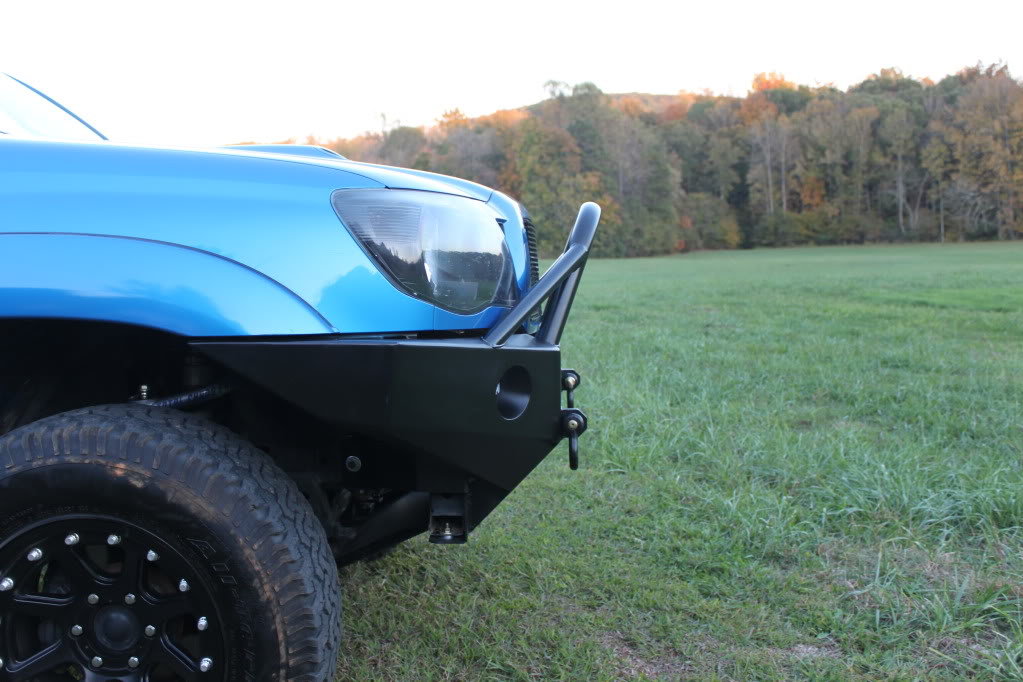

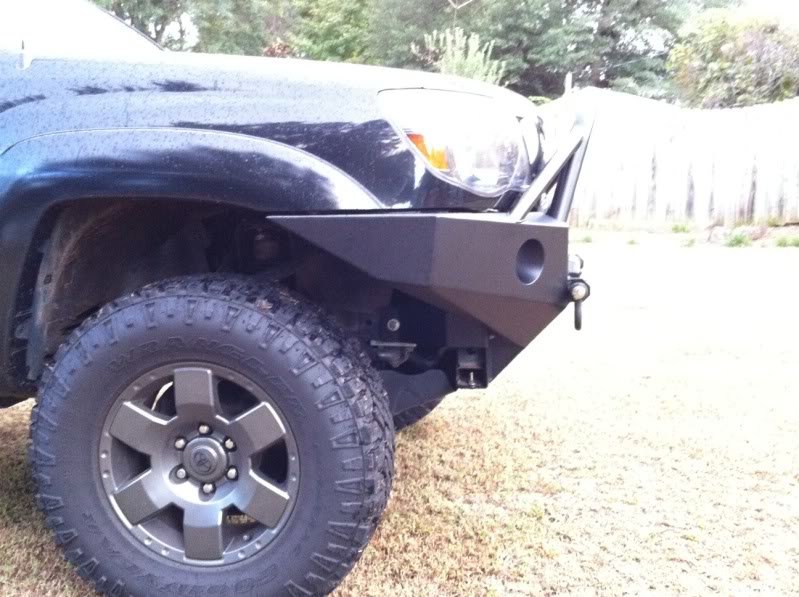

    Base steel, fog light cutouts, and summit tube
    [​IMG]

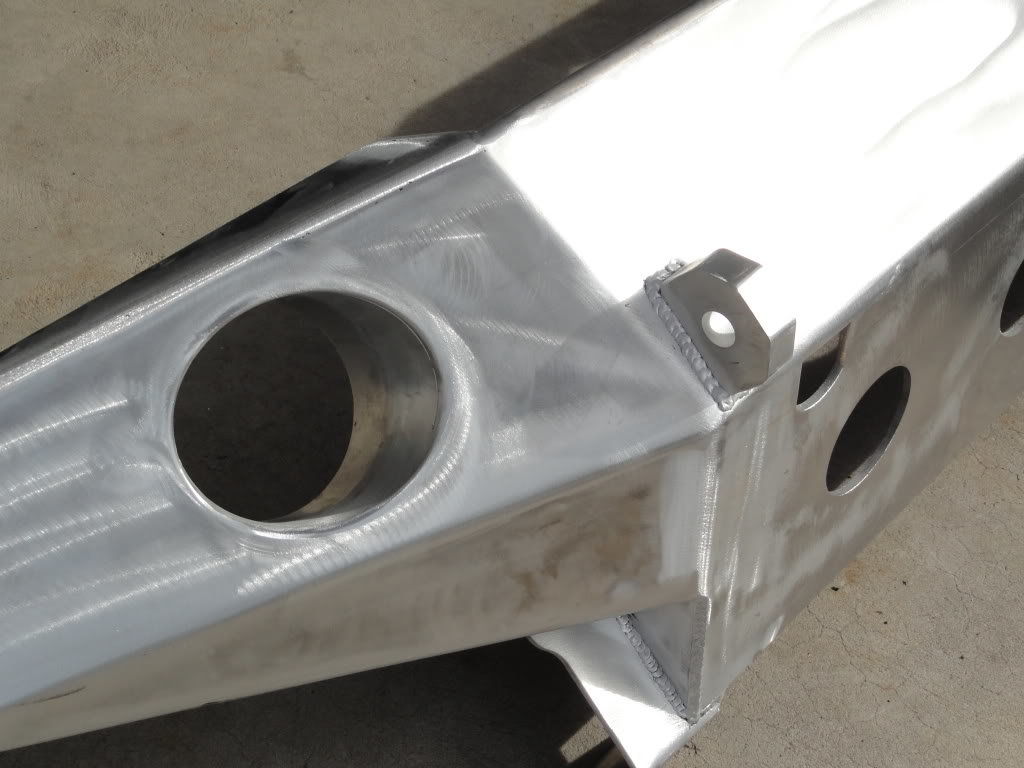

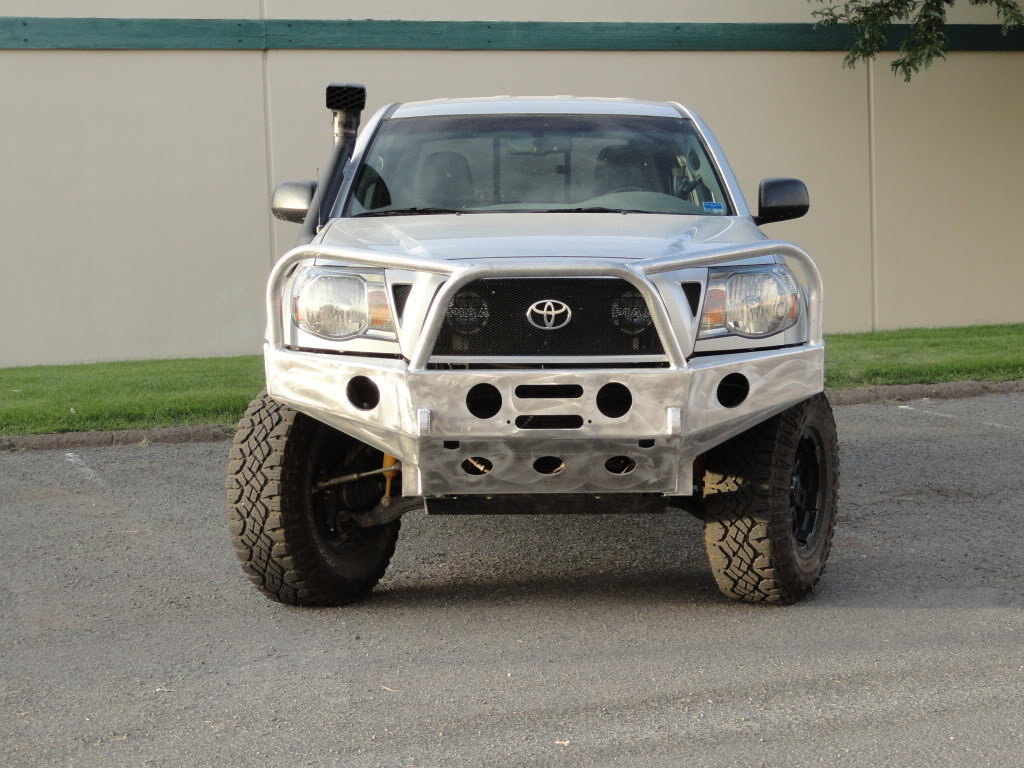

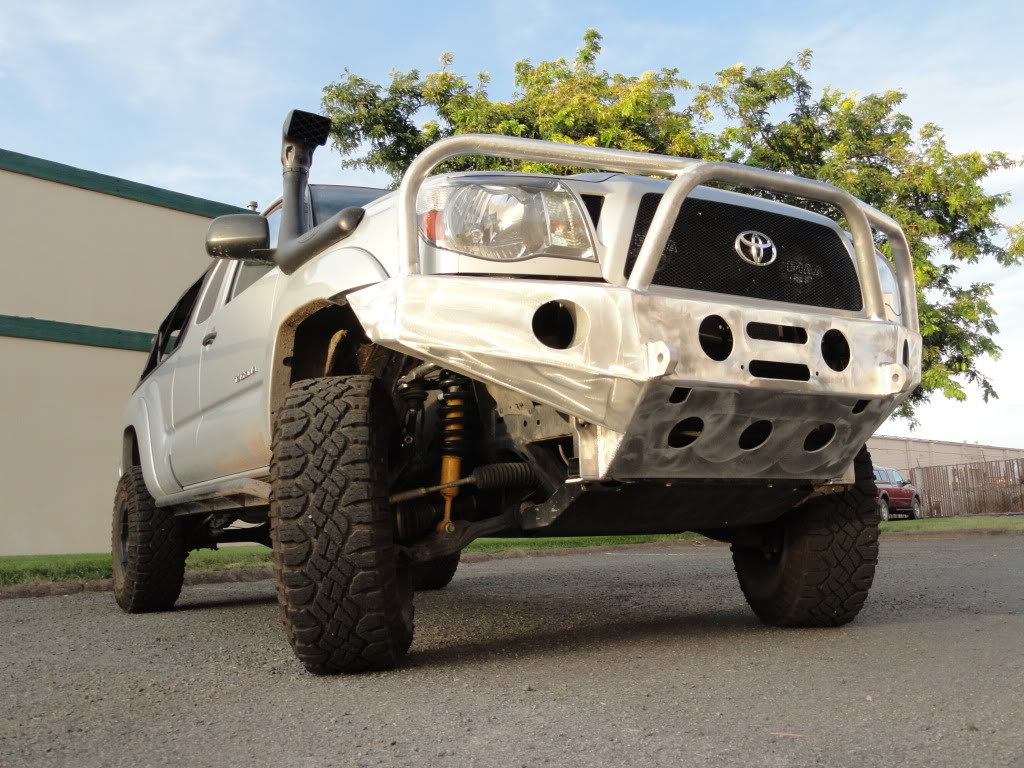

    ALUMINUM base+fogs+Predator Guard from 2" tube
    [​IMG]
    [​IMG]
    [​IMG]

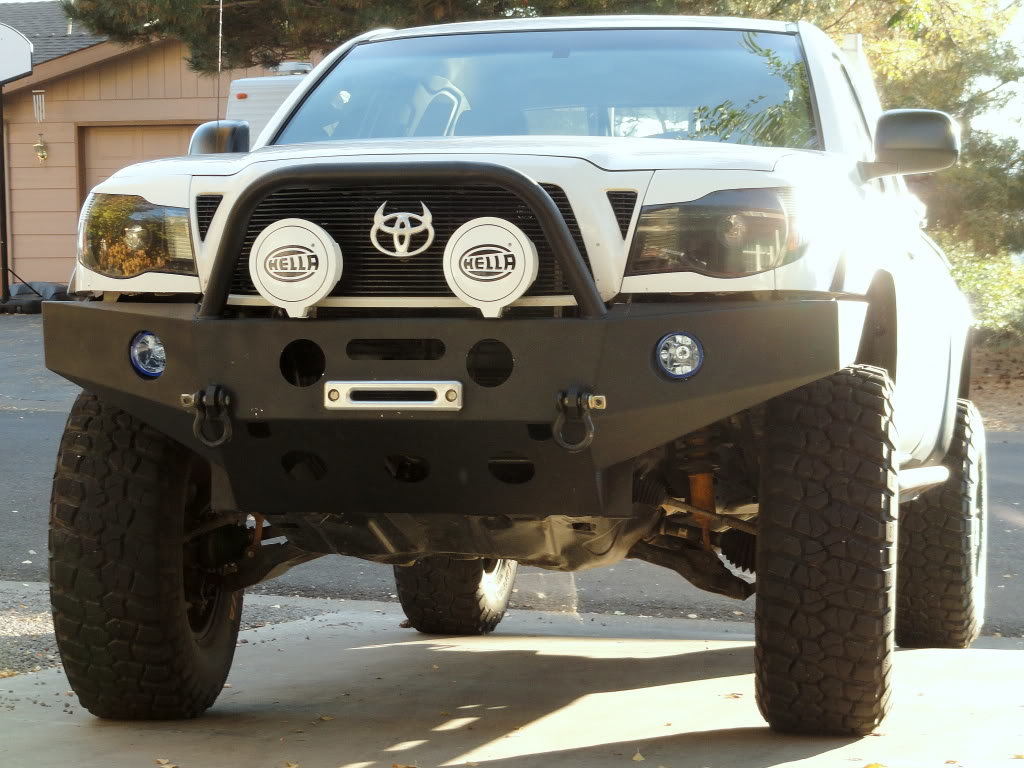

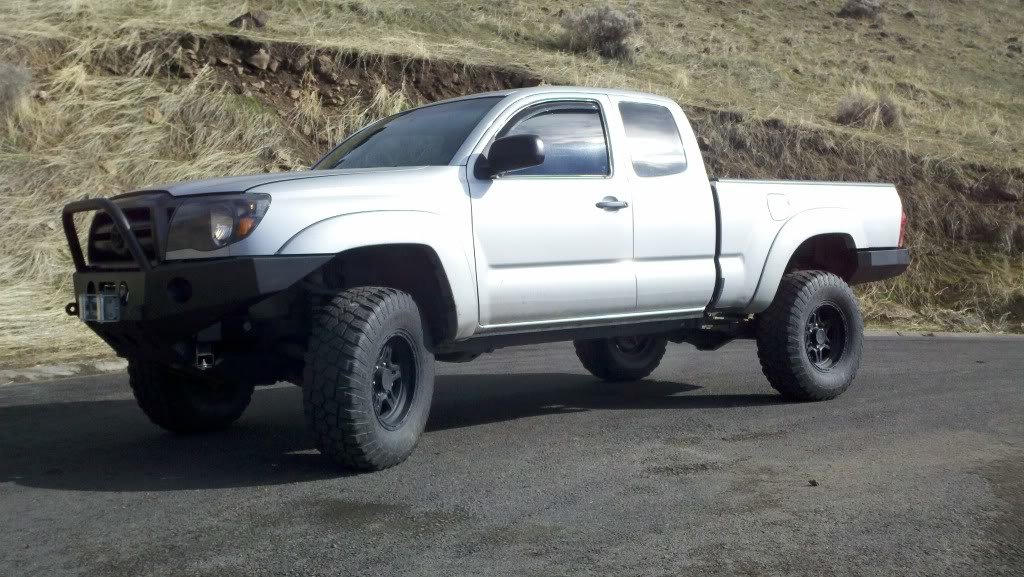

    My old personal truck and bumper: Base w/ fogs and center hoop
    [​IMG]

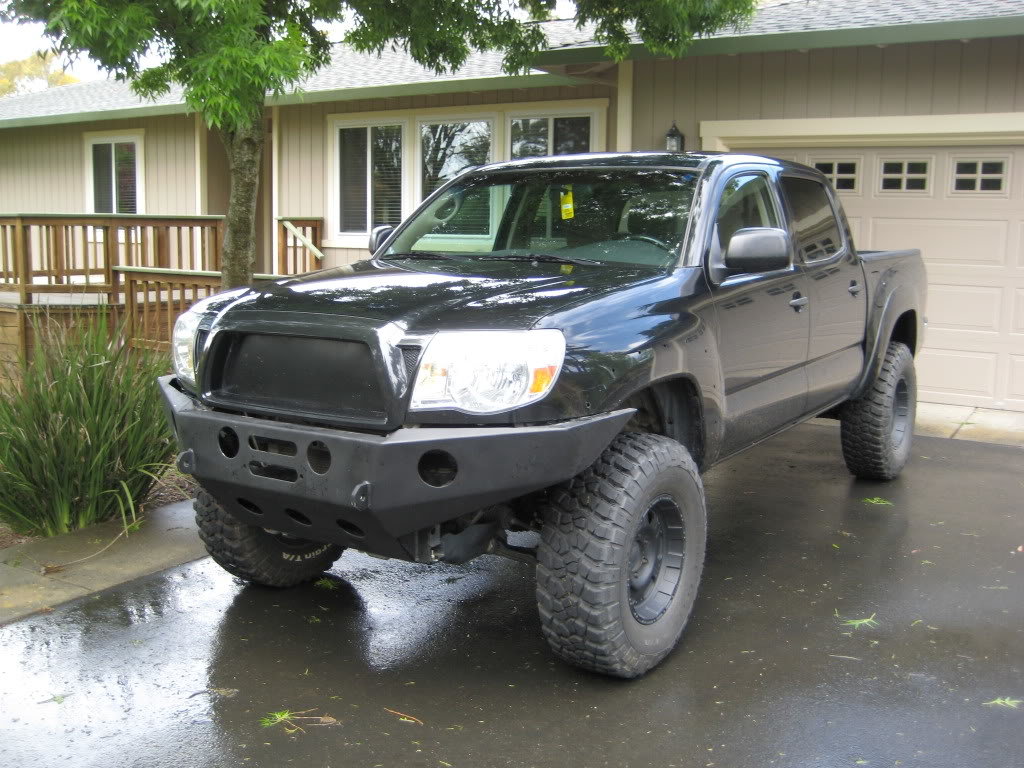

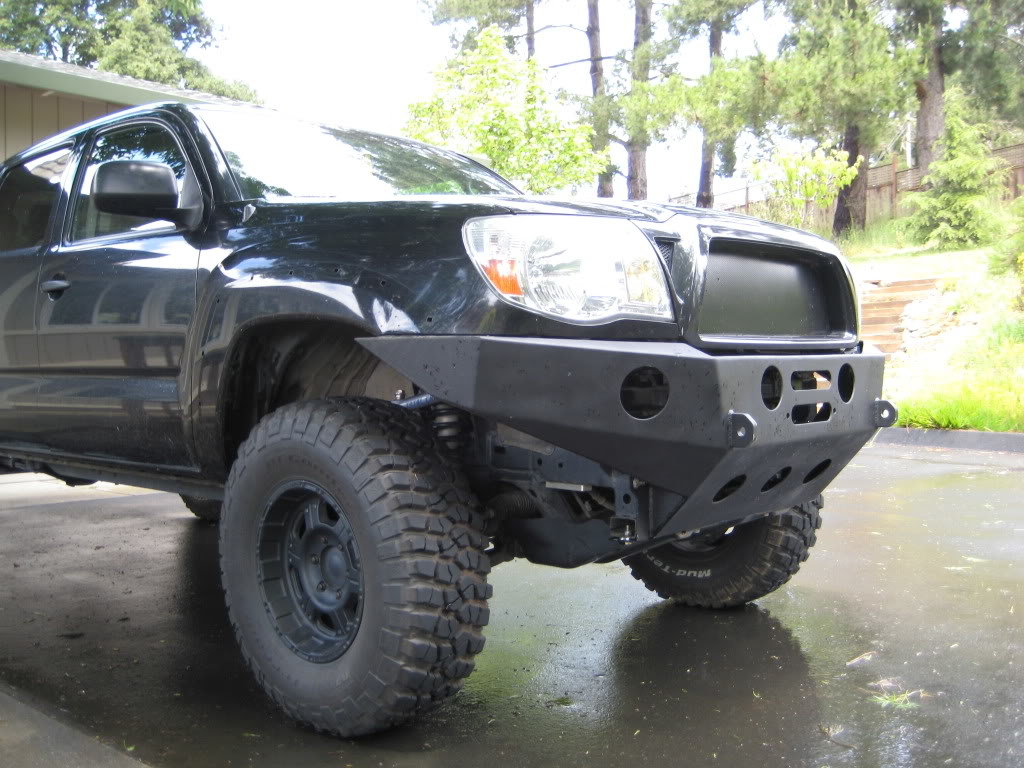

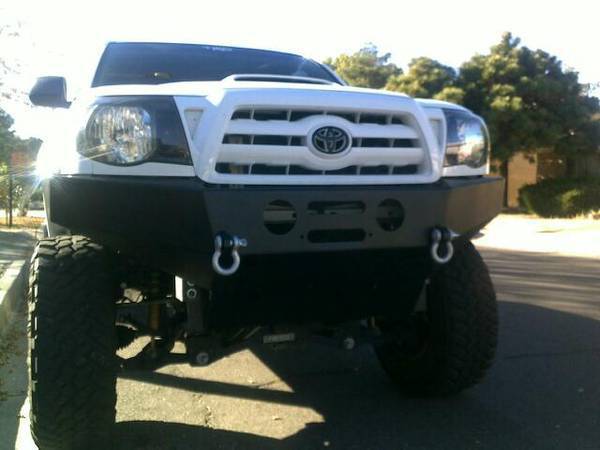

    Chickenmunga's Base bumper:
    [​IMG]


    Littledevil's Base bumper with fog light recesses:
    [​IMG]

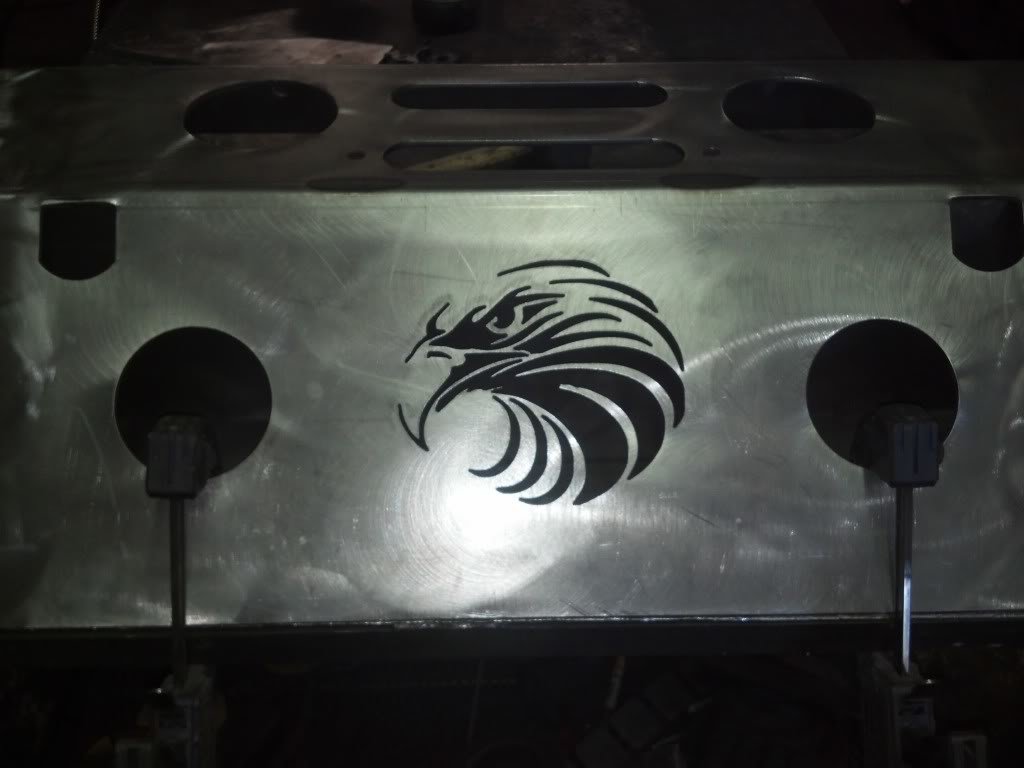

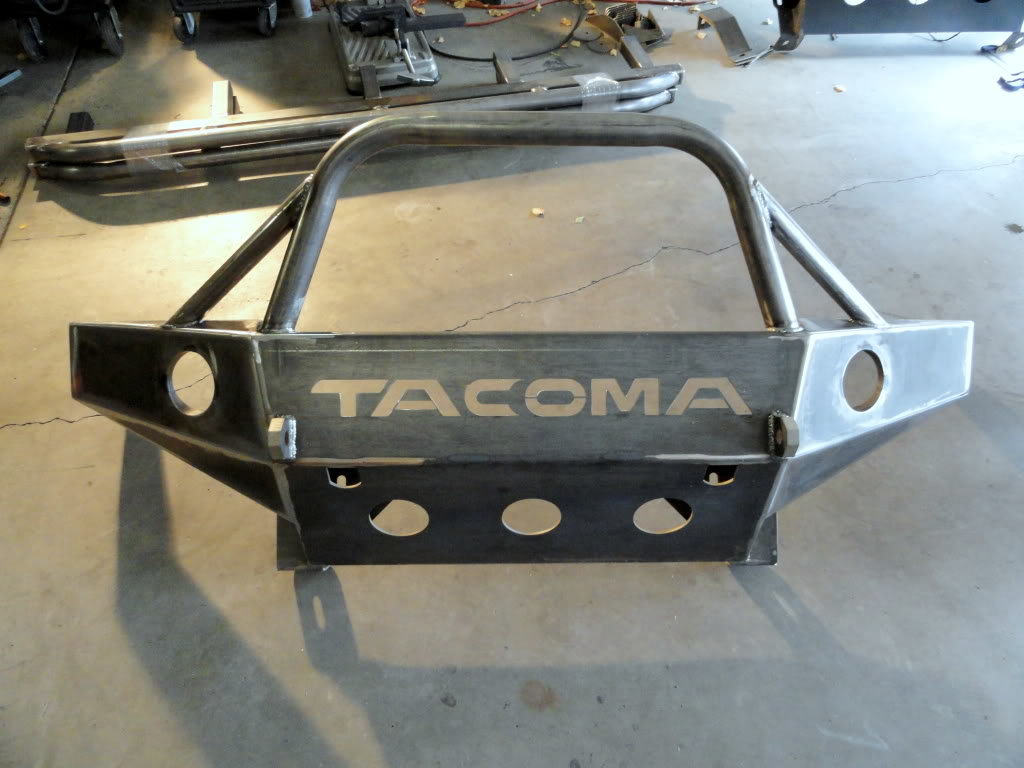

    Available custom CNC cut lettering/logo's etc. Inquire for cost(usually an additional $25 or less).
    [​IMG]
    [​IMG]

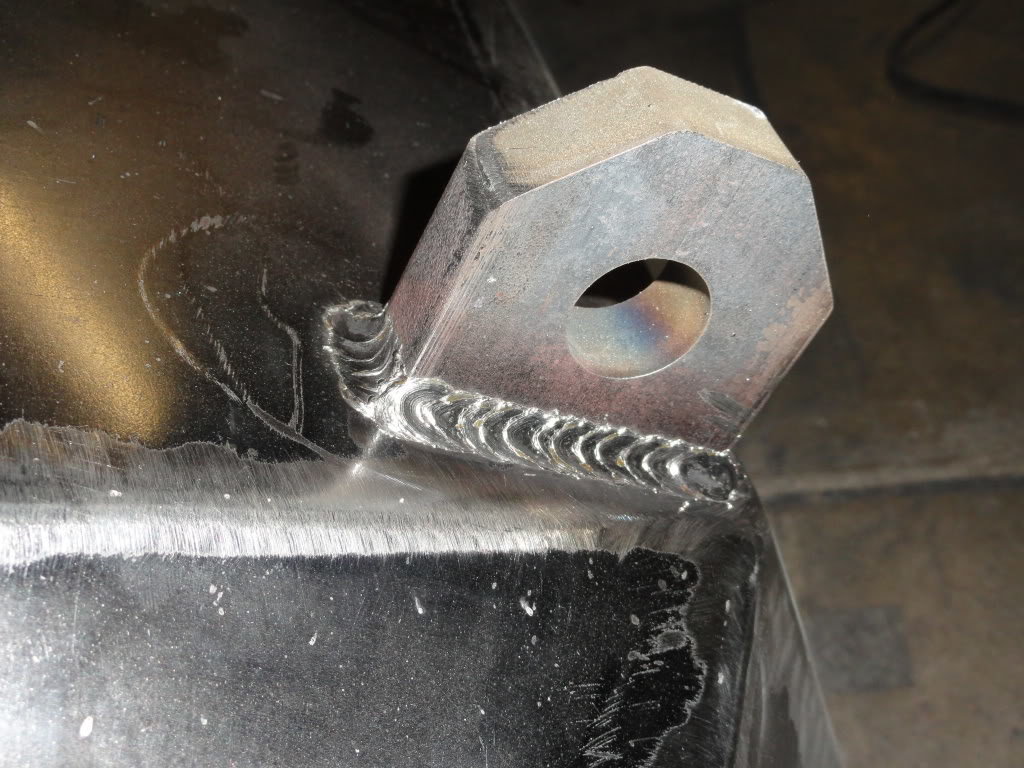

    Solid 3/4" steel recovery point and welds close-up:
    [​IMG]

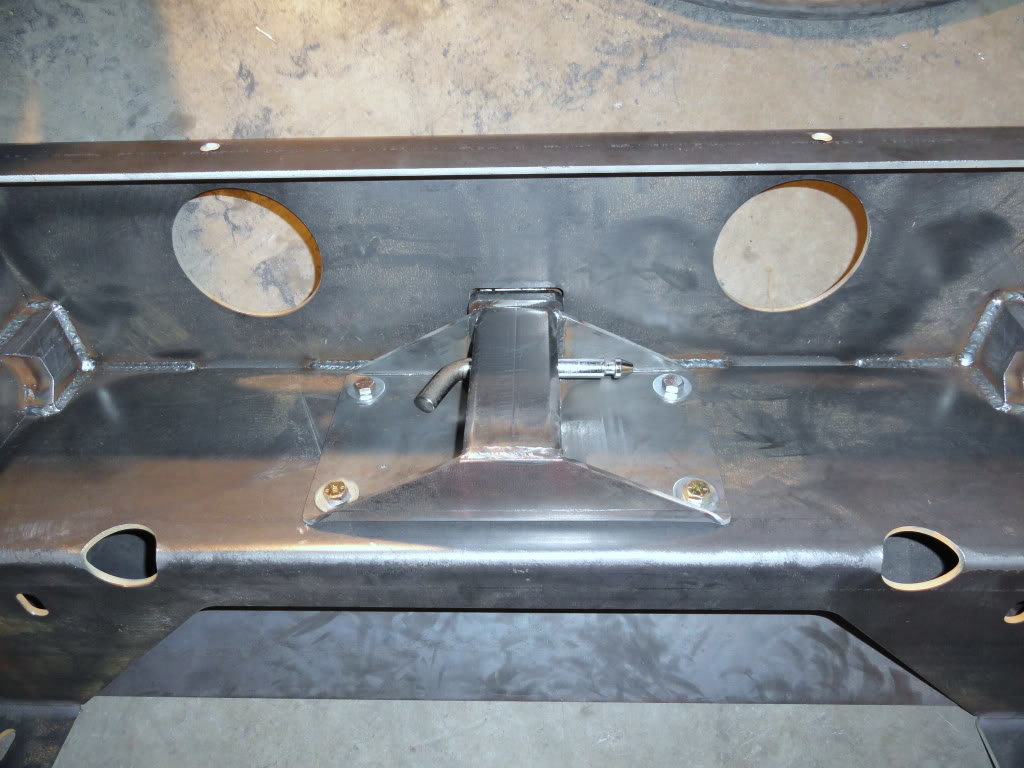

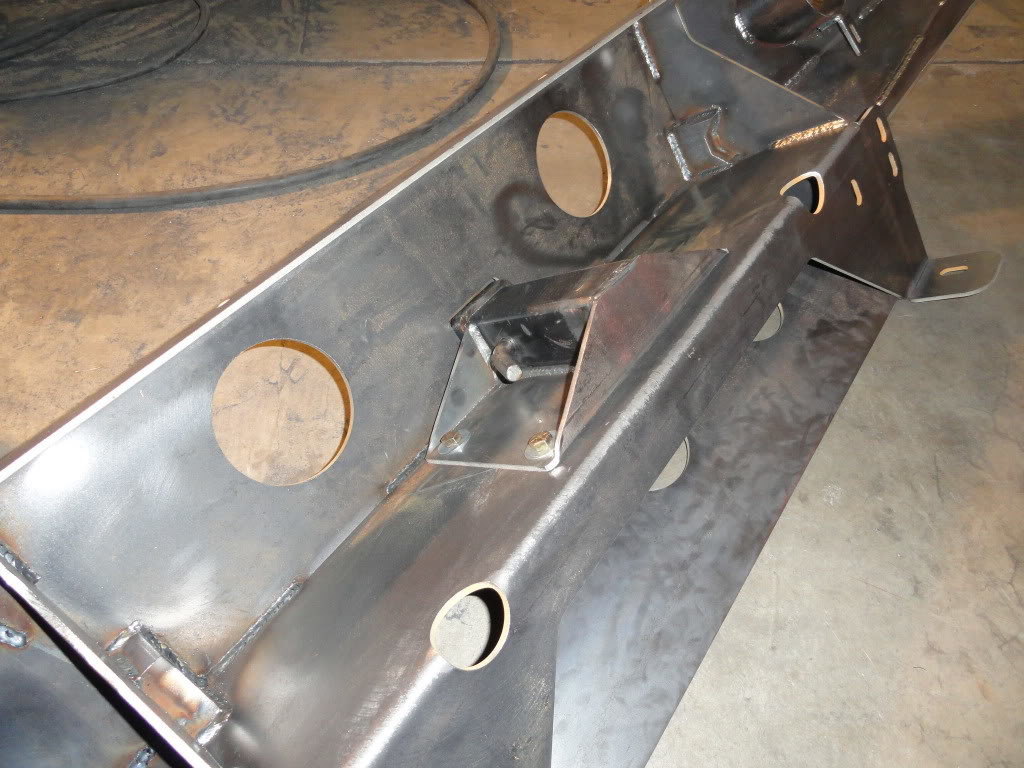

    Here are some pics of my 'Uliti-Mount' Receiver hitch system mounted in a bumper. New orders will still receive the slot and mounting holes for a regular fairlead to be installed if you wish to remove the receiver and permanent mount your winch the regular way in the future instead.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

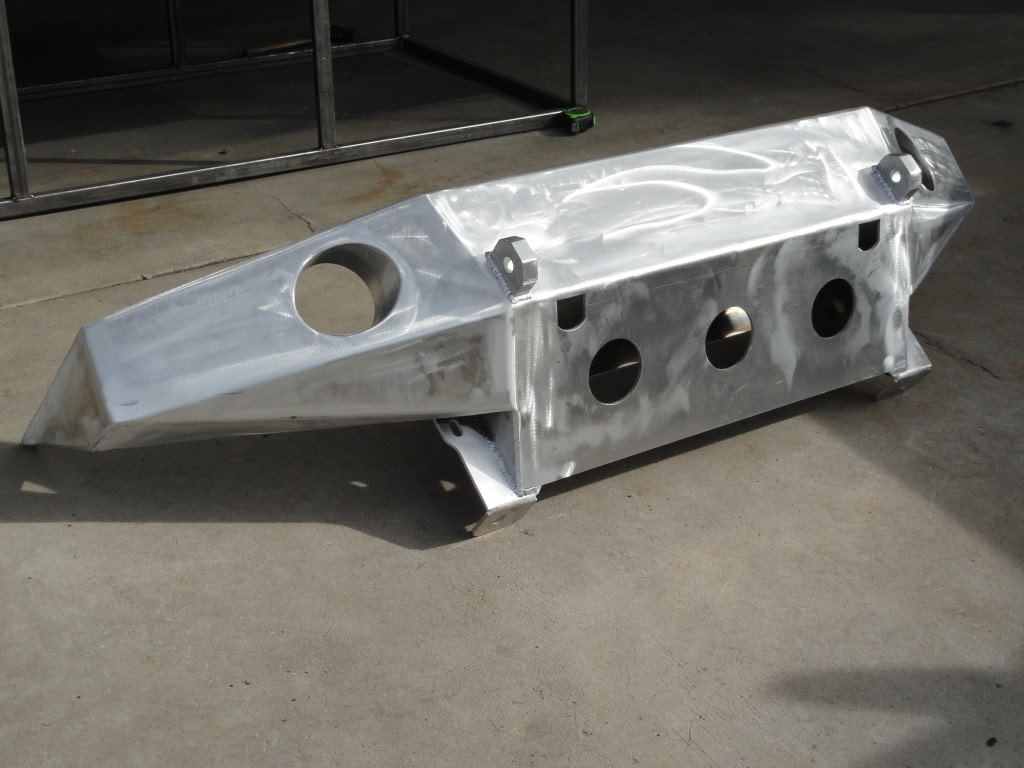

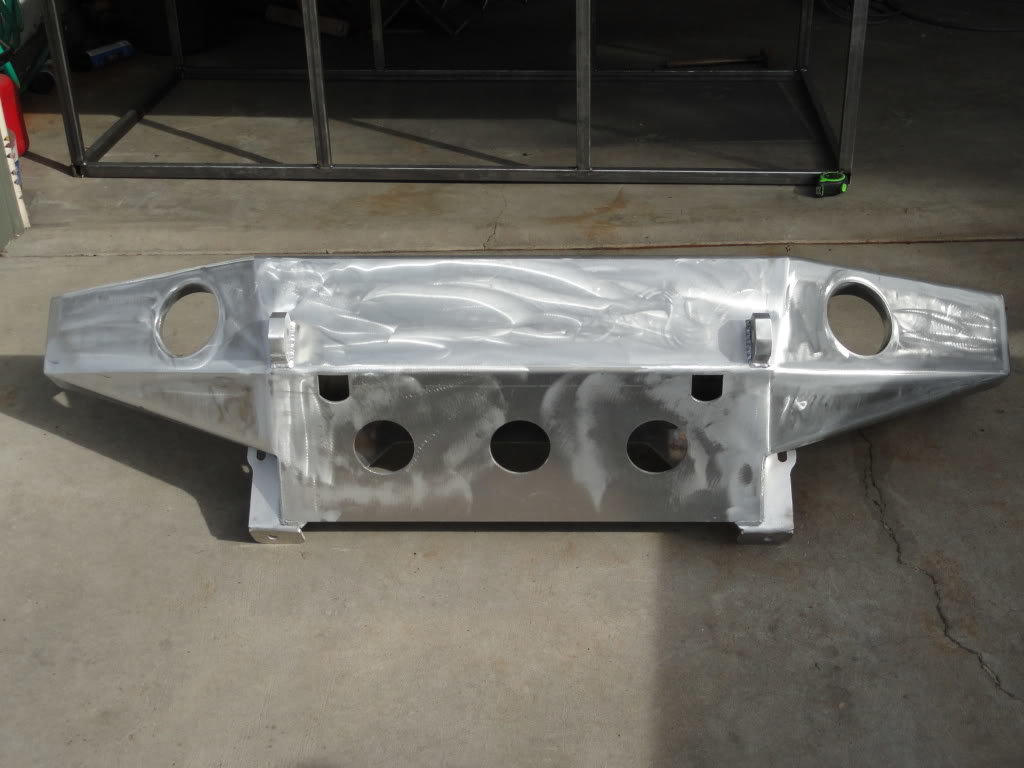

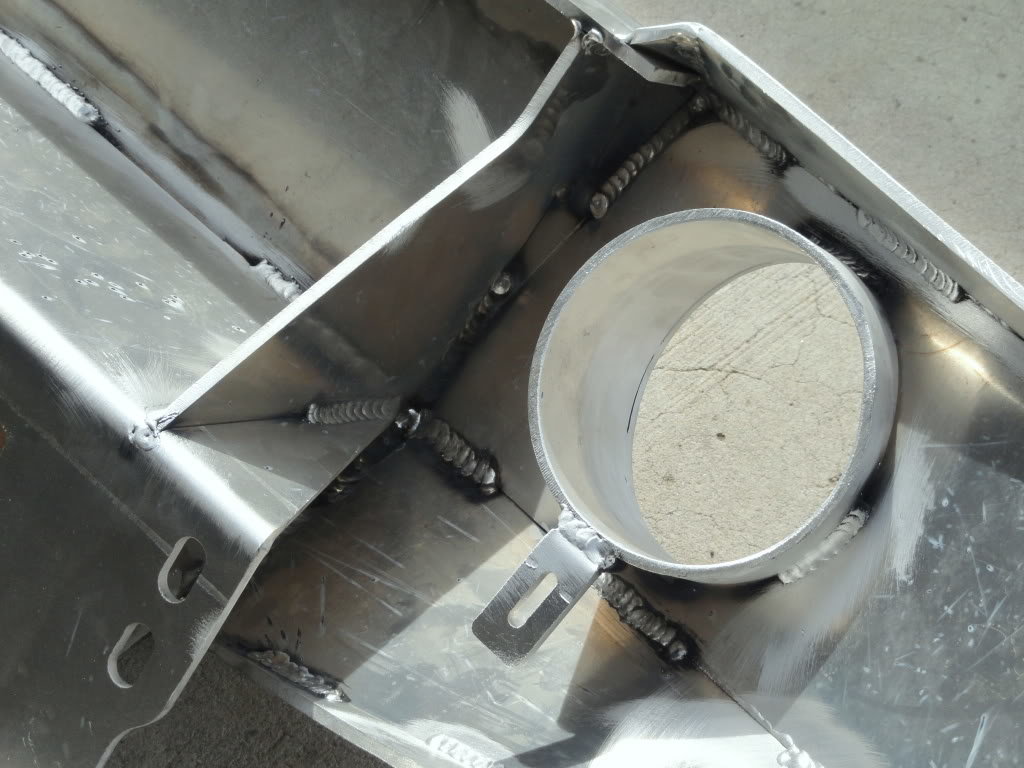

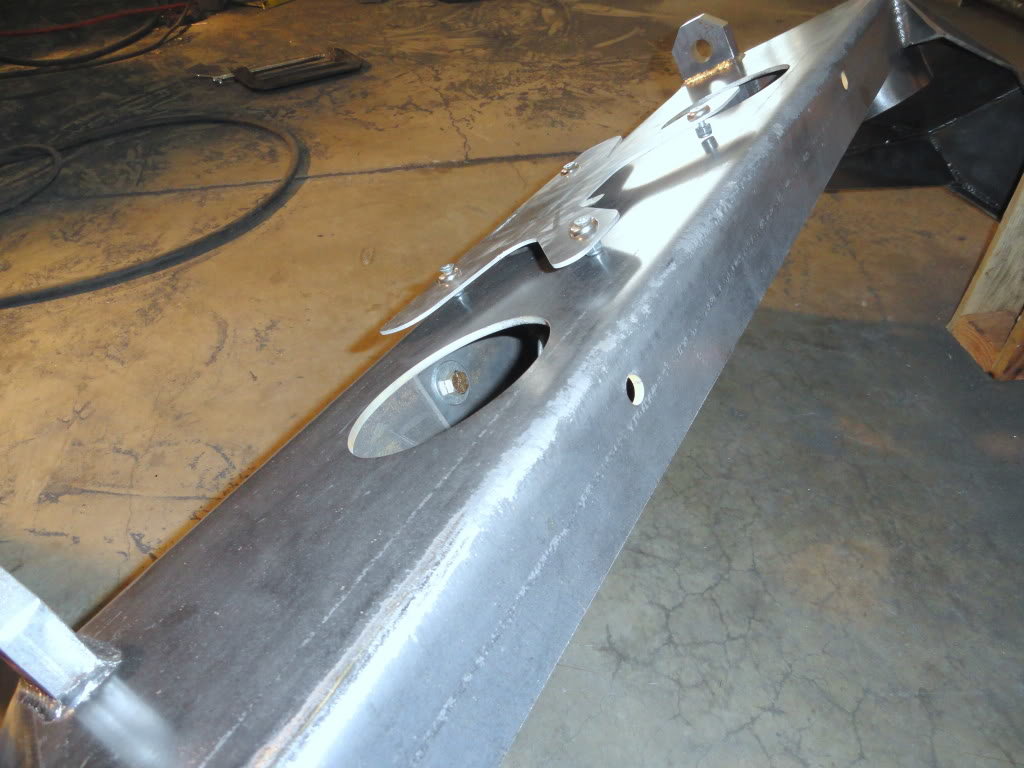

    Aluminum bumper sample pics (winch holes deleted at customer request. (They're still standard on Aluminum bumpers, just like the steel bumper)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

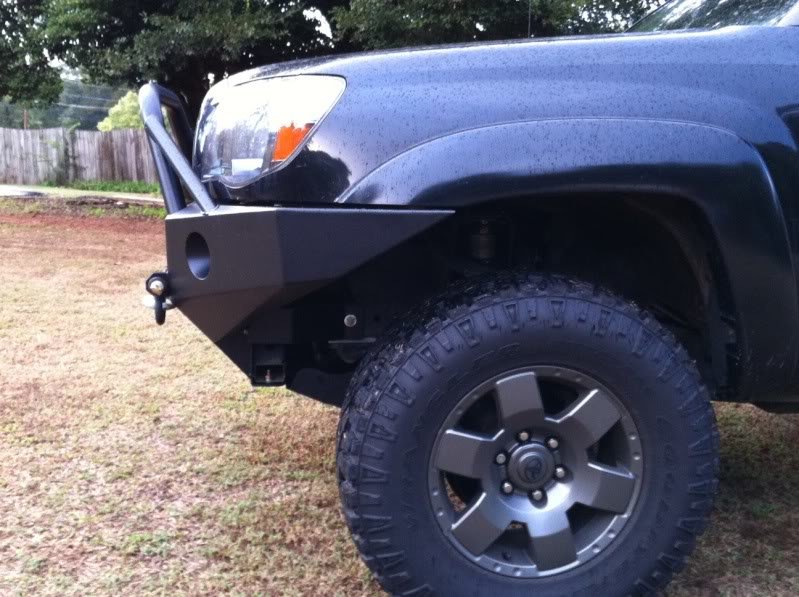

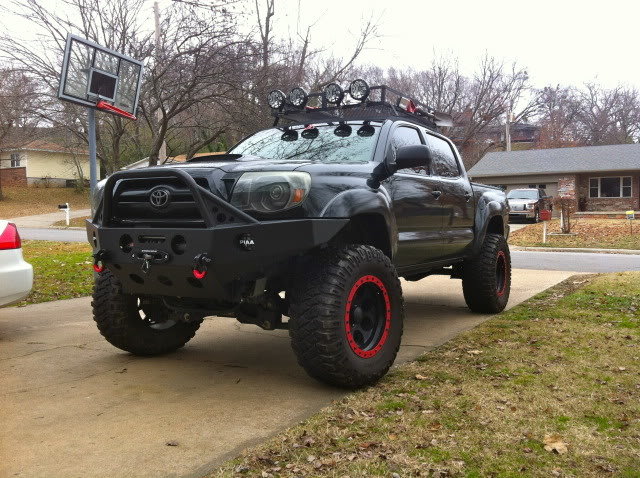

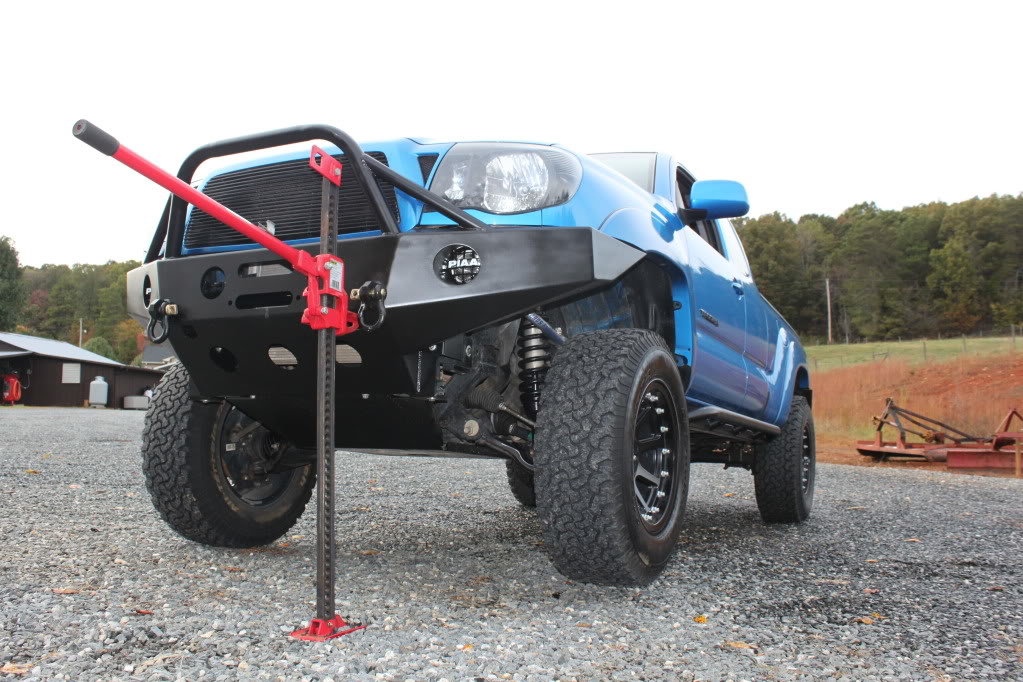

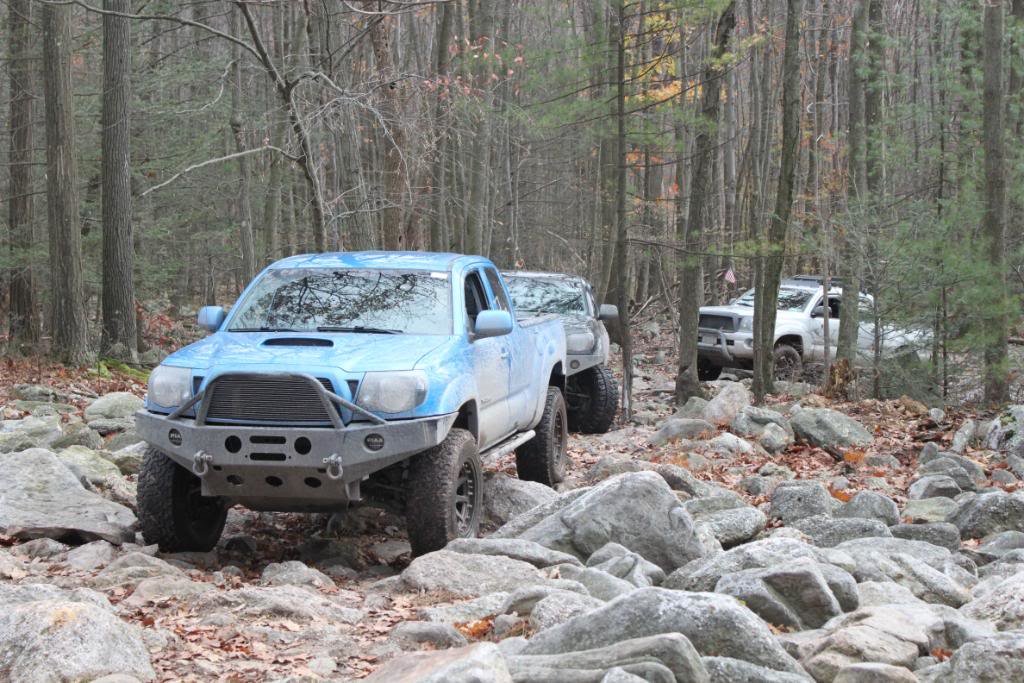

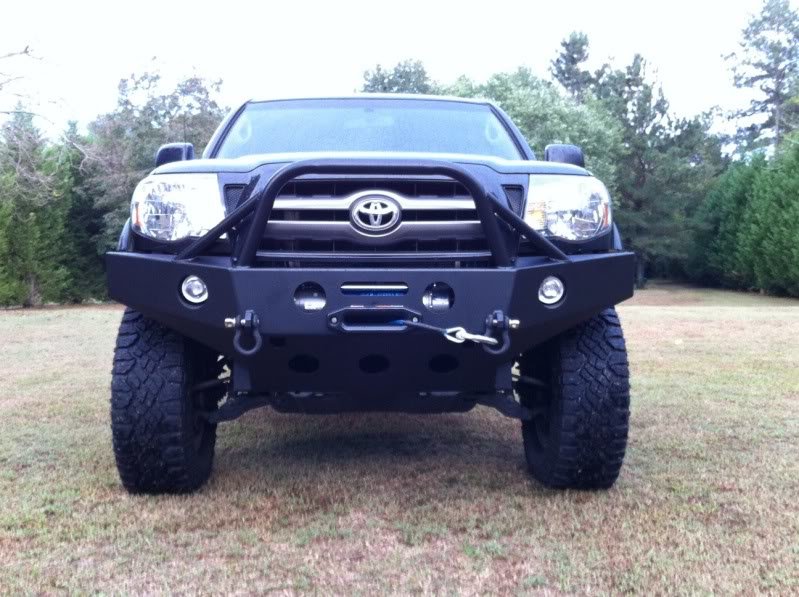

    Some of my customers' trucks:

    Mck419's: Base+ fogs+ hoop
    [​IMG]

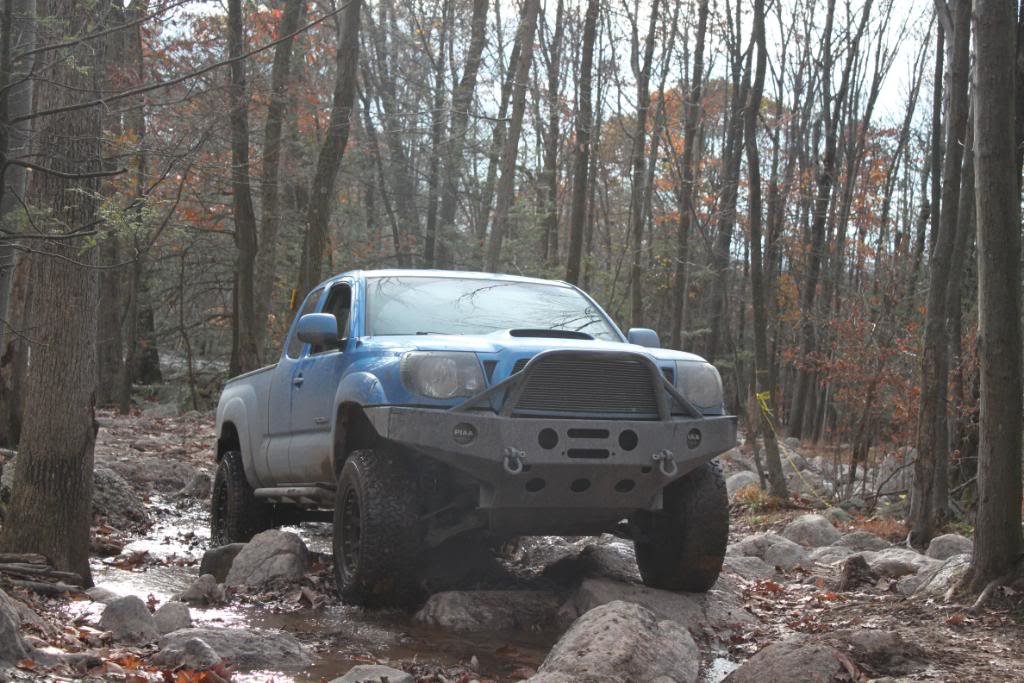

    Lrgrnr's: Base+ fogs+ hoop w/side bars(summit guard)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    WMflyfisher's: Base+fogs+summit guard
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Tacotron's base bumper with TRD cut (3" BL version):
    [​IMG]

    Cohrmundt's Base bumper w/ TRD cut and 3" BL mods:
    [​IMG]

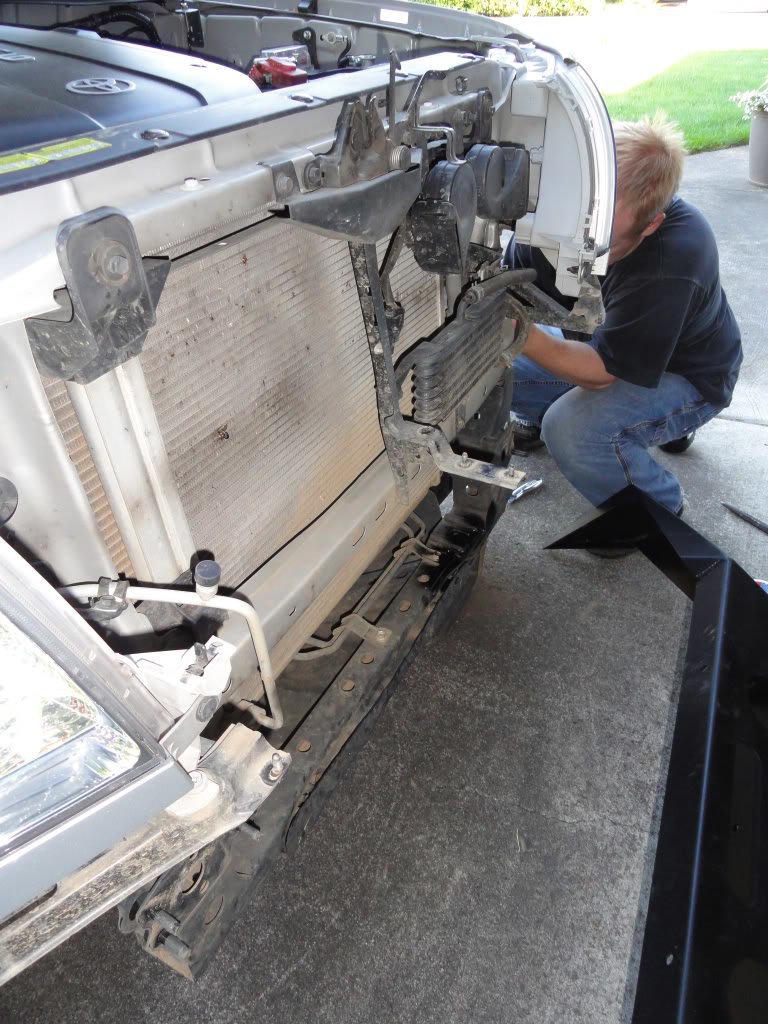

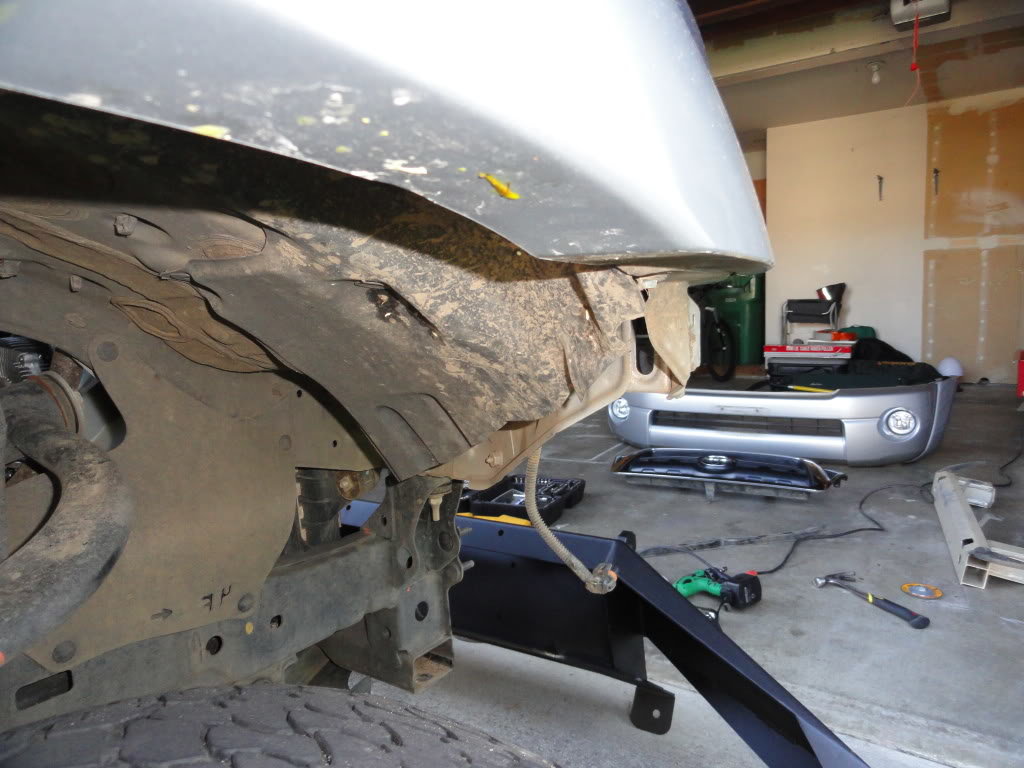

    Here are some pictures of the minor mods required to install:
    After removing the grille and factory plastic bumper 'shell'

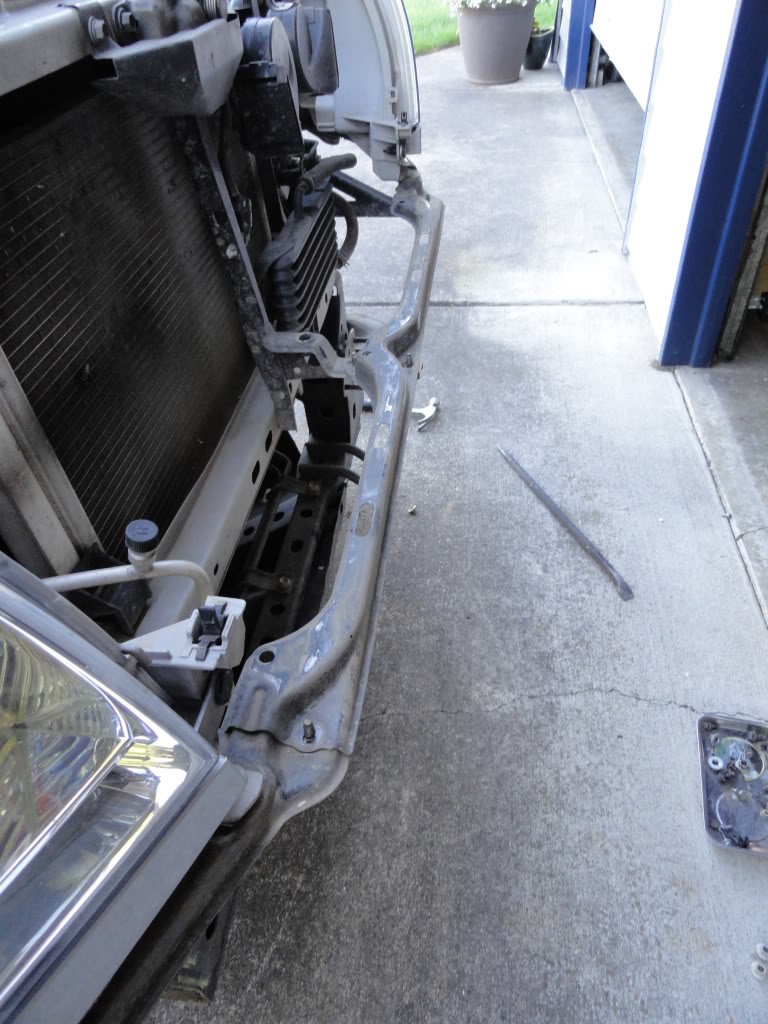

    1. remove this sheet metal cross bar via the 4- 10mm nuts.
    [​IMG]

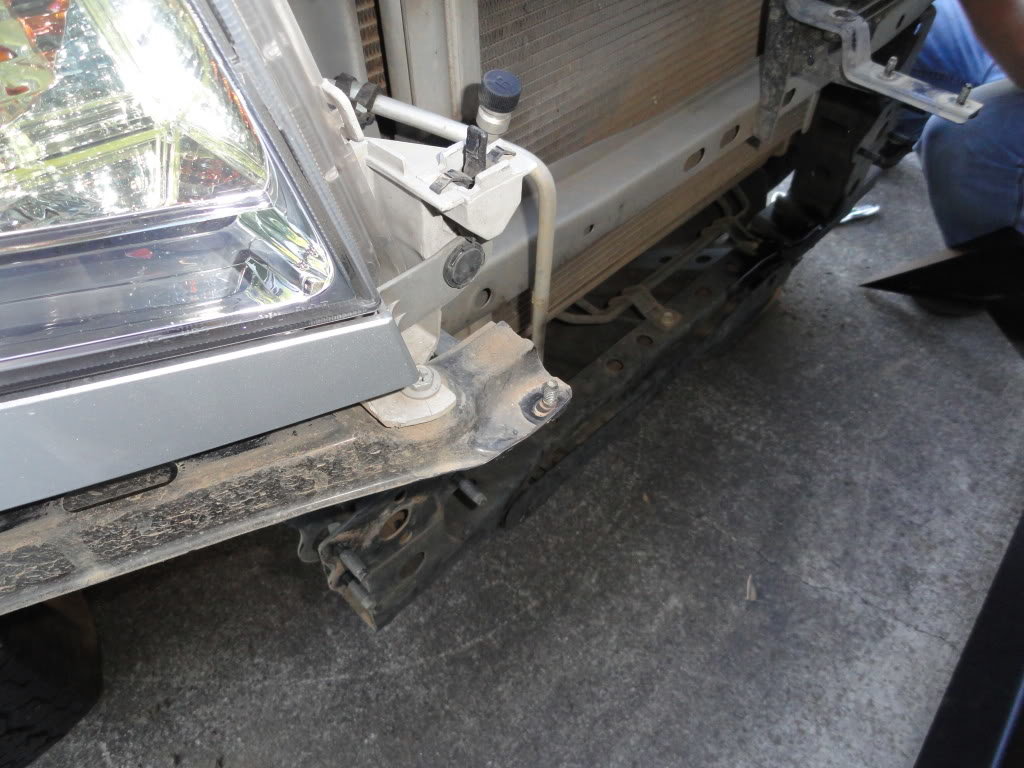

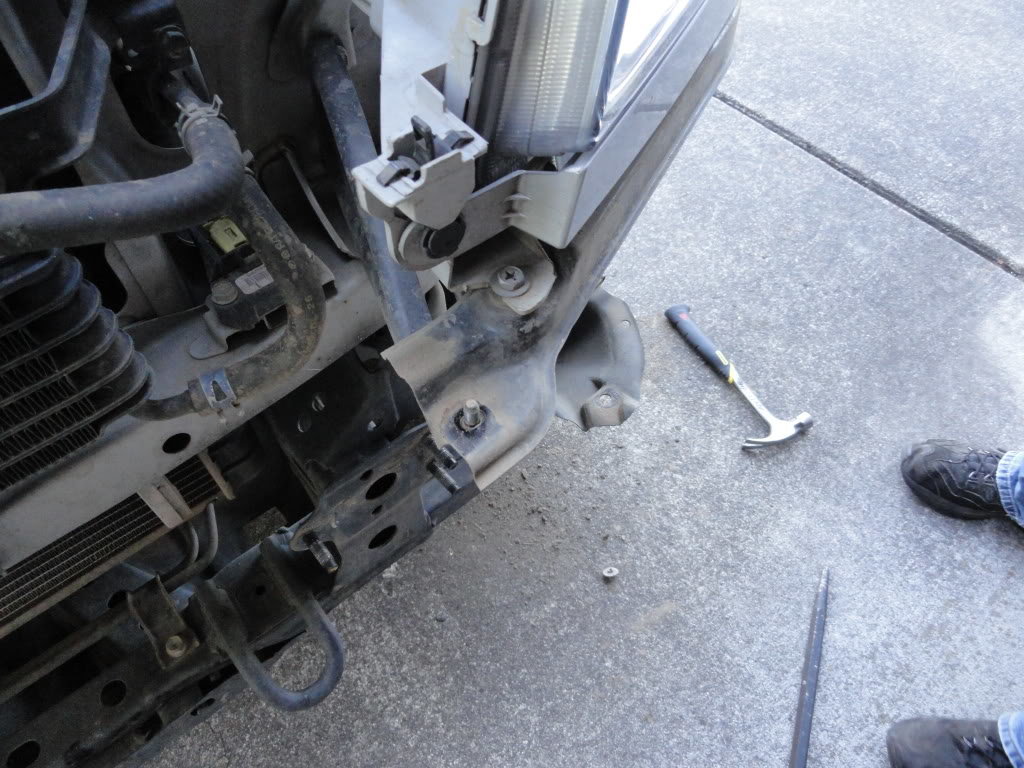

    2. The mounts for it on each side initially look like this:
    [​IMG]
    Also note the transport tie-down loop in the lower right corner of the picture; that will need to be trimmed off flush with the frame crossmember.

    Shave the sheet metal corner mounts down to look similar to this and then re-install the 2 10mm nuts.
    It may help to test fit the bumper after shaving a little so you don't cut more than necessary; You just don't want contact between them:
    [​IMG]
    [​IMG]

    Lastly, this is an illustration of how trimming the black plastic inner fender liner will look after it's cut. I just use the knife on my my Leatherman, or a razor to trim it but some snips or even a cutoff tool on a dremel or grinder will do.
    [​IMG]


    Attached Files:

  2. Jun 4, 2010 at 1:14 AM
    #2
    1337Taco

    1337Taco Slamry

    Joined:
    May 9, 2008
    Member:
    #6504
    Messages:
    7,447
    Gender:
    Male
    First Name:
    Kevin
    NorCal
    Vehicle:
    07 Tacoma Off-Road
    Camburg Spindles, Bilstein Rear plus AAL. 285 Hankook MT.
  3. Jun 4, 2010 at 3:03 AM
    #3
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,025
    Gender:
    Male
    F.U> GUYZ
    broken mods
    do these bumpers have a winch mounting area??

  4. Jun 4, 2010 at 3:15 AM
    #4
    MotoXdoer

    MotoXdoer taco?

    Joined:
    May 26, 2009
    Member:
    #17677
    Messages:
    1,633
    Gender:
    Male
    First Name:
    Nate
    San Luis Obispo, Ca
    Vehicle:
    06 Prerunner 4.0 a/c beast
    k&n cai 63 series intake, blacked out headlights, blacked out tailights, magnaflow pro offroad 17115 dumped, URD competetion y-pipe, total chaos 3.5" long travel, fox 2.5x8" remote resevoir shocks, allied 4" spindles, toytec 2" AAL, 20% tint up front and 5% rear, satoshi grille, ddm 50w 6000k hid's. wet okole custom trd seat covers with heaters. 4:56 nitro gears with arb rd129 air locker, arb ckmta12 dual air compressor.
    way sic!

  5. Jun 4, 2010 at 5:36 AM
    #5
    neslerrah

    neslerrah Who needs 4WD?

    Joined:
    Feb 18, 2008
    Member:
    #4803
    Messages:
    6,737
    Gender:
    Male
    First Name:
    Harrelsen
    Tucson
    Vehicle:
    5 lug BEAST!
    Secondary air filter removed, elbow mod, BFG KM2 (33x10.5R15), American Racing Mojaves, Debadged, BHLM, Dome Light MOD (Blue), Hella 500 behind recessed Satoshi Grille, Kenwood headunit, Sockmonkey 'TACOMA' Decals, Readylift 5-lug SST, Rear Shocks - Bilstein TRD, Dynomax Super Turbo #17748, DDM Slim Ballast HID Kit H4 Hi/Lo -35W 6000K in headlights, Apexcone Raptor HID Kit H3 - 35W 6000K in Hella 500s, aFe CAI #51-10762, WeatherTech Floorliner, 200W Smart AC Inverter
    looks great :thumbsup:

    If I had a 4x4, I would definitely buy one.

  6. Jun 4, 2010 at 8:21 AM
    #6
    Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,727
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    sweet dude! i need to get the 1st gen one going soon.

    and yes they have a winch mount inside for the person who asked

  7. Jun 4, 2010 at 8:38 AM
    #7
    Toyota Truck

    Toyota Truck Well-Known Member

    Joined:
    Nov 21, 2008
    Member:
    #10925
    Messages:
    1,958
    Gender:
    Male
    First Name:
    JT
    Texas
    Vehicle:
    2008 Prerunnner
    Magnaflow Muffler-TSB springs-Nuvi 265wt-aFe pro dry s filter-Husky Liners-Blue dome light-extra d-rings-OME 90000 sport struts-885 coils-N182 shocks-TSB AAL-LR UCAs-procomp black alloy rims- nitto terra grapplers-20% tint
    How much does it weigh?...Just curious.

  8. Jun 4, 2010 at 10:04 AM
    #8
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,399
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Thanks 1337taco for the additional pics!

    yes they do. They can handle any non-integrated solenoid winch in the 8000-9500lb range with an overall height of less than 8"(every one i've seen).
    Thanks. :)
    Thanks
    Base bumper weighs in at about 100-105lbs. :cool:

    Also, if anyone who has PMed me is reading this right now, I'm typing responses right now. :)

  9. Jun 4, 2010 at 10:22 AM
    #9
    OH-MAN

    OH-MAN Well-Known Member

    Joined:
    Apr 23, 2009
    Member:
    #16324
    Messages:
    2,271
    Gender:
    Male
    First Name:
    Steve
    Sunny Az.
    Vehicle:
    10 4X4 O.R. White
    TRD skid painted black,
    I am in.
    PM on the way!!!

  10. Jun 4, 2010 at 11:18 AM
    #10
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,399
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    PM's responded.

  11. Jun 4, 2010 at 2:01 PM
    #11
    Chickenmunga

    Chickenmunga Nuggety

    Joined:
    Apr 10, 2008
    Member:
    #5877
    Messages:
    6,354
    Gender:
    Male
    First Name:
    Mike
    Olympia, WA
    Vehicle:
    08 TRD Offroad DC 4x4 (read the build)
    I just bought a TV. So many things I want! :(

  12. Jun 4, 2010 at 2:02 PM
    #12
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Staff Member

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,351
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    im anxious about the one for the first gen!!!

  13. Jun 4, 2010 at 2:23 PM
    #13
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    5,102
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    can you post pictures of ramming something, JK. Looks really nice when I get more money Ill get back to you.

  14. Jun 4, 2010 at 2:28 PM
    #14
    STR8_BEAST

    STR8_BEAST MASTER CHIEF

    Joined:
    Dec 28, 2009
    Member:
    #28323
    Messages:
    1,583
    Gender:
    Male
    First Name:
    Collin
    HB, SoCal
    Vehicle:
    07 PRERUNNER TRD OR
    K&N CAI, MAGNAFLOW EXHAUST, MASSIVE SOUND SYSTEM, KENWOOD DNX 7140, WINDOW TINTS, REAR TSB, FRONT COIL SPACER, SATOSHI MOD, BHLM, WHITE CALIPERS, CB RADIO W/4FT FIRESTIK, MAGLITE MOD
    these look pretty sick!

    do you have any plans for making a tube prerunner bumper?

    oh and it looks like your gonna need new tires soon eric :p

  15. Jun 4, 2010 at 2:35 PM
    #15
    Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,727
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    ya me too i'm getting anxious to get this going! hopefully there will be as much interest from my 1st gen people haha

  16. Jun 4, 2010 at 4:07 PM
    #16
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,399
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Yeah, that would probably be fine as long as you dont intend on running a winch. Let me know if you want on the list.... :)

  17. Jun 4, 2010 at 6:32 PM
    #17
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,399
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Thanks. I will build any product there is a demand for, even one-off custom stuff. I just need my tube bender before I can do a prerunner bumper.
    As for tires..... a new set of 35x12.50 KM2's are probably going to be on in a few weeks. Just need to sell a few bumpers so I can afford them. ;)

  18. Jun 4, 2010 at 6:52 PM
    #18
    TRICOMA

    TRICOMA Tacoma with the TRI package

    Joined:
    Jan 20, 2009
    Member:
    #12770
    Messages:
    4,906
    Gender:
    Male
    First Name:
    Tri
    Carlsbad, CA
    Vehicle:
    2010 Tacoma DC SB 4x4 TRD Off Road
    King Off-Road Shock Coilover 2.5 with Resi in the front. King Off-Road Shocks 2.5 with Resi's for the rears, Rear Spring TSB, KMC XD Enduros 16x8, Black Vinyl Fenders, Bed compartment locks, Cobra 19 DX IV with Lil Wil mag mount antenna, CoverKing Seat covers front and rear, Built Right UCAs, Aluminess Expedition Bumper, GY Wrangler MT/R with Kevlar 265/75-16, Custom hybrid style rock sliders.
    Eric, is there room for a winch in there? What size? Looks like it will be a snug fit. Interested to see which ones will fit in there. I hope something like Warn or Superwinch.

  19. Jun 4, 2010 at 7:41 PM
    #19
    Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,727
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    get a damn tube bender before your tires! :D

  20. Jun 4, 2010 at 8:07 PM
    #20
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,399
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Yep there is. The area inside is 8"x8"x32" iirc. Most winches are around 24" long, 6" deep and just under 8" high so it is tight, but they fit. :)


Products Discussed in this Thread

To Top
