Relentless Fab 05+ Cut bedside high-clearance bumper

Discussion in 'Relentless Fabrication' started by RelentlessFab, Jan 24, 2011.

  1. Jan 24, 2011 at 6:23 PM
    #1
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,422
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Quick specs/overview:
    **This bumper requires cutting your bedsides level with the tail lights**
    -Uses 1/4" thick CNC Plasma cut steel mounting brackets, and solid 3/16" steel plate for the rest of the bumper including braces to the side plates directly off the mounting plates
    -Reinforced style side wrap-arounds match the look of your fender, but adds much needed beef to fend off trail obstacles!
    -Fits factory license plate lights for a clean look, and hassle free install.
    -Standard 3/4" steel recovery points
    -Gains a massive 5"+ of clearance all around vs. stock bumper/fenders!!
    -Available high-clearance hitch; Can be hidden behind the license plate for max clearance, or positioned just below the license plate for easy access for those that need to access the hitch often.
    -Available back up light recesses for 4" round lights

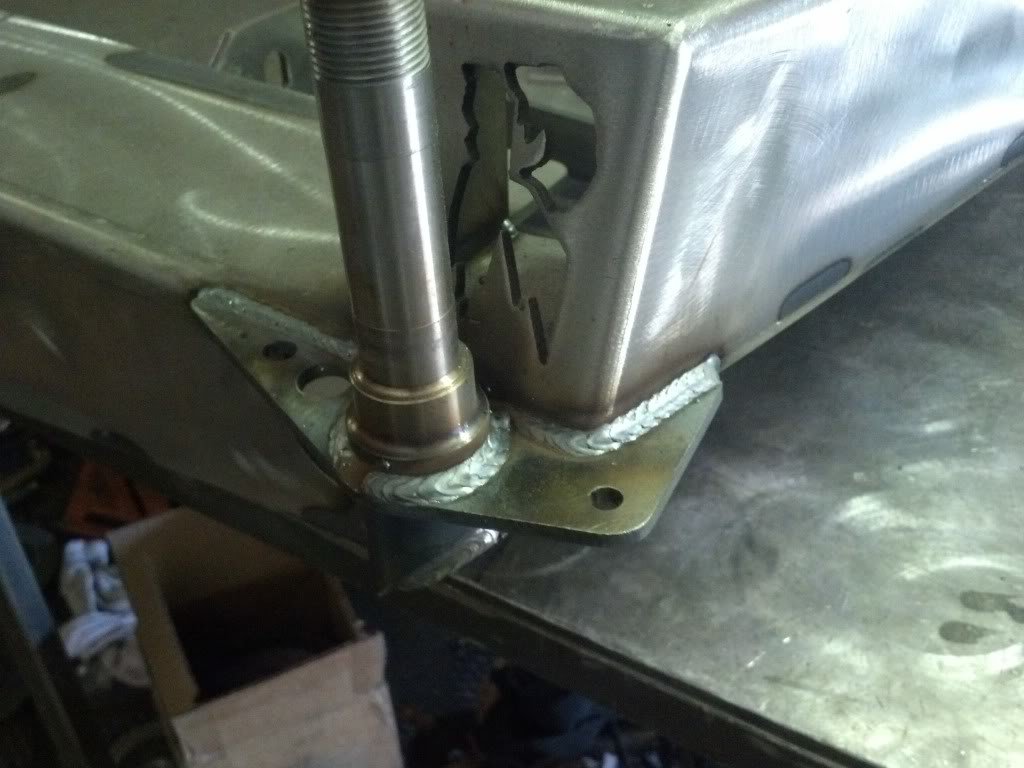

    -Available spare tire carriers. Single pivot uses a 1750lb rated spindle for the pivot point, can also do double swingouts.
    -Weight: 140lbs base bumper


    More information can be found on our website here: http://www.relentlessfabrication.us/online-store.php#!/~/product/category=3368787&id=19083269



    Notes:
    Cutting of bedsides is required! This is a fairly technical job that needs to be done with care, and done right. If you hack up your truck too much, or slip with the grinder, theres no going back!
    **Receiver hitch is not towing rated** Though the hitch is built pretty beefy, I can't put it though the necessary testing to have it officially rated, therefore if it is used for towing, you do so at your own risk. I cant take the liability if something happens, I'm sure you can understand where I'm coming from with this.

    Sample pics:

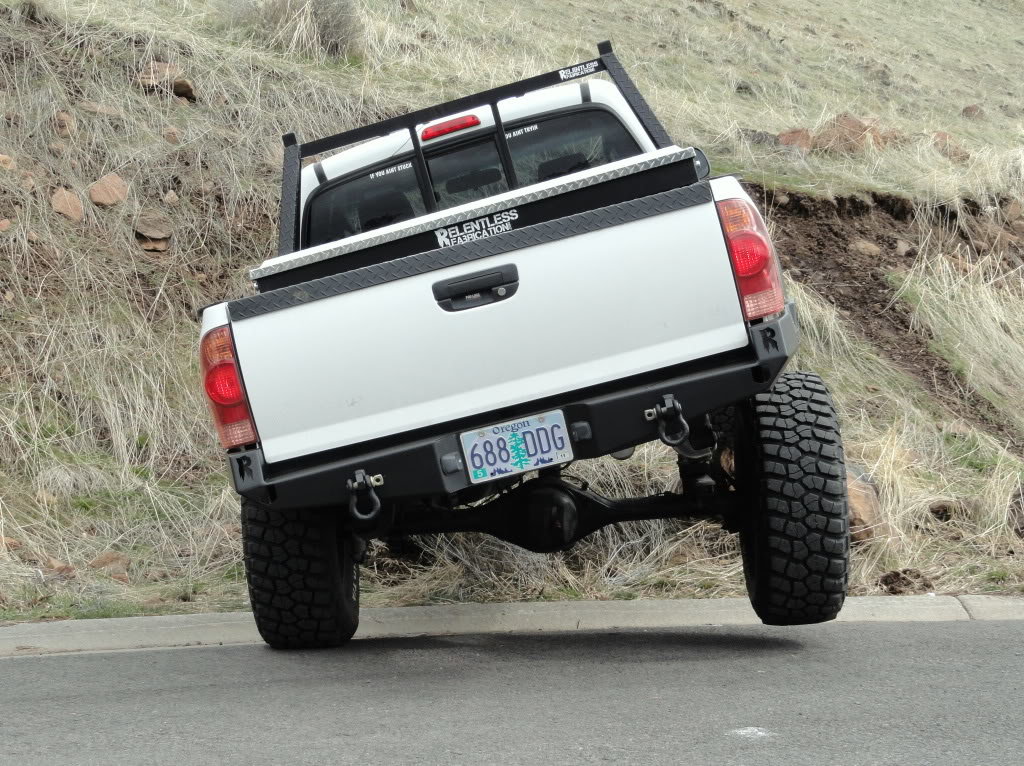

    MCK419's truck:

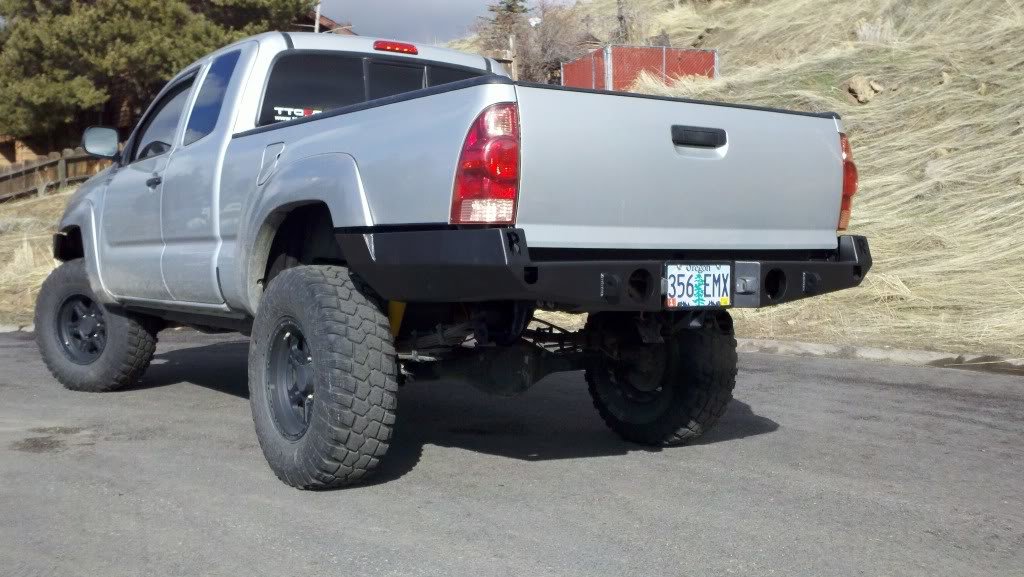

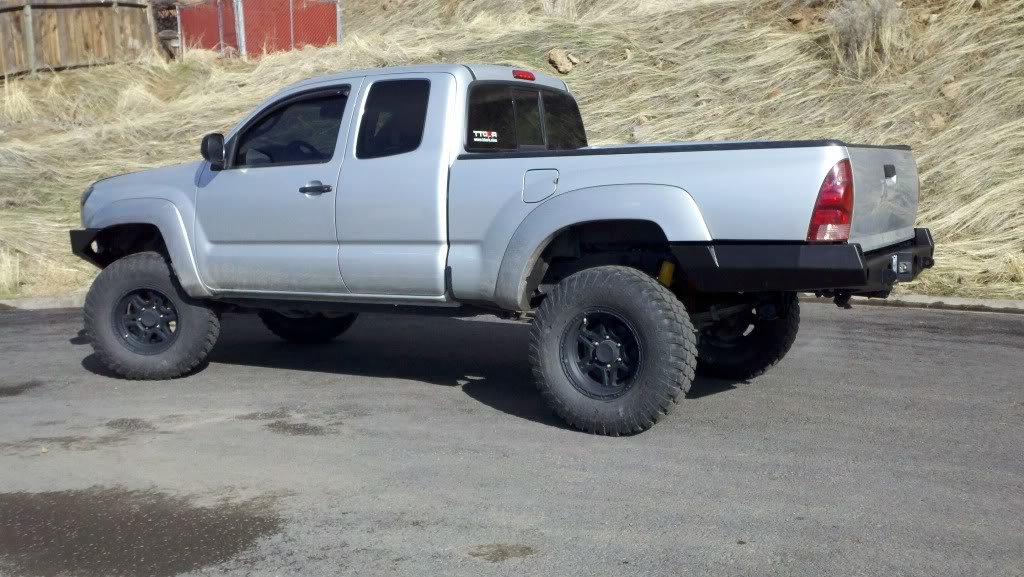

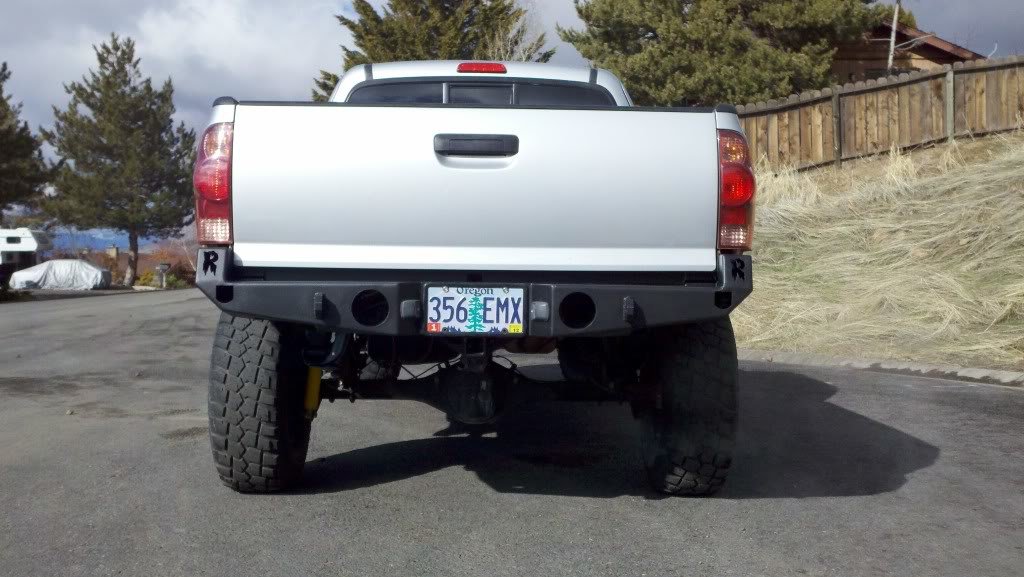

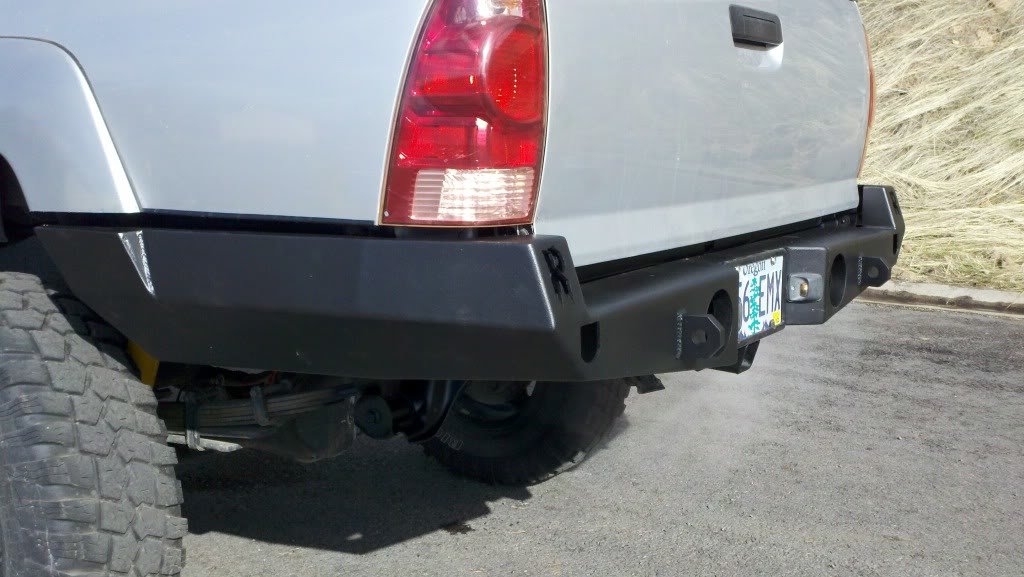

    (base+hitch+back up light recesses

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
    Thanks to Joe(mck419) for being my guinea pig and allowing his truck to get hacked! :cool:

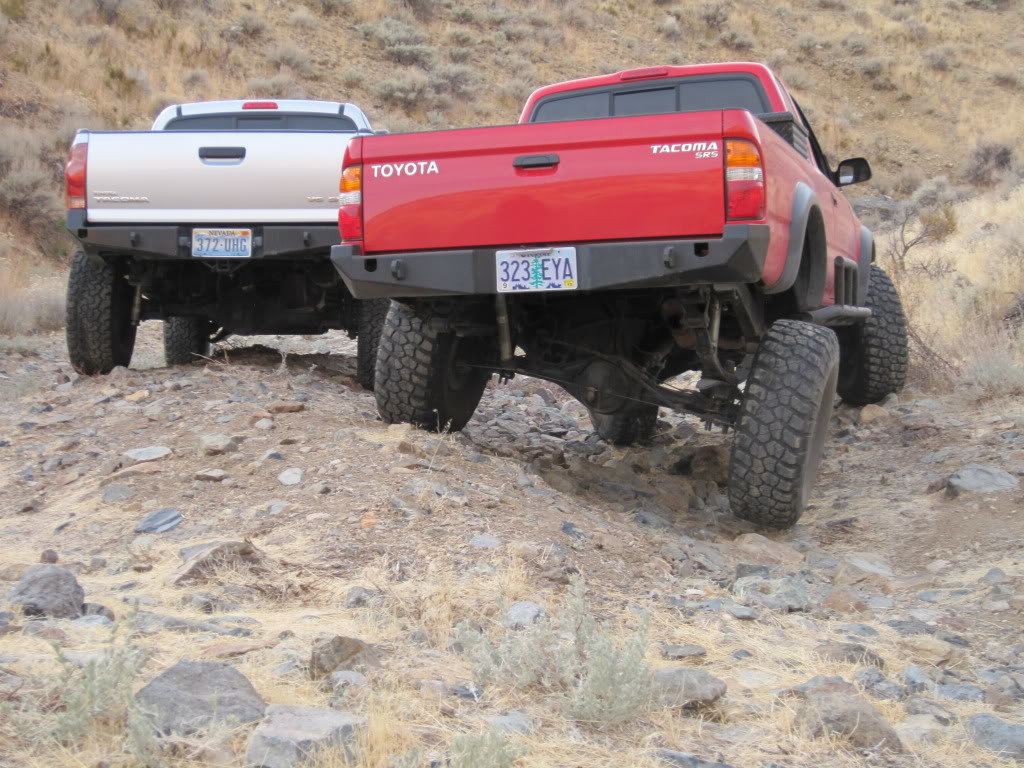

    My old personal truck:
    (base bumper)
    [​IMG]

    [​IMG]

    [​IMG]

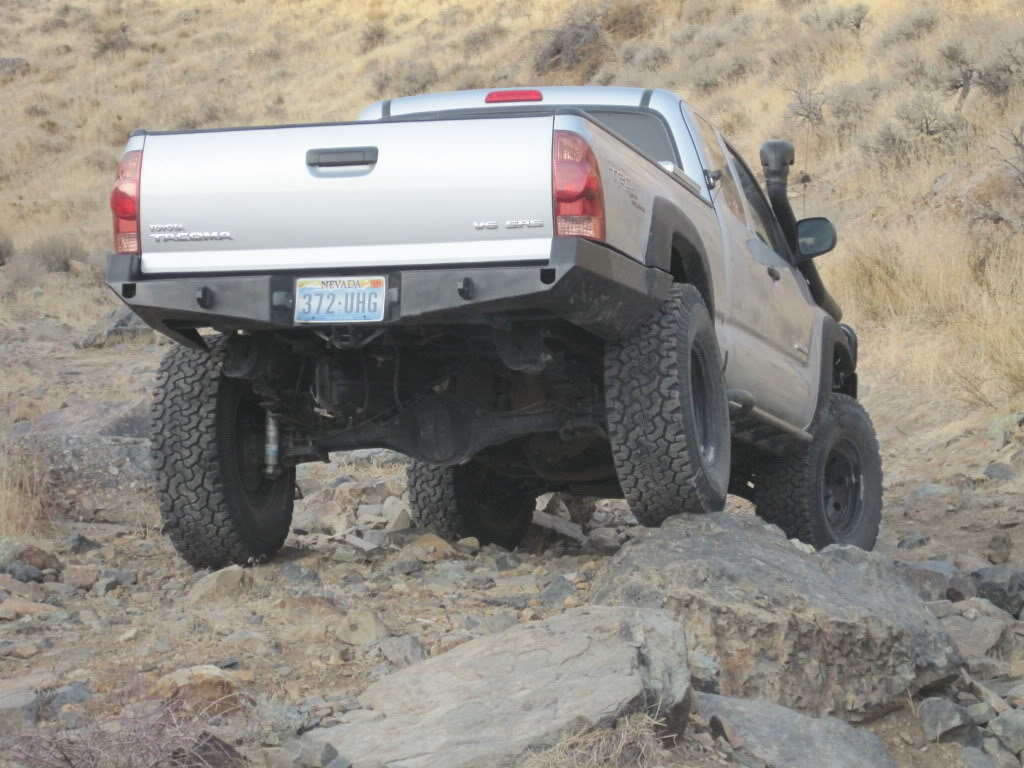

    Maxamillion1234's truck:
    [​IMG]
    [​IMG]

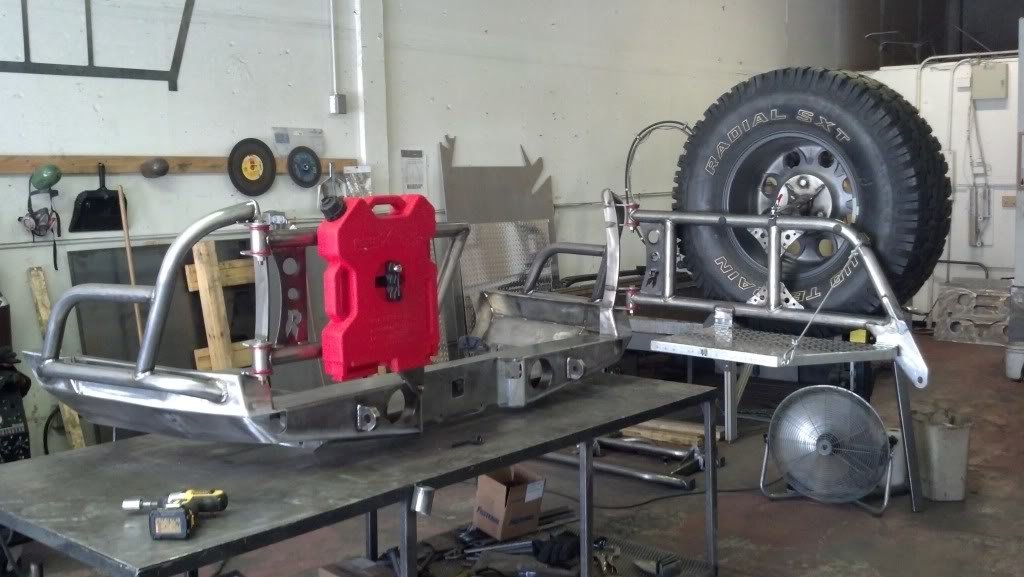

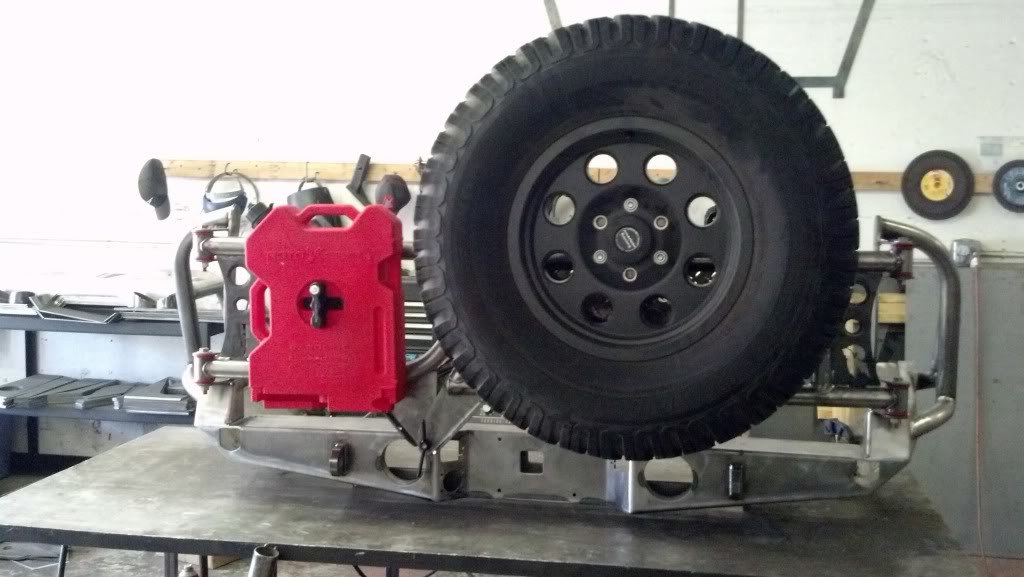

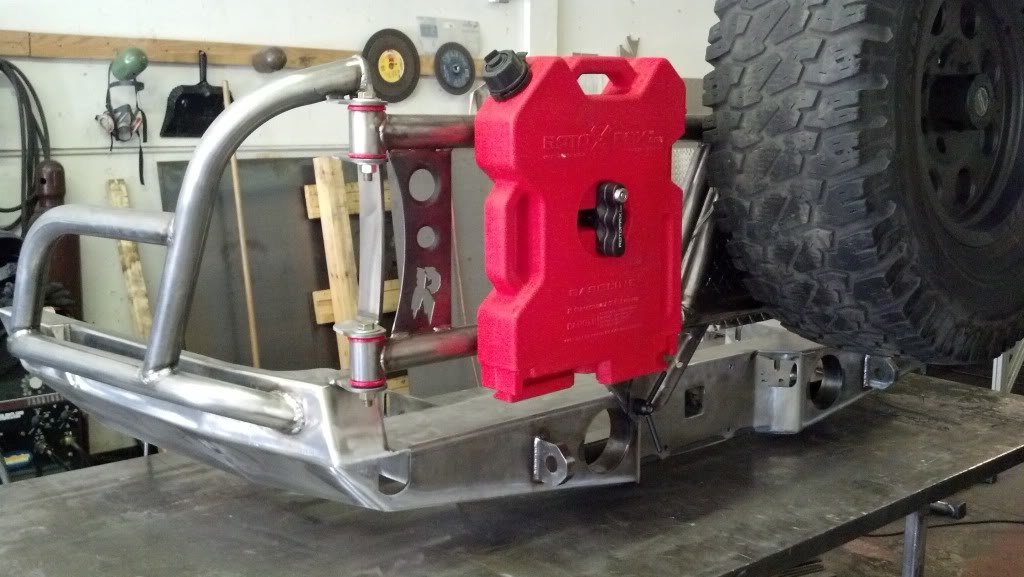

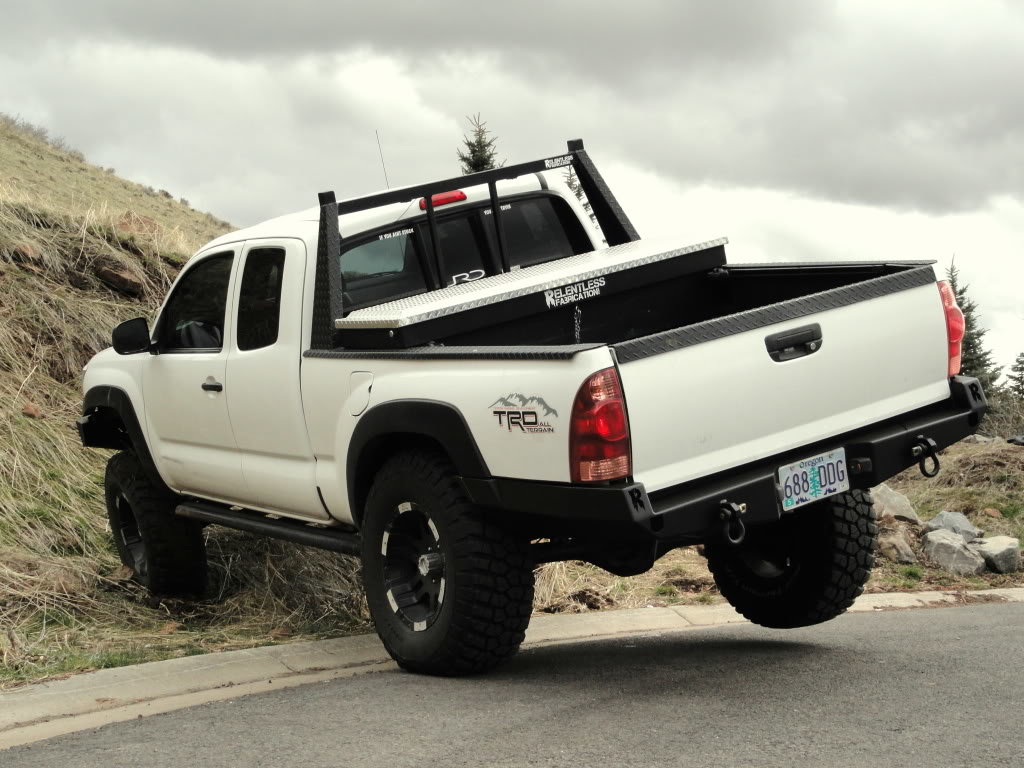

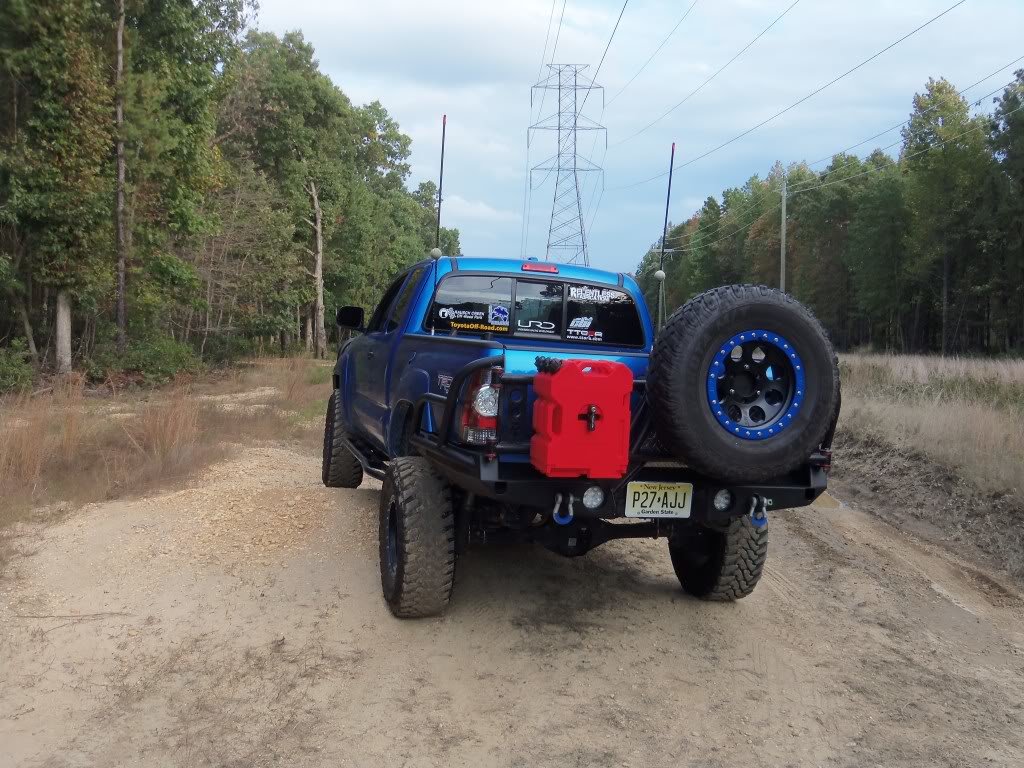

    HC rear, dual swing outs/jerry can+spare tire holder, backup lights, hidden hitch
    [​IMG][​IMG]
    [​IMG]

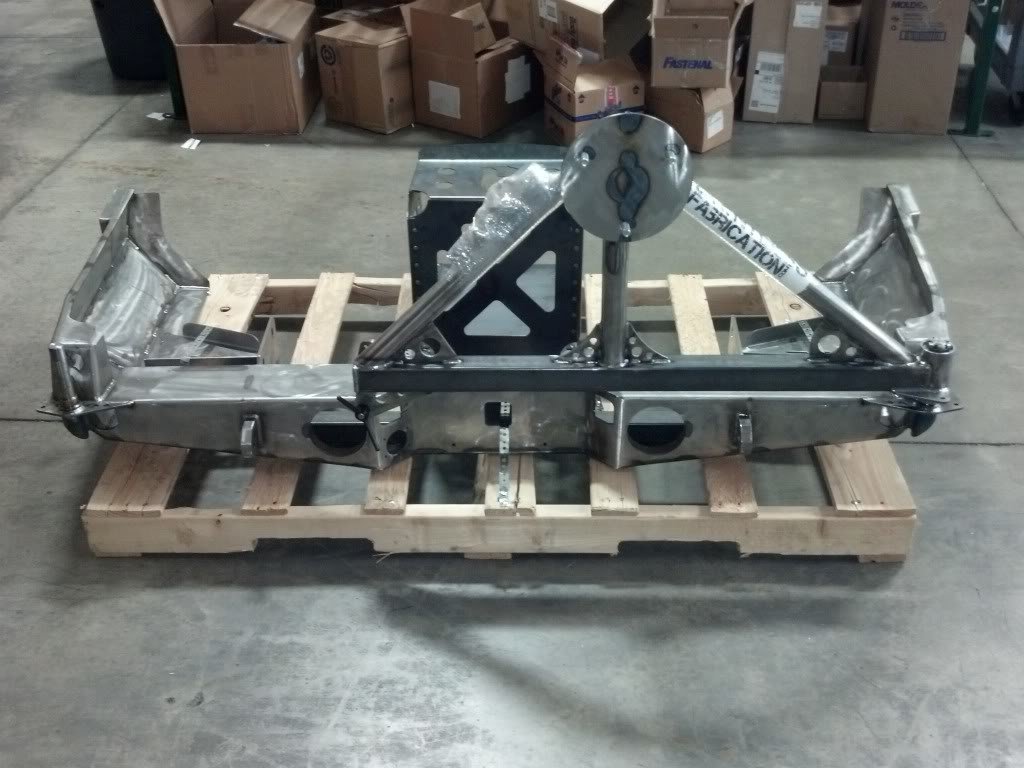

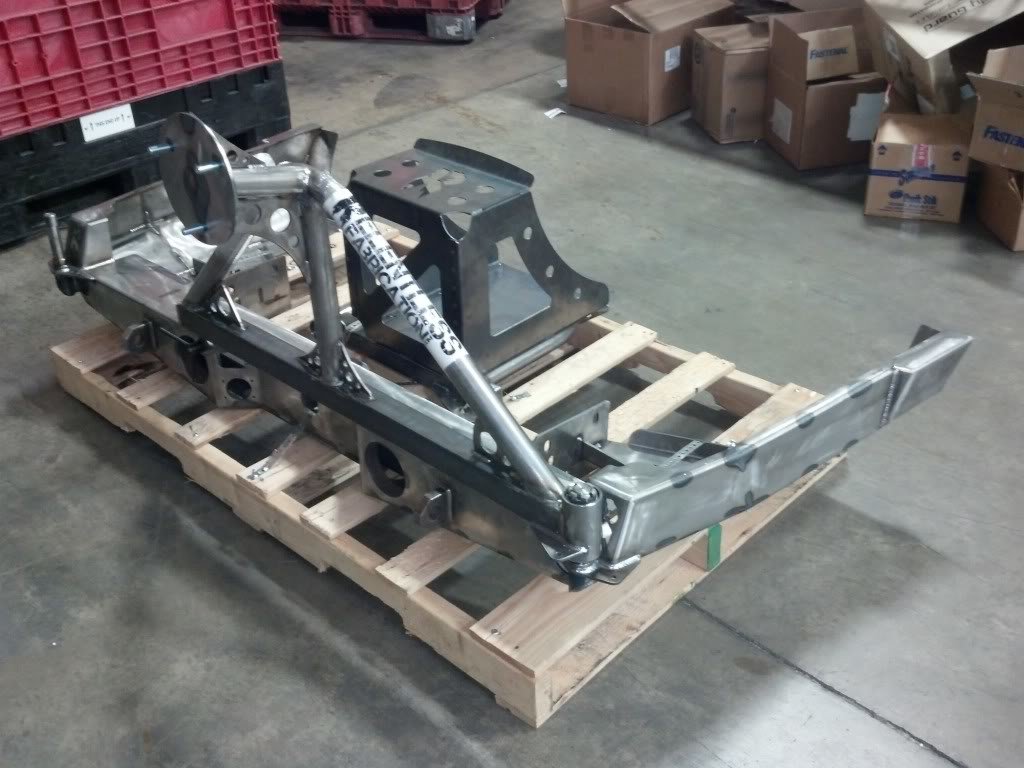

    PSUTaco's 'beast bumper'
    [​IMG]
    [​IMG]
    [​IMG]

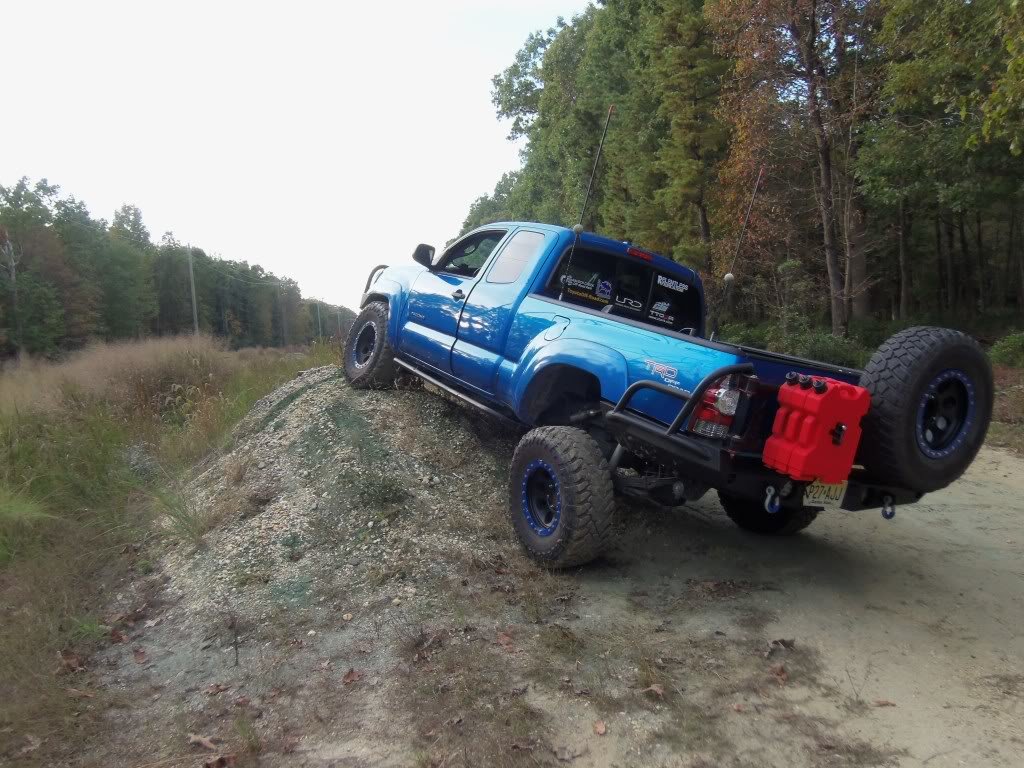

    [​IMG]

    Mounted:
    [​IMG]
    [​IMG]


    Attached Files:
