Relentless Fab. 05+ Rear plate bumper.

Discussion in 'Relentless Fabrication' started by RelentlessFab, Dec 12, 2010.

  1. Dec 12, 2010 at 4:48 PM
    #1
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,372
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Hey everyone, here it is! The Relentless fab 2005+ Tacoma off-road rear plate bumper!

    Key features:
    -Made from 3/16”, ¼”, and ¾” thick steel, CNC cut and bent, and MIG welded for unbeatable quality and rugged good looks with the strength to back them up.
    -Reuse your factory license plate lights, unlike other aftermarket bumpers!
    -Greatly improved clearance over low hanging factory bumper and hitch.
    -Mounts through 1/4" steel mounting brackets, and uses up to 5 mounting points per side of frame for 10 total mounting points!
    - Standard 3/4" recovery points, and cutout hi-llft jacking points.
    -Each bumper is hand made to order to your exact specifications.
    -Ships in bare steel leaving coating preference up to you.
    - Only 75lbs base bumper weight(lighter than factory bumper/hitch, but stronger!)

    Pricing:
    Base rear bumper with recovery points starts at $659 + shipping.


    Options:
    -Swing away tire carrier: Starts at +$350
    -Add receiver hitch**: +$80-100
    -Recessed mounts for back up lights: +$40
    -Possible hidden winch mount. $+80
    - Add optional 'L' brackets for additional mounting strength(required addition if hitch is added and you dont have the factory tow package 'L' brackets)

    Installation:
    No vehicle modification is necessary to install. Simply remove the factory rear bumper and bolt the beefier Relentless rear plate bumper up with basic hand tools!
    **Factory tow hitch will NOT work with this bumper. I can integrate a hitch into the bumper, but since I cannot get it officially tested like the factory hitch, it comes unrated for capacity and full responsibility and liability is on you if you decide to tow with it. I'm sure you can understand, theres just a lot of liability there that I can't claim. These are off-road bumpers.

    Shipping:
    Rear bumpers can ship via FedEx or Fastenal freight. All bumpers come complete with necessary hardware to mount your license plate, and the factory license plate lights to the bumper.

    Base rear bumper ships to most places for approx. $50-$120 via UPS ground. *Options such as tire carrier will change this quote quite drastically due to extra weight/dimensions.


    Pictures:

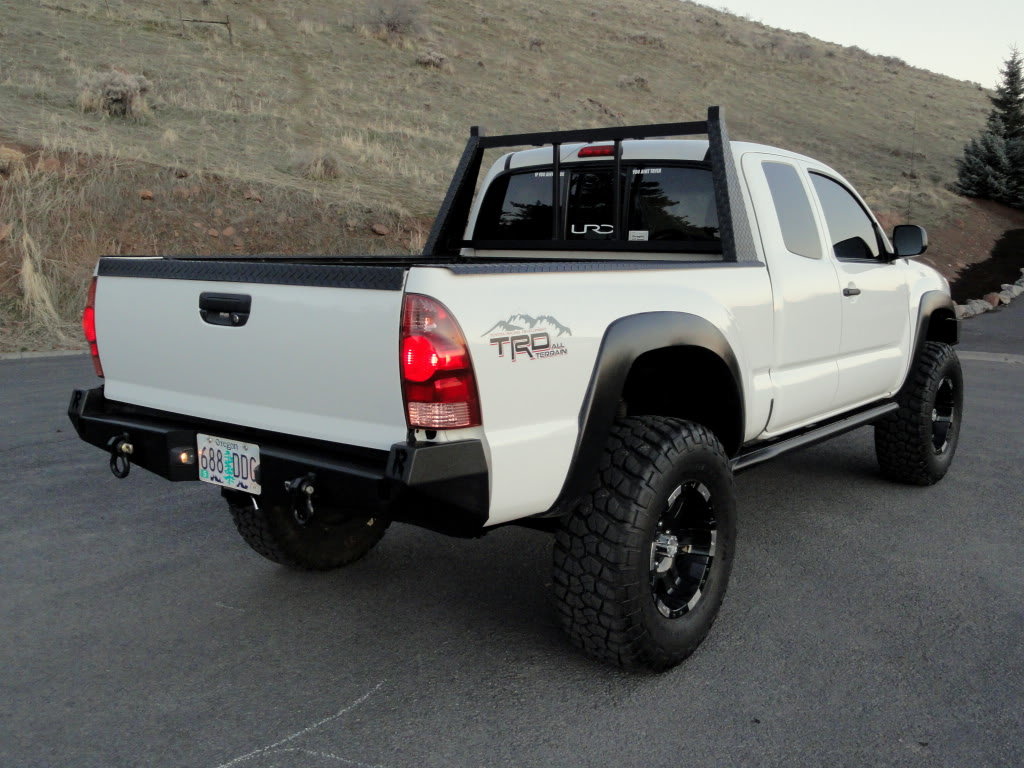

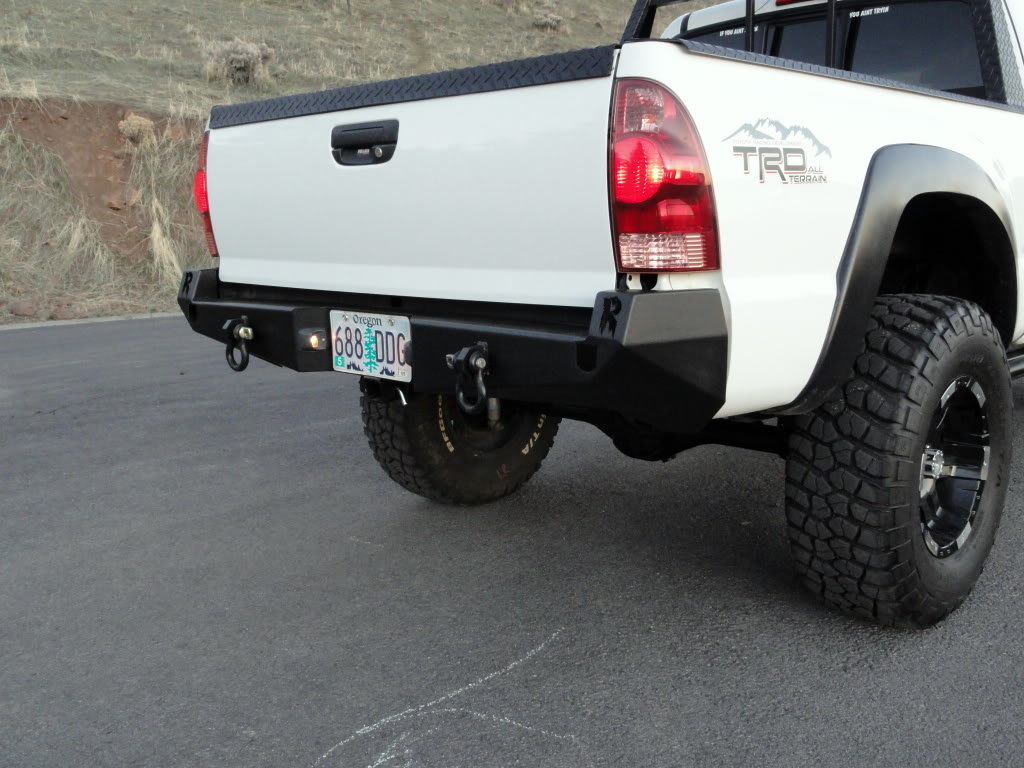

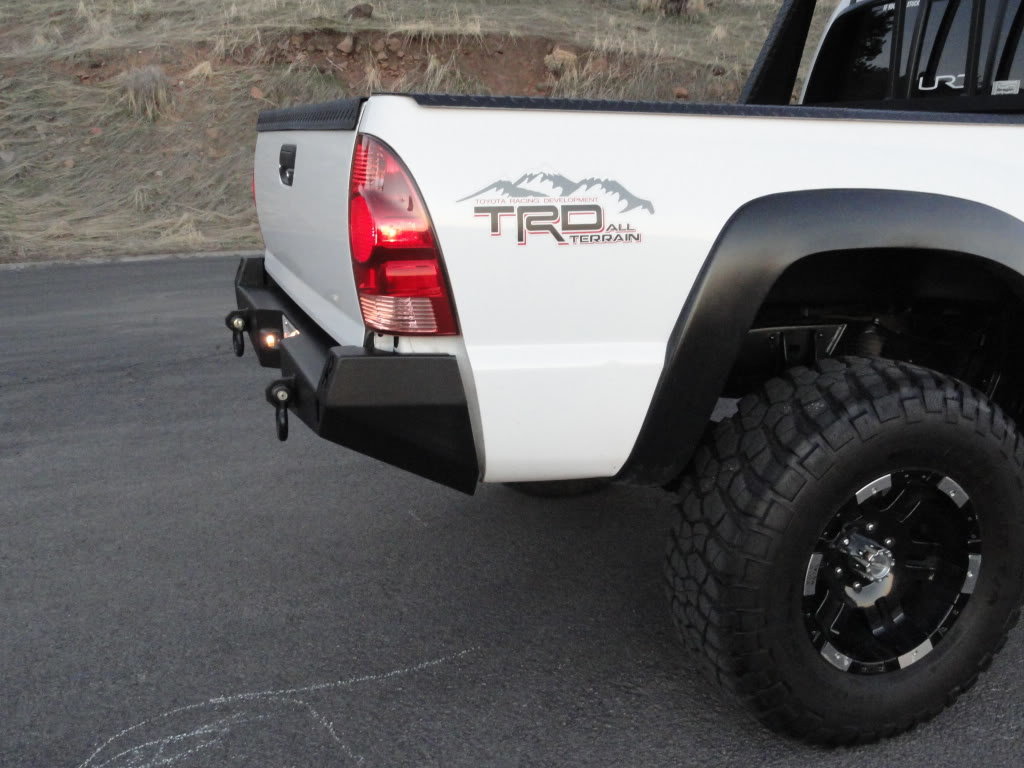

    La0dog's base rear:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

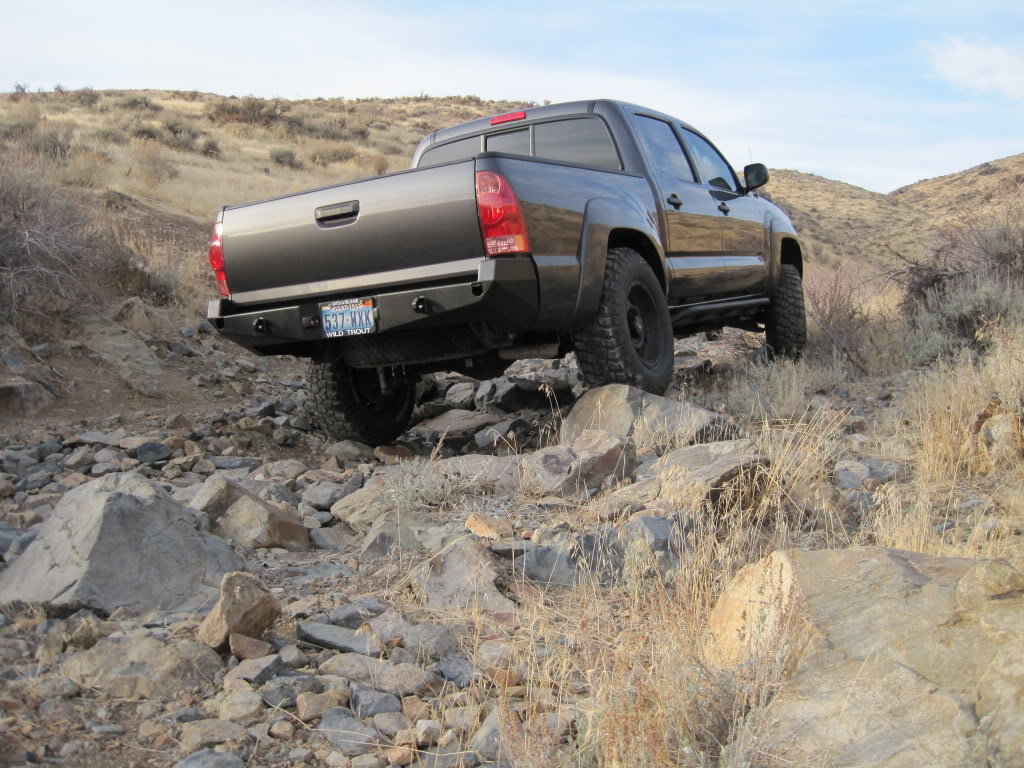

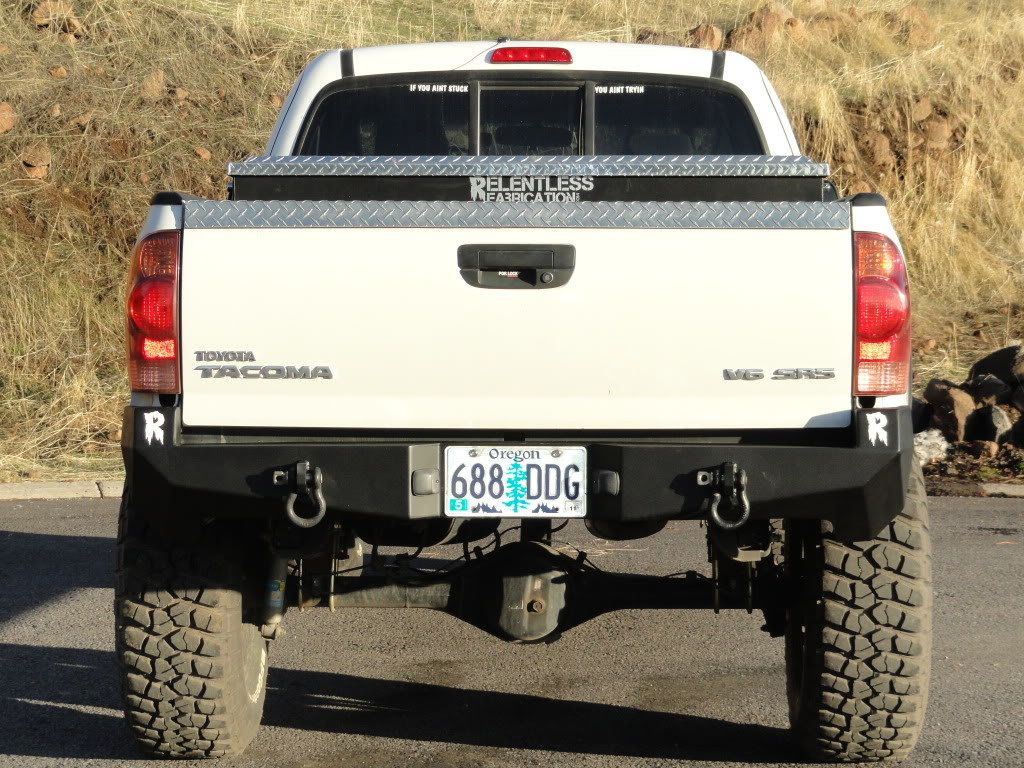

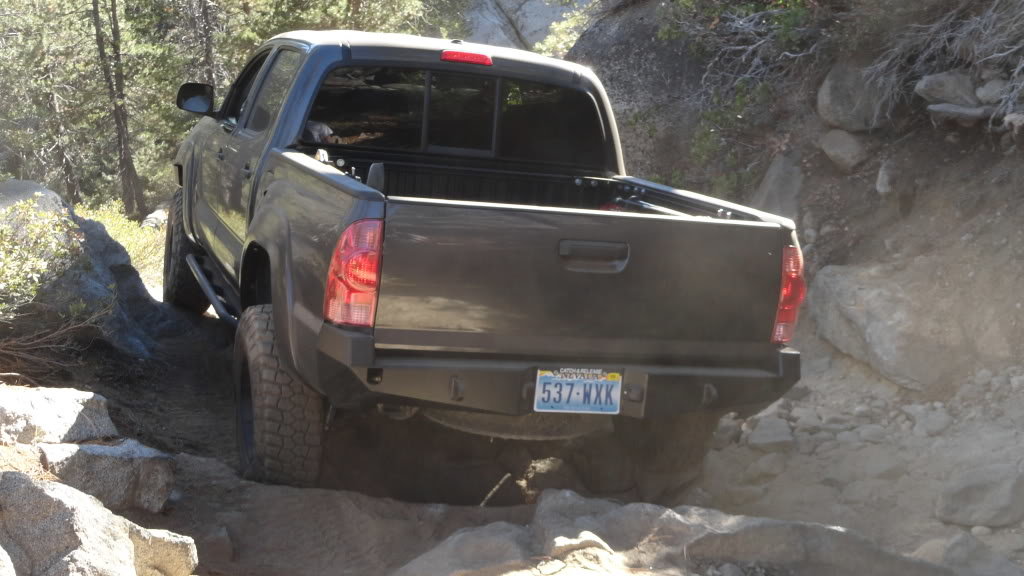

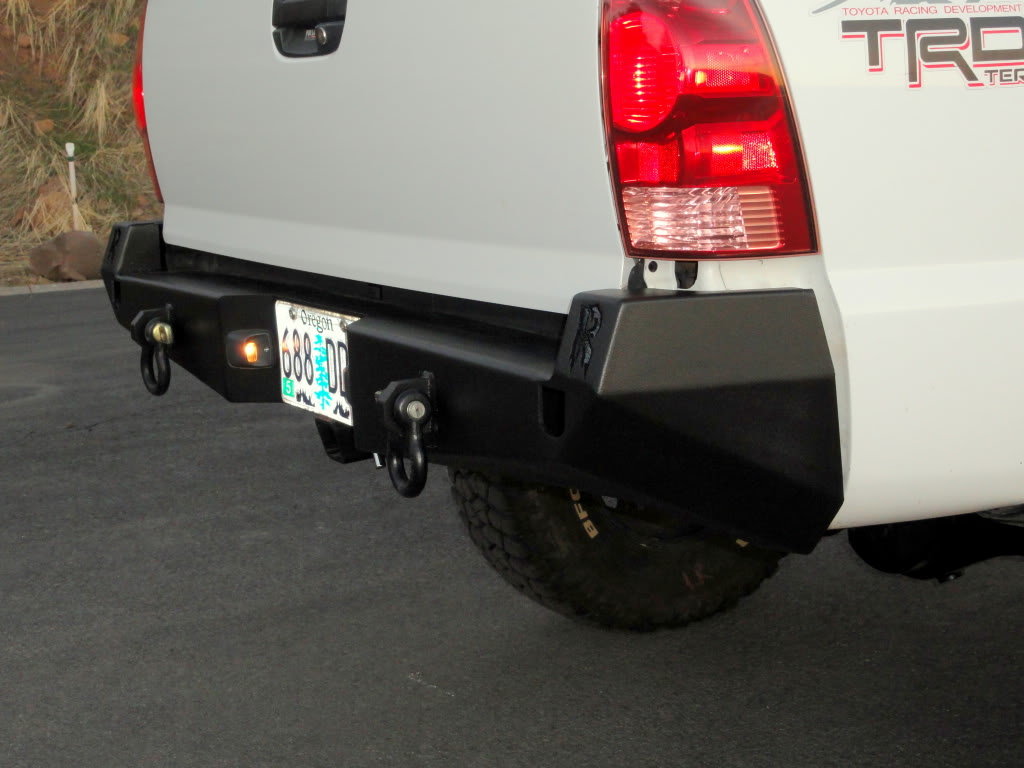

    Original prototype bumper images from my old truck:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

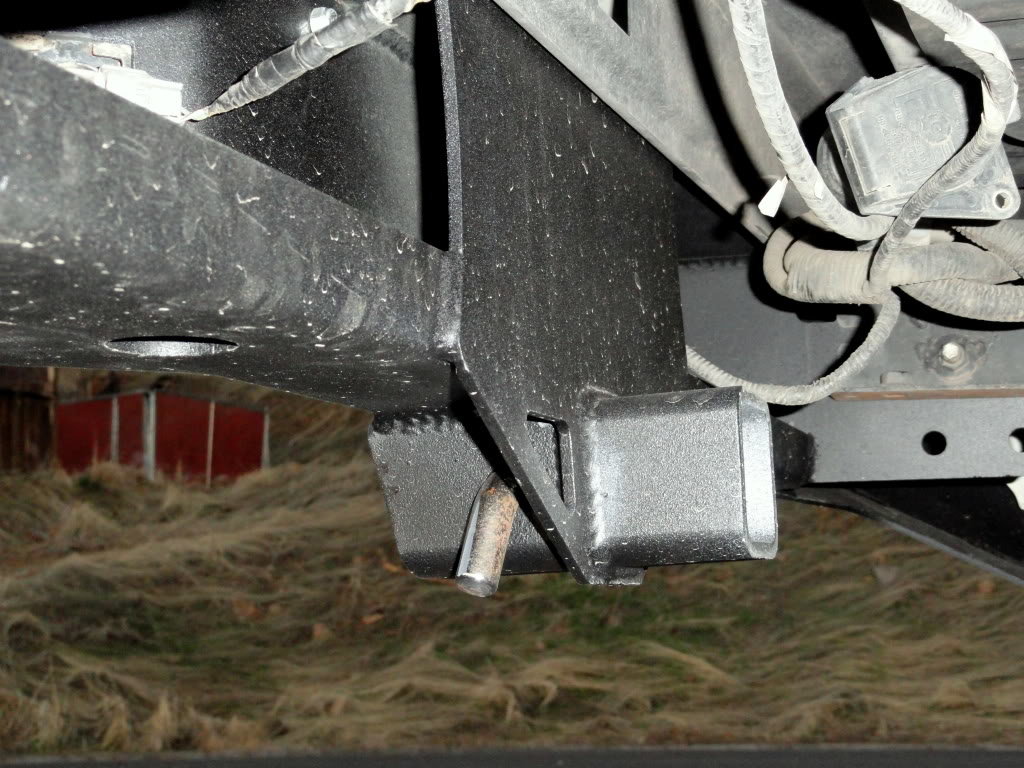

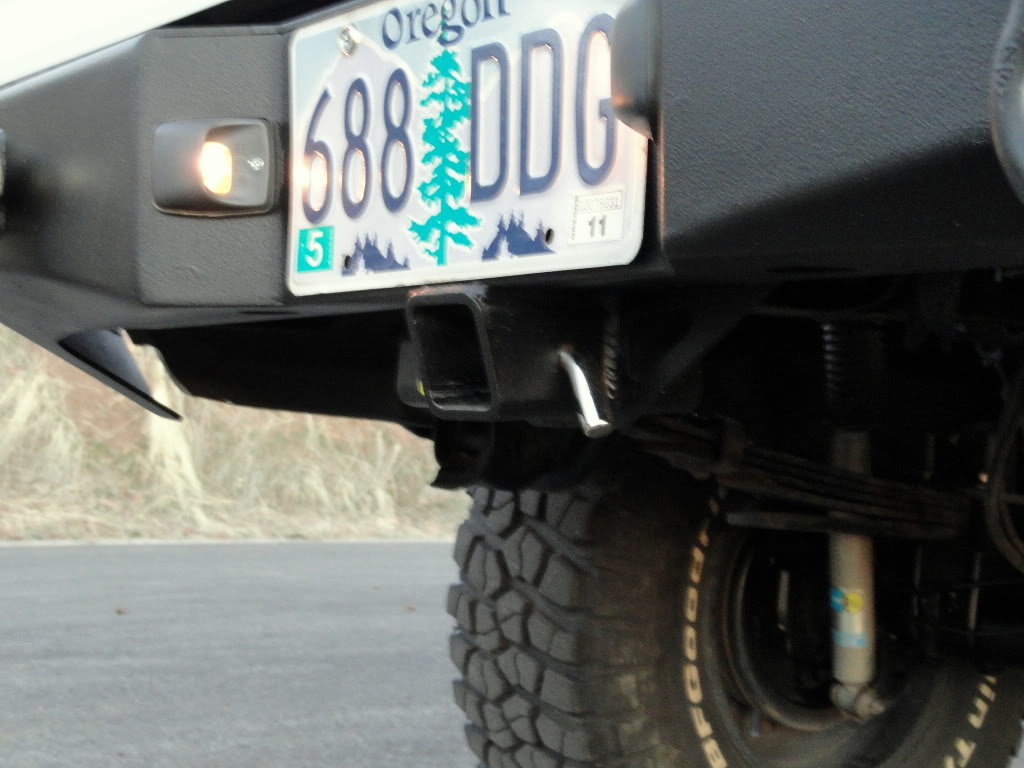

    Optional hitch:

    [​IMG]

    [​IMG]


    Attached Files:

    Last edited: Jan 21, 2014
  2. Dec 12, 2010 at 4:51 PM
    #2
    Hunter500ky

    Hunter500ky Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47031
    Messages:
    2,522
    Gender:
    Male
    E-Town Ky
    Vehicle:
    06 Tacoma 4x4 SR5
    Weathertech Mats, Toolbox, 6k HID fogs, Hardwire Escort 8500 x50,
    Cant wait to see one with the factory tow hitch there looks sick though

  3. Dec 12, 2010 at 4:54 PM
    #3
    Colton

    Colton Reagan/Bush '84

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,058
    Gender:
    Male
    First Name:
    Colton
    VA/SC
    Vehicle:
    08 4X4 TRD Sport super white
    Bilstein 5100 F&R, OME 885 w/ top plate spacers, 1.5" AAL, 285/70/17 Hankook Dynapro MT, 17x9 Level 8 MK6, 20% tint, AEM Brute force intake, Alpine CDE-W235BT, 2 12" Shok subs, Armortech sliders, EBC Stage IV brake it, stainless steel brake lines
  4. Dec 12, 2010 at 4:56 PM
    #4
    APTJ

    APTJ Well-Known Member

    Joined:
    Dec 5, 2009
    Member:
    #27045
    Messages:
    276
    Gender:
    Male
    First Name:
    Eric
    Texas
    Vehicle:
    2005 Dcab SR5 4x4
    grill, lights, bull bar, rims, tires,
    sweet!

  5. Dec 12, 2010 at 5:00 PM
    #5
    SuthrnTaco07

    SuthrnTaco07 Well-Known Member

    Joined:
    Jul 23, 2009
    Member:
    #20053
    Messages:
    2,624
    Gender:
    Male
    First Name:
    Kyle
    Huntsville, AL
    Vehicle:
    2007 Taco TRD SPORT 4x4 Red
    Black Headlight mod, Aries Black bull bar w/ 2 4" fog lights, Running light mod, Fog light mod, Speakers in the bed, Debadged in places and painted satin black, 6" Pro Comp Lift On 18" XD Black Rockstar Wheels w/ 35x12.50 R18 ProComp Xtreme M/T's!!!
    :drool: mmmmmmmmmmmm buuuummmmppppeeeerrrrr!! Nice man! LOVE IT!

  6. Dec 12, 2010 at 5:06 PM
    #6
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,372
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Factory hitch wont work with this bumper. The stock rear bumper mounts to the tow hitch with 2 bolts, so this bumper wouldnt be secure enough for recovery/winching/tire carrier only mounted like the factory one.
    Thanks! You're on the order list! :)

  7. Dec 12, 2010 at 5:10 PM
    #7
    kinkrider101

    kinkrider101 Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,698
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    This is so sick! Any plans for prerunner bumpers?

  8. Dec 12, 2010 at 5:11 PM
    #8
    SuthrnTaco07

    SuthrnTaco07 Well-Known Member

    Joined:
    Jul 23, 2009
    Member:
    #20053
    Messages:
    2,624
    Gender:
    Male
    First Name:
    Kyle
    Huntsville, AL
    Vehicle:
    2007 Taco TRD SPORT 4x4 Red
    Black Headlight mod, Aries Black bull bar w/ 2 4" fog lights, Running light mod, Fog light mod, Speakers in the bed, Debadged in places and painted satin black, 6" Pro Comp Lift On 18" XD Black Rockstar Wheels w/ 35x12.50 R18 ProComp Xtreme M/T's!!!

    Do i get a discount if Auburn loses the BCS Championship game?

  9. Dec 12, 2010 at 5:12 PM
    #9
    MY50cal

    MY50cal I think I'm getting the Fear.

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    2,755
    Gender:
    Male
    First Name:
    Mojo
    Coatesville, PA
    Vehicle:
    05 SWB TRD 4x4
    Yes.
    finally! :D

  10. Dec 12, 2010 at 5:12 PM
    #10
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,372
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    ya i'll be doing some tube prerunner bumpers too. :)
    haha, no.:p:cool:

  11. Dec 12, 2010 at 5:13 PM
    #11
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,372
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    You're on the preorder list too Mojo, any idea when you want to actually place the order?

  12. Dec 12, 2010 at 5:15 PM
    #12
    Caduceus

    Caduceus Well-Known Member

    Joined:
    Oct 6, 2009
    Member:
    #23889
    Messages:
    1,748
    Gender:
    Male
    the Lowcountry
    Vehicle:
    09 DCSB TRD 4x4
    That's a sweet looking bumper. I don't need it, but I want it!

  13. Dec 12, 2010 at 5:15 PM
    #13
    himmie

    himmie Well-Known Member

    Joined:
    Sep 6, 2010
    Member:
    #42841
    Messages:
    3,523
    Gender:
    Female
    First Name:
    Sarah
    AZ-WI
    Vehicle:
    08 TRD Off Road 4x4
    Visit the Build.
    Looks nice! I will keeping this in mind...

  14. Dec 12, 2010 at 5:18 PM
    #14
    mach1man001

    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    6,165
    Gender:
    Male
    First Name:
    Rob
    Blackstone, MA
    Vehicle:
    '09 Sport DC LB Met Grey
    Toyota bed mat (1st mod), Toyota all season floor mats, Rear spring TSB, Map light mod, Fog light mod, Putco yellow fog bulbs, Weather Tech window vents, Extra d-rings, Mounted mag light, TRD CAI with AFE pro dry filter, '05 front mud flaps (winter only), 2 set's of wheels/tires, 285/75/16 Duratrac's, Black Painted 1st Gen TRD wheels (wheeling set) Black powder coated FJ Cruiser with 265/70/17 Michelin AT2 tires (everyday), painted center of grill & bumper black, Devil horns, OME with 885's front, OME shocks w/OMD designed rear springs, Front diff drop, Rear trailer plug relocate, ATO IFS skid, Relentless Trans & Transfer skids, BAMF bolt on rock sliders, Relentless tailgate reinforcement, Uniden 75 CB radio, BAMF antenna bracket, TRD exhaust, high lift jack w/ATO mounts. And of course ProEFX Towing Mirrors!
    Nice looking rear end!!! Question, why does the bumper not go closer to the tail lights? Otherwise very nice.

  15. Dec 12, 2010 at 5:25 PM
    #15
    TRDguyKC

    TRDguyKC Well-Known Member

    Joined:
    Sep 18, 2008
    Member:
    #9316
    Messages:
    1,008
    Gender:
    Male
    First Name:
    Kris
    Glendale, AZ
    looks awesome..... do you plan to make any high clearance ones? i really like the rear dimensions and shapes..... Im not in the market NOW but i think id like a high clearance one in the future.

  16. Dec 12, 2010 at 5:25 PM
    #16
    Colton

    Colton Reagan/Bush '84

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,058
    Gender:
    Male
    First Name:
    Colton
    VA/SC
    Vehicle:
    08 4X4 TRD Sport super white
    Bilstein 5100 F&R, OME 885 w/ top plate spacers, 1.5" AAL, 285/70/17 Hankook Dynapro MT, 17x9 Level 8 MK6, 20% tint, AEM Brute force intake, Alpine CDE-W235BT, 2 12" Shok subs, Armortech sliders, EBC Stage IV brake it, stainless steel brake lines
    Looks great Eric!

  17. Dec 12, 2010 at 5:27 PM
    #17
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,372
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Thanks.
    yeah, I have a donor truck lined up to hack bedsides on and build a high clearance bumper. Probably in about a month. This bumper already adds significant clearance over stock though. :cool:
    Thanks Colton. :)

  18. Dec 12, 2010 at 5:31 PM
    #18
    Jason'sLawnCare

    Jason'sLawnCare Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,412
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    probably protection. I'd rather have a tree or another vehicle hit my bumper than my tailgate or rear lights.

  19. Dec 12, 2010 at 5:46 PM
    #19
    MY50cal

    MY50cal I think I'm getting the Fear.

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    2,755
    Gender:
    Male
    First Name:
    Mojo
    Coatesville, PA
    Vehicle:
    05 SWB TRD 4x4
    Yes.
    Thanks bro!....

    I did not know this was in the future though, I might hold off and see what you come up with!

  20. Dec 12, 2010 at 5:49 PM
    #20
    RelentlessFab

    RelentlessFab [OP] Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,372
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    read vvvvv
    Ya, some of it is to give protection, but the gap under the tail light is because the bed/body flexes in relation to the frame/bumper when offroad so that gap is there so the bumper doesnt hit the tails lights. look at the stock rear bumper and there is still this same gap. :cool:
