Relentless fab 2005+ Tacoma skid plate install guide

Discussion in 'Relentless Fabrication' started by RelentlessFab, May 10, 2012.

  1. Sep 2, 2013 at 3:39 PM
    #61
    89ztrain

    89ztrain Well-Known Member

    Joined:
    Aug 11, 2012
    Member:
    #84569
    Messages:
    392
    Gender:
    Male
    North Carolina
    Vehicle:
    '11 TRD Sport 4x4
    very cool, just put in an order for the full set! hit me up when my bumpers and rock rails done, I have a change of address for you! looking forward to decking the truck out!

  2. Feb 11, 2014 at 3:04 PM
    #62
    Midship909

    Midship909 Well-Known Member

    Joined:
    Jan 23, 2008
    Member:
    #4398
    Messages:
    313
    Gender:
    Male
    SocaL
    Vehicle:
    13 MGM 4x4 OR 6speed
    Can i install the tcase skid on its own? Or do I need the other skids to be installed

  3. Feb 11, 2014 at 4:09 PM
    #63
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    it can be run solo

  4. Feb 11, 2014 at 4:14 PM
    #64
    Midship909

    Midship909 Well-Known Member

    Joined:
    Jan 23, 2008
    Member:
    #4398
    Messages:
    313
    Gender:
    Male
    SocaL
    Vehicle:
    13 MGM 4x4 OR 6speed
    Will it affect how I install the ifs skid and trans skid in the future

  5. Feb 11, 2014 at 6:41 PM
    #65
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    slightly. If you do the other skids after, the mounting holes you drill to mount the tcase skid will need to be moved back by the metal thickness (3/16")

  6. Nov 29, 2014 at 1:25 PM
    #66
    Desert Dave

    Desert Dave Member

    Joined:
    Jul 5, 2014
    Member:
    #133319
    Messages:
    16
    Gender:
    Male
    Apple Valley, Ca.
    Bilstein 5100's at .85 over stock, Relentless fabrication aluminum skid plate.
    Just got through installing the aluminum skid on my 2014 Taco. The only problem I had was that I was sent 4 10.9 bolts with the plate. Used the stock 17mm head bolts, (as instructed) in the first 4 mounting positions, when I got to the back of the skid, I just grabbed 2 of the 4 bolts sent....And struggled with that for a while. Looked on the installation page on here, and realized the 3rd cross member takes 7.9 bolts. (I believe that is the size). Just used the old ones off the orig. skid...(The front ones) and it's on. VERY nice product, fits VERY well, and yes, the drain plug lines up perfectly with the skid drain hole, (4 cyl.).

  7. Dec 14, 2014 at 9:12 PM
    #67
    FritzTKatt

    FritzTKatt Well-Known Member

    Joined:
    Dec 10, 2014
    Member:
    #144043
    Messages:
    66
    Gender:
    Male
    First Name:
    John
    San Diego area
    6" Fabtech, sub-humanoid operator
    Question for Eric, can you do skids that work with a 6" fabtech lift? Still window shopping at this point because of $$, but want to lock on what products I end up getting. You're #1 right now because you'll do a weld-it-yourself kit.

    I kind of want to buy your DIY bumpers and, weld on sliders, and skids all at once to save on shipping. Problem is I can't see them working with the lift I have.

  8. Dec 14, 2014 at 9:15 PM
    #68
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    Sorry I dont see them working aside from possibly the Tcase skid depending on where your drop bracket kicker braces attach to the truck

  9. Dec 14, 2014 at 9:34 PM
    #69
    FritzTKatt

    FritzTKatt Well-Known Member

    Joined:
    Dec 10, 2014
    Member:
    #144043
    Messages:
    66
    Gender:
    Male
    First Name:
    John
    San Diego area
    6" Fabtech, sub-humanoid operator
    Think you could work something? Or know anyone who can?

  10. Dec 14, 2014 at 9:34 PM
    #70
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    I could if I had a truck to design off, but obviously you're a long ways away and I don't get many drop bracket lifted trucks into my shop

  11. Dec 15, 2014 at 1:52 PM
    #71
    FritzTKatt

    FritzTKatt Well-Known Member

    Joined:
    Dec 10, 2014
    Member:
    #144043
    Messages:
    66
    Gender:
    Male
    First Name:
    John
    San Diego area
    6" Fabtech, sub-humanoid operator
    What measurements would you need? I might be able to work with you on something. I'I'd build my own if I had a brake.

    It's really getting the trapezoid frontal plate right. I can do a support/filler on the bottom of the bracket to bolt to making it flat. Then take that and run it back for the diff/rear bracket portion and bolt it back on the rear bracket. Hmm I wonder if I could just make it a 2pc and weld it in a jig since I don't have a brake.

    What's the estimated wait time to ship on the diy bumper kits?

    Last edited: Dec 15, 2014
  12. Mar 4, 2015 at 11:09 AM
    #72
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    7,256
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, BFG KO2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder, CMC by Tandem Automotive, 70mm throttle body, CSF radiator, Doug Thorley shorties, Vibrant 7101 cats, SOS Offroad front and rear bumpers, Smoothflow 2.5” SC pulley, Steeda SC belt tensioner, roostfactor belt wrap kit, switch Pro 9100 in custom Tandem Automotive holder, WAT trans valvebody, FIC 650cc injectors, HP Tuner.
  13. Feb 7, 2018 at 4:45 PM
    #73
    fenrir2012TRD

    fenrir2012TRD Active Member

    Joined:
    Jan 31, 2018
    Member:
    #243084
    Messages:
    28
    Gender:
    Male
    First Name:
    Frank
    Redding, CA
    Vehicle:
    Unfortunately silver, AC 2012 TRD-OR
    Bilstein 5100 3" lift kit, spc uca's, spidertrax 1.25" wheel spacers, relentless fabrication IFS/mid/tcase skid plates, rago fab bed channel stiffeners/ ditch light mounts, body chop mod, on bfg ko2 33's. +apoffroad cargo bars, tepui kukenam, prinsu roof rack &misc gear.

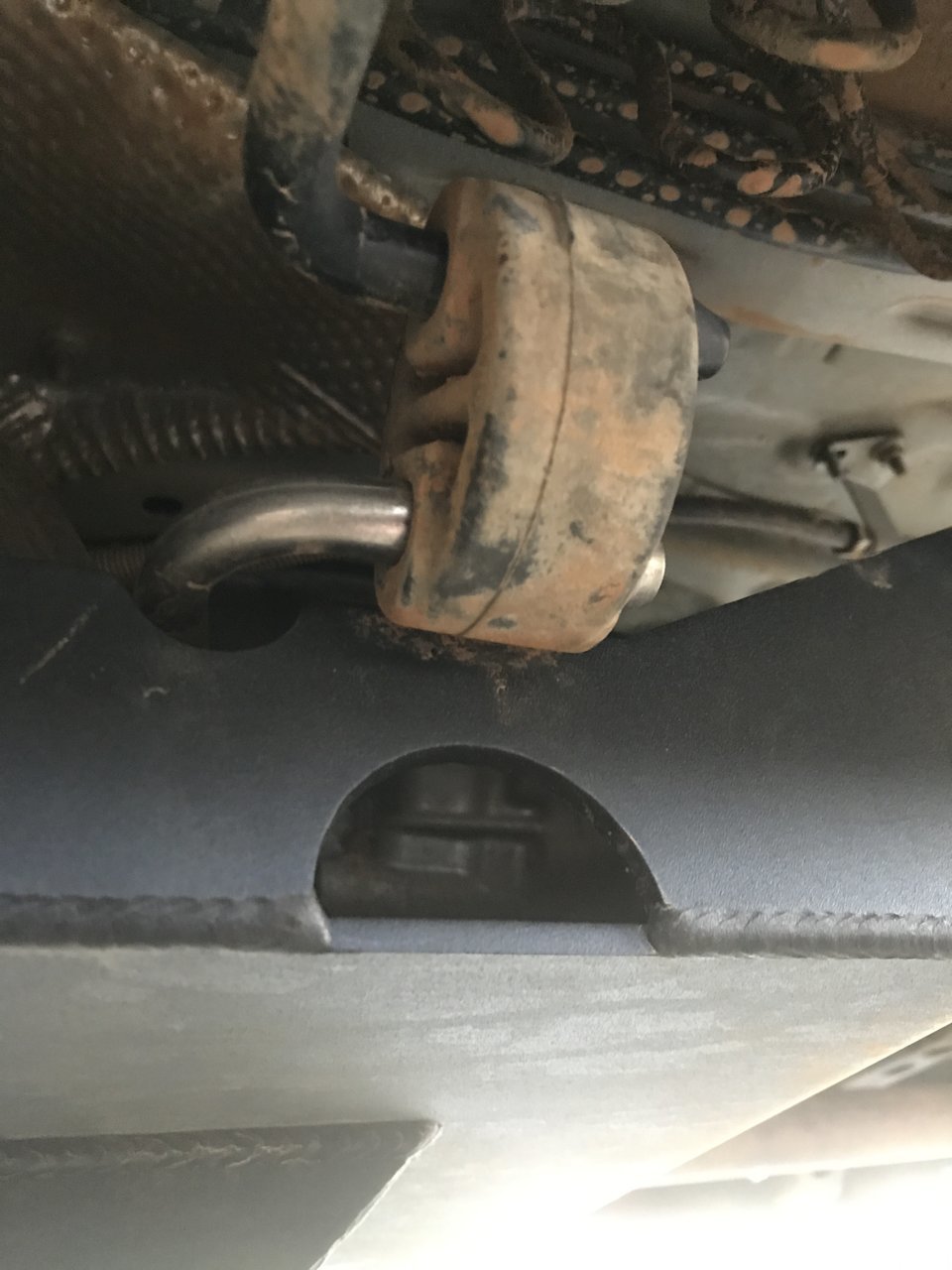

    Hey guys, getting a pretty decent vibration since installing mine and trying to hunt down the problem.
    -My initial thought was my 1" diff drop spacers, deleted, still vibrating.

    My next two thoughts are either
    A: this exhaust bushing? If that's even what it's called, resting against the tcase skid or

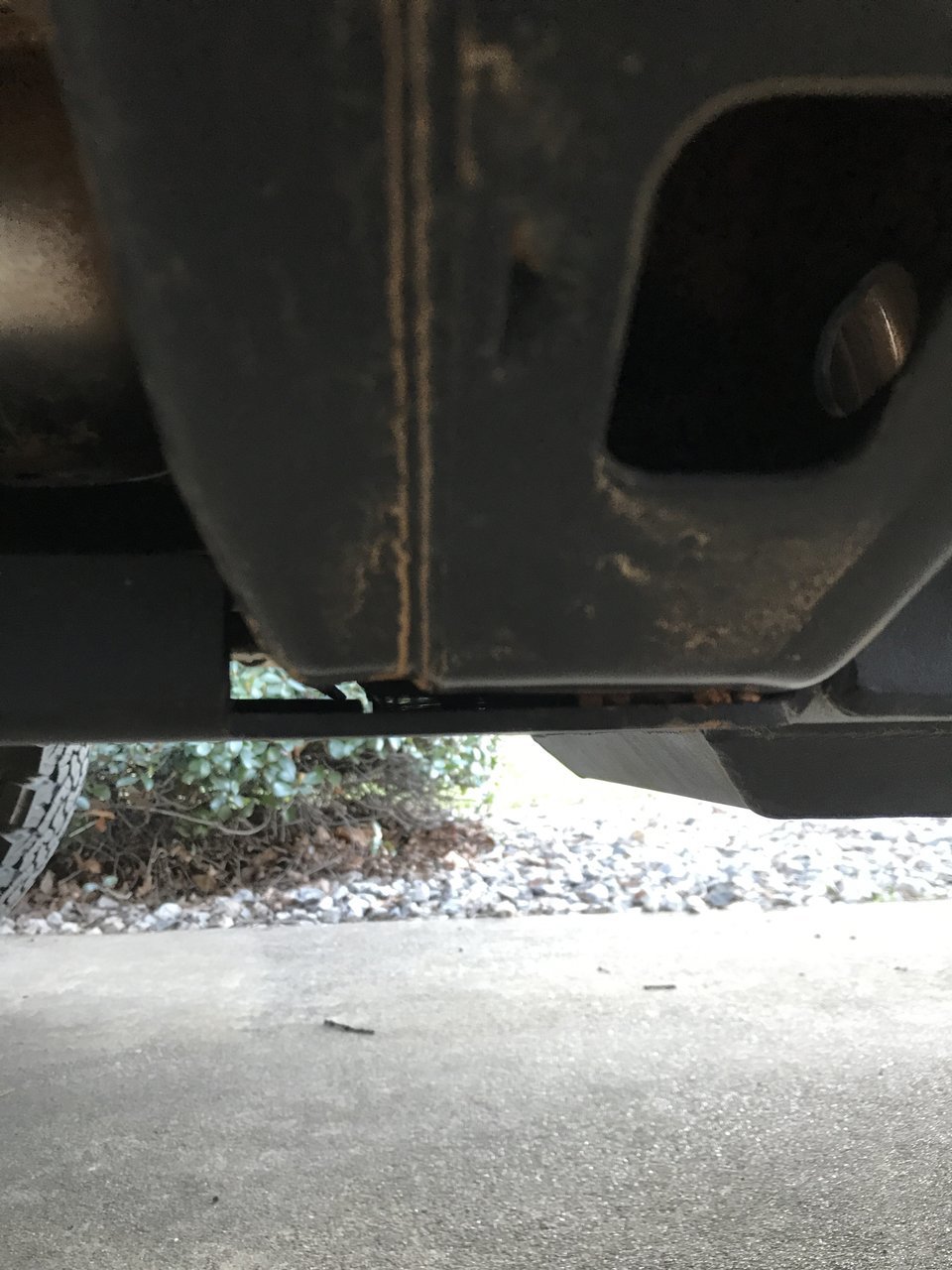

    B: the mid skid isn't flush against the crossmember.

    It doesn't sound too angry but it's driving me nuts, id would very much appreciate any ideas or insight into the problem
    :help:

  14. Feb 7, 2018 at 5:22 PM
    #74
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.

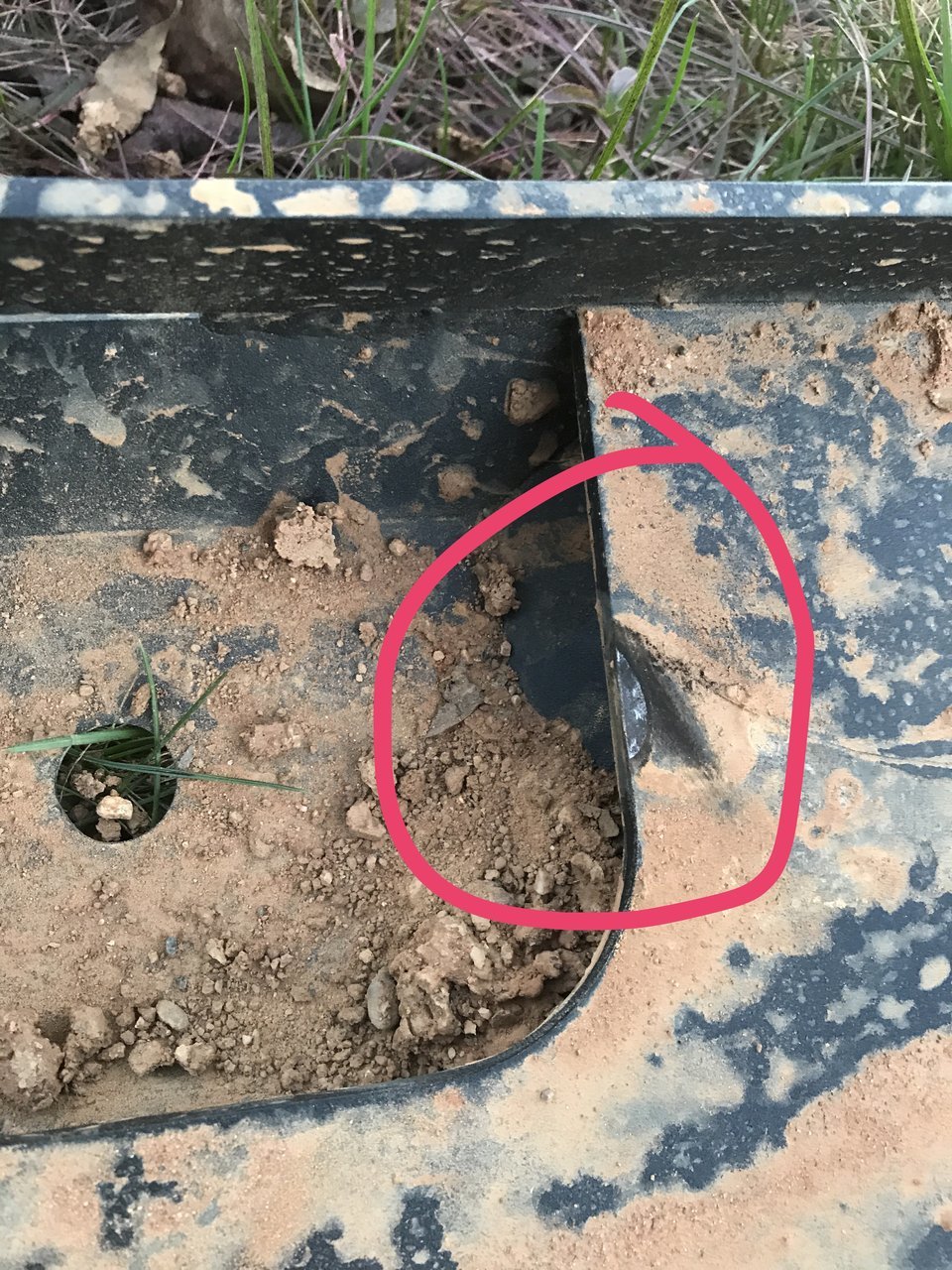

    Maybe rocks/pebbles up in the skids rattling?
    Other than that see how much clearance there is between the drop part for the exhaust and the actual exhaust cross over tube

    fenrir2012TRD likes this.
  15. Feb 8, 2018 at 4:44 PM
    #75
    fenrir2012TRD

    fenrir2012TRD Active Member

    Joined:
    Jan 31, 2018
    Member:
    #243084
    Messages:
    28
    Gender:
    Male
    First Name:
    Frank
    Redding, CA
    Vehicle:
    Unfortunately silver, AC 2012 TRD-OR
    Bilstein 5100 3" lift kit, spc uca's, spidertrax 1.25" wheel spacers, relentless fabrication IFS/mid/tcase skid plates, rago fab bed channel stiffeners/ ditch light mounts, body chop mod, on bfg ko2 33's. +apoffroad cargo bars, tepui kukenam, prinsu roof rack &misc gear.

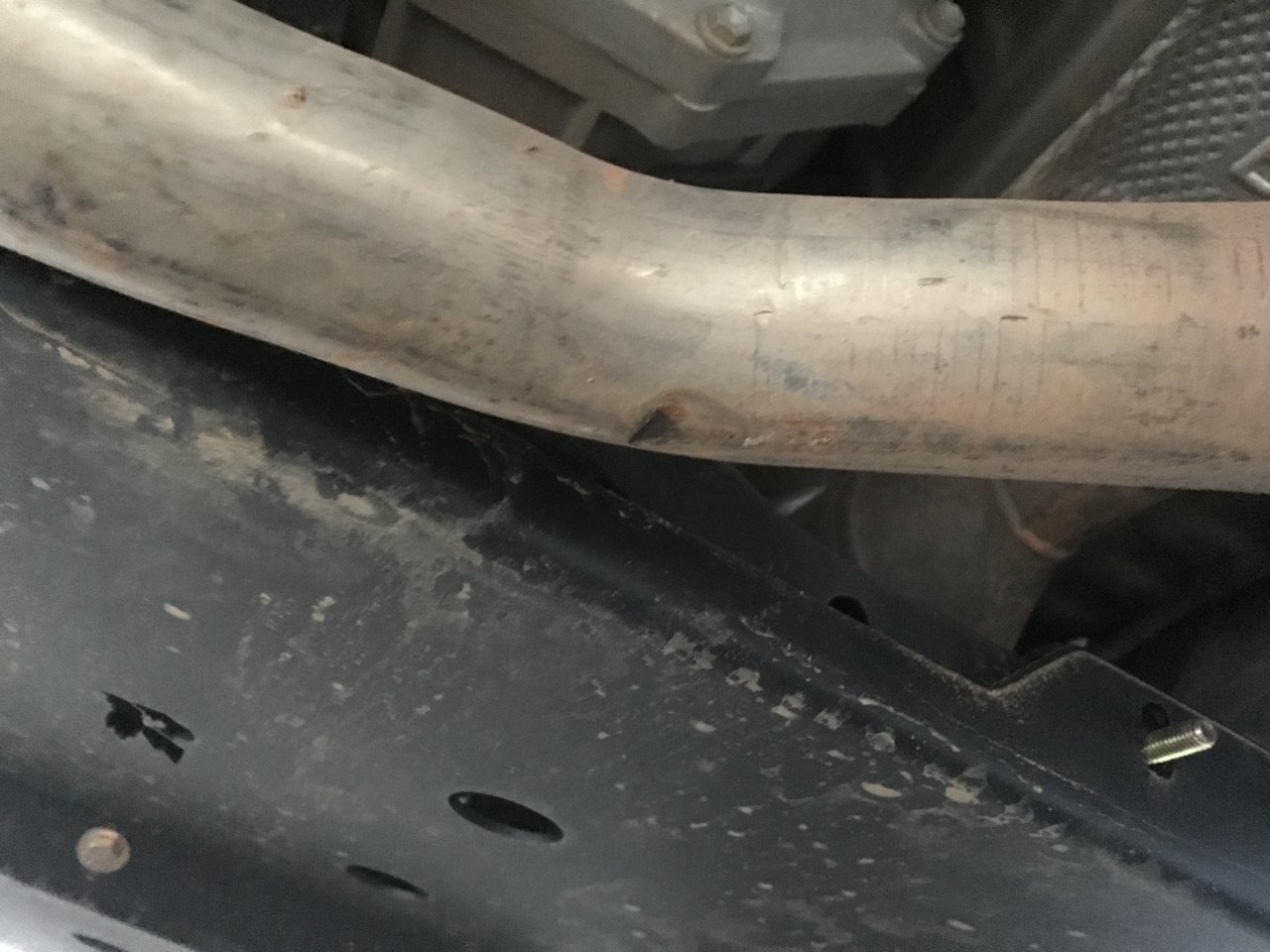

    I think it is the exhaust crossover on the tcase skid. Had a buddy turn the truck on while I was beside it looking/ listening and that's exactly where it sounds like its coming from. Gonna pull it off and see if its still still vibrating but, if that winds up being the issue what action would you suggest I take? And thank you for the prompt response Eric, very much appreciated.

    george2pak likes this.
  16. Feb 9, 2018 at 5:32 PM
    #76
    fenrir2012TRD

    fenrir2012TRD Active Member

    Joined:
    Jan 31, 2018
    Member:
    #243084
    Messages:
    28
    Gender:
    Male
    First Name:
    Frank
    Redding, CA
    Vehicle:
    Unfortunately silver, AC 2012 TRD-OR
    Bilstein 5100 3" lift kit, spc uca's, spidertrax 1.25" wheel spacers, relentless fabrication IFS/mid/tcase skid plates, rago fab bed channel stiffeners/ ditch light mounts, body chop mod, on bfg ko2 33's. +apoffroad cargo bars, tepui kukenam, prinsu roof rack &misc gear.

    Yup, found it :/
    Would I be better off grinding the plate in the area or space the points that I drilled?

    Last edited: Feb 9, 2018
  17. Feb 9, 2018 at 7:02 PM
    #77
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    Never seen a rub there before! I would just grind that area down farther toward our end cap on the cross over drop that is welded to the main part of the plate. Should do the trick just fine without messing with anything structurally

  18. Aug 2, 2020 at 4:54 PM
    #78
    igiman

    igiman Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53376
    Messages:
    58
    Gender:
    Male
    Cali
    To much to list
    hi, i just purchased your predator front bumper and i love it. But i have a question if you make skid plates for DB 6” lifts like procomp

    RelentlessFabrication likes this.
  19. Aug 2, 2020 at 5:56 PM
    #79
    RelentlessFab

    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    Sorry we don't manufacture any skid plates currently. Glad to hear you love the bumper though! :)

  20. Aug 12, 2020 at 9:29 PM
    #80
    igiman

    igiman Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53376
    Messages:
    58
    Gender:
    Male
    Cali
    To much to list
    Working on my lights and winch. Would love to get it quoted for the rear high clearance bumper as well. Thanks.


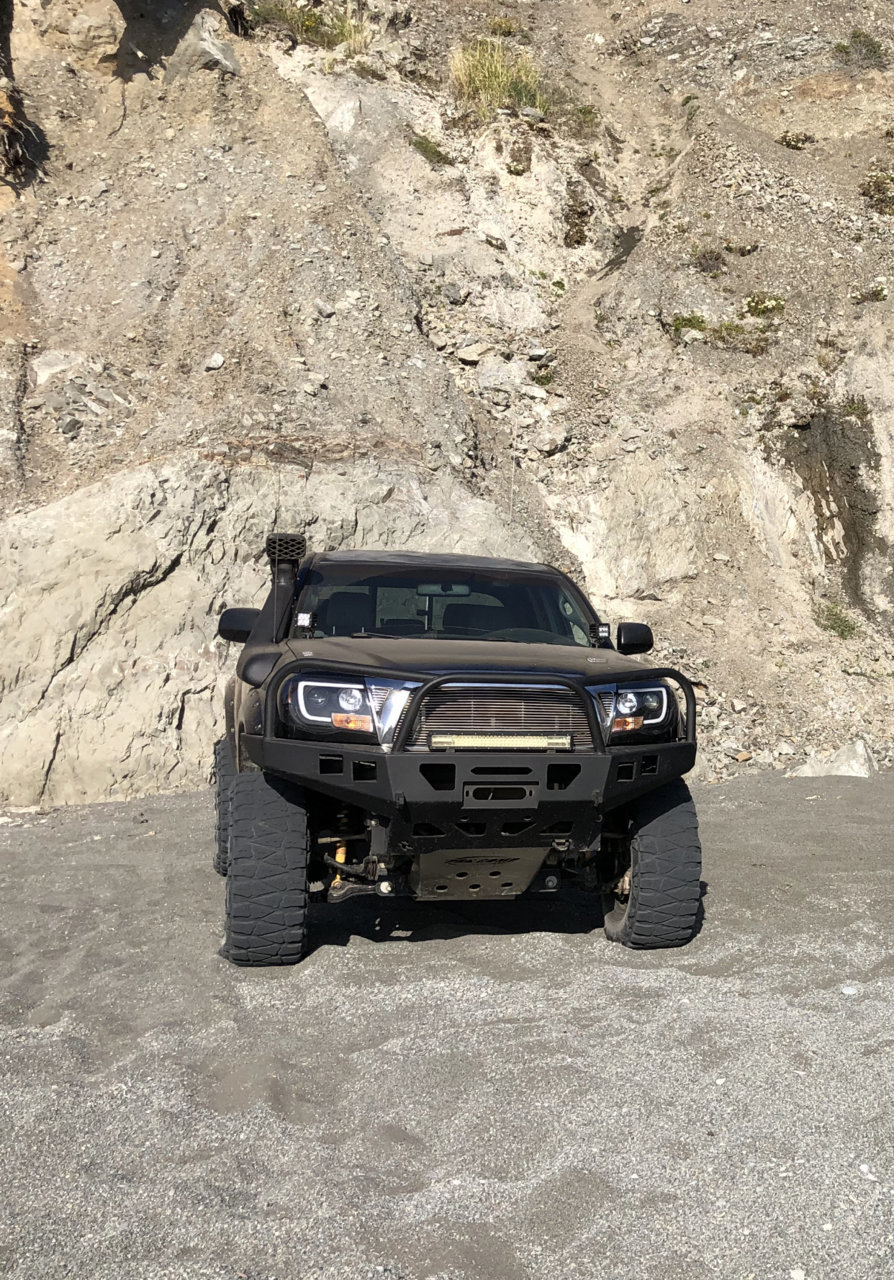

    Attached Files:

    Last edited: Nov 7, 2020
    RelentlessFabrication likes this.
