Relocating the Leaf Spring Shackles to shorten overall length.

Discussion in '1st Gen. Tacomas' started by Pinoiako916, Jan 19, 2014.

  1. Jan 19, 2014 at 3:18 PM
    #1
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    quick question, is it possible to shorten the overall length of a 1st generation extracab tacoma by relocating the leaf spring shackles to right behind the rear shocks? I may get a used tacoma in the long run and will convert it to a flatbed when doing this project

    Not shortening the wheelbase, just getting rid of the rear overhang past the rear shocks.

    Last edited: Jan 19, 2014
  2. Jan 19, 2014 at 3:25 PM
    #2
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    You can cut the frame right after the rear shackle mounts. To move them forward yes,. you'd mess with things like differential placement, driveshaft length and stuff though

    Last edited: Jan 19, 2014
  3. Jan 19, 2014 at 3:30 PM
    #3
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    What you're saying is that moving the rear shackle mounts forward to just behind the rear shocks will cause complications? I am not trying to shorten the wheelbase. Its getting rid of the rear overhang where the spare tire is to be placed.

  4. Jan 19, 2014 at 3:33 PM
    #4
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    Im pretty sure you could chop off everything after the shackle mounts on the frame, but you can't just move them forward, the leaf springs are a set length that you can't change, and they need the right shackle angle to have a nice ride

  5. Jan 19, 2014 at 3:39 PM
    #5
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    What will you have to do in order to move the leaf spring shackle mounts to just behind the rear shocks? Do i need to get new rear leaf springs?

    I am not trying to shorten the wheelbase though.

  6. Jan 19, 2014 at 3:50 PM
    #6
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    How far forward are we talking?

  7. Jan 19, 2014 at 3:52 PM
    #7
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    Moving the rear leaf spring shackles to just right behind where the current stock rear shocks are.

  8. Jan 19, 2014 at 3:54 PM
    #8
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    What distance is that? Sounds like a no though :/

  9. Jan 19, 2014 at 4:04 PM
    #9
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock

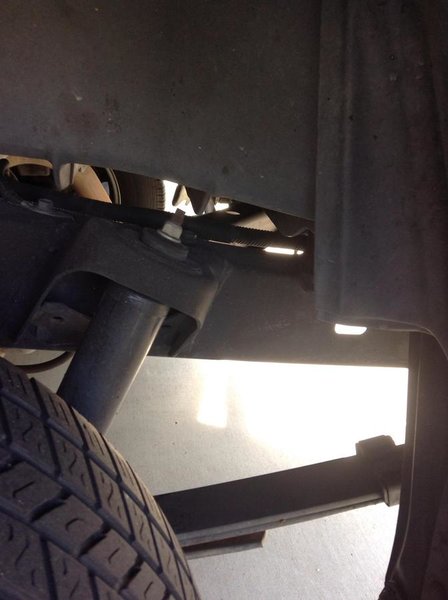

    This is a second generation picture, my plan is to relocate the rear leaf springs just behind the stock rear shocks:


  10. Jan 19, 2014 at 4:23 PM
    #10
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    That's not possible. You'd have to remove the leaf springs and run a three link setup or something

  11. Jan 19, 2014 at 4:35 PM
    #11
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    Can you just get new rear leaf springs and shackles instead which are custom to that setup?

  12. Jan 19, 2014 at 4:37 PM
    #12
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    You could ask a leaf spring shop, but I doubt they make leafs that short on one side

  13. Jan 19, 2014 at 4:55 PM
    #13
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    It will be on both sides.

  14. Jan 19, 2014 at 5:13 PM
    #14
    Mr. Biscuits

    Mr. Biscuits Salesman by trade, Gentleman by habit

    Joined:
    May 6, 2012
    Member:
    #78316
    Messages:
    1,557
    Gender:
    Male
    First Name:
    Brennen J
    Bakersfield
    Vehicle:
    2000 PreRunner TRD V6
    -Bilstein 5100/ Eibach 3" lift -Custom 2" lift rear leaf pack -Crystal clear headlight housings -updated (01-04) rear tail lights -custom front tube bumper -custom rear tube bumper -Deckplate mod -Kenwood Headunit -Pioneer Speakers -black door handles -Debadged, rebadged black -Ultraguage
    I would quit while you're ahead. first off, we got it: you're NOT TRYING TO SHORTEN THE WHEELBASE. Chopping the extraneous bed and rear fender isn't too crazy, a lot of guys that like to rock crawl have done it to get less rear drag when going over large obstacles. Its called bobbing the bed or a bed bob. you can cut everything off the rear from the rear shackle back.

    You CAN technically do what you're trying to do but it would cost way too much money and time to find correct length leafs with accurate rates and all that. I know the 95-97 Tacomas had slightly shorter leaf springs, if you're not going to let this go, look into how much shorter they are and how they altered the mounting points to reflect that change. maybe its just the little push forward you're looking for.

  15. Jan 19, 2014 at 5:25 PM
    #15
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    1,843
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, stock gears, stock-size tires, Michelin LTX AT2, Tranny skidplate, sliders, UltraGauge, PowerTank, CB
    What about putting a 4-runner axle back there, which does not use leaf springs?

  16. Jan 19, 2014 at 7:29 PM
    #16
    Box Rocket

    Box Rocket Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,798
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    What your asking is NOT possible while still using leaf springs. Even if you could get a spring shop to build you custom leaf springs to fit like your describing, the ride and suspension characteristics would make the truck undriveable.

    The only realistic way of accomplishing that would be to eliminate the leaf springs altogether and setting up a 4-link rear suspension with coil springs like the 4Runner. That way everything behind the springs could be removed.

    I will say.....no disrespect intended.....that the fact that you are asking this question tells me that you have a very limited understanding of how suspension works. I would leave things as they are on your truck and just get some time behind the wheel while you understand how it all works.

  17. Jan 19, 2014 at 8:02 PM
    #17
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock

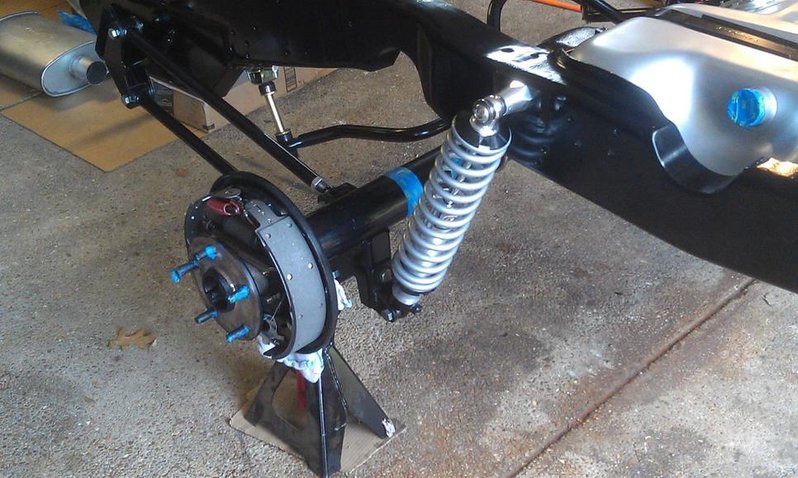

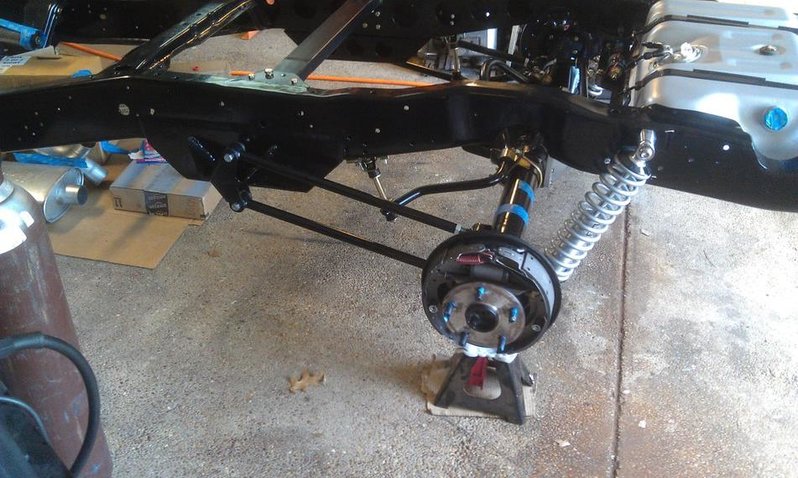

    Like these?:


  18. Jan 19, 2014 at 8:13 PM
    #18
    Styx586

    Styx586 Well-Known Member

    Joined:
    Apr 13, 2011
    Member:
    #54822
    Messages:
    1,264
    Gender:
    Male
    First Name:
    Terrance
    Mission Viejo, Ca
    Vehicle:
    01 TRD PreRunner SR5
    Blacked out badges, Deckplate mod w/ K&N filter, Icon Stage 2 suspension.
    I guess my question is why? What are you trying to accomplish?

  19. Jan 19, 2014 at 8:22 PM
    #19
    Pinoiako916

    Pinoiako916 [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42749
    Messages:
    158
    Gender:
    Male
    First Name:
    Al
    Roseville,ca
    Vehicle:
    SR5 2.7 4x4
    Stock
    eliminate the entire rear overhang behind the rear shocks by using a 4-link rear suspension with coil springs

  20. Jan 19, 2014 at 8:30 PM
    #20
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,750
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    Then do that?
    Also like box rocket said, it doesn't appear you are quite up to the task of linking the rear so think carefully before you chop apart the rear suspension. There's a lot of knowledge involved with it

    Last edited: Jan 19, 2014
