Remote Start Wiring Question

Discussion in '1st Gen. Tacomas (1995-2004)' started by Stutely, Jun 2, 2017.

  1. Jun 2, 2017 at 5:09 PM
    #1
    Stutely

    Stutely [OP] Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210440
    Messages:
    113
    First Name:
    Jonathan
    Central IL
    Vehicle:
    99 Xtra/3.4/5 speed/SR5/TRD/4x4 Burgundy "Ron"
    Preparing to install a remote start/keyless entry system on my 99. I have the basic wiring legend for the 99 and I have the detailed instructions for my system (Viper 4806v), so for the most part I know what I'm going to be doing. I was wondering though what the second ignition wire is. According to the wiring description I've got there are two ignition wires...anyone know what they are for?

    Is the first for the key on/engine off, and the second actually starts the car?

    Thanks

  2. Jun 2, 2017 at 10:11 PM
    #2
    Stutely

    Stutely [OP] Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210440
    Messages:
    113
    First Name:
    Jonathan
    Central IL
    Vehicle:
    99 Xtra/3.4/5 speed/SR5/TRD/4x4 Burgundy "Ron"

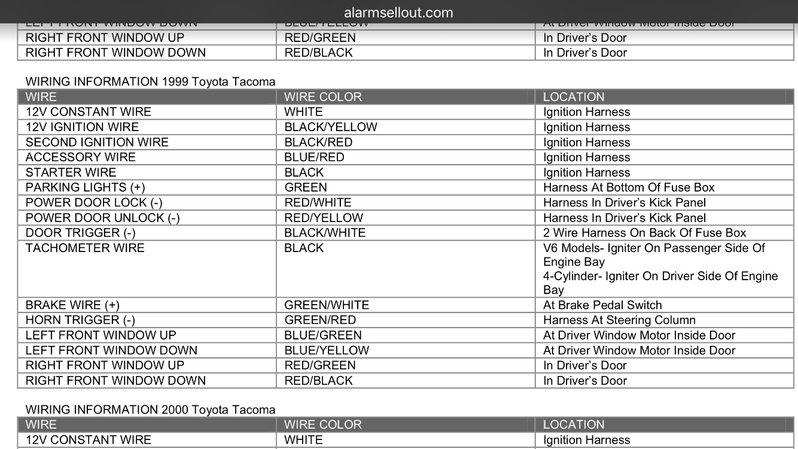

    Here's the legend I was referring to:


    So I'm curious if anyone knows what the two ignition wires do, and then also what the accessory wire does.

  3. Jun 2, 2017 at 10:25 PM
    #3
    mynewtoy

    mynewtoy I like men

    Joined:
    Apr 16, 2011
    Member:
    #55023
    Messages:
    2,565
    Gender:
    Male
    First Name:
    greg
    Mississippi
    Vehicle:
    09 double cab 4x4
    Detriot locker rear ARB air locker front 4.56 gears OME 3" lift, SPC uca's , moto metal 951 wheels 315/75/r16 Treadwright guard dogs, homemade front plate bumper with smittybilt 9.5k winch, homemade skids, homemade Bed bars, Mobtown offroad high clearance rear bumper with tire carrier, Homemade rock sliders , U-bolt flip, Wheeler's super bumps, BORA 1" wheel spacers , Black headlight mod , black tail lights, Satoshi Grill , autoPage C3 RS-665 alarm with remote start, flowmaster 40 series exhaust, cruise control,bed/ground effect lights, wet okole seat covers, tinted,windows, weather tech floor mats, AVS vent shades, debadged, hidden cobra 19 cb, 7" offroad lights behind grill, rear diff breather relocate, abs kill switch
    you have to have both ignition wires getting 12 volts for it to crank. my guess is it makes it harder to hotwire

  4. Jun 2, 2017 at 11:50 PM
    #4
    Stutely

    Stutely [OP] Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210440
    Messages:
    113
    First Name:
    Jonathan
    Central IL
    Vehicle:
    99 Xtra/3.4/5 speed/SR5/TRD/4x4 Burgundy "Ron"

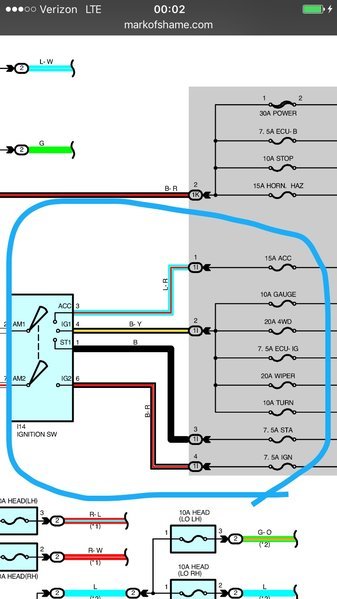

    Found this...it's from a 2001 wiring manual put out by Toyota. I assume the basics are the same for the 99. Wire coloring is the same anyway...

    It seems to indicate that Ignition 1 is for things like wipers, the gauges, turn signals, the ECU, etc. Then Ignition 2 is actually cranking the engine via the starter...

    Am I reading that right? IMG_3200.PNG.jpg

    cruiserguy likes this.
  5. Jun 3, 2017 at 1:30 AM
    #5
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,382
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

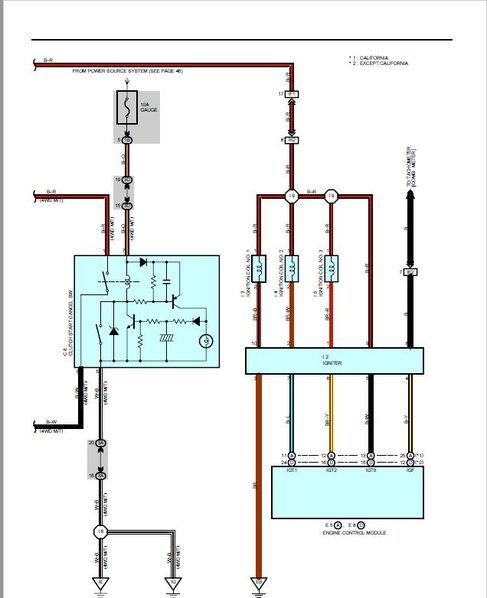

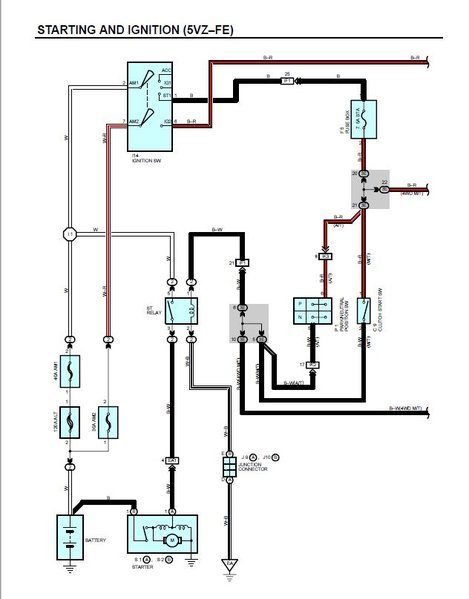

    They run 2 wires to spread the amp load out. the black wire is the starter on a 2000 the ign2 go's to the igniter and coils.
    2000 stater and ign1.jpg 2000 stater and ign.jpg

    Last edited: Jun 3, 2017
    cruiserguy likes this.
  6. Jun 3, 2017 at 1:32 AM
    #6
    Stutely

    Stutely [OP] Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210440
    Messages:
    113
    First Name:
    Jonathan
    Central IL
    Vehicle:
    99 Xtra/3.4/5 speed/SR5/TRD/4x4 Burgundy "Ron"
    So then for a remote start would I connect to both wires or just ignition 2?

  7. Jun 3, 2017 at 1:36 AM
    #7
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,382
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    The ACC powers gauges, radio, cig, power outlets, lights just about everything in the integration relay.

  8. Jun 3, 2017 at 1:36 AM
    #8
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,382
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    both

    Stutely [OP] likes this.
  9. Jun 3, 2017 at 1:38 AM
    #9
    Stutely

    Stutely [OP] Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210440
    Messages:
    113
    First Name:
    Jonathan
    Central IL
    Vehicle:
    99 Xtra/3.4/5 speed/SR5/TRD/4x4 Burgundy "Ron"
    It's gonna be a few weeks to a month before I get to this. Thanks for the help.

  10. Jun 4, 2017 at 2:31 AM
    #10
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    42,645
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    I'm planning on getting the same system as you. Where did you find the Viper instructions and schematics? You can usually only get them if you're a certified installer or google hard enough. If you could send me a copy I'd really appreciate it!

  11. Jun 4, 2017 at 7:26 AM
    #11
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,382
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Try www.the12volt.com

    Last edited: Jun 4, 2017
    BartMaster1234 likes this.
  12. Jun 4, 2017 at 8:06 AM
    #12
    Stutely

    Stutely [OP] Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210440
    Messages:
    113
    First Name:
    Jonathan
    Central IL
    Vehicle:
    99 Xtra/3.4/5 speed/SR5/TRD/4x4 Burgundy "Ron"
    There are several places, including the12volt.com that have basic legends for the wiring harnesses you'd need to tap into...took me a few minutes to find the one I needed for my year. I didn't create a login on there to get download access for manuals, which they apparently have, but I managed to find it here:

    http://www.directeddealers.com/manuals/IG/Viper/N4X06 2015-12 web.pdf

    I figure coupling that with several youtube videos of installs of this system such as:

    https://youtu.be/hM6yVjvPlhU

    ...that I should be able to figure it out. Lots of helpful folks here, too.

    I need to wrap up the practical stuff on my truck before I can get into the fun stuff, so it might be a month or more before i can do it.

    BartMaster1234 likes this.
