Replacing passenger diff CV shaft seal without pulling hub

Discussion in '2nd Gen. Tacomas (2005-2015)' started by mikalcarbine, May 18, 2019.

  1. May 18, 2019 at 5:15 PM
    #1
    mikalcarbine

    mikalcarbine [OP] Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218236
    Messages:
    493
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    2015 AC TRD OR
    Just had a dealer warranty out my drive side needle bearing. In the troubleshooting process for some reason they also replaced my passenger wheel bearing, now my passenger CV shaft seal is leaking. Rather than deal with dropping it off for a day I just want to replace the seal myself.

    I have the seal in hand, before I start I was wondering if I need to separate the CV shaft from the hub or can I unbolt the hub and slide the whole assembly out of the knuckle? Or is there enough play in the entire shaft where I can just leave it all bolted up and turn the knuckle and slide the shaft out in order to replace the seal?

  2. May 18, 2019 at 5:21 PM
    #2
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    4,549
    Gender:
    Male
    Halfmoon, NY
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    You can slide the knuckle with hub off the cv shaft but you must remove the lower two ball joints bolts (19mm), the tie rod (17mm??) with the castellated nut. I think you also remove the caliper and then bungy or wire it up to hang without putting tension on the line. That leaves the spindle and hub assembly with the brake rotor on it still attached to the UCA only to slide off the cv.

    whatstcp likes this.
  3. May 18, 2019 at 5:22 PM
    #3
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,834
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner
    Remove 35mm cv axle nut

    Remove bottom two 19mm that hold spindle to LCA

    Remove steering tie rod castle nut (17mm I think)

    Then the entire assembly will swing out of the way and you are left with easy access to the CV. From there you can remove it and replace the seal. No need to mess with the hub or brake caliper or anything.

    REDdawn6, zippsub9 and whatstcp like this.
  4. May 18, 2019 at 5:25 PM
    #4
    mikalcarbine

    mikalcarbine [OP] Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218236
    Messages:
    493
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    2015 AC TRD OR
    Thanks guys!

  5. May 18, 2019 at 5:53 PM
    #5
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,552
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    if you still have the swaybar attached, remove that from the spindle. Unbolt the lower 2 balljoint nuts that attache to the spindle, and pull the CV out, upper ball joint n tie rod have plenty of movement to allow you to swing the WHOLE assembly (caliper and all) out of the way.


    That stated, if the dealer did it and fucked it up id have them do it, and give you a loaner for free.

    zippsub9 likes this.
  6. May 18, 2019 at 7:01 PM
    #6
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,156
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    if you decide to leave it on the hub just be careful stabbing it back into the diff. Don't want to damage the seal or you have to do it all over again

    mikalcarbine[OP] likes this.
  7. May 18, 2019 at 7:04 PM
    #7
    mikalcarbine

    mikalcarbine [OP] Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218236
    Messages:
    493
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    2015 AC TRD OR
    I agree but I thought about it and between the time it takes for the drive to the dealer and coordinating dropping it off with my work schedule I think it'd be easier just to do it myself for $15 and an hour or two of time

    b_r_o likes this.
  8. May 18, 2019 at 7:09 PM
    #8
    Tacobot14

    Tacobot14 Heep Recovery Vehicle

    Joined:
    Sep 6, 2016
    Member:
    #196540
    Messages:
    248
    Gender:
    Male
    First Name:
    Ty
    North Carolina
    Vehicle:
    2015 TRD OR White Tacoma 6MT
    OME BP-51, JBA UCA, SOS Streamline Bumper, SOS Sliders, Toyo AT2 tires, many more.
    All you have to do is remove the two bolts on the bottom knuckle. 19mm. Then get a long pry bar and a hammer and hit the cv axle OUT of the diff from the center of the truck towards the passenger side. Then just push the whole assembly out of the way.
    Done both sides in about 45 minutes to an hour all together. You don’t have to remove the tie rod. You can if you want, it’ll make it easier, but it’s not a big deal. I also didn’t have a sway bar though.

    mikalcarbine[OP] likes this.
  9. May 18, 2019 at 7:10 PM
    #9
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,156
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    If you turn the steering wheel in the opposite direction of the side you're working on that will extend the tie rod out the farthest it will go. Then just pull the two bolts below the ball joint and you should be able to pull it back far enough to clear the axle

    mikalcarbine[OP] likes this.
  10. May 18, 2019 at 7:17 PM
    #10
    Tacobot14

    Tacobot14 Heep Recovery Vehicle

    Joined:
    Sep 6, 2016
    Member:
    #196540
    Messages:
    248
    Gender:
    Male
    First Name:
    Ty
    North Carolina
    Vehicle:
    2015 TRD OR White Tacoma 6MT
    OME BP-51, JBA UCA, SOS Streamline Bumper, SOS Sliders, Toyo AT2 tires, many more.
    Also here’s just a tip, get some RTV (gasket maker) and put a THIN layer on the inner race of the diff after you take out the old seal. That way when you put the new one in, if there was any dirt or rocks that scored up the diff, that’ll seal those grooves off too. Could’ve been that a rock was moved around when the dealer did the work and just moved itself in the right spot. It doesn’t take much. Happened to me.

    It should go inner ring of the diff, thin layer of RVT, then the CV seal.

    zippsub9 likes this.
  11. May 19, 2019 at 11:49 AM
    #11
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    4,053
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sport
    Silver Taco
    What is leaking? Is the leak from the seal at the inside of the shaft? Everyone seems to be addressing replacing the seal at the outside, there should be no fluid leaking from the outside seal as there should be no fluid flowing on the inside of that seal. Its possible they over-lubbed the shaft and the leakage is grease being forced out.

  12. May 19, 2019 at 1:33 PM
    #12
    mikalcarbine

    mikalcarbine [OP] Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218236
    Messages:
    493
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    2015 AC TRD OR
    Where's the inside seal? What's the difference?

    My leak is pretty bad, just sitting overnight and probably 1/4 cup leaks out

  13. May 19, 2019 at 1:58 PM
    #13
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,834
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner

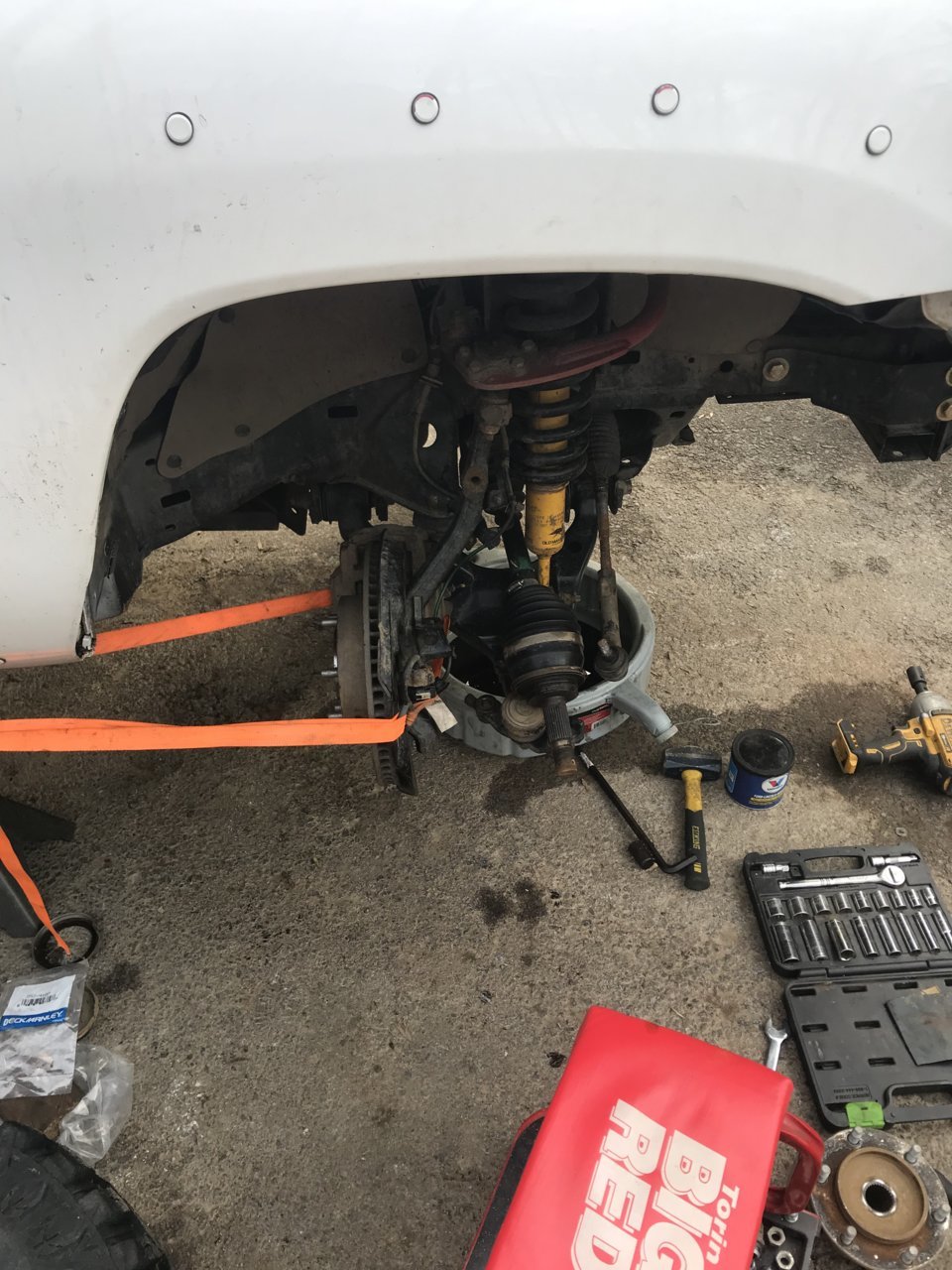

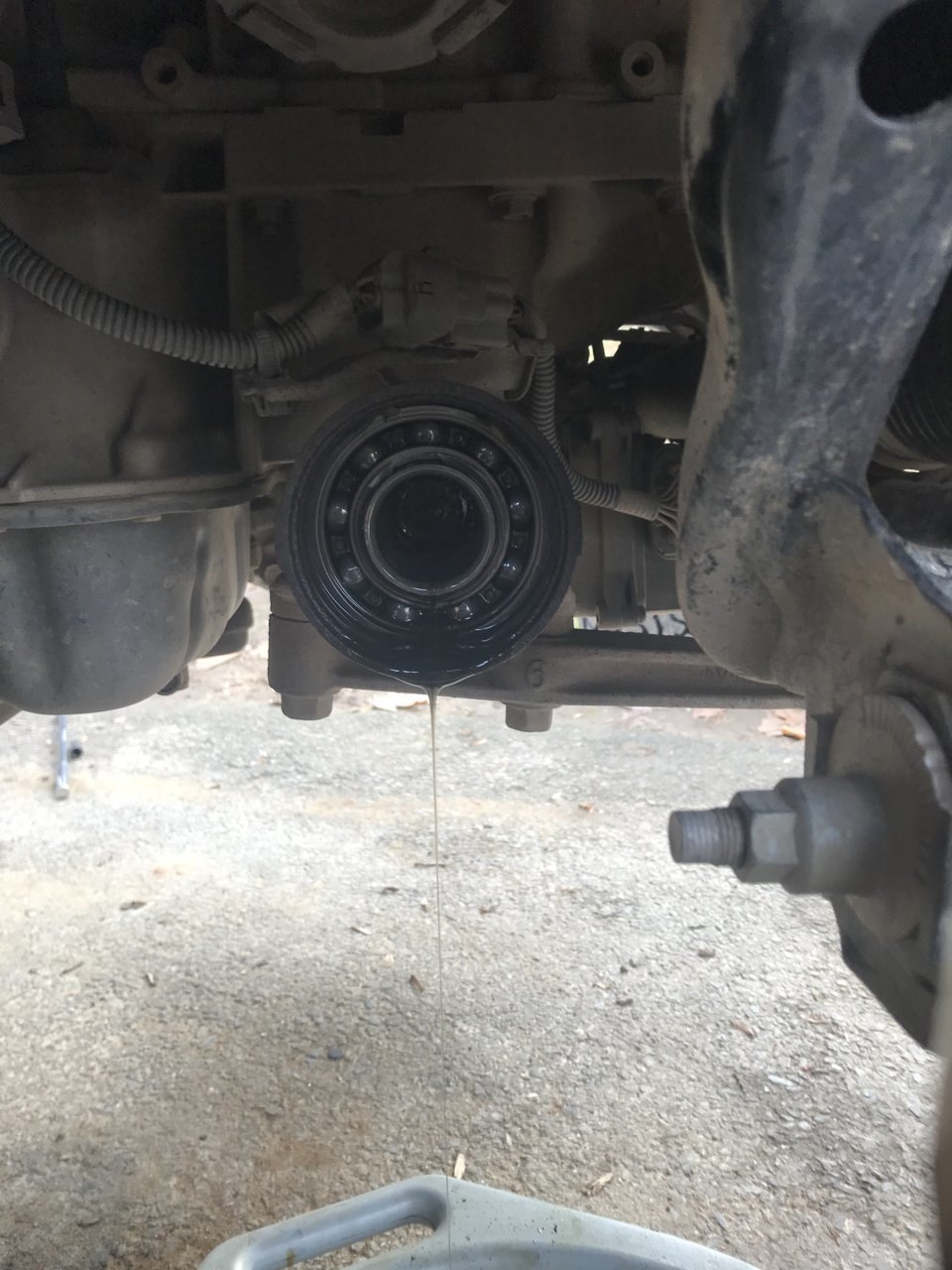

    Whatchu talking about Willis? Once you pop out the CV, there’s a rubber seal. This pic is with it removed (from last time I replaced mine). This is what OP is talking about and there’s oil behind it. That’s the purpose of the seal.


    b_r_o likes this.
  14. May 19, 2019 at 1:59 PM
    #14
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    4,053
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sport
    Silver Taco
    CV shaft has two seals, although a third is sometimes counted as part of it.
    On the front diff, where CV shaft slides in.
    On inner knuckle - the one most are referencing above.
    On the wheel hub to seal the wheel bearing.

    The seal on the front diff keeps fluid from leaking out of the diff. The seal on the knuckle keeps water and other contaminants from going into the knuckle cavity housing part of the wheel bearing assembly.

    b_r_o likes this.
  15. May 19, 2019 at 2:00 PM
    #15
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,156
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    I think @Chuy is talking about the cv boot :notsure:

  16. May 19, 2019 at 2:05 PM
    #16
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    4,053
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sport
    Silver Taco
    My perception may have been off - I perceived some of the initial replies were about replacing the knuckle seal instead of the diff seal. Without the proper tools, it may be better to have the dealer fix the leak as it appears they caused it by jostling the shaft excessively during their repairs. I would offer to pay the seal, but they should cover the labor.

    b_r_o likes this.
  17. May 19, 2019 at 2:07 PM
    #17
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,834
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner
    Yeah, op is talking about the black rubber ring inside the diff. The one that keeps the oil in.

    We’re talking about the knuckle because it’s easy to swing the whole assembly out of the way to access the cv.


    Chuy[QUOTED] and b_r_o like this.
