Retro aiming how to?

Discussion in 'Lighting' started by GoDeacsWFU23, Jan 7, 2012.

  1. Jan 7, 2012 at 12:40 PM
    #1
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    This is probably a stupid question but how do I aim my retro headlights? My left light is pointing about 12 feet to the gorund in front of the truck and the right is not much better. I have to use my high beams to see. What do I do to fix this and how do I do it? :anonymous:

  2. Jan 7, 2012 at 12:51 PM
    #2
    fishntaco

    fishntaco Well-Known Member

    Joined:
    Mar 4, 2010
    Member:
    #32523
    Messages:
    302
    Gender:
    Male
    First Name:
    Josh
    Mobile Al
    Vehicle:
    08 Silver Streak DCLB Prerunner Sport
    There's 2 adjustment scews on the back of each headlight. You need to use those to move the headlight up and down, left and right. In the lighting forum I believe there's a sticky on it. I would link it but I'm on my phone.

  3. Jan 7, 2012 at 12:52 PM
    #3
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    ok, thats what i was thinking but i just wasnt sure........

  4. Jan 7, 2012 at 1:05 PM
    #4
    fishntaco

    fishntaco Well-Known Member

    Joined:
    Mar 4, 2010
    Member:
    #32523
    Messages:
    302
    Gender:
    Male
    First Name:
    Josh
    Mobile Al
    Vehicle:
    08 Silver Streak DCLB Prerunner Sport
    You may be better off taking them off the truck and aiming them because last night when i was doing mine, I did not make very much headway using a screwdriver to turn the screws. My left was aimed way down like yours and I just eyeballed it once I took it off the truck and got it close enough that I could use the screws.

  5. Jan 7, 2012 at 1:13 PM
    #5
    fishntaco

    fishntaco Well-Known Member

    Joined:
    Mar 4, 2010
    Member:
    #32523
    Messages:
    302
    Gender:
    Male
    First Name:
    Josh
    Mobile Al
    Vehicle:
    08 Silver Streak DCLB Prerunner Sport
    Yeah, I also thought about this last night but could not find a bit long enough to get to the adjustment screws. If you can do this, I agree this would be better.

  6. Jan 7, 2012 at 1:58 PM
    #6
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    i just used a 5/16th socket and got it close for now. i will fine tune it later tonight when it gets dark, so be prepared for more questions!

  7. Jan 7, 2012 at 4:58 PM
    #7
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

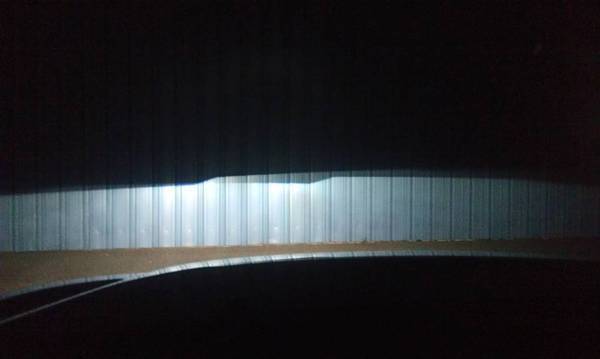

    Ok yall, this is what I am working with. The truck is 25ft. from the blue wall. What the heck do I need to do now?

    [​IMG]

    Maybe move both beams in a little to line up those two angled lines?

  8. Jan 7, 2012 at 5:04 PM
    #8
    sohc4now

    sohc4now Member

    Joined:
    Mar 27, 2011
    Member:
    #53835
    Messages:
    17
    Gender:
    Male
    Tampa, FL
    Afe Intake
    Checkout hidplanet.com
    They have all your answers for retros

  9. Jan 7, 2012 at 5:04 PM
    #9
    ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    7,610
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport Prerunner 4x4
    Things and stuff and such
    Looks like you need to rotate the driver's side clockwise and the passenger side counter clockwise. I used the horizontal lines inside the reflector bowl as a guide, I aligned the projector housings with those lines as best I could and the cutoffs lined up very well when I tested them.

  10. Jan 7, 2012 at 5:05 PM
    #10
    fishntaco

    fishntaco Well-Known Member

    Joined:
    Mar 4, 2010
    Member:
    #32523
    Messages:
    302
    Gender:
    Male
    First Name:
    Josh
    Mobile Al
    Vehicle:
    08 Silver Streak DCLB Prerunner Sport
    It almost looks as though your alignment plates are a little off. I had to file mine down a little bit to get my cutoff to be level.

  11. Jan 7, 2012 at 5:17 PM
    #11
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

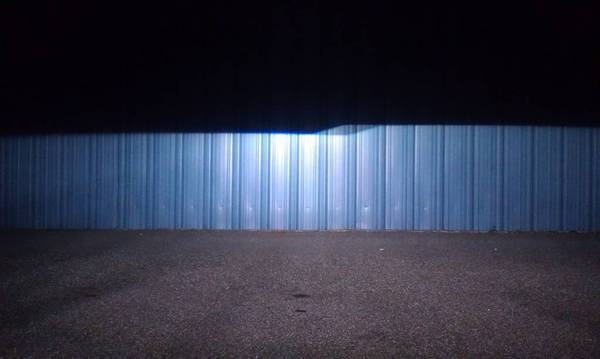

    ok, i am to this...better?

    [​IMG]

  12. Jan 7, 2012 at 5:26 PM
    #12
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    wow... thats close.. for me, the gap between the left and right should be the same distance as your actual headlights.. approx 3-4 feet


  13. Jan 7, 2012 at 5:27 PM
    #13
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    something like this:

    [​IMG]

  14. Jan 7, 2012 at 5:36 PM
    #14
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    ok, right after i took that picture i adjusted both lights out a little and got that 3-4 ft. gap......FINALLY DONE!!!!!!!!

  15. Jan 7, 2012 at 5:39 PM
    #15
    ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    7,610
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport Prerunner 4x4
    Things and stuff and such
    That looks perfect. Good work.

  16. Jan 7, 2012 at 5:43 PM
    #16
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    heres a few more shots from my FS thread:

    [​IMG]

    [​IMG]

  17. Jan 7, 2012 at 5:44 PM
    #17
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Looks better now like Ant said the steps should be the same distance appart as the center of your headlights...Like this...:D

    [​IMG]

  18. Jan 7, 2012 at 5:47 PM
    #18
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

    now i see why you charge $700+ for everything. i did it the easy way and it was still a pain

  19. Jan 7, 2012 at 5:47 PM
    #19
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    lol adam ;)

    [​IMG]

    minus the tree

  20. Jan 7, 2012 at 6:11 PM
    #20
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    on the drivers side from the rear of the housing rotate the projector clockwise until its evenly parallel to the ground and straight across.

    on the passenger side the same adjustment counter clockwise just a hair to have it even with the ground.

    for the other plains of adjustment their are explanations of how to do it i have always done it by eye i like the color flicker to be perfect so i'm kind of anal about height and such.

    this is an easy fix man your almost done :)
