Retrofits Finished

Finished up my first major project on the truck this weekend.

Components:
FX-R stage III kit, 3" lens
55w DS2 XB35 5000K
Morimoto 5five DSP ballasts
Panamera Shrouds
120mm White XB Halos
80mm Amber XB Halos
Custom home made Fiber optic Demon Eyes
Painted Housing inside and out

Paint Choices:
Headlight Bezel - Duplicolor Universal Black Matallic
Shrouds - Duplicolor Toyota Magnetic Grey
Reflector Bowls left Chrome
FX-R Interier - Rustoleum Hightemp White
FX-R Exterier - Rustoleum Hightemp Black

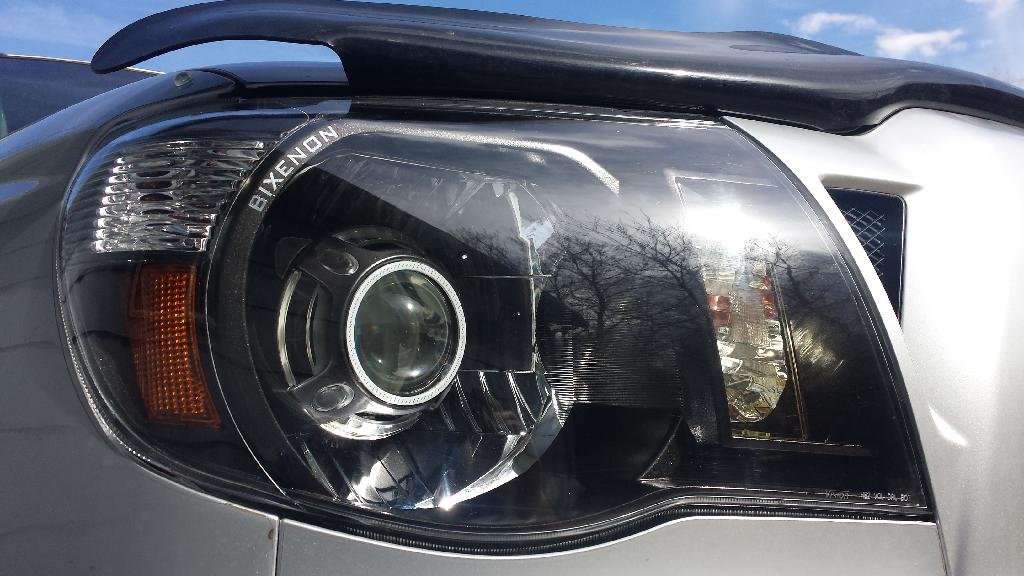

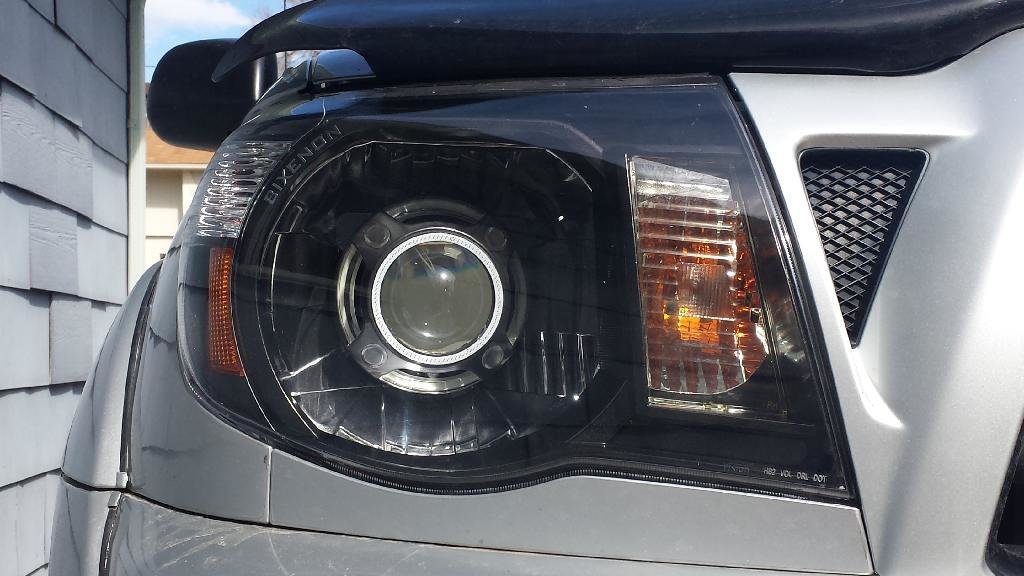

headlight shot

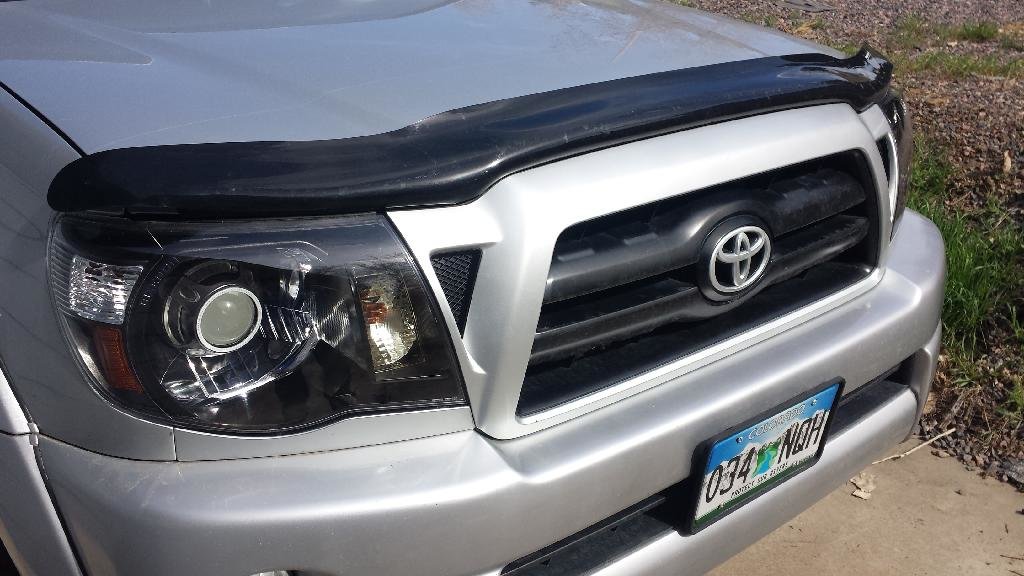

with color matched grill

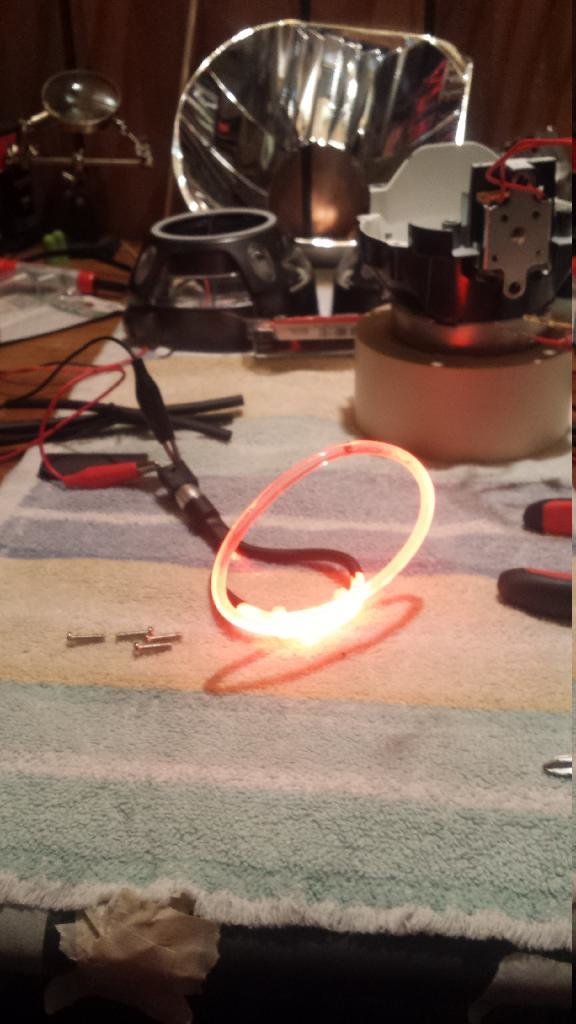

Fiber optics

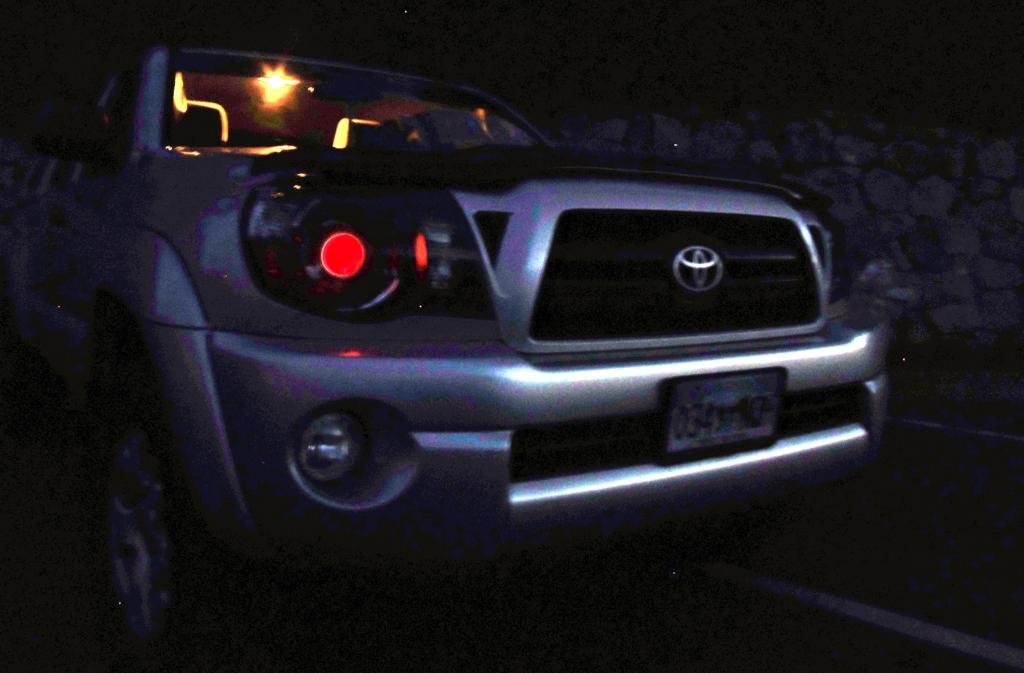

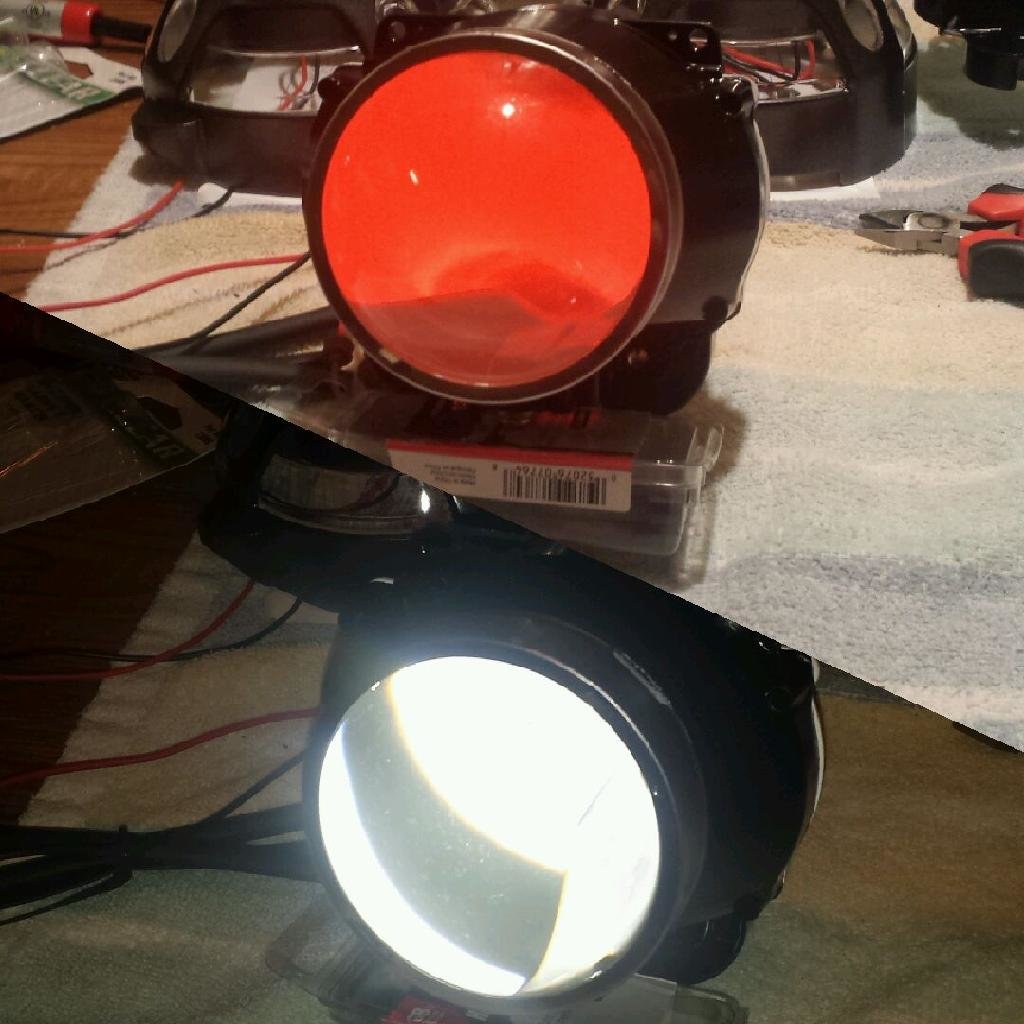

Demon Eyes on and off (with Flash)

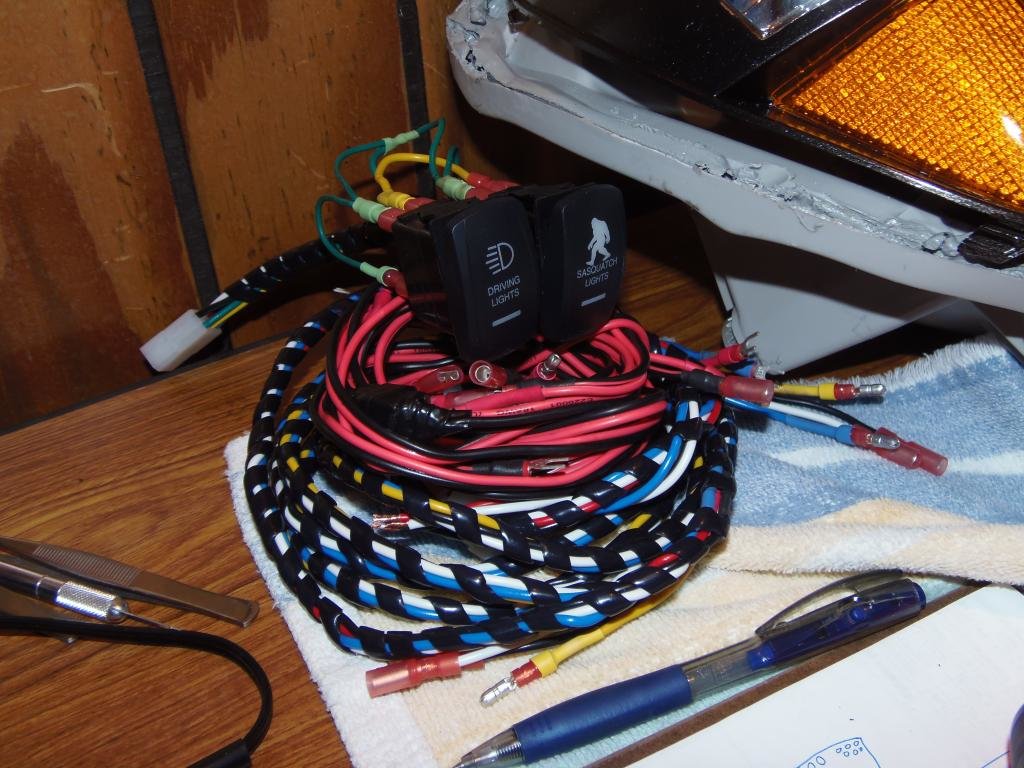

Wiring Looms for all of the goodies

Output shot, I coudln't get the passenger side to level out for the life of me. its not as bad as it looks the image is over exposed.
Edit: I think the passenger side misalignment has to do with the painted shield, it was hanging up a little during reinstall and should work its way back to level after time.

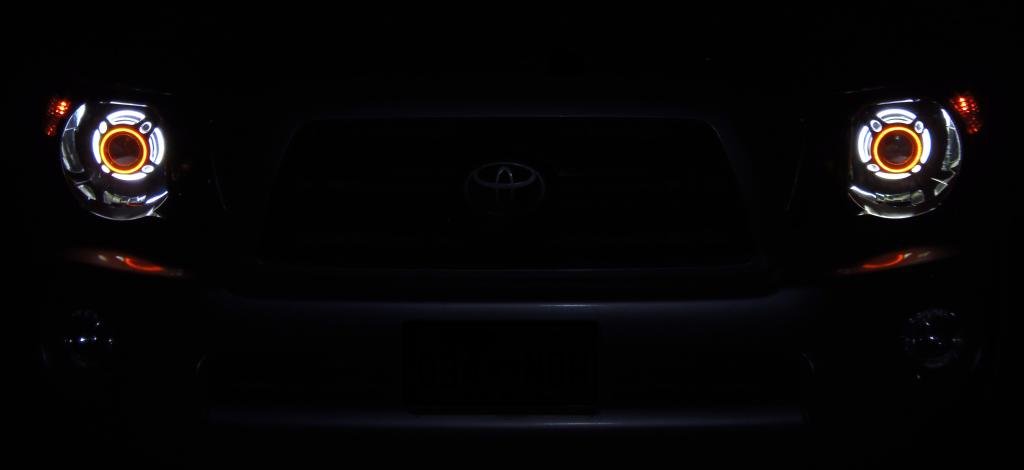

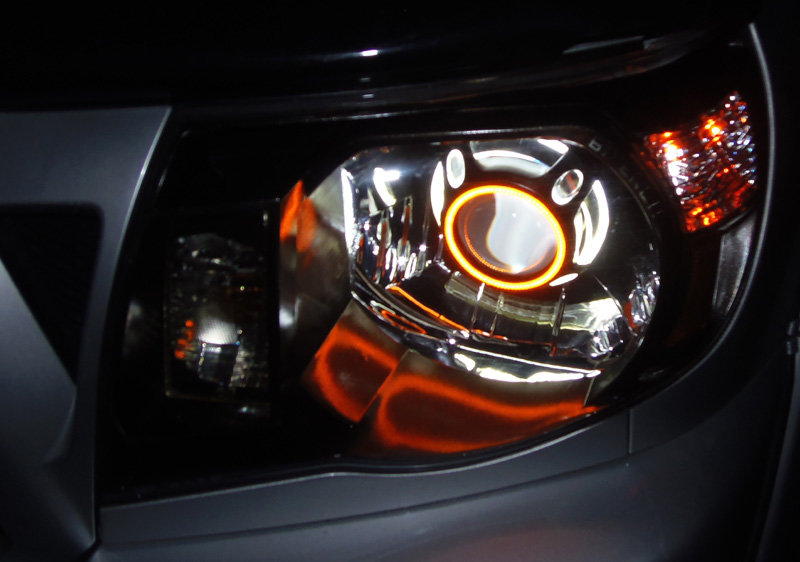

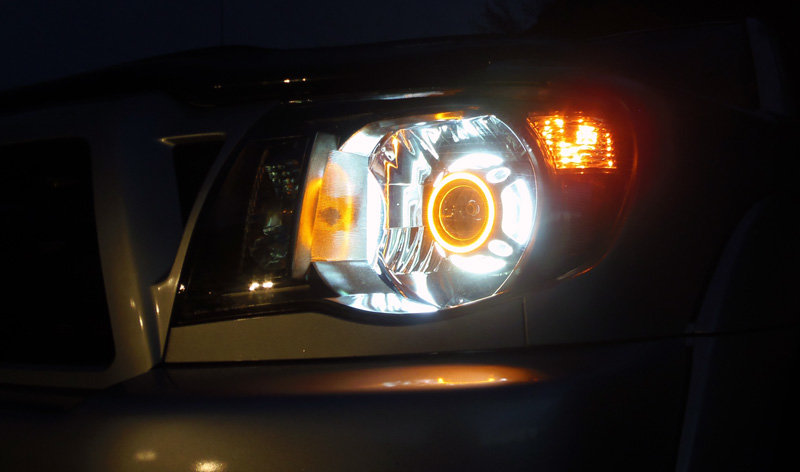

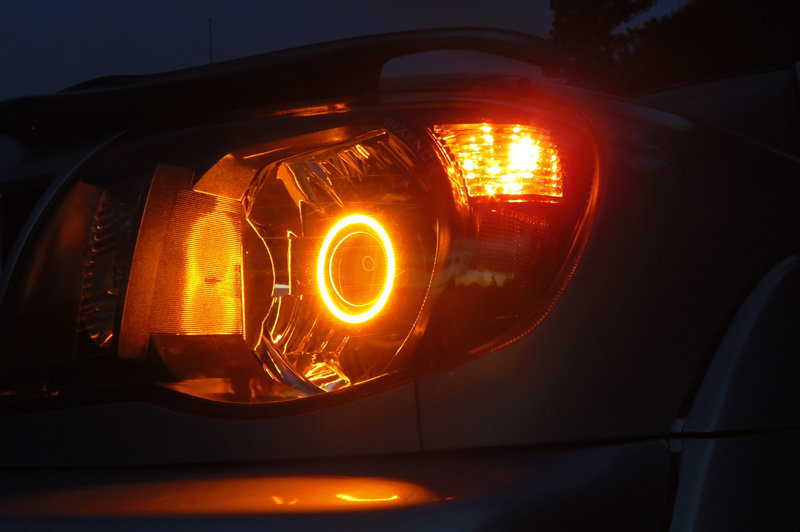

Night shots



Bad. Ass. Nice work man, those look awesome!! What do you have tied up in those for $ if you don't mind me asking?

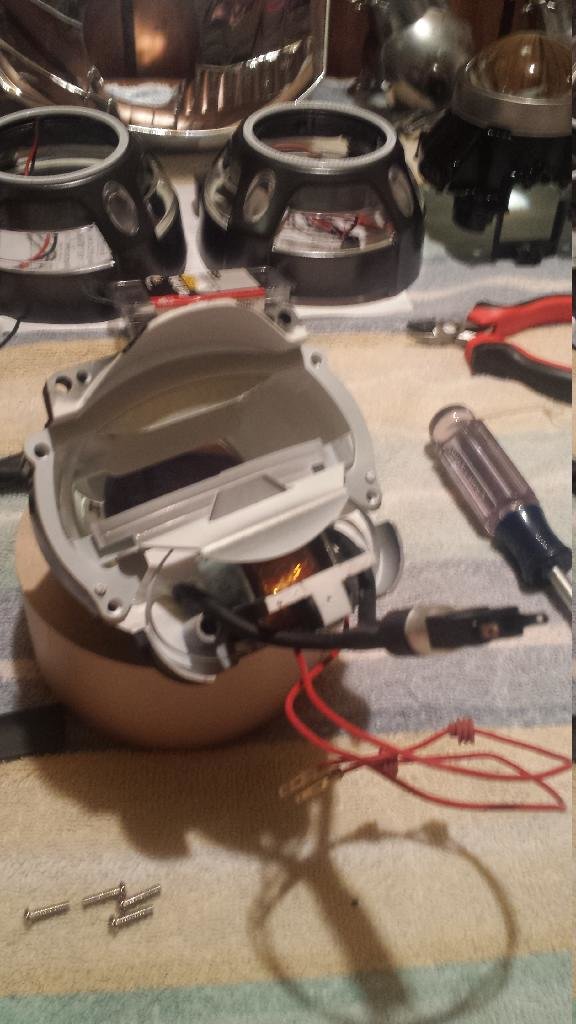

Output video: Note to self. Tape off the little follower on the back side of the shield where it rubs against the seperator when the actuator is activated. This delay hopefully will go away in time as it wears the paint away.



Looks awesome man!



Kit came in under $500 so with paint, wiring, switches misc electrical items, soldering misc and LED's around $650.
Edit: thats just a guestimate, Probably lower.
I also spent about 3 weeks total on this trying to get everything just right.



I wish I could do this, electrical is my weakness.



Looks good, now rethink that bug deflector...



The kit itself is mostly plug and play. I had to snip the ends of the halo harness and add male/female butt connectors for easy removal and service but other than that its not so hard.

I have detailed wiring diagrams and schematics for the harness and switches i could share. It's all good.



LOL....yeah



Digging that dual halo setup. Good work!



Thanks, it turned out nicely!



Great work! very nice setup.



Nice!! Where did you get the switches, do they fit factory slots?



Switches look like they're from otrattw.com.



yes, the switches are from OTRATTW. I ended up with these because i couldn't get a hold of anyone to make custom halo switches. They work good and look good nonetheless

They do fit directly into the factory locations. Due to the Japanese Poke Yoke ideology you'll have to get in there with a knife and carve out the sides of the openings to allow the switch housing to pass through and engage on the back side of the bezel. You'll just be carving out the parts that only allow certain factory switches to fit in its designated area.



Looks awesome. I assume you had a blank next to your factory fog light switch? The only blank I have is between the AUX input and the cig lighter. I want to do something like this but I don't know where I would put the switches. I am thinking I might try to customize a dual switch to fit where the factory fog light switch is.



I actually had two blanks in the fog-light switch panel. so that's where i installed these. you could get a DTDP switch to work two accessories from the same switch.



We are still working on a halo light rocker. Send me a PM with your ideas and I'll see what we can come up with.



haha, check it out! better late than never i suppose.

I'll come up with a few ideas and post them up for ya.



Nice. I don't have any but I found this so I am happy!
