RFRM Bussman Fuse Box & Relays - SPOD? HA!

Discussion in 'Audio & Video' started by skygear, Jul 1, 2014.

  1. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    My 1.0 for now. ->

    [​IMG]

    [​IMG]
    [​IMG]




    Copied from here and adding info.

    http://www.fjcruiserforums.com/forums/stereo-electronics-electrical/157834-spod-ha.html

    Thanks to SpeedRye from FJCruiser Forums for a detailed build on the 10 Position one.


    Last edited: Jul 12, 2014
  2. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male

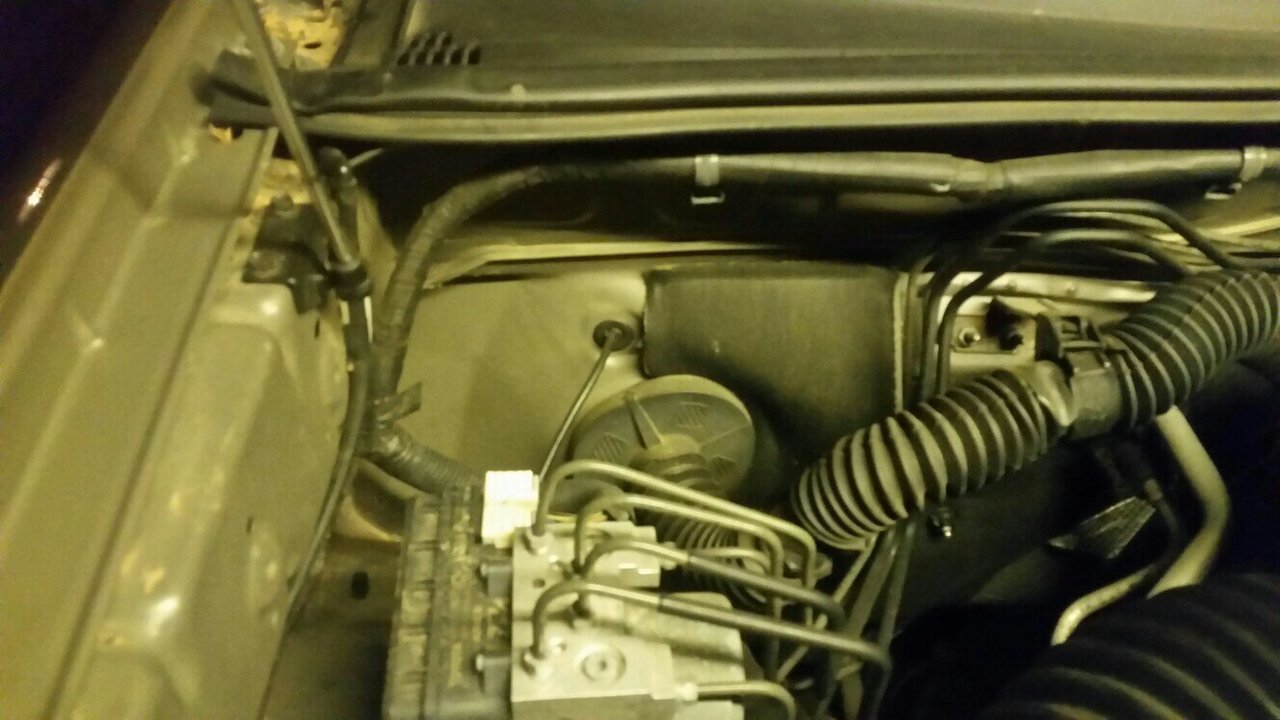

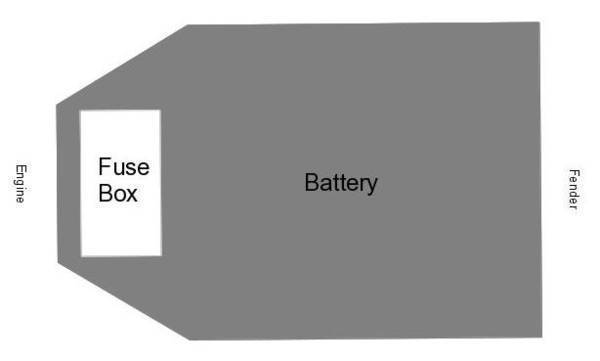

    Might do something like this then

    [​IMG]

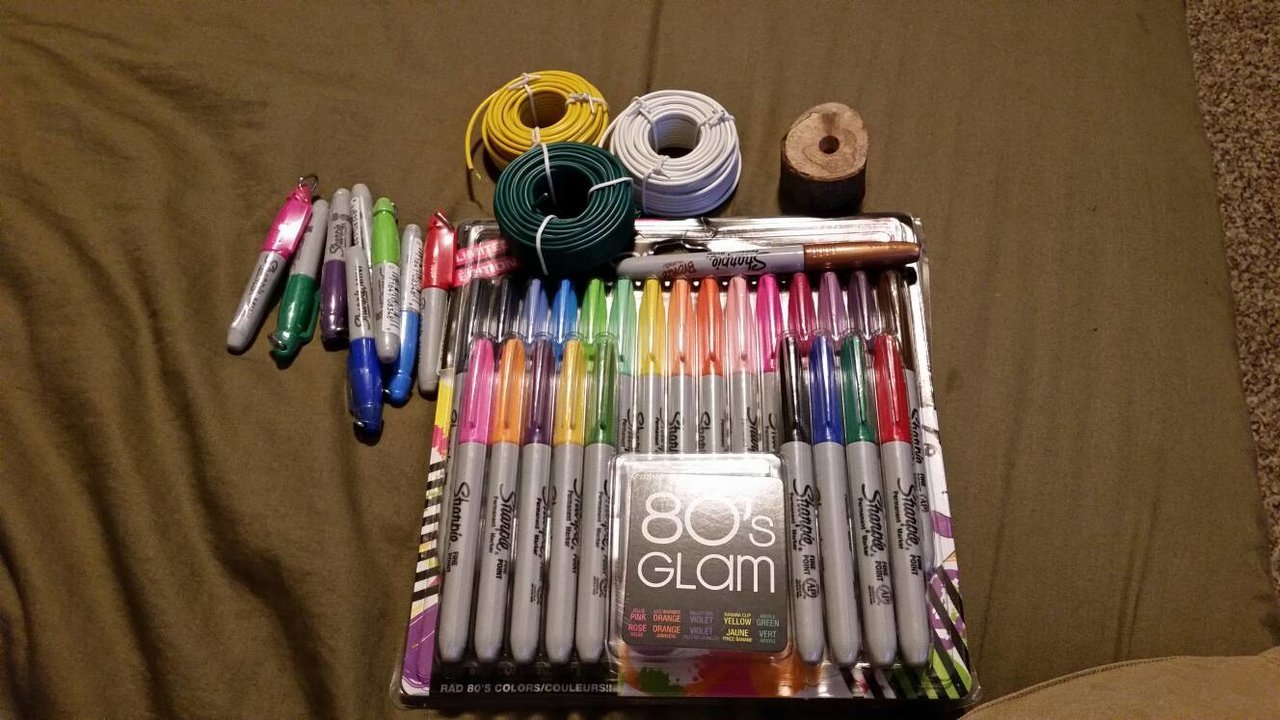

    Oh and look what showed up today


  3. neonlazer

    neonlazer Mechanically Goofy

    Joined:
    Oct 17, 2011
    Member:
    #65333
    Messages:
    2,525
    Gender:
    Male
    First Name:
    Jeff
    Lafayette, LA
    Vehicle:
    '12 DCSB 4x4 SR5
    BruteForceFab Front/Rear Bumper, All Pro IFS Skid, BAMF Sliders, Spidertrax Spacers, UWS Toolbox, HID headlights, Ridgid D2 Fogs, LED's everywhere
    Hole e chit that's alot of aux possibilities..lol

  4. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    I was reading the specs on the small box.
    5 - position http://www.cooperindustries.com/con...r_distribution_modules/series_15300_rtmr.html
    vs
    10 - position
    http://www.cooperindustries.com/con...series_15400_rfrmrear-fedfuserelaymodule.html

    It handles 80amp per bus for a total of 160amps?
    vs the
    10 position/ 100amps per bus for a total of 200amps.

    so in comparison, yes, 2 smaller ones would handle 320amps. <- More than I would ever need.

    The 10 position will not even be close to maxed out with my power needs and plans.

  5. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    Some that was in my build thread



  6. Glueman

    Glueman Yersinia pestis

    Joined:
    Dec 27, 2012
    Member:
    #93882
    Messages:
    906
    Gender:
    Male
    Utah
    Vehicle:
    The Black Death
    6 inch Pro Comp lift, Pro Comp traction bars, Pro Comp IFS skid plate, Amp step bars, TRD cat back exhaust, TRD cold air intake, Custom thin lip Satoshi, BAMF light bar with 20" CREE LED lightbar, LED hood lights with Relentless brackets, OTRATTW switches, Aux. fuse block and 100 amp breaker, Relentless bed bars with Yakima Megawarrior rack, LED interior lights, halogen reverse lights, lighted 4WD selector switch, Redline Elite hood struts, Blitzpro 6" led bars as rear lights (bedrack mounted), BAMF LCA skids, Relentless Hi-Lift mounts, 60" Hi-Lift Extreme, Stainless steel extended brake lines, slotted and cross drilled rotors, 50 inch radius LED light bar with Relentless mounts and lots of other small crap.
    :popcorn: That is some clean looking shite right there!

  7. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    I'm always looking for cleaner ways to do things. Was waiting for Blue sea to get into the off road accessory market like this. Got tired of waiting. Then I got to see the blue sea fuse block with neg bus, spod, and an rfrm all at the same time. Made my mind up quickly. Really was surprised more people haven't mentioned them here before.

    a search turned up only a couple hits on here.

  8. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    Found this link too on here.

    http://www.tacomaworld.com/forum/1s...sman-fuse-holder-late-model-1st-gen-taco.html


  9. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    Here is one where they modified the bottom for a 3rd bus/ negative bus.


  10. Rebelimo

    Rebelimo Well-Known Member

    Joined:
    Apr 29, 2014
    Member:
    #128766
    Messages:
    984
    Gender:
    Male
    First Name:
    Jason
    Coatesville
    Vehicle:
    08 4x4 Silver streak Limo
    Subbed

  11. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    some insight


  12. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male

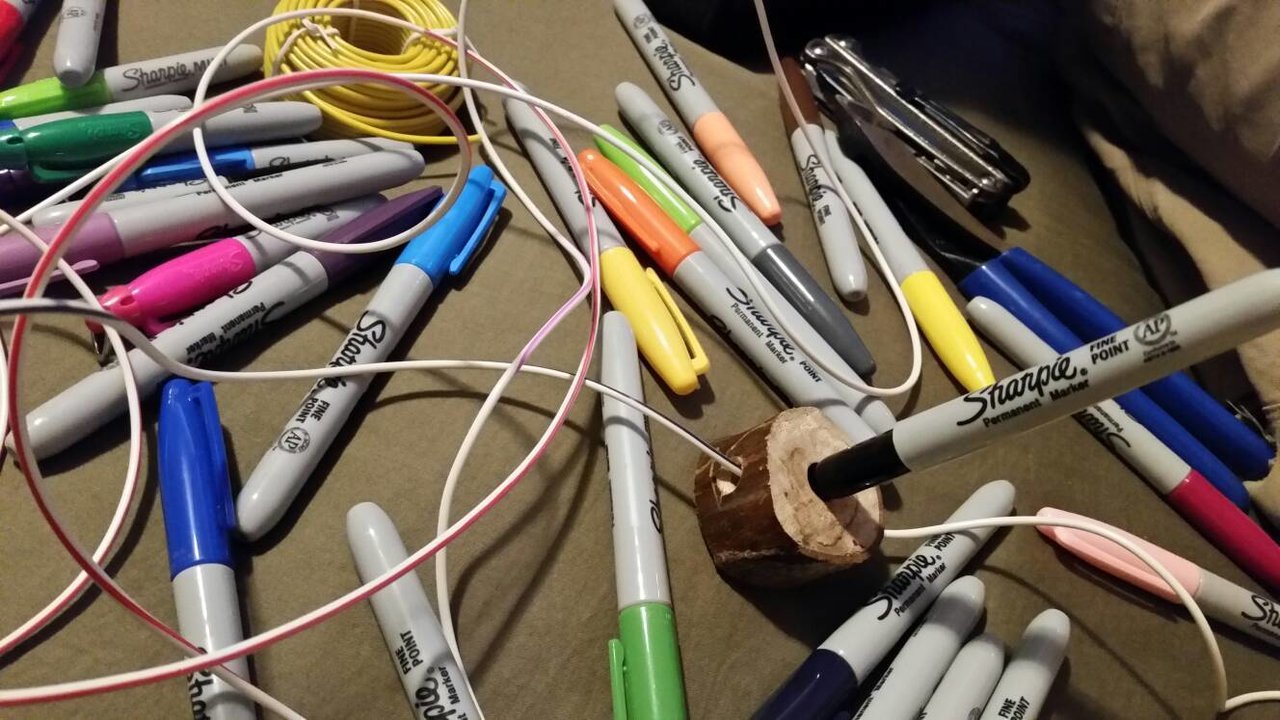

    Getting down with color

    [​IMG]

  13. Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,551
    Gender:
    Male
    I'm digging this..

  14. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male

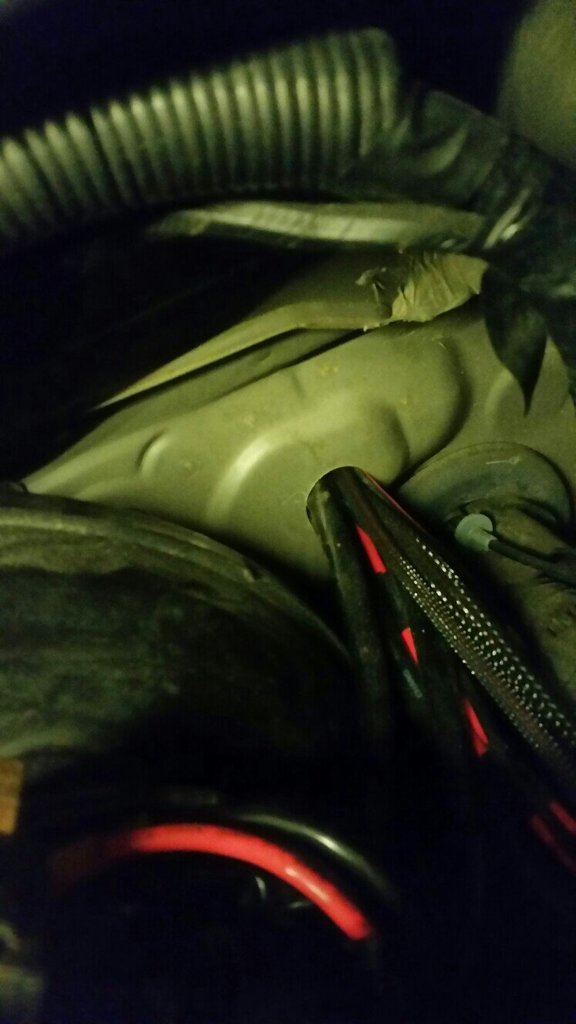

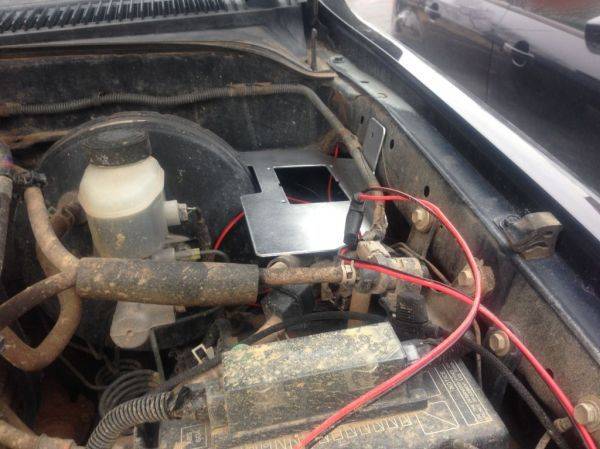

    In process

    [​IMG]

  15. tbturner47

    tbturner47 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35484
    Messages:
    1,135
    Gender:
    Male
    First Name:
    Travis
    Lenoir, NC
    Vehicle:
    '07 Indigo Ink Off Road
    Supercharger
    ^genius

  16. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male

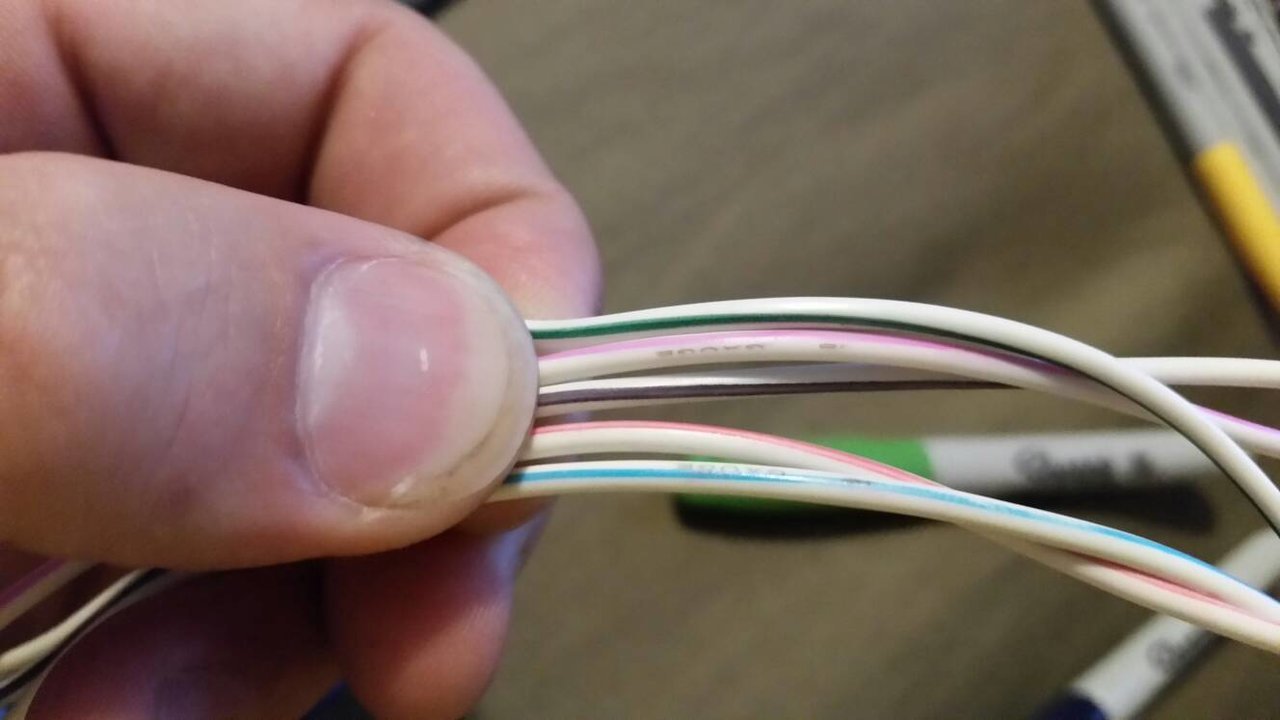

    Proof.

    [​IMG]

  17. smith945

    smith945 Member

    Joined:
    Mar 19, 2013
    Member:
    #100081
    Messages:
    23
    Gender:
    Male
    South East Massachusetts
    Vehicle:
    2012 Off Road Dbl. cab
    OME at the corners Dakars at the back, Total Chaos UCA's, Leer cap, Pelfreybilt battery cage
    I'm not really sure what any of that does but that's some pretty cool stuff I'll follow this thread and maybe I'll learn something.

  18. TXGnftr

    TXGnftr Well-Known Member

    Joined:
    May 25, 2014
    Member:
    #130563
    Messages:
    115
    Gender:
    Male
    Texas
    Skygear,
    Curious how you'd wire the isolator without a second batt, wanting 12v ignition? Only allowing power to fuse box when ignition is turned on... :confused:

  19. skygear

    skygear [OP]           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,519
    Gender:
    Male
    I have an additional 500amp Isolator I could drop in there for the install. Also i do have dual batteries. Currently using the Blue Sea ML-ACR (ML-ACR Automatic Charging Relay with Manual Control - 12V DC 500A) and could wire into that without a problem. Since they are all switched though. I was just going to leave it hooked to constant power so I could operate them with the truck off.

    The way I would hook it into the ACR would be to just attach a second lug to the output side of the relay and attach the other end of the lug/wire to the positive side of the RFRM. That would still give me always on power but have it isolated from the main battery. <- In reality though. I am tapped into the second battery for the accessories as it is. SO this just isn't needed at this point. It already IS isolated.


    For anyone that does want this as an ignition on/ off circuit. You just tap into the accessory wire from the ignition under the hood and wire up an 200amp-250amp relay (used this number since the maximum rating for the 10 position RFRM is only 200amps[100amps per bus x 2], you generally want a little higher than the highest rating.). then of course, a terminal/ lug off the battery to the relay, on the in side, and a second one on the out for the power source to the RFRM. <- I believe that this is the method that SpeedRye used.

    Last edited: Jul 2, 2014
  20. nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,848
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Rear cage and longtravel dmz kit. 16" triple bypass shocks. Front under construction at Trac Performance.
    Sub! I need a cleaner way to wire all my stuff
