Rigid Ignite Install

Discussion in '3rd Gen. Tacomas (2016+)' started by OdiN1701, Mar 3, 2018.

  1. Mar 3, 2018 at 7:59 PM
    #1
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    So I got my Ignite lights installed today. I went with the diffused ones.

    Pretty simple. I cut a template out of both the light itself and the flush mount piece from the thick paper stock that the lights had inside the box.

    Lined things up on the back side to make sure that there would be room and then used an awl to poke through the center.

    Once I had that hole, I drilled out the hole with a bit from my hole saw setup. I used the bit to go through the center of the template and outline where the lights would go.

    Here's the outline:


    I used the hole to measure several spots and then get it in nearly the same spot on the right side, drilled a hole and outlined there as well:


    Next, I used a 1 1/2" hole saw (install says 1 3/4" but that's technically a bit large though it would work just fine).


    That left me with this:


    I then used a dremel to trim the rest to size and make sure the light fit. I know someone else made this smaller and wedged the light in and didn't use the bolts on the cover of the flush mount piece. I wouldn't recommend that as they could still come out (well possibly move, just held by the wings so didn't seem good to me) . So I drilled holes for the bolts and installed them.

    With where I put them, I also had to dremel away a portion of the backing piece that is behind this bumper part. Not a big deal. The bolt wasn't long enough and I didn't want to try to find matching ones that were longer so I just did that.

    Left side installed:


    Both installed:


    I recently installed ditch lights and used the 3-panel switch plate that replaces the cubby. While I had that open, I wired up all three switches that I put in there and brought the wires into the engine bay. There is one left for when I get a roof rack and light bar.


    And here's the output. Not the best as my driveway is at an angle so it is shooting down some:


    Last edited: Mar 3, 2018
  2. Mar 3, 2018 at 9:21 PM
    #2
    aaronarakaki

    aaronarakaki Well-Known Member

    Joined:
    Jul 25, 2016
    Member:
    #192913
    Messages:
    164
    Gender:
    Male
    Vehicle:
    2016 SR 4x4 v6
    Can you take a pic of your radio with it in reverse? To see if by chance there is a change in the viewing due to the extra brightness put out by the lights.

  3. Mar 3, 2018 at 9:26 PM
    #3
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I will try to do that. I have upgraded reverse lights too so I can do one with the Ignites on and one off.

    aaronarakaki likes this.
  4. Mar 3, 2018 at 9:29 PM
    #4
    Rob Daman

    Rob Daman The Taco Formerly Known as Hard Shell Taco

    Joined:
    Mar 3, 2017
    Member:
    #212255
    Messages:
    5,844
    First Name:
    Rob
    So Cal
    Vehicle:
    17 OR 6MT
    a lot
    Thanks for sharing your diy.

  5. Mar 3, 2018 at 9:48 PM
    #5
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    So the picture doesn't really reflect the light correctly.

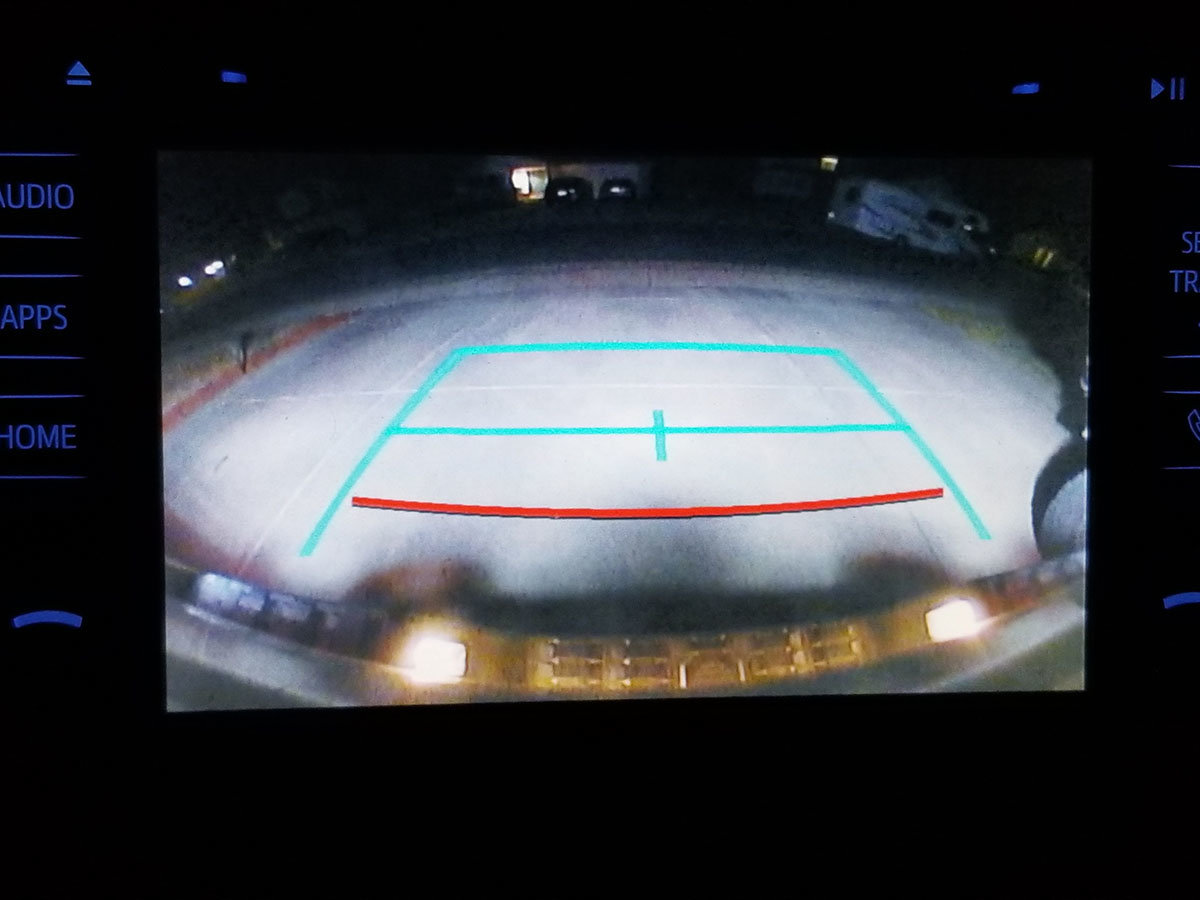

    Reverse lights only:

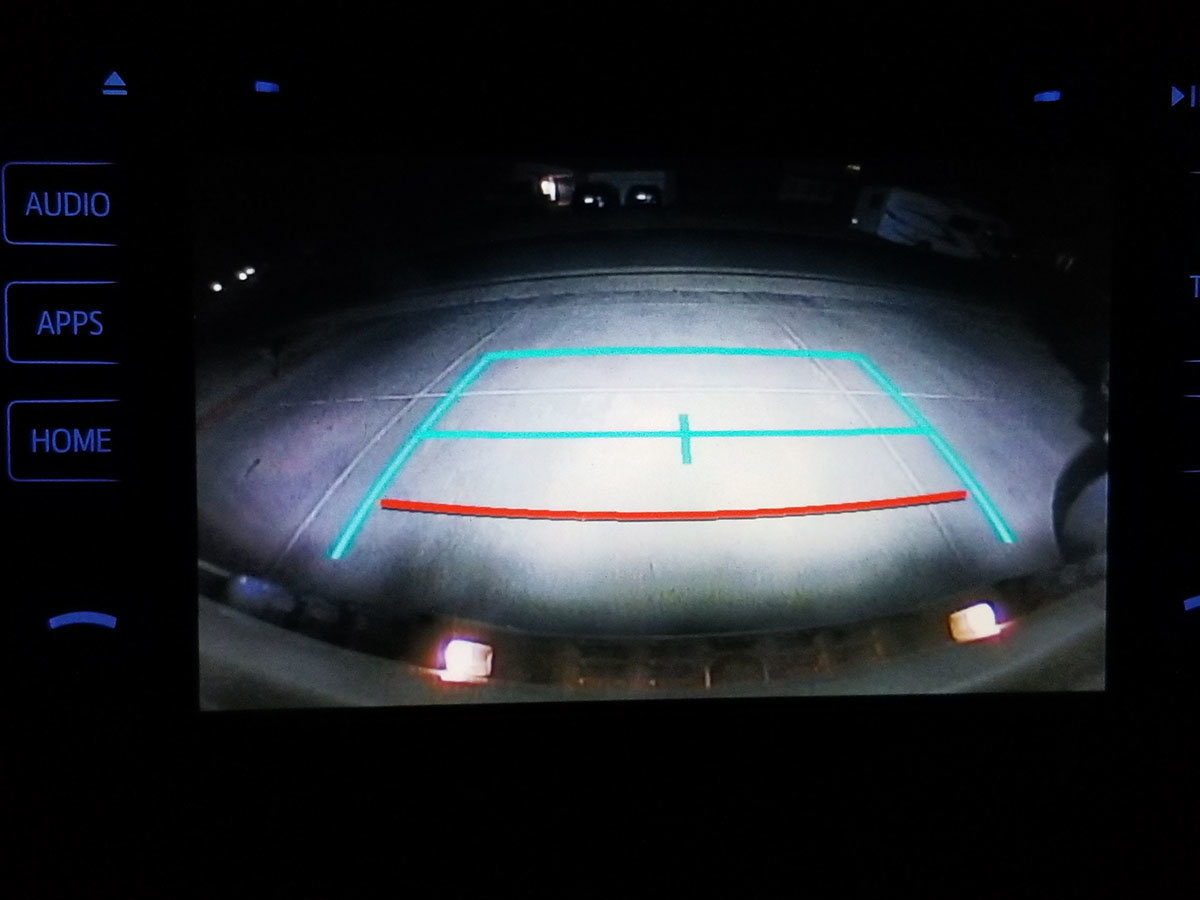

    Reverse lights + Rigid Ignite:


    It looks like it's worse with the Rigid's, but as soon as they come on, the LCD gets completely readjusted light wise. If you look at the license plate lights you can see they look TONS brighter in the reverse only light image vs. the ones with the Rigid. So this doesn't really show the light output well.

    I don't necessarily intend to use them for reversing except when off road. They are also more for lighting up camping areas without being ridiculously obnoxious.

    BTW I use these for reverse lights:

    https://www.amazon.com/dp/B00K3GBRQ2

    Bascoma, Cole man and aaronarakaki like this.
  6. Mar 14, 2018 at 7:55 AM
    #6
    Bascoma

    Bascoma I smell dog poop.....

    Joined:
    Sep 13, 2017
    Member:
    #229871
    Messages:
    452
    Gender:
    Male
    First Name:
    Jake
    Deep Creek VA
    Vehicle:
    S/C 2017 OR MT
    Magnuson Supercharger TRD Bilstein 6112/5610 w/ Head Strong 3 leaf AAL URD Mark 2 Y Pipe OV Tuned (pre Magnuson install) TRD Intake TRD Exhaust TRD Skid Plate TRD Shift Knob Leer 100XR Subaru Kicker Tweeters Toyota Bed Mat Kicker CS Door Speakers Kicker H8S Hideaway Sub Toyota All Weather Floor Liners Caliraised LED Bumper Light Bar De Badged Tint Console Organizer CMC with BAMF Plates 17” SCS Ray 10’s 285/70r17 Ridge Grapplers Faux PRO Grille Hondo Radio Knobs Accumulator Delete Mod URD Short Throw Shifter JLT Oil Separator MESO Ultimate Turn Signals MESO Map Lights MESO V2 Dual Color Dome Light
    Did they come with all the necessary wiring and relays?

  7. Mar 14, 2018 at 7:57 AM
    #7
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Nope. They come with a length of wire attached. You need to run all the rest. I just got a generic wiring harness, used relays that I already had and some wire loom and lots of extreme temp zip ties.

    Bascoma likes this.
  8. May 14, 2018 at 11:14 AM
    #8
    xxtavixx

    xxtavixx Well-Known Member

    Joined:
    Dec 24, 2017
    Member:
    #239261
    Messages:
    479
    Gender:
    Male
    Jacksonville fl
    Vehicle:
    2018 6MT
    ARB rear locker OVtune Mobtown sliders Core-shifter short throw Trd bro-phony grill Caliraised bumper light bar Caliraised ditch lights Rigid ignite back up lights FN Five Star 16x8 Et0 255/85/16 cooper st maxx MesoJDM fuse box cover MesoJDM led interior lights Bilstein 6112 fronts Bilstein 5100 rears Headstrong 3 aal Toytec 3* shims Mesjodm dome and map lights Diode dynamix ss3 pro yellow Mobtown aluminum front skid 2lo mod SOS front recovery point
    So glad I found this! I am actually planning on doing this - never heard of the ignite until this post, and they seem to be a much better solution than what i had in mind. What did you find to be the best route for the wiring?

    Super awesome looking, thank you for sharing!

  9. May 14, 2018 at 11:16 AM
    #9
    Tacoaric

    Tacoaric Well-Known Member

    Joined:
    Nov 21, 2017
    Member:
    #236579
    Messages:
    3,299
    Gender:
    Male
    Dallas, Texas
    Vehicle:
    King Ranch F250 Powerstroke
    Grab the rigid backup harness. It’s worth the cost. Comes on automatically in reverse, and can switch it manually as well. On/off/auto.

    Bascoma and stealthmode like this.
  10. May 14, 2018 at 11:25 AM
    #10
    blackrifle76

    blackrifle76 Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191022
    Messages:
    546
    Gender:
    Male
    First Name:
    nick
    Louisiana
    Vehicle:
    white 2017 trd sport 4x4 dclb, white 2016 mustang ecoBOSS
    Not to change the subject, but where did you get that hole saw arbor?

  11. May 14, 2018 at 11:25 AM
    #11
    xxtavixx

    xxtavixx Well-Known Member

    Joined:
    Dec 24, 2017
    Member:
    #239261
    Messages:
    479
    Gender:
    Male
    Jacksonville fl
    Vehicle:
    2018 6MT
    ARB rear locker OVtune Mobtown sliders Core-shifter short throw Trd bro-phony grill Caliraised bumper light bar Caliraised ditch lights Rigid ignite back up lights FN Five Star 16x8 Et0 255/85/16 cooper st maxx MesoJDM fuse box cover MesoJDM led interior lights Bilstein 6112 fronts Bilstein 5100 rears Headstrong 3 aal Toytec 3* shims Mesjodm dome and map lights Diode dynamix ss3 pro yellow Mobtown aluminum front skid 2lo mod SOS front recovery point
    Also - does that FJ Cruiser switch fit in the caliraised panel? If so, where did you source that?

  12. May 14, 2018 at 11:48 AM
    #12
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    On our trucks the passenger side is easier to route along the truck because you don't have to deal with the gas tank. But I've already ran other stuff over there too so I ended up routing up the driver side. It doesn't really matter. Use high temp zip ties and plenty of them to keep things tight.

  13. May 14, 2018 at 11:49 AM
    #13
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
  14. May 14, 2018 at 11:49 AM
    #14
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Uhm...I don't have an FJ Cruiser switch so I'm not sure what you mean? And I also don't have anything from Caliraised so I wouldn't know even if I did.

  15. May 14, 2018 at 11:53 AM
    #15
    xxtavixx

    xxtavixx Well-Known Member

    Joined:
    Dec 24, 2017
    Member:
    #239261
    Messages:
    479
    Gender:
    Male
    Jacksonville fl
    Vehicle:
    2018 6MT
    ARB rear locker OVtune Mobtown sliders Core-shifter short throw Trd bro-phony grill Caliraised bumper light bar Caliraised ditch lights Rigid ignite back up lights FN Five Star 16x8 Et0 255/85/16 cooper st maxx MesoJDM fuse box cover MesoJDM led interior lights Bilstein 6112 fronts Bilstein 5100 rears Headstrong 3 aal Toytec 3* shims Mesjodm dome and map lights Diode dynamix ss3 pro yellow Mobtown aluminum front skid 2lo mod SOS front recovery point
    Sorry, I apparently opened up two windows and didn't pay attention!

  16. May 14, 2018 at 11:55 AM
    #16
    blackrifle76

    blackrifle76 Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191022
    Messages:
    546
    Gender:
    Male
    First Name:
    nick
    Louisiana
    Vehicle:
    white 2017 trd sport 4x4 dclb, white 2016 mustang ecoBOSS
  17. May 14, 2018 at 12:32 PM
    #17
    navin r

    navin r Well-Known Member

    Joined:
    Feb 10, 2017
    Member:
    #210206
    Messages:
    281
    Gender:
    Male
    Vehicle:
    2017 double cab short bed trd off road 4wd w/ premium pkg.
    Good post Odin, almost identical to my install of 2 rigid ignites, except I wired mine into the factory back up lights, they are definitely very bright for their size, it'd be difficult for someone behind you to say they didn't see you were backing up.

  18. May 14, 2018 at 12:33 PM
    #18
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I think I looked at yours. I wanted to be able to use them while in park for camping and such - unloading gear in the dark.

  19. Aug 20, 2018 at 11:56 AM
    #19
    Hextall

    Hextall Well-Known Member

    Joined:
    Apr 4, 2017
    Member:
    #215330
    Messages:
    1,080
    NH
    Vehicle:
    17 Inferno OR DCSB
    I installed these last night, and something weird is going on. When the truck is running, the lights work great (I have them wired through my switch pro).

    But when the truck is off, I can turn them on (setting on switchpro), and after about 10 seconds or so... they start flashing. I pulled them off hte switchpro and hardwired them to the battery, and same thing. after 10 seconds... flashing.

    Before installing, I chatted with a Rigid rep, and asked about wiring in series or parallel, and was told it doesn't matter. So I wired them up in series. Is this why they are flashing? why after 10 seconds or so? I'm stumped.

    I did make a quick video:


  20. Aug 20, 2018 at 12:00 PM
    #20
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,961
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Strange mine definitely don't do that.
