Rigid light build

Discussion in 'Lighting' started by masterwacker, Nov 25, 2012.

  1. Nov 25, 2012 at 6:28 PM
    #1
    masterwacker

    masterwacker [OP] Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72656
    Messages:
    88
    Gender:
    Male
    First Name:
    Paul
    Orlando
    Vehicle:
    2010 Tacoma TRD Off Road
    TRD Sport hood, TRD Sport paint matched rear bumper and grill, BDF grill light bracket with some Rigids, 40" Rigid roof bar, SPOD, Stereo, Pro Comp Prorunner front strut lift and rear shocks, PXA 7036 Wheels-285/70R17 BFG AT/KOs and some other stuff
    I posted a couple pictures of the Rigid lights that I have on my truck and a lot of you wanted to see how I did it, so here it is...

    I purchased a 40" Rigid E-series light bar to mount on top of my truck. The 40" is almost a perfect fit between the factory roof rack rails and I wanted it to sit down almost on the roof.

    So I cut out some brackets

    [​IMG]


    All I had was some scrap 4" wide steel and I did not feel like buying a new sheet so that is why the brackets don't perfectly follow the profile of the factory roof rack rails. I then used a hole saw to cut out the hole for the tubing that would actually hold the light bar

    [​IMG]

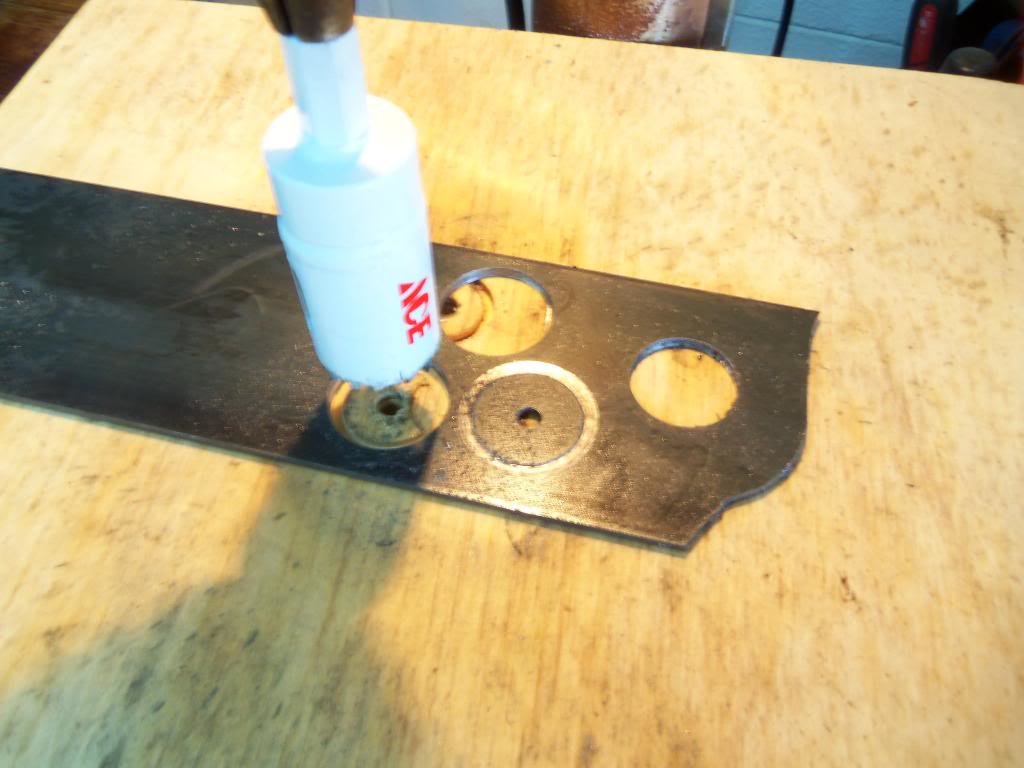

    Next was to cut out the end caps for the tubing. I changed out the drill bit in the hole saw to match the diameter of the Rigid stud so that way the stud would slid through the pilot hole and I could stick a socket down the tubing to tighten the nut on the Rigid light stud

    [​IMG]

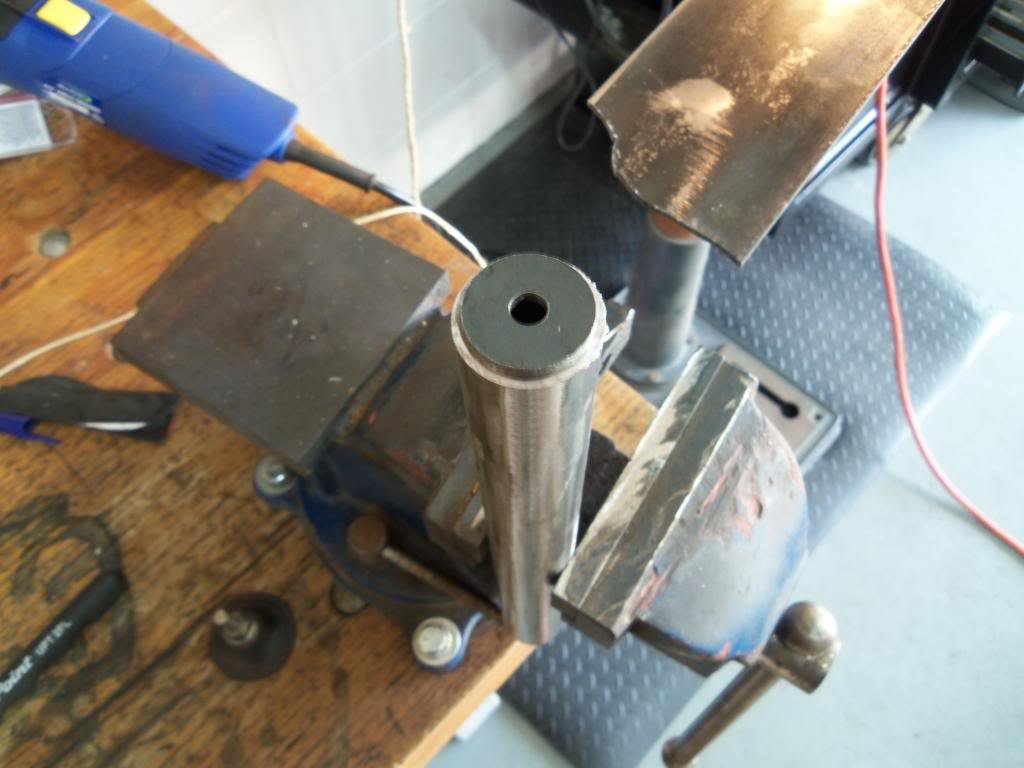

    Ready to weld the cap on the tubing

    [​IMG]

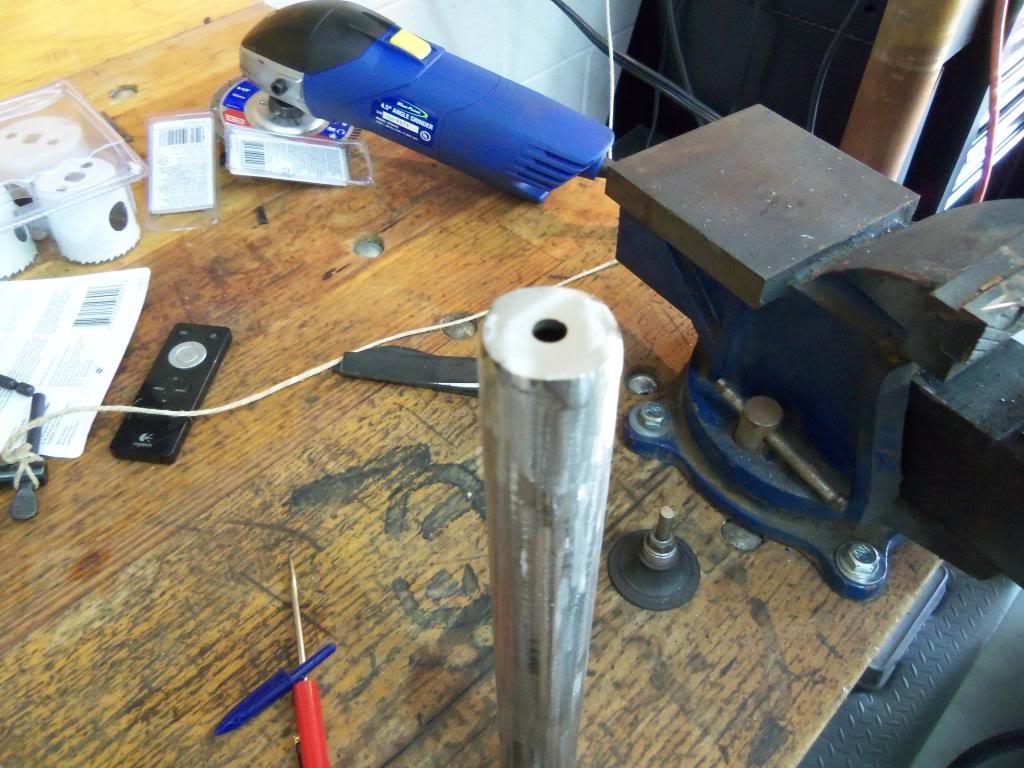

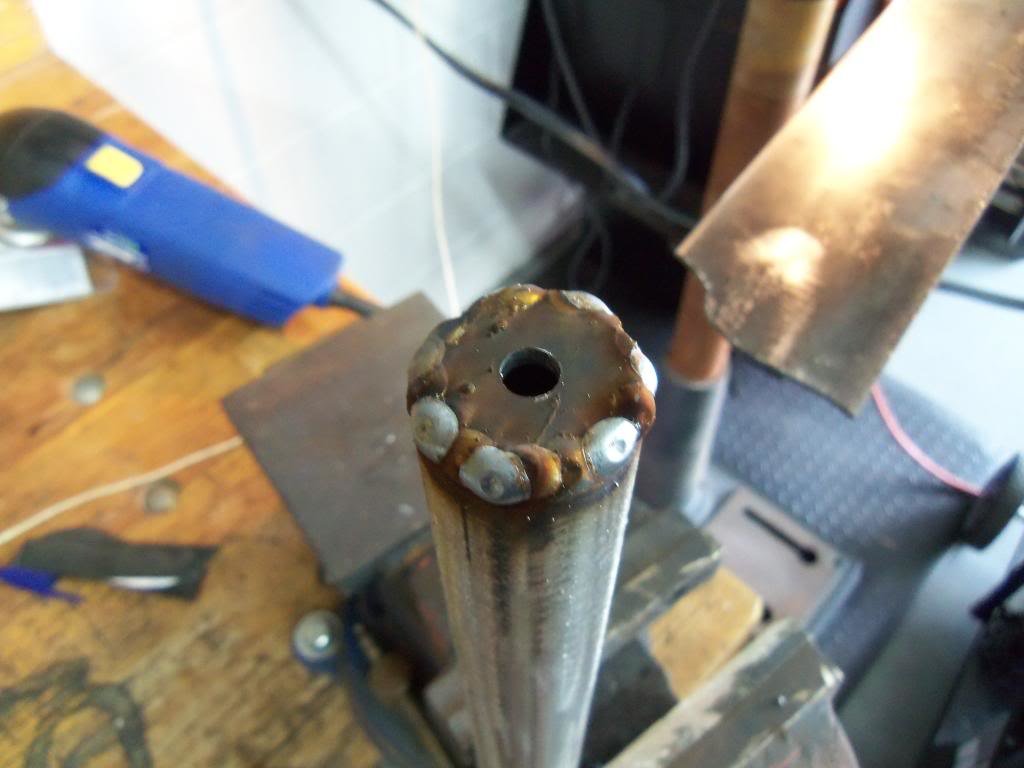

    Cap welded on the tubing

    [​IMG]

    [​IMG]

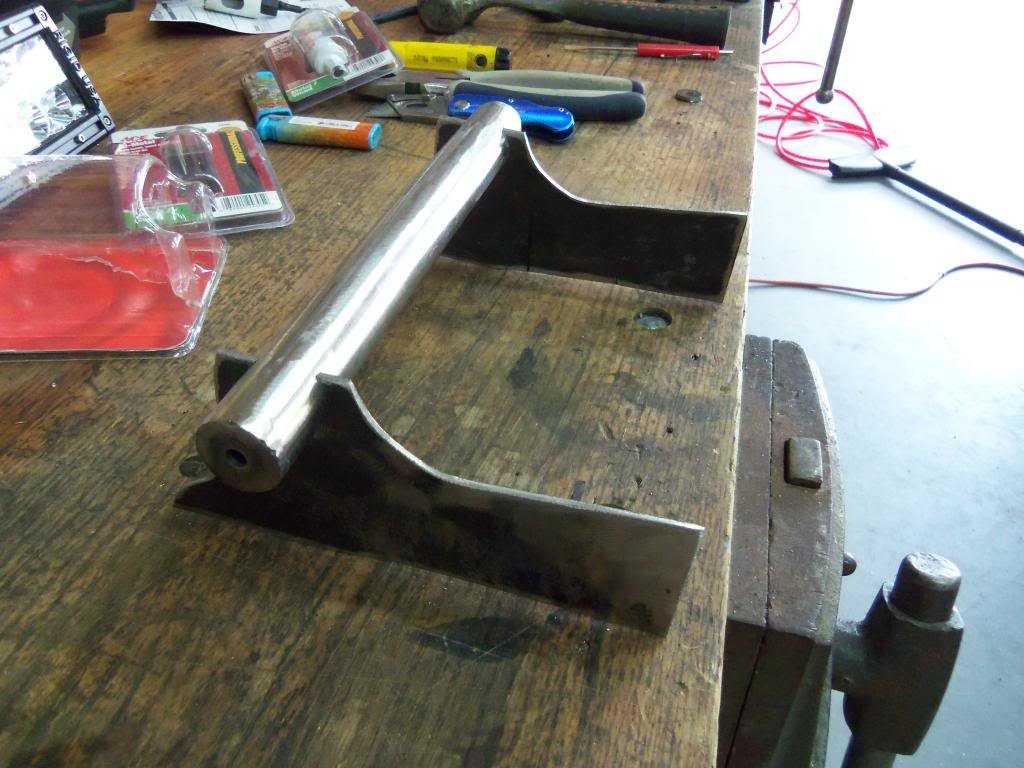

    Caps welded on the tubing on both sides and test fit to make sure the bracket holes would line up. That is why I welded the caps on both sides of a piece of tubing even thought the actual piece of tubing would be much smaller.


    [​IMG]

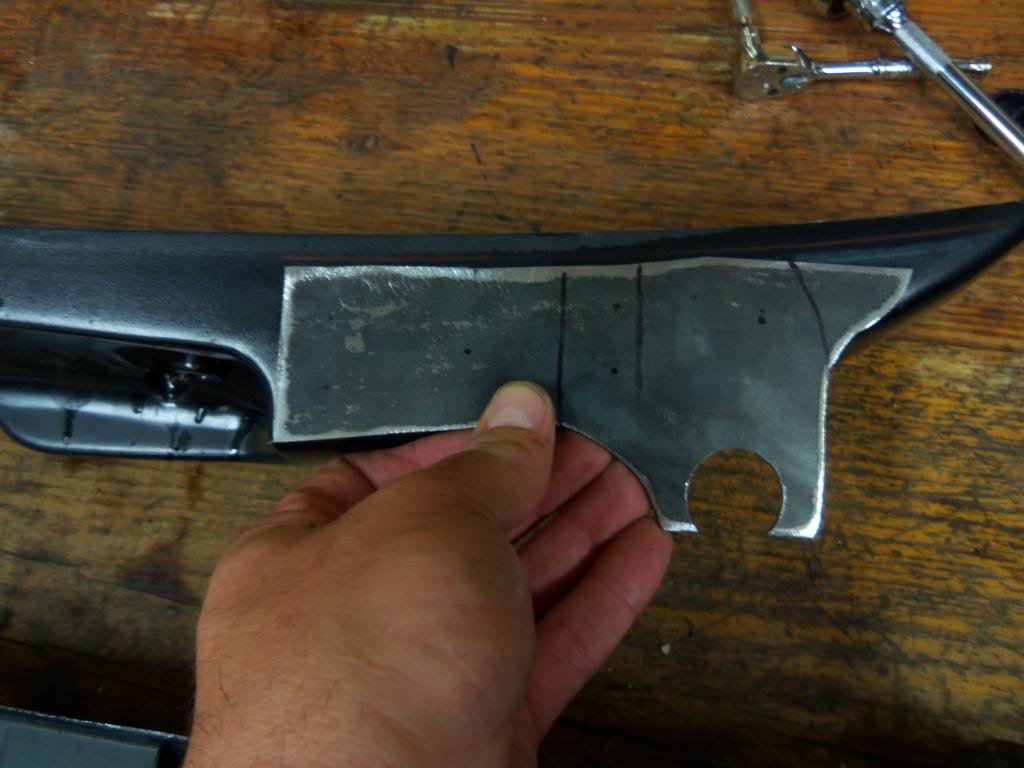

    Now it was time to fasten the main bracket to the factory roof rack rails. I removed the rails and put them on my work bench and determined where the holes needed to be on the bracket. Marked and drilled them out. Then I transferred the pattern to the rails.

    [​IMG]

    [​IMG]

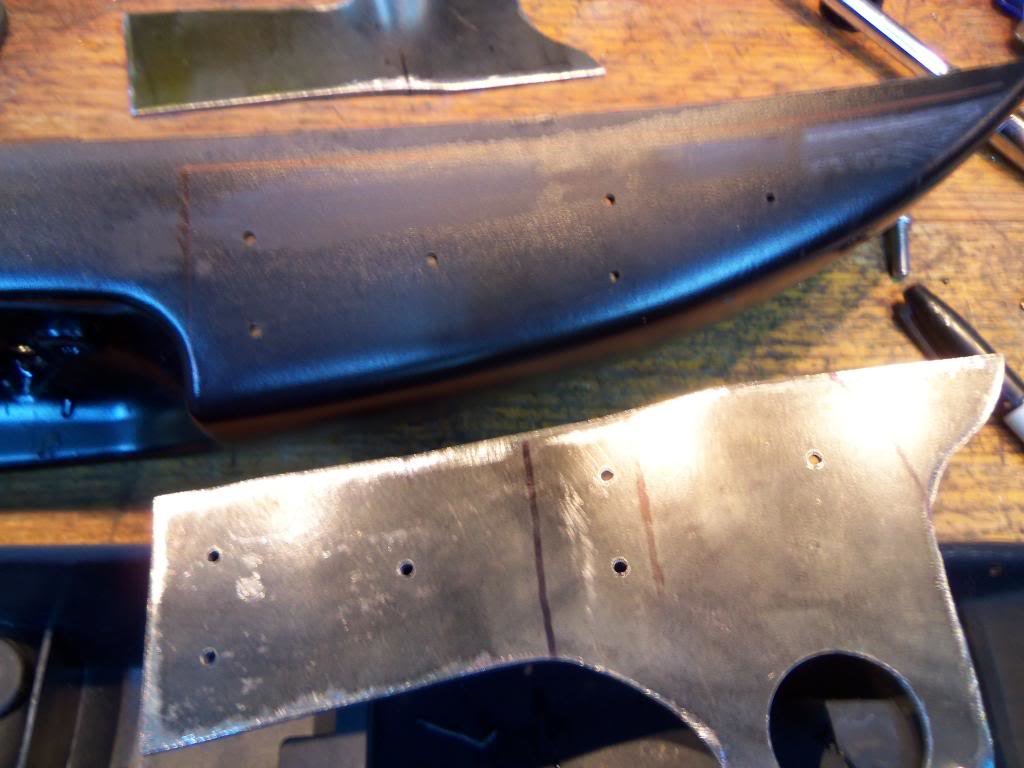

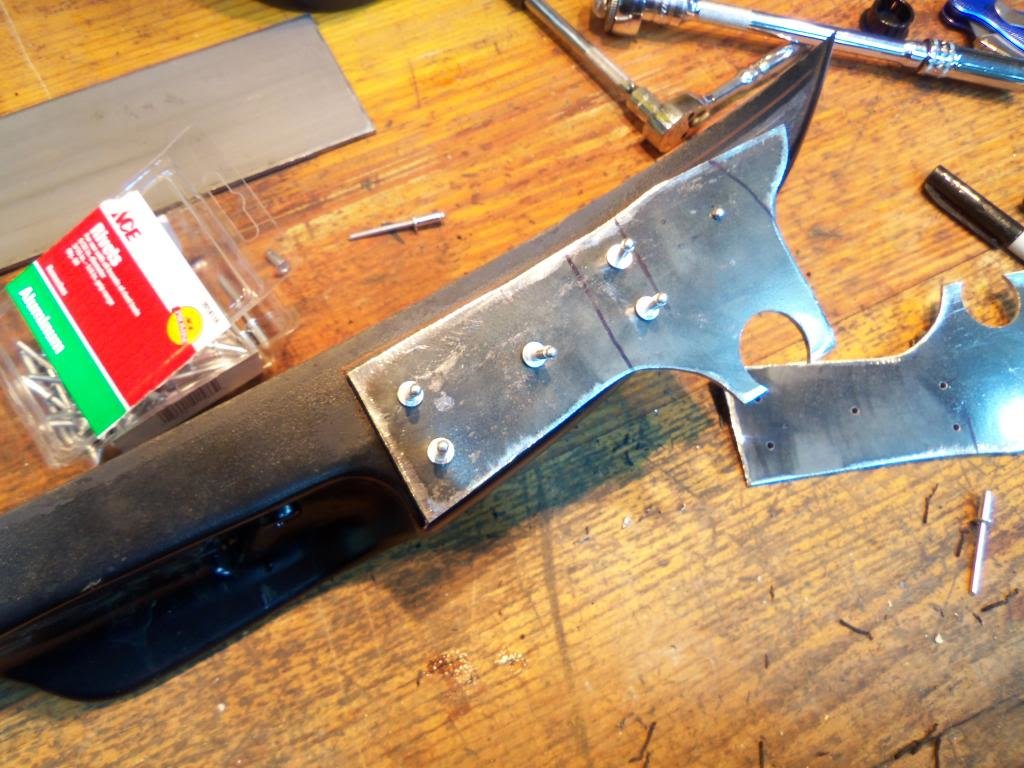

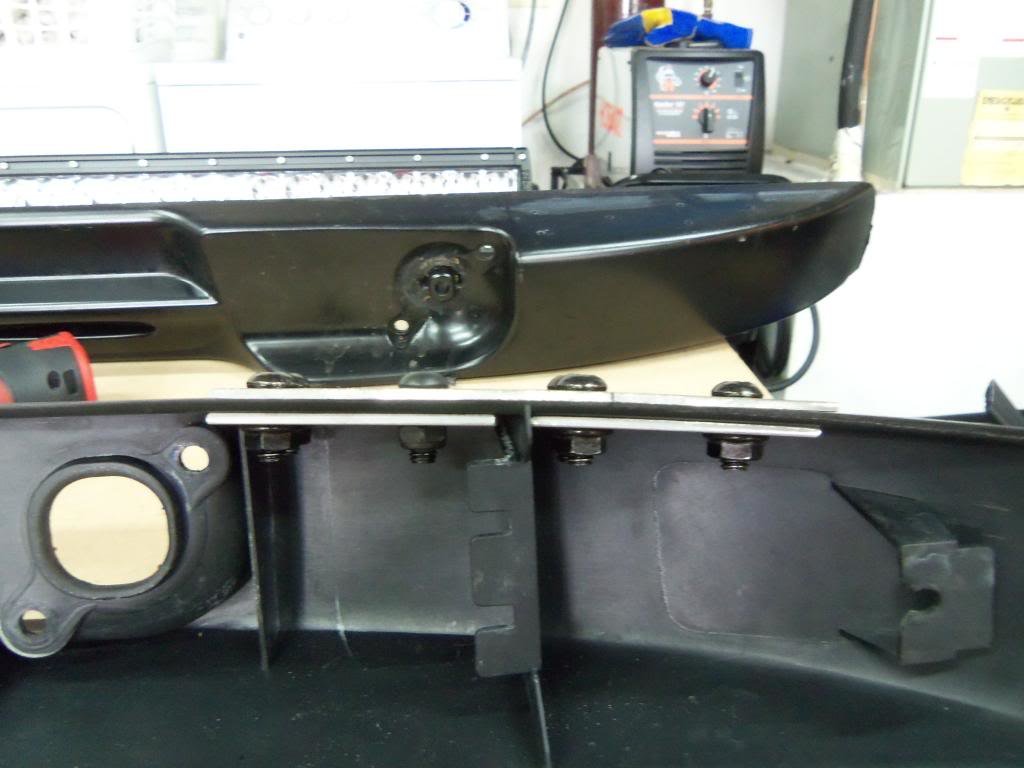

    I did not fasten the bracket with rivets!!! I used the rivets as holders so I could get the measurements to make the (2) backing plates for each side. The reason for (2) backing plates is that there is a plastic rib inside the rail that I did not want to remove as I can only assume this helps the rails retain their rigidity.

    [​IMG]

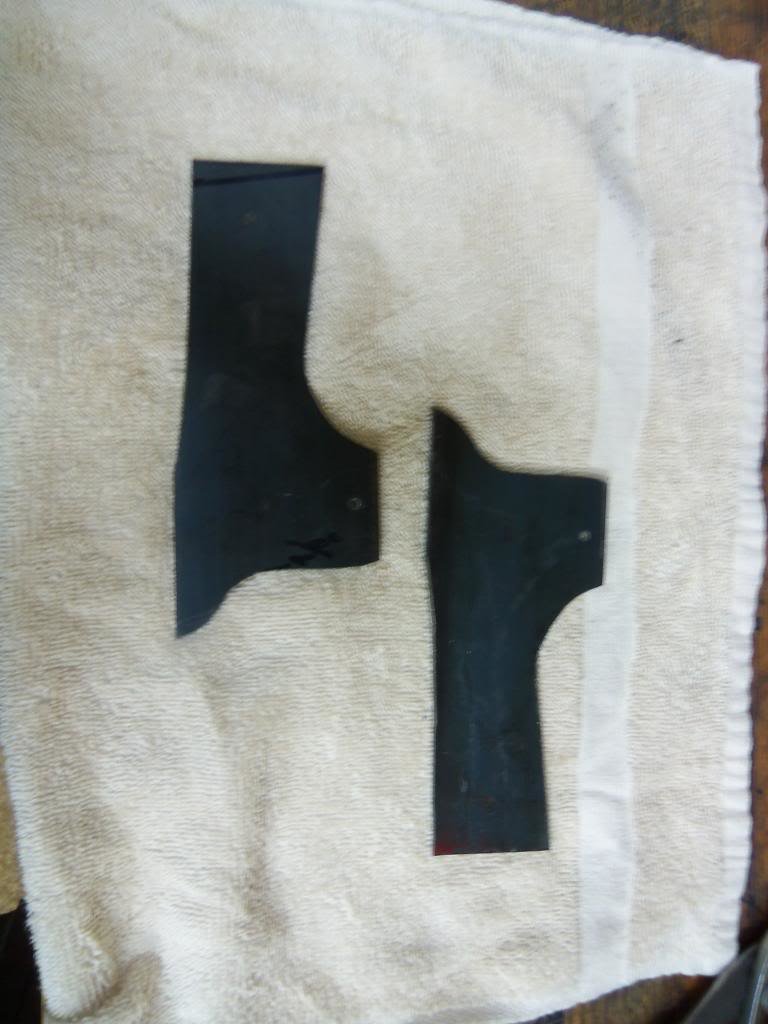

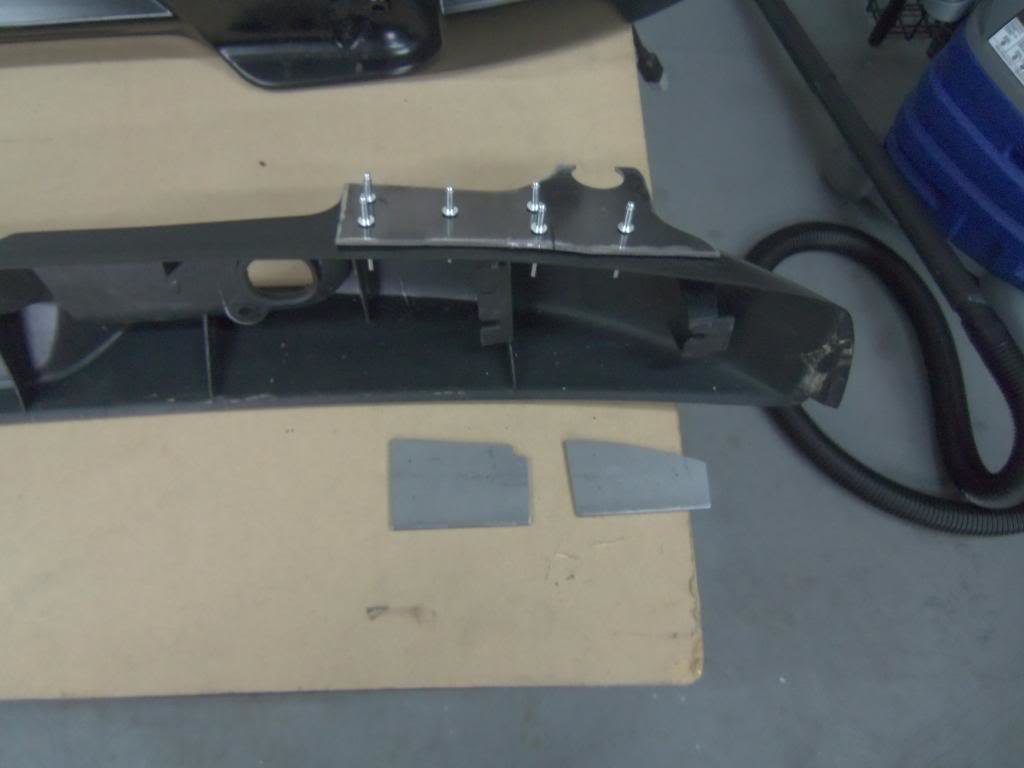

    Backing plates all cut out

    [​IMG]

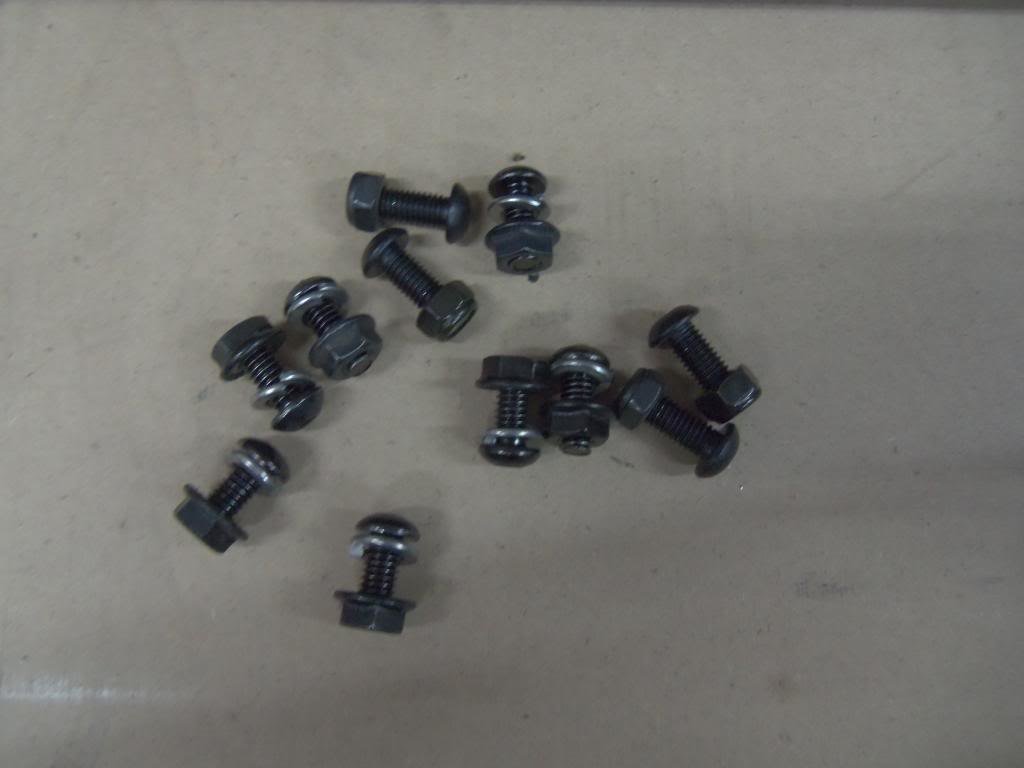

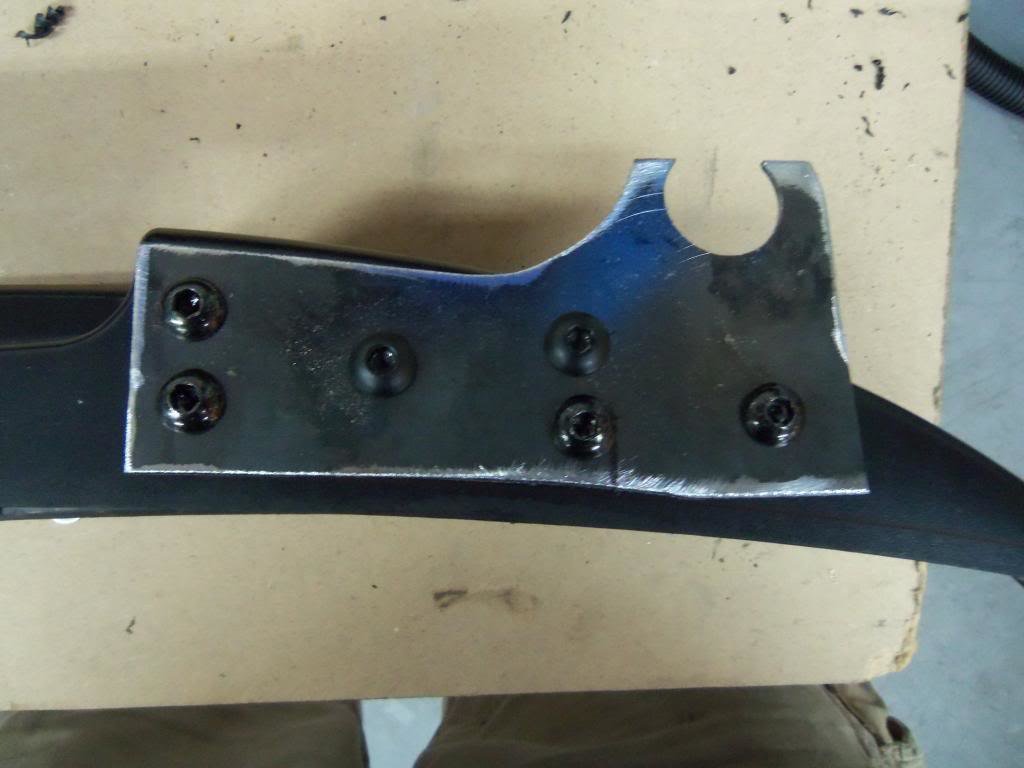

    I used stainless steel allen button head bolts painted black to sandwich the factory rails with the brackets and the backing plates. If you have or have seen the factory roof rails you will understand that prior to doing this I had to make some complex bends in the brackets so that they conformed to the rails perfectly. Otherwise if I did not do this, when I tightened the bolts down I am pretty sure I would have cracked the factory rails.

    [​IMG]

    [​IMG]

    [​IMG]

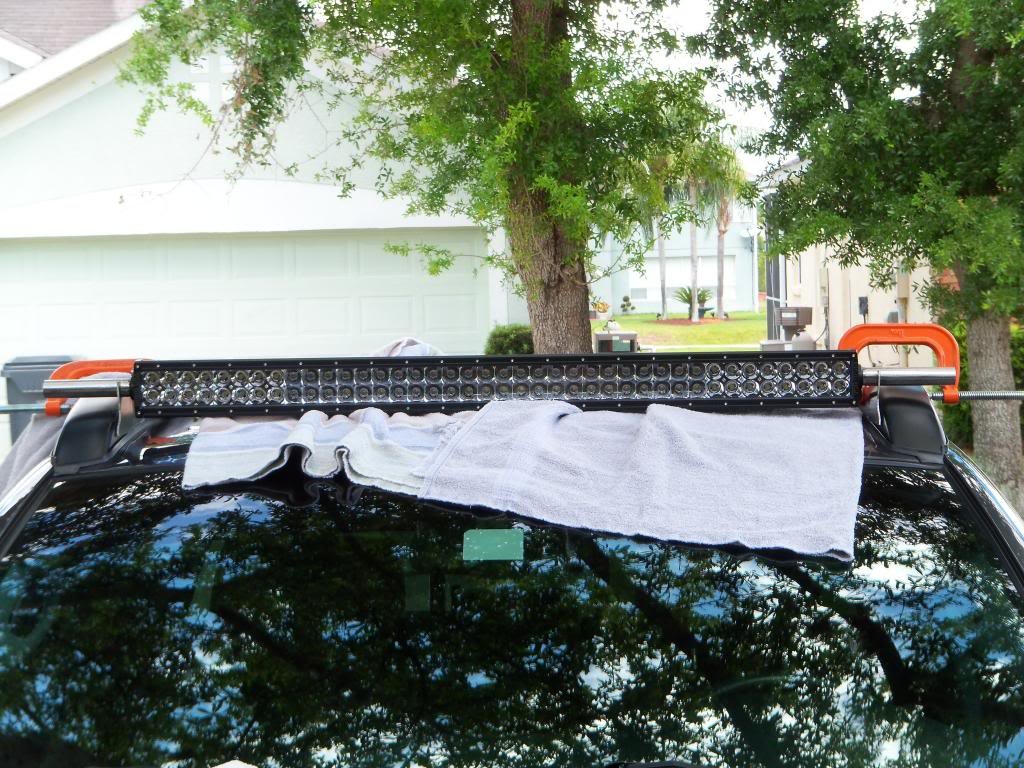

    Now it is time to get the light bar up on the roof and tack the tubing in the brackets. After sliding the tubing into the holes I cut out of the brackets I obviously measured side to side to make sure the light was centered.

    [​IMG]

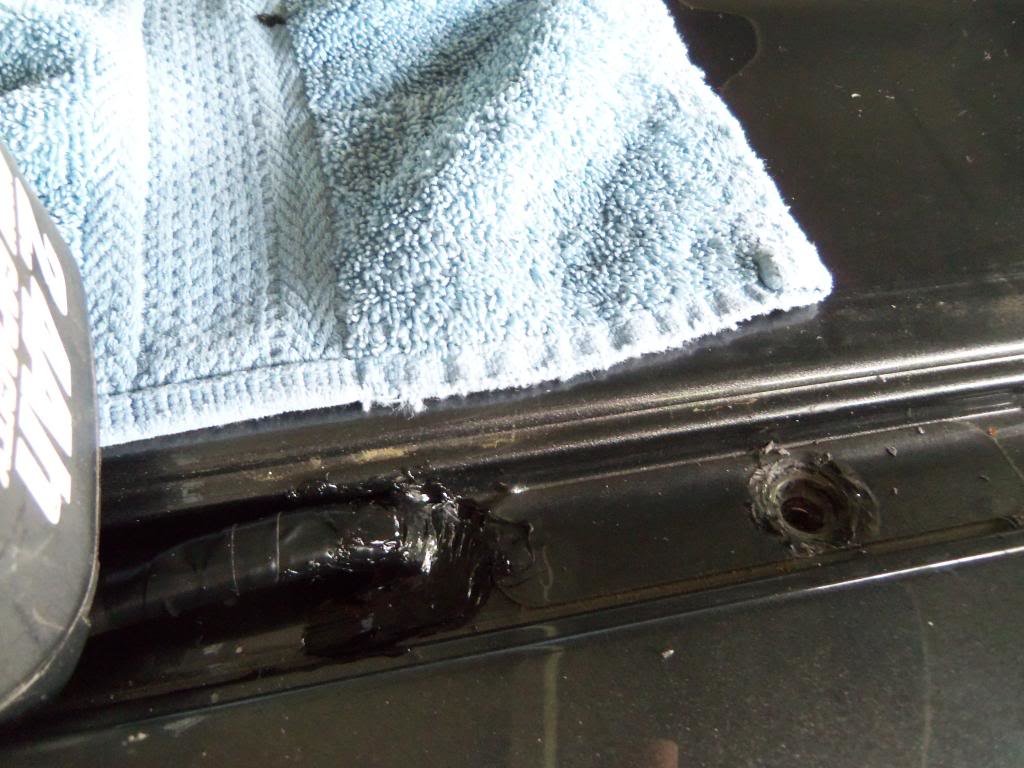

    Next was the wiring. Unfortunately I do not have a lot of pictures of this part. I cut a small slot at the base of the factory rails so I could slide the rigid harness up to a bigger hole I drilled on the side of the rail. The harness was held tightly in place with a grommet then everything was RTV'd. As for running the harness inside I drilled a hole in the roof and used a compression grommet along with RTVing it too. As of now 4 months later and through some massive rains in Florida I have no leaks at all.

    [​IMG]

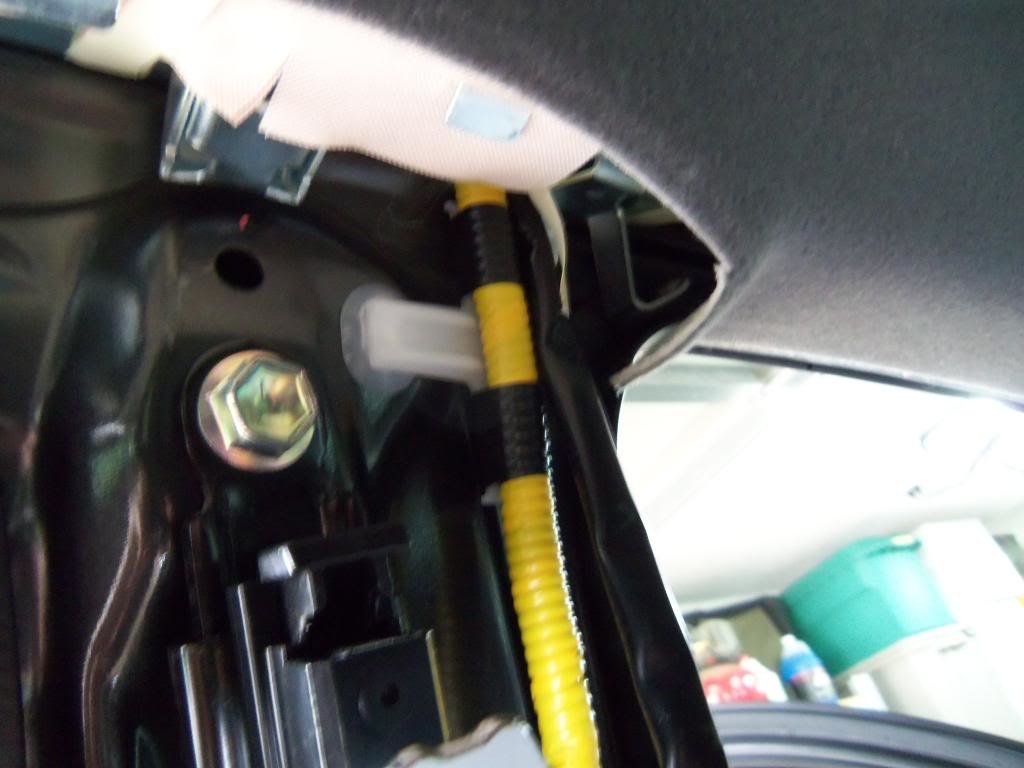

    The I ran the wire down the pillar separating the front and back seat, along the floor and out through the firewall of the truck to my distribution panel.

    [​IMG]

    Here is a couple pictures of my distribution panel called The Source and is made by SPod. This system is awesome!!!!

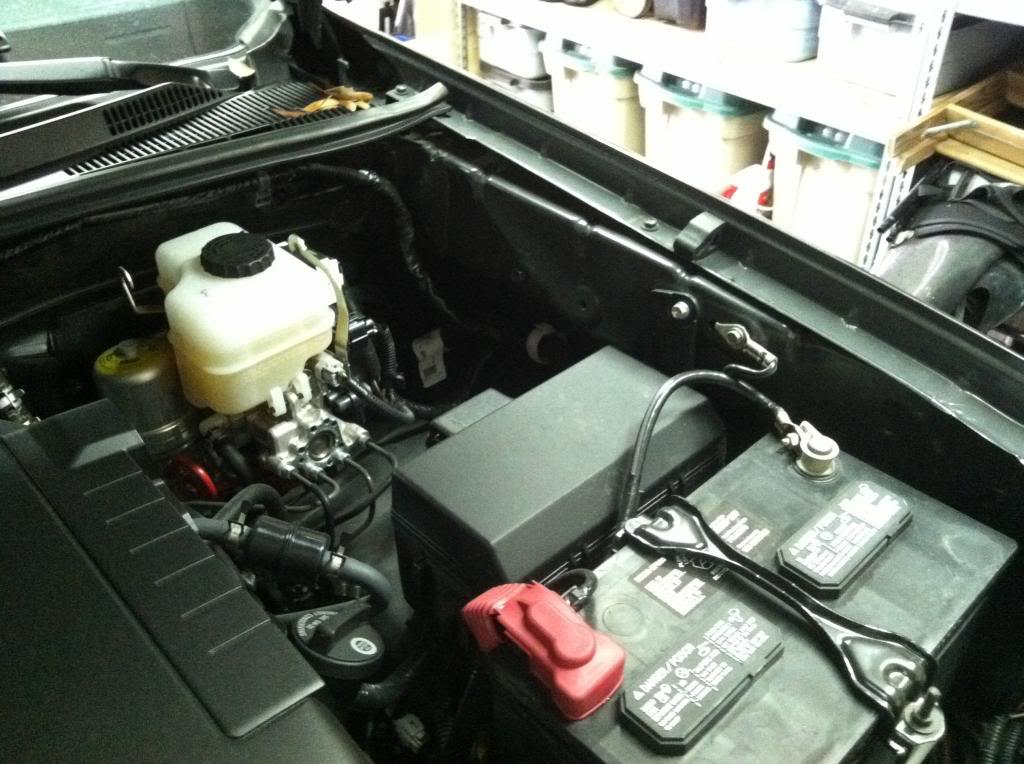

    Location of where The Source is going to be installed

    [​IMG]

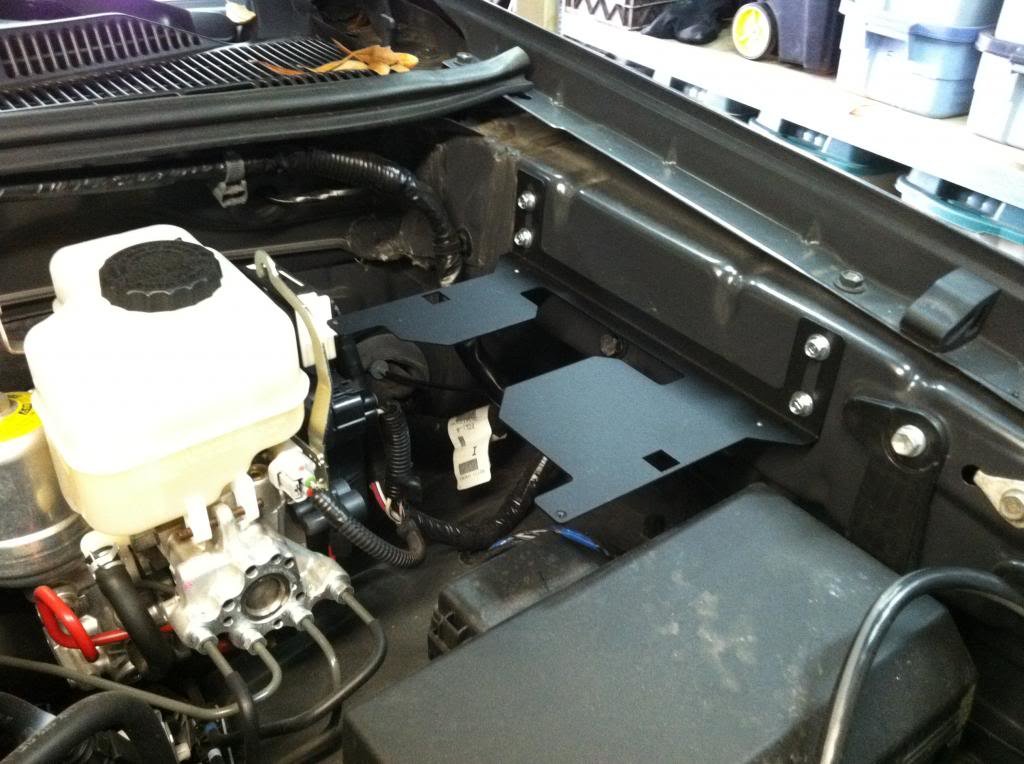

    The mounting bracket installed

    [​IMG]

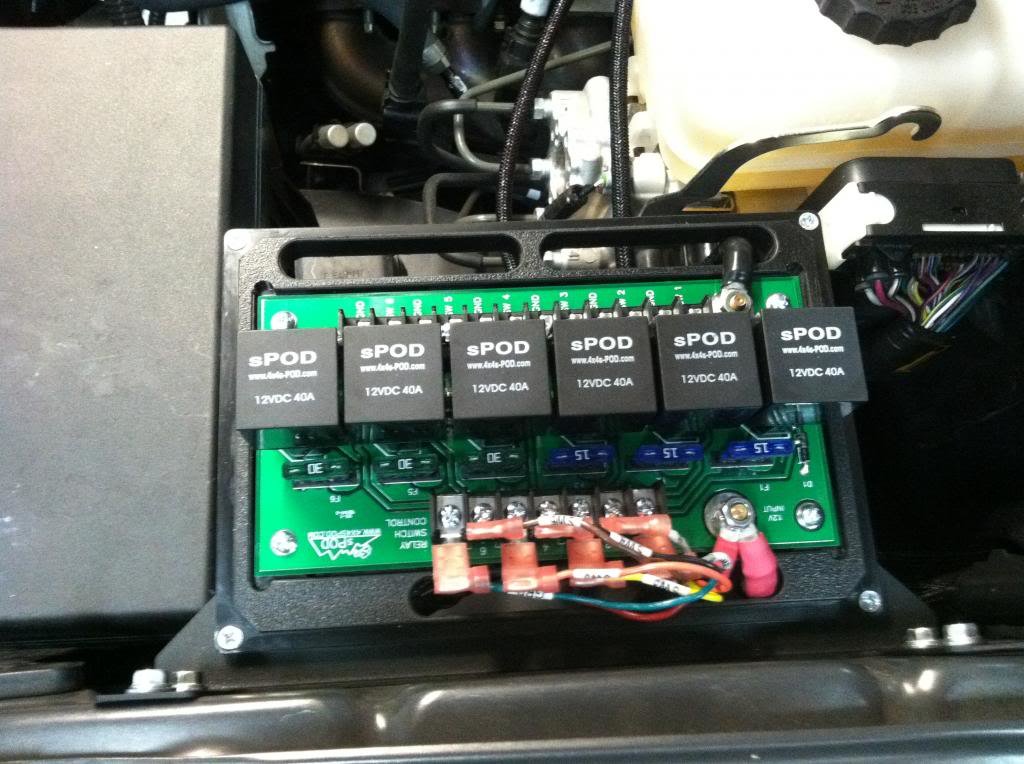

    The Source fastened to the mounting bracket.
    --The wires at the bottom of the pic are the wires from the switches
    --Next up are the fuses for each circuit
    --Then you have the relays for each circuit
    --Then you have the output terminals (+ & -) for each circuit.
    The Source comes with a push button reset circuit breaker


    [​IMG]

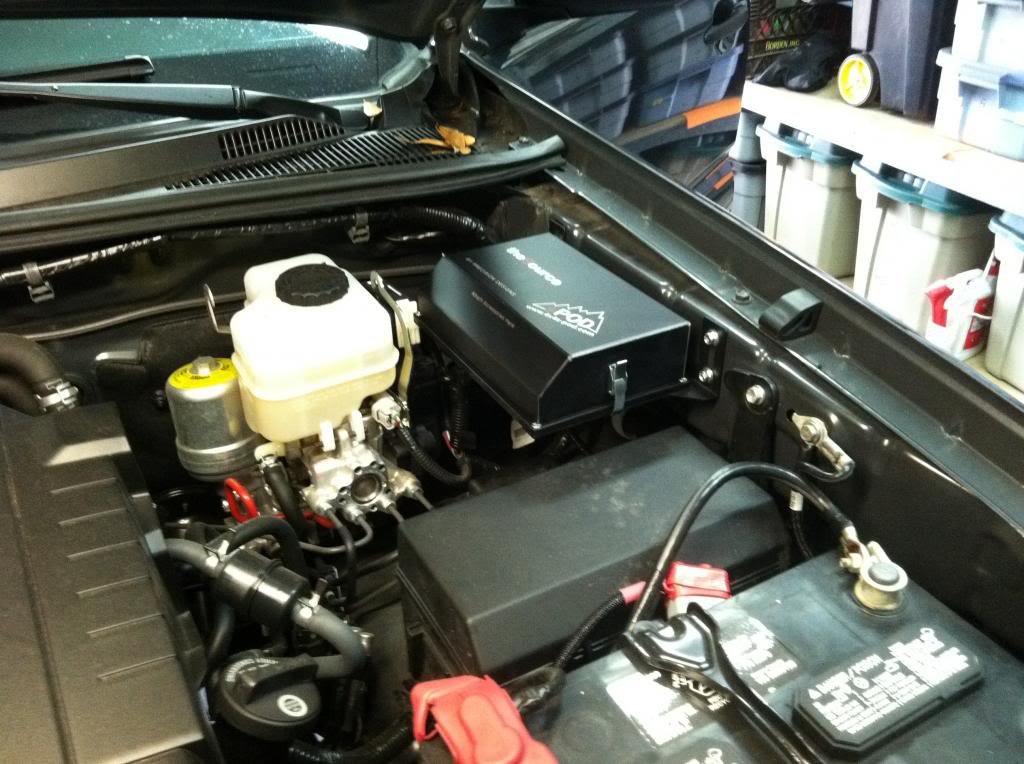

    And The Source even comes with a nice lid to keep crap from getting to all the electrical components.

    [​IMG]

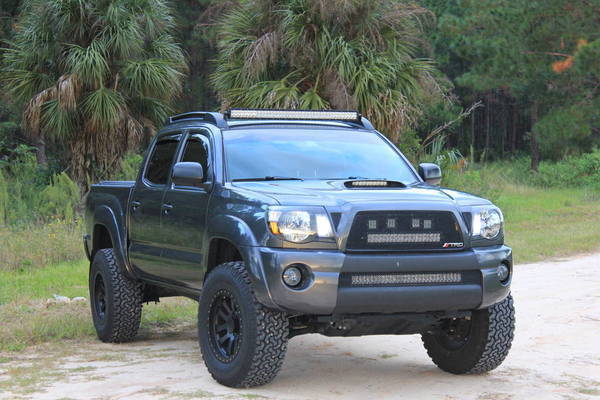

    A later picture of the finished 40" light bar project

    [​IMG]


    Unfortunately I seem to have lost the pictures of how I built the brackets for the 30" light bar in the bumper, but here is a picture that Tim from BDF posted about how he was planning on mounting a light in the bumper. I took his idea and modified it a little bit. This will at least give you an idea anyhow

    [​IMG]


    [​IMG]

    [​IMG]
